Need Help with Freelander TD4 HSE SW 2004
- Thread starter VELZ
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 955
- Location
- Shetland
Which vacuum pipe was it? There are several.

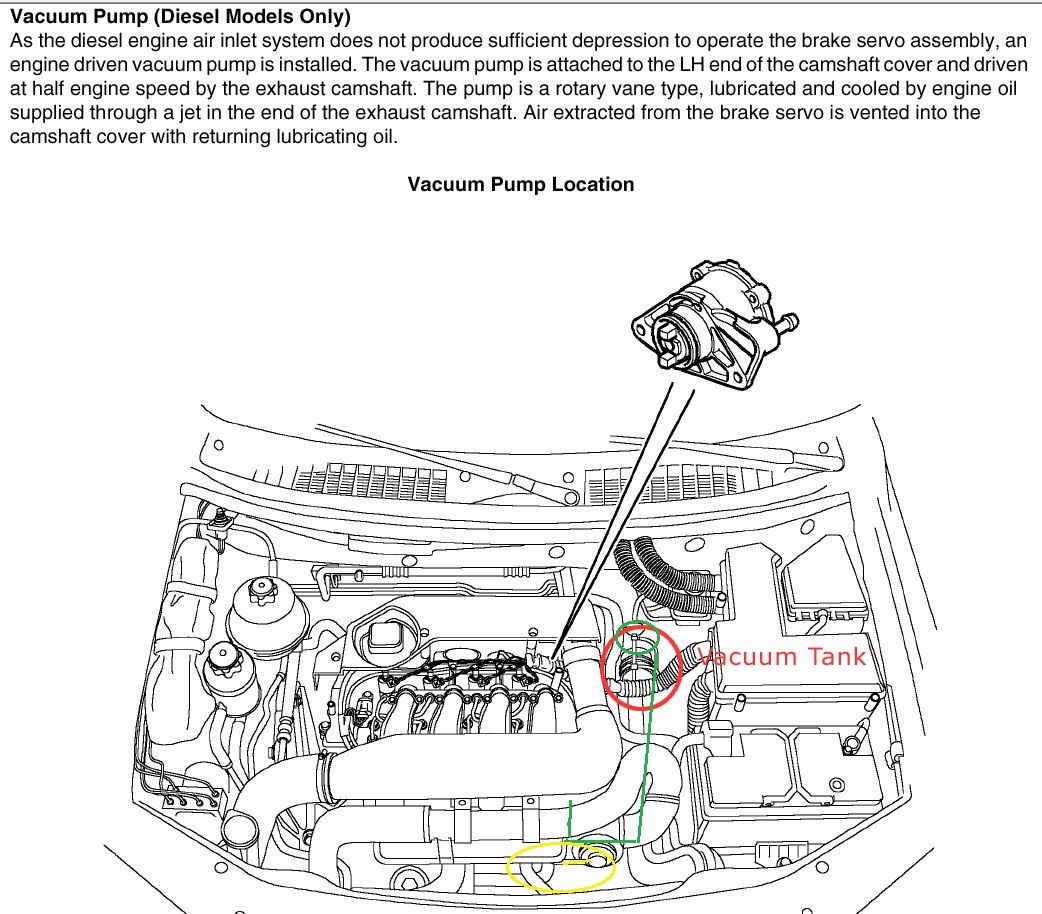

In your pic the pipe was circled in red. the pipe that had a hole in came from like a tee off which I circled in GREEN and highlighted and kind of shown the direction it took under the other pipes.
There was a second pipe coming sat right next to the other end of the pipe that I changed they sort of plug in separate holes beside one and other, I circled and highlighted this in YELLOW. hope this makes sense.
There was a second pipe coming sat right next to the other end of the pipe that I changed they sort of plug in separate holes beside one and other, I circled and highlighted this in YELLOW. hope this makes sense.
Last edited:
- Posts
- 955
- Location
- Shetland
It probably would if I could see the highlighted picture you're talking about. Sounds like the one going to the EGR solenoid.
- Posts
- 955
- Location
- Shetland
Yeah. That one goes to the EGR solenoid. The one you highlighted in yellow is the one that comes from the solenoid to the EGR valve. If you look where you've highlighted in green, but underneath on the very back of the vac tank (the black, bean tin sized thing, remember?), you'll find a really long one that probably goes under the engine cover (removed in the picture) that comes out again on the left side of the engine, then goes down the back of the engine to the turbo solenoid. If this one has splits or holes your turbo will not be working properly. It's worth checking that one if you haven't already.
That picture is an interesting one. It has a picture of the vac pump but its location pointer is pointing at the injector harness.
- Posts
- 955
- Location
- Shetland
Good job I can tell the difference.
Yes. All small vac pipes are 4mm ID.

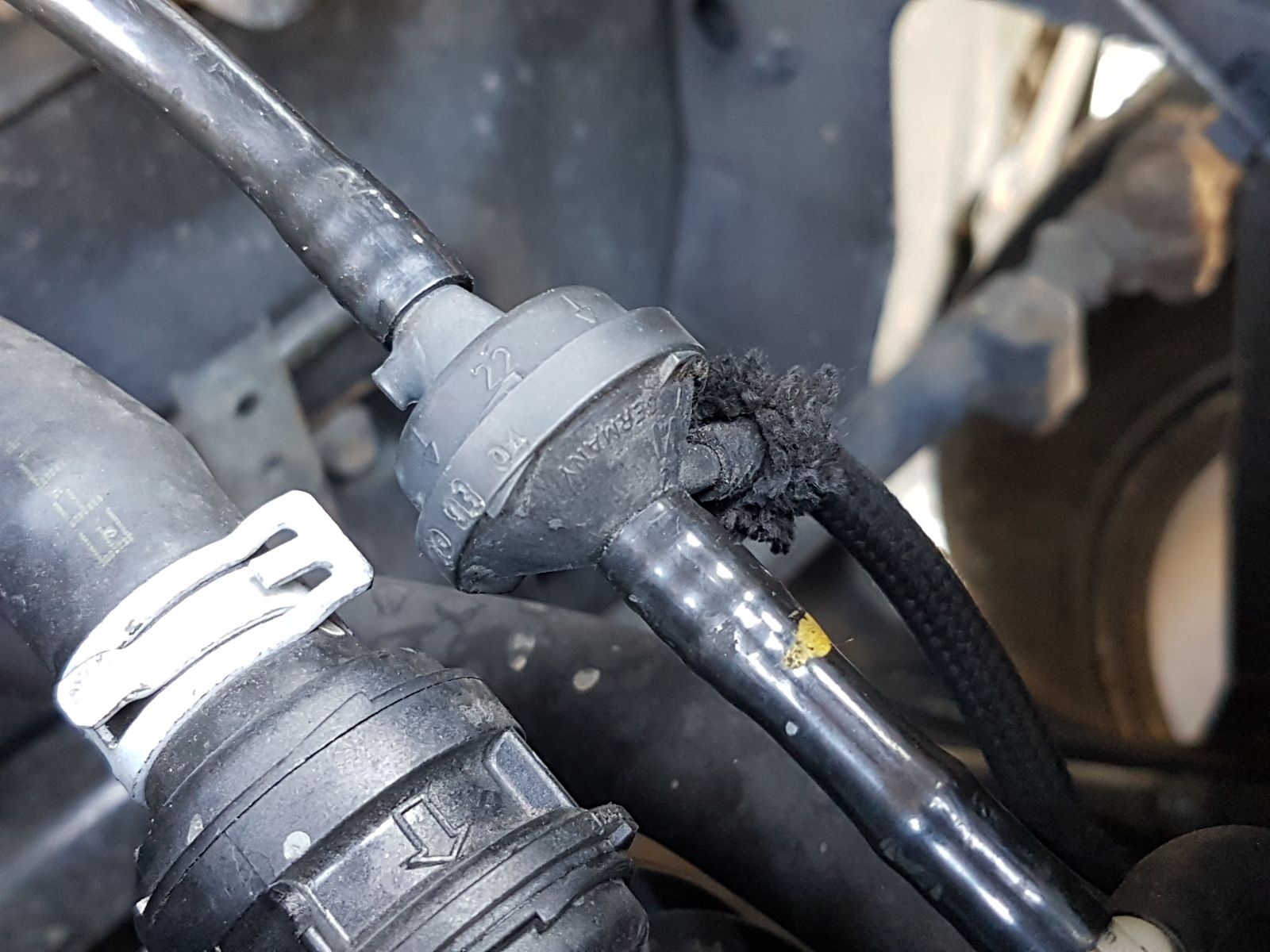

Ok guys I've found the very long Vac hose which comes from the very back of the vac tank, as you state it runs up under the engine cover over to the left hand side of the engine and down towards as you say the engine solenoid, I cant seem to get my hands or fingers on the end that connects to the solenoid or even see where the solenoid is how much of the engine bay will I have to remove in order to get to the end of the hose in order to connect the new one when it arrives?
It feels pretty worn out in places, or at least the parts I can touch does feel like there may be a hole or two..
in short, how to I get to the awkward end?
It feels pretty worn out in places, or at least the parts I can touch does feel like there may be a hole or two..
in short, how to I get to the awkward end?
Last edited:
- Posts
- 955
- Location
- Shetland
I managed to reach down with my left hand. I just felt the pipe to the joint as I couldn't see it.
