Freelander 1 Freelander 1 TD4 eml with exclamation mark appear 5 seconds when full throthle. PLEASE HELP!!

Alteredtech · Friday at 17:52

Hi,

Don’t forget to purge the water separator.

For the connector is goes there :

You need to slide the metal clip between the fuel filter houssing and the fuel filter.

I only see half of the metal clip, certainly broken look for that part YPZ000010 for a replacement.

Also where did that car goes ? don’t like that dirty look should be cleaned, with dirt comes rust.

manoleandreigabriel@gmail · Friday at 17:55

Alteredtech said:
These cars are not well serviced, the propshaft should be checked, universal joint can have play, VCU bearing can have the rubber part split. The front diff support can have the rubber part split …

Front Whishbones rust, there is one small hole next to ball joint, if it’s clugged …

Also next to the fuel pump there is a small electric connector pluged to the fuel filter … certainly broken or not here.

Fuel pipes in the engine bay have certainly 20 years, check them carefully. If one split you’ll be in trouble.

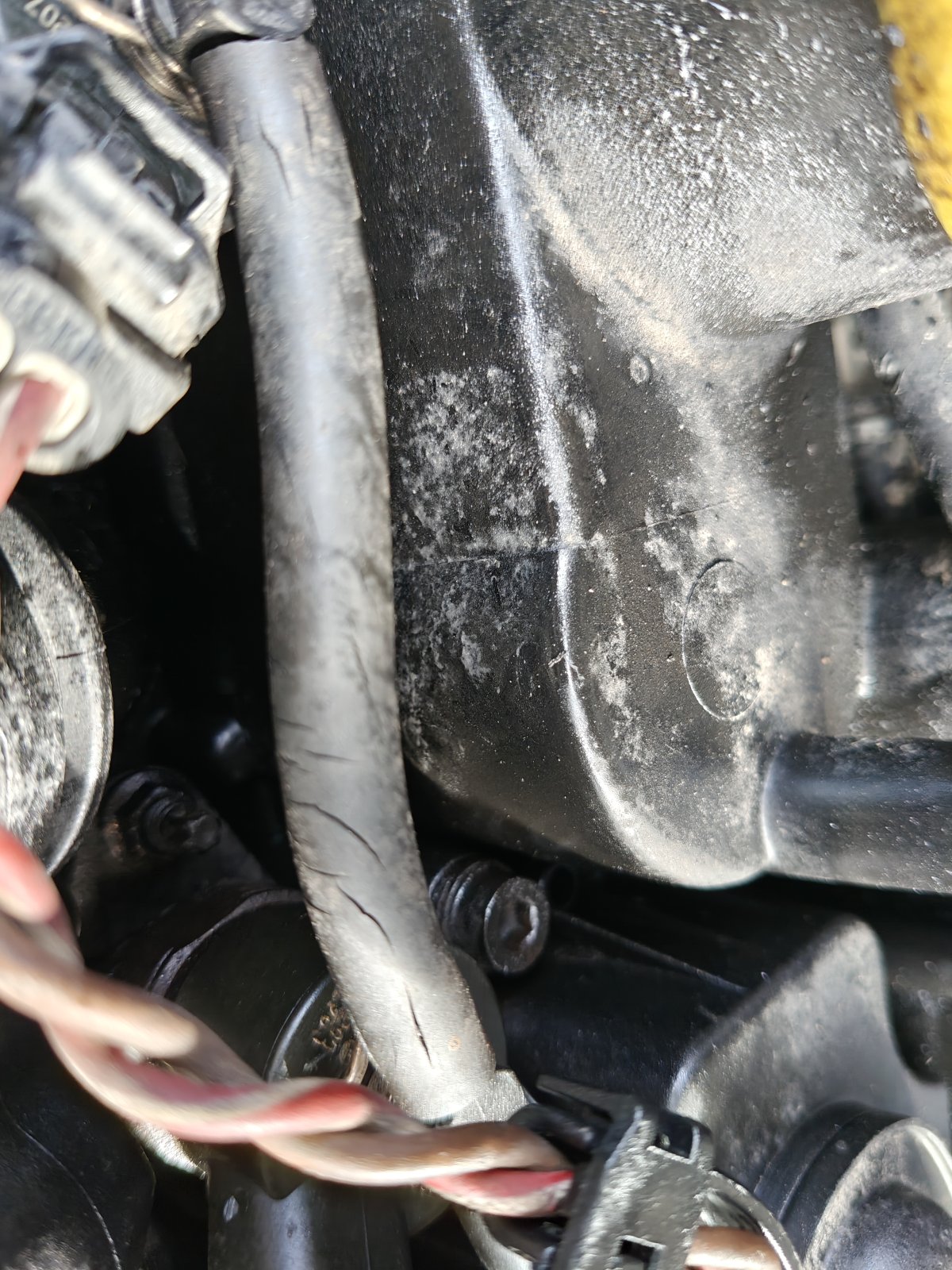

You are so wright. This are my fuel pipes in the engine bay

Alteredtech · Friday at 18:22

manoleandreigabriel@gmail said:
You are so wright. This are my fuel pipes in the engine bay

They have been already replaced, but they put poor quality hoses, you should replace them better quality ones.

Just behind the injectors there is a filter that is never replaced LLJ500010

manoleandreigabriel@gmail · Friday at 18:28

Alteredtech said:
They have been already replaced, but they put poor quality hoses, you should replace them better quality ones.

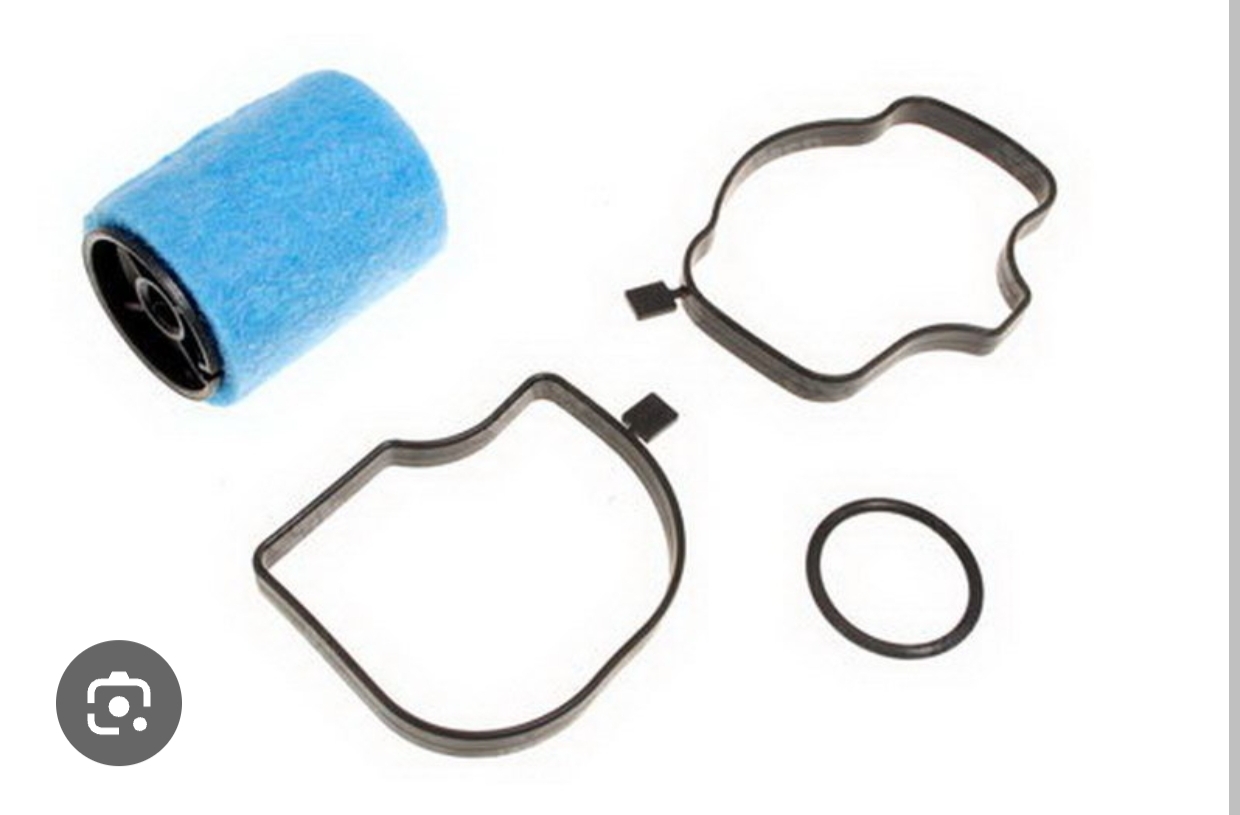

Just behind the injectors there is a filter that is never replaced LLJ500010

If you are talking about this filter, it's done. And you are wright again. It was a total mess that filter. It was not a filter anymore. Just mudddy oil.

andyfreelandy · Friday at 18:40

That's the ground connection to the fuel filter. The male spade does rust off but it won't affect it working. It purely grounds the metal of the filter casing.

Also, the clip holding the fuel pipe onto the pump appears to have come unclipped and the pipe may come off and cause a fuel leak.

Alteredtech · Friday at 19:01

andyfreelandy said:
Also, the clip holding the fuel pipe onto the pump appears to have come unclipped and the pipe may come off and cause a fuel leak.

If that clip was undone certainly the pump was changed ? ( certainly the poblem we are looking for ), it was also rotated for and odd reason.

manoleandreigabriel@gmail · Friday at 19:11

andyfreelandy said:
That's the ground connection to the fuel filter. The male spade does rust off but it won't affect it working. It purely grounds the metal of the filter casing.

Also, the clip holding the fuel pipe onto the pump appears to have come unclipped and the pipe may come off and cause a fuel leak.

I will double ckeck everything.
