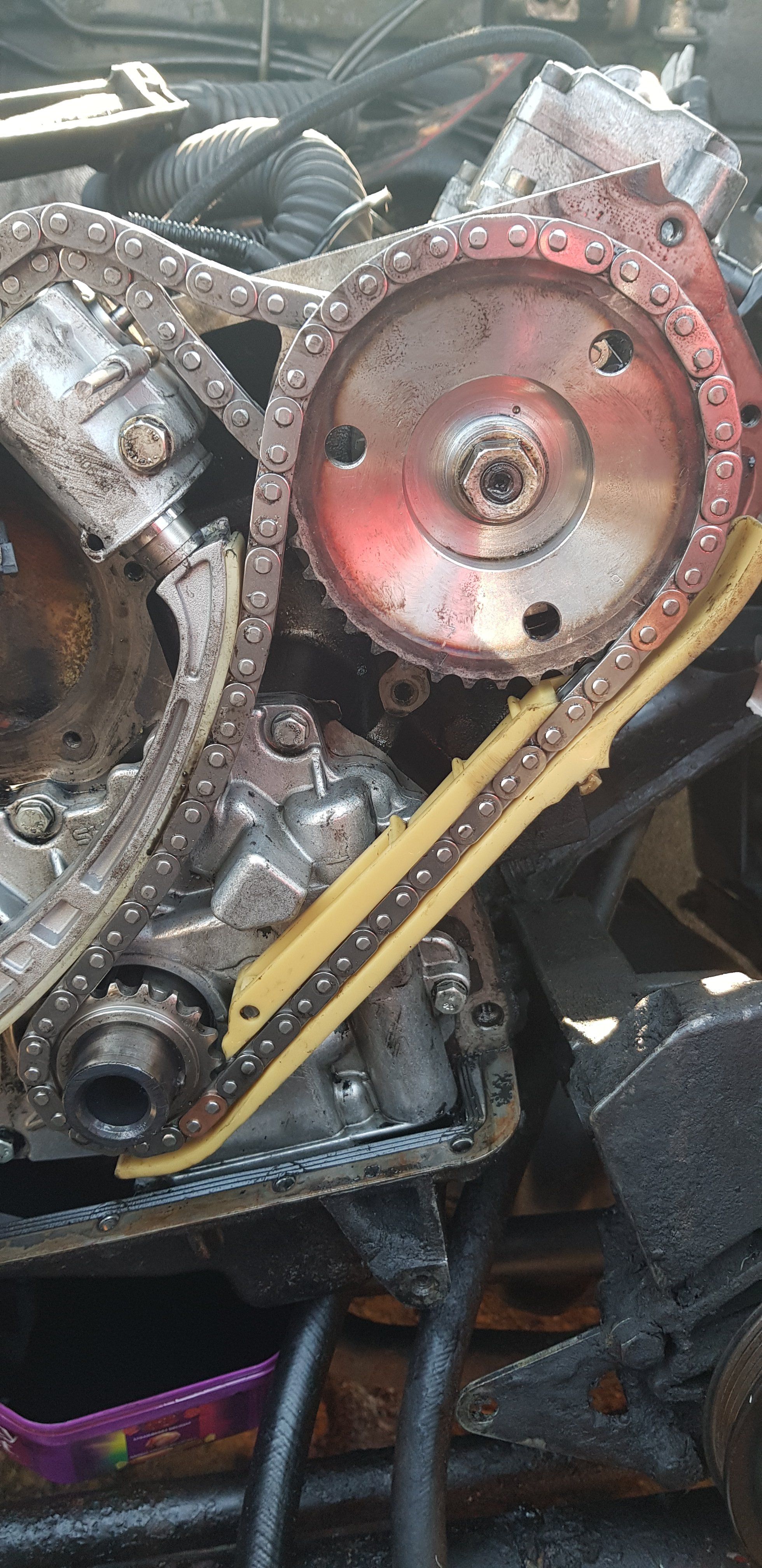

From the photos earlier it looks to me as if the pump is set wrong. With timing marks on chain lined up correctly as they are. The pump holding studs should be approx midway along the adjustment slot. I think the pump is set next to fire number 5 and needs turning clockwise until number 1 is next to fire. The pump MUST only be turned clockwise, trial and error will sort that. With the chain marks set correctly the Woodruff key slot in the sprocket should be almost vertical.. The pump must be turned clockwise until with the studs in the adjustment slot approximately mid way along the slot the woodruff key on the pump mates with the sprocket position. Firing order is 1-5-3-6-2-4. I am sure he will get it sorted if he takes care.
brill thank you

Keep photos coming
we all enjoy them and anything amiss will likely get spotted
Mine is same colour got a spray can of it from amazon good stuff, exact match, you would expect it to be slight different shade. I am having another go the weekend so will upload photos see if I done it right this time o_O:D

Nice looking motor that, well worth saving! :)

Looks like it has the dark interior too.. ;)
Thanks Henry albeit it looks very sorry for itself at the moment being in bits, literally 2 days after I took the photo the engine packed up, but been very close to getting rid of it a few times but thanks to everyone on here I kept the faith! Hope you are keeping well and safe.

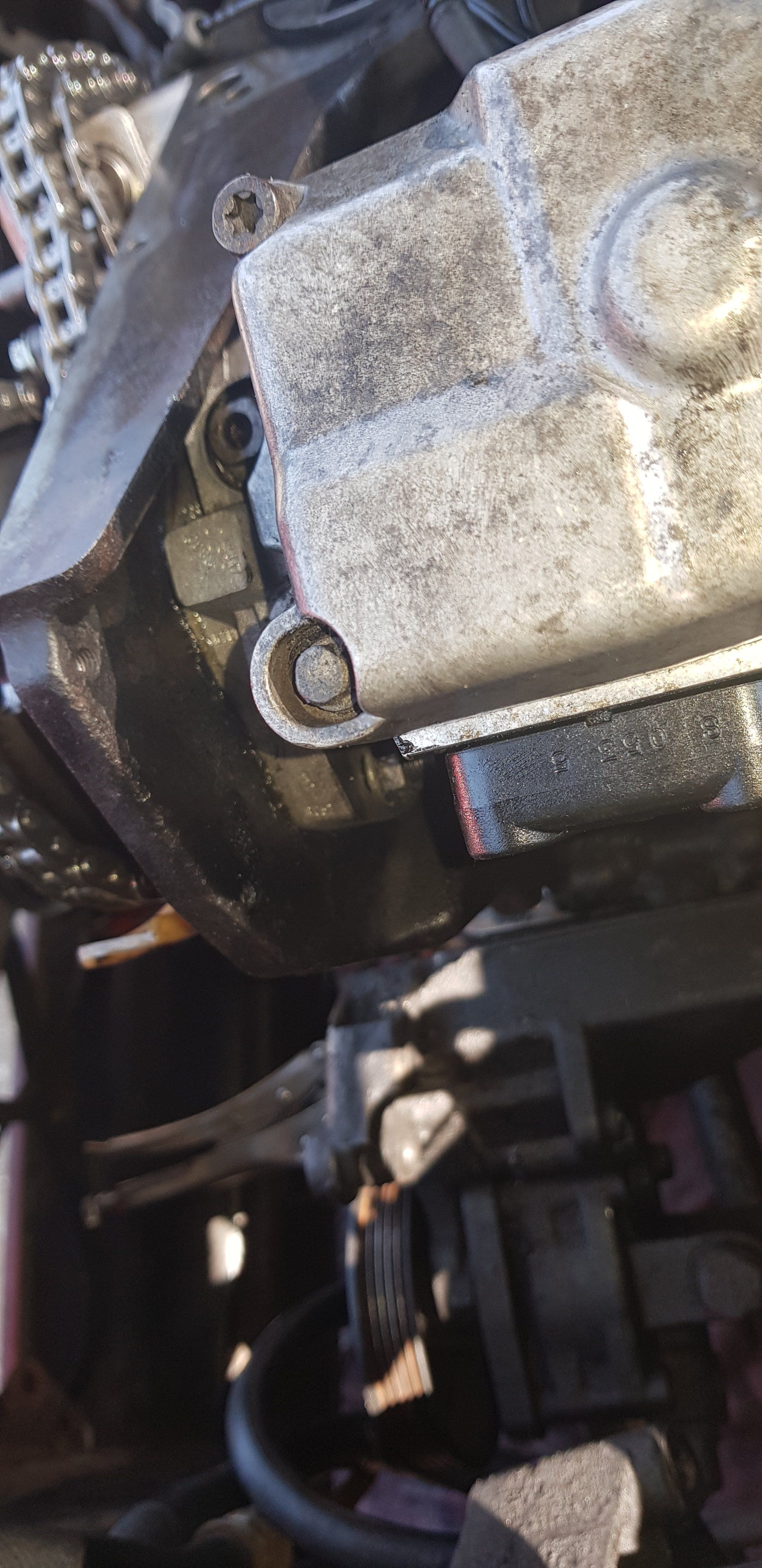

Just took chains off etc unbolted pump set it so mid way on slots. Key was vertical had to turn it clockwise to line up with key way where chains are set. Just about time pump up. Sound ok so far?

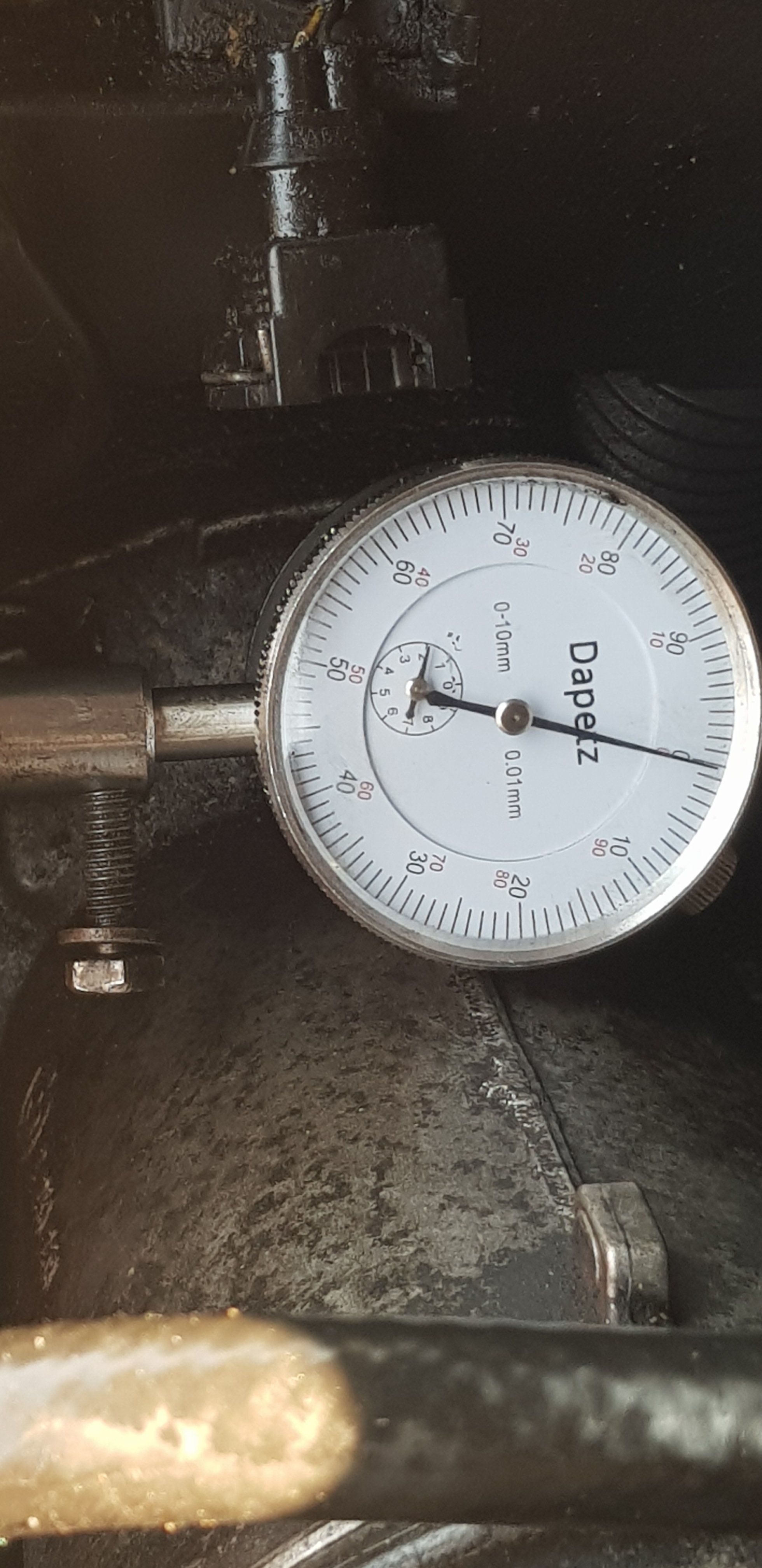

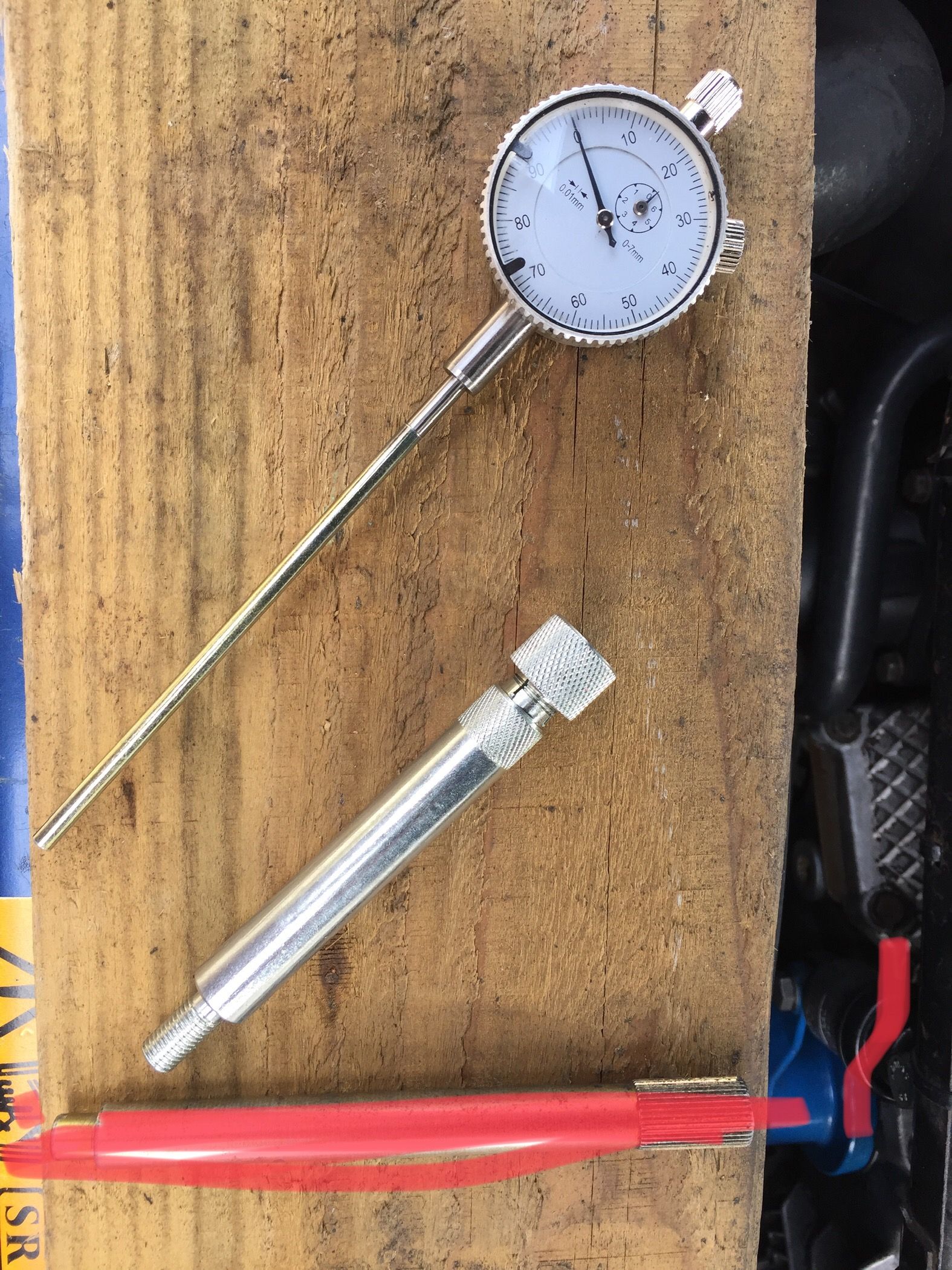

Attached photos dti gauge set 2 mm then tapped to 0.95 last tap was towards engine. @wammers


Attachments

  • 20200411_132401.jpg
    1 MB · Views: 159
  • 20200411_132320.jpg
    1.3 MB · Views: 123
  • 20200411_132136.jpg
    635.9 KB · Views: 143
  • 20200411_133129.jpg
    1.1 MB · Views: 140
Last edited:
Attached photos dti gauge set 2 mm then tapped to 0.95 last tap was towards engine. @wammers

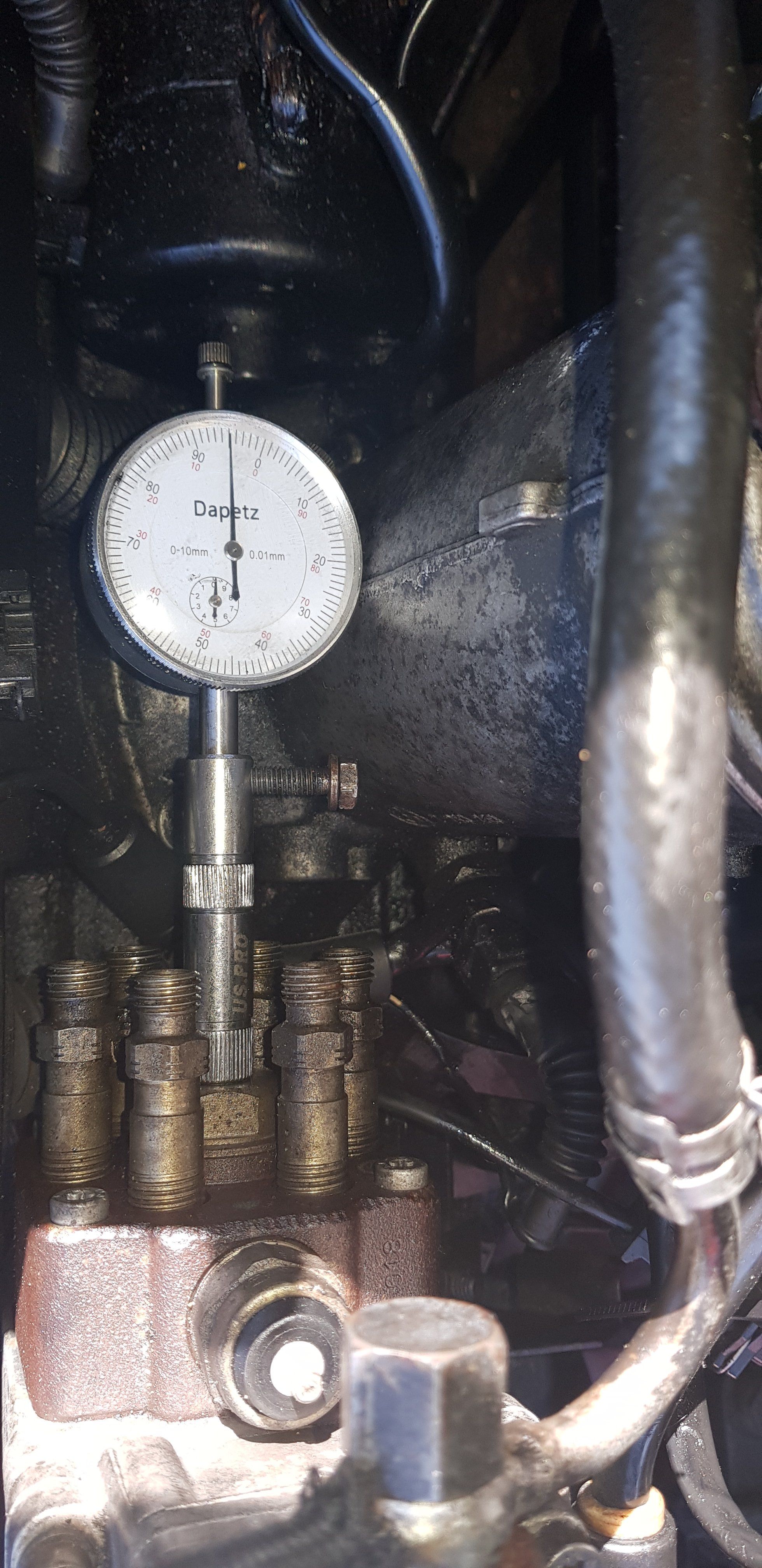

Now i look properly, am a little concerned with last photo. If DTI was locked at 2 mm on inner dial then outer dial zeroed. Reading on small dial after timing set should be 2 mm plus 0.95 mm or very near to 3 mm not zero as in photo.

Last edited:
Now i look properly, am a little concerned with last photo. If DTI was locked at 2 mm on inner dial then outer dial zeroed. Reading on small dial after timing set should be 2 mm plus 0.95 mm or very near to 3 mm not zero as in photo.
Ok thanks for spotting @wammers . Is it just a case of adjusting until readings are correct?

Last edited:
Ok thanks for spotting. Is it just a case of adjusting until readings are correct?

The pump must be sat loose at null point on cam NO lift in either direction, nuts are then nipped up so pump can be gently tapped around but not movable by hand, the 2mm is put on small dial and DTI locked in place. Then outer dial is zeroed. Then the pump is tapped towards engine to obtain 0.95 mm on outer dial. The inner dial should read 2.95 mm. NOT zero as in your last photo. The last movement towards engine is so all backlash in the pump internals is removed.

The pump must be sat loose at null point on cam NO lift in either direction, nuts are then nipped up so pump can be gently tapped around but not movable by hand, the 2mm is put on small dial and DTI locked in place. Then outer dial is zeroed. Then the pump is tapped towards engine to obtain 0.95 mm on outer dial. The inner dial should read 2.95 mm. NOT zero as in your last photo. The last movement towards engine is so all backlash in the pump internals is removed.
Right ok thanks @wammers will have a go tomorrow.

Just one thing want to make sure I got right, if the key way on the pump is vertical is this null position so when you offer it upto the sprocket you rotate the whole pump so it lines up to sprocket which is in a set position rather than install pump midway on slots then turn the pump shaft clockwise so it lines up with sprocket key way?
