help required for 2.5 diesel 1998 non starter

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
My first step before pulling injectors would be to remove the viscous fan and cowl, you do have to take off nearside RAD hose. Then you can access the crank bolt with ease to try turning the engine.

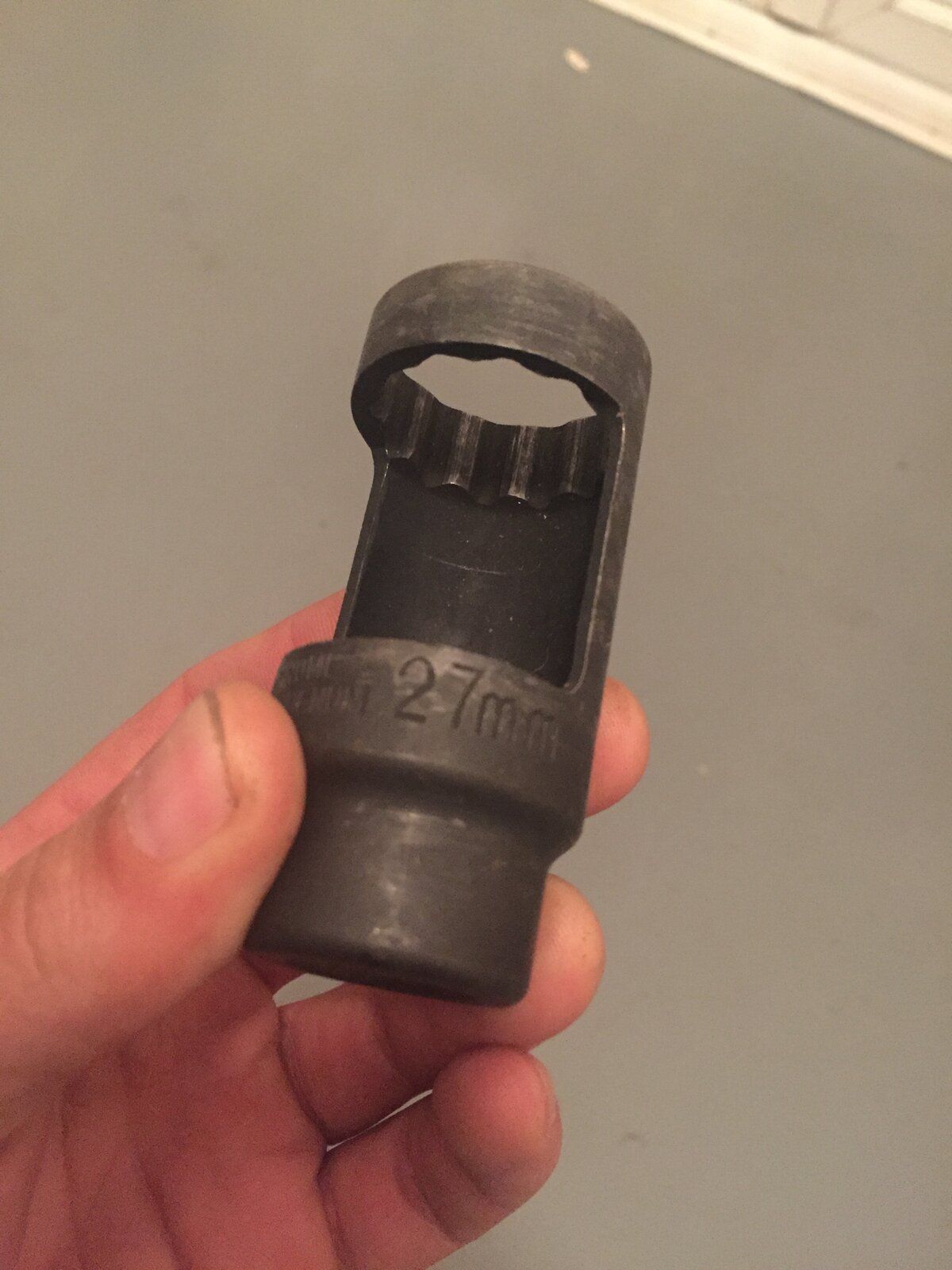

The injector with the needle lift sensor #4 would be hard to remove without the window socket because of the wires, damage it and you are looking at about £300 for a new one.

Last edited:
Datatek said:
My first step before pulling injectors would be to remove the viscous fan and cowl, you do have to take off nearside RAD hose. Then you can access the crank bolt with ease to try turning the engine.
The injector with the needle lift sensor #5 would be hard to remove without the window socket because of the wires, damage it and you are looking at about £300 for a new one.
Click to expand...
Number#4.;) viscous fan is 32 mm.

Even I got one of them

coppaslip when you put them back in


Attachments

  • 470C551E-8094-4749-AF5F-824CA0EBFAC1.jpeg
    166.4 KB · Views: 78
what is the firing order for the 2.5 diesel? is it 1,5,3,6,2,4,?knowing this could tell me which cylinder is having the problem.if i remove injector 1, put a long screwdriver into its hole. if it goes down a short distance and touches the piston it will be cylinder 6 thats the problem, if it goes half way down it will be 5 or 2, all the way down , it will be 3 or 4.

al-one-arm said:
what is the firing order for the 2.5 diesel? is it 1,5,3,6,2,4,?knowing this could tell me which cylinder is having the problem.if i remove injector 1, put a long screwdriver into its hole. if it goes down a short distance and touches the piston it will be cylinder 6 thats the problem, if it goes half way down it will be 5 or 2, all the way down , it will be 3 or 4.
Click to expand...
Don't know why you need the firing order,see post #82, remove fan cowl and injectors,turn engine over using the crank bolt and see which injector hole water comes out of.if you get water then it's time for head off because it's probably cracked,more common than head gasket.

tomcat59alan said:
Don't know why you need the firing order,see post #82, remove fan cowl and injectors,turn engine over using the crank bolt and see which injector hole water comes out of.if you get water then it's time for head off because it's probably cracked,more common than head gasket.
Click to expand...
my idea was to reduce the amount of injectors i have to remove,
