P38A 2.5 Diesel Cylinder Head

Lukas018 · Mar 21, 2020

RangeRoller dt said:
Looks like aftermarket Ali coolant rad.

Pre EGR your Powerbox should be a ‘DA4419’.

Not that model.

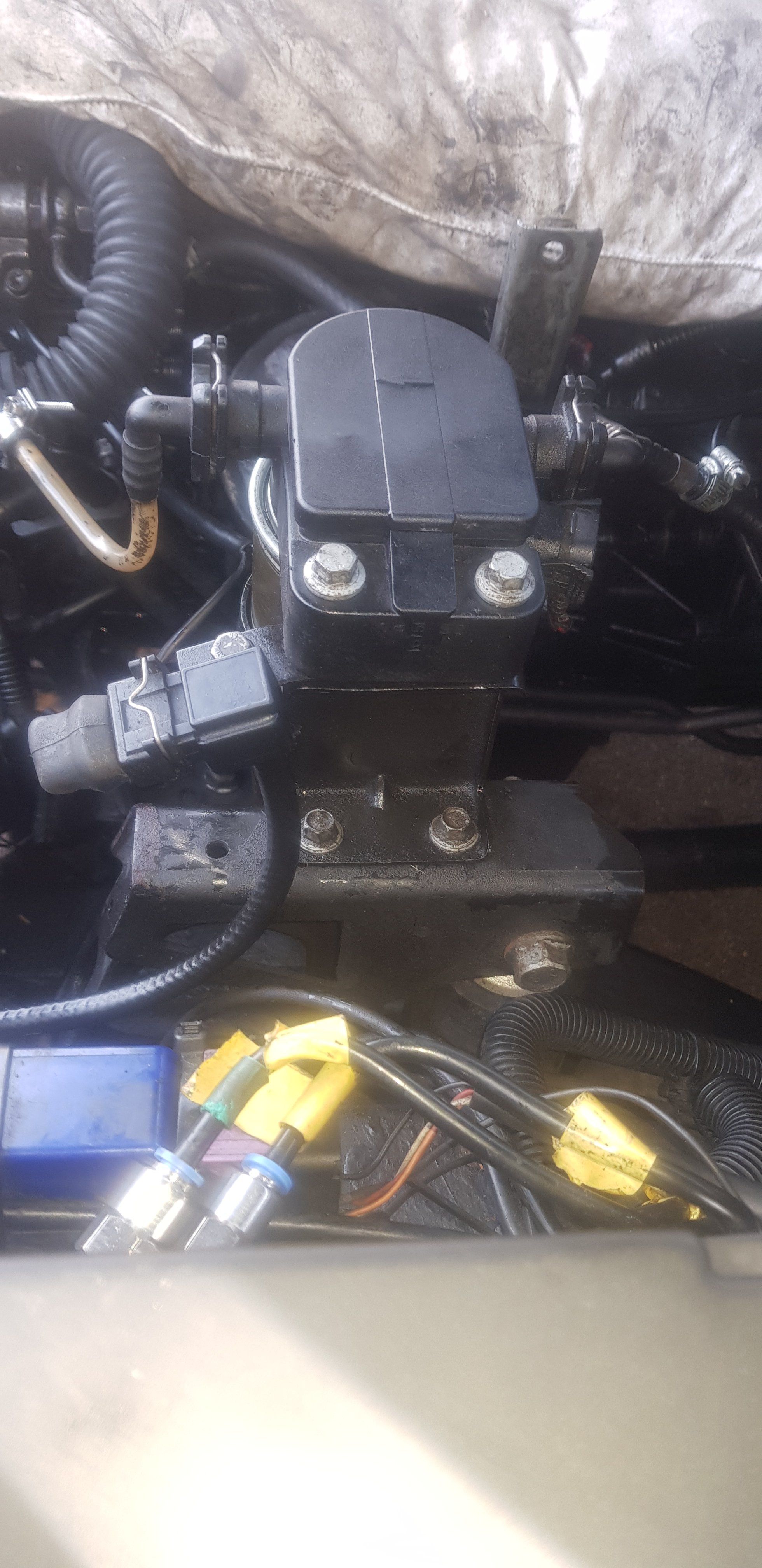

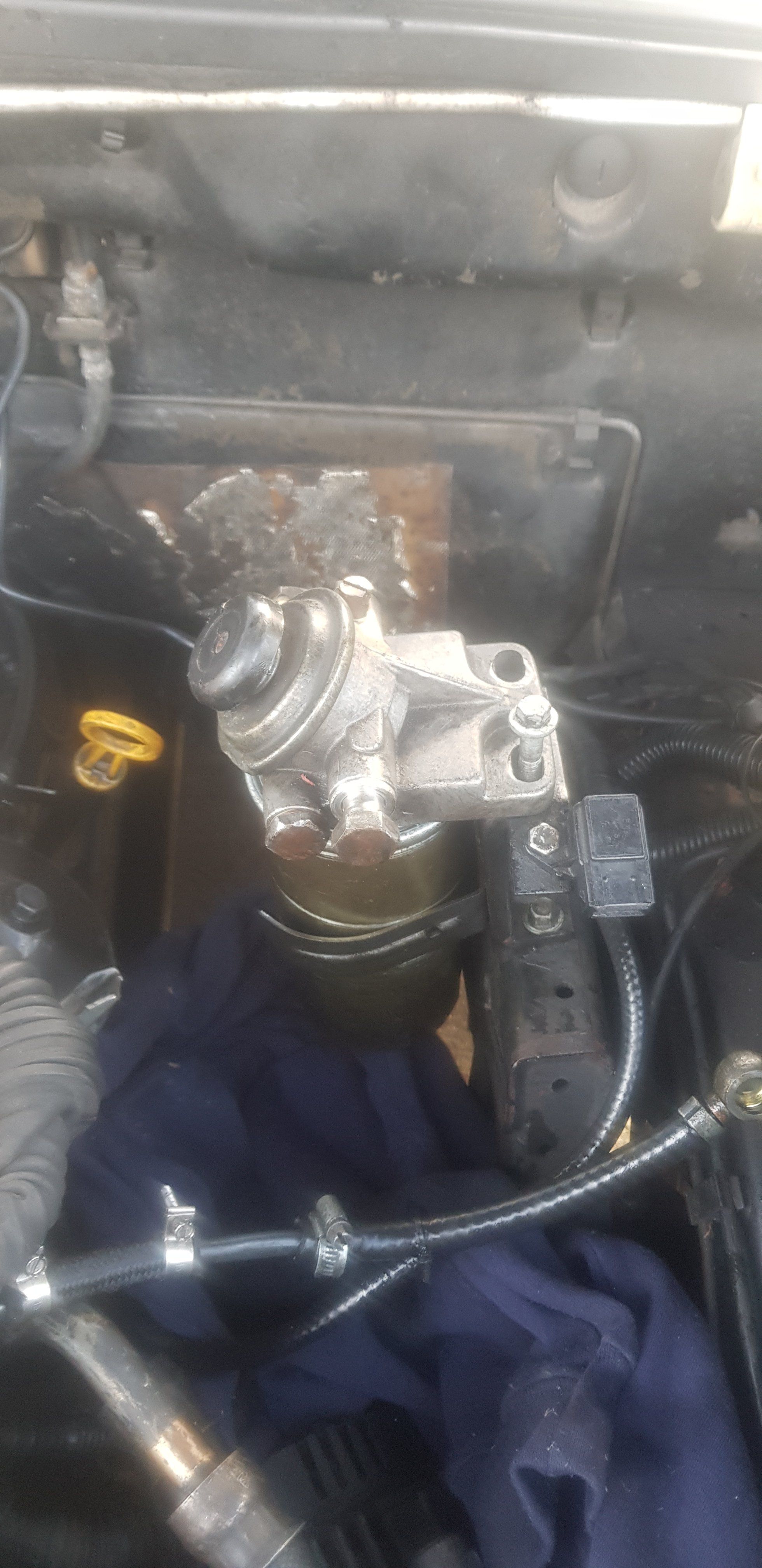

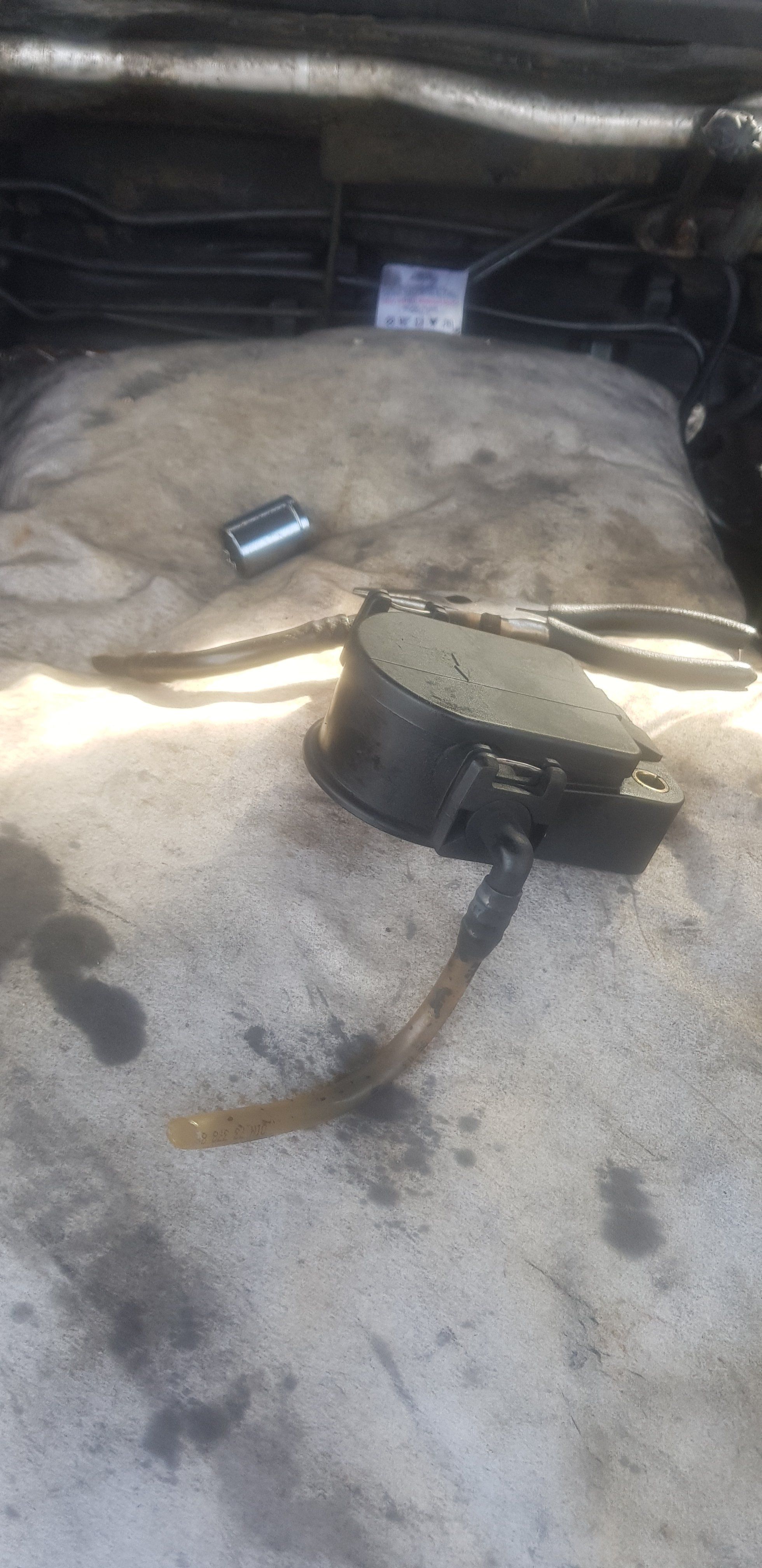

On another note had a hand primed filter housing that cracked so got a replacement for normal housing. On the old one there was a pipe that went from multi plug to inlet manifold however on the new there isn't?

It might be to do with power box but I am isolating it out of the system and going back standard in which case there is nothing connect vacuum pipe to?

I have connected up the plugs from original system so assume this is correct? See 3rd photo?

See photos

Datatek · Mar 21, 2020

Lukas018 said:
Not that model.

On another note had a hand primed filter housing that cracked so got a replacement for normal housing. On the old one there was a pipe that went from multi plug to inlet manifold however on the new there isn't?

It might be to do with power box but I am isolating it out of the system and going back standard in which case there is nothing connect vacuum pipe to?

I have connected up the plugs from original system so assume this is correct? See 3rd photo?

See photos

The pipe went to the MAP sensor which is attached to the filter housing. Presumably the sensor is still on your old filter housing.
Edit. I have also seen a power box with a vacuum pipe. Look at RAVE for details of the MAP sensor.

Lukas018 · Mar 21, 2020

Datatek said:
The pipe went to the MAP sensor which is attached to the filter housing. Presumably the sensor is still on your old filter housing.
Edit. I have also seen a power box with a vacuum pipe. Look at RAVE for details of the MAP sensor.

Thanks found it the MAP sensor had fell off when took old housing off.

wammers · Mar 22, 2020

Lukas018 said:
Thanks found it the MAP sensor had fell off when took old housing off.

By the way it's a pressure pipe from manifold to MAP not a vac pipe.

Lukas018 · Mar 22, 2020

wammers said:
By the way it's a pressure pipe from manifold to MAP not a vac pipe.

Thanks just waiting for head gasket etc to turn up then can start rebuild

RangeRoller dt · Mar 22, 2020

Replacement monster housing

Lukas018 · Mar 23, 2020

Has anyone ever rebuilt the turbo charger at all? Bearings have seen better days not sure if can get components for them or best just to get another unit?

Grrrrrr · Mar 23, 2020

Lukas018 said:
Has anyone ever rebuilt the turbo charger at all? Bearings have seen better days not sure if can get components for them or best just to get another unit?

I think even if you refurb the bearings and so forth it will need balancing so one off the bay probably cheaper, if of unknown quality.

brianp38dse · Mar 23, 2020

You can get a replacement chra as they call them, basically the hole center part of the turbo i looked at doing it
the turbo no is td04-11g
mind there is a rebuilt on on fleebay for 100 quid.

Datatek · Mar 24, 2020

Lukas018 said:
Has anyone ever rebuilt the turbo charger at all? Bearings have seen better days not sure if can get components for them or best just to get another unit?

You sure the bearings are shot? They are never tight when the unit is cold.

tomcat59alan · Mar 24, 2020

Have a look on The Bay for turbo cartridge td04-11g

Grrrrrr · Mar 25, 2020

tomcat59alan said:
Have a look on The Bay for turbo cartridge td04-11g

You must be waking up from your after-dinner nap, Brian was there 2 posts ago!

tomcat59alan · Mar 25, 2020

Grrrrrr said:
You must be waking up from your after-dinner nap, Brian was there 2 posts ago!

From Brian's post I read it as a rebuilt turbo on the Bay for less than £100.

Lukas018 · Mar 25, 2020

Datatek said:
You sure the bearings are shot? They are never tight when the unit is cold.

There is a lot of play on the fans you can move them side to side easily, thick carbon build up inside, car has done 185k+ miles, so could do with a revamp. What do you think?

Have cleaned up as much as can just think while it is all apart.

RangeRoller dt · Mar 25, 2020

Price it up and compare. If parts are cheap enough and it’s something you would like to do give it a try.
Or for few quid more get 2nd hand to avoid bangs then rebuild original unit as a spare.

Datatek · Mar 26, 2020

Lukas018 said:
There is a lot of play on the fans you can move them side to side easily, thick carbon build up inside, car has done 185k+ miles, so could do with a revamp. What do you think?

Have cleaned up as much as can just think while it is all apart.

I'd go for a recon unit.

Mark Piercy · Mar 26, 2020

+1 with data, it'll carry a guarantee also.

Some play is acceptable but not if the impeller Is touching the casing and any binding is a no no.

Lukas018 · Mar 26, 2020

Brill thanks guys.

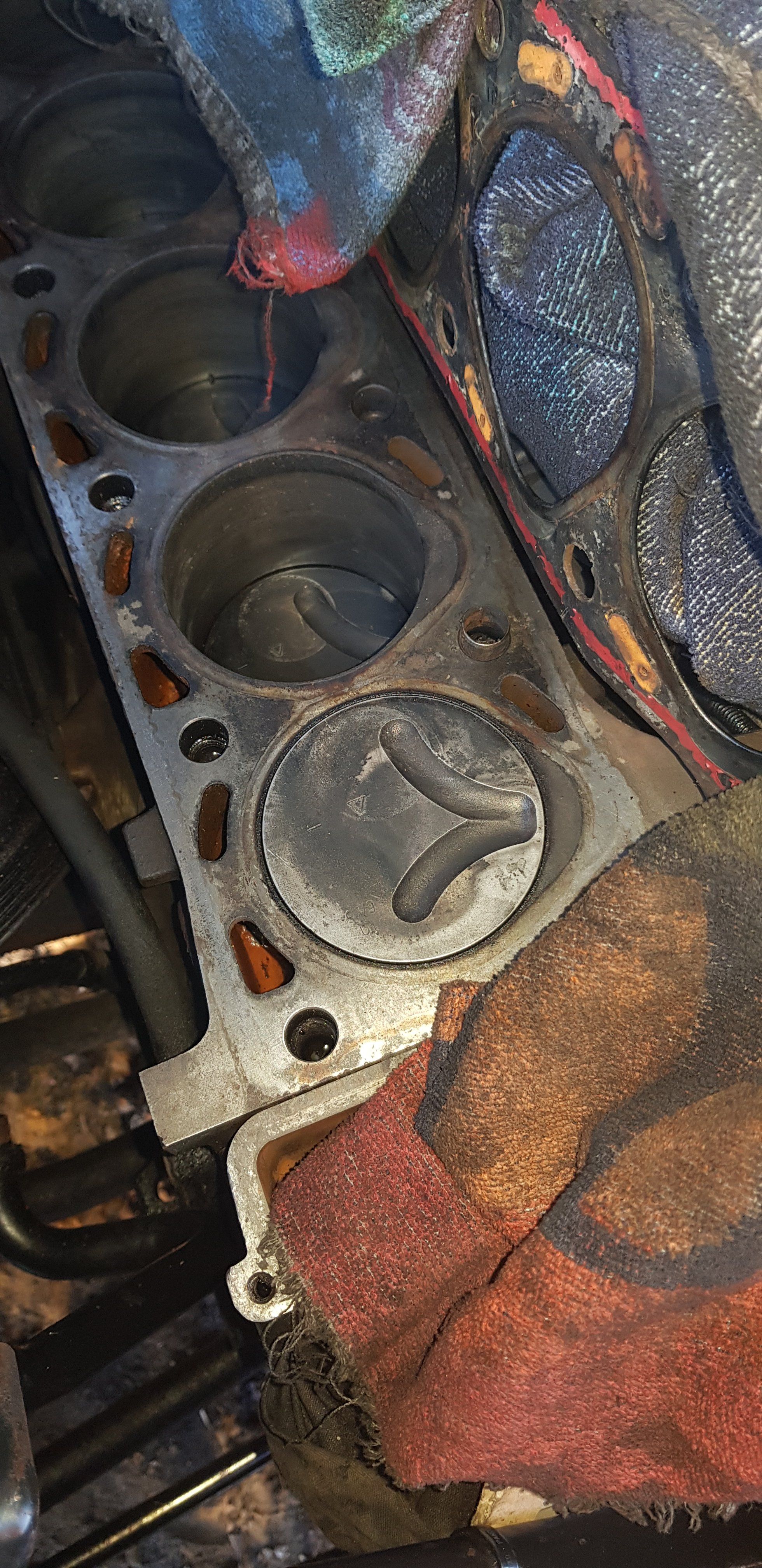

On another note on the engine block (see image) there is a small pipe protruding from the block, I am sure there was another one further up the block but can't find it on old head and block etc.

Should there be another one and what are they for just lining up the head?

Ta.

brianp38dse · Mar 26, 2020

Lukas018 said:
Brill thanks guys.

On another note on the engine block (see image) there is a small pipe protruding from the block, I am sure there was another one further up the block but can't find it on old head and block etc.

Should there be another one and what are they for just lining up the head?

Ta.

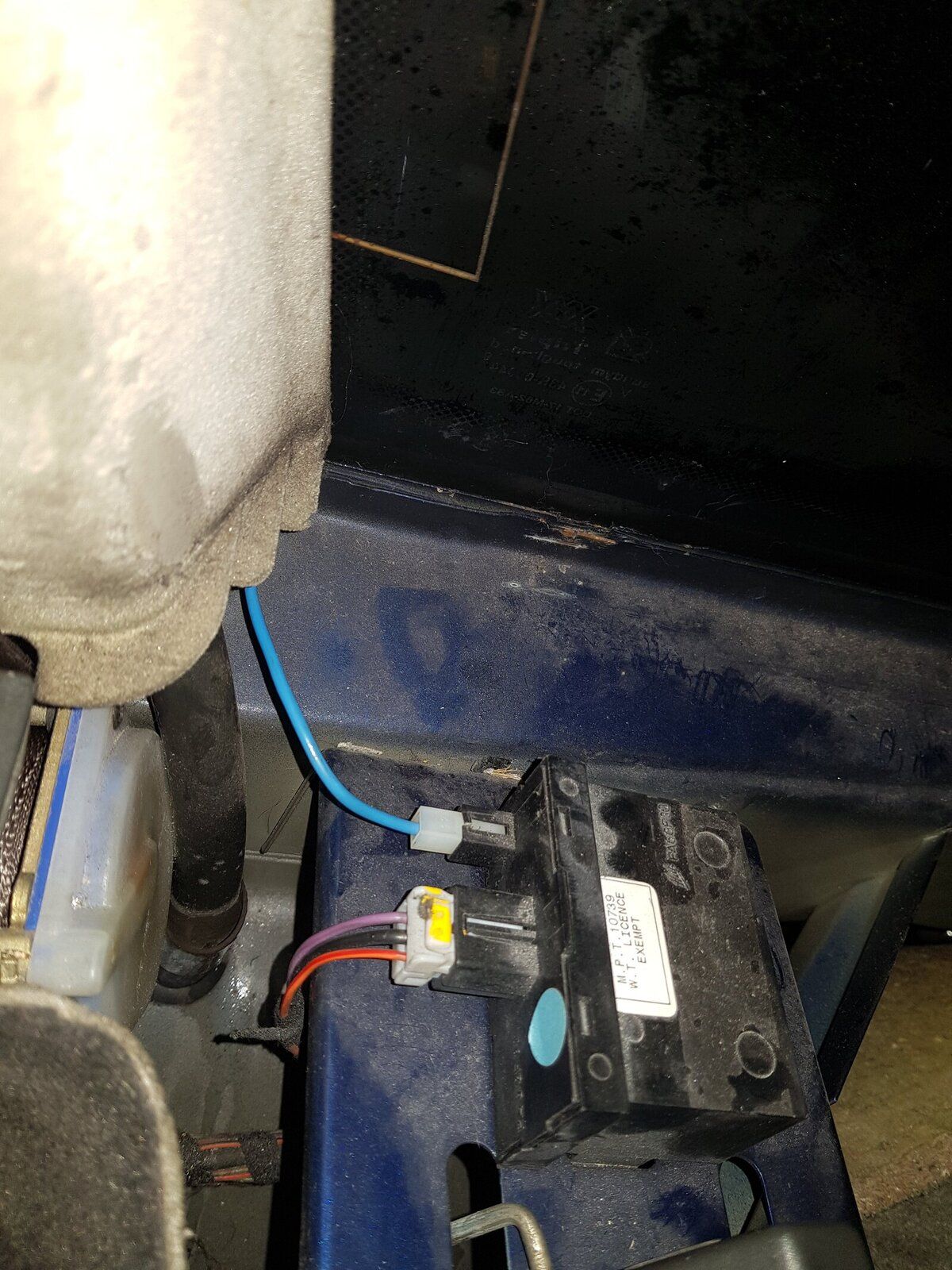

Well thats your Rf receiver in the boot.

Lukas018 · Mar 26, 2020

correct image now
