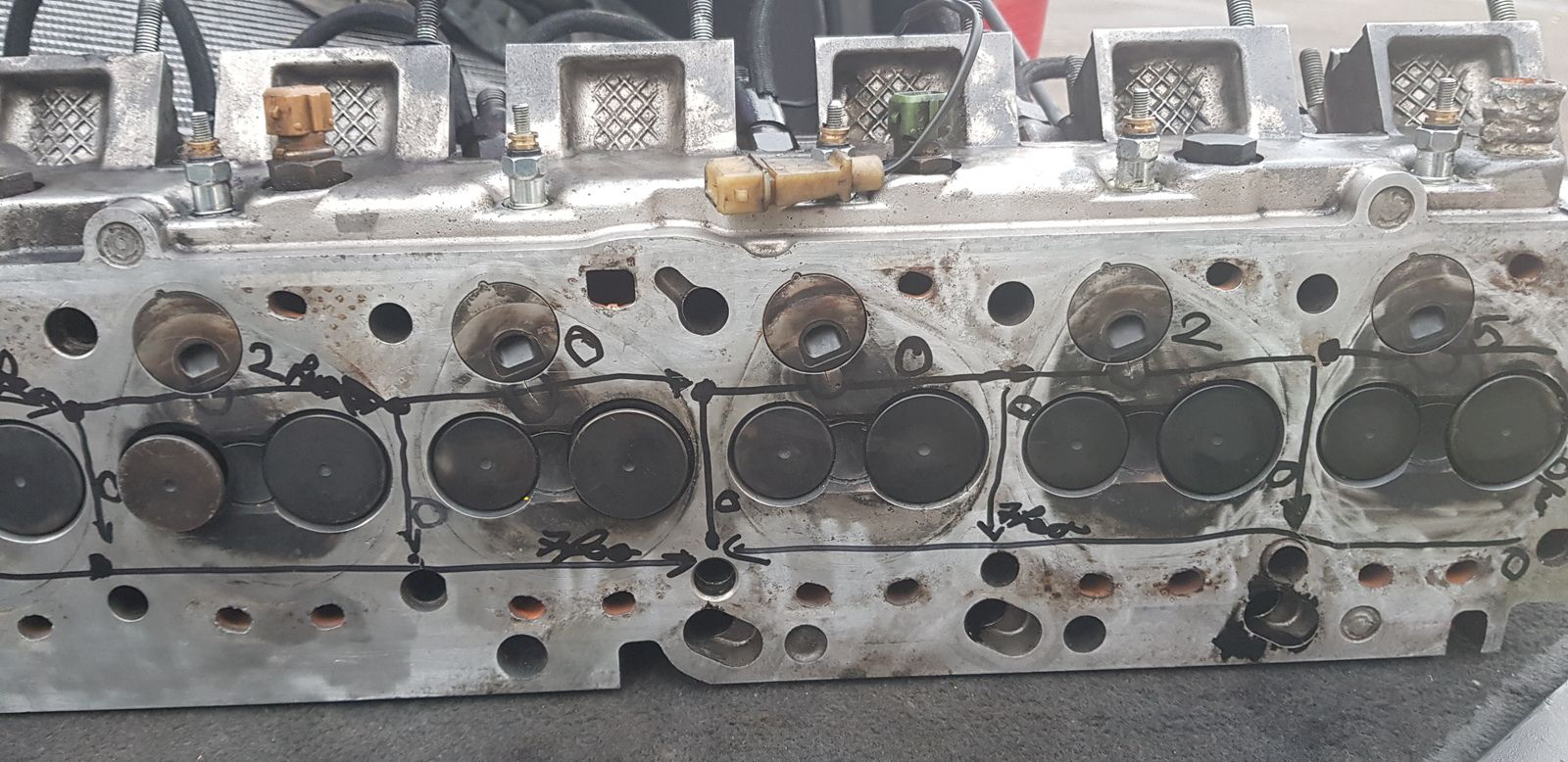

Thanks mate. Have attached photo of the cracks we found. Are these typical failure locations for this head? Might need to zoom in mostly on cylinder 6 to 2.
P38A 2.5 Diesel Cylinder Head
- Thread starter Lukas018
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 58,170
- Location
- Preston Lancs.
Yep cracks to pre combustion chambers pretty normal. Also along the half moon shapes between the valves.
Cool. Got a cylinder head coming my way then case of putting all back together. Fingers crossed will start
.
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
Poor casting i'd put my money on..
- Posts
- 58,170
- Location
- Preston Lancs.
Poor coolant system maintenance is mostly to blame i would think. Dissimilar metals with differing expansion coefficients may also play a part. Also the increase in running temp for emission control.
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
Poor German engineering, metal too thin. It happens on the VW 6 cylinder diesel and several others including some early models of the VM, Daihatsu 4track etc
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
They chrome plated the face of the VM cylinder head(s) IIRC they were good units, the 6pot VM i would of put in the P38 instead of the M51.
Nothing againt diesels but the m51 has to be the most gutless and unbalanced 6 pot diesel i've experienced.
The VM 425 felt like it had more get up and go..
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
I agree, the M51 is a heap of excrement. BMW managed something unique, a 6 cylinder diesel with bugger all bottom end torque that vibrate like a single pot Lister on a dumper. The Iveco 7.5 tonner I drove for a while had a much smoother 6 pot with way more torque.
My previous diesel was a 4 pot with balancer shaft, loads of torque and smoooth.
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
I test drove a Grand cherokee 3.1 diesel it was a lovely unit, great lumps of torque and really quite smooth, if it hadn't of been rotten i'd of bought it..
I'd have a diesel P38 if it wasn't for the m51.
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
We are not allowed to play at engine transplants over here or I would have seriously looked at shoving the engine from my rusty Transit in the P38 with a 160bhp remap.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,393
- Location
- Trapped inside my head @ LZ asylum
+1 weight/cooling.
Some fairly big power from these engines on lighter track cars and they have souped up cooling systems to make it cope with a gigantic turbo
P38 rad is capable of desserts apparently so must be another factor?
Some fairly big power from these engines on lighter track cars and they have souped up cooling systems to make it cope with a gigantic turbo
P38 rad is capable of desserts apparently so must be another factor?
- Posts
- 19,297
- Location
- Buckinghamshire, UK. ('95 DT)
Just out of interest, did you have a power box fitted?

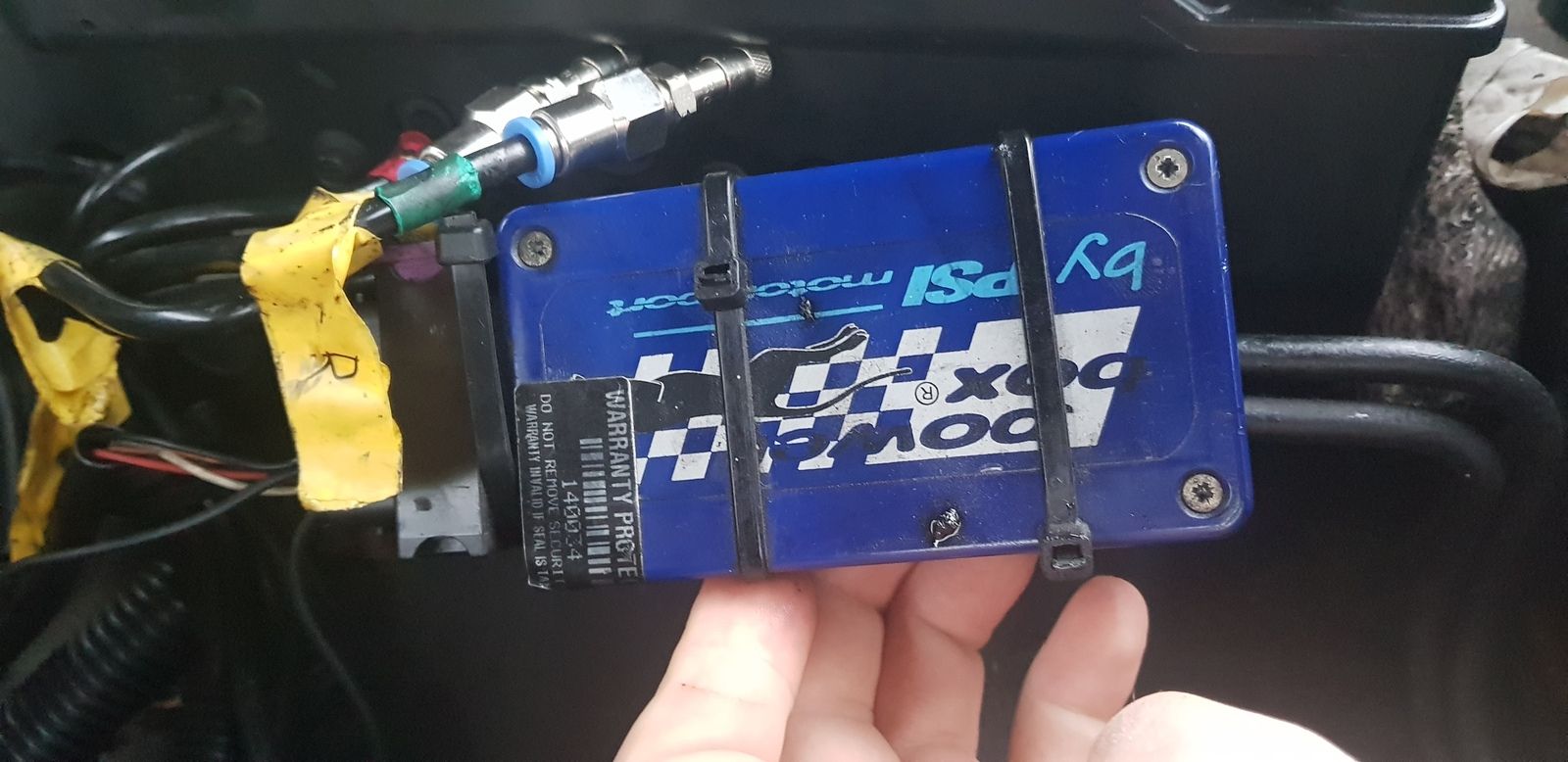

I don't think my P38 had a great life and I got the brunt end of it, it had a power box fitted, it was a PSI blue box?

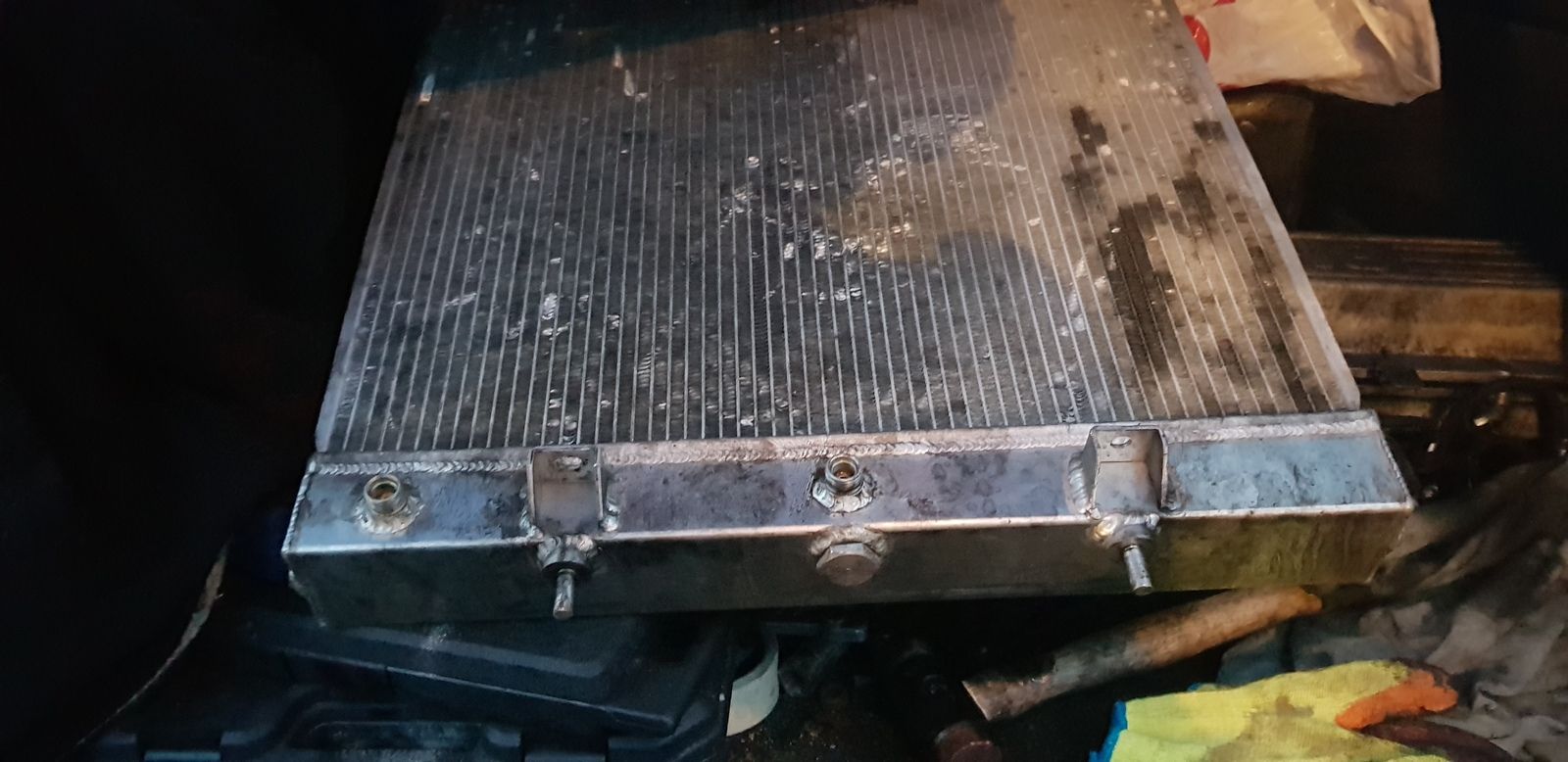

I also got the apparently 'uprated' rad but looks cheap and nasty.
I am cacking it putting new head on etc and hoping it starts up as put a lot of work into it
RangeRoller dt
Well-Sprung Member
- Posts
- 14,393
- Location
- Trapped inside my head @ LZ asylum
What uprated rad - bigger intercooler??
Take plenty of pics, anything out of place someone’s beady eyes will pick up on it.
Take plenty of pics, anything out of place someone’s beady eyes will pick up on it.
- Posts
- 19,297
- Location
- Buckinghamshire, UK. ('95 DT)
I don't think my P38 had a great life and I got the brunt end of it, it had a power box fitted, it was a PSI blue box?
I also got the apparently 'uprated' rad but looks cheap and nasty.
I am cacking it putting new head on etc and hoping it starts up as put a lot of work into it
I think those powerboxes cause heads to crack.
RAW111111
Well-Known Member
- Posts
- 255
- Location
- Nottingham
I hope the head you found is good - if not then I do have a spare early type one in my garage at the moment that I could possibly be persuaded to part with.
I think I agree with everyone else in this thread so far as well in terms of why they crack, although I’ll also add that a lot of other similar technology Diesel engines from the period are also prone to cracks e.g VW and even Peugeot XUDs can suffer from them. In both cases they aren’t as prone to going through to a water jacket though.
Good luck getting it going again, they’re a lovely car when working right even with the let down of an engine!
Rich
I think I agree with everyone else in this thread so far as well in terms of why they crack, although I’ll also add that a lot of other similar technology Diesel engines from the period are also prone to cracks e.g VW and even Peugeot XUDs can suffer from them. In both cases they aren’t as prone to going through to a water jacket though.
Good luck getting it going again, they’re a lovely car when working right even with the let down of an engine!
Rich
@RangeRoller dt what do you think?
Attachments
Thanks Rich much appreciated new head been tested etc supposedly always risk with 2nd hand parts but has no cracks!!
RangeRoller dt
Well-Sprung Member
- Posts
- 14,393
- Location
- Trapped inside my head @ LZ asylum
Looks like aftermarket Ali coolant rad.
Pre EGR your Powerbox should be a ‘DA4419’.
Pre EGR your Powerbox should be a ‘DA4419’.
