That one of the two dowels that locate the gasket and head. STC2009 i believe.correct image now
It will only go in one place look for a slightly large hole.
Lukas018
Well-Known Member
Thank you ordered new set.
Karlos the jackal
Well-Known Member
Where abouts you based
He's in Sussex but I think he's sorted.
Lukas018
Well-Known Member
Thanks @Karlos the jackal I have got one.
On another note diesel is dripping from FIP taper inside shaft seal so assume this is not an easy fix if the seal on FIP shaft built in not easy to change?
Thanks
On another note diesel is dripping from FIP taper inside shaft seal so assume this is not an easy fix if the seal on FIP shaft built in not easy to change?
Thanks
Last edited:
RangeRoller dt
Well-Sprung Member
Some seals are easy enough, take a pic of the offender is best bet and the advice will flow
Normally it drips from the top and middle seals. The kit normally has both and the side ones under the little ovals.
Lukas018
Well-Known Member

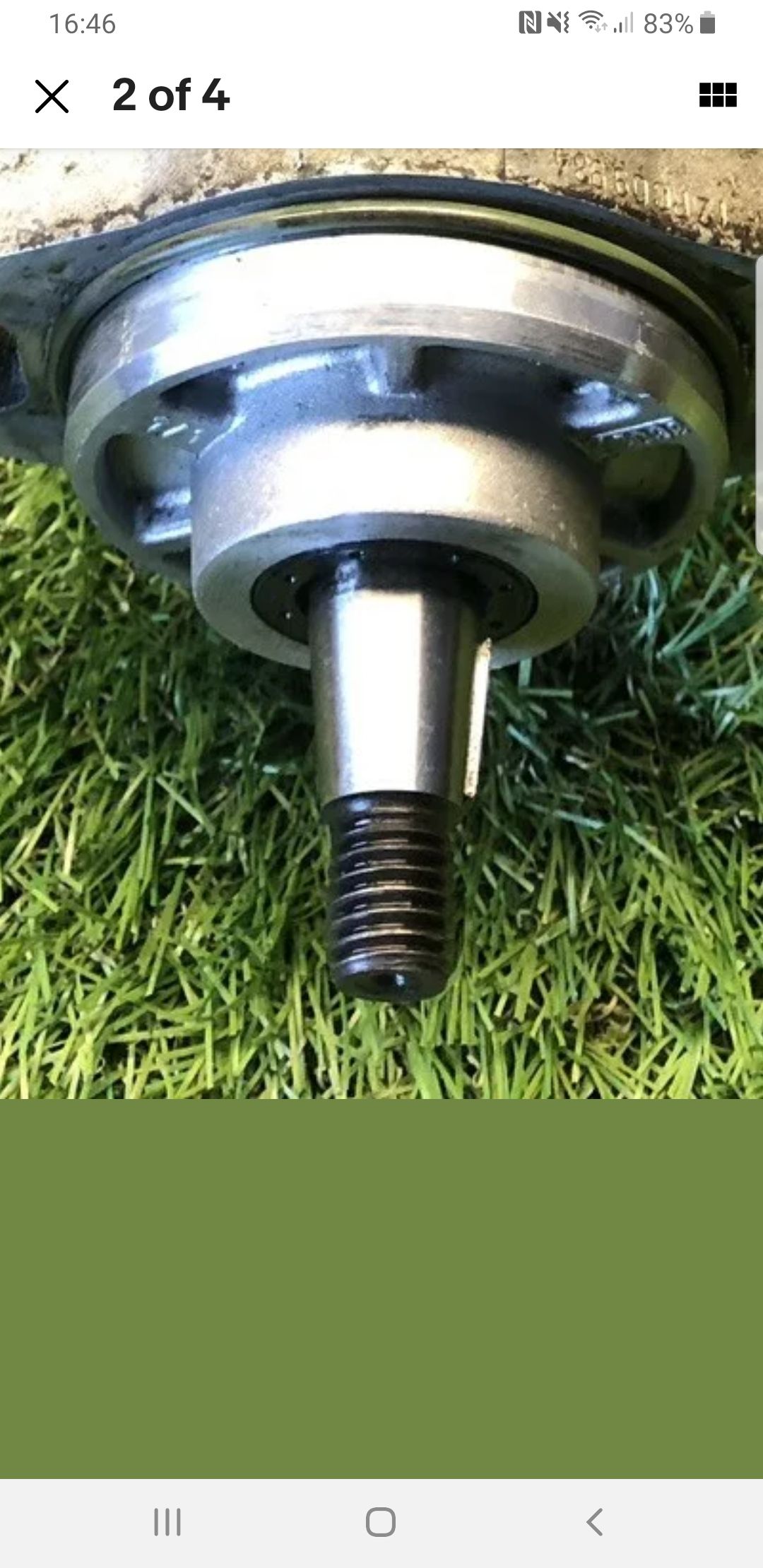

Not got time to remove the chains etc but leak is coming from front seal. Have attached a photo of one from ebay which shows front seal on shaft where leak is coming from?
Does pump need to come apart to change front and inner seals please?
If so where best place to buy seals?
Thanks
Does pump need to come apart to change front and inner seals please?
If so where best place to buy seals?
Thanks
Attachments
Sorry, never changed that one. Wammers would know.
Stripping a pump down is not a good idea unless you really know what you are doing. Front seal maybe able to be taken out with shaft in place, if you very carefully drill two small holes opposite each other about 1/8" from the outer edge and put in a couple of short course self tappers, use the heads to lever against gradually side to side. Shaft MUST NOT be damaged. Wash and blow out before refitting new seal. Seal to top section is no problem, for pressure head O'ring a specific method MUST be used to avoid dropping piston spacer. Mid seal is the one you will struggle with as if the mid section is replaced even a very small amount out of position it effects the calibrated fuel start point.
Lukas018
Well-Known Member
Thanks @wammers I agree no way I would contemplate touching this, I had a feeling it might be one of the internal seals breaching front seal. Might see about getting recon pump and change front seal see if makes difference as this pump is 180k miles old. So is it worth just getting a recon one?
Would have to save up for it but like @Grrrrrr says whilst done most of engine.
brianp38dse
Well-Known Member
This one is a bit cheaper
https://www.ebay.co.uk/itm/RANGE-RO...a=1&pg=2334524&_trksid=p2334524.c100667.m2042
https://www.ebay.co.uk/itm/RANGE-RO...a=1&pg=2334524&_trksid=p2334524.c100667.m2042
tomcat59alan
Well-Known Member
Like the way they leave the pipes uncapped so all kinds of ****e can get in.
Datatek
Well-Known Member
I would not pay that much for a used unit with no guarantee, it's not that much cheaper than a recon unit.
brianp38dse
Well-Known Member
Only said it was a bit cheaper, depends on how his funds are, personally i would go for a recon one direct with full warranty.
