P38A V8 Not starting after head gasket change
- Thread starter d1s
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
wooly123
Active Member
- Posts
- 155
- Location
- rye east sussex
She drives but the idle is very shakey. More than it was before the head gasket was changed. It's misfiring but I don't know why.
I'll see if I can get a video tomorrow.
I think the injectors are connected in the wrong order, but my mechanic has assured me otherwise.
I'll see if I can get a video tomorrow.
I think the injectors are connected in the wrong order, but my mechanic has assured me otherwise.
Dartmoor Navigator
Well-Known Member
- Posts
- 5,899
- Location
- Dartmoor
I've been following this and have no mechanical sounding to comment really.
Is this not a timing issue?
Is this not a timing issue?
A shaky idle suggests the leads are mismatched!
I would check your coil packs are connected in the correct order as it is SO easy to get two mixed up (or worse).
My guess is you may have muddled two (or more) of the leads on the coil packs because they as so bloomin hard to get at.
I ended up removing the manifold so I could get at the coils, changed them all and found my mate had mixed two up. Once they were done right she ran sweet as.
When I initially picked her up, she ran like a bag of nails, but she started and drove! Mice had chewed through 3 of the leads...
Anyway, I would deffo check the numbers again, just to be sure.
Failing that, you should get the fuel values checked out as she could need a re-trim. But check out the "free to check" stuff yourself 1st.
I would check your coil packs are connected in the correct order as it is SO easy to get two mixed up (or worse).
My guess is you may have muddled two (or more) of the leads on the coil packs because they as so bloomin hard to get at.
I ended up removing the manifold so I could get at the coils, changed them all and found my mate had mixed two up. Once they were done right she ran sweet as.
When I initially picked her up, she ran like a bag of nails, but she started and drove! Mice had chewed through 3 of the leads...
Anyway, I would deffo check the numbers again, just to be sure.
Failing that, you should get the fuel values checked out as she could need a re-trim. But check out the "free to check" stuff yourself 1st.
Rick-the-Pick
Active Member
- Posts
- 782
- Location
- Hove, Sussex.
It is a gems. This problem described could be caused by a cracked flex plate.
Check the old crank sensor for any damage.
Check the old crank sensor for any damage.
- Posts
- 58,170
- Location
- Preston Lancs.

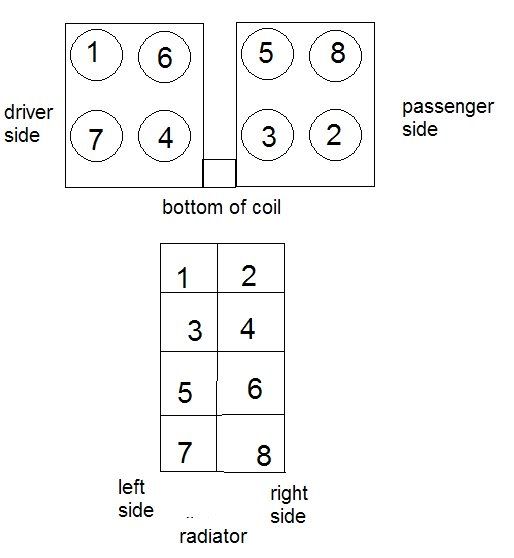

Each coil pack contains two coils, pack 1 feeds 2-3-5-8. Pack 2 feeds 1-6-4-7. The system works on the lost spark principle. Two plugs on each coil are fired at the same time. One when a cylinder is on compression and the other when the cylinder is exhausting. So for instance if cylinder 2 is on compression and cylinder 3 is on exhaust, coil pack 1 will fire the plugs on cylinders 2 and 3. And so on and so forth. If the leads are interchanged this will not happen and rough running will take place. Cylinder locations are Left bank 1-3-5-7. Right bank 2-4-6-8 Left being left side of engine as viewed from drivers seat. Number one cylinder is left side of engine at front or crank pulley end.
- Posts
- 58,170
- Location
- Preston Lancs.
He says it's Motronic.
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
err i think i may see your problem..
the cylinder numbers are low numbers front, high numbers by the firewall. odd right, even left..
getting the leads ass backwards will make it run like it **** for sure !!
the cylinder numbers are low numbers front, high numbers by the firewall. odd right, even left..
getting the leads ass backwards will make it run like it **** for sure !!
err i think i may see your problem..
the cylinder numbers are low numbers front, high numbers by the firewall. odd right, even left..
getting the leads ass backwards will make it run like it **** for sure !!
That's what I was thinking! Lets hope he's nailed it, good call Adam. Beat me to it
I learned from experience
- Posts
- 58,170
- Location
- Preston Lancs.
Just picked it up from the MOT centre. Passed, but temperature gauge when straight to red on the way home. Pulled over, steam everywhere, opened coolant filler cap and the water exploded out. Filled it with 5 litres of water, locked it and left it for the night.
Head gaskets maybe damaged again?
Head gaskets maybe damaged again?
- Posts
- 58,170
- Location
- Preston Lancs.
Just picked it up from the MOT centre. Passed, but temperature gauge when straight to red on the way home. Pulled over, steam everywhere, opened coolant filler cap and the water exploded out. Filled it with 5 litres of water, locked it and left it for the night.
Head gaskets maybe damaged again?
In post #84 you say it was running fine before you changed head gaskets. Why did you change them? You obviously have little idea what you are doing.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
or cracked blockJust picked it up from the MOT centre. Passed, but temperature gauge when straight to red on the way home. Pulled over, steam everywhere, opened coolant filler cap and the water exploded out. Filled it with 5 litres of water, locked it and left it for the night.
Head gaskets maybe damaged again?
