A few pics from Friday night and todays clean up and modifications.

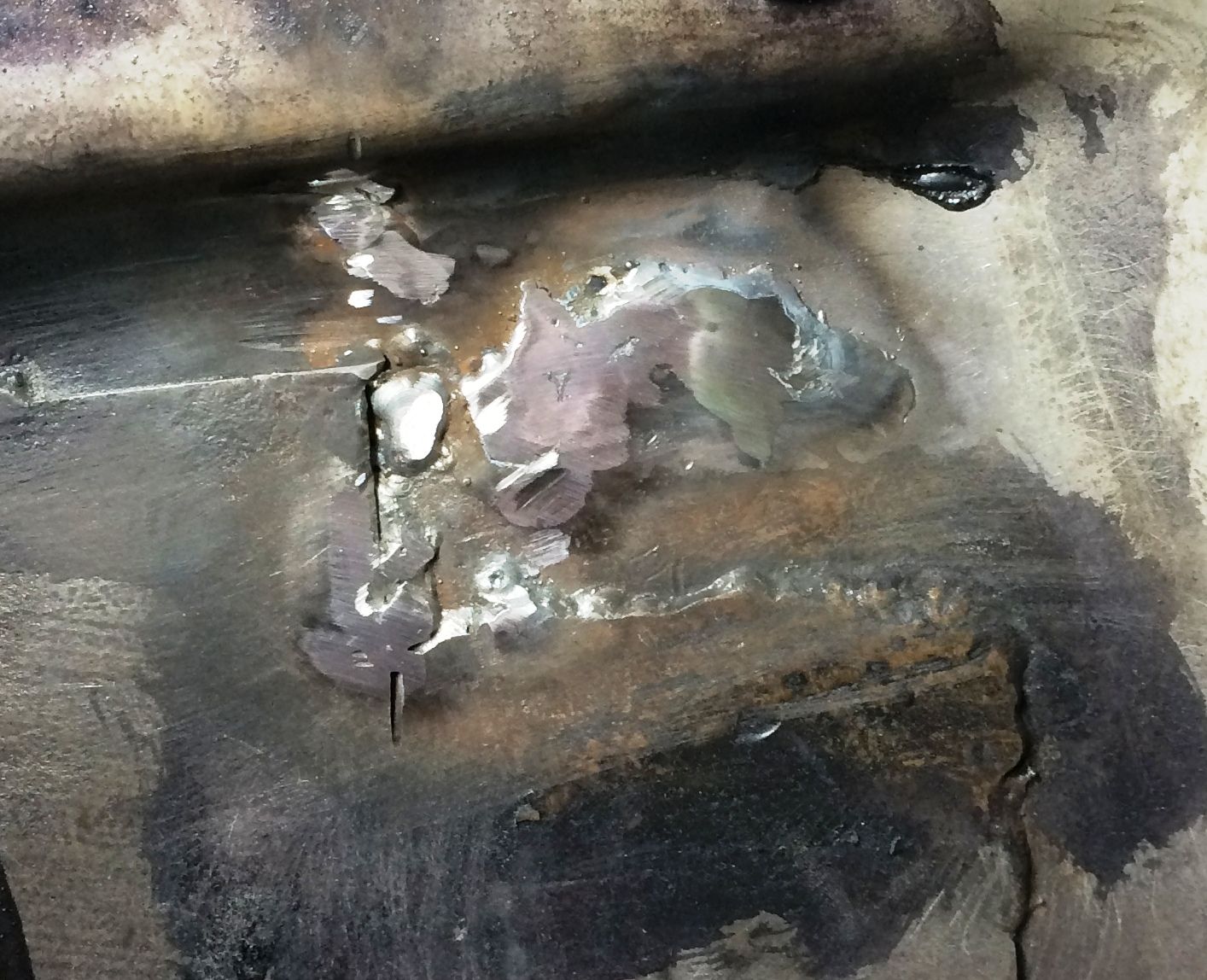

Bulkhead repair - 2
Bulkhead repair2 - 1.JPG


NS Floor to Sill welding
NS floor to sill welding1.JPG

NS floor to sill welding2.JPG

NS floor to sill welding3.JPG


B post Mod#1. Needs to be cleaned and attached.
NS B Post Mod1.JPG


B post Mod #2. Needs to be fettled prior to permanent fit.
NS B Post Mod2-1.JPG

NS B Post Mod2-2.JPG

@dieseldog69 - had a thought .... (dangerous)

how about 2off 4x2 timbers clamped vertically on outside of NS sill, inside door access area, scaff pole across OS door window and ratchet straps between the two?
tightening ratchet straps should pull sill around, without lifting the body.........

wotcha think?

The Mad Hat Man said:
@dieseldog69 - had a thought .... (dangerous)

how about 2off 4x2 timbers clamped vertically on outside of NS sill, inside door access area, scaff pole across OS door window and ratchet straps between the two?
tightening ratchet straps should pull sill around, without lifting the body.........

wotcha think?
Click to expand...

Sounds very Landyzone-ish .. I'd say go for it, what could possibly go wrong?

Is there to be fire involved? Just wondering, perhaps a video camera judiciously setup on a tripod ... ;)

as its sposed to be a tad damp on Friday, might mean working inside (no room for your tool, as it is sposed to be quite big) :eek::eek:
so here we go......

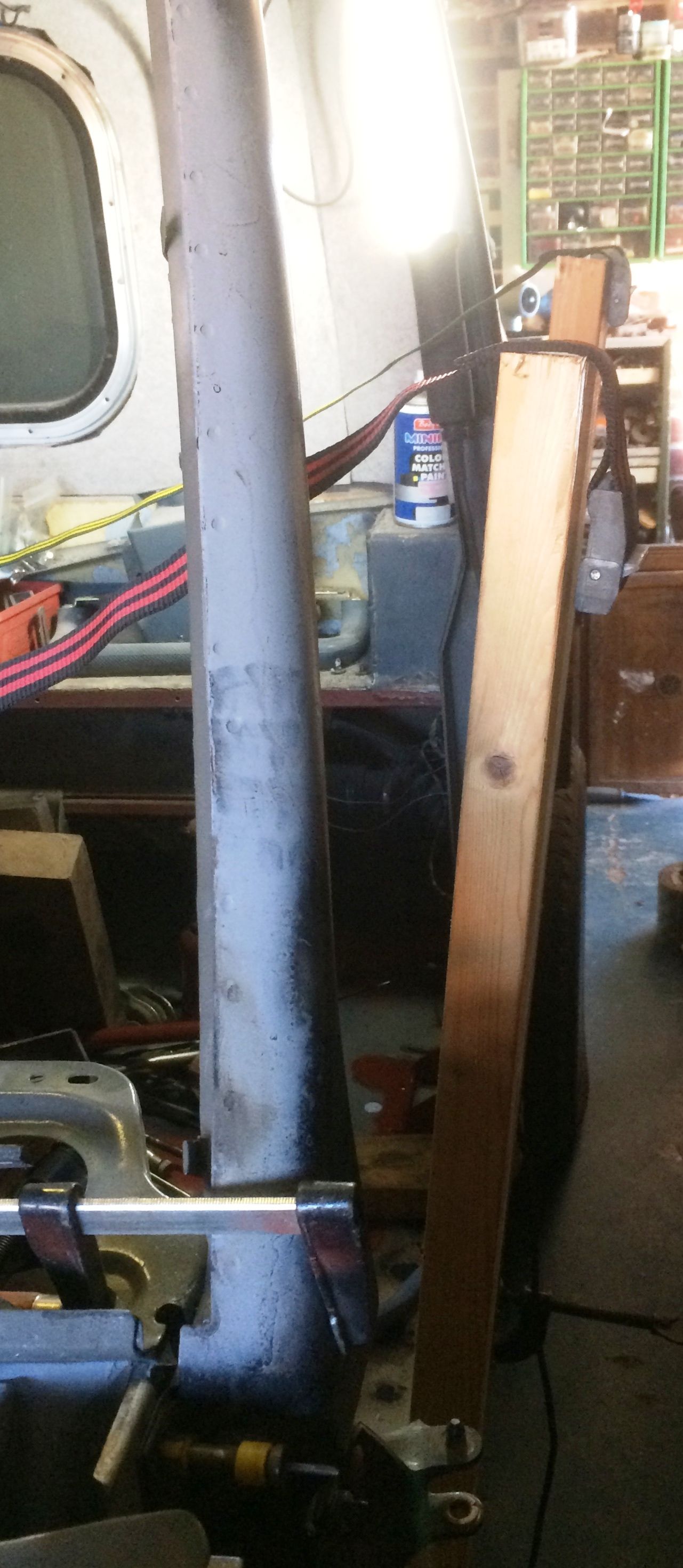

angle of timbers before
NS Sill straightening strapping before.jpg

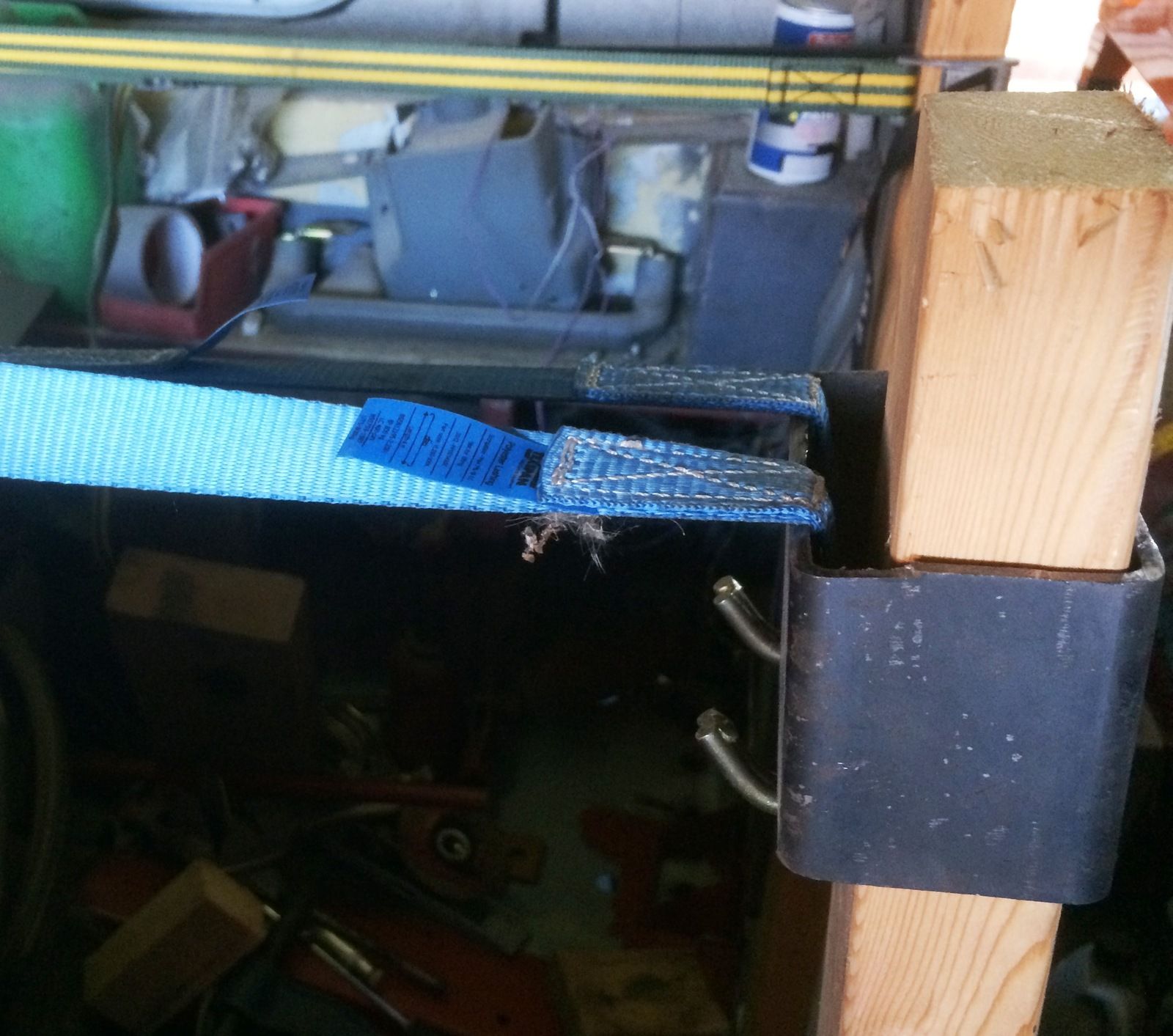

Strapping method
NS Sill straightening strapping..JPG

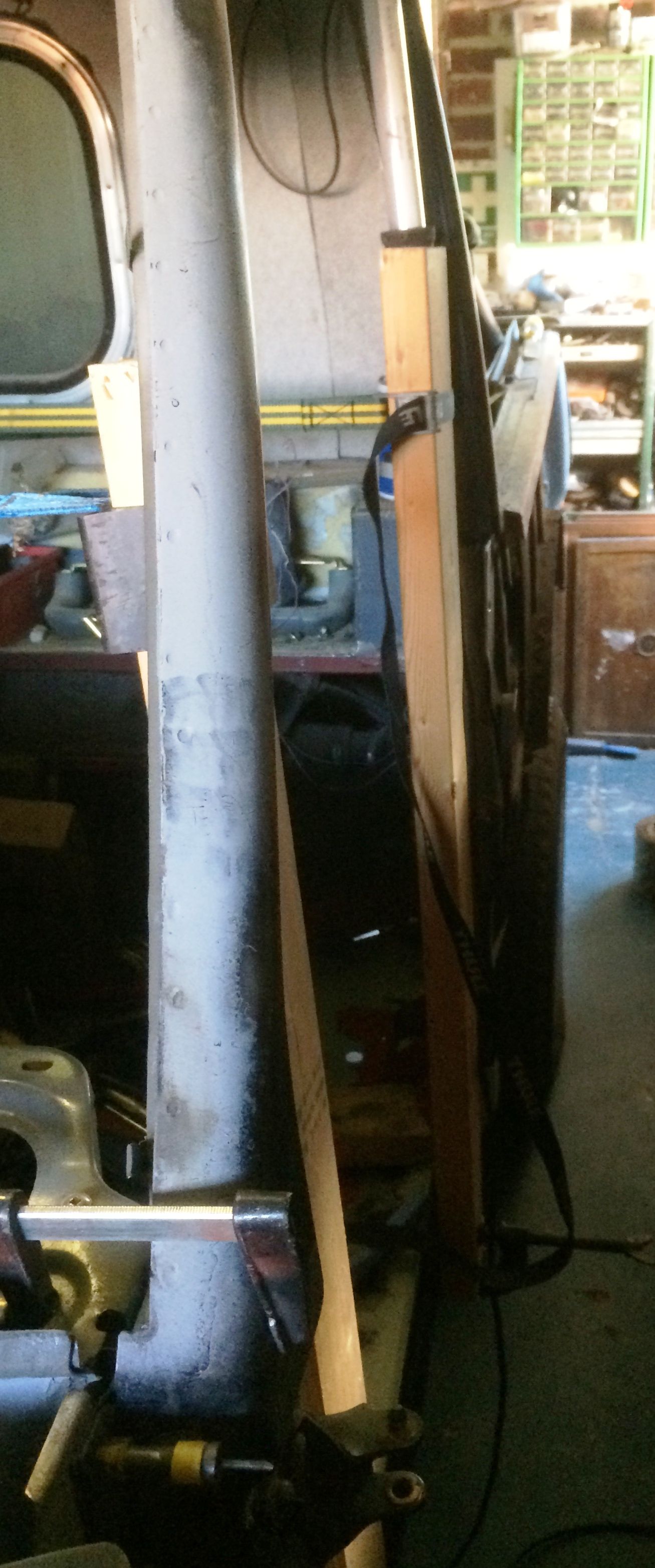

Timber angle after
NS Sill straightening strapping after.jpg

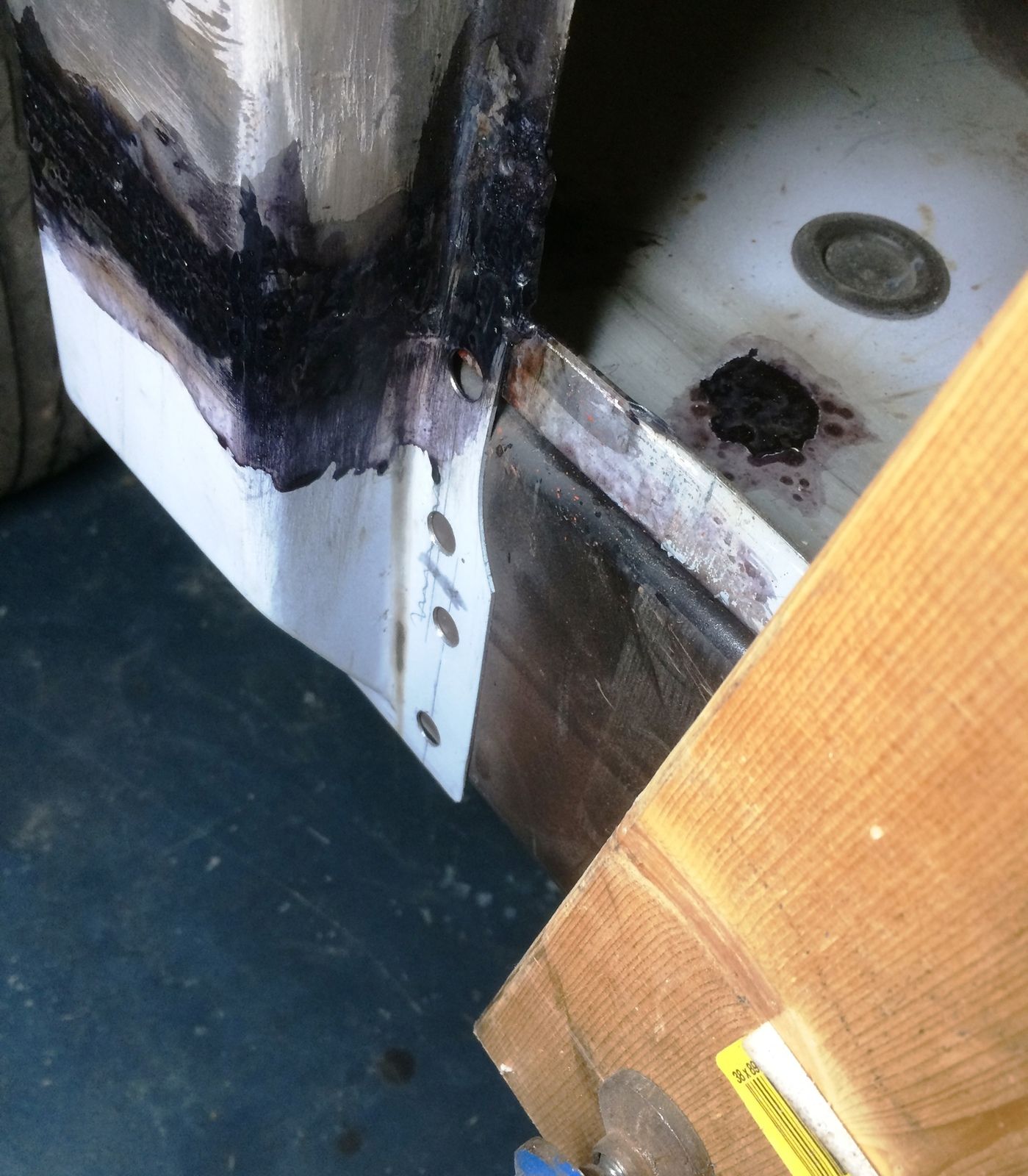

A post alignment after sill alignment
NS Sill straightening strapping... A post alignment.JPG

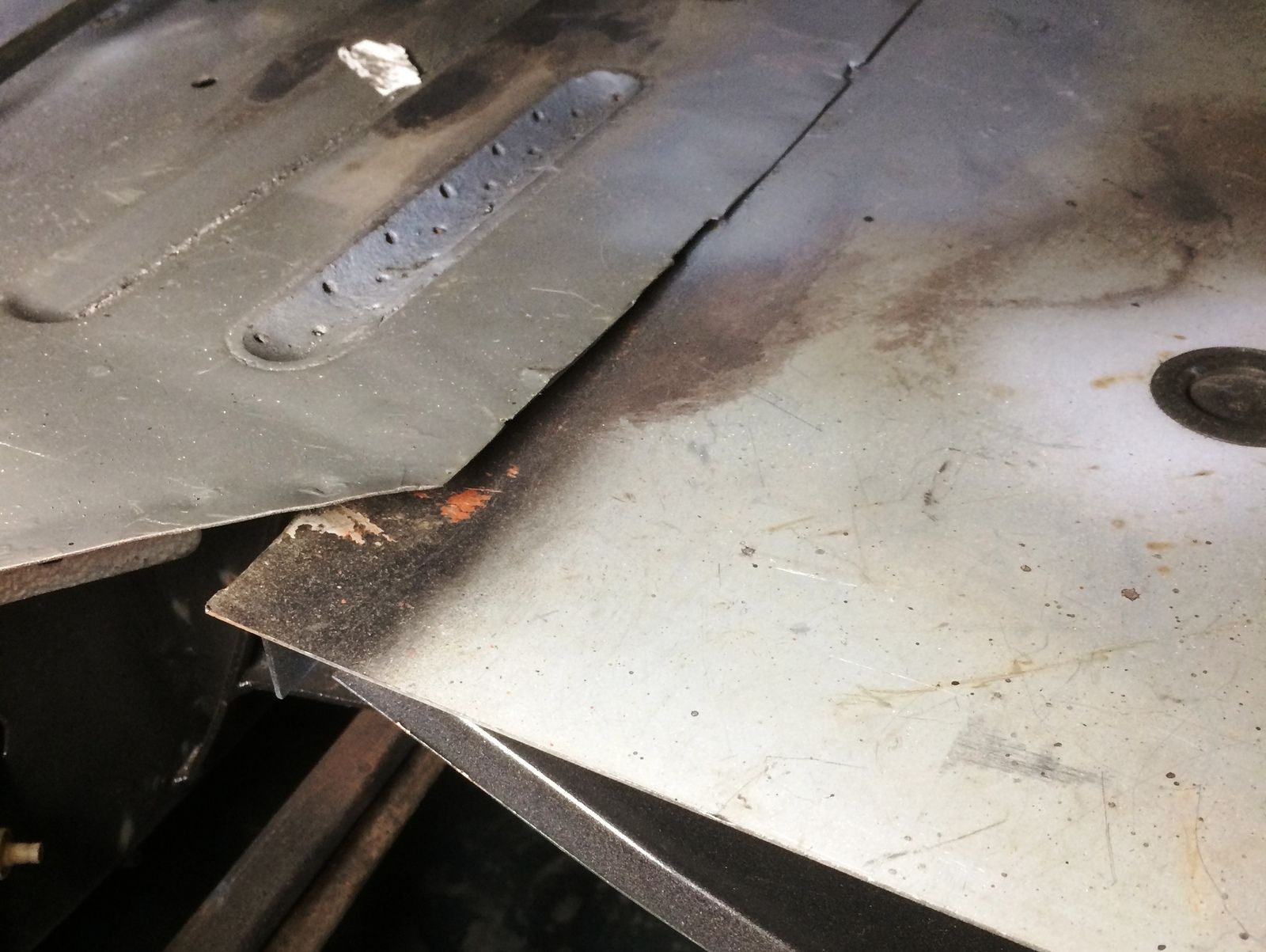

It is easy to see how much the floor has dropped with the sill angle corrected.
NS Sill straightening strapping... floor drop.JPG


Still some more fettling required, but its a lot closer :)

Nice work there, that looks like it will go :)

Not as Heath Robinson as I was expecting :cool:

I think there will be enough strength to hold it one we get the B pillar positioner in an the A post bottom in there, should work out to be a productive evening :)

The Mad Hat Man said:
as its sposed to be a tad damp on Friday, might mean working inside (no room for your tool, as it is sposed to be quite big) :eek::eek:
so here we go......

angle of timbers before
View attachment 160492

Strapping method
View attachment 160493
Timber angle after
View attachment 160494
A post alignment after sill alignment
View attachment 160495
It is easy to see how much the floor has dropped with the sill angle corrected.
View attachment 160496

Still some more fettling required, but its a lot closer :)
Click to expand...
Very good :):cool:

dieseldog69 said:
Hmmmmm...........

Are you going to want to drill and fit crush tubes in that box section to accommodate them before we move onto the next bit?
Click to expand...
iIdont think so. Not sure if its the best option any more. Will consider it later. Best to get the main body done, I reckon.

I might sell them and refabricate something :eek:
