The Mad Hat Man said:
I know - it looks like stick welding. :eek:. Good that I found it tho :)
Click to expand...

No, this is what stick welding looks like ;)



2.5mm 6011 on 70 amps and blaze away :D

Just ordered some new 2mm & 2.5mm 6013, I'd like to try some fleetweld to see what they weld like but ideally I would need a DC inverter not my AC buzz box lol

A few pics from last night and today..... little steps, but moving forward

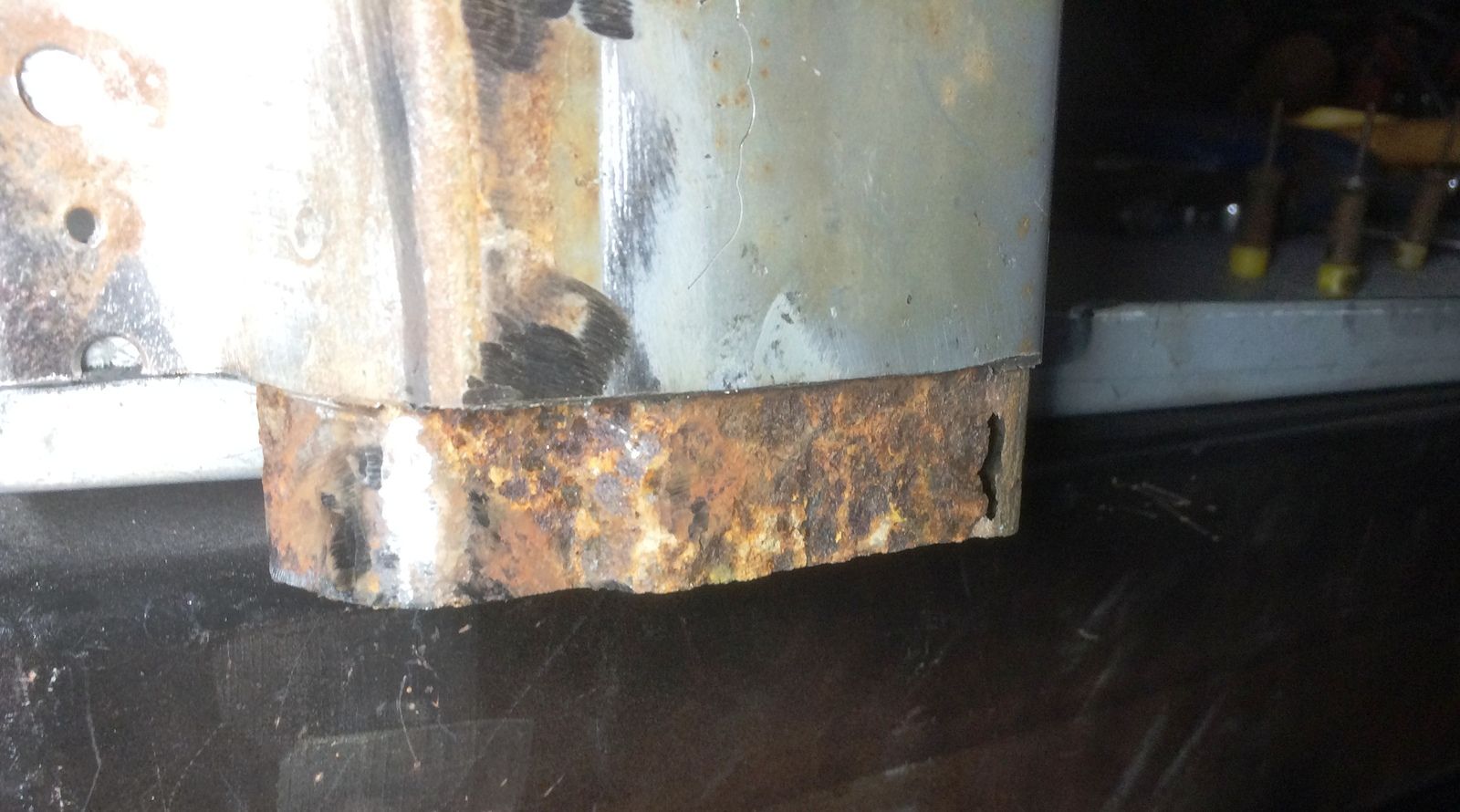

A post cut... not brilliant inner section
A post repair cut 1.JPG

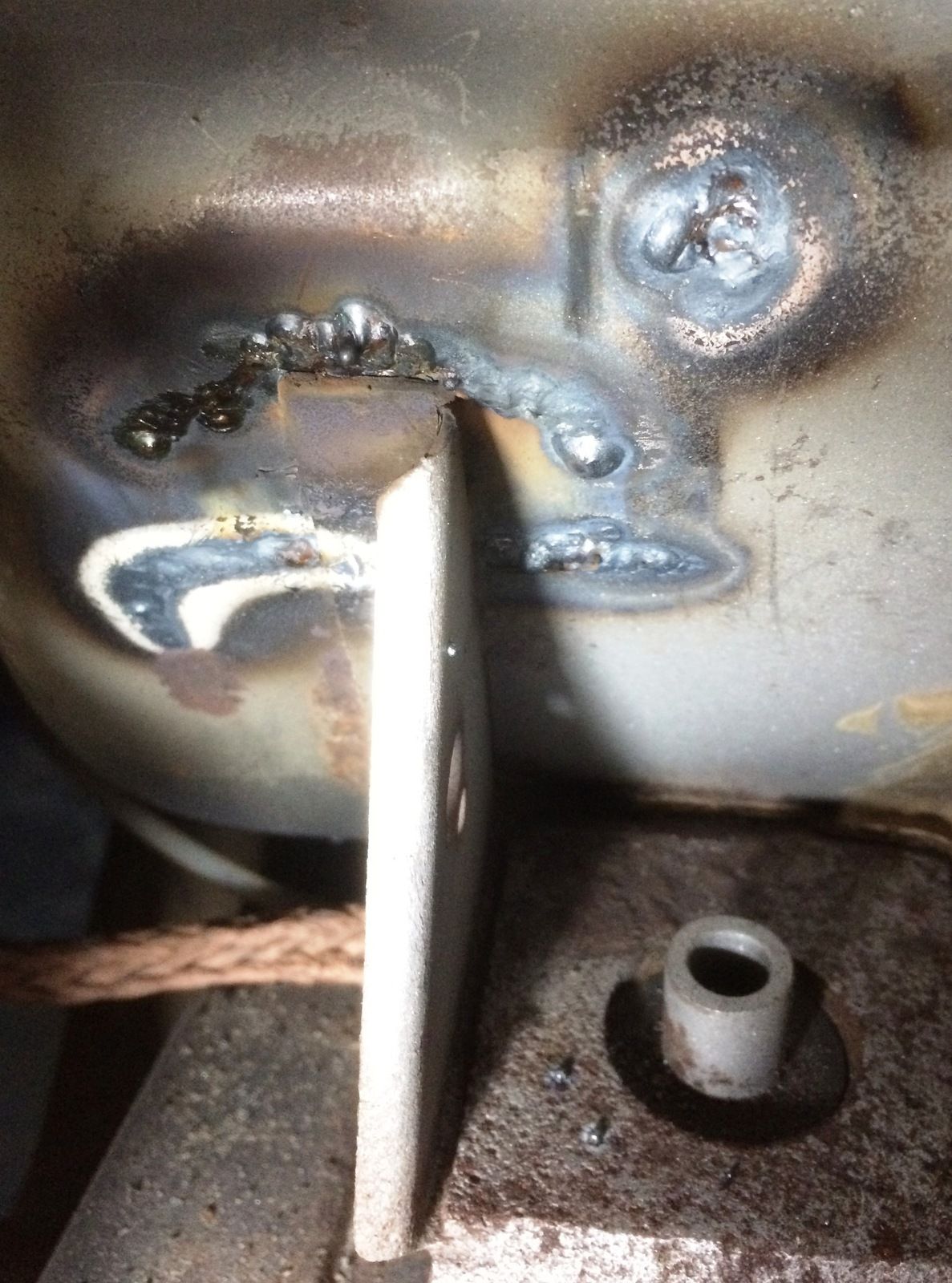

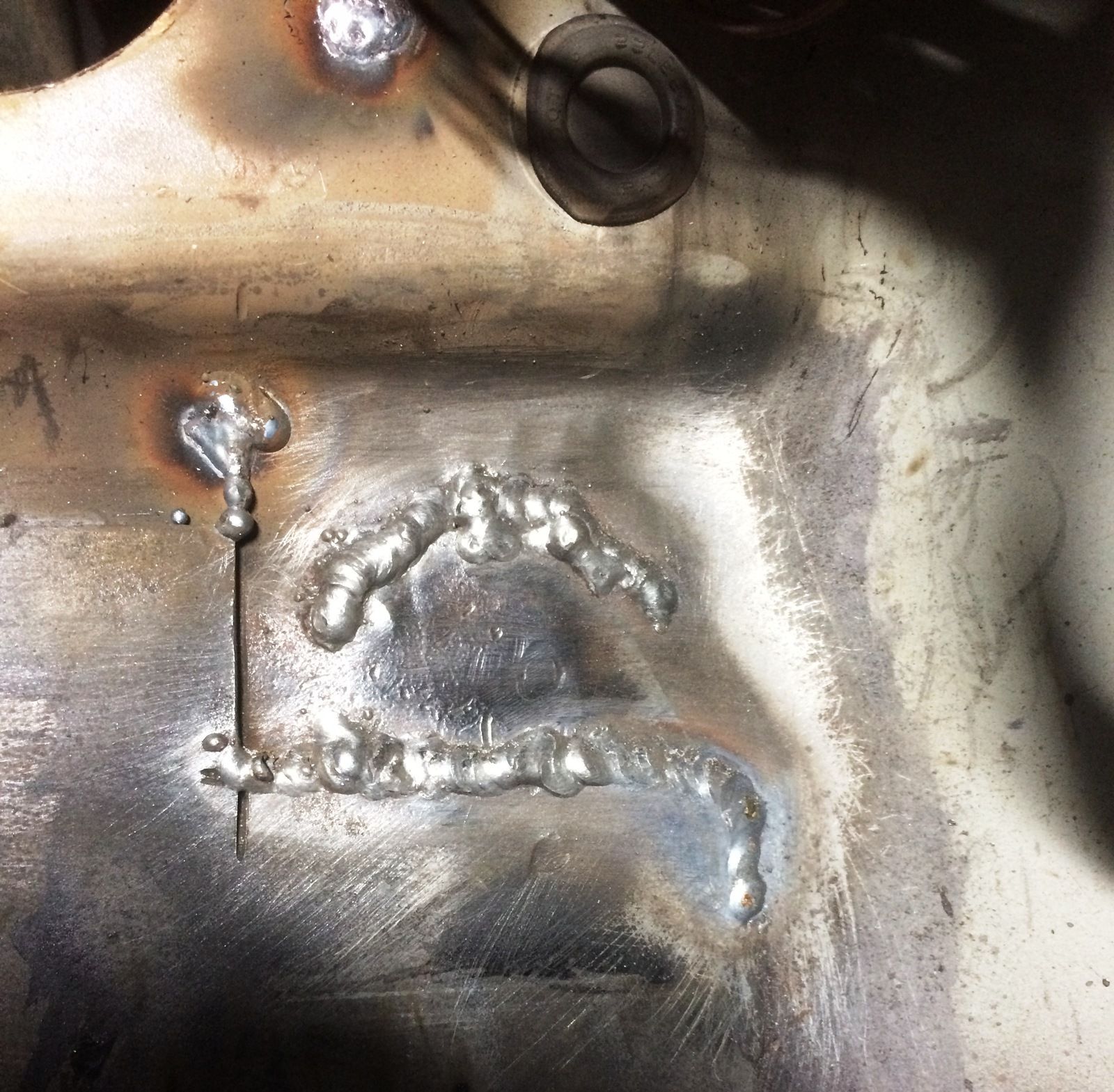

Bulkhead crack repair
Bulkhead Crack repair 1.JPG

Bulkhead Crack repair 2.JPG

Floor to sill prep
Floor to Sill fix Prep 1.JPG
Floor to Sill fix Prep 2.JPG
Floor to Sill fix Prep 3.JPG

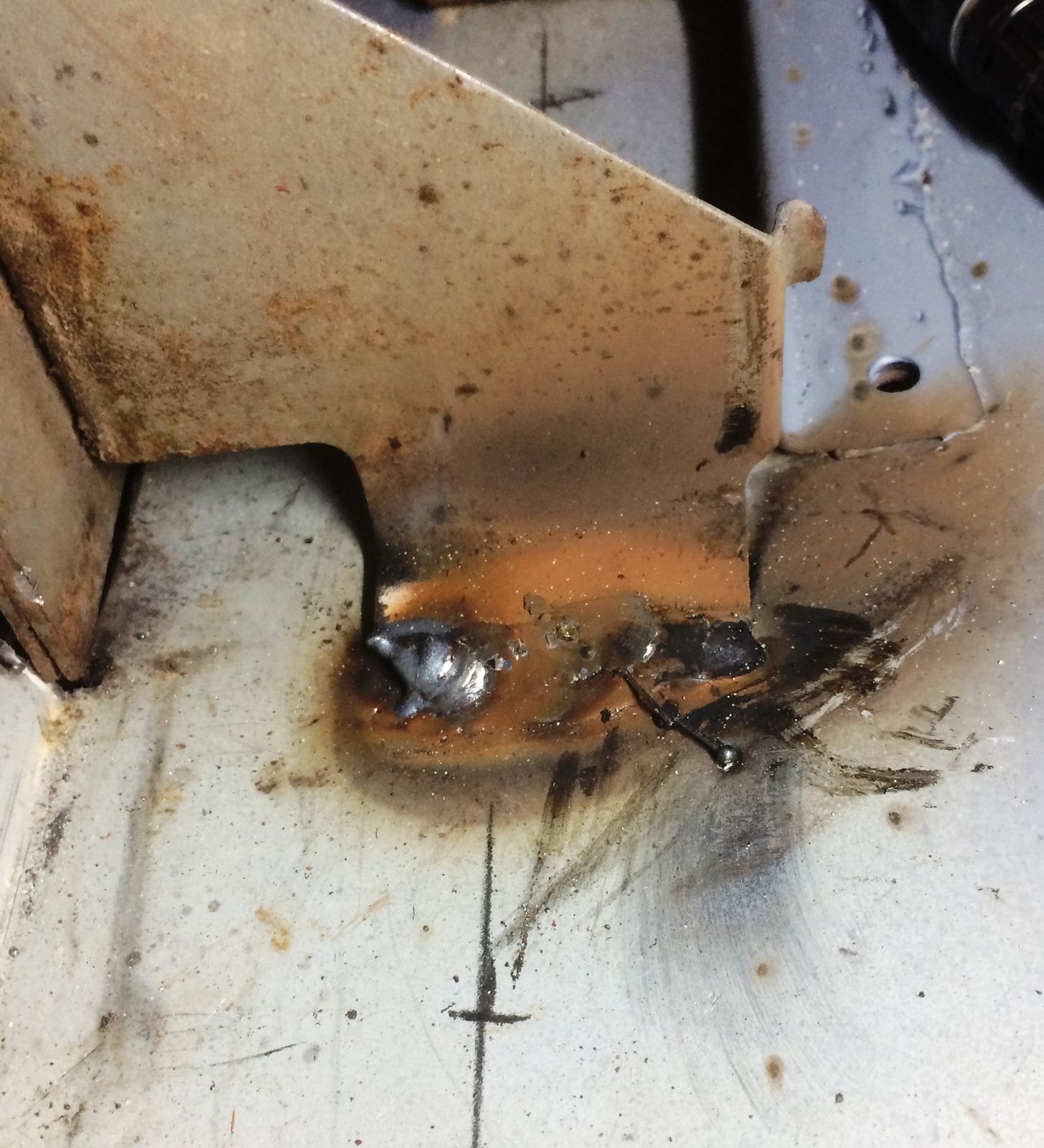

NS Seatbelt mount repair
B post Seatbelt mount.JPG

floor-to-sill-fix-prep-3-jpg.159773


Is it worth sticking another hole in the seatbelt mount area and is the one (undrilled) at the back ok for position, or would it be better closer to the Roll cage?

A couple of those holes are right on the inner edge of the sill section. :eek:

Some more pics from today

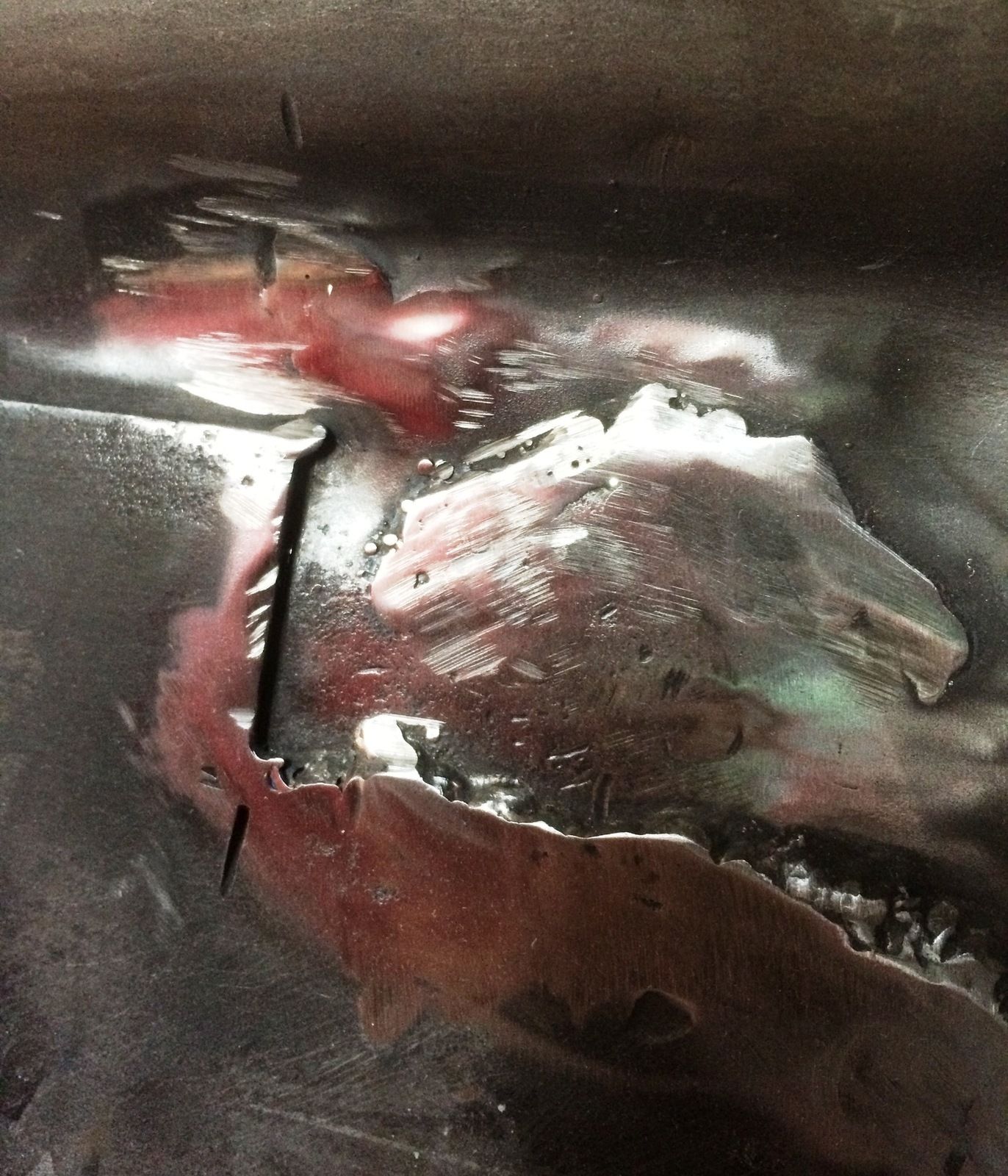

First cleaning up bulkhead repair
NS Bulkhead strengthening plate patch1.JPG

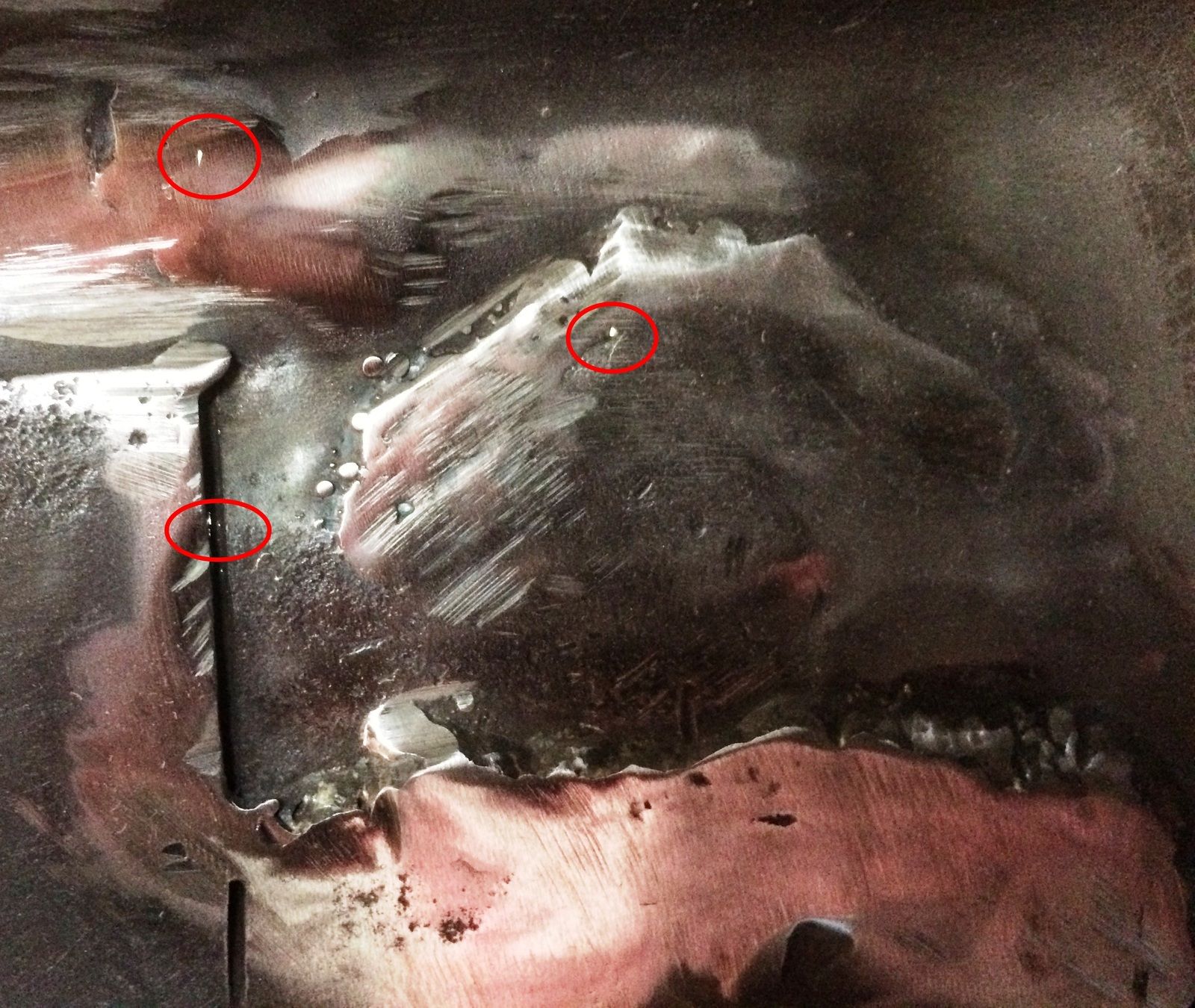

Showing pinholes
NS Bulkhead strengthening plate patch2.JPG

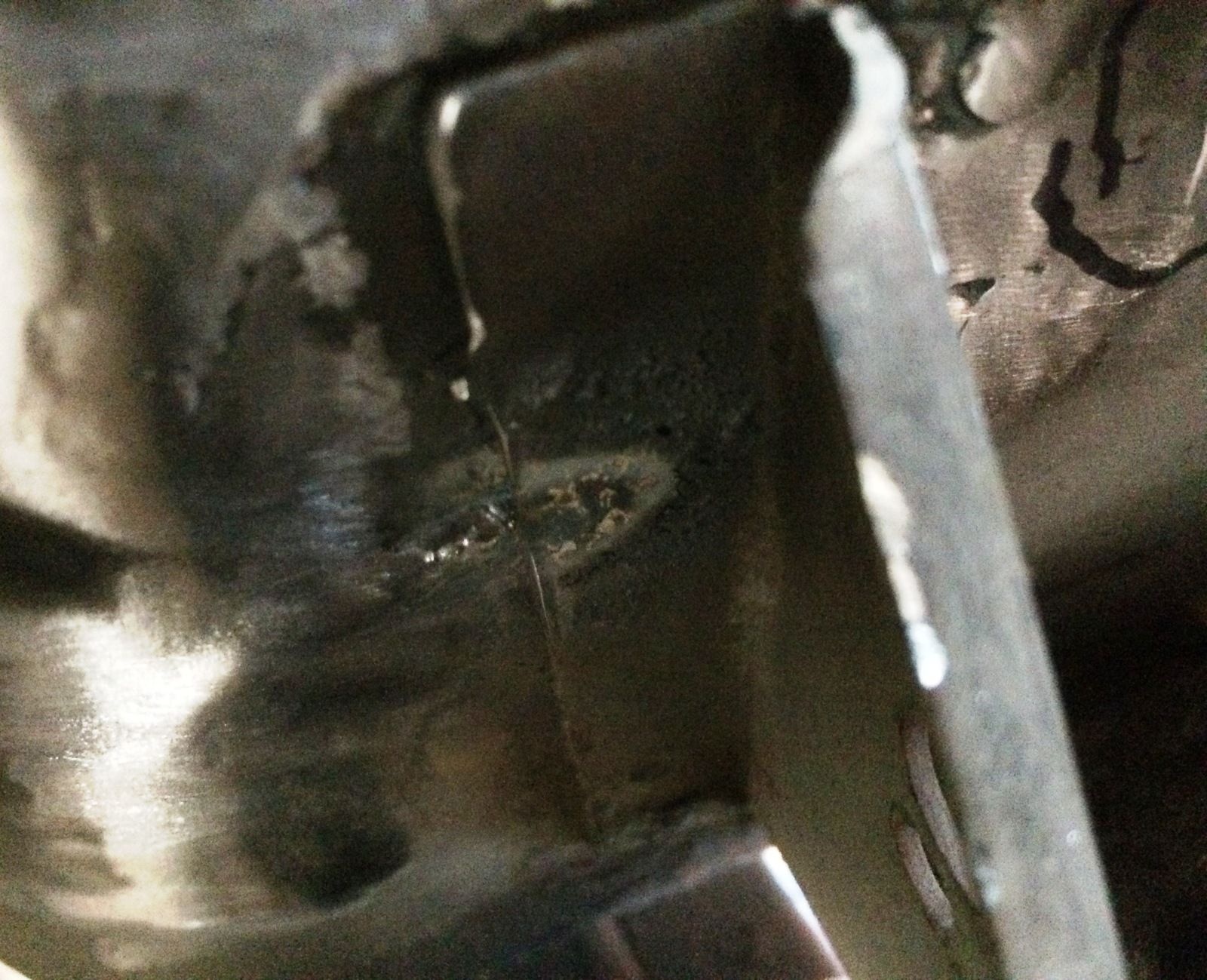

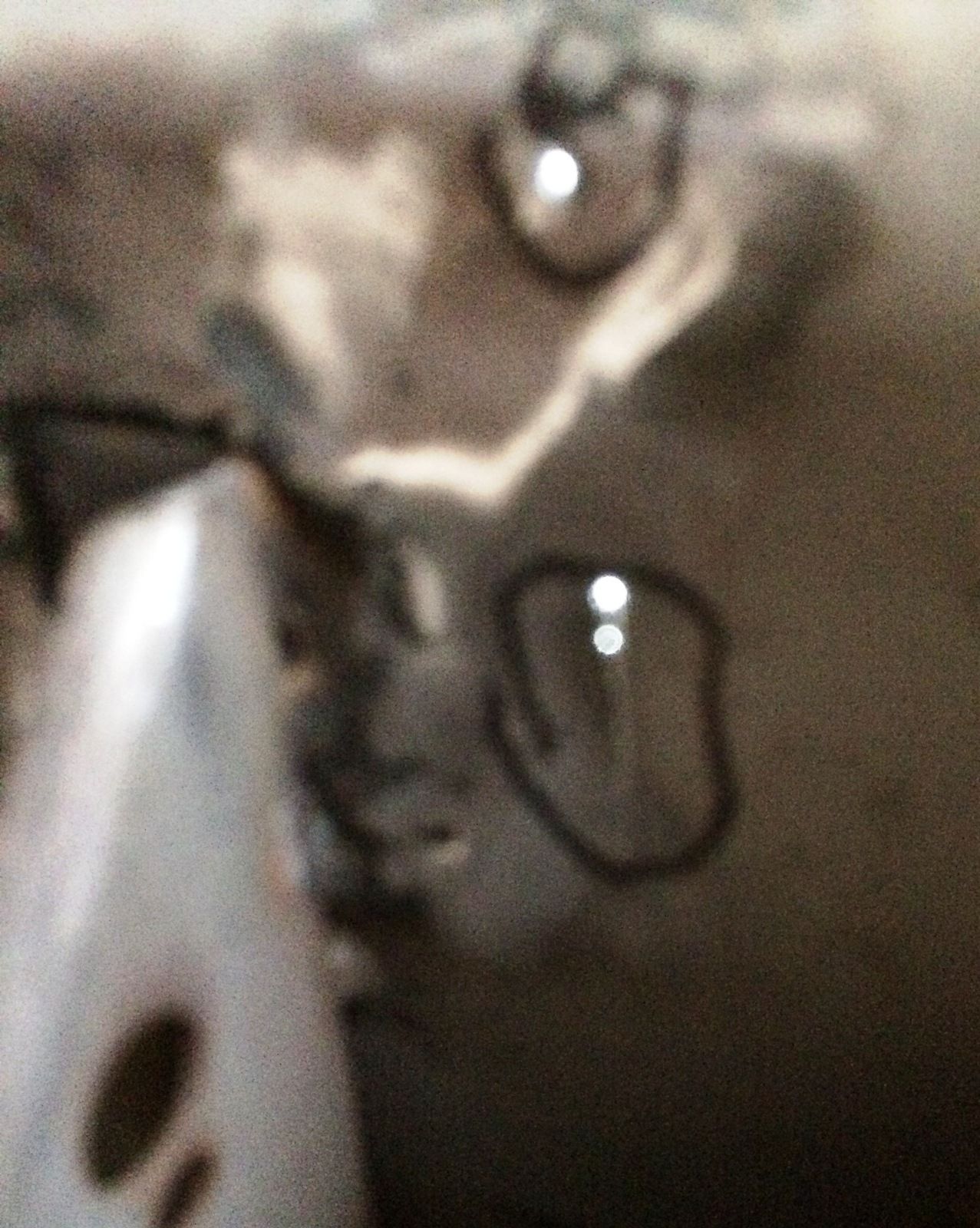

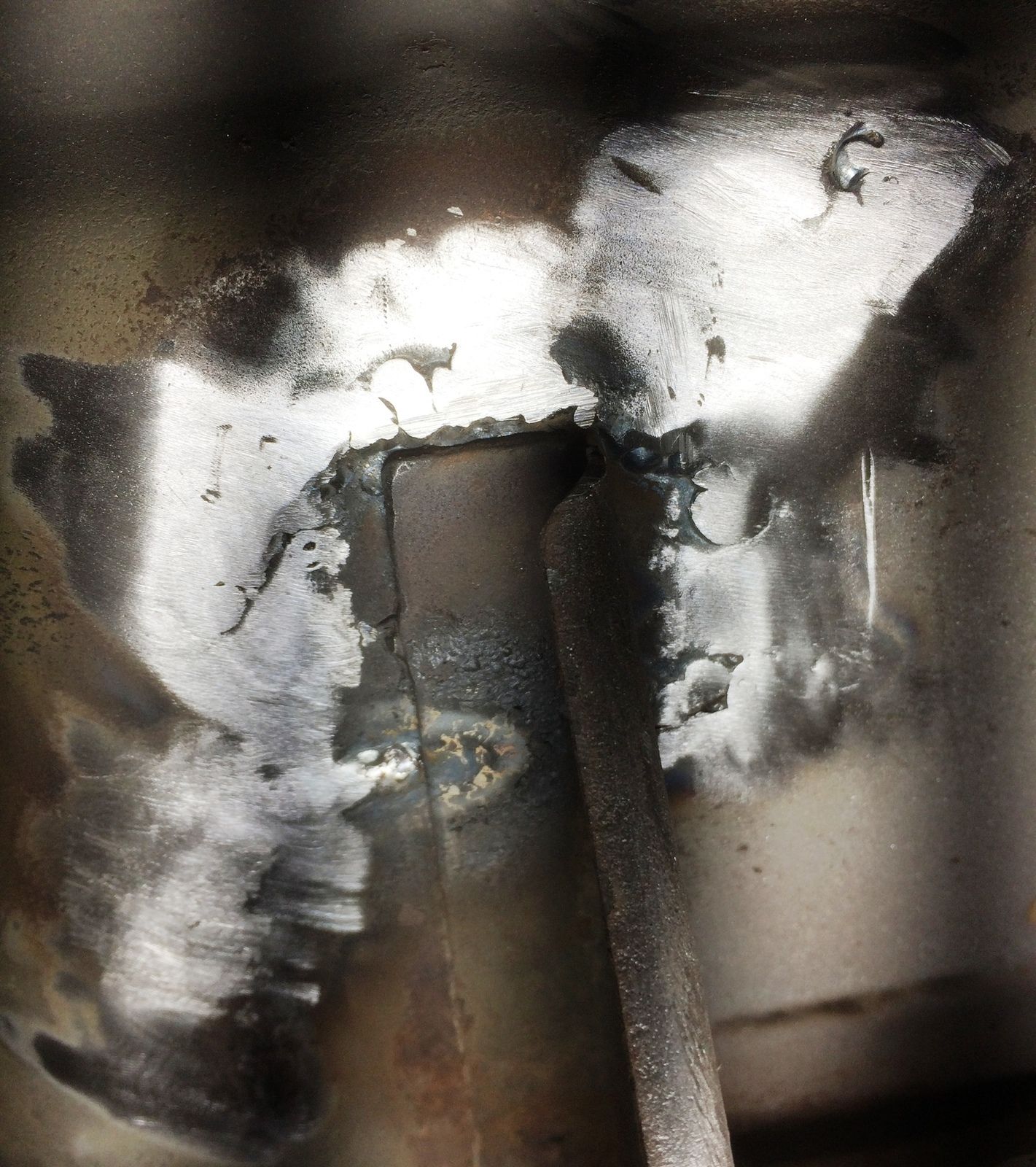

outside bulkhead pics
NS Bulkhead repair outside 1.JPG

NS Bulkhead repair outside 2.JPG

NS Bulkhead repair outside 3.JPG

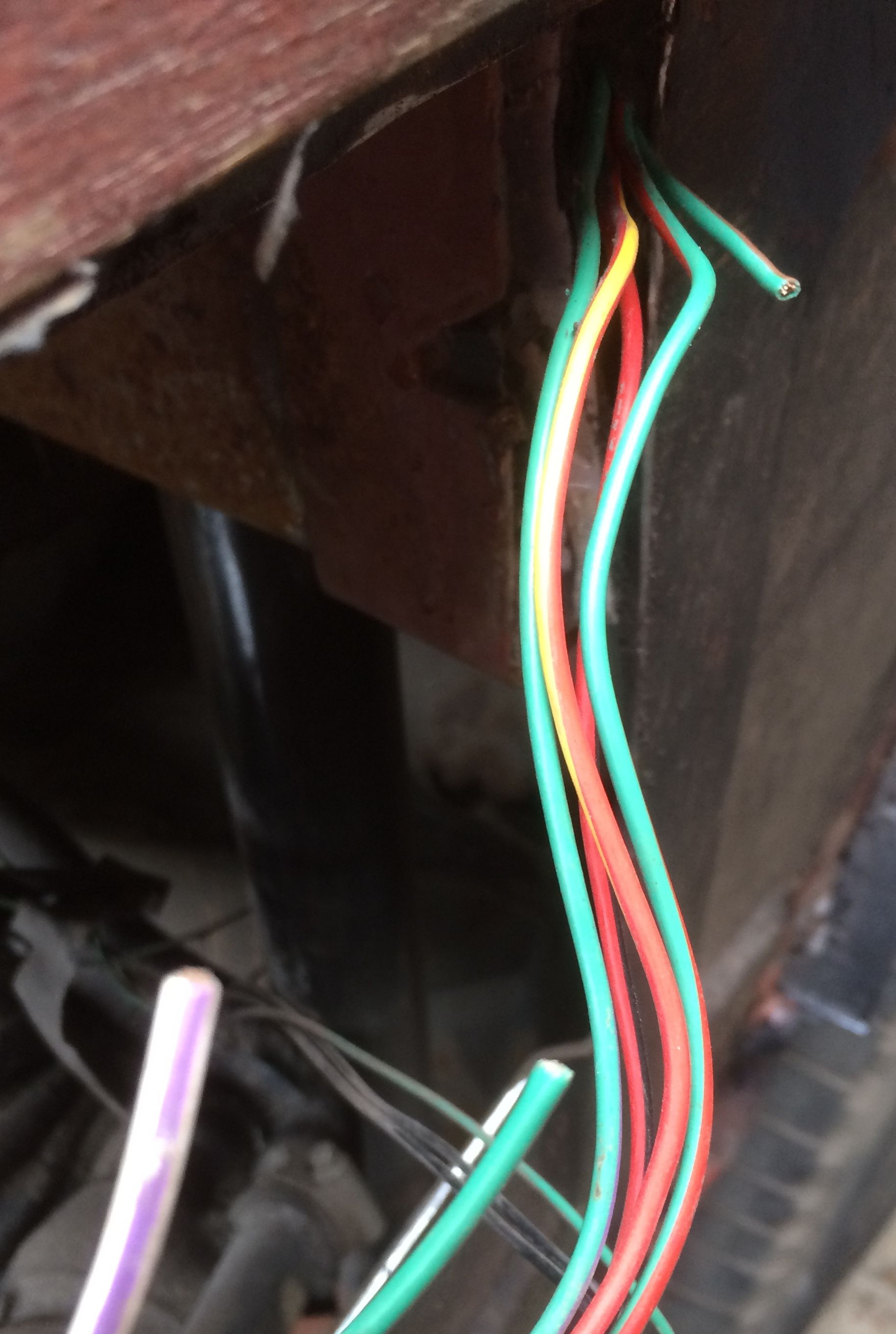

cut wiring found near fuel access hatch
NS cut wiring by fuel access hatch.JPG


interesting what you find hiding behind the fuel tank :eek:
Interesting what yu find behind fuel tank.JPG


good news - rear NS quarter panel is in surprisingly good condition :)
NS rear quarter panel cleanup 1.JPG


I did find out that watch glass doesnt like either being on the receiving end of grinding sparks or shot-blasting media :eek:.

I was going to shot blast the outside bulkhead repair, but will wait till the welding is completed on the repair first.

Last edited:
Poxy bloody funkin pin holes :mad:

Friday, me an that footwell have got a HOT date, emphasis on the HOT!!!

What else ya been upto then? Well apart from destroying a perfectly good £400 watch :eek:

it appears the D1 and D2 slam panels are both, nominally, the same width - 154cm ;)

ere @dieseldog69 - what do you think of splitting the B post repair section in two, from top to bottom to enable it to fit betterer?

The Mad Hat Man said:
Some more pics from today

First cleaning up bulkhead repair
Showing pinholes
outside bulkhead pics
cut wiring found near fuel access hatch
interesting what you find hiding behind the fuel tank
good news - rear NS quarter panel is in surprisingly good condition :)
I did find out that watch glass doesnt like either being on the receiving end of grinding sparks or shot-blasting media :eek:.

I was going to shot blast the outside bulkhead repair, but will wait till the welding is completed on the repair first.
Click to expand...

The only good reason to wear a cheap plasticky Casio type watch ... you clean it under the tap ...
