Series King Cab

you got rubber mounts for that?

Well obviously theres a rubber mount between the engine mount and chassis bracket :doh:

Dr_evil said:

Well obviously theres a rubber mount between the engine mount and chassis bracket :doh:

Click to expand...

Just asking Doc as you said them was the mounts

yes but you always have a bracket coming off the engine then a rubber bobbin thing between the engine mount and the chassis bracket

whats the big red truck in the pohotos?

Dr_evil said:

yes but you always have a bracket coming off the engine then a rubber bobbin thing between the engine mount and the chassis bracket

Click to expand...

brackets come from chassis to where engine is, and engine mounts bolt to engine then the chassis mounts/base bracket either welded or big damn rivets from fractory

classic GM mounts bolt to engine

http://www.v8monza.com/catalog/page-0.htm

flat said:

whats the big red truck in the pohotos?

Click to expand...

Ford F250, RWD only running a 6.5L straight 6

Thor1950 said:

brackets come from chassis to where engine is, and engine mounts bolt to engine then the chassis mounts/base bracket either welded or big damn rivets from fractory

classic GM mounts bolt to engine

V8MONZA.COM - Product Catalog

Click to expand...

But this is a custom job :doh: so we're using custom mounts so it sits nearer the Rover V8 position

Dr_evil said:

Ford F250, RWD only running a 6.5L straight 6



But this is a custom job :doh: so we're using custom mounts so it sits nearer the Rover V8 position

Click to expand...

so not a ford motor then

No its a ford motor just not the original

Dr_evil said:

No its a ford motor just not the original

Click to expand...

I know of no 6.5liter 6 made by ford. They had a 300cid 6 in F250 but was a 4.9 liter. so some one has crossed wired

Well its got a ford straight 6 rocker on it and he said it was a ford engine, cant remember the year but think its an 80's one

Dr_evil said:

Well its got a ford straight 6 rocker on it and he said it was a ford engine, cant remember the year but think its an 80's one

Click to expand...

its a 300 cid 4.9 was a good work horse lots of low end torque, never a 6.5

And you can wikepida to check if you wish. I am a ford truck guy Doc

Nope cos its a non original, it used to have a V8 up front but it got changed over at some point

No idea what the engines out of though

Dr_evil said:

Nope cos its a non original, it used to have a V8 up front but it got changed over at some point

No idea what the engines out of though

Click to expand...

then the 300/6 as ford never made a 6.5 straight 6

He's not bothered tbh, it gets 30mpg on a good day so better than a landy

This is on hold for a minute.......


we're here now!


http://www.landyzone.co.uk/lz/f42/cadillac-429-rebuild-241328.html

Right back to landrover related items today instead of engine!

Made a start on measuring up for the gearbox to transfer adaptor.....


The Muncie plus Chevy bellhousing comes in at a lovely and compact 16 7/8" this will also want a 1" adaptor plate on it for the bellhousing to block


The LT230 is 11 1/2" gearbox mating face to output flange end


This gives me a total length of 29 3/8" if mated face to face which is the preferred option over a divorced adaptor!


The R380 short box was 15 1/2" minus bellhousing, the bellhousing on the stumpy is 4 3/4" which gives me a total of 20 1/4" and 31 3/4" with the LT230 on it then with the adaptor plate for R380 to V8 it brings me to 33"

So using the muncie I'm 3 5/8" shorter!



Now as a comparison the series transmission comes in at 27" but my engine has been moved all the way forward now and its also a half inch shorter than the RV8 so I should get a proper length rear shaft on there. Or 29" with the adaptor plate in place.

This means the Muncie SM420 with a face to face adaptor comes in at near enough the same length as a series gearbox and transfer combo when mated to the LT230 using a face to face method.


After measuring I have two options for the transfer box adaptor. I can either mate it direct to the face using an adaptor plate which I'll make by hand or I can use a divorced adaptor as these would have been supplied with from the factory when mated to the Dana cases. Now the divorced adaptor will increase the length of the overall set up by 5" bringing me to 34 3/8th's



Recap;


R380 plus LT230 = 33"
Muncie LT230 face to face = 29 3/8ths
Muncie LT230 divorced = 34 3/8ths
Series plus V8 adaptor = 29"


So with the engine being 1/2" shorter than the RV8 and being moved forward another 1-2" because I have the room it means I'll have room for a proper sized rear shaft whichever method I choose but in the interest of space saving I'm going to try to get a new rear output gear made up for the gearbox as it has the speedo drive on it if not I can always run the speedo from somewhere else and do away with the whole set up there so I'd just need to mill a new back plate with a support bearing housing on it




Anyway onto the pics!

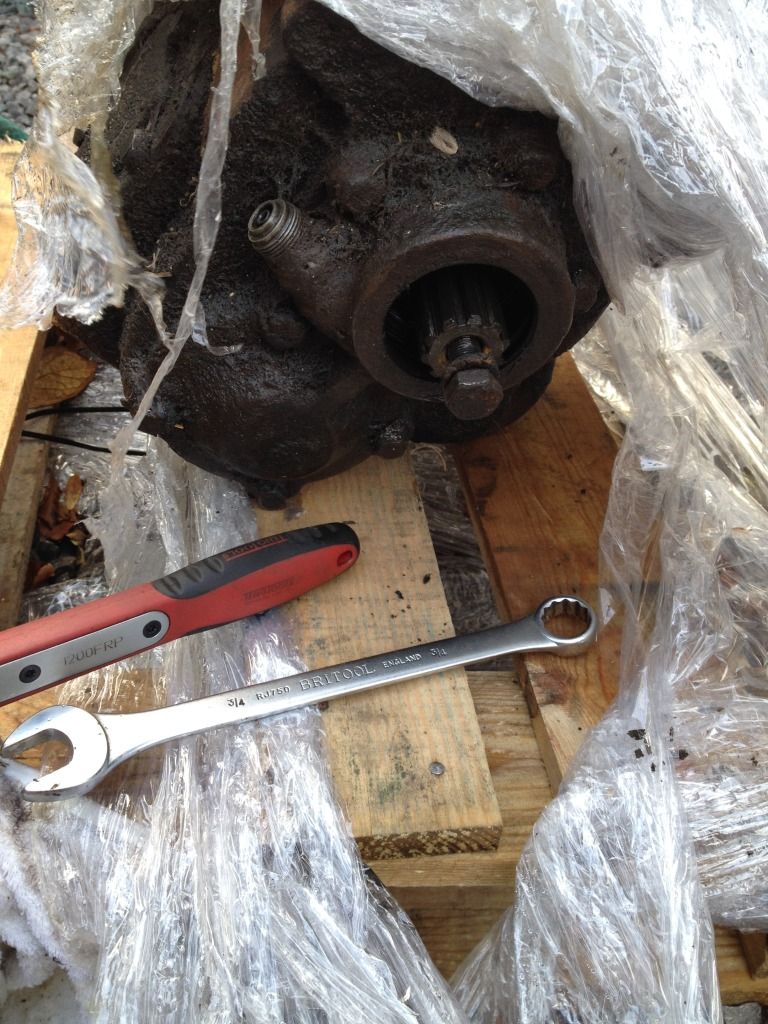

Muncie output drive

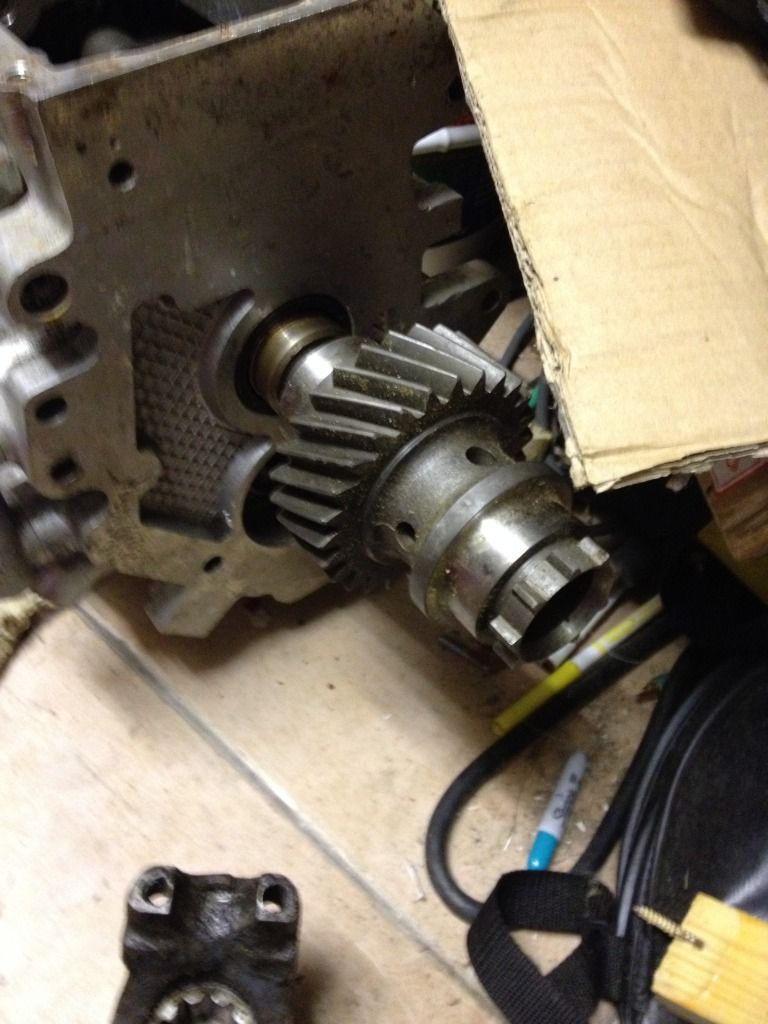

LT230 input drive on R380 shaft







Vid of the LT230 and Muncie on the output of the R380 they both fit snugly but its easier to mate it another way due to the shaft length on the SM420

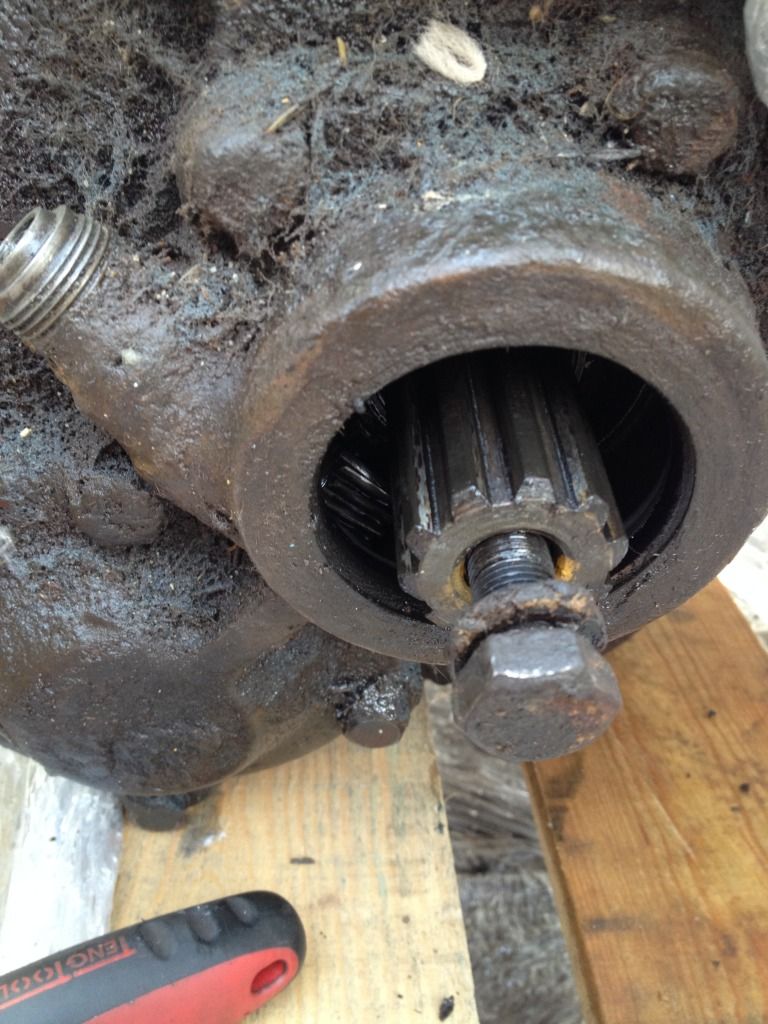

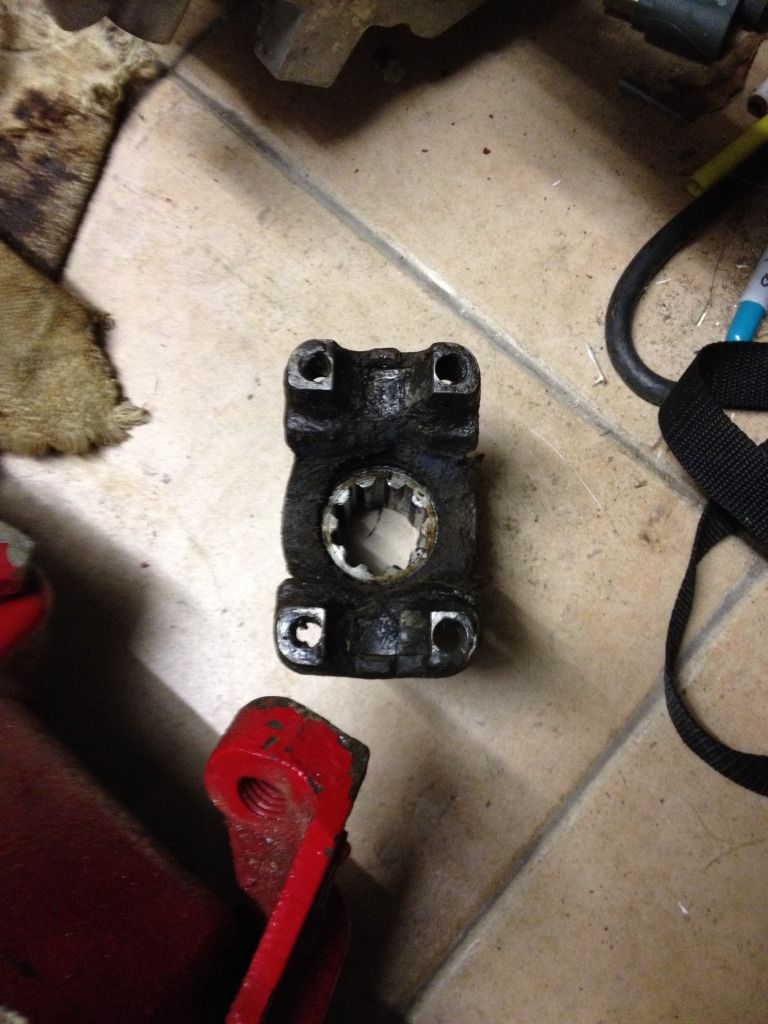

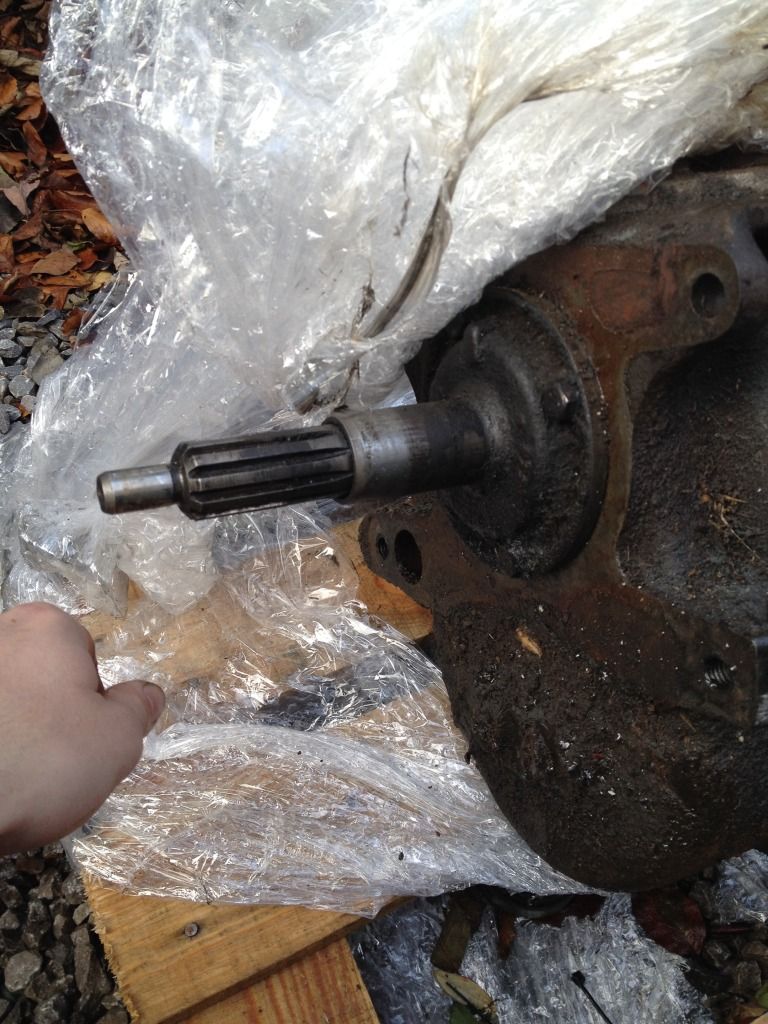

Output splines on the Muncie

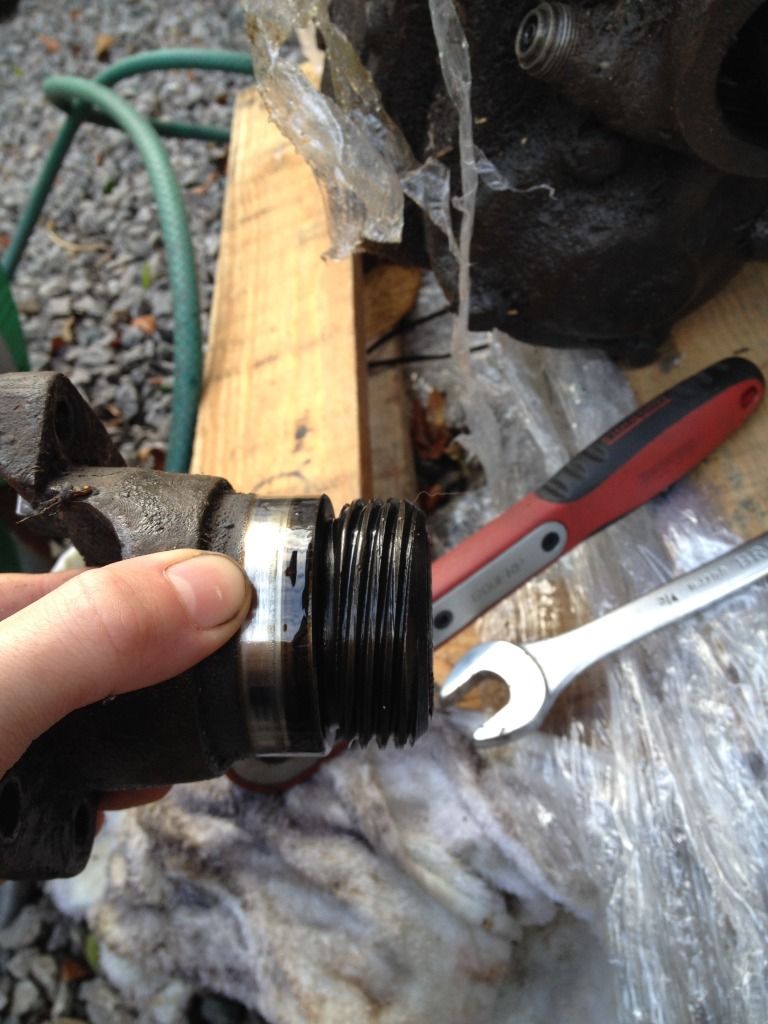

Speedo drive which I'd need to get recut if I use the muncie to power the speedo

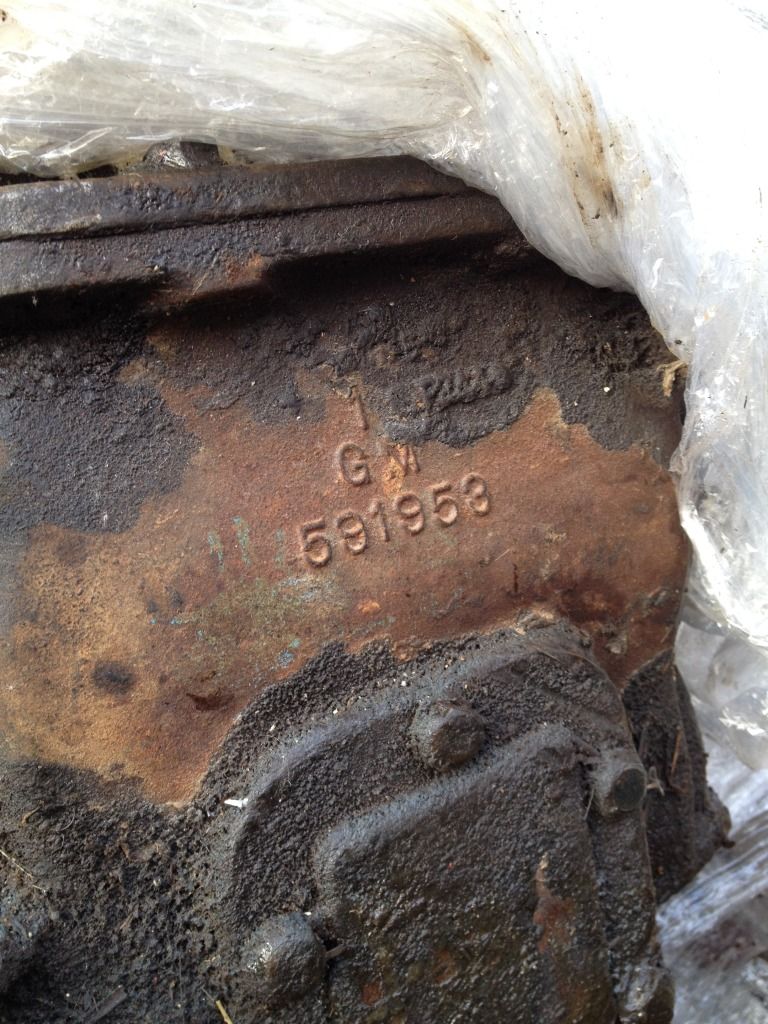

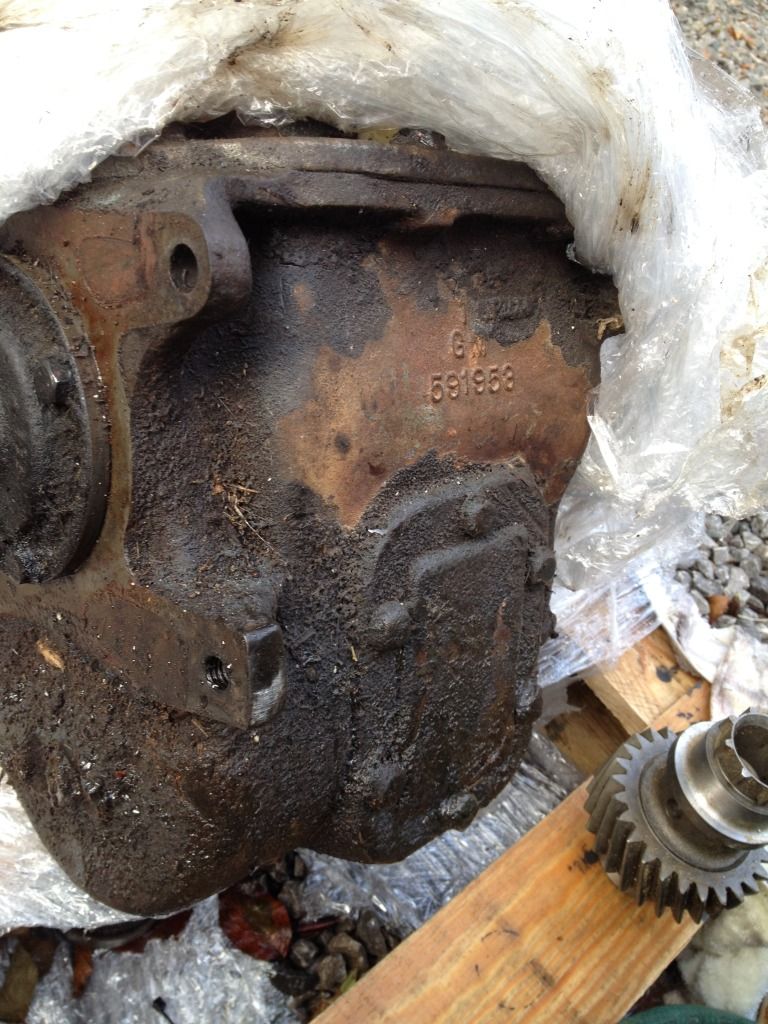

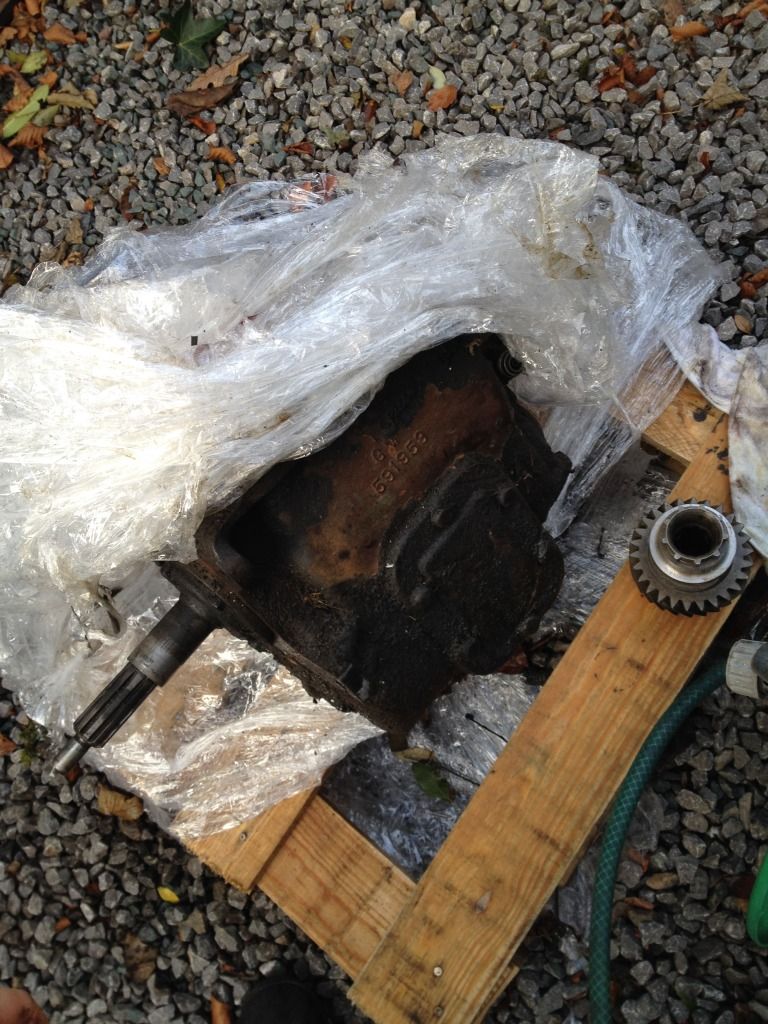

Couple of box pics

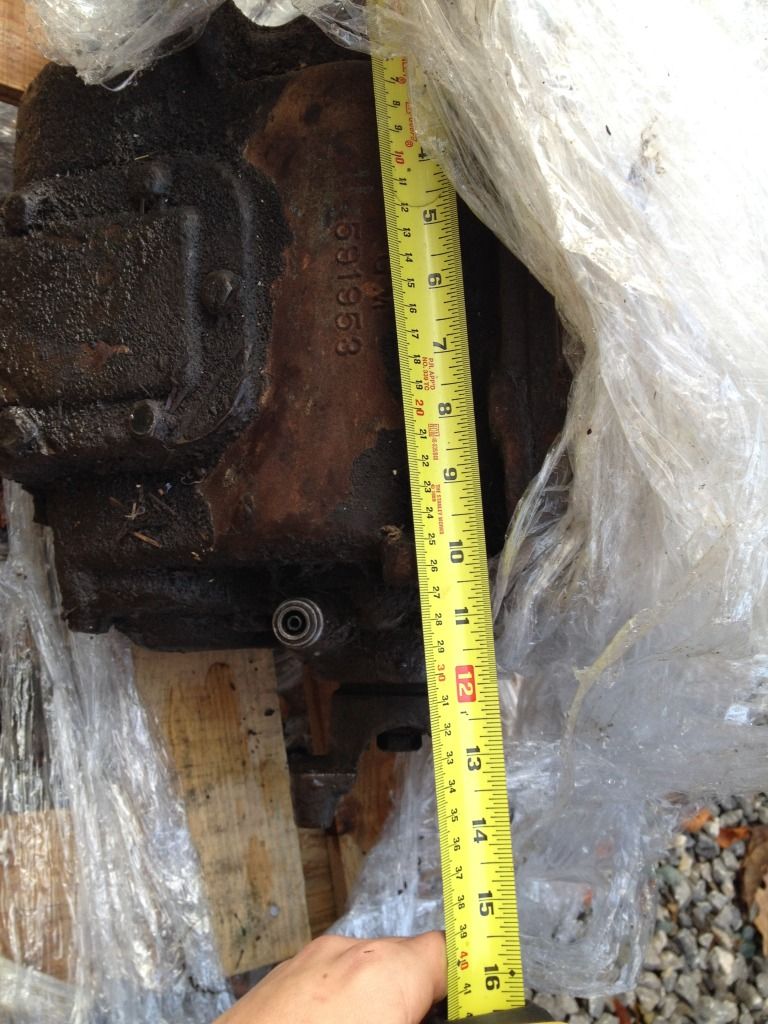

Box length 10.7 as stated

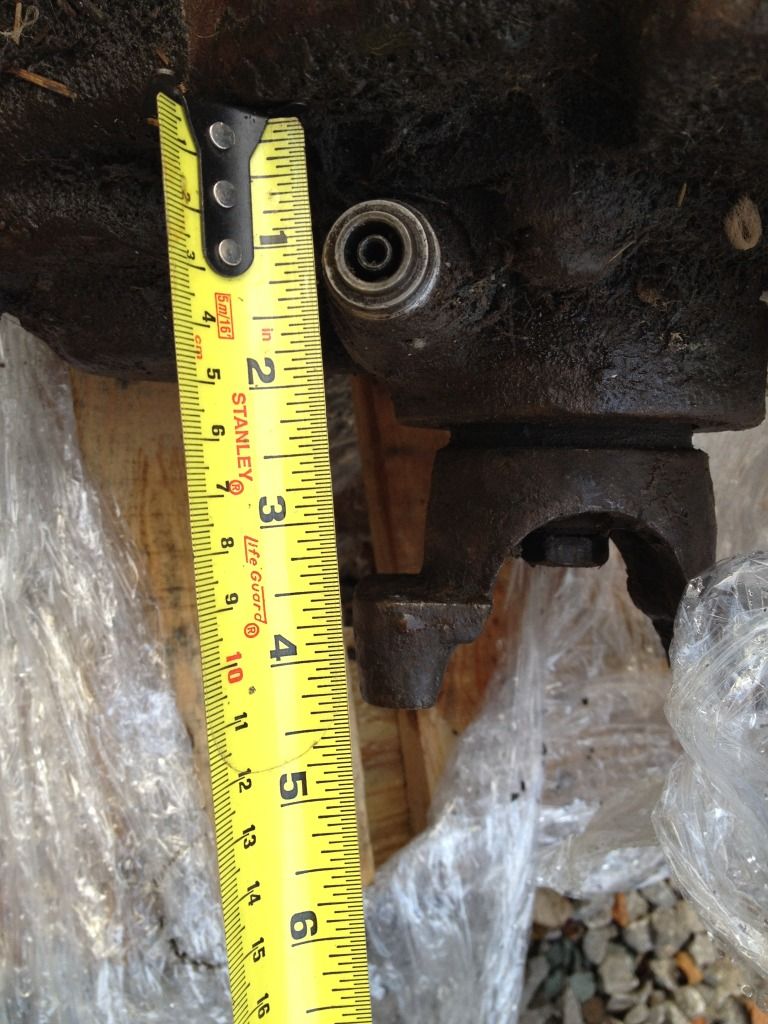

Rear face to rear of the 2wd output is 4 3/8ths








The LT230 face to face drive would be made by machining a 1 1/8th shaft and simply slipping it over the inner one with a support bearing on the adaptor and the LT230 would obviously hold it perfectly central anyway but best be safe than sorry

May end up using the Zf box! Off outside to do some measuring but there is a reason all of which will be explained in a bit

Dr_evil said:

May end up using the Zf box! Off outside to do some measuring but there is a reason all of which will be explained in a bit

Click to expand...

Hurry up im intrigued

I's back hold on while the pics upload!
