My new Galv Chassis' AND Power Steering

Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 13, 2023

• #41

Wildefalcon said:

Curious, why did you use the combined track/drag rod approach? Where did you get it?

Click to expand...

Steve parker, but I didn't use plate, when I bought it, it was a lot cheaper than it is now, I got it 2 years ago



nalamisseb

New Member

Posts

1

• May 13, 2023

• #42

Wildefalcon said:

Curious, why did you use the combined track/drag rod approach? Where did you get it?

Click to expand...

Reduces the gearing, so you do less turns of the wheel. this video explains it.



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 14, 2023

• #43

Bit more stuff done, mostly painting



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 14, 2023

• #44

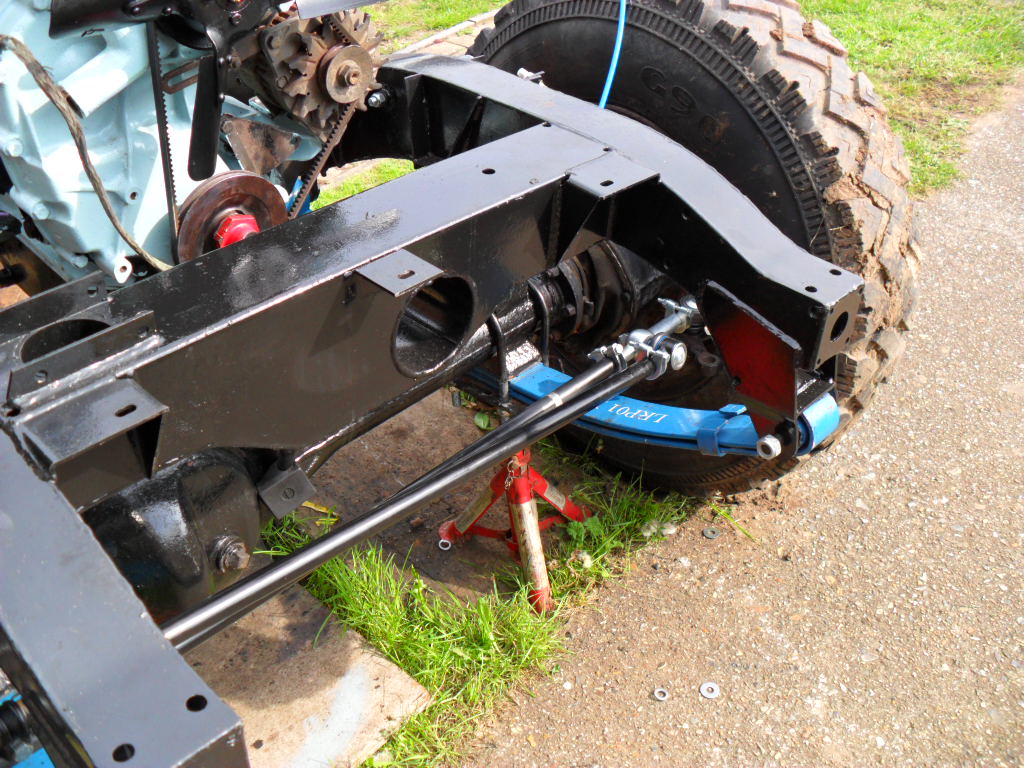

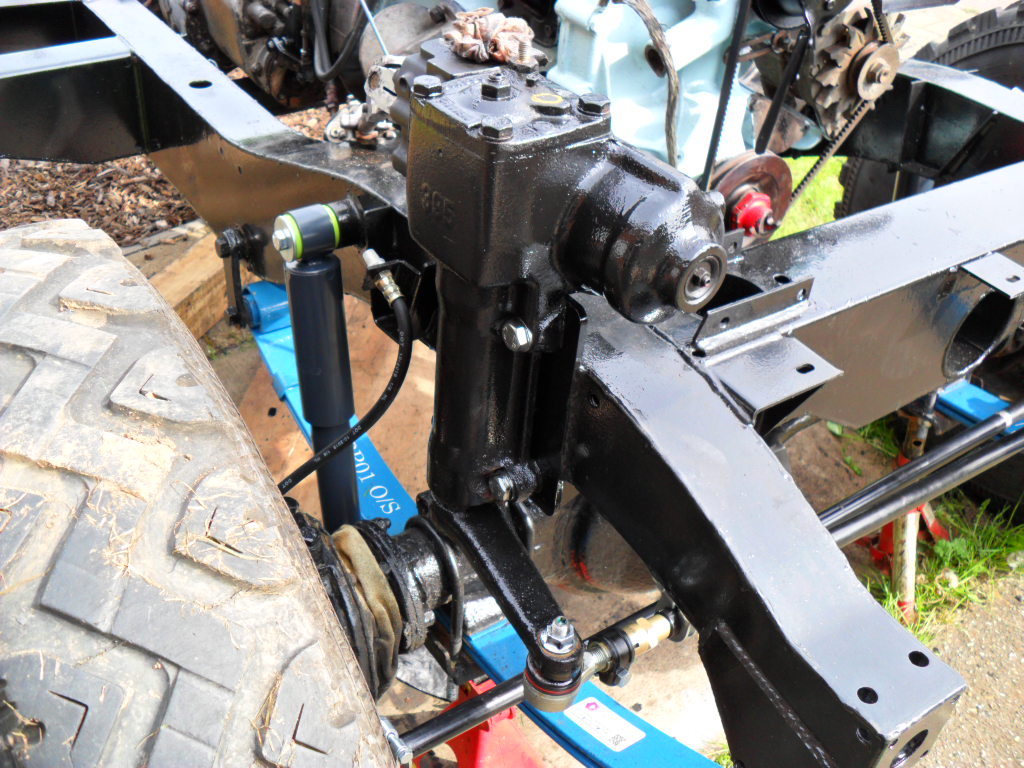

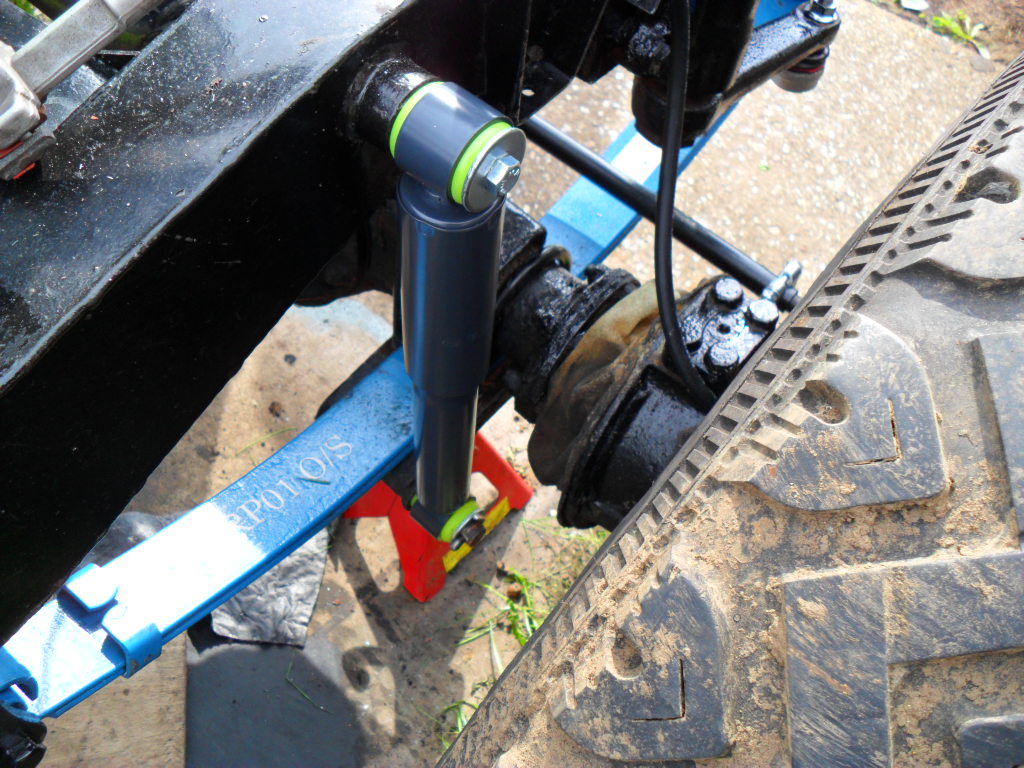

Shocks are all in



codfather79

Well-Known Member

Posts

632

Location

Kent

• May 14, 2023

• #45

Looking good.
You are a lot further on than me!



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 14, 2023

• #46

codfather79 said:

Looking good.
You are a lot further on than me!

Click to expand...

Life sometimes get in the way, a lot of it is making the time, each to his/her own pace, it's never a race, enjoy the ride, good luck with yours pal



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 18, 2023

• #47

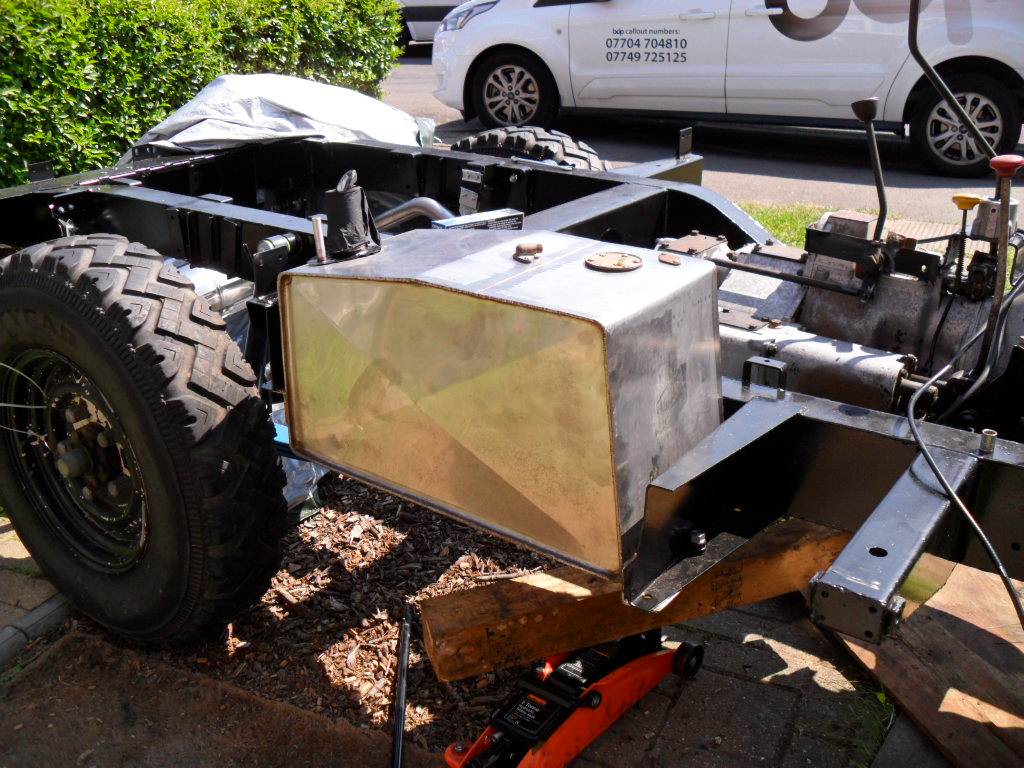

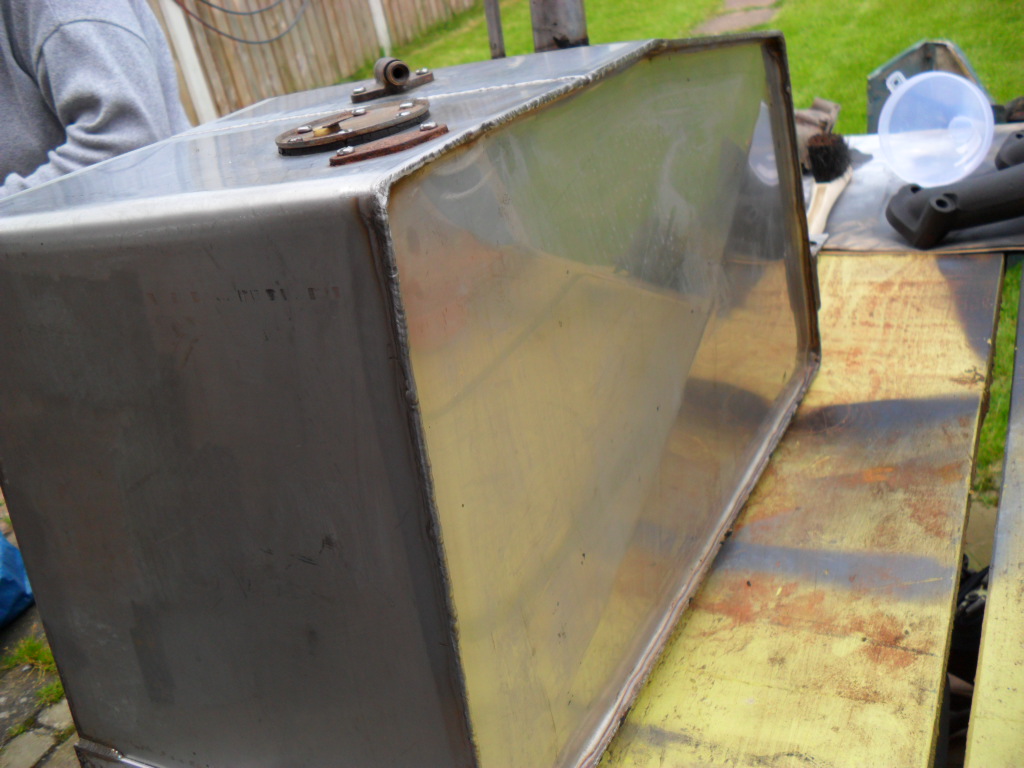

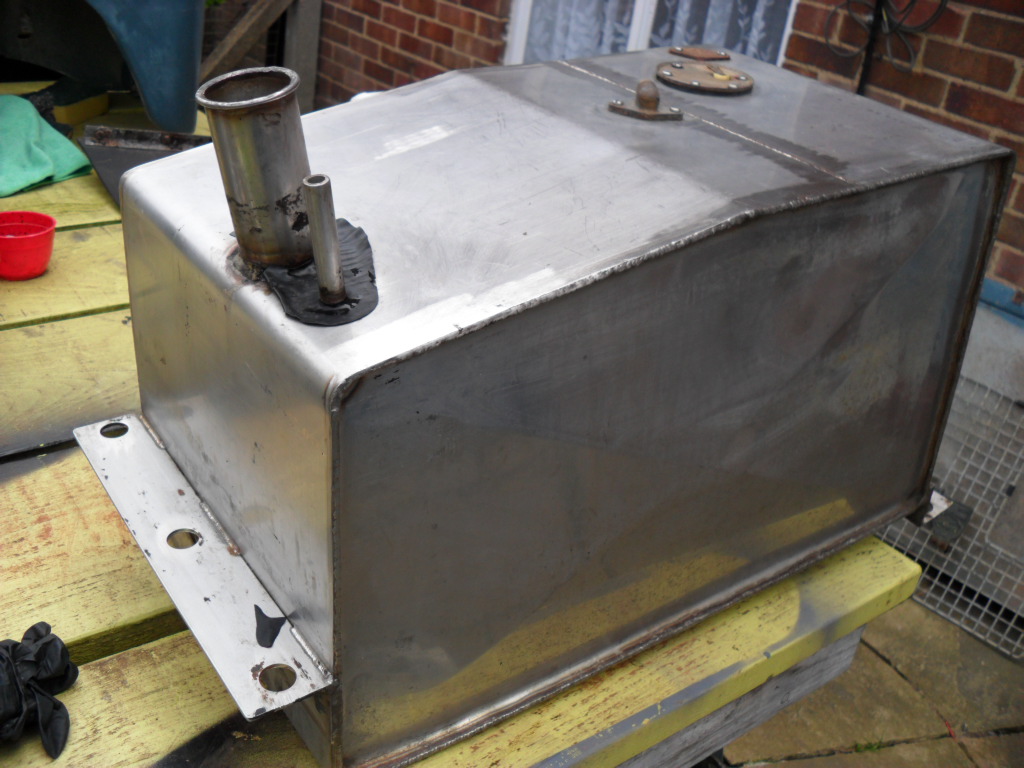

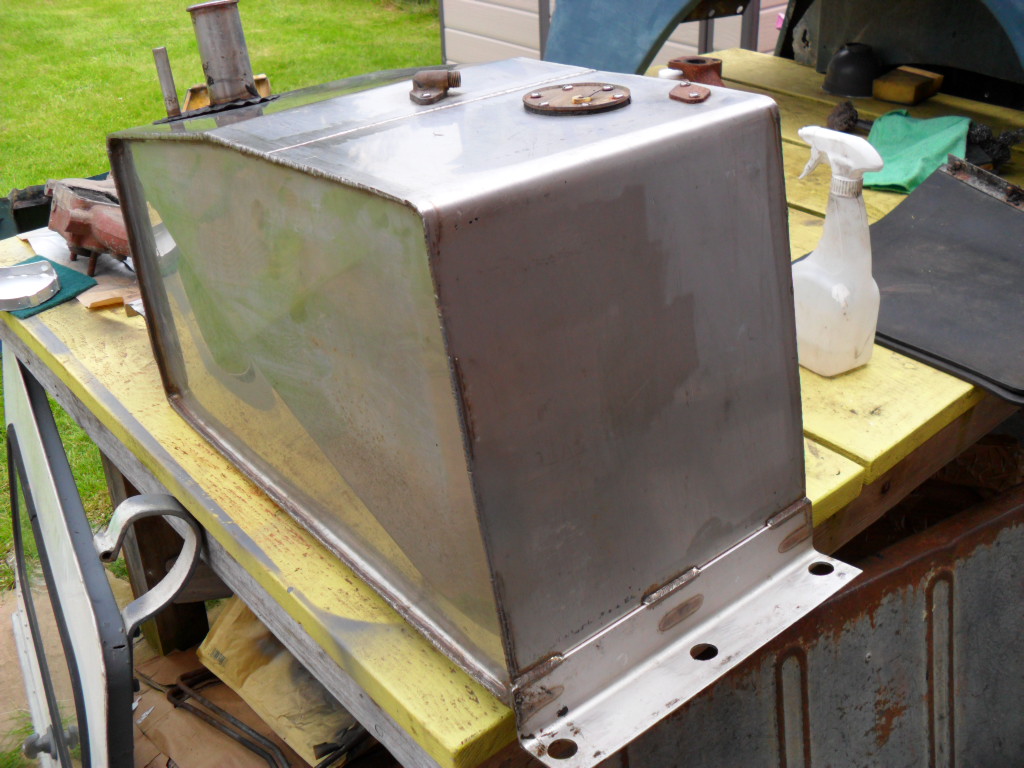

Stainless steel petrol tank all cleaned up worth every penny when I bought it 20 years ago, still looks like new...



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 21, 2023

• #48

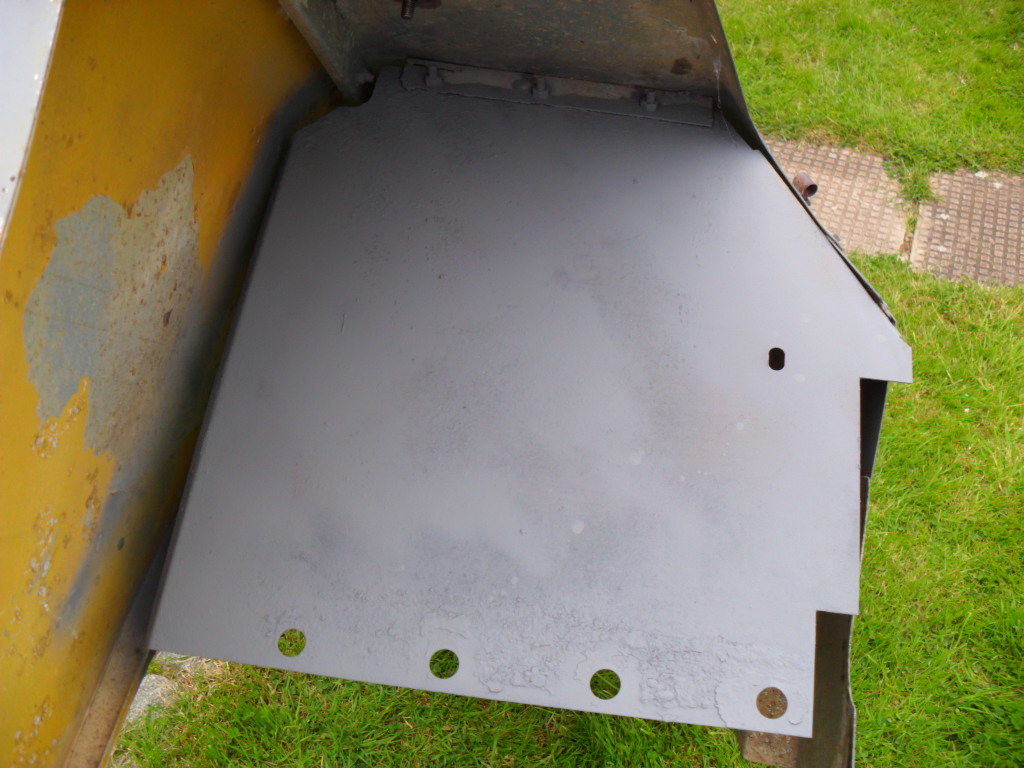

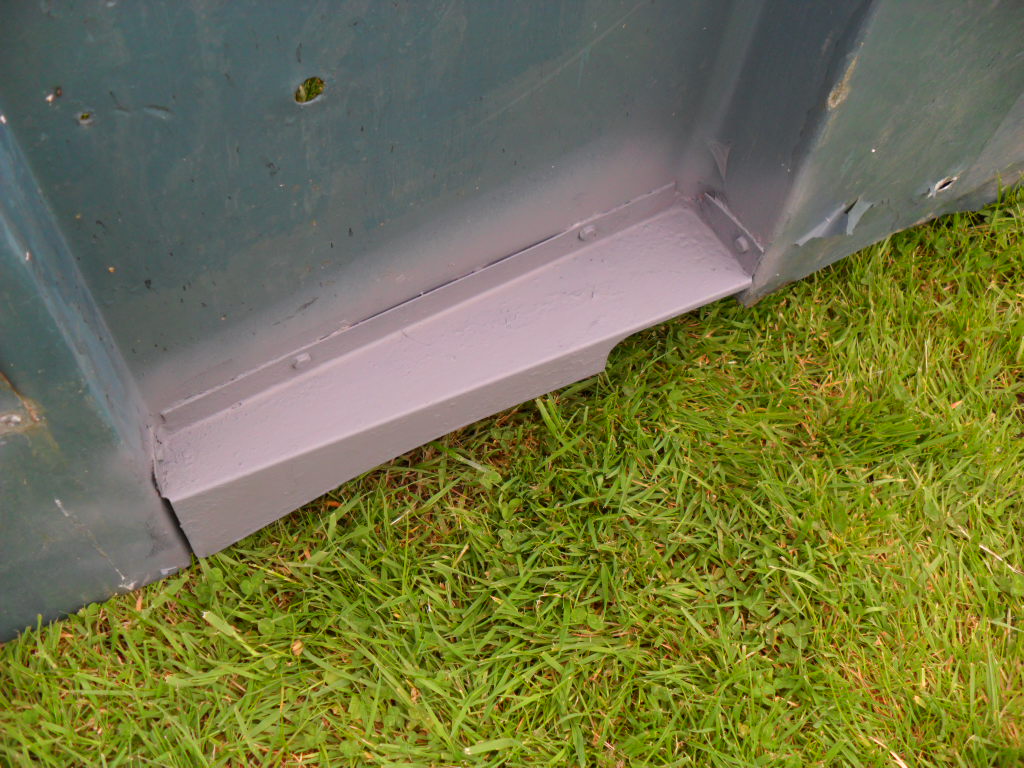

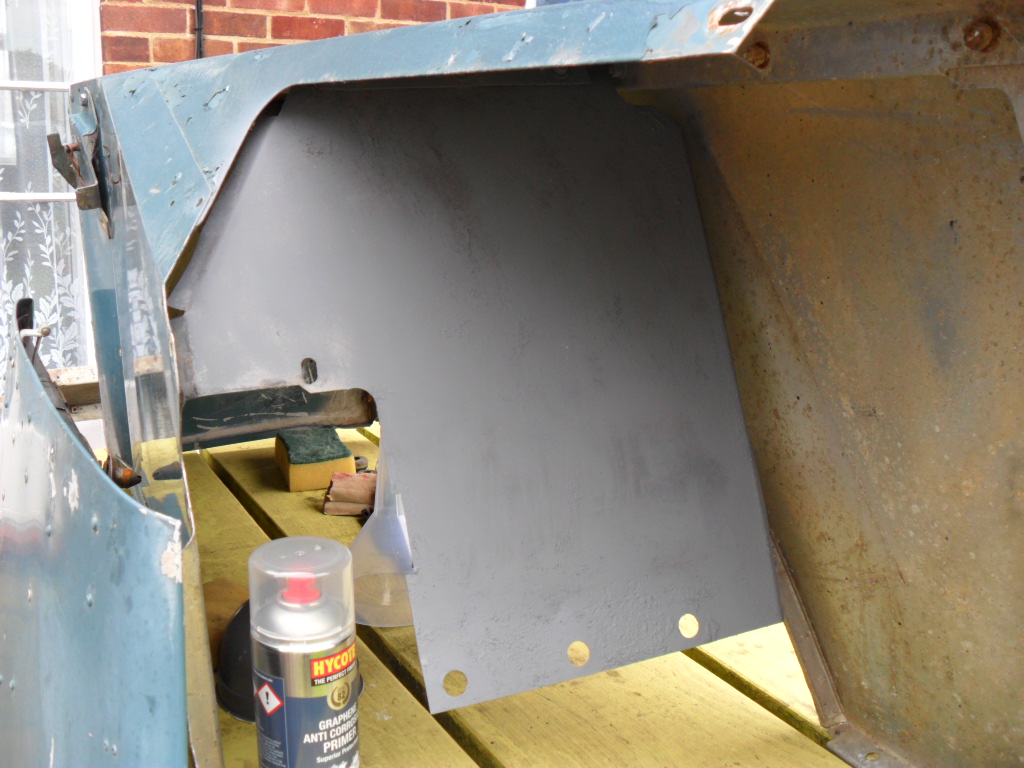

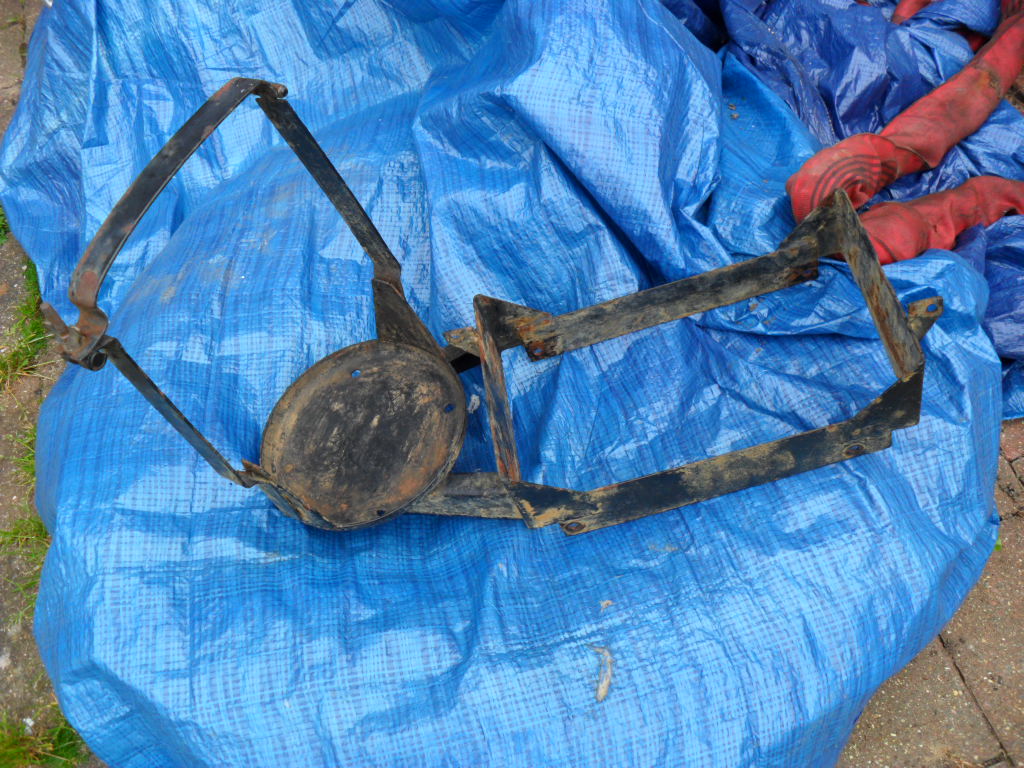

Just some primer and rust stop on the mudshealds today, look better for it though



W

Wildefalcon

Well-Known Member

Posts

1,668

• May 22, 2023

• #49

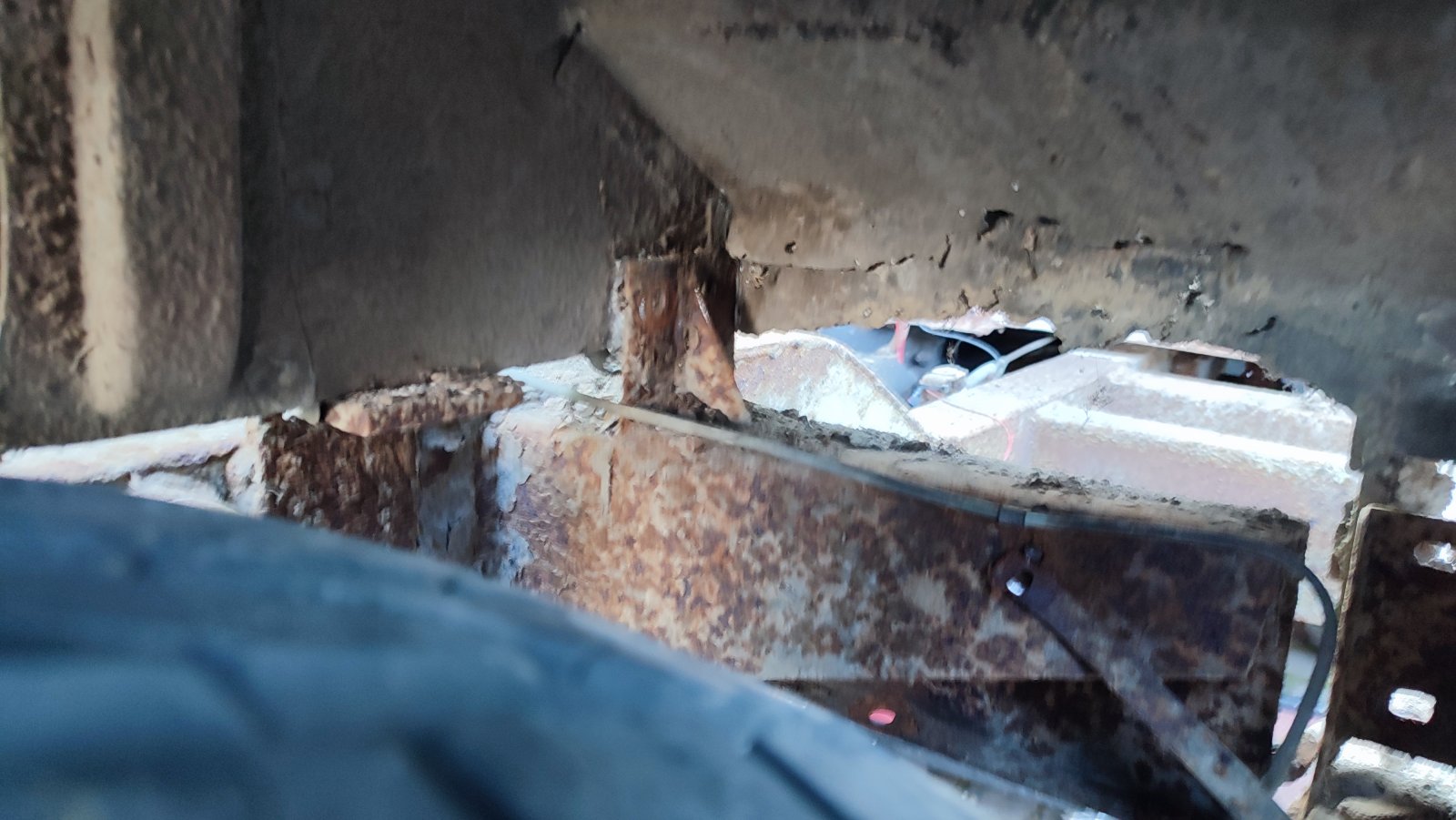

Could I make a request? Could you take a photo of the mounting for the front of the rear tub? With a tape from the rigger to the holes?

I've to stick a half chassis onto my sons 88", and it doesn't come with the mounts. The originals are long gone and the first replacements were in the wrong place.



Attachments

•

  191.7 KB · Views: 124

Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 22, 2023

• #50

Wildefalcon said:

Could I make a request? Could you take a photo of the mounting for the front of the rear tub? With a tape from the rigger to the holes?

I've to stick a half chassis onto my sons 88", and it doesn't come with the mounts. The originals are long gone and the first replacements were in the wrong place.

Click to expand...

Sure, I will have to do it on the weekend for you



W

Wildefalcon

Well-Known Member

Posts

1,668

• May 23, 2023

• #51

Very much obliged.



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 23, 2023

• #52

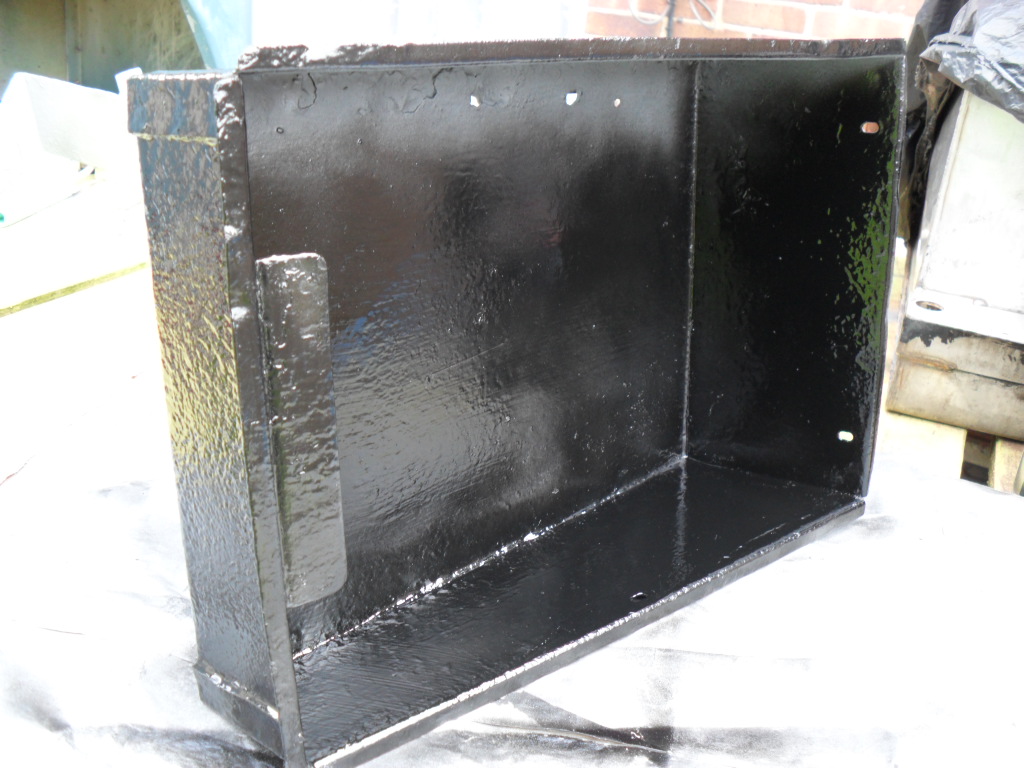

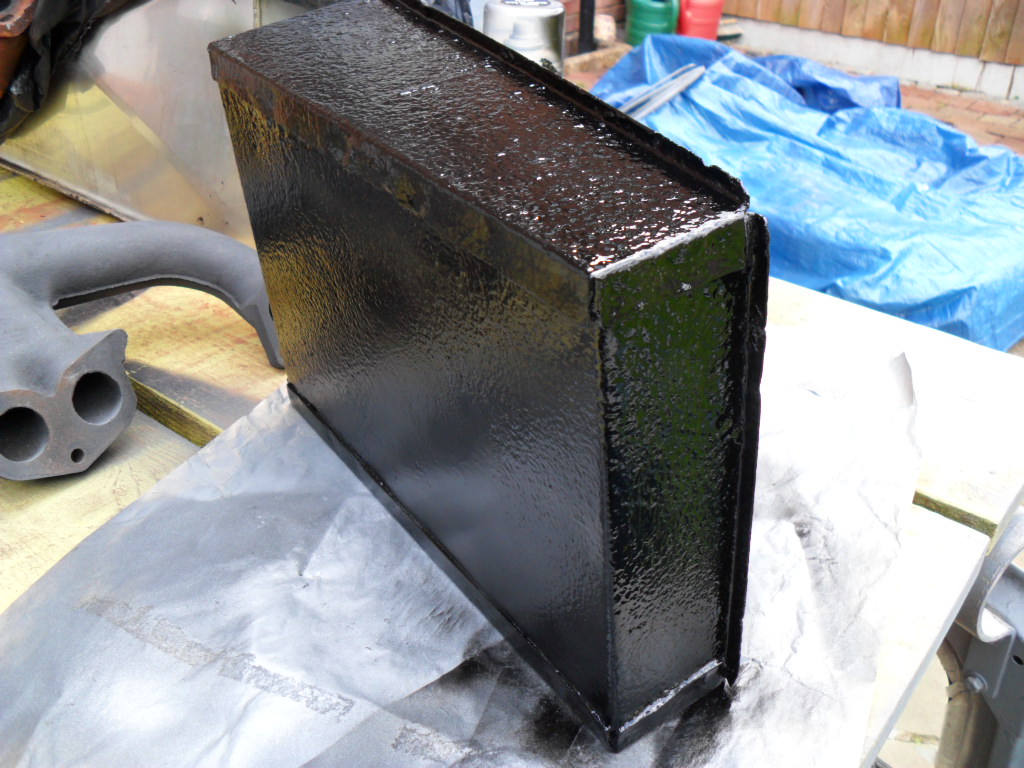

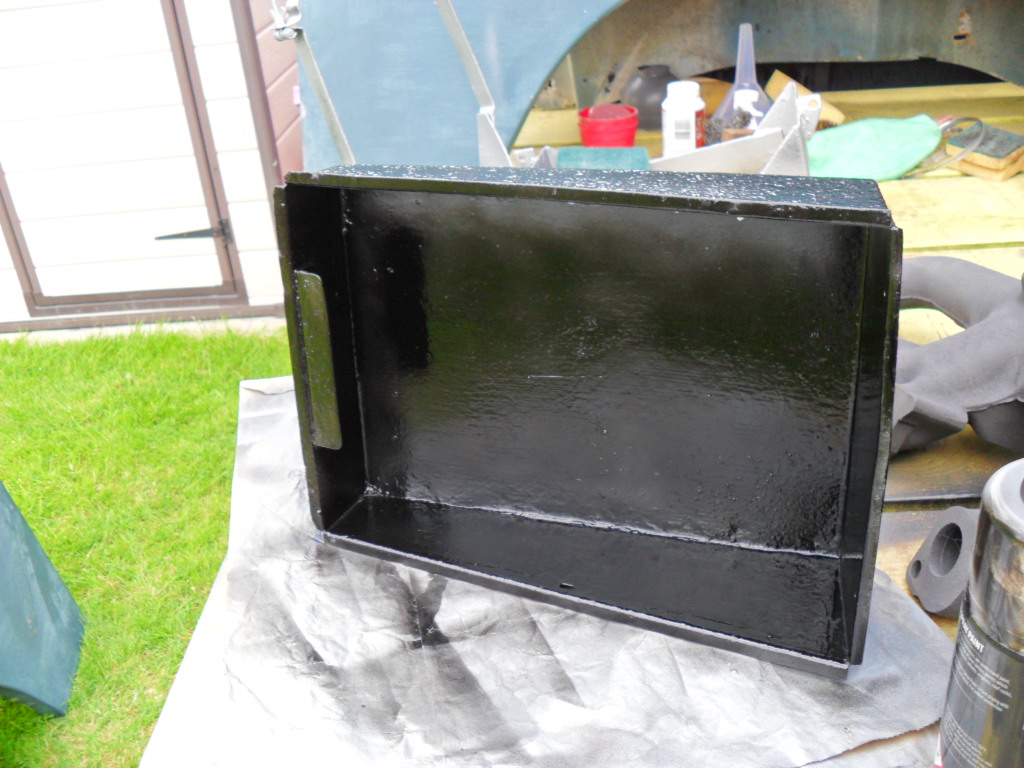

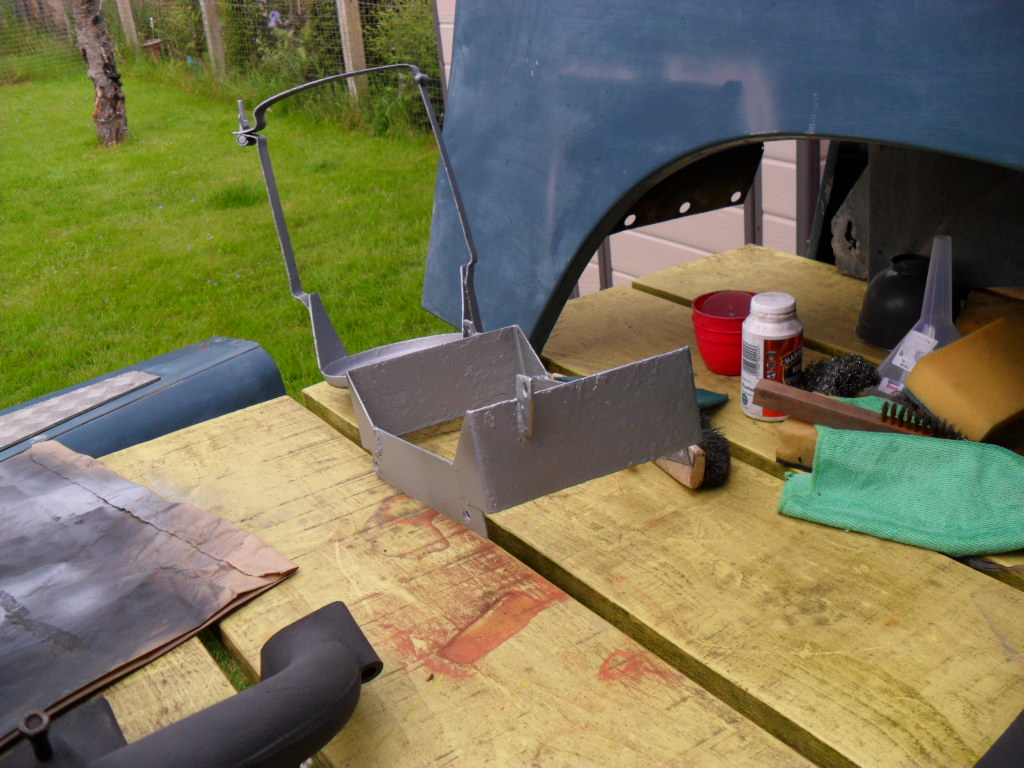

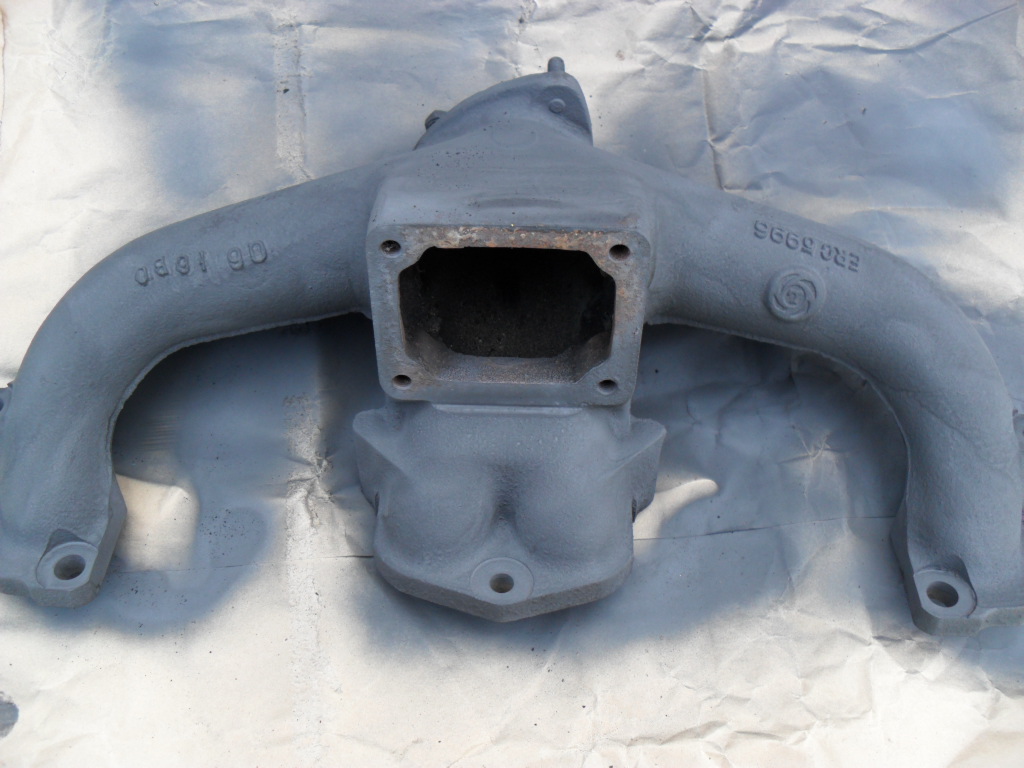

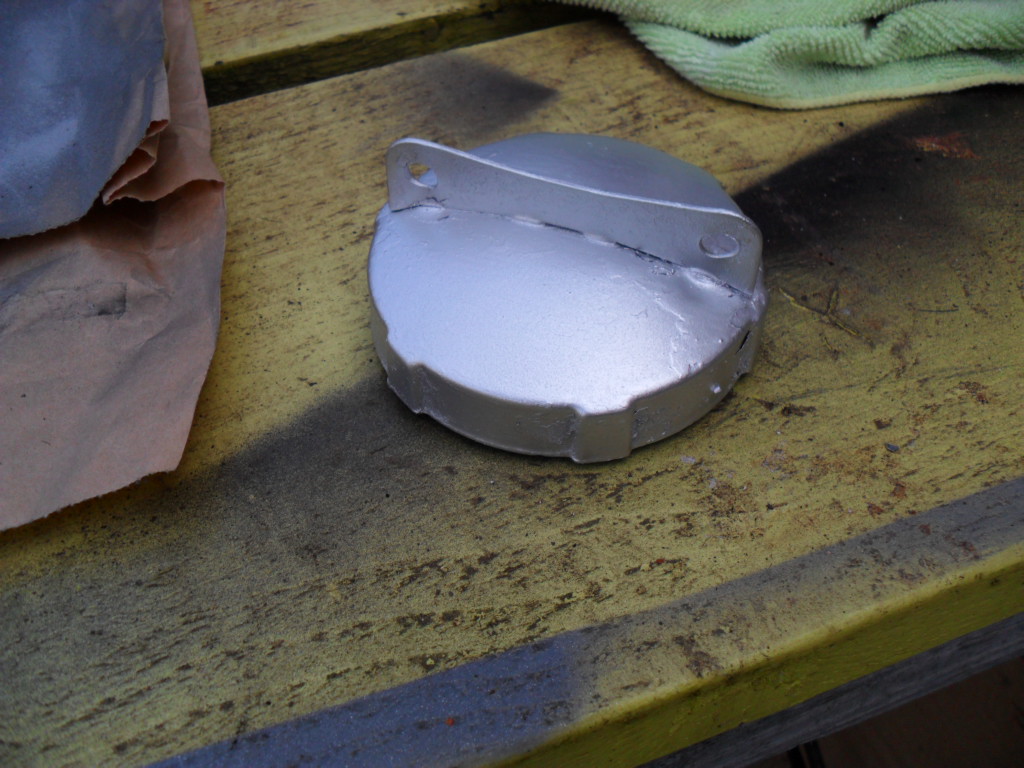

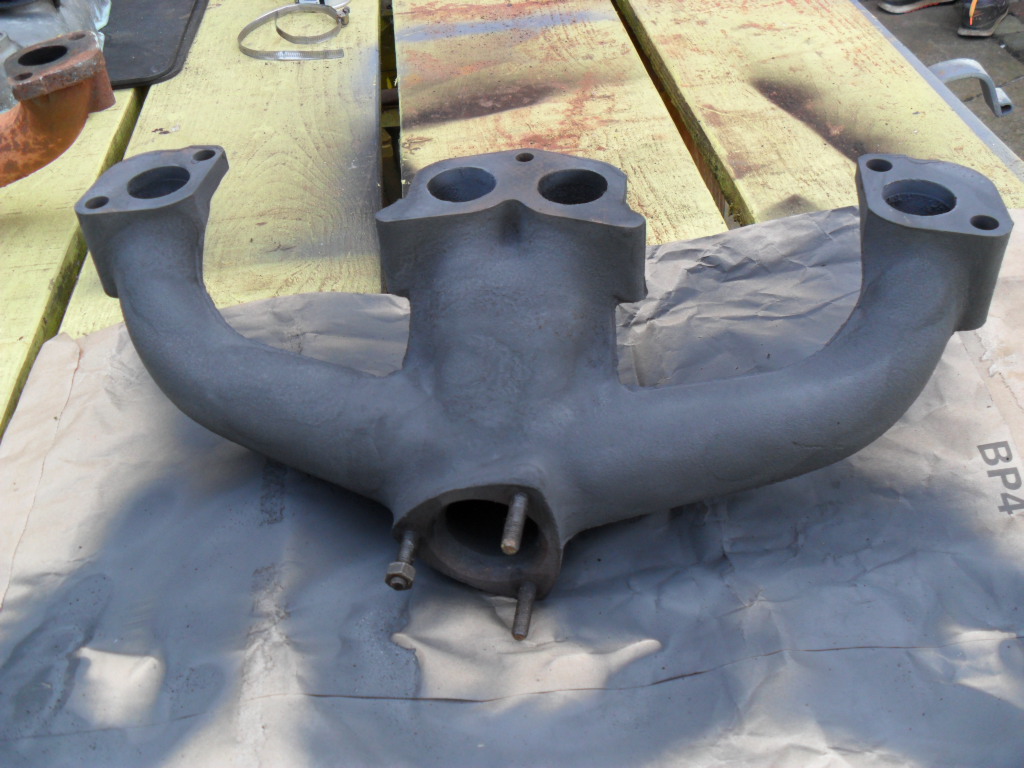

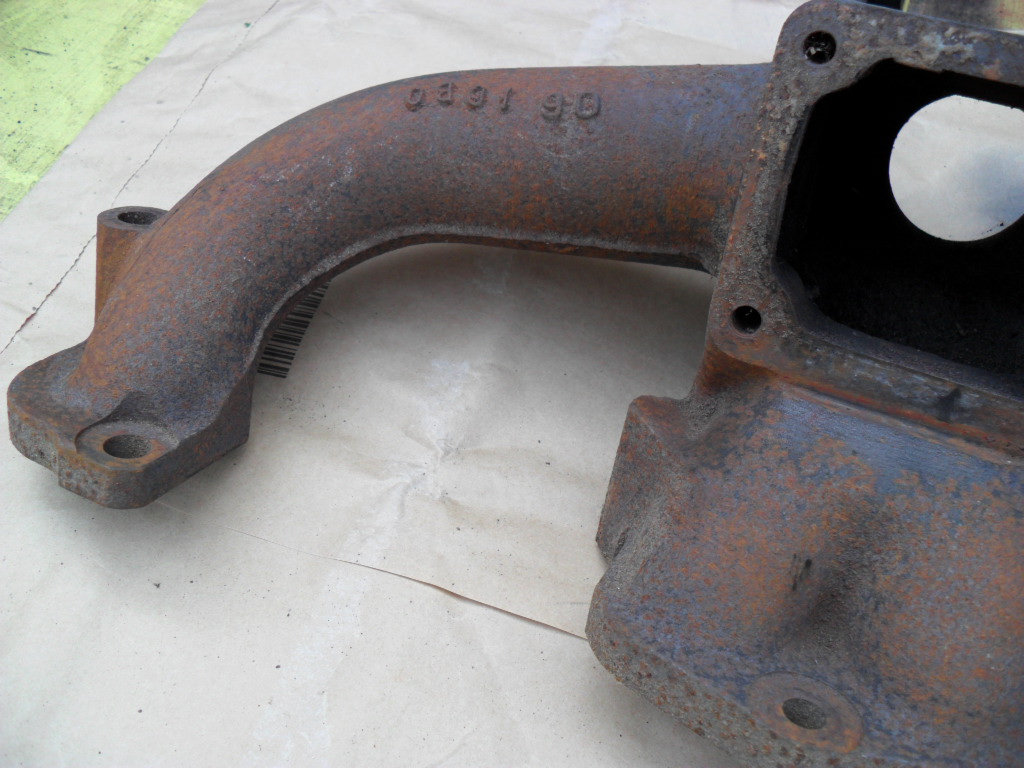

More painting (and I don't know If this is going back in, but just in case!) and a lot of rubbing down



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 27, 2023

• #53

@

Wildefalcon​

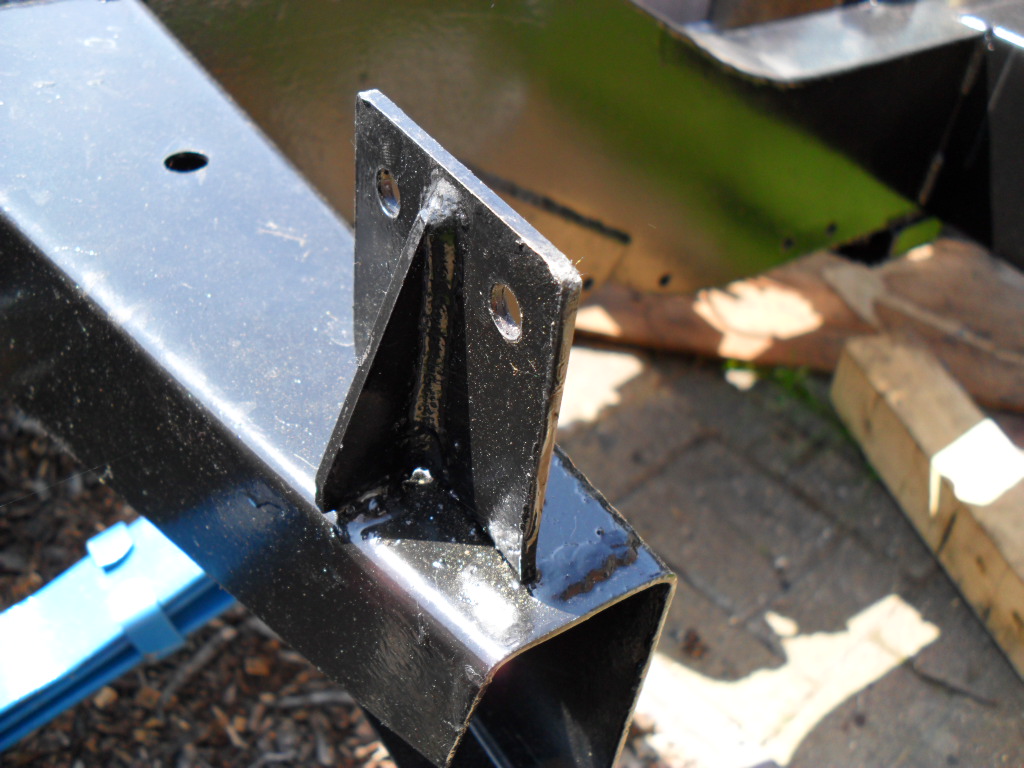

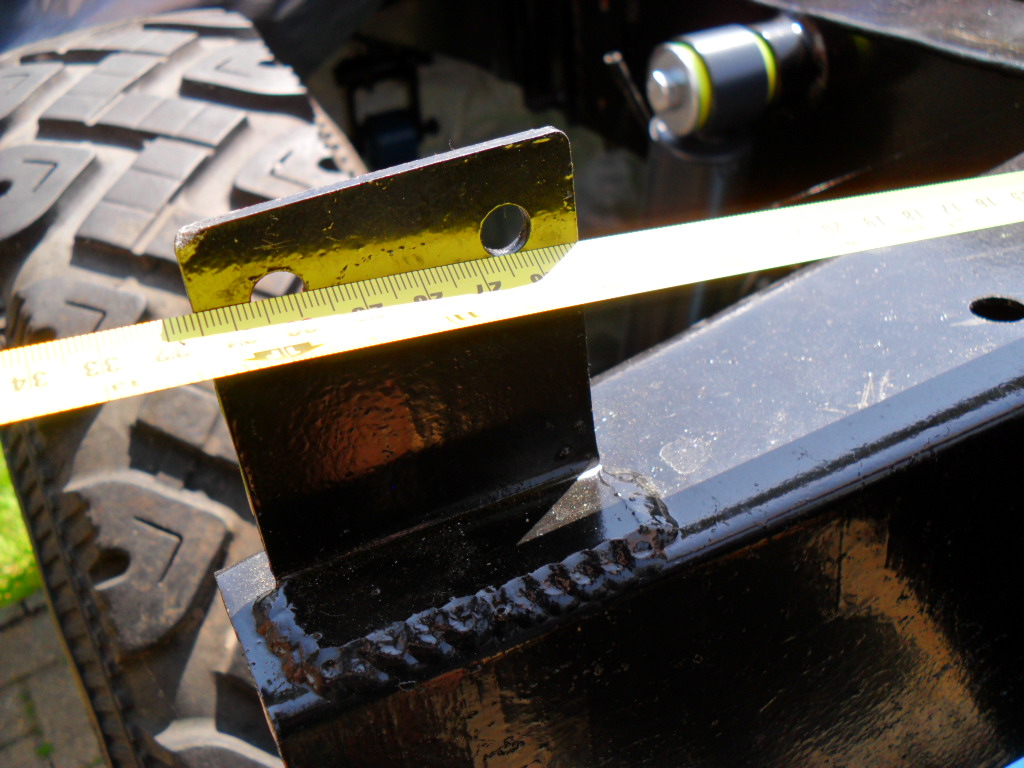

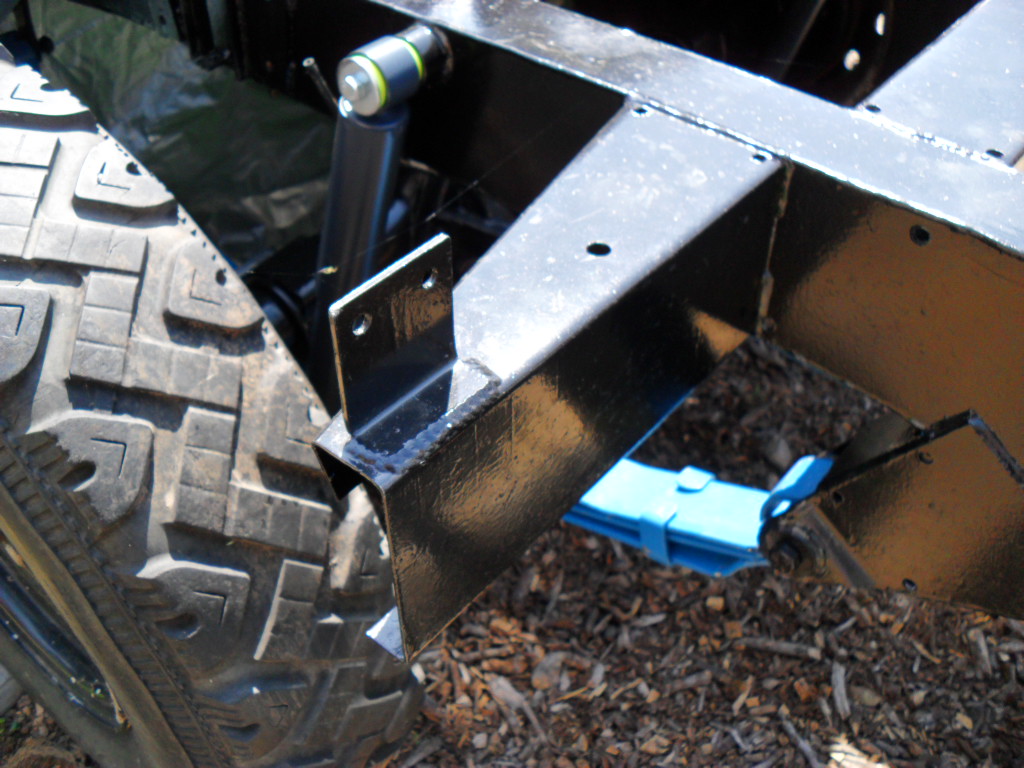

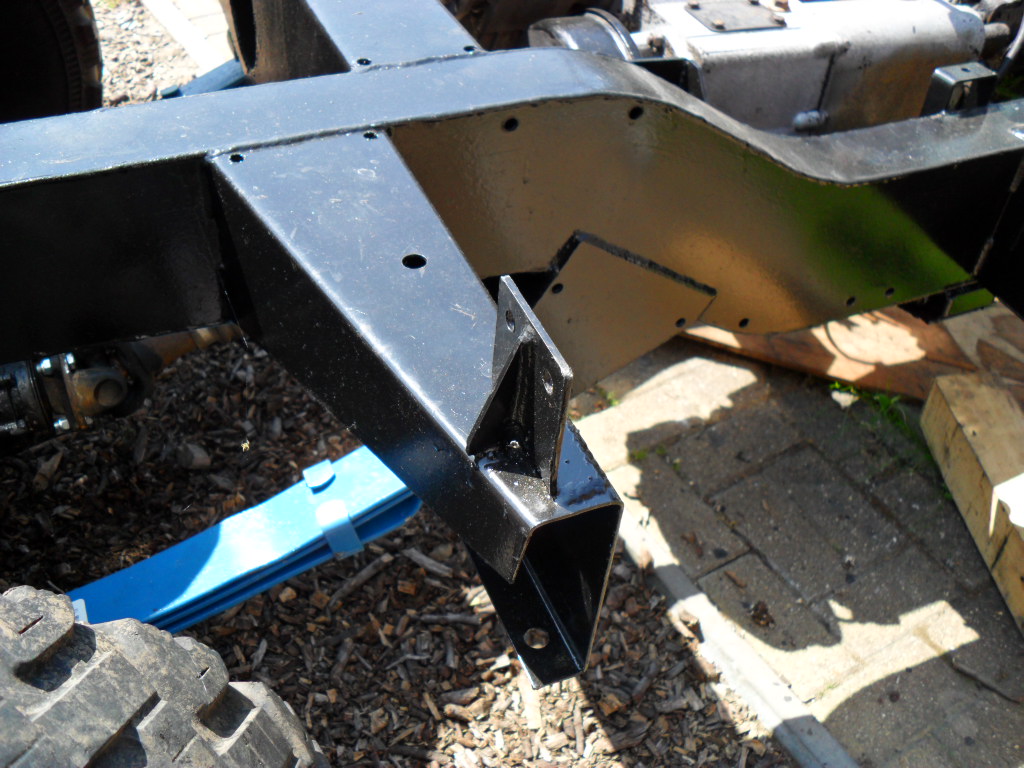

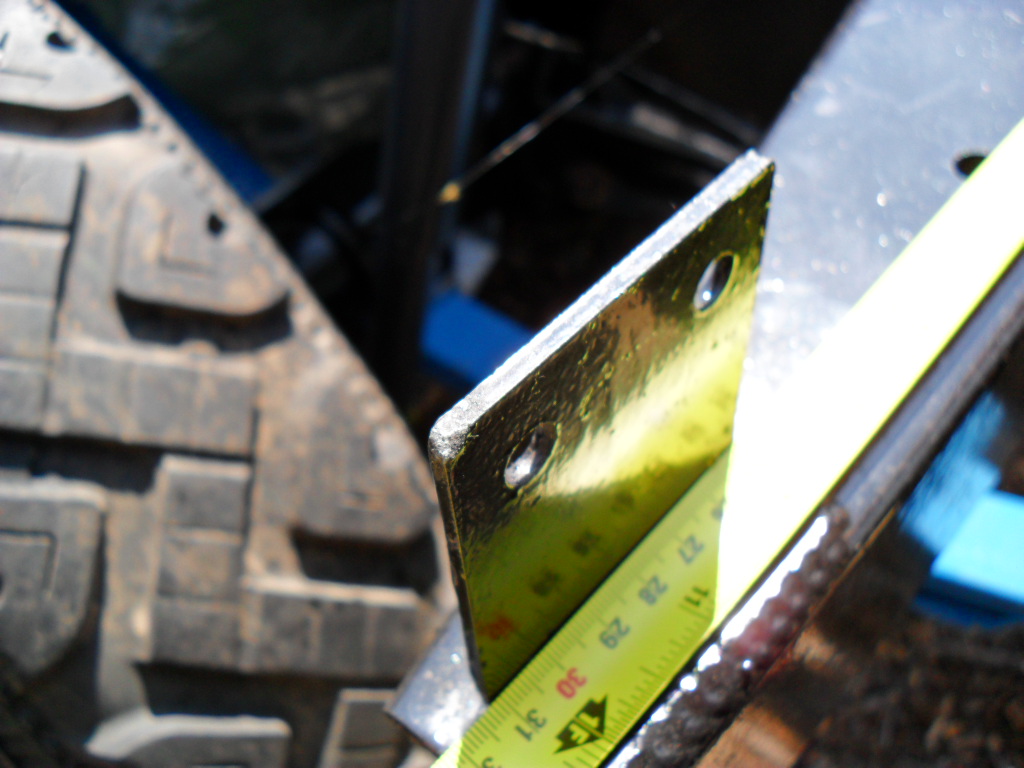

I took some photos, but I am not quite sure what you want, please explain to me again, your tag looks the wrong way around? Anyway, it's 265 mm to the first hole, put the half chassis on first, then when you do the tub close all the doors

to line it all up, mark it then tack the lugs then you know they are in the correct place.... good luck



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 27, 2023

• #54

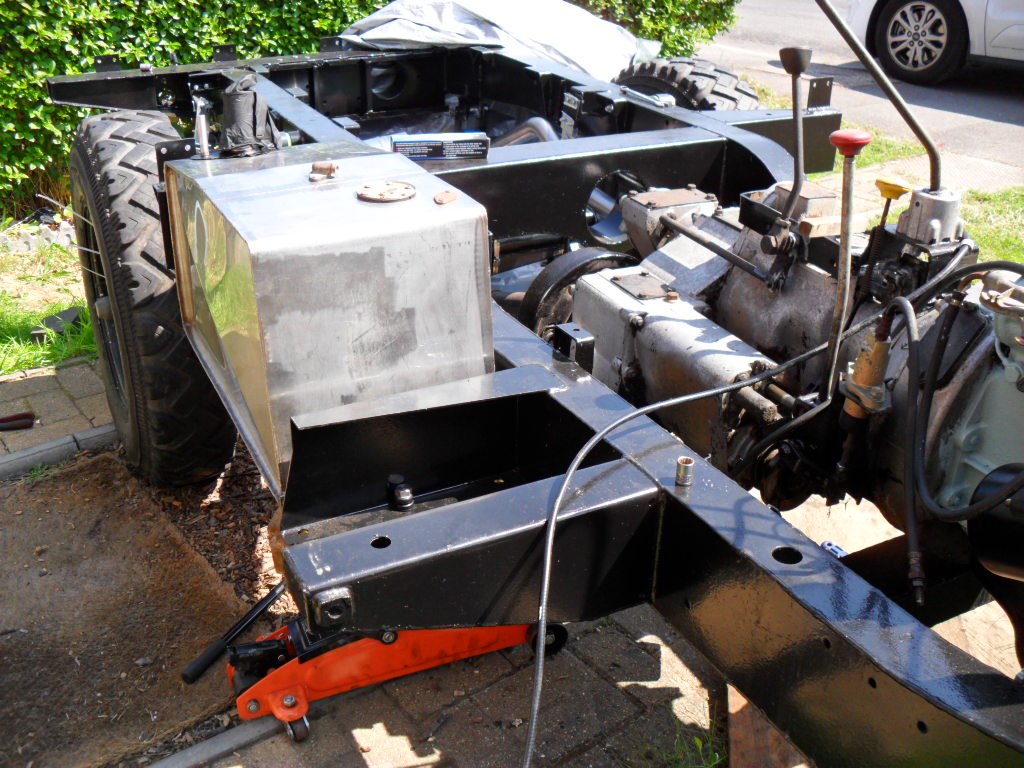

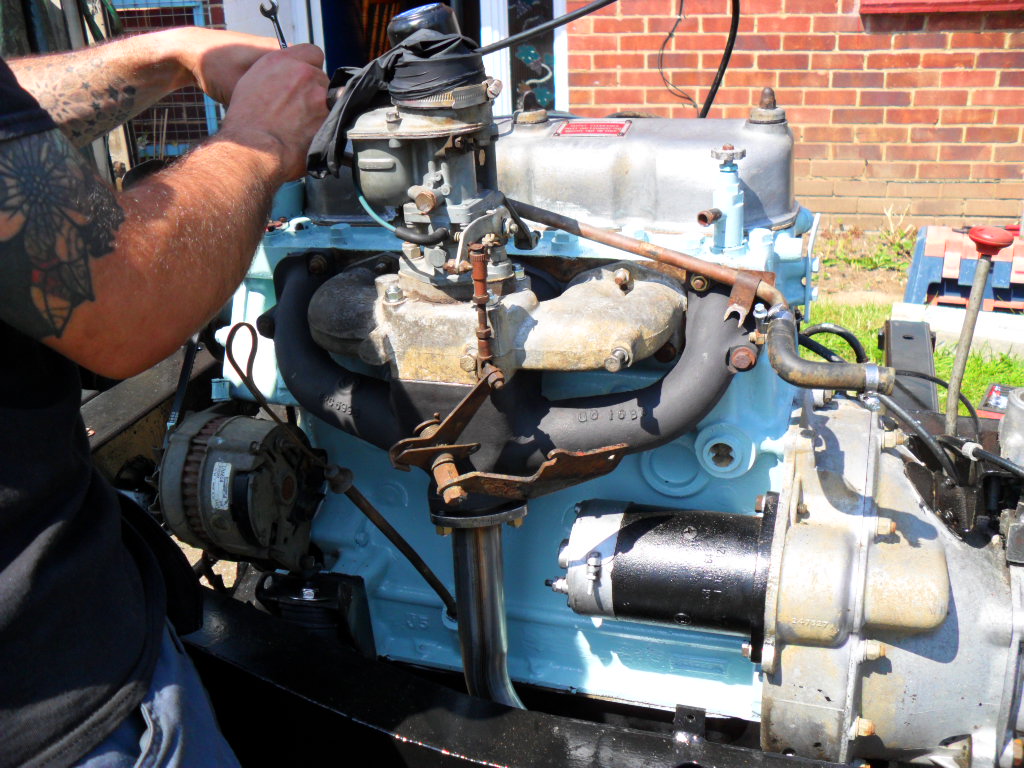

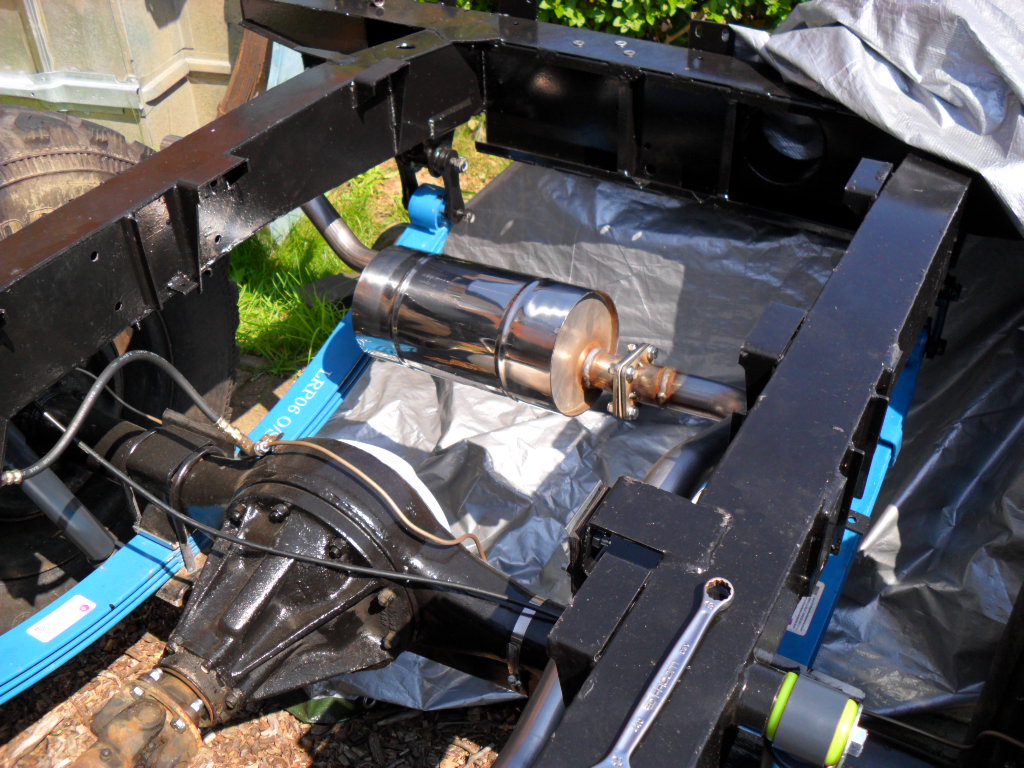

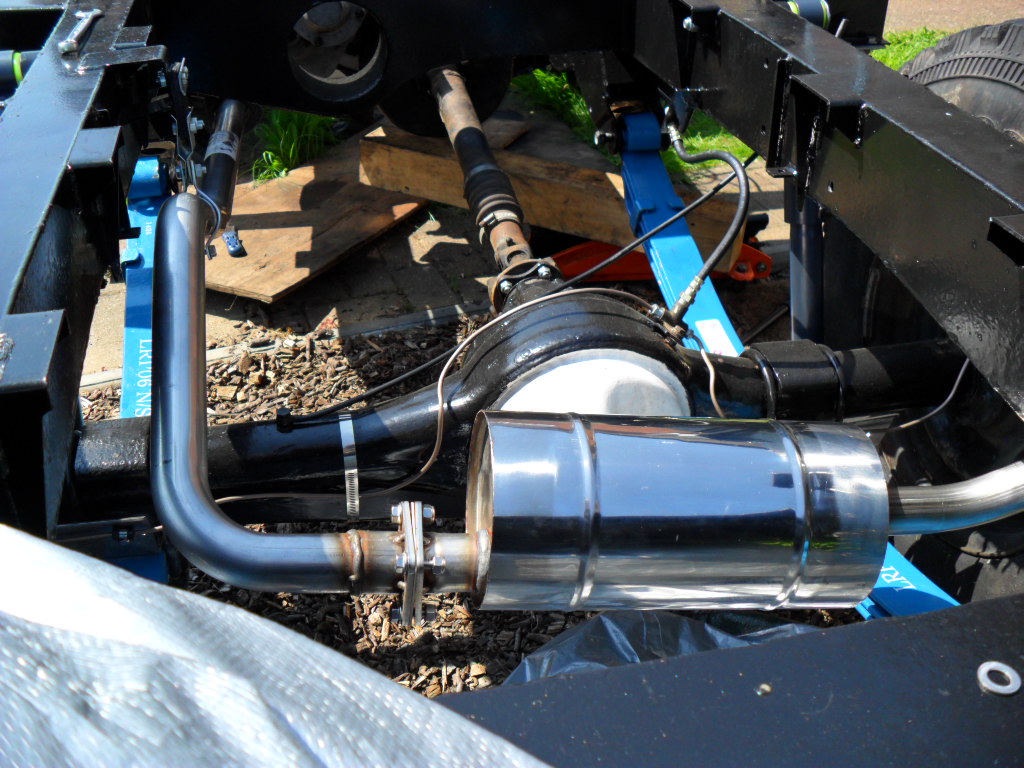

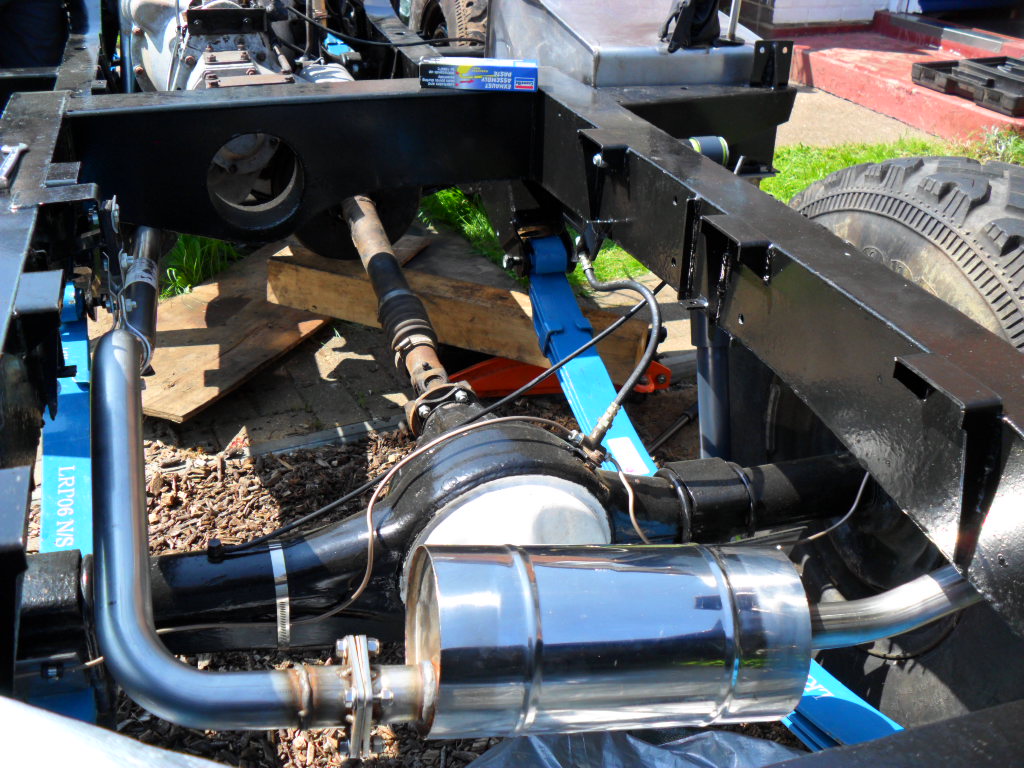

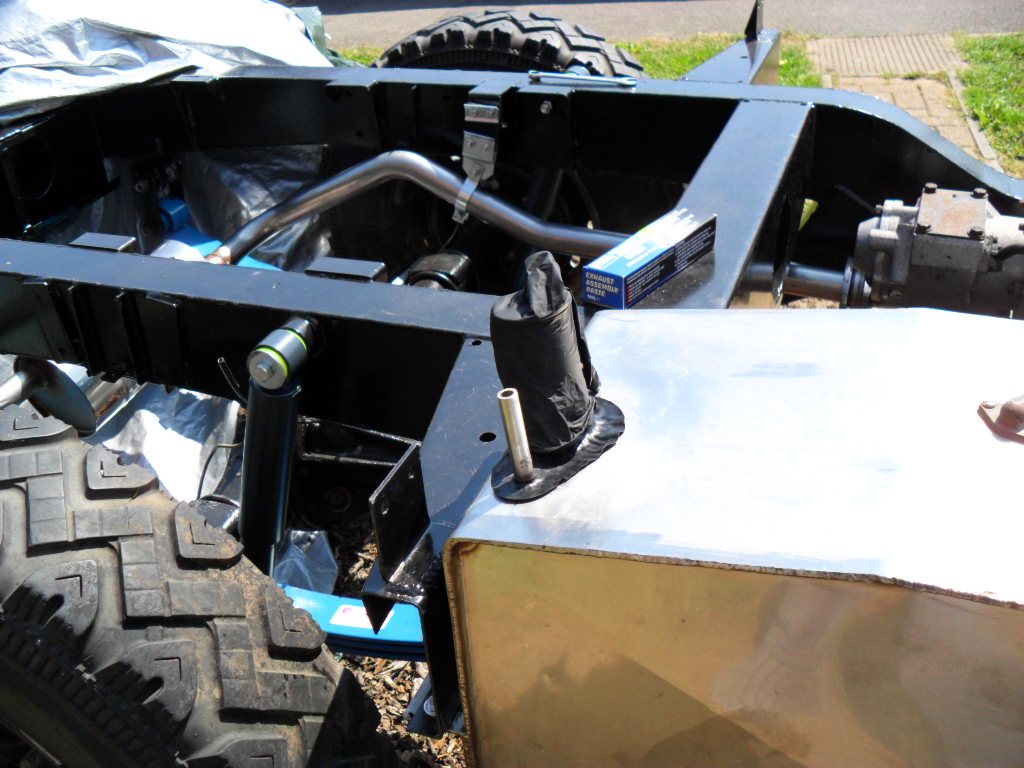

Putting all the stainless steel on, tank and exhaust



Last edited: May 27, 2023

W

Wildefalcon

Well-Known Member

Posts

1,668

• May 28, 2023

• #55

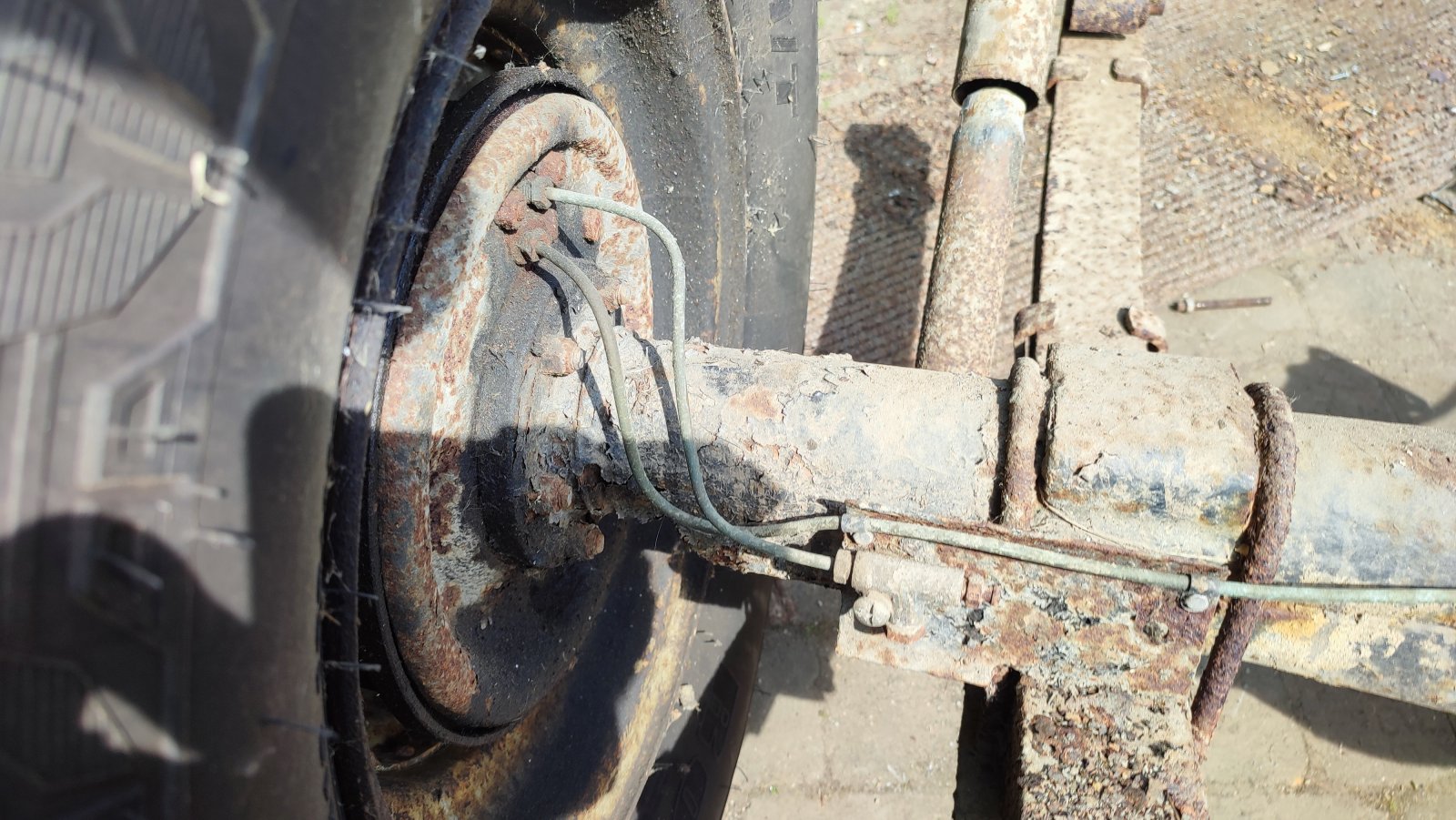

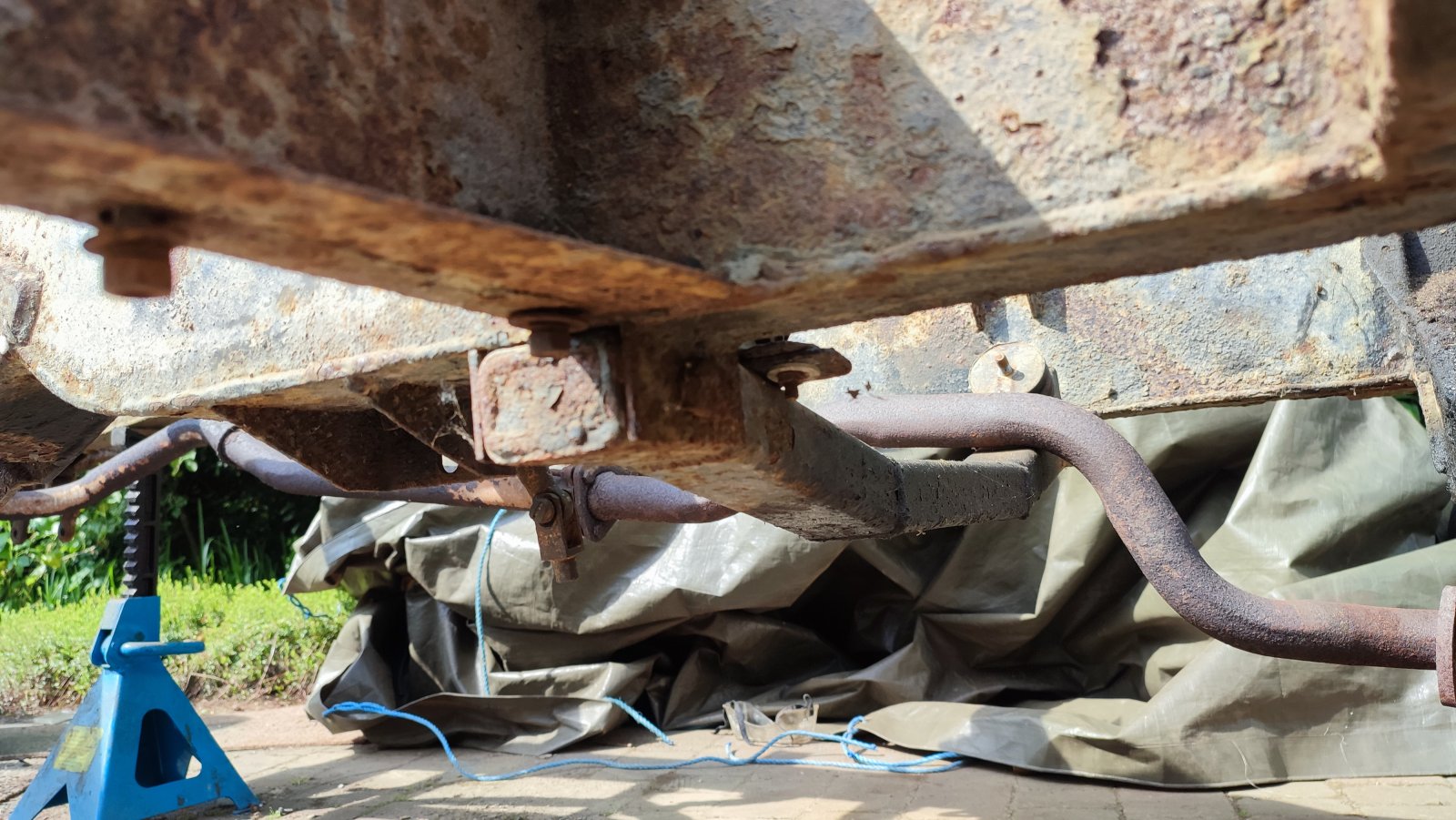

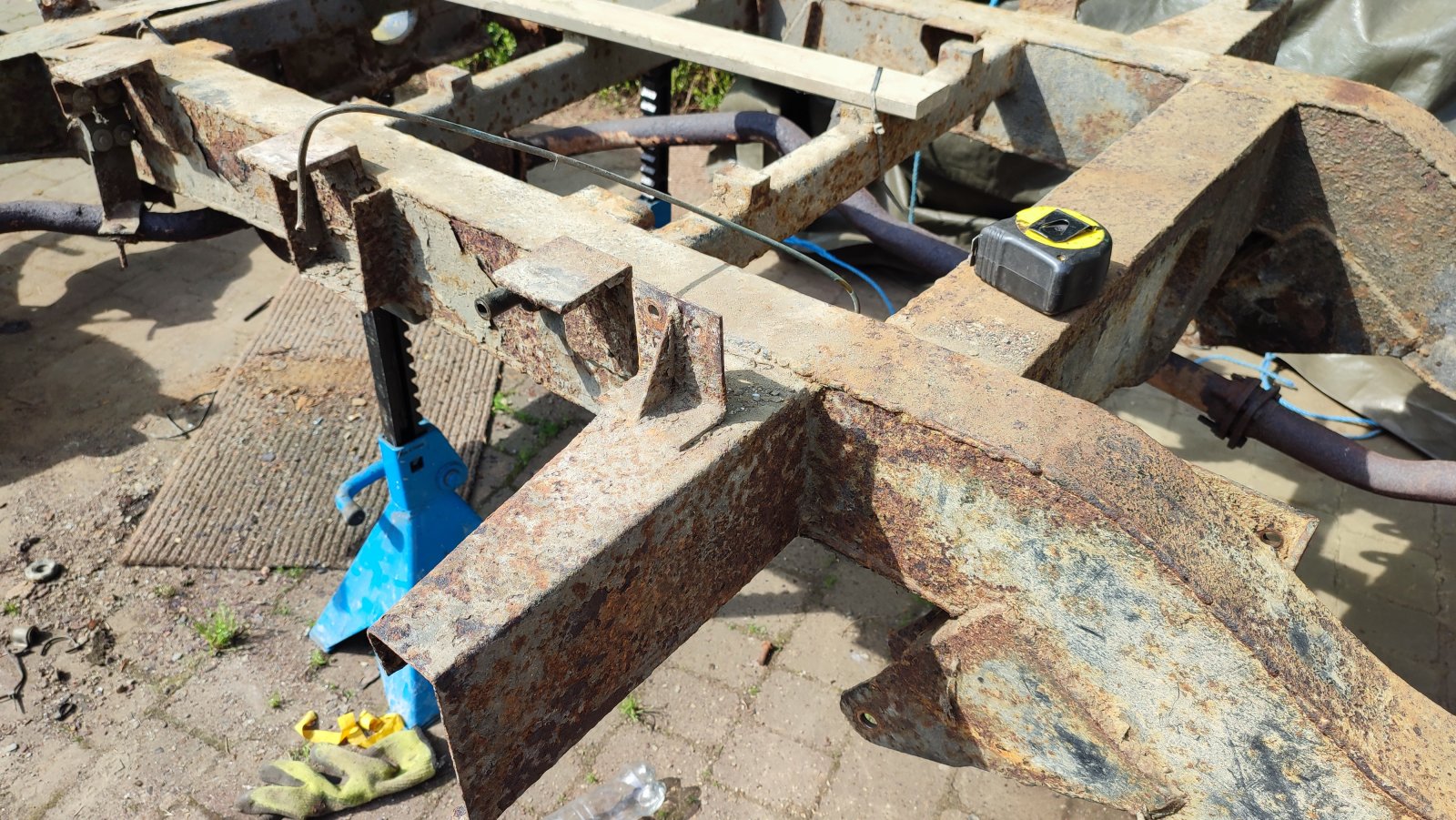

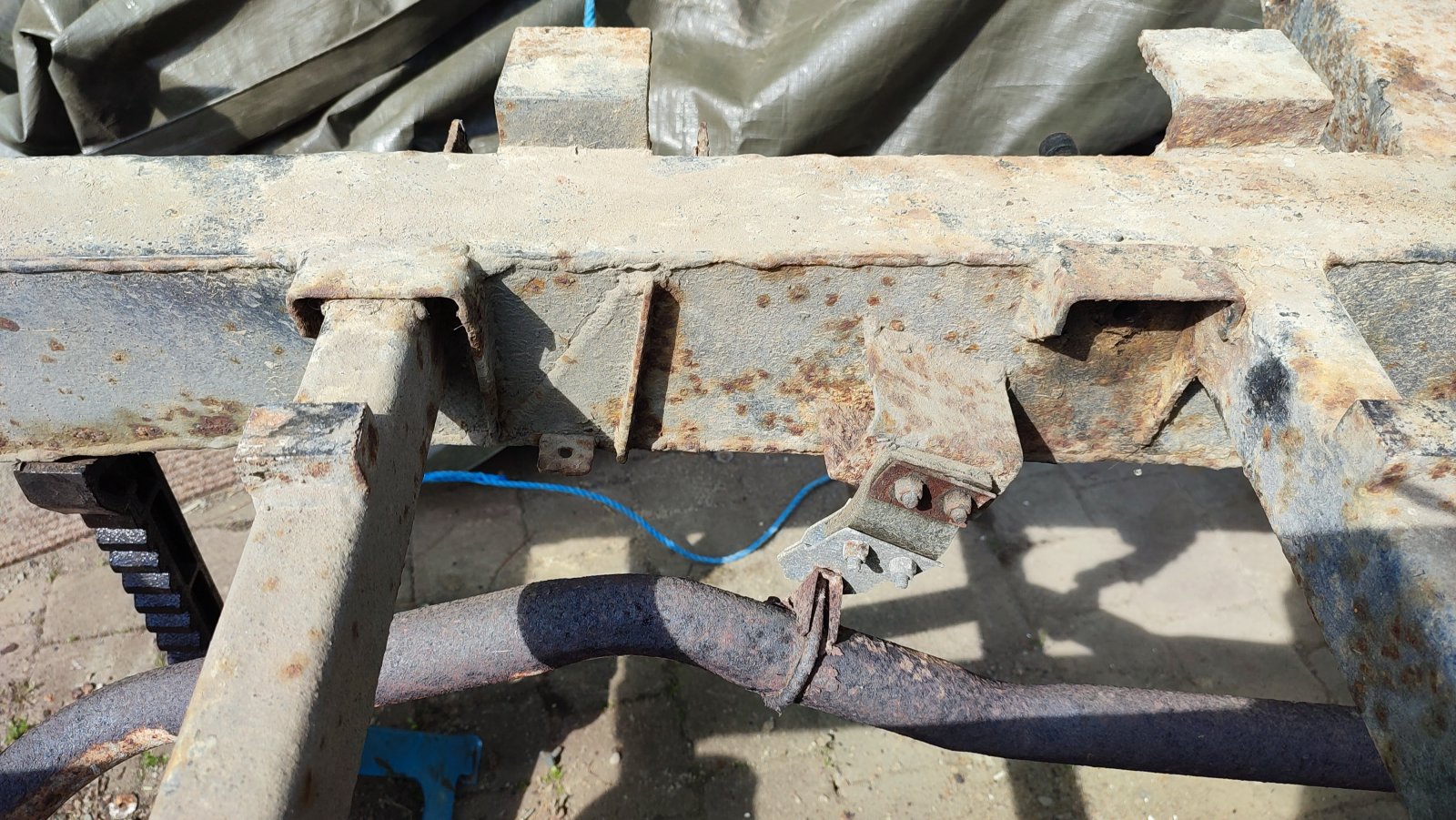

Thank you. The vehicle I'm working on has many, many interesting modifications. I'll be reversing most of these.



Attachments

•

  410.2 KB · Views: 129
•

  363.7 KB · Views: 127
•

  283 KB · Views: 144
•

  307.6 KB · Views: 128

R

RobinPheonix

New Member

Posts

5

Location

Conwy Valley North Wales

• May 28, 2023

• #56

Dopey said:

Made more progress today

1st Mordant T wash solution on the galv chassis Turns from silver to copper colour

2ND Galve primer paint

3rd Polyurethane paint

Click to expand...



R

RobinPheonix

New Member

Posts

5

Location

Conwy Valley North Wales

• May 28, 2023

• #57

Dopey said:

Made more progress today

1st Mordant T wash solution on the galv chassis Turns from silver to copper colour

2ND Galve primer paint

3rd Polyurethane paint

Click to expand...

Hi. I’ve just taken delivery of a new galvanised chassis for my 3 series 109. I have also decided to paint mine with 2 pack paint but can’t decide on Finish. Gloss, satin or Matt? What did you opt for, it looks good.



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 29, 2023

• #58

RobinPheonix said:

Hi. I’ve just taken delivery of a new galvanised chassis for my 3 series 109. I have also decided to paint mine with 2 pack paint but can’t decide on Finish. Gloss, satin or Matt? What did you opt for, it looks good.

Click to expand...

Hi I used polyurethane a gloss, isn't 2K a hard paint? It will chip easy if it's hard?



Dopey

Well-Known Member

Posts

6,201

Location

Heathrow

• May 29, 2023

• #59

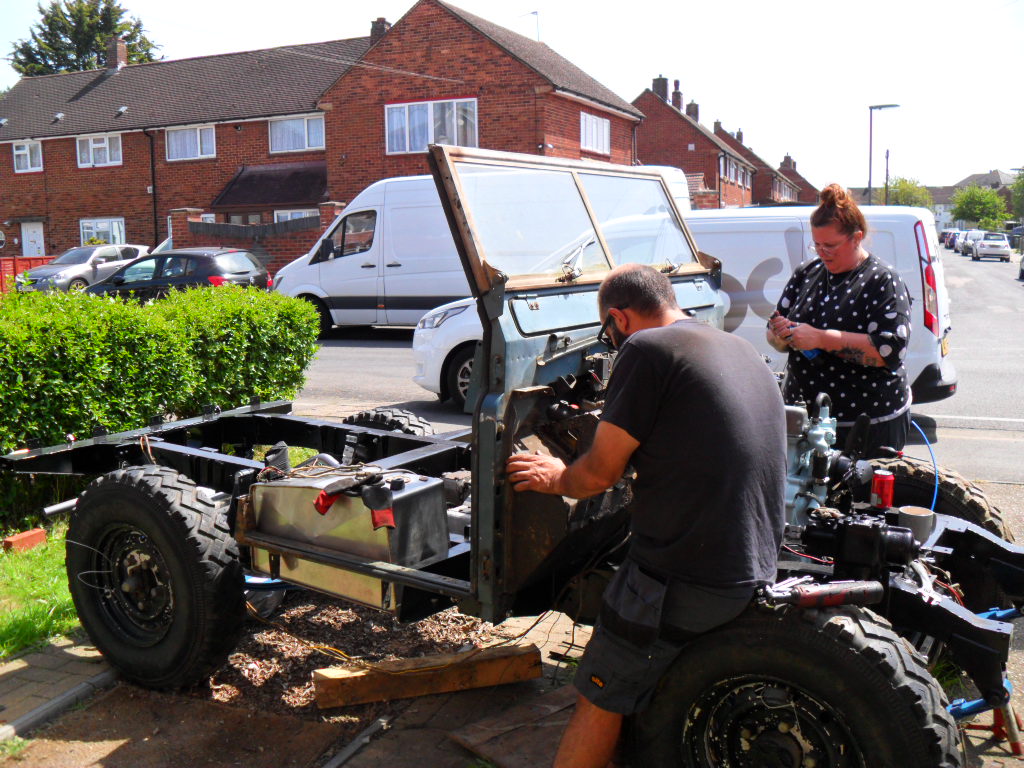

Bulkheads back on, my son and daughter-in-law are de-rusting it, it's

not that bad, but best to do it now



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• May 29, 2023

• #60

Dopey said:

Hi I used polyurethane a gloss, isn't 2K a hard paint? It will chip easy if it's hard?

Click to expand...

I don't like 2 pack at all. As you say, much too hard, and tends to come off in sheets, or lift, allowing water to run underneath.

I much prefer regular paint and primer.
