Disco Tray back build

Mr Noisy · Apr 10, 2014

I actually don't know!

Mr Noisy · Apr 10, 2014

Ohhhhhhhh

A frame top mounts?

jai_landrover · Apr 10, 2014

Brackets for 1 link on front axle

discomark10 · Apr 10, 2014

Neither are fair off, but not right

I'll give you a hint, its been removed from something to aid work for fitting.

jai_landrover · Apr 10, 2014

I give up too tired got in at 2am after picking up noo tyres with teeth

Mr Noisy · Apr 10, 2014

I initially though bumper mount but no

I don't recognise the bolt pattern so I'm snookered.

700Quid · Apr 10, 2014

OO!OO! OO! .. YOUR MUM!!!!.... (Mr Noisy has a word)

Oh its not that kind of game...... Sorry

discomark10 · Apr 10, 2014

This should help

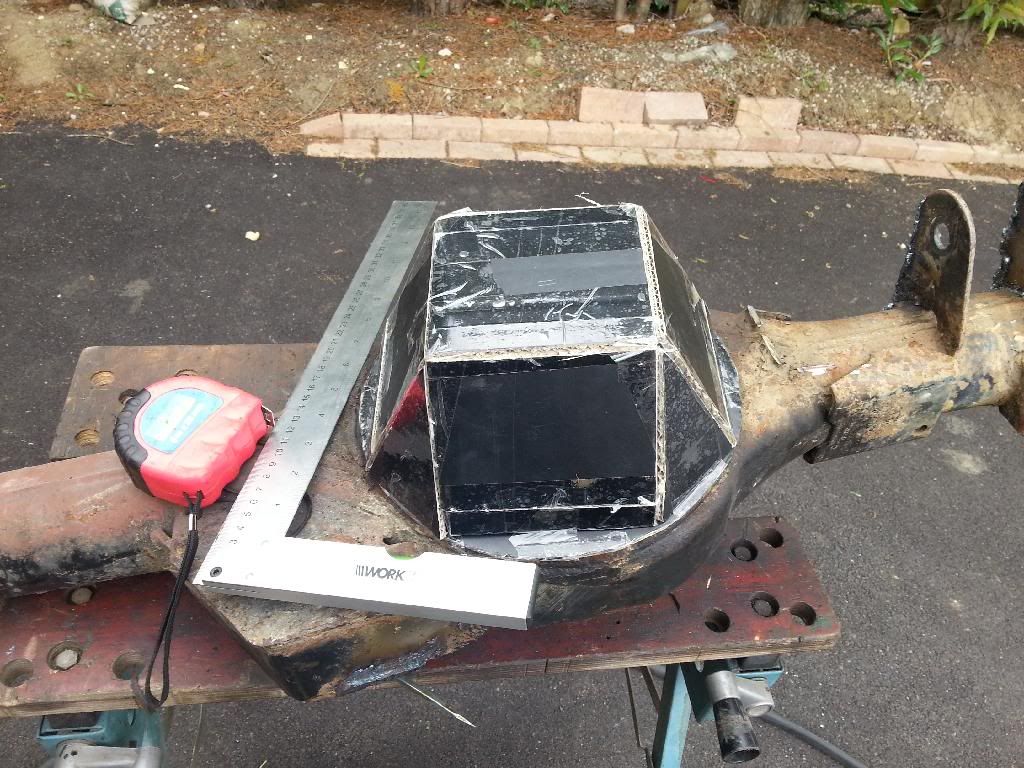

Oh and also done this

And this
Voltage gauge for both batteries

]

jai_landrover · Apr 10, 2014

That's gonna take some cleaning up dude!

200tdi ayre · Apr 10, 2014

Radius arm mounts,

Altered pinion angle ?

jai_landrover · Apr 10, 2014

You really don't want be playing with pinion angle lr did what they can and compensated with the out of phase front propshaft yokes.

But very interested in what it will end up like!!!

P.s I picked up some better off-road tyres yesterday 10.50 100 r16's
Petla pattern but more open I think that are mitas

discomark10 · Apr 10, 2014

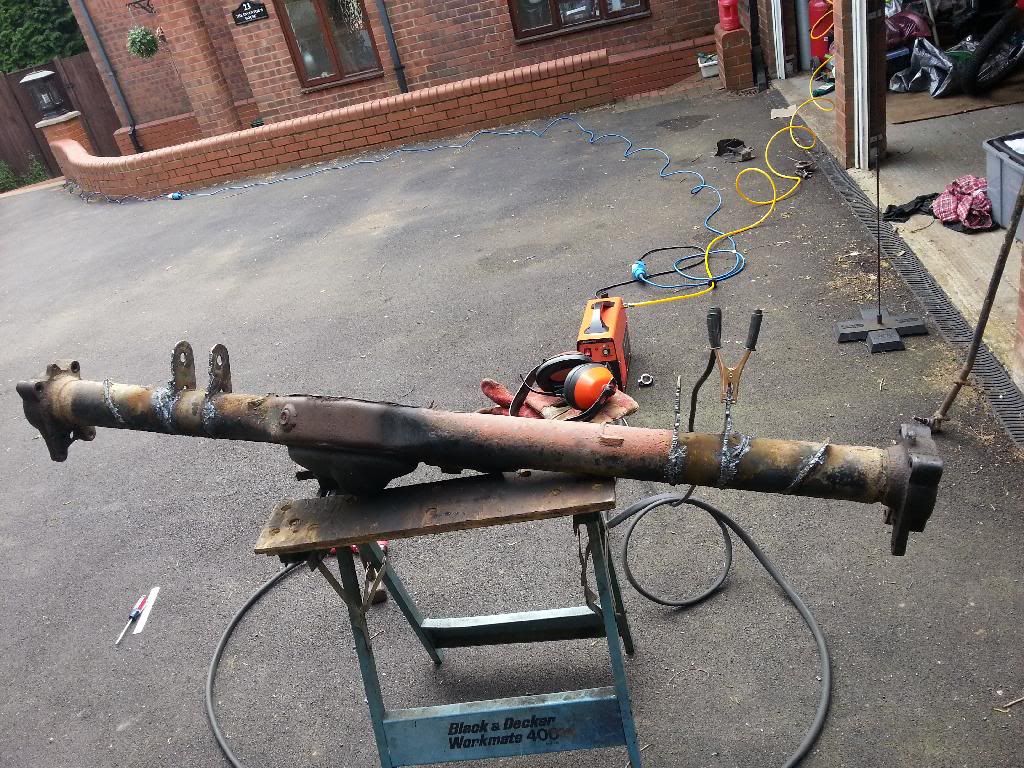

All so close... its the d2 rear axle radius arm mounts.
I've cut the back part off so I can use the front part to bolt the trailing arms up to it. There in the same place just a tad further forward.

The aframe is getting changed to 2 links to turn it a proper 4 link.

discomark10 · Apr 10, 2014

jai_landrover said:
That's gonna take some cleaning up dude!

Yea I done as close as I could with the plasma... the rest will have to come off with a grinder.

discomark10 · Apr 10, 2014

jai_landrover said:
You really don't want be playing with pinion angle lr did what they can and compensated with the out of phase front propshaft yokes.

But very interested in what it will end up like!!!

P.s I picked up some better off-road tyres yesterday 10.50 100 r16's
Petla pattern but more open I think that are mitas

Yea im gona leave the pinion angles the same as im not running much of a lift once its all sorted.

got any pics of these tyres? 100 wall hight would be excellent, aboout 37" ?

discomark10 · Apr 11, 2014

Got some bad new last night... My place of work is going to be moving from a 20min walk away to about an hours drive!
which means I need a cheap reliable car to get to work or find a new job.. so either way it screws me up with regards to the landy!
The other option is to get a new job close but I'm sure many of you know, atm it's easier said than done, but still leaves me high and dry landy wise.

So progress will likely grind to a holt soon, got these axles to play with and a couple small bits still to do mind you.
,

Mr Noisy · Apr 11, 2014

That is a bummer.

Plenty of cheap cars around though.

Tbh another disco isn't a bad shout, reliable when you know them inside out and damn good on fuel.

700Quid · Apr 14, 2014

Mr Noisy said:
That is a bummer.

Plenty of cheap cars around though.

Tbh another disco isn't a bad shout, reliable when you know them inside out and damn good on fuel.

Second that... Pick up a cheap one and if you just use the cheap parts it'll cost you a lot less than a car to run.

Bit of a crapper I know, but every cloud and all that.. Second Landy

discomark10 · Apr 14, 2014

I was thinking a E class, nice and big so it can tow a landy and they do 45mpg at 70 mph!
They have the TDI engine that peeps put into landys (seen it on LR4x4)
A Tdi disco will only do about 25-30 mpg

but I do know them inside out!

fanatic · Apr 14, 2014

Merc 606 tuned was one of my thoughts

700Quid · Apr 15, 2014

discomark10 said:
I was thinking a E class, nice and big so it can tow a landy and they do 45mpg at 70 mph!
They have the TDI engine that peeps put into landys (seen it on LR4x4)
A Tdi disco will only do about 25-30 mpg but I do know them inside out!

Yeah E55... Looking at that or a C55 as my next daily...

30 (cough 20) mpg...
