Disco Tray back build

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Looking good mark, been watching this thread since you started it,


Maxyman have you fitted your arms ect yet? Was it worth it? And what are these a frame ball joint like as I think mines needs replacing

Haha there arriving tomorow at last fella :D !!!!!!!
So I'll be on it tomorow and also fitting front 14" shocks and kit so will be a busy day!!!
I'll try get some pics up over the weekend and see what the A-frame joint does ;)

Using RAC's kit, there plus 8/9" roughly from standard point on the back, not sure what front are yet.
+16" shocks rear and +14" shocks front

Got some of it fitted today.






Can't see but I've trimmed a half moon out of the axle mount out to allow the tube to move past on articulation



Done..

Doing the front half next week I'm waiting for shocks to arrive!!
Always waiting on somthing!!

Looks really good! I've yet to do the trim on the axle arm mount.. its on the list lol.
are the front shocks mounted outside of the turrets?

MaxyMan said:
Got some of it fitted today.






Can't see but I've trimmed a half moon out of the axle mount out to allow the tube to move past on articulation



Done..

Doing the front half next week I'm waiting for shocks to arrive!!
Always waiting on somthing!!
Click to expand...

I had to give it a trim as the arms are a lot bigger then standard tube lol and there even built slightly offset on the axle mount but the picture doesn't show it to well, shouldn't hit the mount at all. Yeh they mount outside Infront of the spring.

MaxyMan said:
Got some of it fitted today.






Can't see but I've trimmed a half moon out of the axle mount out to allow the tube to move past on articulation



Done..

Doing the front half next week I'm waiting for shocks to arrive!!
Always waiting on somthing!!
Click to expand...


What's its twist like now then?

Going to go out later and try get some pictures!! It should be fully unlimited now to the point where the shocks are fully stretched lol, and that's quite a way!

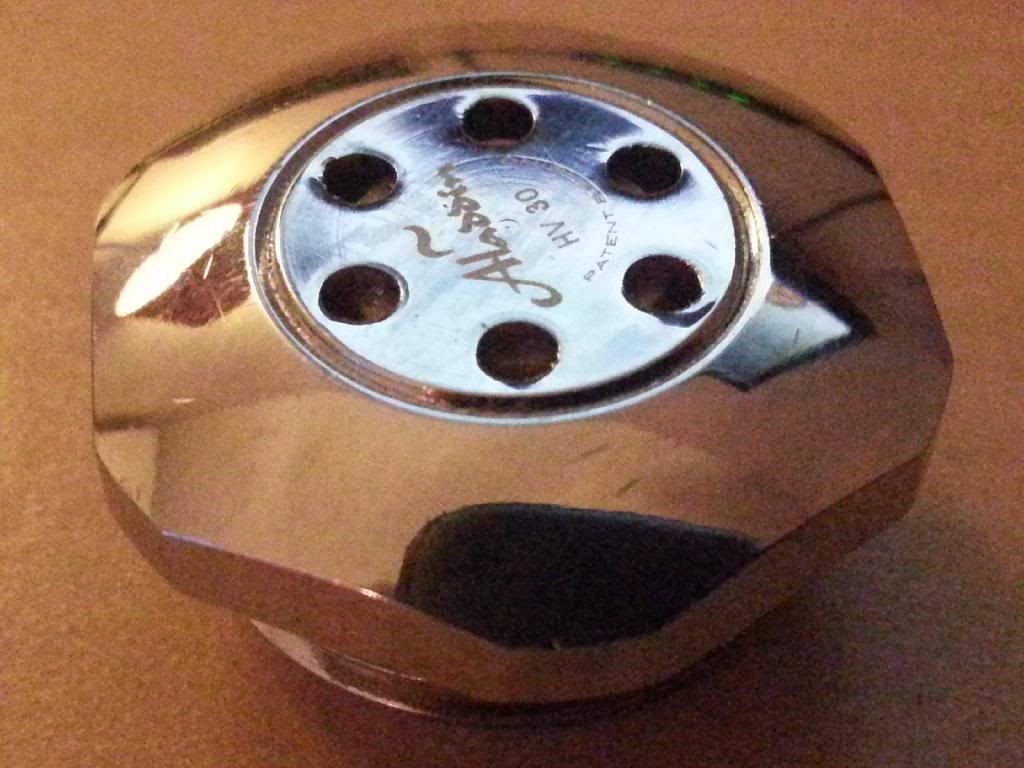

Brought an auto bleed valve from ebay for the house heating system as its an old boiler that creates lots of air, I also had the side thought that it might be able to be used on the landy... and it only bloody fits!

Sits nicely in the rad and engine bleed holes.



The other pic is being slow to upload..
