Hey, got any photos of the current build? Front? sides? Rear? I thinking about doing this to mine to remove the rust issue in the back.

I am struggling with the fact i will lose the back which means no more sleeping in it.

Mattstorey said:
Hey, got any photos of the current build? Front? sides? Rear? I thinking about doing this to mine to remove the rust issue in the back.

I am struggling with the fact i will lose the back which means no more sleeping in it.
Click to expand...

I haven't put the panels on yet but I've got one with them on temporally, and I'm building a sleeper trailer so if I do want to camp I can! :)
If you do do it, you can buy a rear pannel that fits right on, a very nice option!


Last edited:
Right... going to get a set of springs made up for the rear, found a place that will do em for 150ish.
I was going to play around with modding some but I dont want the hassle of making mounts twice.

My current springs are ****part ( part of the mm4x4 pro comp kit ) +40mm, 220lbft/in, 17mm thickness, 435 free length, with 9 active coils.
The new ones are going to be a lil bit softer as its sitting a bit high atm due to half the car being removed!
I want to keep the +40 ride hight and be able to have 15 inches of travel.

I will have to make new seat for the springs to sit on the chassis as the springs will be a fair bit longer!

Descripition
Fitting Position
Thickness [mm]14,75
Length [mm]450
Coils 7.65
Outer Diameter 1 [mm]149
Weight [kg]4,9
Colour Coding
Colour Coding
Multiple1

£42 quid all in!
Thanks Jai! you may just have saved me 100+ notes!

No worries been trialers choice for many years up til recently when people started using really light x springs.

I got them on the front of my 90 and they are soft as. You might want something lighter on a v8 on front ideally but they'll be ok if your running a heavy bumper he winch.
J

I may have my old rear ones if you wanted to fit and try but will need them back in a couple if weeks. I also got a pair of really light duty v8 trial springs for one day I ever build a coiler trialer.

I am running a big'ol bumper + winch so might be good, I've ordered a set of springs, if they are no good ill sell them on! thanks again for the tip! :D

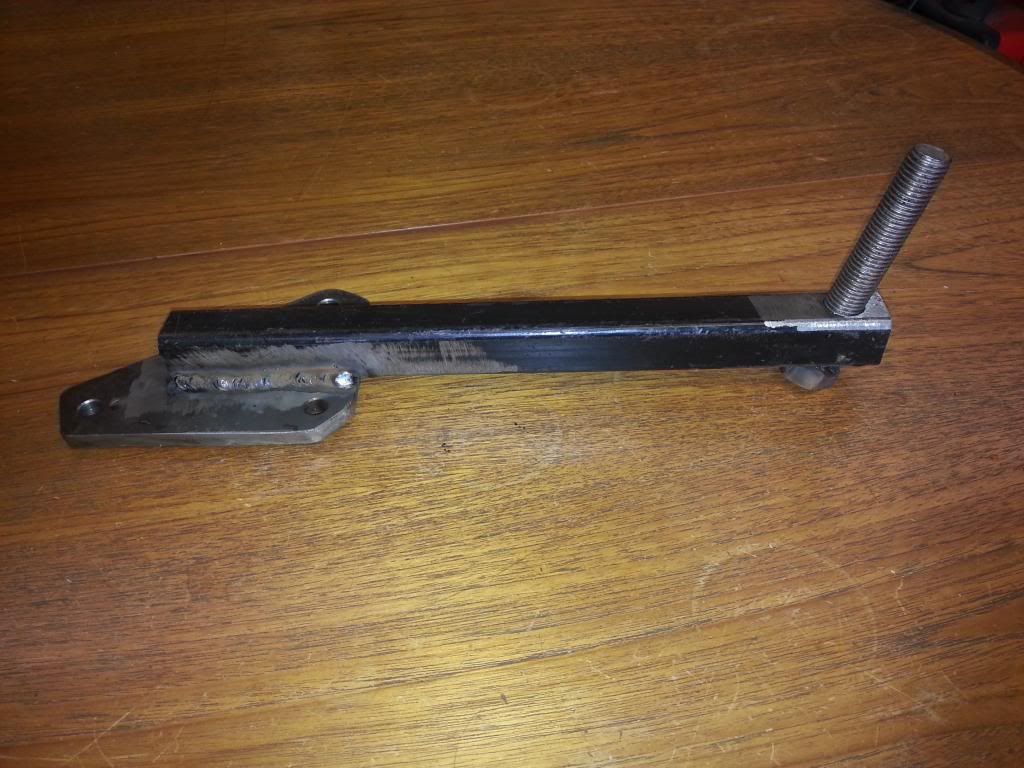

Say hello to my new shock mounts!

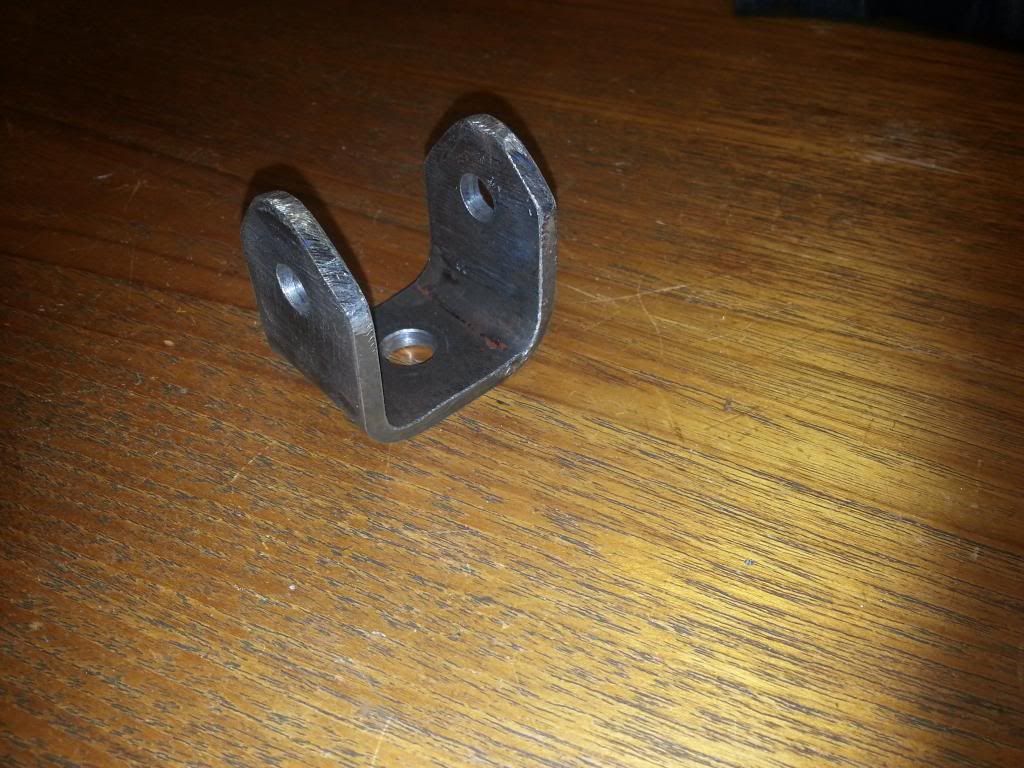

And my eye-to-pin adaptors (the'er not wonky, I checked its the pic lol)

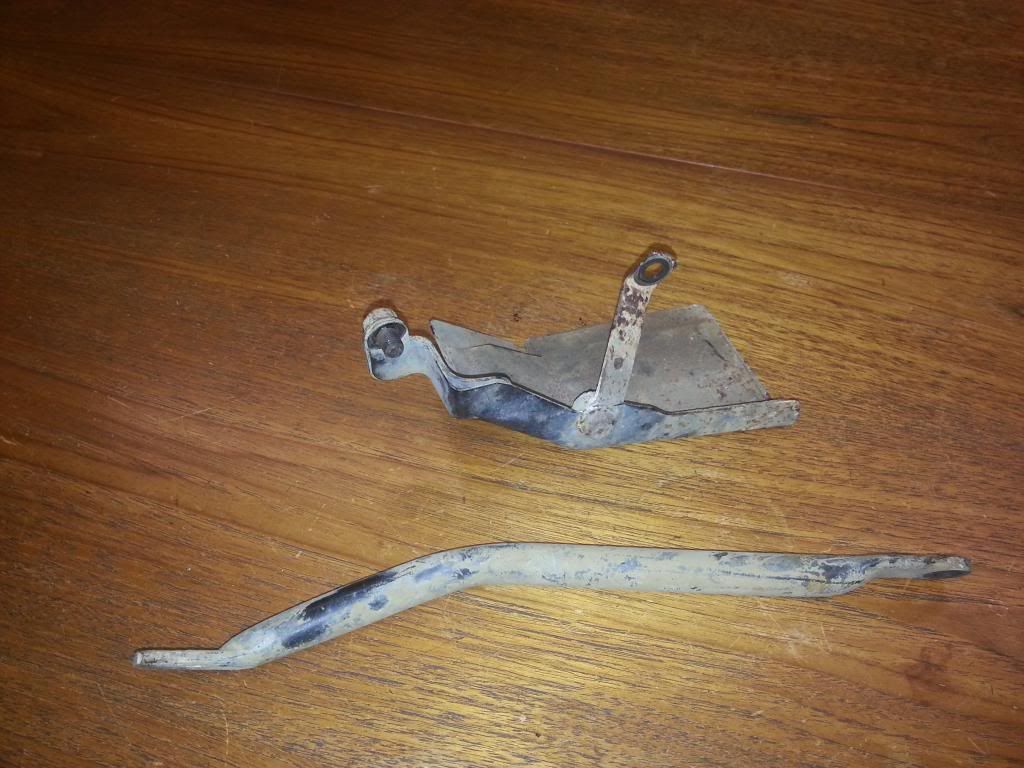

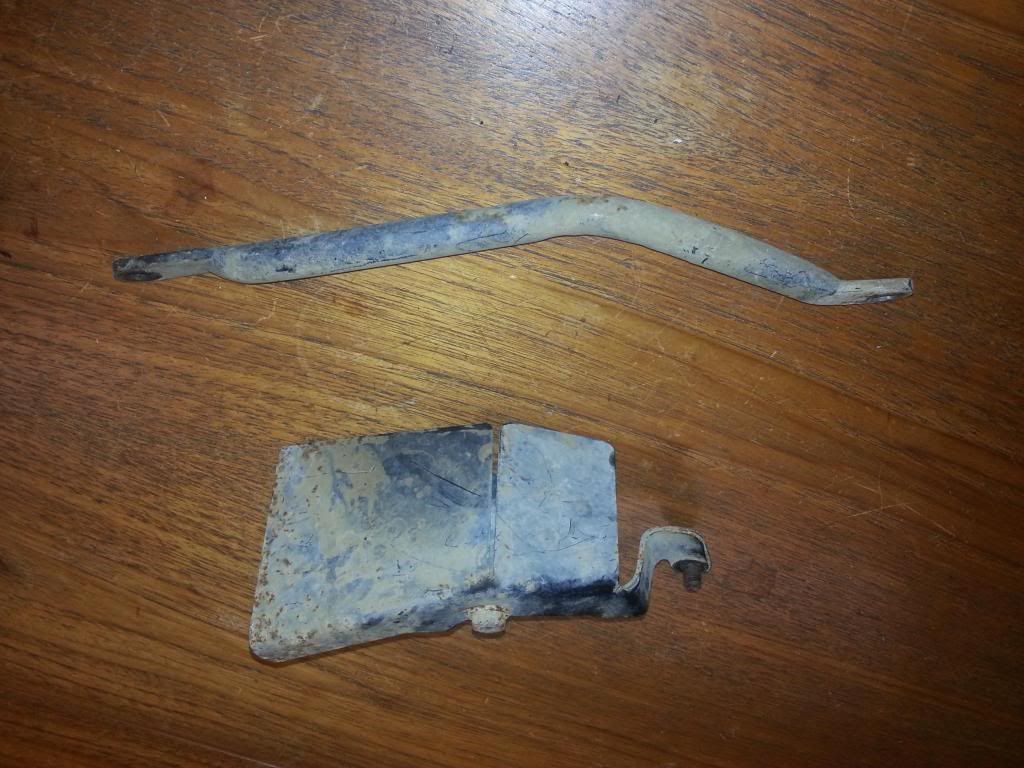

Any idea what these 2 items are for or where they go?

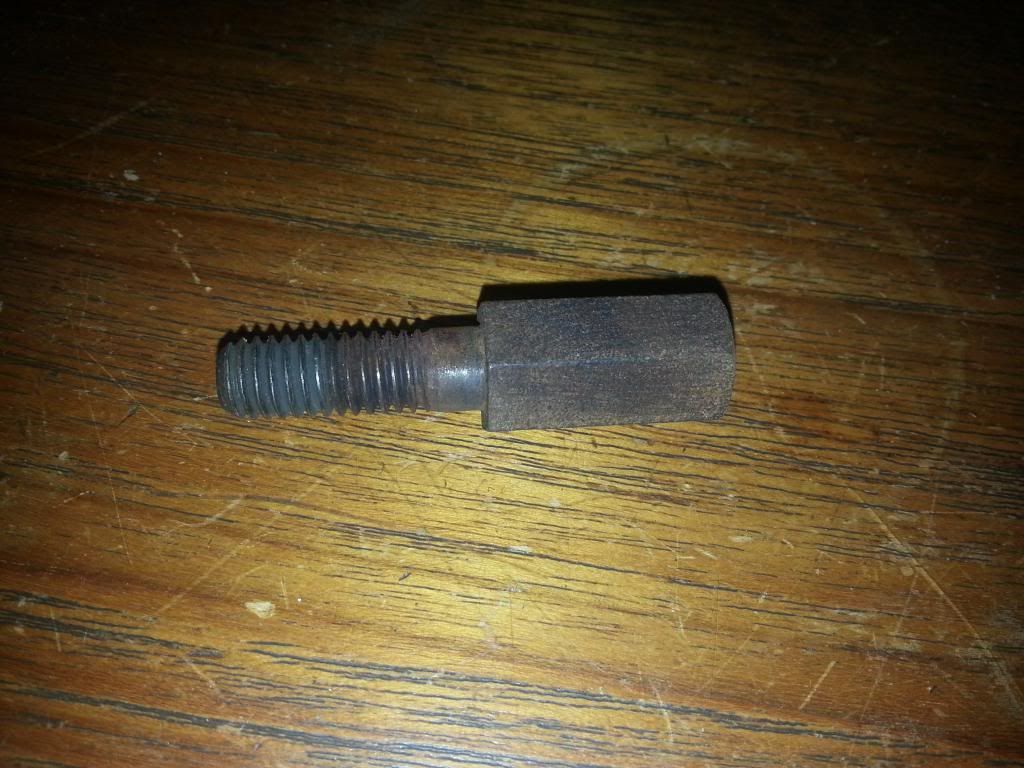

Also what these header bolts have attached to them?


Last edited:
The bent bar is the alternator brace, goes from alt bottom front bolt to timing cover.

I removed mine cos of crank sensor and its fine without.

I'm guessing that plate is starter heat shield but ages since I removed mine.

The header bolt don't know, again, could be ages since I ditched mine but heat shield could be it.

Cheers :)
