Classic Range Rover Suffix D Starting Issues - Advice required please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Mark 23

New Member
Posts
2
Location
Stamford
I've a 1976 Range Rover that was starting but now won't. I've replaced the following:

Engine Bay Wiring Loom - It was old and needed replacing anyway.
New Starter Motor - As above
New Electronic Distributor - replaced old reconditioned unit.
HT Leads and Coil
Alternator has been tested - All fine
Battery has been tested - All fine

The car turns over strongly but won't fire and when a Spark Reader is attached to No1 Plug and Lead, the spark is weak or VERY intermittent.

If I put a wire from Coil + directly to Battery + and turn engine over with ignition key, it fires straight away and runs.

Coil + reading 13 volts with ignition at 1st position with dash lights on. When RR is turned over, volts drop to 10.9.

Any ideas?

I've a 1976 Range Rover that was starting but now won't. I've replaced the following:

Engine Bay Wiring Loom - It was old and needed replacing anyway.
New Starter Motor - As above
New Electronic Distributor - replaced old reconditioned unit.
HT Leads and Coil
Alternator has been tested - All fine
Battery has been tested - All fine

The car turns over strongly but won't fire and when a Spark Reader is attached to No1 Plug and Lead, the spark is weak or VERY intermittent.

If I put a wire from Coil + directly to Battery + and turn engine over with ignition key, it fires straight away and runs.

Coil + reading 13 volts with ignition at 1st position with dash lights on. When RR is turned over, volts drop to 10.9.

Any ideas?
On a newer car, I would say it's an ignition switch problem, but I am not familiar with the Classic.

may be of help


Attachments

  • RR Classic 1975 onwards.png
    RR Classic 1975 onwards.png
    612.9 KB · Views: 42

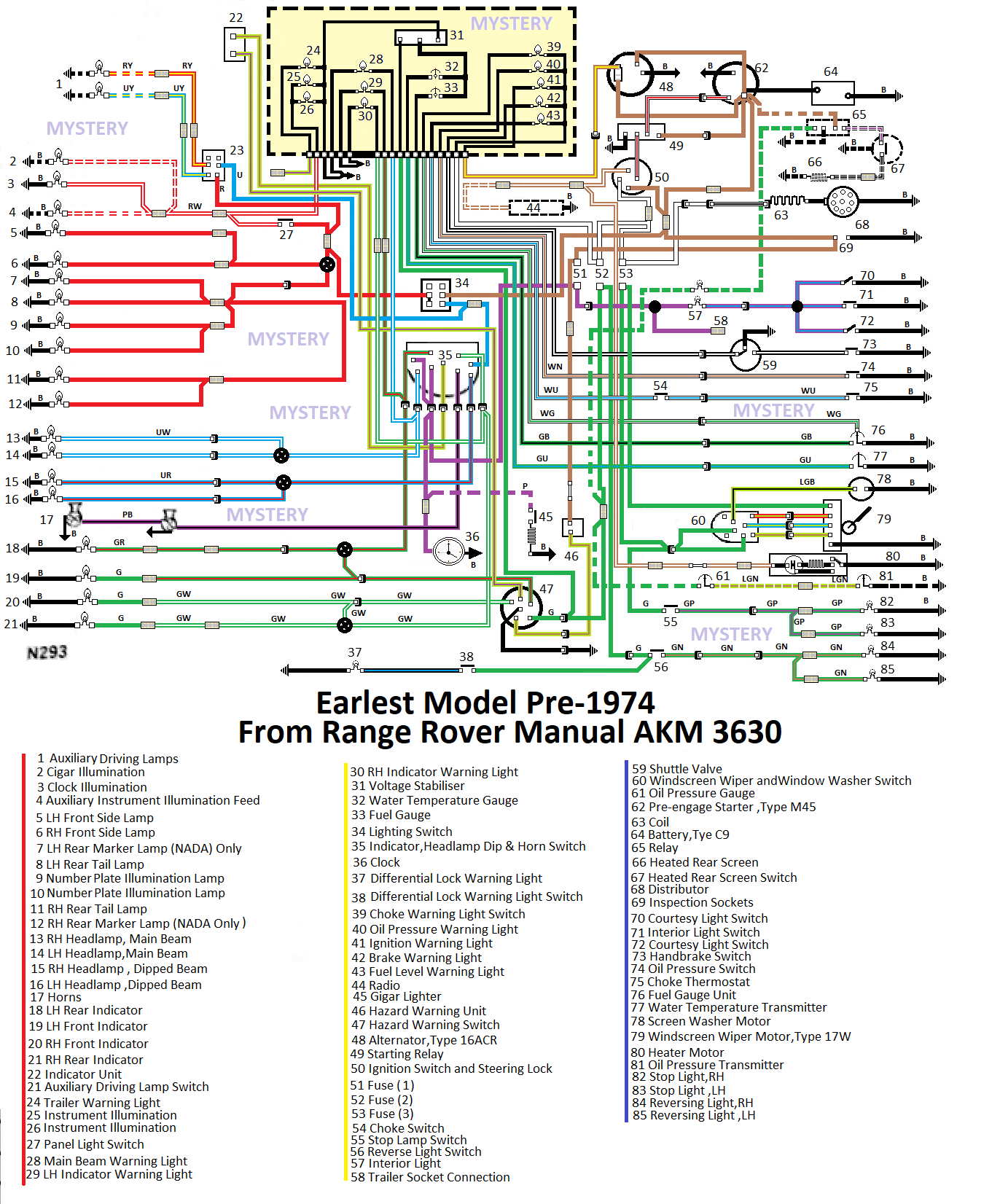

  • RR Classic 1974.png
    RR Classic 1974.png
    356.5 KB · Views: 34

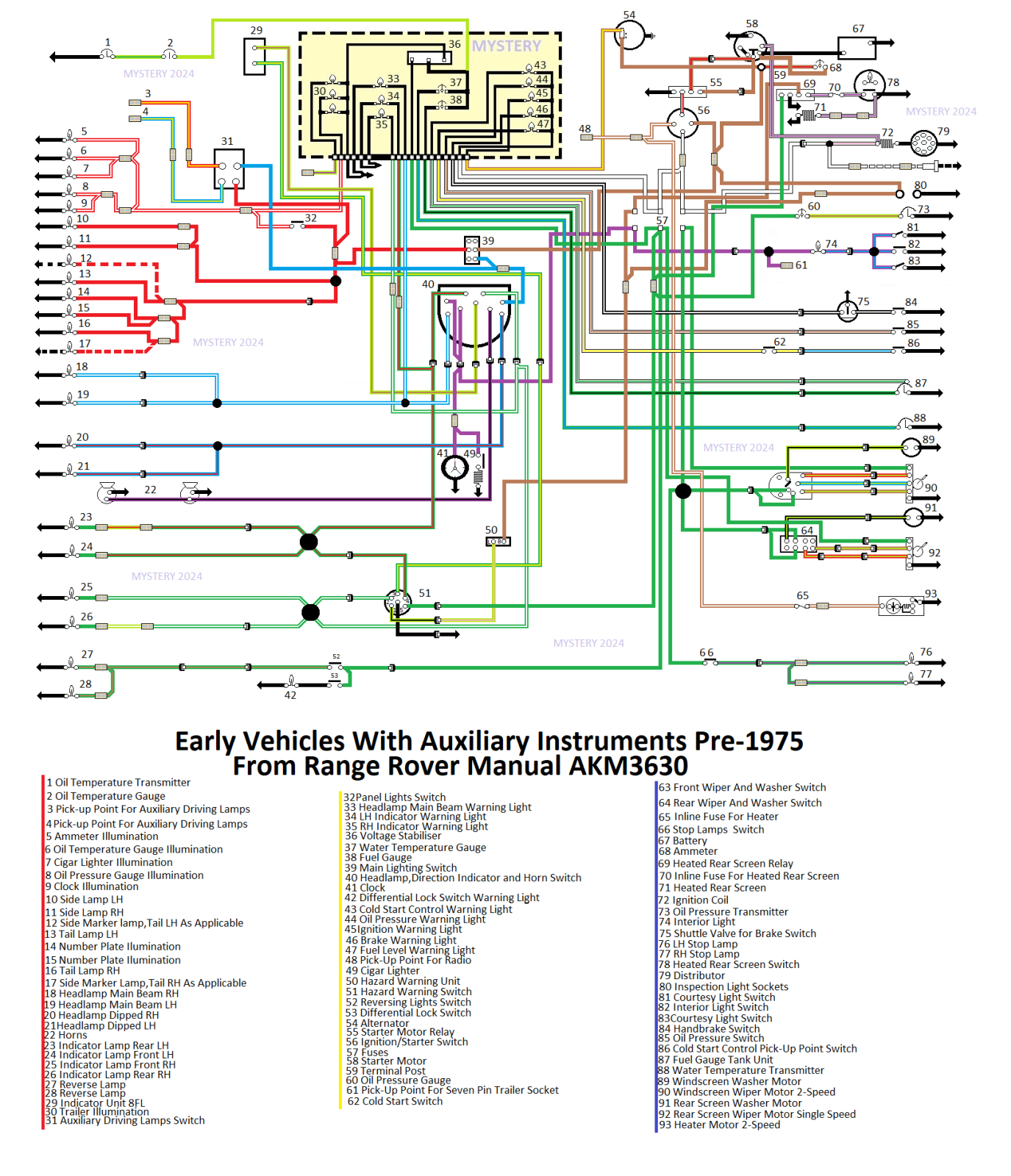

  • RR Classic Pre1975.png
    RR Classic Pre1975.png
    720.8 KB · Views: 42
  • RR Classic 1979.png
    RR Classic 1979.png
    772 KB · Views: 46
  • RR Classic Voltage Gauge.png
    RR Classic Voltage Gauge.png
    736.9 KB · Views: 34
