Billy's budget defender project
- Thread starter Billy B
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
Right at the beginning doc, they were way beyond my repair abilities
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon

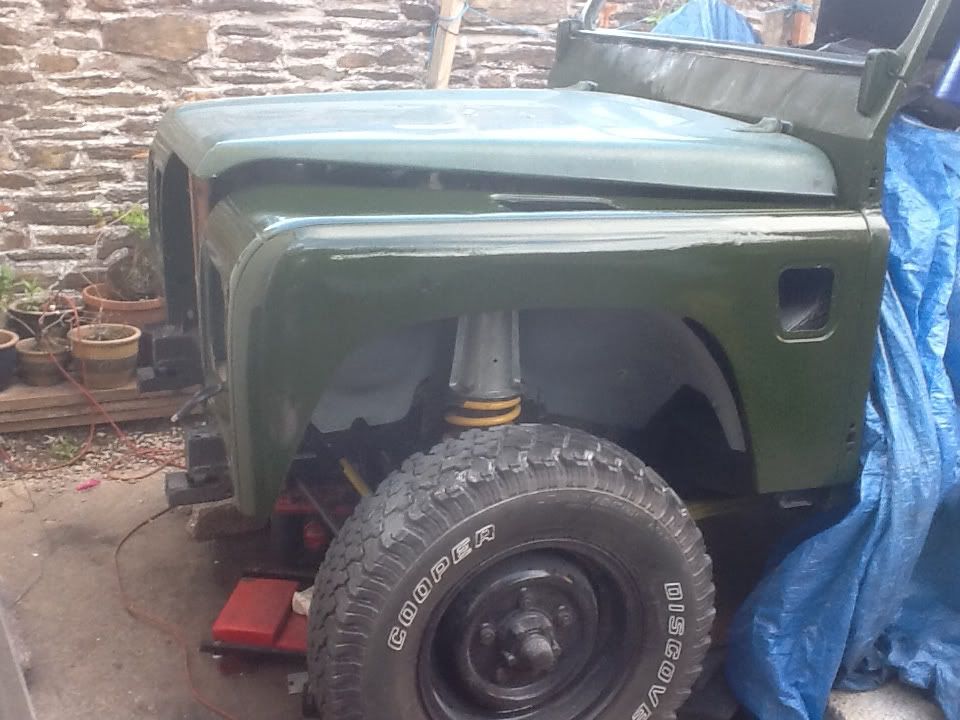

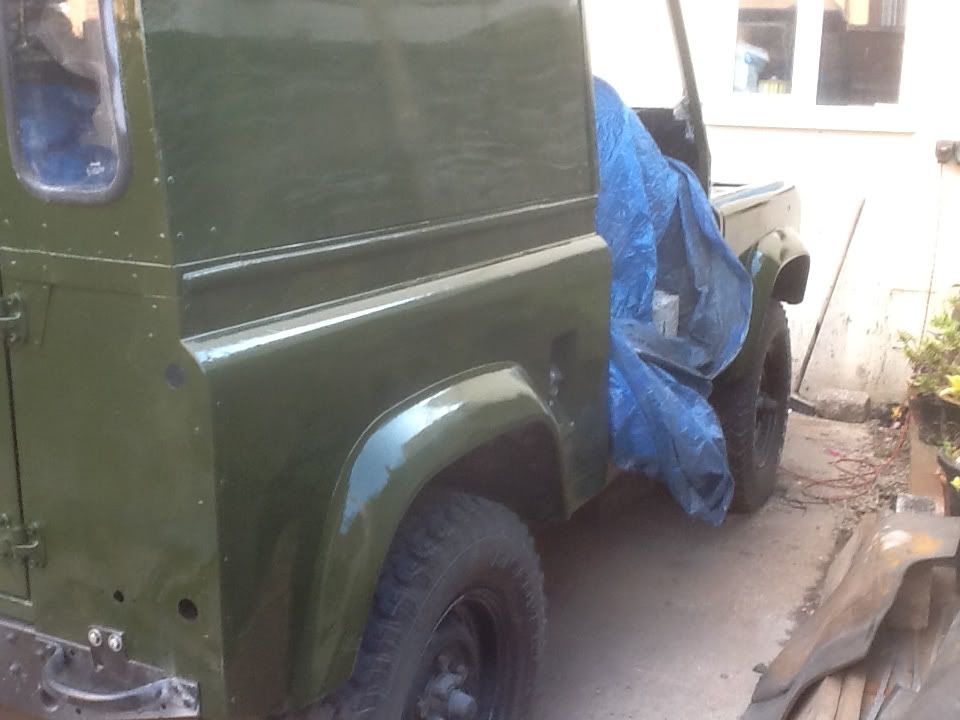

Got some paint on the wings when I got home from work

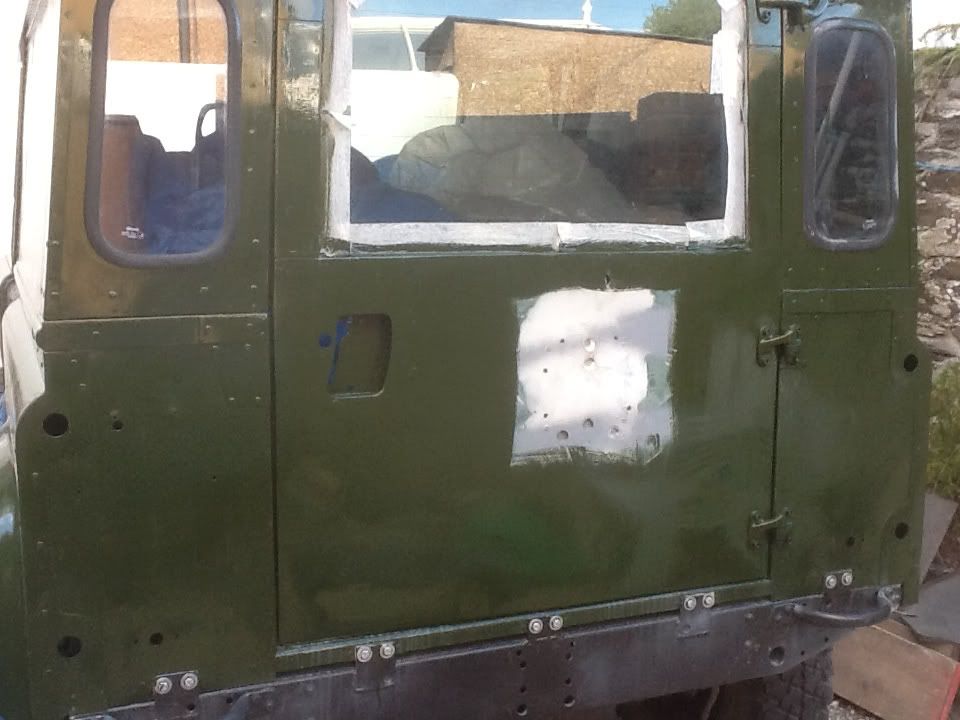

Painted the back door hinges
I can't wait to get it finished
Painted the back door hinges
I can't wait to get it finished
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
Got loads done today, fitted the wind screen, cleaned up, fitted and painted the doors
Unfortunately photobucket is being bent and won't let me upload the pics
Will post them when it starts working again
Unfortunately photobucket is being bent and won't let me upload the pics
Will post them when it starts working again
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
Will Try to upload from my phone
Wind screen fitted
Cleaned up the doors
Repainted the cab
Fitted the doors
Got some paint on the doors and the bits I had to redo
Hopefully they come out ok, I struggle with the tiny keypad on the phone
Wind screen fitted
Cleaned up the doors
Repainted the cab
Fitted the doors
Got some paint on the doors and the bits I had to redo
Hopefully they come out ok, I struggle with the tiny keypad on the phone
stutab
Well-Known Member
- Posts
- 3,285
- Location
- Hemel Hempstead, Hertfordshire
Photos came out great Billy. Looking good now.
D90mitch
Well-Known Member
- Posts
- 2,419
Nice work! Have been following this, how did you find putting the windscreen in (or taking it out way back) as the seal on mine is fooked but don't want to crack it changing it! Any tips?
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
Thanks Mitch
Cut the old rubber with a sharp Stanley blade, if you follow the metal frame with the blade on the outside all th way round the screen will jut push in,
You will need two people to fit it the way i did it,
When fitting we put the new rubber on the screen and ran a piece of string inside the rubber along the bottom all the way around the screen and along the bottom again, so you should have an end of the string at both bottom corners, keep the string tight and sit the bottom of the screen in the frame. Now one of you holds the string tight the other pushes the screen into position whilst using the other end of the string to pull the rubber lip over the frame, you should be able to do this all the way around until all the string comes out and the seal is in place.
Hope that make sense, it was the first time ive ever done it, it wasnt difficult and it cost £2 for a length of decent string and it took about 20 minutes
Cut the old rubber with a sharp Stanley blade, if you follow the metal frame with the blade on the outside all th way round the screen will jut push in,
You will need two people to fit it the way i did it,
When fitting we put the new rubber on the screen and ran a piece of string inside the rubber along the bottom all the way around the screen and along the bottom again, so you should have an end of the string at both bottom corners, keep the string tight and sit the bottom of the screen in the frame. Now one of you holds the string tight the other pushes the screen into position whilst using the other end of the string to pull the rubber lip over the frame, you should be able to do this all the way around until all the string comes out and the seal is in place.
Hope that make sense, it was the first time ive ever done it, it wasnt difficult and it cost £2 for a length of decent string and it took about 20 minutes
stutab
Well-Known Member
- Posts
- 3,285
- Location
- Hemel Hempstead, Hertfordshire
Thanks Mitch
Cut the old rubber with a sharp Stanley blade, if you follow the metal frame with the blade on the outside all th way round the screen will jut push in,
You will need two people to fit it the way i did it,
When fitting we put the new rubber on the screen and ran a piece of string inside the rubber along the bottom all the way around the screen and along the bottom again, so you should have an end of the string at both bottom corners, keep the string tight and sit the bottom of the screen in the frame. Now one of you holds the string tight the other pushes the screen into position whilst using the other end of the string to pull the rubber lip over the frame, you should be able to do this all the way around until all the string comes out and the seal is in place.
Hope that make sense, it was the first time ive ever done it, it wasnt difficult and it cost £2 for a length of decent string and it took about 20 minutes
I did that on a mk4 escort many years ago. And took the windows out of a disco and my rangy. Make sure it's good string and put plenty of fairy liquid on both the seal and the glass.
sible88
New Member
- Posts
- 3,492
- Location
- Hertfordshire
Just read this and WOW!!
Great read and great work.
Great read and great work.
D90mitch
Well-Known Member
- Posts
- 2,419
Thanks Mitch
Cut the old rubber with a sharp Stanley blade, if you follow the metal frame with the blade on the outside all th way round the screen will jut push in,
You will need two people to fit it the way i did it,
When fitting we put the new rubber on the screen and ran a piece of string inside the rubber along the bottom all the way around the screen and along the bottom again, so you should have an end of the string at both bottom corners, keep the string tight and sit the bottom of the screen in the frame. Now one of you holds the string tight the other pushes the screen into position whilst using the other end of the string to pull the rubber lip over the frame, you should be able to do this all the way around until all the string comes out and the seal is in place.
Hope that make sense, it was the first time ive ever done it, it wasnt difficult and it cost £2 for a length of decent string and it took about 20 minutes
Thanks for that, found that one of the main leaks today was in fact coming from a crack in the windscreen seal so managed to finally locate it after taking part of the dash off! Have injected some silicone into it for now but will hopefully have a bash at changing the windscreen soon. Just really don't want to crack it!!!
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Exactly what the local windscreen indie did when he changed my chipped screen. Except he removed the screen by sitting in the front seat and putting the soles of his trainers against it and pushing it out while I held the screen!Thanks Mitch
Cut the old rubber with a sharp Stanley blade, if you follow the metal frame with the blade on the outside all th way round the screen will jut push in,
You will need two people to fit it the way i did it,
When fitting we put the new rubber on the screen and ran a piece of string inside the rubber along the bottom all the way around the screen and along the bottom again, so you should have an end of the string at both bottom corners, keep the string tight and sit the bottom of the screen in the frame. Now one of you holds the string tight the other pushes the screen into position whilst using the other end of the string to pull the rubber lip over the frame, you should be able to do this all the way around until all the string comes out and the seal is in place.
Hope that make sense, it was the first time ive ever done it, it wasnt difficult and it cost £2 for a length of decent string and it took about 20 minutes
Then just like you say, he lubed the seal with washing up liquid and slid the string round the outside to pop the lip over the frame! Ansum!
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
It's defiantly a she, the bitch has caused me more grief than any man could and she doesn't even run yet, but I love her all the same
I hand painted it cause I like the look, it's supposed to look a bit rough around the edges
I hand painted it cause I like the look, it's supposed to look a bit rough around the edges
Dan_Trials
Well-Known Member
- Posts
- 2,546
Wow excellent tread and excellent work! Just read the whole thing, just shows you don't need a garage/shed just determination! Keep up the good work nearly there now!
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
Right then started cleaning up the door panels
Sprayed them up
Fitted the new window runner
Fitted the new window seals and all the other gubbins, hey presto working windows
Fitted the wing mirrors
Gave it the hose pipe test and only one leak, which I was expecting cause I need a bit more sealer
Hopefully get the back door complete during the week and maybe the final bits of filler
Sprayed them up
Fitted the new window runner
Fitted the new window seals and all the other gubbins, hey presto working windows
Fitted the wing mirrors
Gave it the hose pipe test and only one leak, which I was expecting cause I need a bit more sealer
Hopefully get the back door complete during the week and maybe the final bits of filler
THEengineer
whatever
- Posts
- 4,978
- Location
- near big mountains and lots of mud
thats looking pukka billy,me and my old man start on mine tomorrow though chassis is mint,bodys ****e
Billy B
Well-Known Member
- Posts
- 2,305
- Location
- The Kingdom of Devon
THEengineer
whatever
- Posts
- 4,978
- Location
- near big mountains and lots of mud
Good luck, make sure you get a thread on the go with loads of pics
will do it wont be coming apart to the extent yours did as mines my daily work vehicle but it will look 100 % better when its done
