Aaron's 90 rebuild (Round 2)

aaronmorris · Apr 28, 2014

So todays progress. Kind off a bit happier today and a much better day was had.

Got the doors painted. I've done ok up to press without getting any **** in the paint. Ended up with a few today

[/URL][/IMG]

And the hinges hanging out to dry. Crap picture. Will get a betterer one tomorrow

[/URL][/IMG]

Me new seatbox

[/URL][/IMG]

Being a td5 one it has the extra compartment on the drives side. But seeing as I've got a fuel tank there I best remove it

So drilled about 30 rivets out and off it pops.

[/URL][/IMG]

[/URL][/IMG]

Gave the underneath a coat of waxoil.

[/URL][/IMG]

And sat it in place to get it out of the way and until I can find my floor pans. Still got to replace all the rivets I drilled out. But I haven't got enough.

[/URL][/IMG]

And last of all I fitted the rear lights. They don't work yet mind. Wiring loom repairs to do

[/URL][/IMG]

marshy714 · Apr 28, 2014

Was it quite a solid truck to start with mate? Your flying through and your panels look pretty straight to start with! Not fair mine where all ducked

Landyfox · Apr 28, 2014

This envy is killing me :scratching_chin:

In relation to your neighbours mate, I would erect a 6ft fence, given the drop it would be more of a 8-9ft divided. the beauty is they can do bugger all as it is classified as a temporary structure and requires no legal or planning permission. Will not fix the issues you are having, but would certainly provided you with some privacy.

aaronmorris · Apr 28, 2014

marshy714 said:
Was it quite a solid truck to start with mate? Your flying through and your panels look pretty straight to start with! Not fair mine where all ducked

In a word no

The panels are no where near straight. A da makes life a LOT easier and I wish I had bought it earlier.
But I have replaced a few panels as follows for various reasons.

Old bulkhead had been patched in the past. Foot wells and found a few bits of filler

So I bought a late td5 one.
So seeing as the tunnel is r380 on the td5 I then need to get a td5/300 seat box, tunnel and floor pans.

I could have made an adaptor up and keep the old seatbox, tunnel and floor pans.
But my thoughts were I wont be able to get of the shelf rubber mats.
Whereas now I'm going to use a set of td5 footwell seatbox and floor mats.

Next the doors. Well I did plan on using the doors again. The handle was loose on one of them, I thought ah it'll be an easy fix. Wrong!! the frame is rotten where the handle bolts through.
Plus the fact the bottoms aren't the best.
So again I have bought a pair of td5 doors at great expense.

Now the wings. I bought a set of td5 wings many many moons ago. I used the skins on another build. So I have bough a set of brand new wing skins to go with the td5 tops and front headlight panel.

The tub is original. But was covered in chequer plate.
Took it of and it was silicone on which was a nightmare to get off

Sides wasn't to bad apart from the odd dent.

And the roof well that's in a bit of a state and is going to take some doing to get it to look ok.

shenton24 · Apr 29, 2014

I told you it wont take you long i know still alot inside yet but its looking mint. Are you going for black roof,bonnet ?
I think it would suit that blue also some nice LED rear lights would look nice i know youve fitted the the standard ones

aaronmorris · Apr 29, 2014

shenton24 said:
I told you it wont take you long i know still alot inside yet but its looking mint. Are you going for black roof,bonnet ?
I think it would suit that blue also some nice LED rear lights would look nice i know youve fitted the the standard ones

Cheers

Yeah it's coming along not so bad.
I think I'm going colour coded bonnet and I'm really not sure on the roof. Black or white. Will make a decision when the doors and wings are on as hopefully I'll get a better idea then.

Oh and I agree, I do like LED lights. And I'd like round fog and reverse lamps. But mods like that will come at a later date when my bank account has recovered

aaronmorris · Apr 29, 2014

So todays progress.
Well I spent most of the morning digging a set of floor pans out of the shed. Had a bit of a sortout while I was there.

Anyway better pic of door hinges from yesterday.

[/URL][/IMG]

Me new(er) wings.

[/URL][/IMG]

Inner wing removed. Nice and solid. Just need a lick of paint.

[/URL][/IMG]

Bought a pair of brand new wing skins.

[/URL][/IMG]

New skins etch primed and fitted.

[/URL][/IMG]

And in high build primmer. Just need to flat the primmer and we're ready for paint.
Might do it later if I can be arsed.

[/URL][/IMG]

Landyfox · Apr 29, 2014

This looks first class up close, photos don't do it justice!

:5bcheers2:

Will sort out those links for you matey!

aaronmorris · Apr 29, 2014

Landyfox said:
This looks first class up close, photos don't do it justice!

:5bcheers2:

Will sort out those links for you matey!

Cheers mate

IamRobbie · Apr 29, 2014

How much did the wing skins rob you mate?

aaronmorris · Apr 29, 2014

IamRobbie said:
How much did the wing skins rob you mate?

You're right when you say rob me, Cost me £130 mate.

aaronmorris · Apr 30, 2014

So more painting today. Takes for fecking ever.

So first job. Paint the wings

[/URL][/IMG]

[/URL][/IMG]

While they was drying gave the inner wings a coat of waxoyl. Put in boiling water until it's like water and it brushes on lovely.

[/URL][/IMG]

While they was drying I fitted the drivers door. I had planned to wait until I had a helping hand to save damaging the paint. But they're stored in the shed and I was worried about them getting damaged in there. So thought I'd have ago on my own. Easypeasy. Lined up pretty well as well

[/URL][/IMG]

Fitted inner wings. Got covered in waxoyl, In me hair what a #### to get out

[/URL][/IMG]

And lastly fitted the floor pans and trans tunnel. Still got to tighten it all up as well as the rest of the seat box.

[/URL][/IMG]

Landyfox · Apr 30, 2014

You have to stay with a white roof mate, possibly silver but please not black!!!

Wings look spot on.

SmileySteve · Apr 30, 2014

Looking great!

alexr · Apr 30, 2014

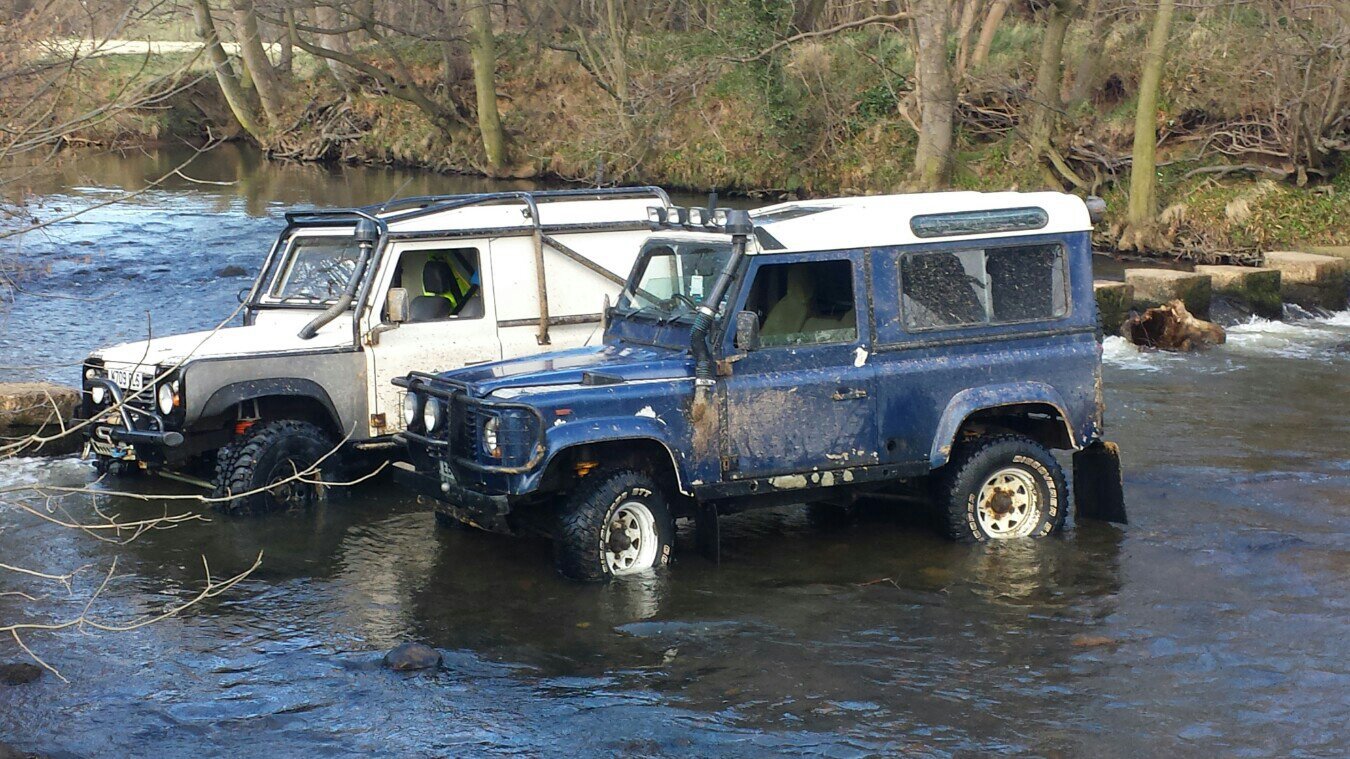

Blue always with a white roof! I know mine looks tatty here but I think blue and white are a perfect match.

aaronmorris · May 1, 2014

Landyfox said:
You have to stay with a white roof mate, possibly silver but please not black!!!

Wings look spot on.

Ahhh I don't know. Will possibly do a poll when the rest of the body is done

SmileySteve said:
Looking great!

Thank you for your kind words

alexr said:
Blue always with a white roof! I know mine looks tatty here but I think blue and white are a perfect match.

Yeah I like the blue/white just not sure. And I've got black in the shed :behindsofa:

aaronmorris · May 1, 2014

Well a day of no body prep or paint today. To cold and damp.

First job. Finish bolting the seatbox trans tunnel and floor pans in.
Fit the passenger door.
And then decided to fit the wings. Again I was going to wait for a helping hand at the weekend but I wanted them out of the way before they end up damaged.
Anyway one wing fitted.

[/URL][/IMG]

And the other one

[/URL][/IMG]

The drivers one looked ****ed so I bolted the slam panel in to see if it would pull it in. Which it did and looked better.
Don't worry I removed it after this pic for a lick of paint

along with a few other assorted brackets.

[/URL][/IMG]

Landyfox · May 1, 2014

Love that colour

Aaron are you fitting some crystal headlights.?!

I forgot ask you when I was over, can I have first dabs on your rear headling.?! Also let me know if you find the passanger seatbox lid.

Cheers matey

Al2O3 · May 1, 2014

Aaron, that looks epic mate. Can't believe your rate of progress, 10 times faster than me. Great inspiration though, cos these are big projects and it's brilliant to see what can be done. Keep the pictures coming - seeing is inspiration

My vote is white roof.

aaronmorris · May 1, 2014

Landyfox said:
Love that colour Aaron are you fitting some crystal headlights.?!

I forgot ask you when I was over, can I have first dabs on your rear headling.?! Also let me know if you find the passanger seatbox lid.

Cheers matey

Yeah the colour has definitely grown on me.
I've got 3 sets of headlights in the shed so I'll pick the best. Seems daft buying new.
I'll be keeping my rear headlining. I refuse to pay what good ones go for.
And I can't find my seatbox lids yet

****e everywhere.

Al203 said:
Aaron, that looks epic mate. Can't believe your rate of progress, 10 times faster than me. Great inspiration though, cos these are big projects and it's brilliant to see what can be done. Keep the pictures coming - seeing is inspiration
My vote is white roof.

Cheers for the kind words

Glad it's giving people some inspiration. Everyone needs it at times. Me included.

Yeah they are big projects. But that somewhat depends on the level you're aiming for. It would be 10 times quicker if you just put everything back on as it came off.

Oh and there will be lot more pics

Still along way to go. Even if it doesn't look like it
