They do look good!! Not that many about either Ive found

MOD Snorkel ordered, 3" Mild steel tube ordered, welder ready to go!

Wheres the pics man!? I need a fix

Not been much to photograph since the steering wheel n elbow rest!

Waiting for the snorkel to arrive, getting it welded up on Thurs/Fri pics then!

Also awaiting my auto leccy mate to be free to help wire up the new dash

No I meant for you to fix the old ones

That is proving to be an exhausting endevour to say the least! Its quite hard to work out what pics go where from the text! Haha

Though if you give specific posts ill get those pics done for you

Nice one, cheers mate.

Hi man can you do the suspension and subwoofer pics please?

I can indeed. I havnt got access too most my pics till Monday (office PC) so I shall sort it then for ya.

@Bone9 Pics as promised.

REPOST

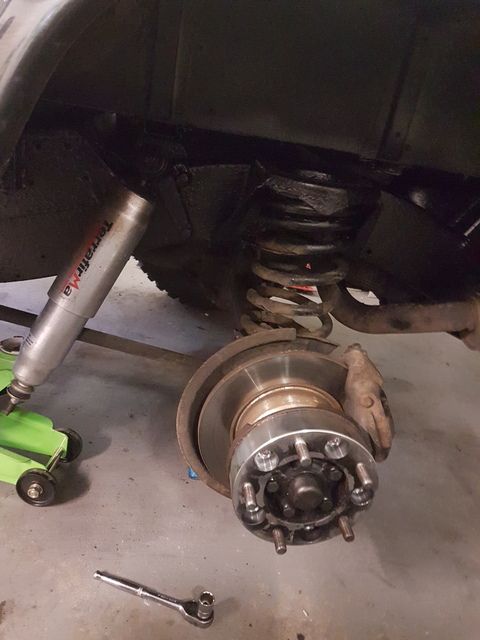

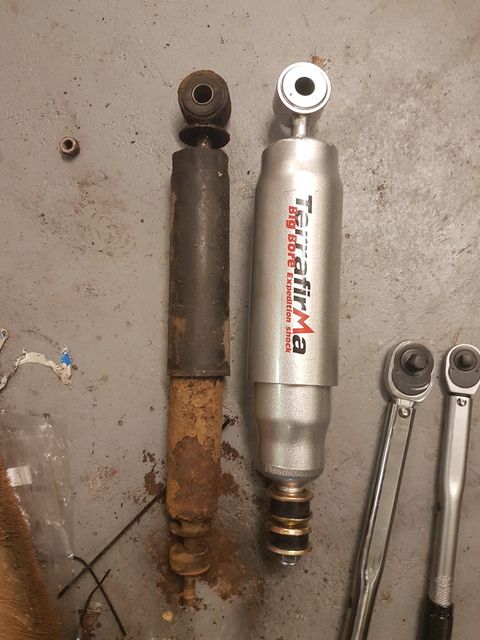

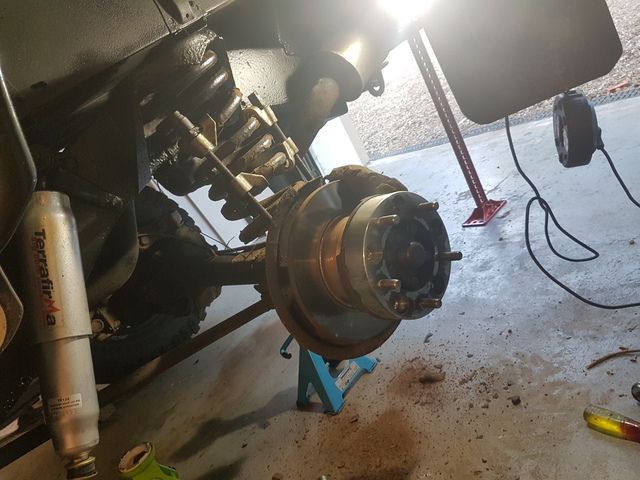

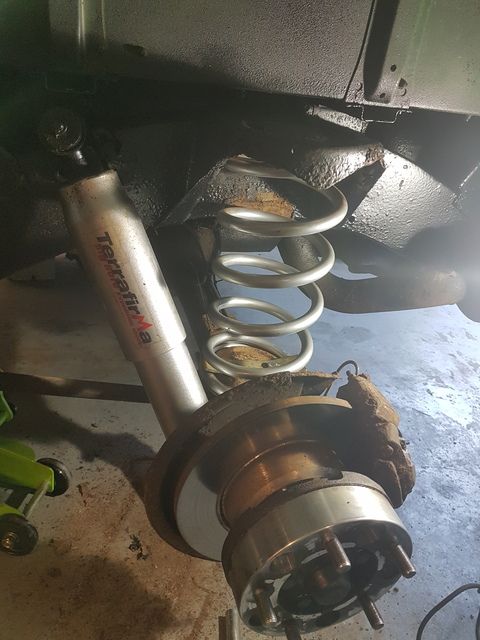

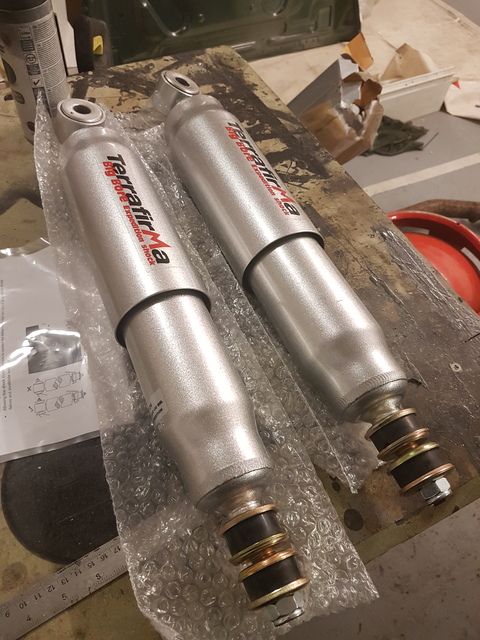

Big Bore shocks to keep the 110 stable when all the extra weight is added

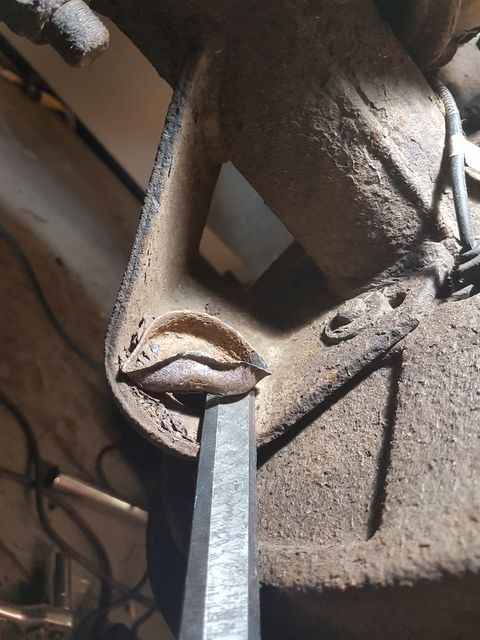

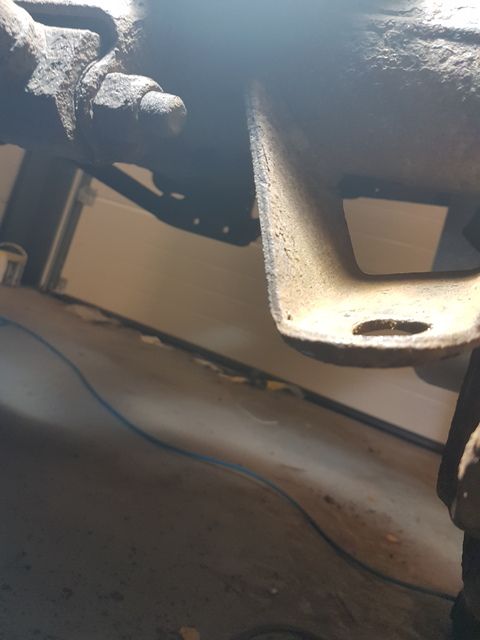

Many people forget to remove these when fitting TF shocks, which results in early failure.

Must be flush top and bottom like below. You can either drill out the 4 spot welds or get a chisel in a forced them off

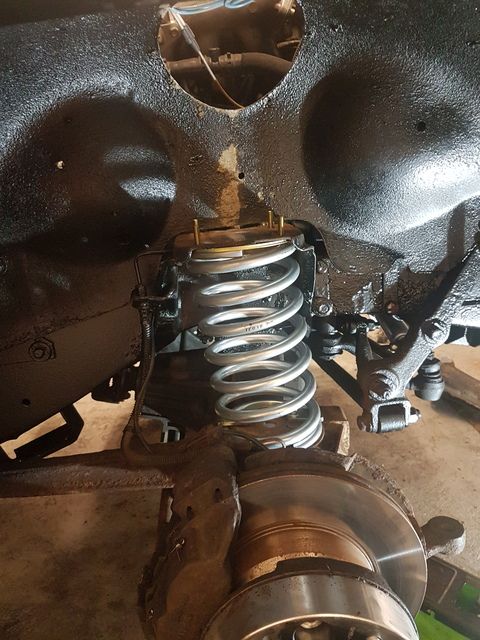

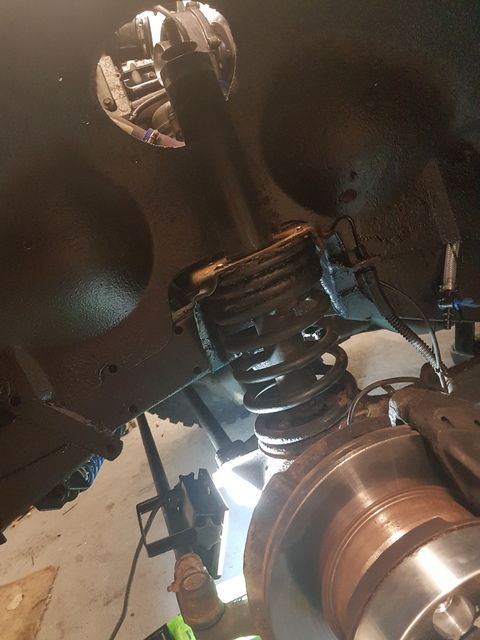

New HD bottom spring retainers where used and I used x4 jubilee clips to keep them seated in the top

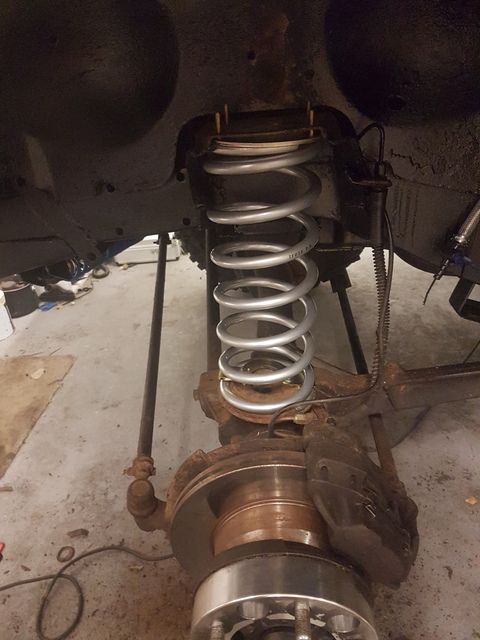

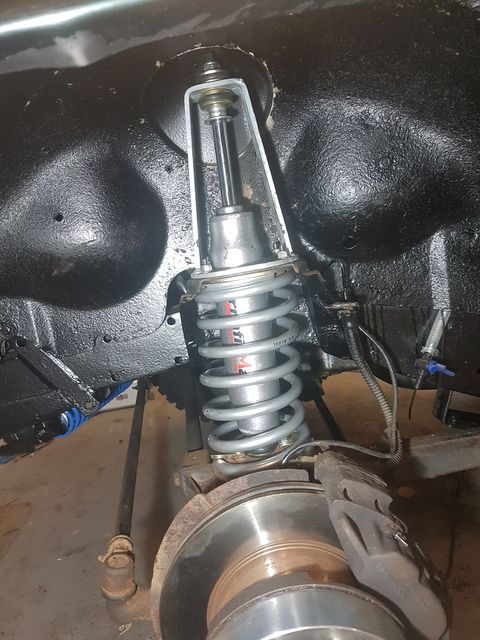

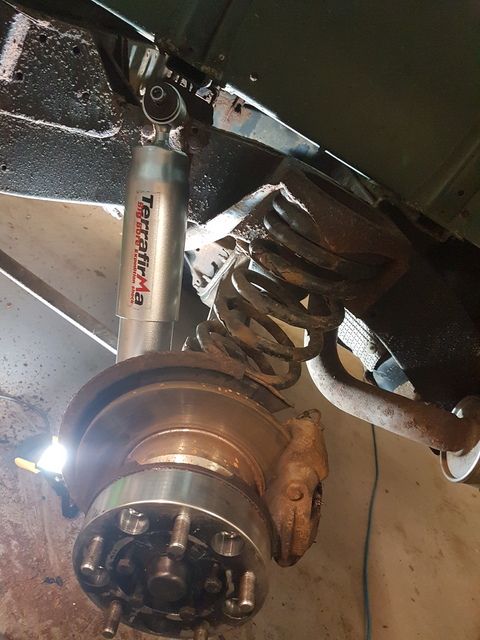

Gywn Lewis HD turrets are the best around imo went for standard height. They allow you to change shocks without removing the spring which is a massive bonus!

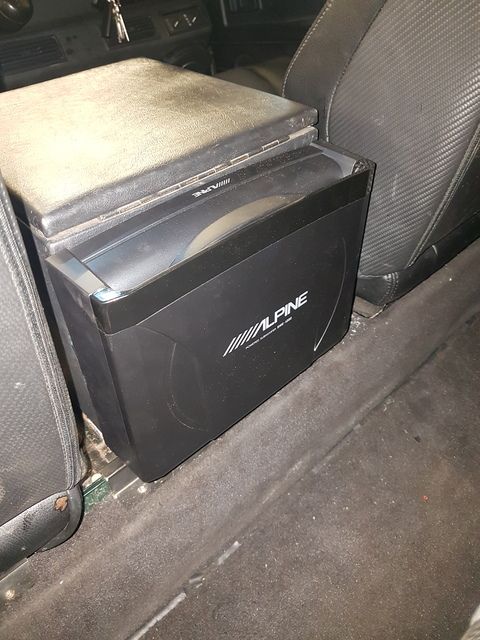

Not many pics for the sub install but the Alpine unit is a direct fit for the back of the cubby, direct as in its the exact same size. Good tip is to photocopy the bottom of the sub, tape it on to the cubby and drill! Perfect holes everytime! Though you must also drill holes in the cubby to run the wiring for the sub. It comes with a small external amp which can be mounted anywhere. I chose to put mine in the MUD sliding cubby box locker.

Thanks buddy. How's the ride on the road with the new suspension? Firmer than standard?

Bone9 said:

Thanks buddy. How's the ride on the road with the new suspension? Firmer than standard?

Click to expand...

Considerably better. They are TF +2 Big bores with TF 'Medium Load' springs which raise it up by around 2" however when the cage/bumper is on that will drop to around 1.5"

In corners there is very little body roll, almost feels like I've got ARBs fitted but I don't. Only thing that is a little uncomfortable is the shocks are quite hard, so bumps and such are quite felt though that is down to the 110 not being at full weight! The more that's added the more the ride should improve. It certainly got better after the spare tyre, NAS Step and boot lid where fitted.

looking great - love the shocks

That's good to know. Sweet.

Bone9 said:

That's good to know. Sweet.

Click to expand...

Indeed. The amount of FB and forums posts I've read over the years bashing TF for poor quality parts because they fitted them wrong is crazy! My only gripe with them is their paint is utterly terrible, the paint its totally missing from the springs now, not even been a year!

bankz5152 said:

Indeed. The amount of FB and forums posts I've read over the years bashing TF for poor quality parts because they fitted them wrong is crazy! My only gripe with them is their paint is utterly terrible, the paint its totally missing from the springs now, not even been a year!

Click to expand...

Ahh that is disappointing about the paint. How's the paint on the shocks holding up?

Bone9 said:

Ahh that is disappointing about the paint. How's the paint on the shocks holding up?

Click to expand...

Yeah a bit, I was meant to spray them with PlastiDip before fitting but totally forgot! Did that on my 90 and the paint lasted until I sold it.

The shocks are holding up much better, few touches of paint flake but not much at all.

bankz5152 said:

Yeah a bit, I was meant to spray them with PlastiDip before fitting but totally forgot! Did that on my 90 and the paint lasted until I sold it.

The shocks are holding up much better, few touches of paint flake but not much at all.

Click to expand...

I'll remember to do that, good idea. I have a spare can of black.

Few updates!

Fitted myself a snorkel, mainly for the piece of mind and went for the best sealed route I could that also lets me remove it in the future.

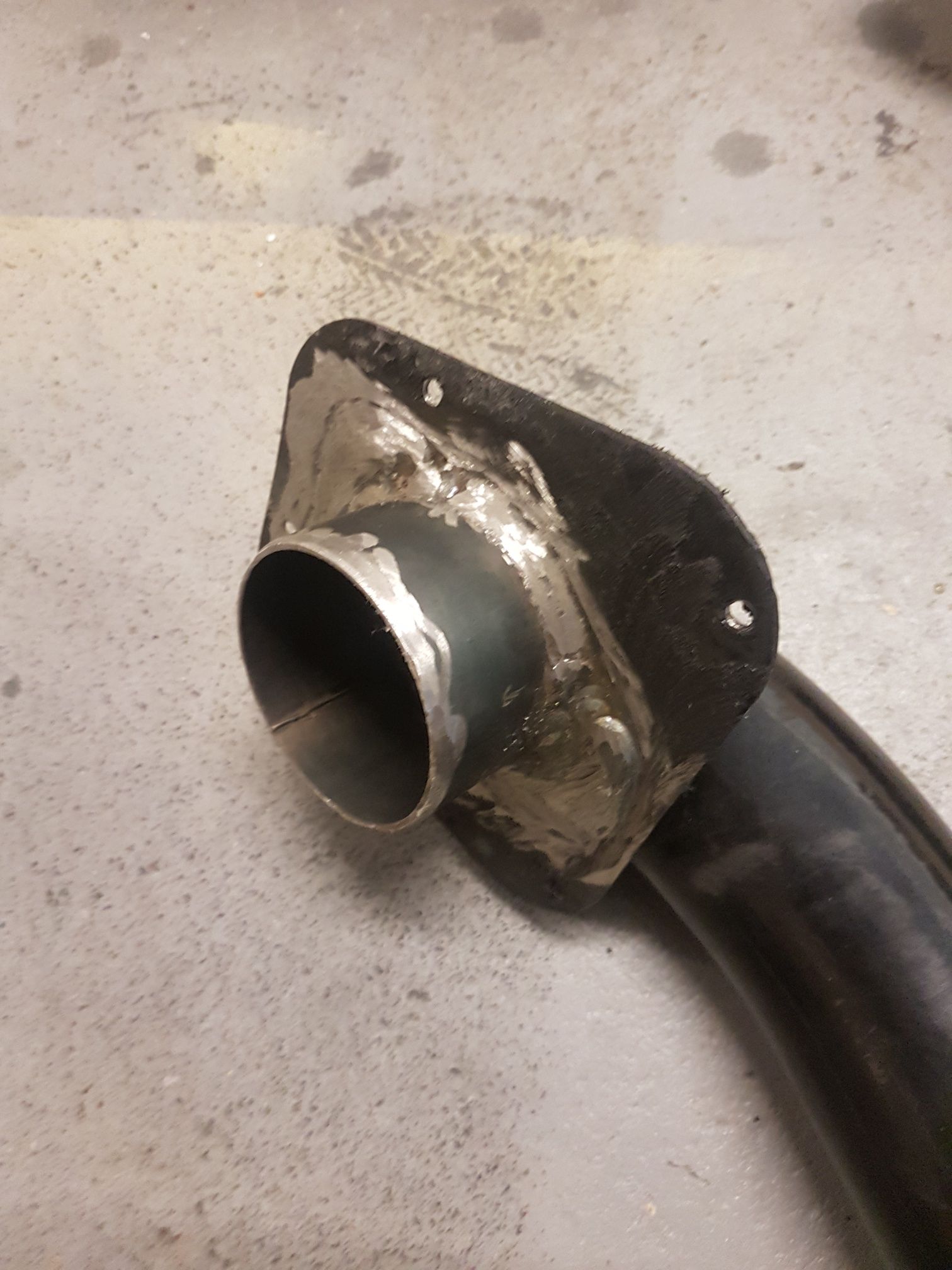

First step! Had the lovely fellas at MC Auto Centre weld a flange onto my MOD snorkel so I can fit it directly to my current 3" induction kit which is sealed right to the airbox, not exactly pretty but it does the job!



Actually looks pretty good! Though I've ordered a Safari style head, not a fan of the mushroom

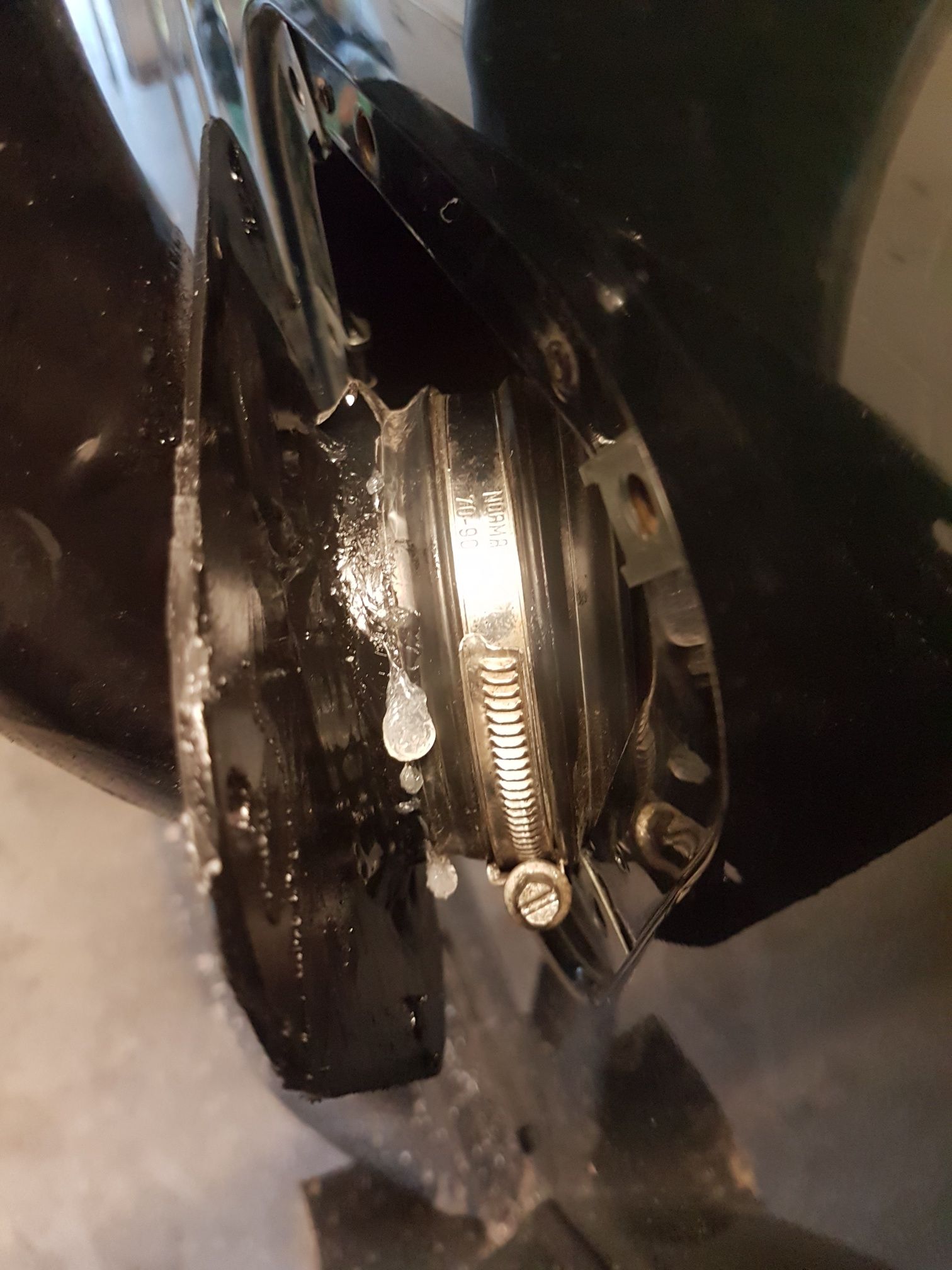

Sealed to the intake, silicone and jubilee clip


Also means when the time comes - Roll cage and twin southdowns - I can easily remove it without damage to the wing etc...

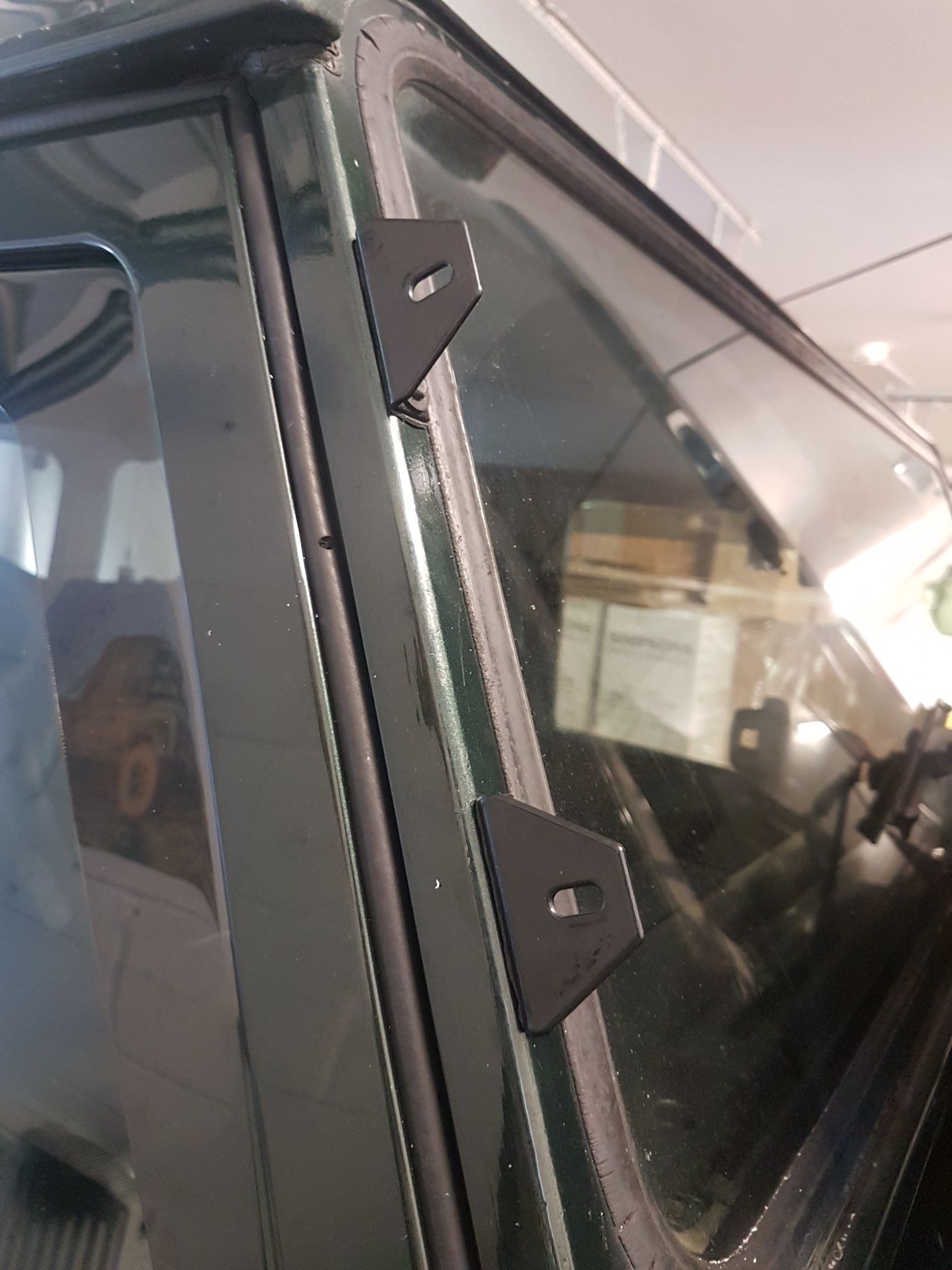

Fitted the brackets in on the A Pillar, not too worried about the holes here as I plan on getting the Equipe cable runs in the future for the light bars/beacons



Also did some "pre work" fitting parking sensors and a reversing camera! Yes I am I post tart

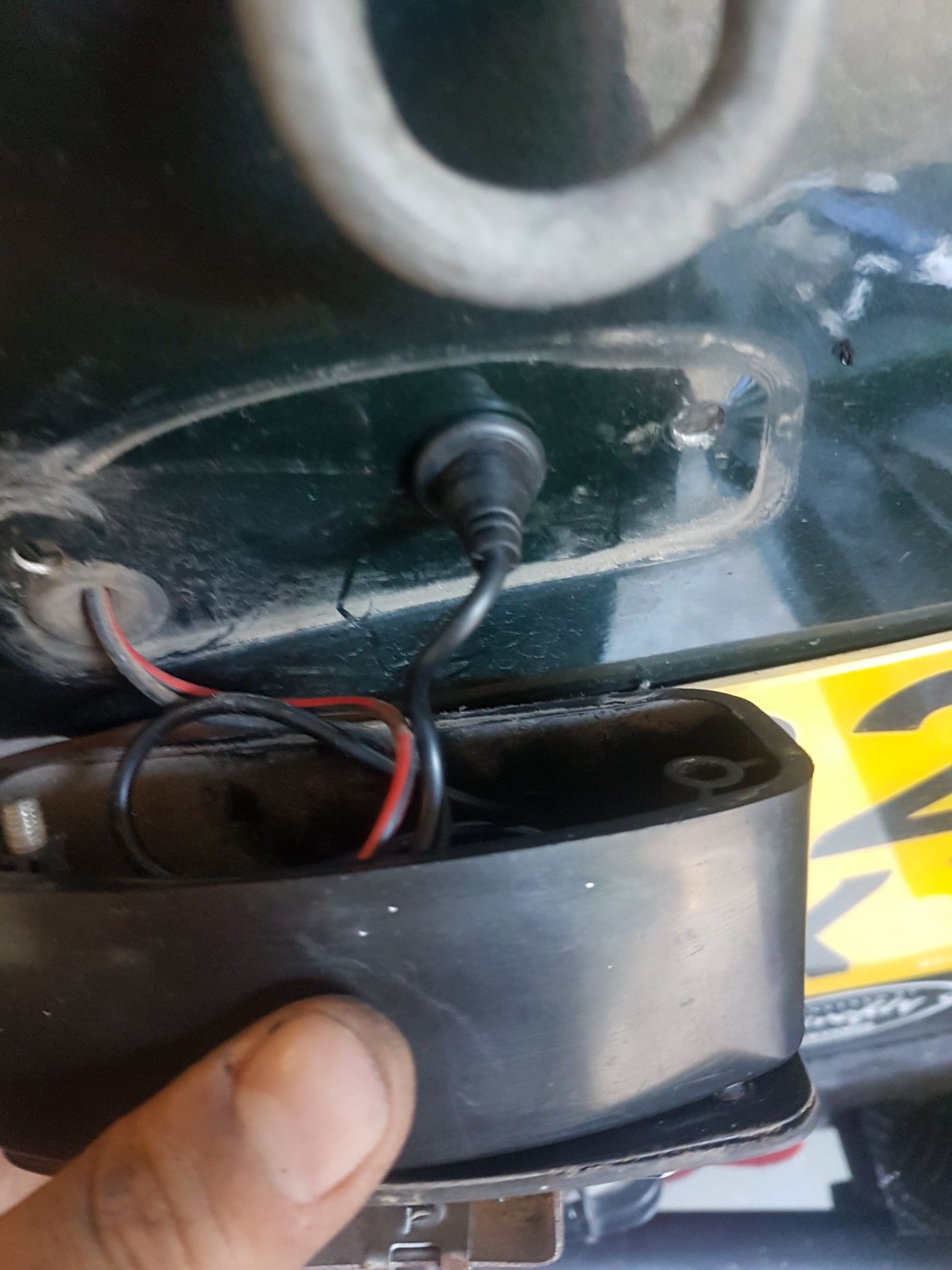

Perfect sized grommet for the reverse camera!

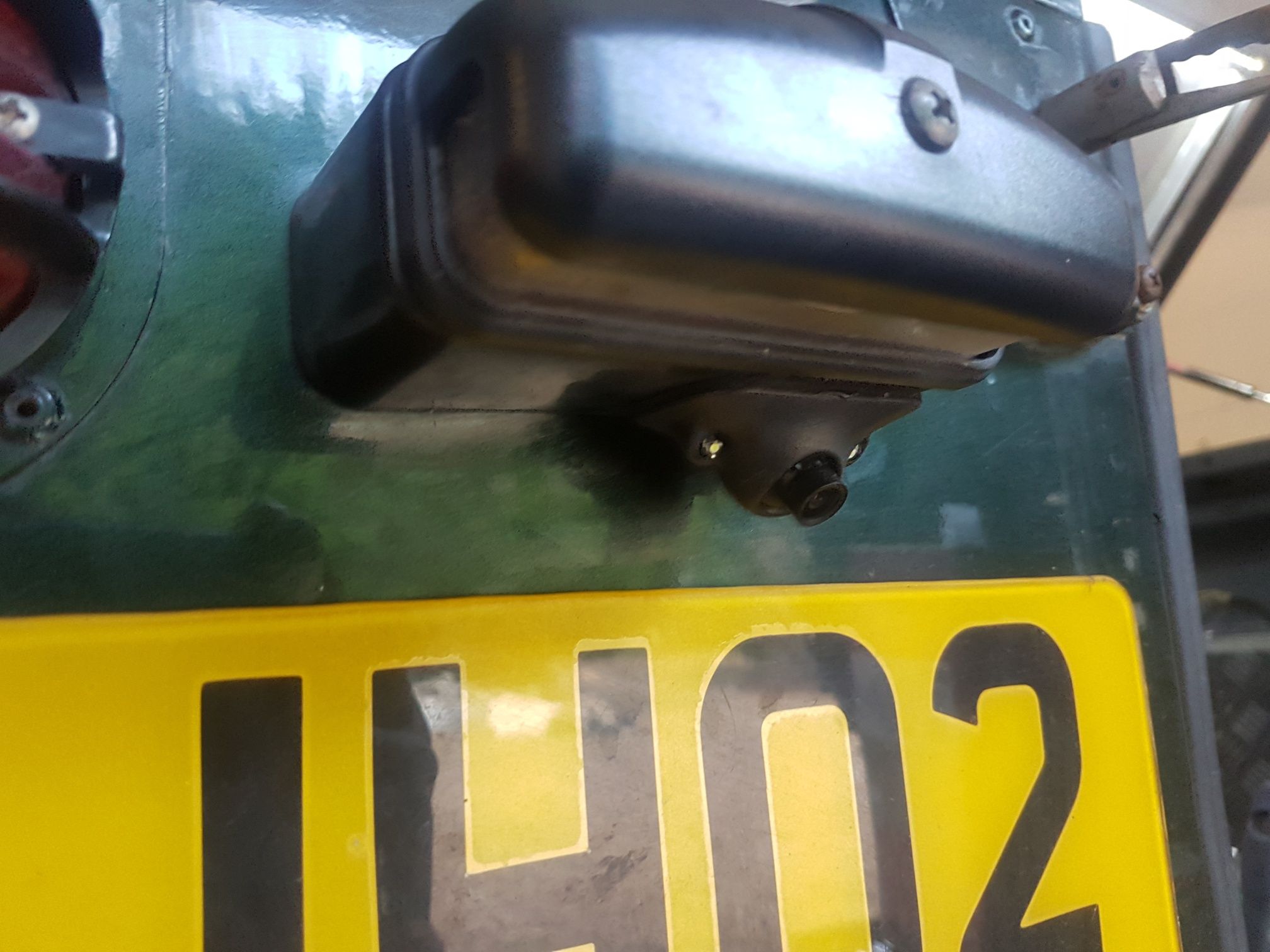

And fitted! You'd never know its there unless you look hard enough!

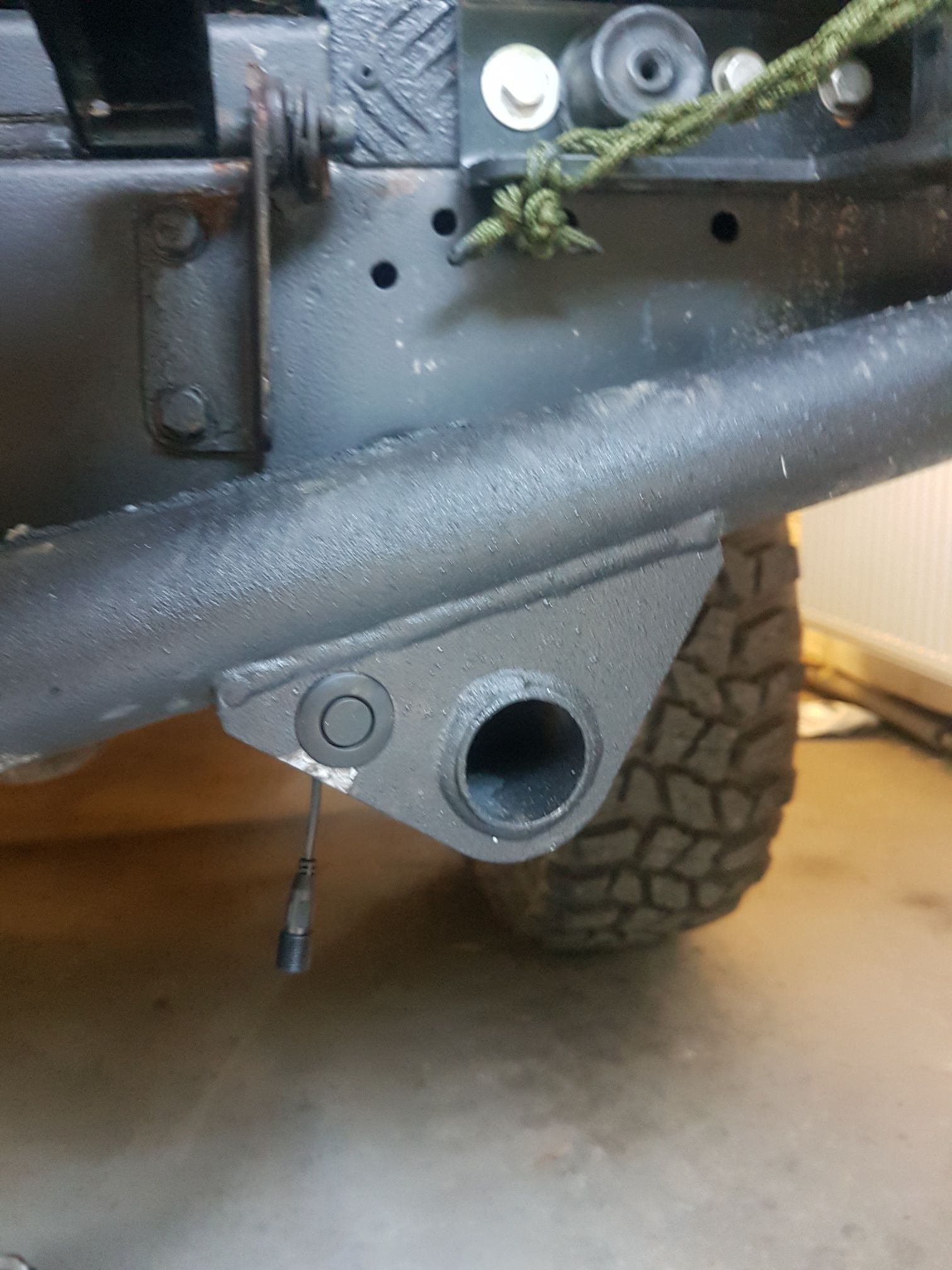

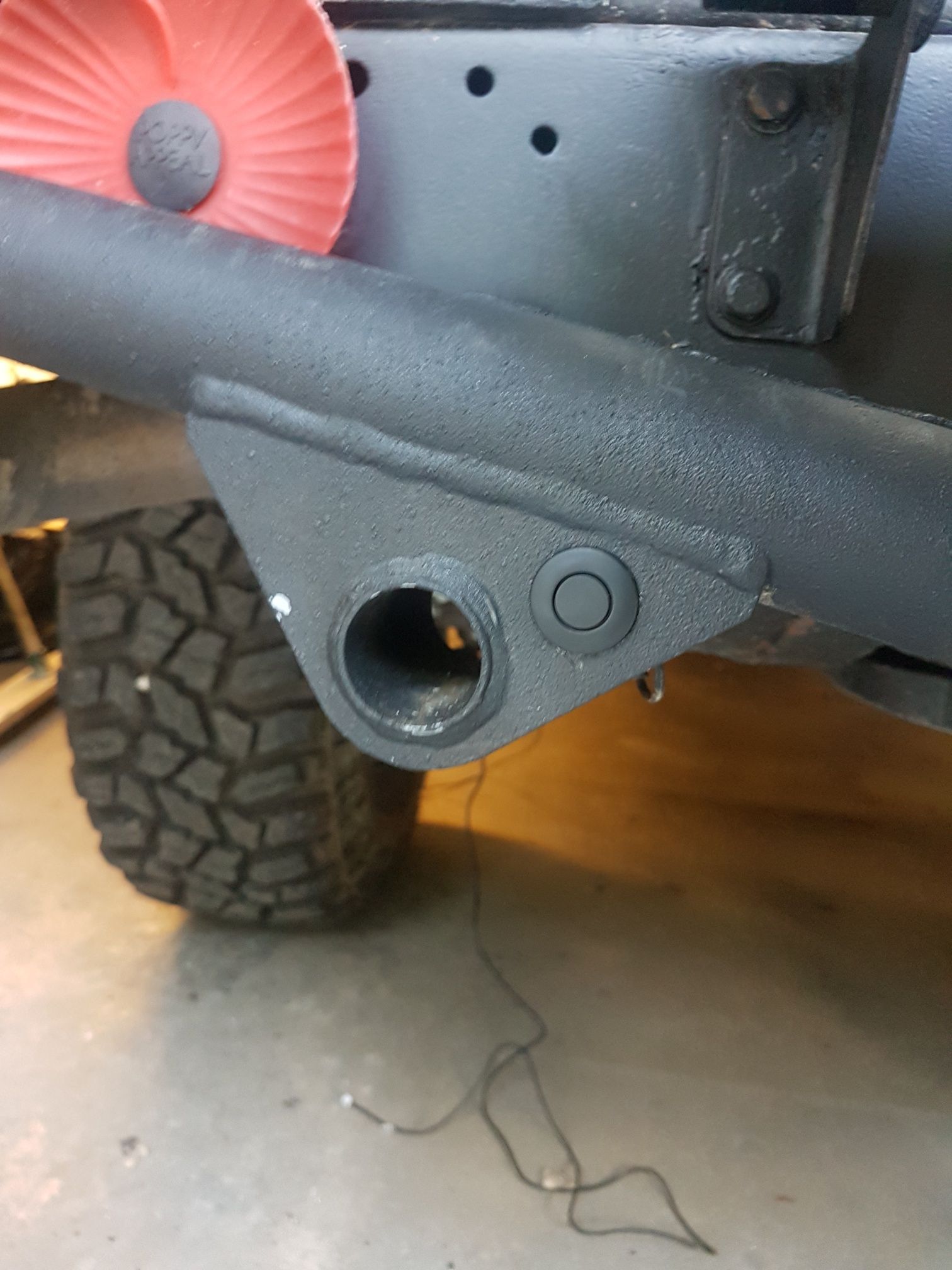

Parking sensors neatly mounted into my NAS step, only need two as fenders are square! Wired up but they aint working yet! Just get a constant beeeeeeeeeeeeeeep! Replacement on way FOC


I know the Raptor is a bit chipped the bumper needs respraying, HVLP gun doesnt give the best results...

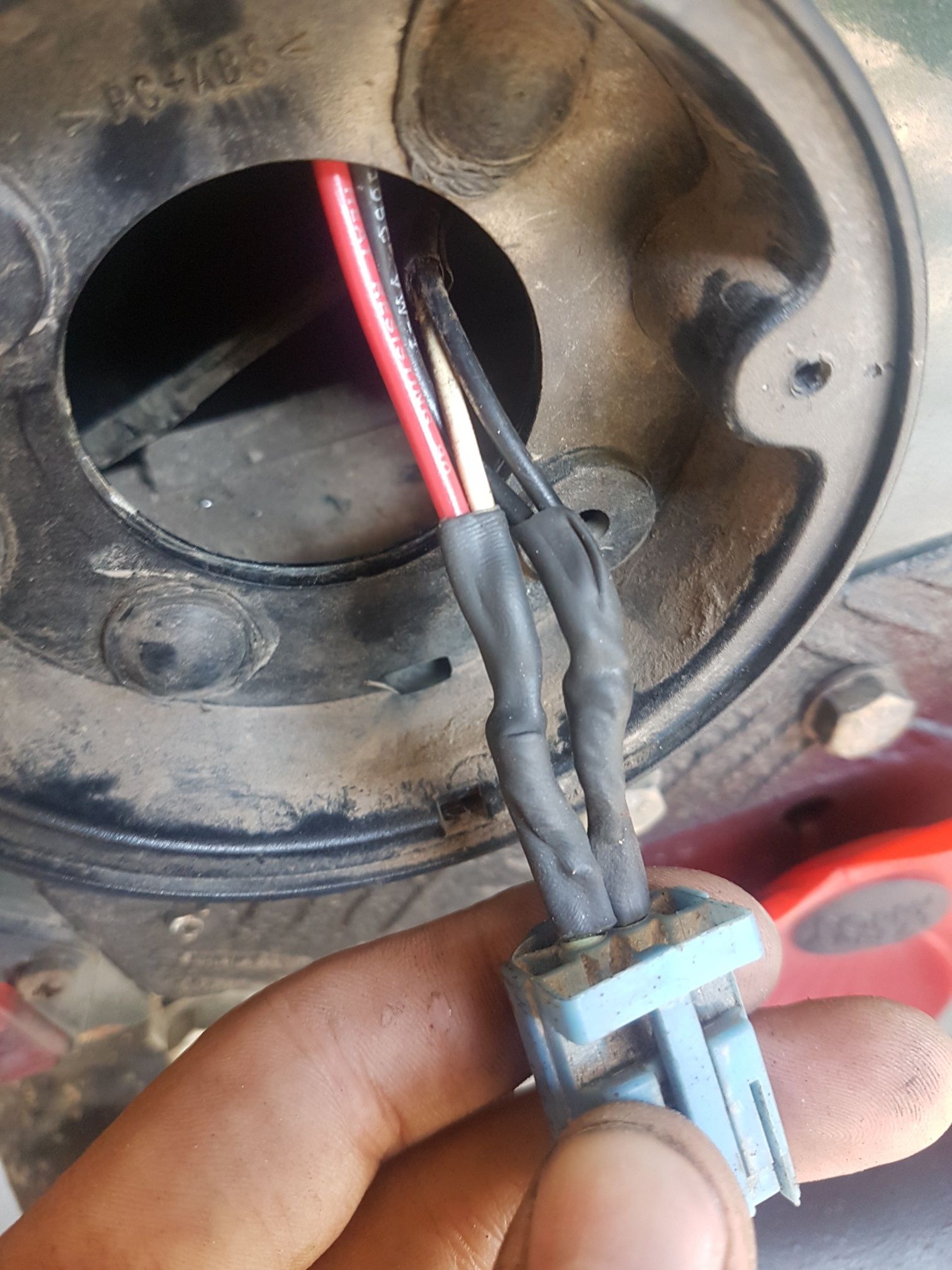

Take off from the reverse light, boring but still lol

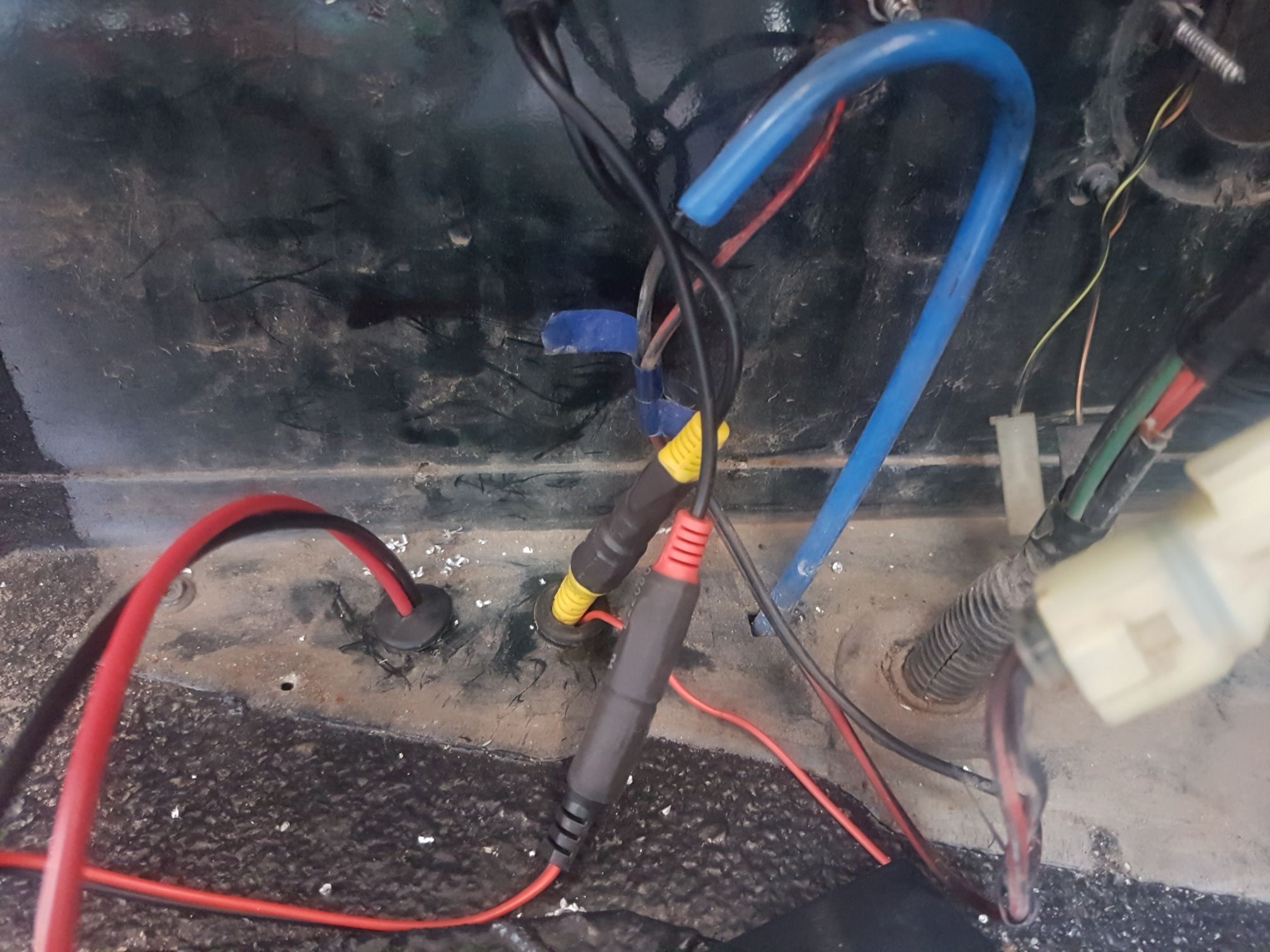

All wired in and ready to go! Blue is me raised fuel tank breather, yellow RCA feed for the cam, thin red next to it is a perm live for the cam should I choose to just have it always on, rest is the parking sensors.



Havnt fitted my double din dash yet so the cam is useless until I do, but will be helpful! Also got a nice switch for the parking sensors so I can turn them off when off road or when they drive me insane!

Got Mud Monsters coming up Sunday so even getting a bit of off roading in!!

Overall the 110 is running well, turbo drain oil leak is fixed (well good enough), steering has less play after adjustment but I do now have a bit of a noise coming from the steering column, I'm thinking the UJ in there is failing. Kind of crunchy, unhappy noise

think your loving the build - and so you should be well done
