bankz5152 · Nov 22, 2023

Will add pics tomorrow!

But Superpro bushes fitted into the radius arms and built up the A Frame.

Not such a bad job with a big vice and a couple sockets. Think I had them all fitted in about an hour.

Didnt bother with doing the radius arm/axle bushes as they come with LR bushes from Gywn anyway, shall keep them for when they eventually fail.

All ready to swap out over xmas.

Must find the panhard rod bushes though bought some a while back. No idea where i put them..

Rock Basher · Nov 22, 2023

bankz5152 said:
Will add pics tomorrow!

But Superpro bushes fitted into the radius arms and built up the A Frame.

Not such a bad job with a big vice and a couple sockets. Think I had them all fitted in about an hour.

Didnt bother with doing the radius arm/axle bushes as they come with LR bushes from Gywn anyway, shall keep them for when they eventually fail.

All ready to swap out over xmas.

Must find the panhard rod bushes though bought some a while back. No idea where i put them..

Just about ready to be stolen and exported to Africa then....

bankz5152 · Nov 23, 2023

bankz5152 · Nov 25, 2023

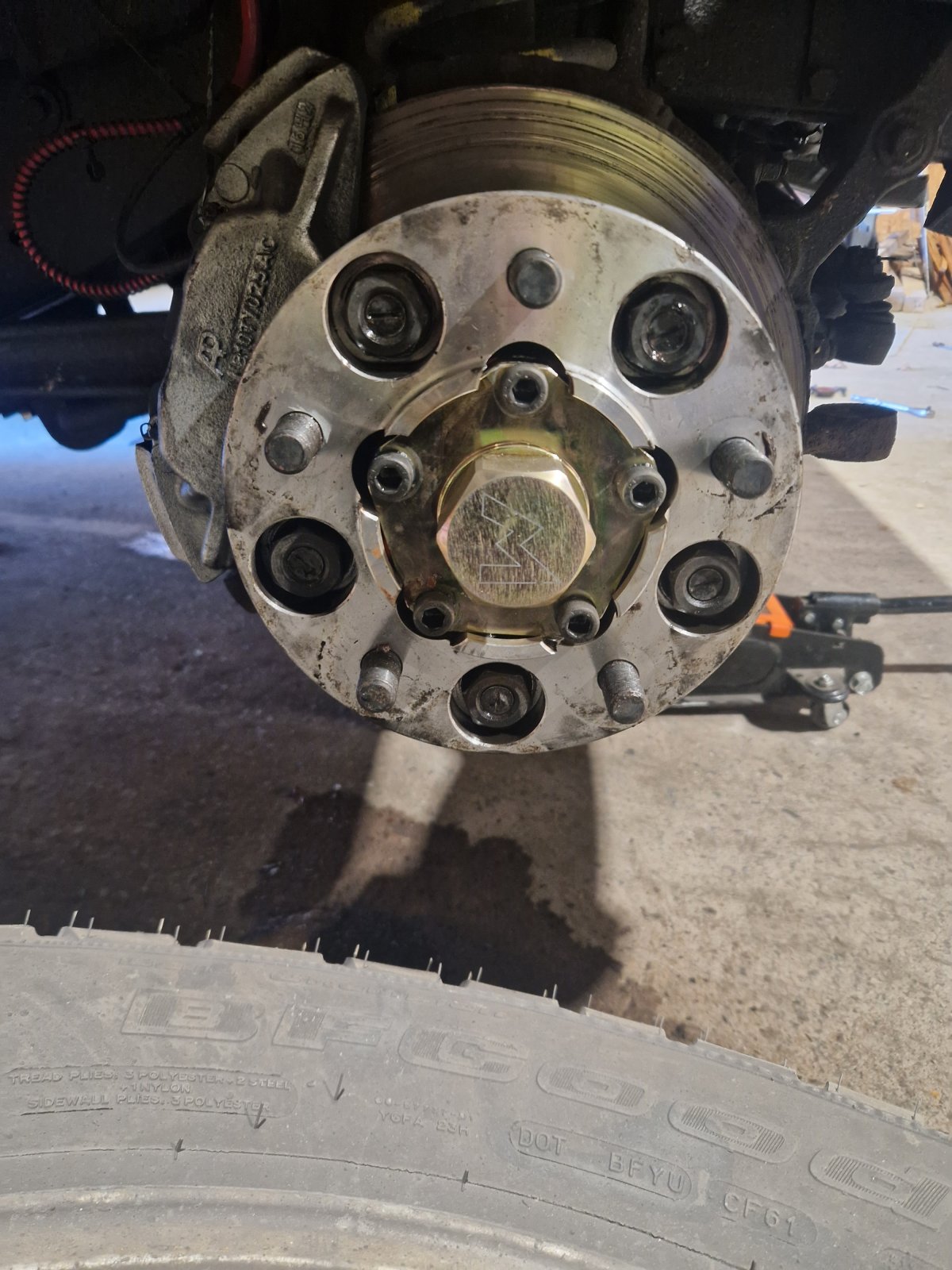

Today was new rear shafts and HD flanges all round! Nice easy job but needed doing.

Lucky too as I found the front drivers side bearing had a fair bit of play, replaced the silly stake nut method for the twin nut and lock tab. Nipped up should be fine for a good while now.

Made a HUGE difference to driving, much smoother and the clunking has gone.

bankz5152 · Nov 28, 2023

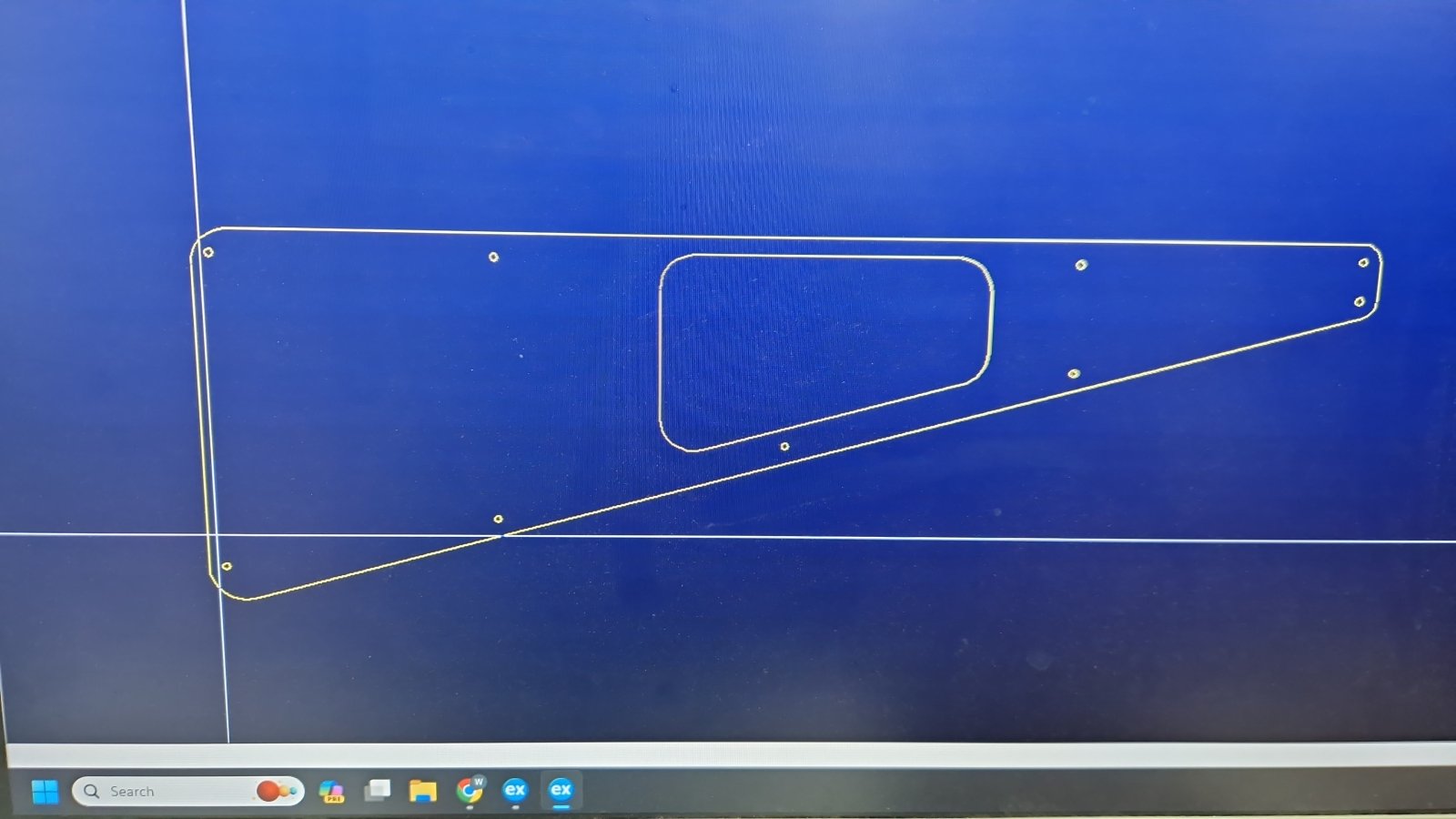

Little bit of cad work. Drawing up some wing top protection. Will end up being a bit different from the usual chequer plate though!

miktdish · Nov 28, 2023

bankz5152 said:
Today was new rear shafts and HD flanges all round! Nice easy job but needed doing.

View attachment 303439

#snippage

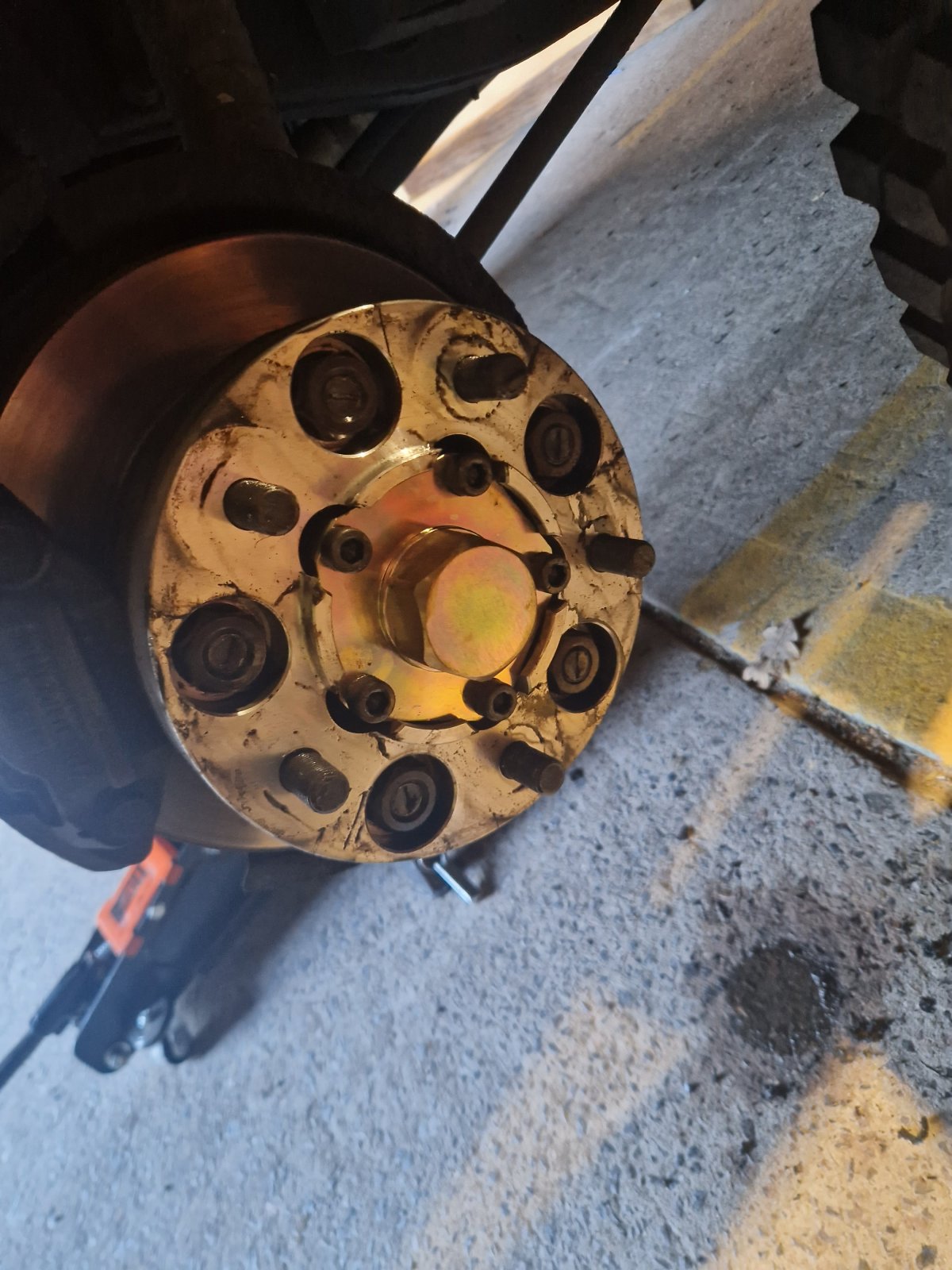

30mm wheel spacers Mr Bankz?

miktdish · Nov 28, 2023

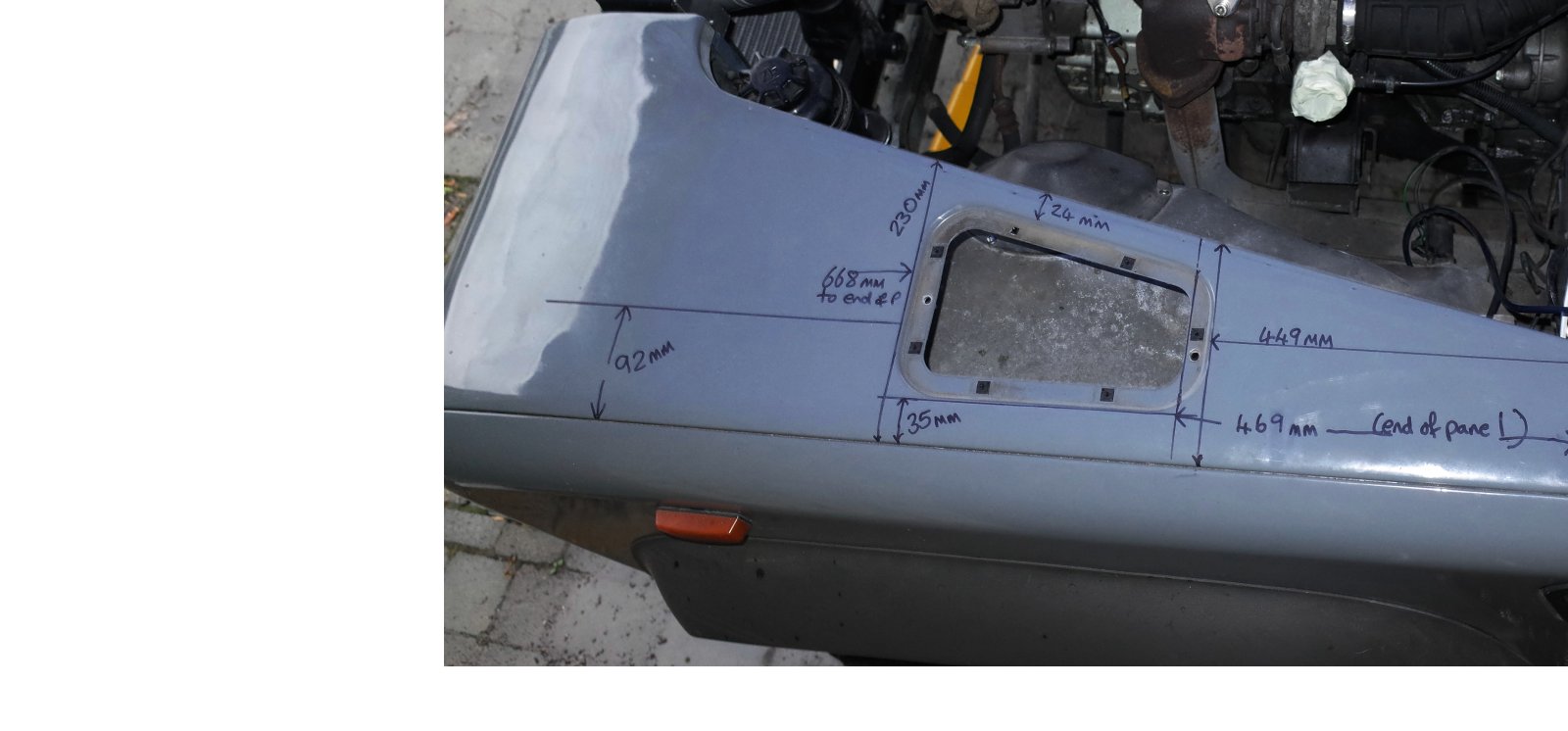

Who needs CAD when you have a pen and measure tape ...

marjon · Nov 28, 2023

miktdish said:
Who needs CAD when you have a pen and measure tape ...

View attachment 303667

Cos a pen and tape dont work in a fancy cutter? I would guess

.

Wots it gonna be (said in the best Rolf Harris voice) come on @bankz5152 finger out and show

.

J

bankz5152 · Nov 28, 2023

miktdish said:
30mm wheel spacers Mr Bankz?

Yeah 30mm

marjon said:
Cos a pen and tape dont work in a fancy cutter? I would guess .

Wots it gonna be (said in the best Rolf Harris voice) come on @bankz5152 finger out and show.

J

just so I can laser cut them from some Ali and make Bi Layer ones like Uproar, ORD and Equipe just for considerably less cost and make them the exact size I want them to be.

Hopefull finish up the cad tomorrow, laser cut a test and finalise.

Hicap phill · Nov 28, 2023

bankz5152 said:
Yeah 30mm

just so I can laser cut them from some Ali and make Bi Layer ones like Uproar, ORD and Equipe just for considerably less cost and make them the exact size I want them to be.

Hopefull finish up the cad tomorrow, laser cut a test and finalise.

Just a thought..

The wing top with the snorkel are you still going to cut out where the black grill goes or just a hole for the snorkel elbow to be neatly welded to?

bankz5152 · Nov 28, 2023

Black grill? The plastic?

Thats gone the snorkel has a 3mm SS plate that uses the original fixing holes but M6 SS setscrews.

Elbow drops down through there and runs 89mm hose direct to the airbox.

bankz5152 · Dec 2, 2023

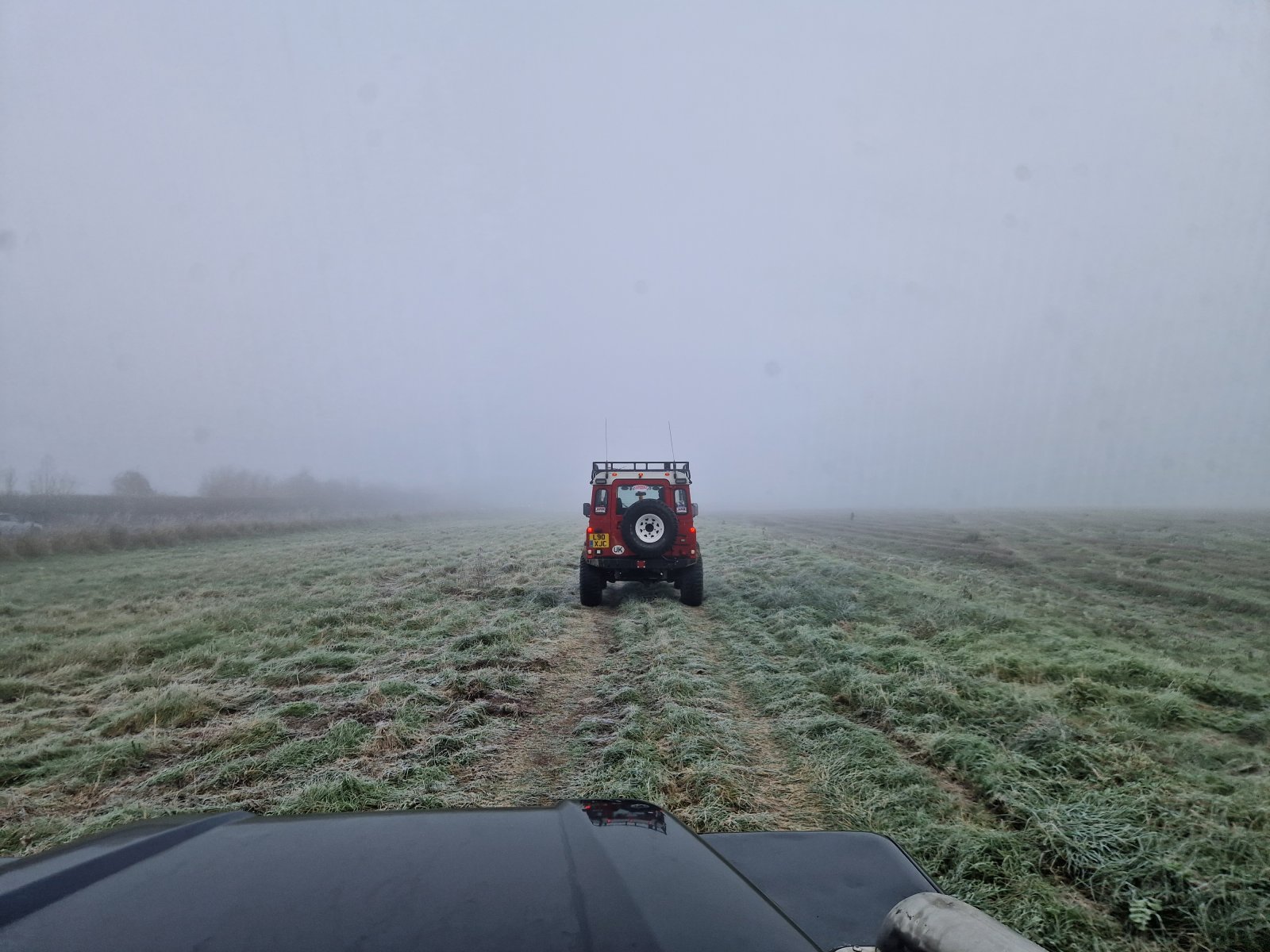

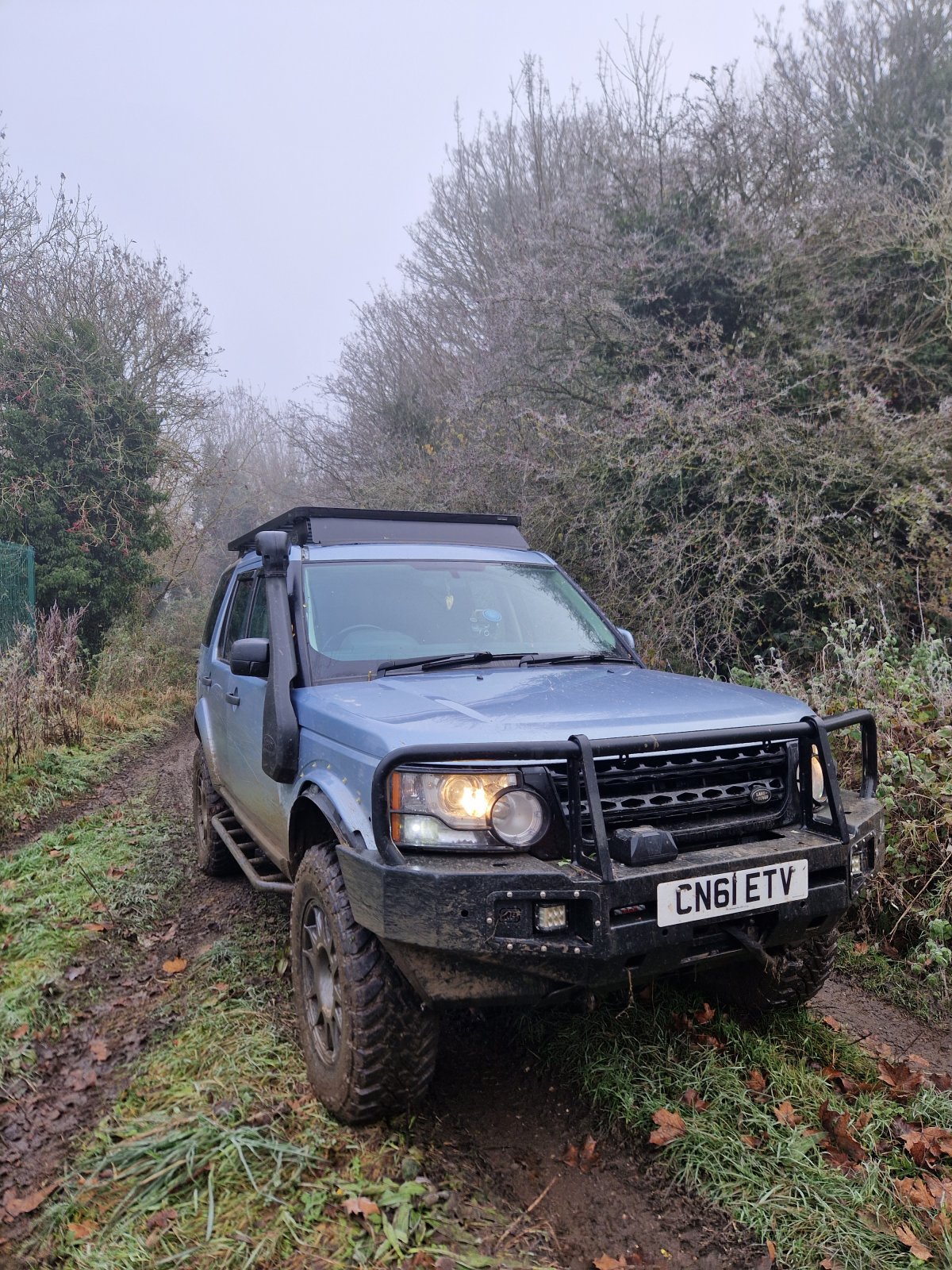

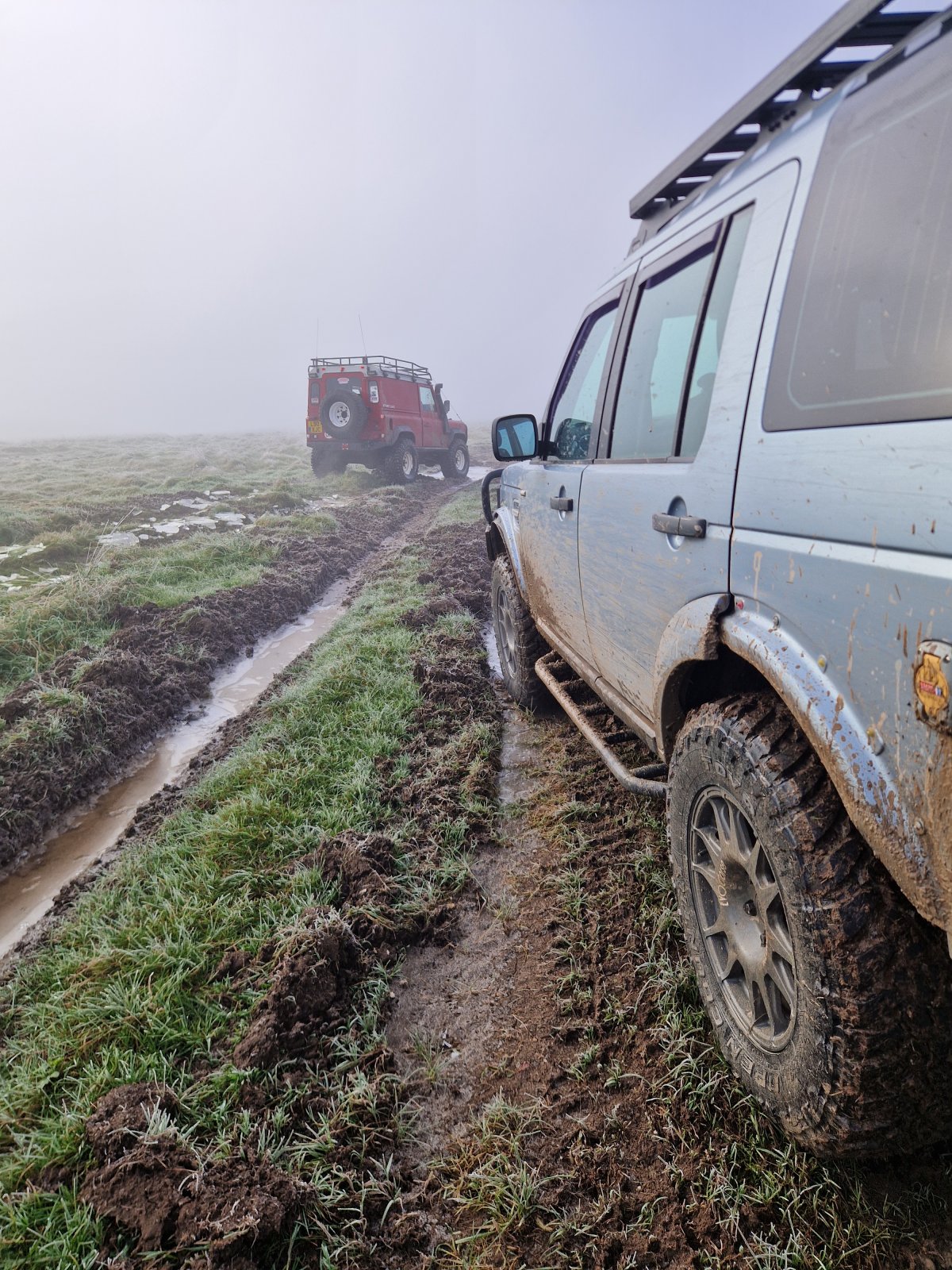

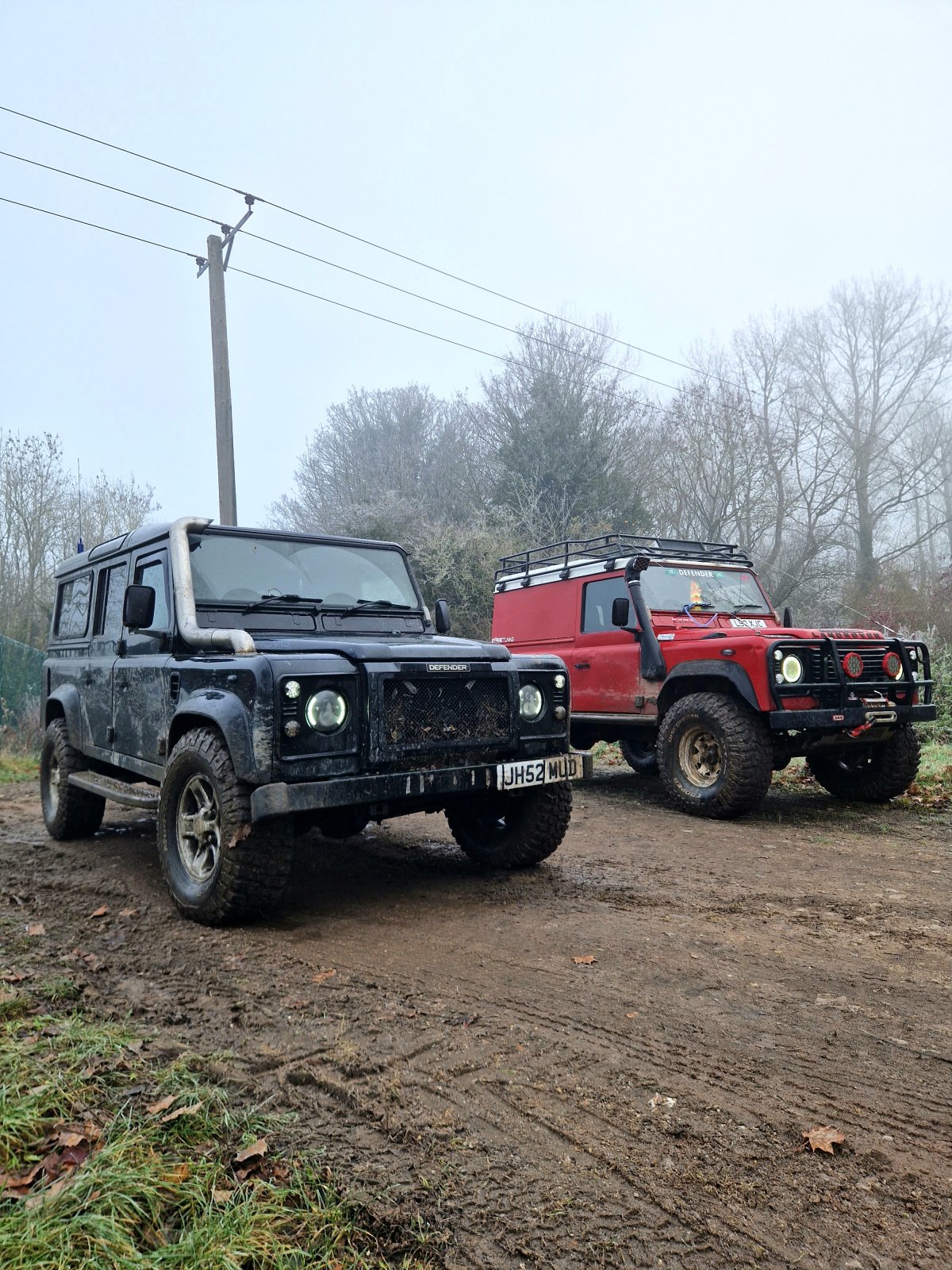

First off roading session in the 110 down at Salisbury Plains!

Definitely miss my Koni dampers, stock suspension is so poor, does the job but less soaking up the bumps more being slapped by them

Ive also bought "rock lights" because who doesnt want a trip back to the naughties with some underglow

Knappster · Dec 2, 2023

Great pics! The 110 looks smart too. A cold day on Salisbury Plain.

haza88 · Dec 2, 2023

Looks like a good day out , new 110 looks good

bankz5152 · Dec 5, 2023

Thanks! Yeah was a good trip. Already planning to go back in Jan!

Must say im very impressed with the KM2s. One of the best tyres ive experienced.

bankz5152 · Dec 5, 2023

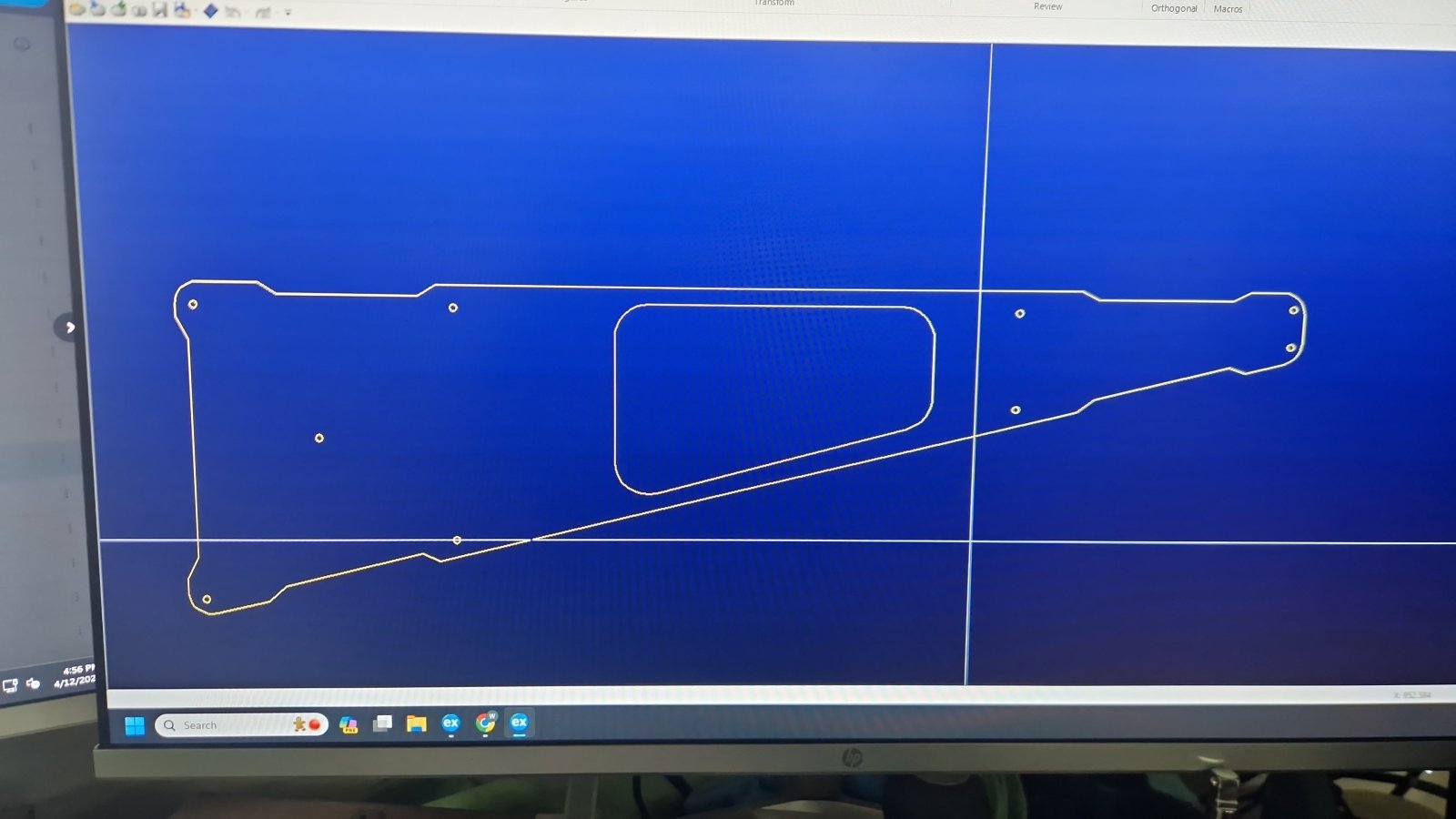

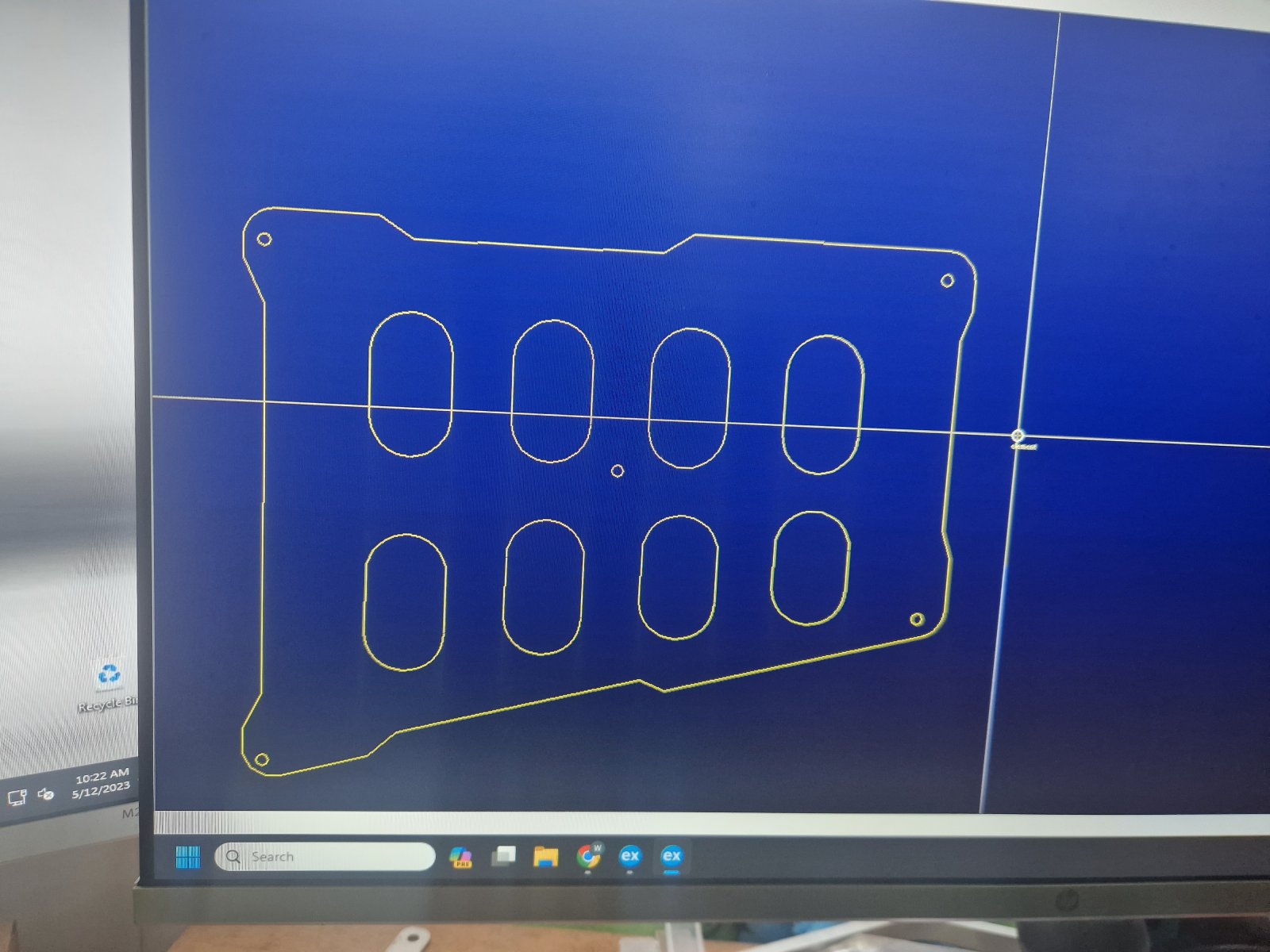

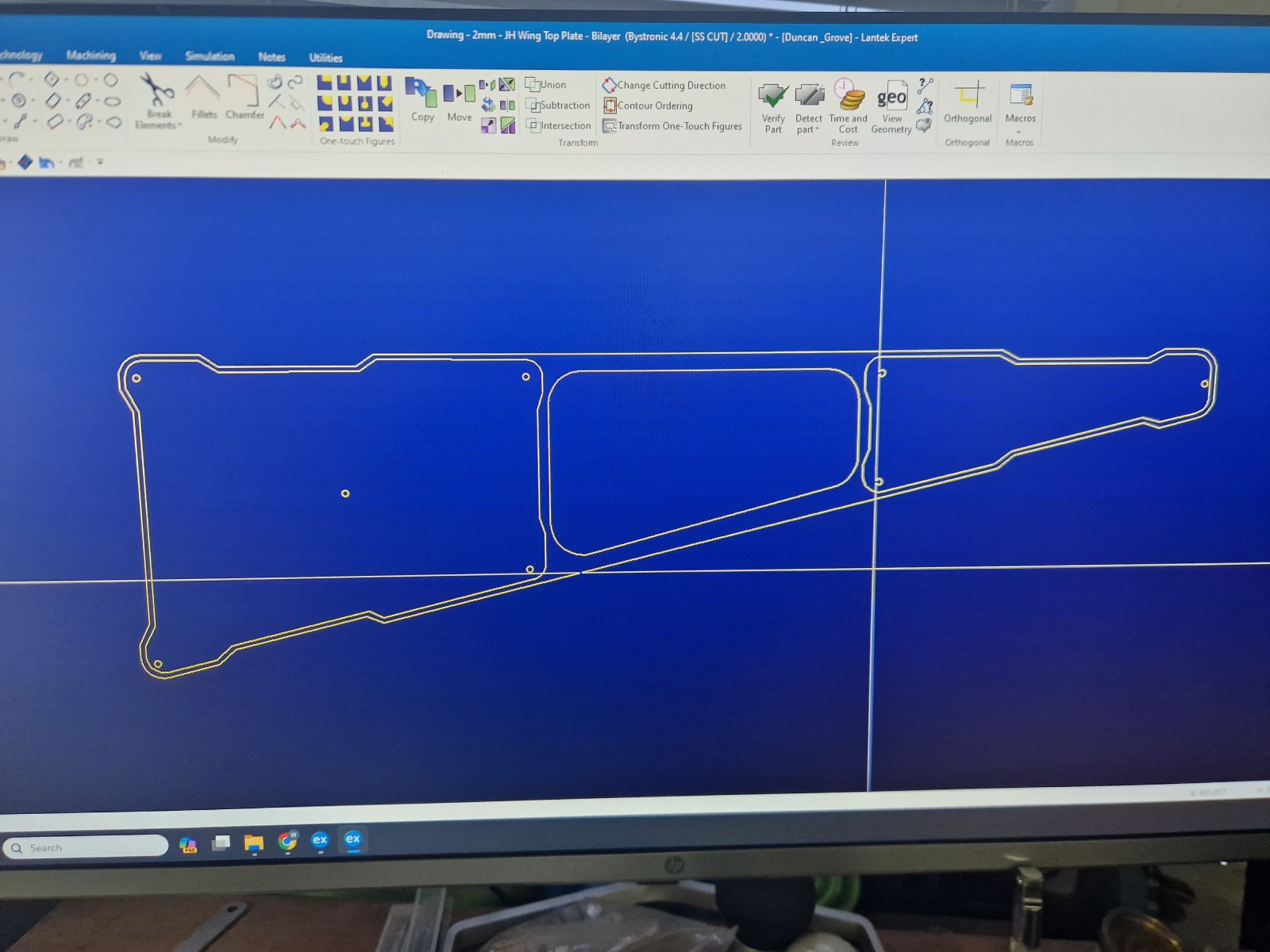

Couple updates on the bilayer wing tops

Not overly happy with the spacing or sizing of the ovals, looks a bit off but then again the software can make things look out of parallel when they arnt..

Cut a test piece from some scrap and fit up was bang on! So very happy with that!

Just need to make a few adjustments.

bankz5152 · Dec 16, 2023

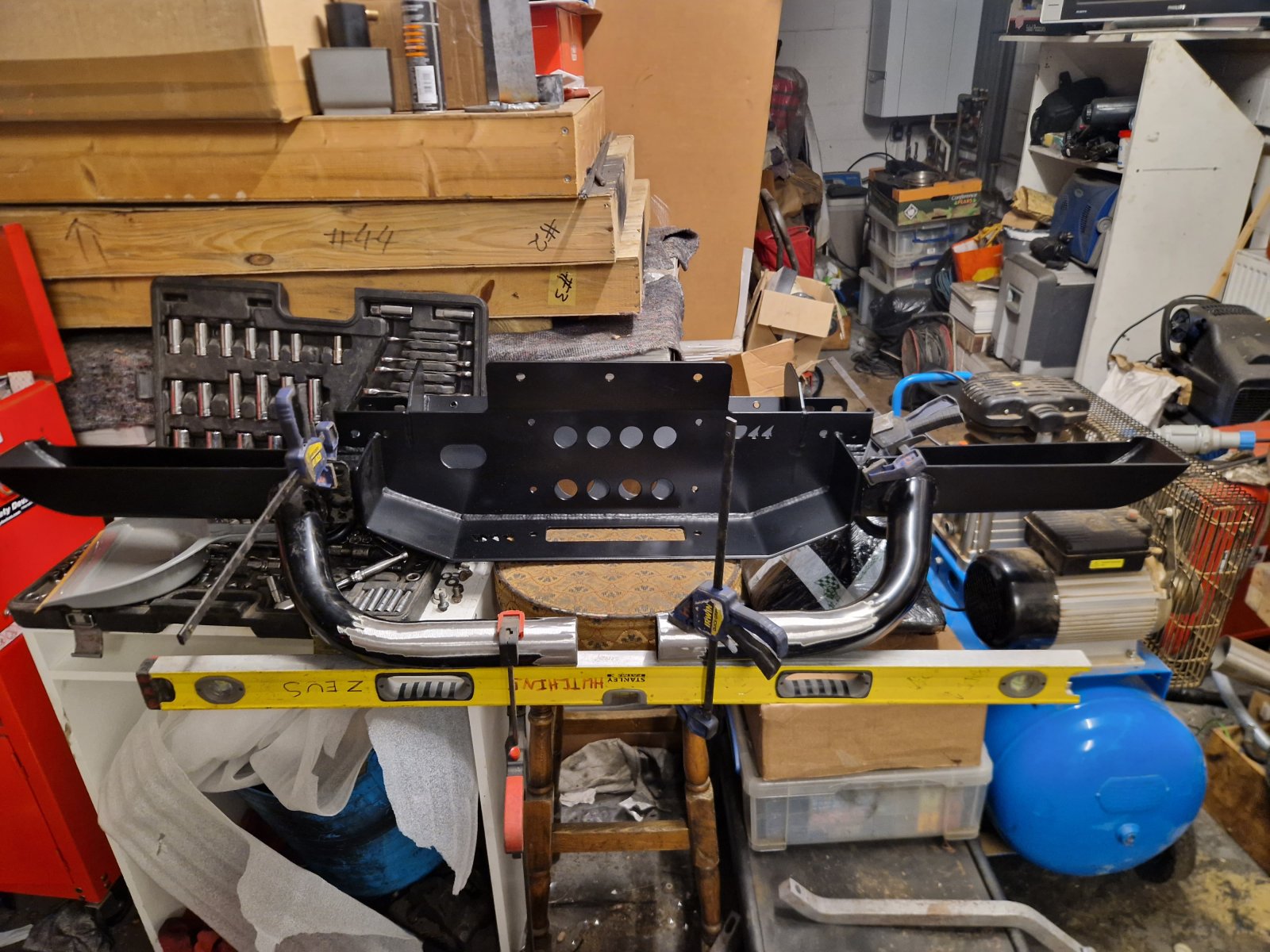

Picked up my D44 bumper from Empire HQ today! Glad to see D44s quality hasnt changed a bit in recent years. Still top notch and reasonably priced given the high quality!

Cut the A bar read for extending and rewelding to mount the spot lights.

This time around im going to weld a little plate on the back of the bumper to take the a A Bar, just a better fixing than when I did it before.

Then all to be sprayedin Raptor with HVLP gun

bankz5152 · Dec 21, 2023

Bit of a surreal phone call today. Gareth rang me, saying a guy has one of his VNTs and needs it mapped.

Theres only 5 of these VNTs around and he hasnt bought one. Asked where he got it and it turns out my old 110 has made its way to an "end of life" scrap yard.

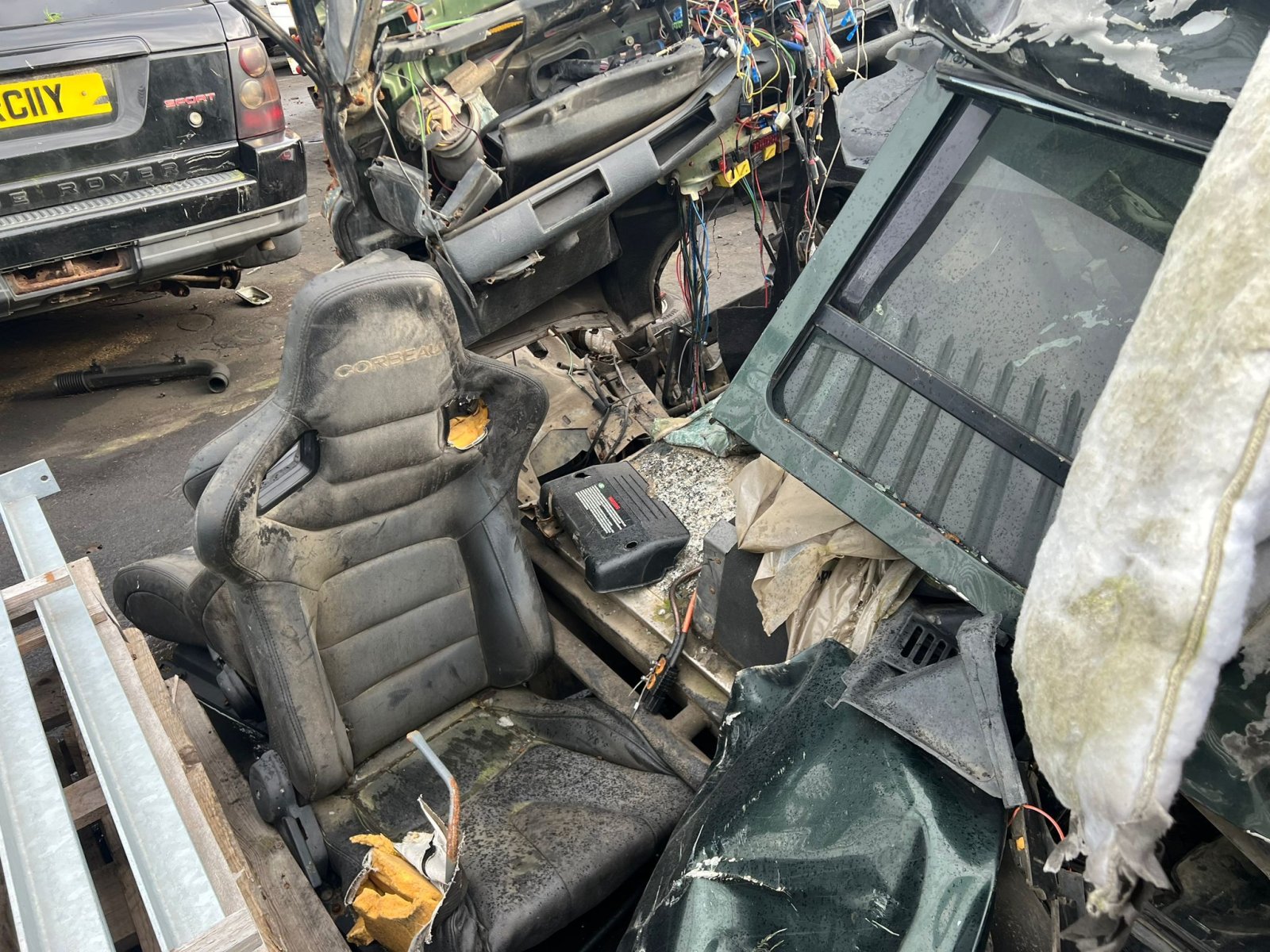

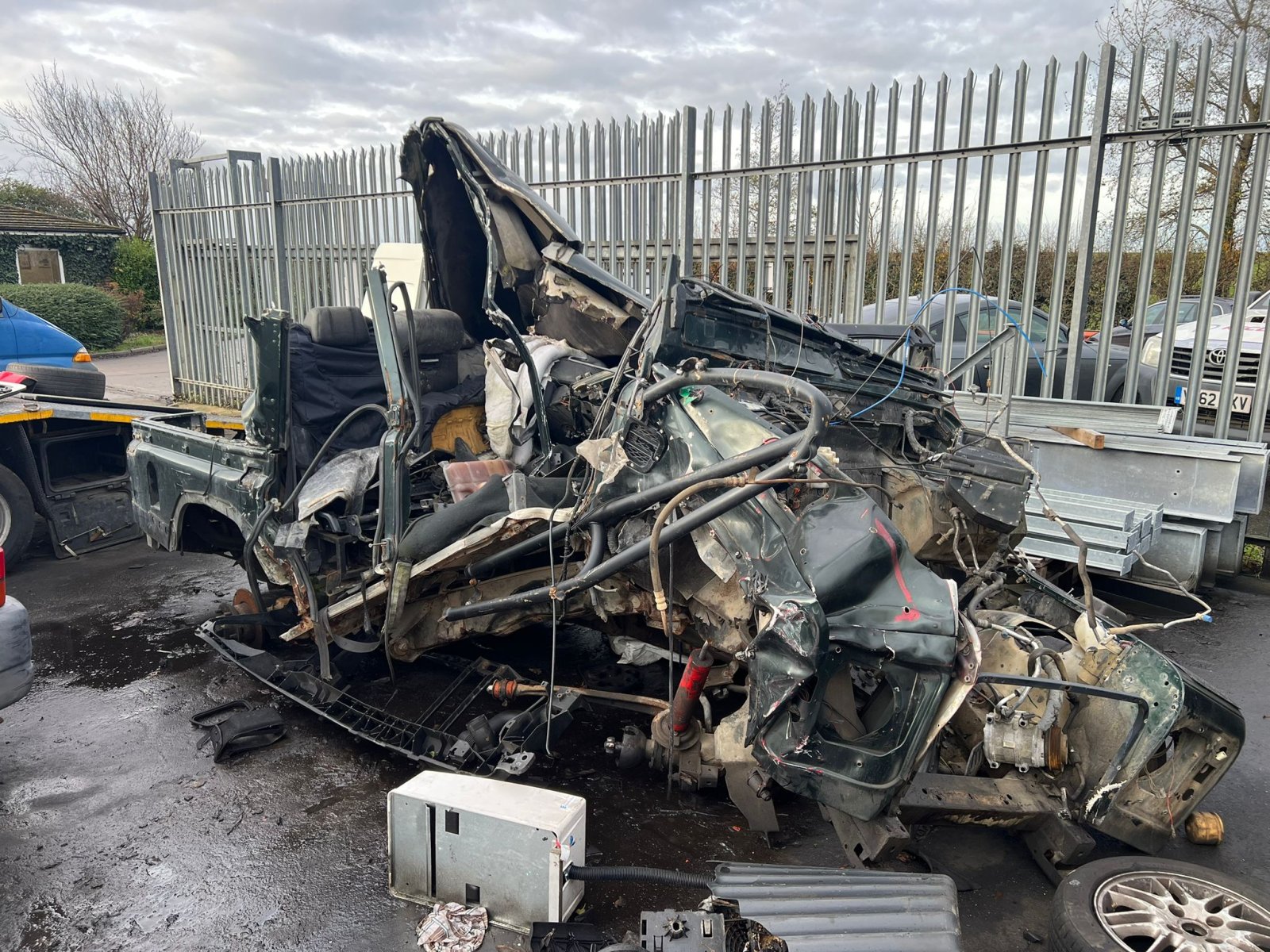

Doesnt look like much of a car anymore, been picked pretty clean.

Chaps taken the engine, headlights and a couple other bits. Goes to show how hard it is to kill a Land Rover

Guna go have a look after xmas. One last good bye to the car that saved my life.

KISSMYAURA · Dec 21, 2023

MENTAL!!!!

PS grab us a few of those yellow relays while your there

bankz5152 · Dec 21, 2023

KISSMYAURA said:
MENTAL!!!!

PS grab us a few of those yellow relays while your there

yeah guna go down see what I can get.

Feels very strange knowing my engine, brakes and parts are or someone elses car. Least they havnt been scrapped
