jamesmartin · Jan 8, 2012

it will do just had a look at picture of intermediate gear ,the gear nearest rear of box is high gear its ****ed ,input runs on middle gear

The Mad Hat Man · Jan 8, 2012

better to find out now, rather than when yu put it all back together?

jamesmartin · Jan 8, 2012

The Mad Hat Man said:
if I can interject?

Million dollar Q, James - whats the likelyhood of the main gearbox being damaged?

fairly unlikely as input gear bearings are still intact,looking at picture of main t/box more likely intermediate bearings failed unless debris from blown center diff gears

Pikey · Jan 8, 2012

johnlad said:
you could of wedged it in place using the digger if you had'nt sold it

Bring us it back then & I'll borrow it off ya..

Pikey · Jan 8, 2012

jamesmartin said:
fairly unlikely as input gear bearings are still intact,looking at picture of main t/box more likely intermediate bearings failed unless debris from blown center diff gears

Lots of metal filings in box both steel and bronze

jamesmartin · Jan 8, 2012

only bronze in box is the high/low selector or diff gear thrust washers

Pikey · Jan 8, 2012

jamesmartin said:
only bronze in box is the high/low selector or diff gear thrust washers

Dunno then unless it's a copper washer or summat.. tis shiny brown???

jamesmartin · Jan 8, 2012

Redirect Notice there are 4 of these in diff

Pikey · Jan 8, 2012

jamesmartin said:
Redirect Notice there are 4 of these in diff

Colours right

Sirus · Jan 8, 2012

I cannot believe Pikey not knowing the difference. Wait till the scrap man hears

Pikey · Jan 8, 2012

Sirus said:
I cannot believe Pikey not knowing the difference. Wait till the scrap man hears

They are very tiny filings

The Mad Hat Man · Jan 8, 2012

scrap man?

dont be silly

Just dont buy a Tbox from North Hampshire in the next couple of weeks

.

Pikey · Jan 9, 2012

I now has a replacement Transfer box.. Cheers to them what helped to get it over to me..

Will give it a bit of a clean and swap Handbrake and speedo head over this week and fit it Saturday.. (weather depending)

Pikey · Jan 14, 2012

FFS I int happy. cleaned Transfer box up this morning. and removed old 200tdi handbrake assembly, Swapped speedo gizmo, and carried it over to the disco ready to start refitting. And Suddenly realised that the F**king input shaft oilseal was missing :doh: tried to remove the one from the crap Transfer box and mangled it up :frusty: So I still int got the thing refitted..

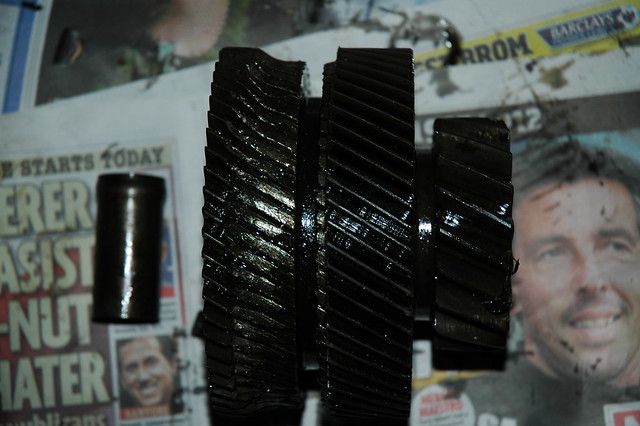

However I did remove the sump plate and take out the intermediate gear cluster.

It looks like some moron over tightened the collapsible shim and allowed too much endfloat into the intermediate gear cluster.

blue beasty · Jan 14, 2012

Guessing that musta made a real pretty noise

So you wanting a seal couriered from Scotland.........by donkey?

jamesmartin · Jan 14, 2012

redhand said:
FFS I int happy. cleaned Transfer box up this morning. and removed old 200tdi handbrake assembly, Swapped speedo gizmo, and carried it over to the disco ready to start refitting. And Suddenly realised that the F**king input shaft oilseal was missing :doh: tried to remove the one from the crap Transfer box and mangled it up :frusty: So I still int got the thing refitted..

However I did remove the sump plate and take out the intermediate gear cluster.

It looks like some moron over tightened the collapsible shim and allowed too much endfloat into the intermediate gear cluster.

tightening nut too far and crushing spacer too tight over loads bearings and would have no freeplay ,what are diff bearings like and intermediate bearings

Pikey · Jan 14, 2012

jamesmartin said:
tightening nut too far and crushing spacer too tight over loads bearings and would have no freeplay ,what are diff bearings like and intermediate bearings

Intermediate bearing seem ok I'm thinking they overtightened and then backed the nut off?? as there was movement in the shaft before I removed it.

Pikey · Jan 22, 2012

Finally got it fitted and took it for a quick test drive The whistling noise has gone as well as the vibration that it's had since I bought it :0

I also finally got the Gearbox fill plug undone.. Bloody hell was it tight

Which meant I could drain the gear box and refill it..

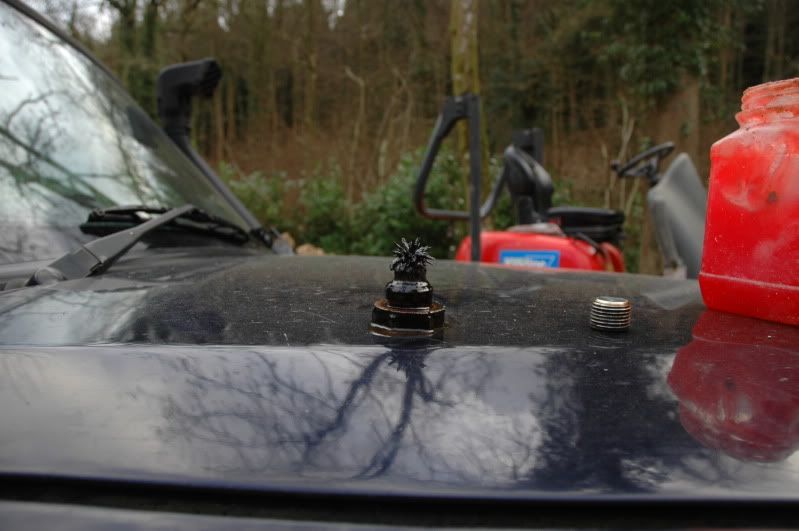

Do ya like me xmas tree..

It's a good job I keep a few tools handy for those routine maintenance jobs that crop up from time to time.. :doh:

Just need another ltr or so of ep.. And it'll be back on the road..

*minty* · Jan 22, 2012

Good job done Boss

robint · Jan 22, 2012

kinell i reconise some of those tools
