blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,471
- Location
- Gloucestercotshirewolds
Nearly there Daft........Stirling effort
yeovil to basingstook
- Thread starter robint
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
youve got two from front then top one under hi/low lever ,thewse 2 are the shortest and need to back ,a longer bolt will go threough and jam intermediate gear ,if you lever transfer box using gearbox drain bung as lever point it should create a gap big enough to get bar between the two boxes ,remember there are 2 dowels that can stay in either box when pulled apart so need checking before refitting,the lowest rear bolt also needs to be shorter than others as goes into blind hole i have known people split rear housing of gear box,by putting to long one in
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
funny when somone complains that they let the hand brake off it doesn't move as they've pinned the intermediate gear with a long bolt common issue!!
- Posts
- 83,300
- Location
- Embasinga stocæ
I am here already
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
So is I. just stuffing a roast beef dinner & I'll post pics etc
- Posts
- 83,300
- Location
- Embasinga stocæ
So is I. just stuffing a roast beef dinner & I'll post pics etc
erm "stuffing"?
- wot with?
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
- Posts
- 83,300
- Location
- Embasinga stocæ
wouldnt a fork be easier?
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
All I want for Christmas is me two front Teeth??

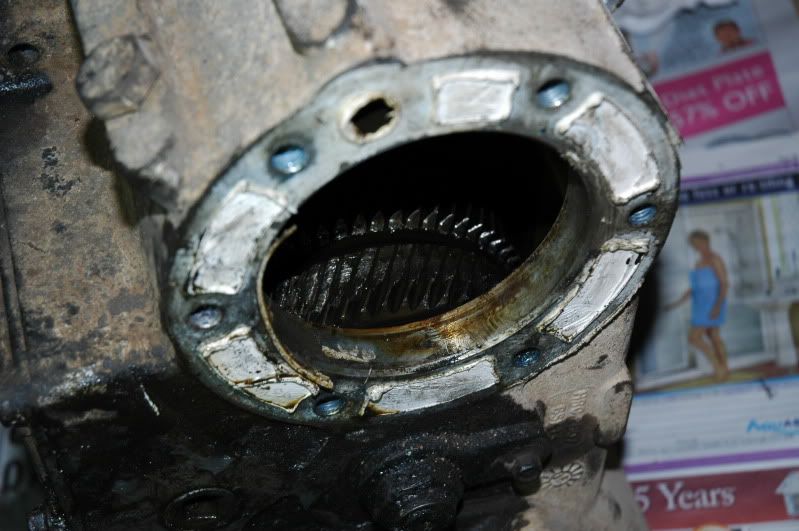

Think I found the Problem
Think I found the Problem
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,471
- Location
- Gloucestercotshirewolds
Ooooooo.....you could be right
- Posts
- 83,300
- Location
- Embasinga stocæ

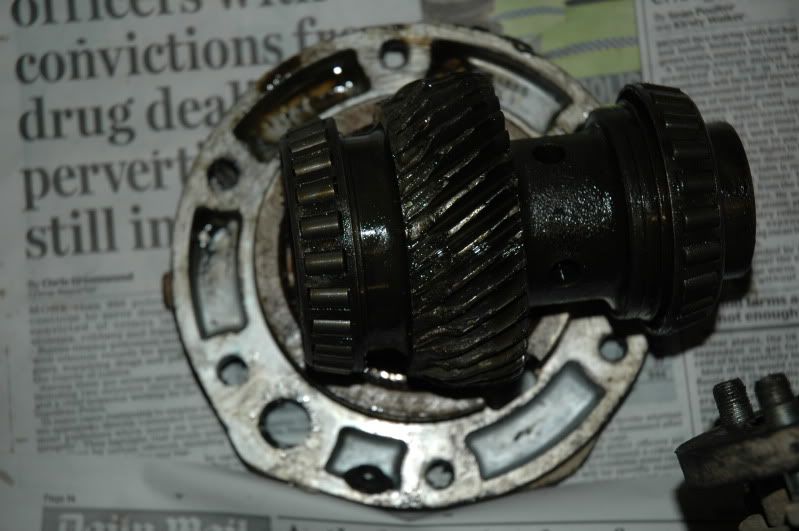

looks like the teeth werent meshing propper - all the damage on one side
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
when did you last check oil ?
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
baggyjim
New Member
- Posts
- 2,063
- Location
- gillingham dorset
probably in an attempt to quiet it downWas Over filled with oil
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
There's a nuton outside of Transfer box with a locking plate behind it. Intermediate shaft retainer I think. I can wiggle it with me hand??
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
plate stops intermediate shaft rotating ,intermediate bearings could have failed they would effect low and high gears on diff too,usual cause for input without bearing failure is poor lube ,worth dropping sump plate off new box and checking freeplay in input and intermediate gears ,intermediate can be adjusted by tightening outer nut with 3omm socket and long bar just enough to remove freeplay ,a lot of boxes have some
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
Even with the input gear assembly removed it's still jamming up when I turn the output flanges..
- Posts
- 83,300
- Location
- Embasinga stocæ
if I can interject?
Million dollar Q, James - whats the likelyhood of the main gearbox being damaged?
Million dollar Q, James - whats the likelyhood of the main gearbox being damaged?
