Whooops, I do it again...

Winu · Jun 25, 2015

So, its finished

Lowered by 30 mm also suspension is stiffer - Full MY'04 sport suspension is fitted with Polybush Dynamic bushes.
18" LR Sport rims in chrome, with upraded brake system
New gen LR SS nudge bar from with new SS side steps, also gen fog lights fitted.

Under bonnet we have Ultra racing strut brace, full SS intake system and Alisport Intercooler on front. EGR is also removed. New injectors from 2006 model are fitted. It also have turbocharger with larger compressor wheel.
Car is before final remap but results are very noticable.

Now time for interior jobs, soft top fitting ect.

LandyMan · Jun 25, 2015

NICE!!! Good job

Winu · Jun 25, 2015

Thanks,

Can't wait to see it with soft top

.

People very like it. When today we're back with both FL's and RR in small convoy everybody looked back :bounce:

Rscabrio · Jun 26, 2015

Whats the upgraded brake system dude ?

Winu · Jun 26, 2015

Lucas L20 Brake callipers, StainlessSteel brake lines, Black Diamond Vented and grooved brake discs, EBC SUV 7000 pads, ATE TYP 2000 high performance fluid.

tonytherunner · Jun 26, 2015

This is the new BLACK SPIRIT

Winu · Jun 27, 2015

Yep, that's a good name for it

. It's not remaped yet, but can beat stock FL sport 2006 , stock Td4 2002 and 1.8

Both in home now:

Alibro · Jun 27, 2015

Really nice work here. Well done.
Just wondering why you go to so much trouble and effort, is it just for yourself or will you use them as show cars for your business?

Winu · Jun 27, 2015

Sometimes those are used for showcars, but I do this just for fun and pleasure of creation.

htr · Jun 28, 2015

Winu said:
Sometimes those are used for showcars, but I do this just for fun and pleasure of creation.

+1
Like I say to the misses - I don't play golf [yet], or rugby/soccer/cricket... don't drink [much!], not a hunter disappearing off into the mountains every weekend, not a frequent skier now... So it's my only vice at the moment. I too get a lot of pleasure/enjoyment/satisfaction working on it.

Winu · Jun 28, 2015

Yep, a lot of fun with those

especially when parts don't match

Now it's time for do some wiring looms for new toys... ordered 120 meters of wires in various colours... LoL

Winu · Jun 29, 2015

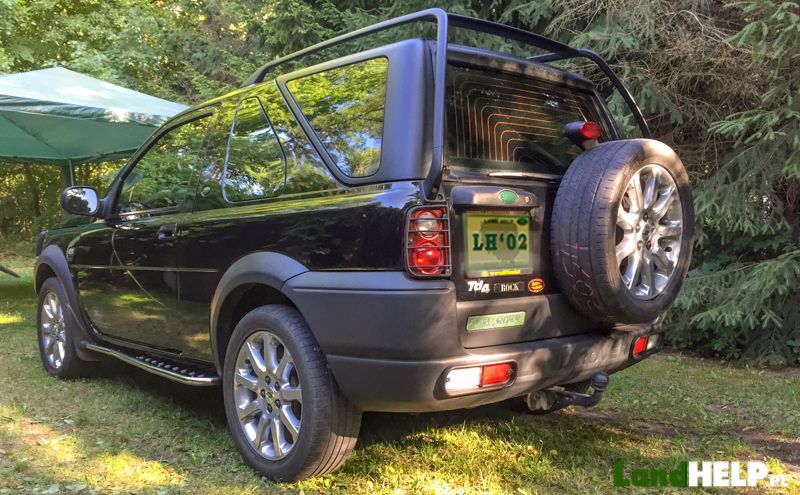

Preparing it to summer open top mode

Boot cover is on place

A bag for glass also...

So... only left to remove hard top and put soft top... next week

rich31 · Jul 7, 2015

Hi mate just a quick question was there a reason you did the air intake pipes in stainless steel instead of aluminium as i was under the impression the steel would get too hot?

Great work mate too, you have given me so many ideas too now, thanx

Winu · Jul 9, 2015

Use SS because those were on the shelf, and better looks. In L-series i got polished aluminium ones, and both works great.

Intake temps (before change IC) are lower on SS pipes about 5-8 deg. Those get hot but also get cool very quick when fans working. So no worries about temps

I'm happy that you like it.

Winu · Jul 11, 2015

Well, some part of sound proofing is done...

On the standard, there is... nothing...

Inner roof panel

Second layer on inner panel - poliurethane foam

Outer roof panel

Results are noticeable. Less roof trim squeak, less wind noise

. Better results will be when side panels and doors will be done.

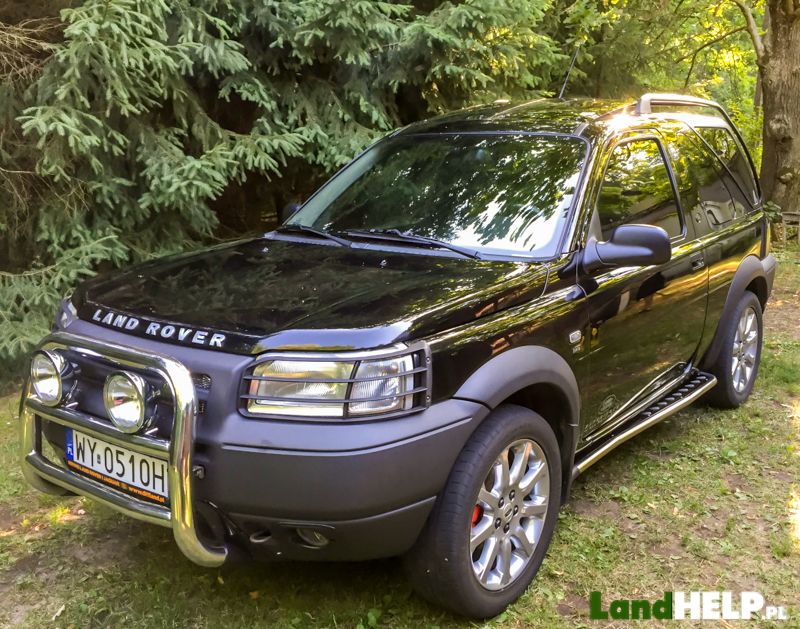

also finish my front:

Now looks like it should with gen nudge bar and hella luminators

L series got all SD stuff repainted

Epicuser · Jul 12, 2015

Very nice.

Do I miss mine?

In short, no.

Winu · Jul 14, 2015

fitted gauges in centre console as planned

Winu · Jul 24, 2015

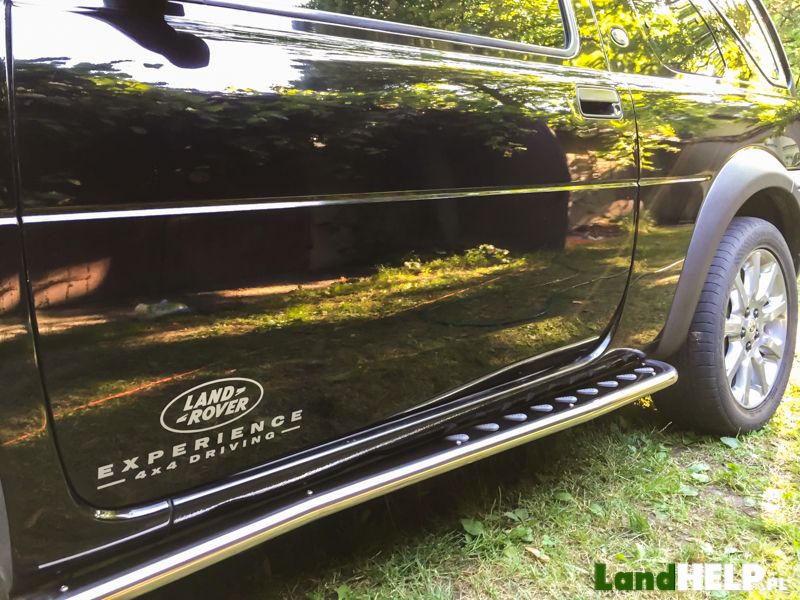

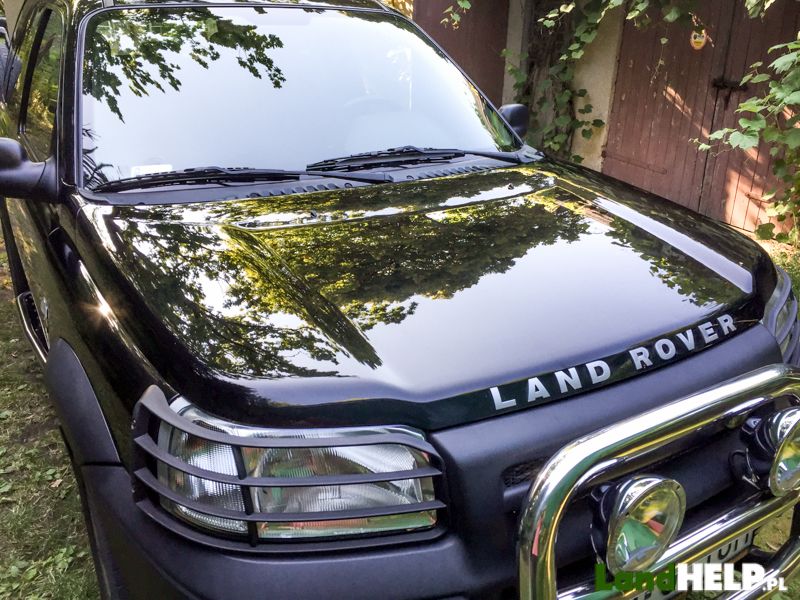

So... a 15 hrs of hand polishing and detailing...

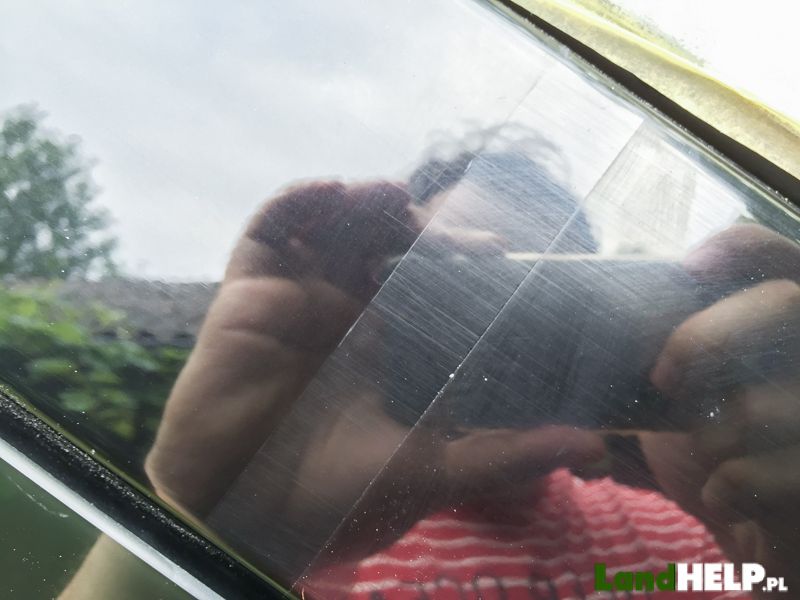

Lower part of pic shows how it looks before - Scratches, scratches... and scratches.. Top of pic shows how it looks after using Poorboys World SSR 2,5 and SSR 1 on "German" polishing and cutting pad. Most of damages are gone. rest of it can be removed by polishing machine, but this will be done by Pro people. So, after 15 hours whole body is done.

Then I use APC to remove all dirt and polishing stuff leftovers. Next step is Poorboys Blackhole, for better and deeper colour, and Natty's paste blue wax for finishing.

Winu · Sep 12, 2015

So, after fitting new MAF (magneti marelli) instead of three other Bosch Mafs it finally works. Smoke is no more present (sometimes it make a "puff" of black one, but turbocharger is not tuned with new IC yet). Difference was instant noticeable after fitting it, but after 200 km ride ECM learn how to use it, and another improvement has been present.

So, just need to fit thermocouple in exhaust manifold and it can be properly tuned. It finally arrives from Australia.

Winu · Oct 8, 2015

new toys for winter:

Got brand new heated windscreen harness with switch - just plug and play option

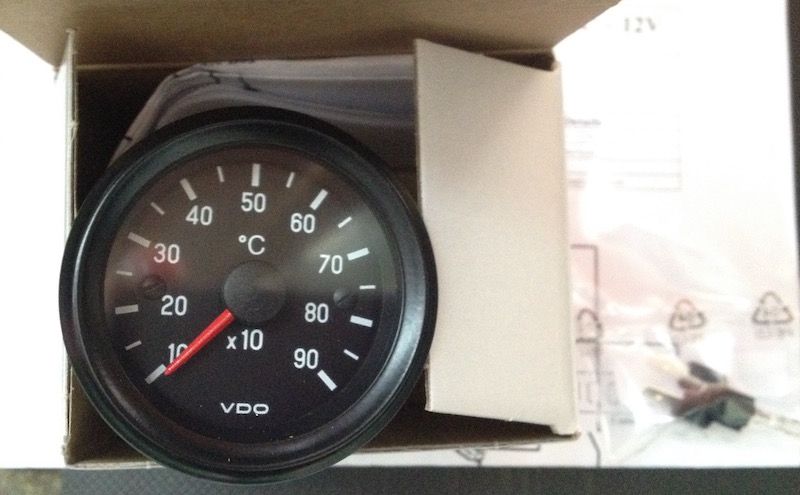

EGT is now fitted in manifold and working fine. Soon we should have some dyno results.

And here we got some backstage photos from LRM session

. You can read about both cars in one of next issues.
