Wher ti fit Air Filter Housung.

Hope Everyone is Well.
Asked this technically before in different posts, so starting a new thread on it.

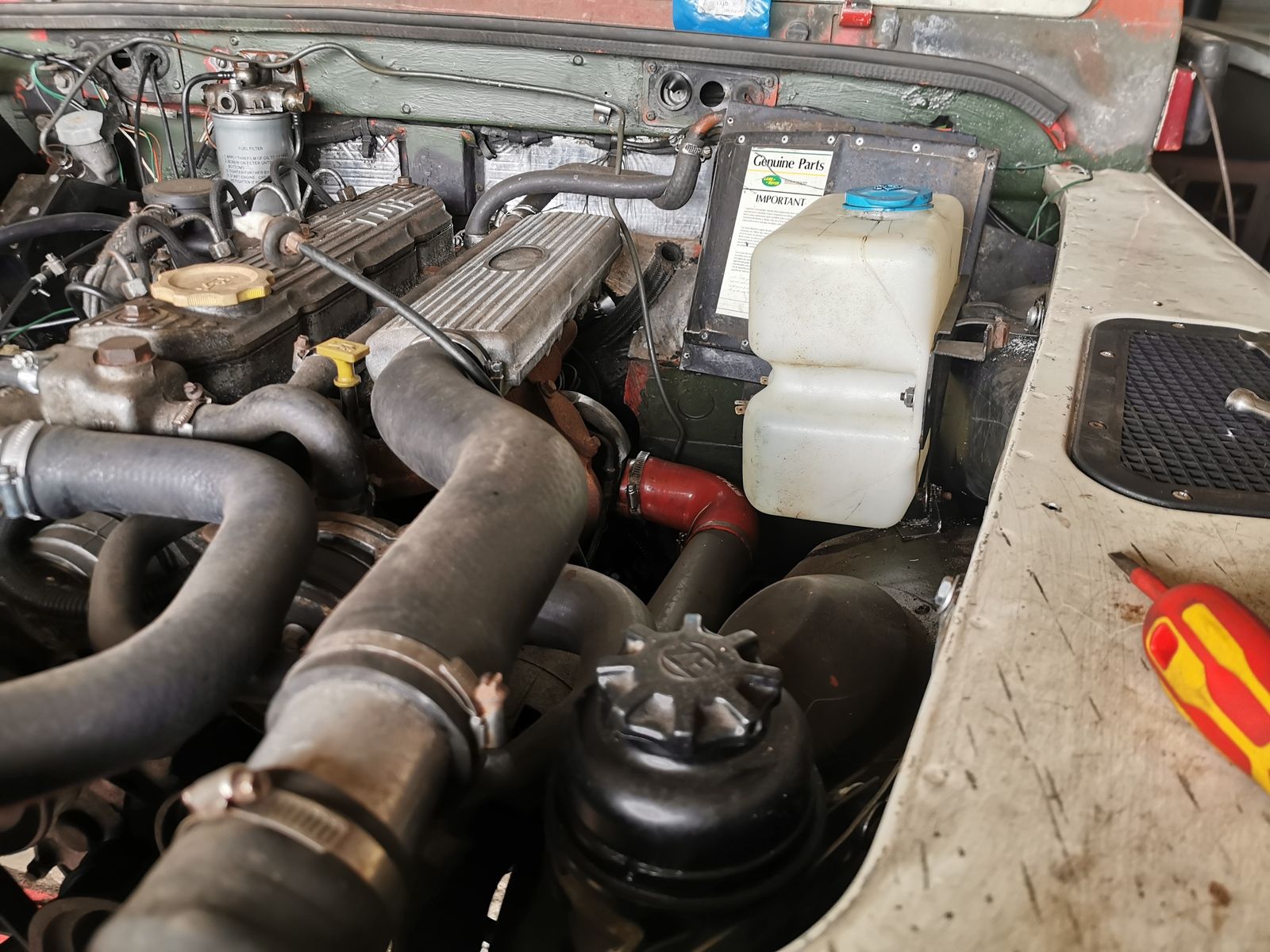

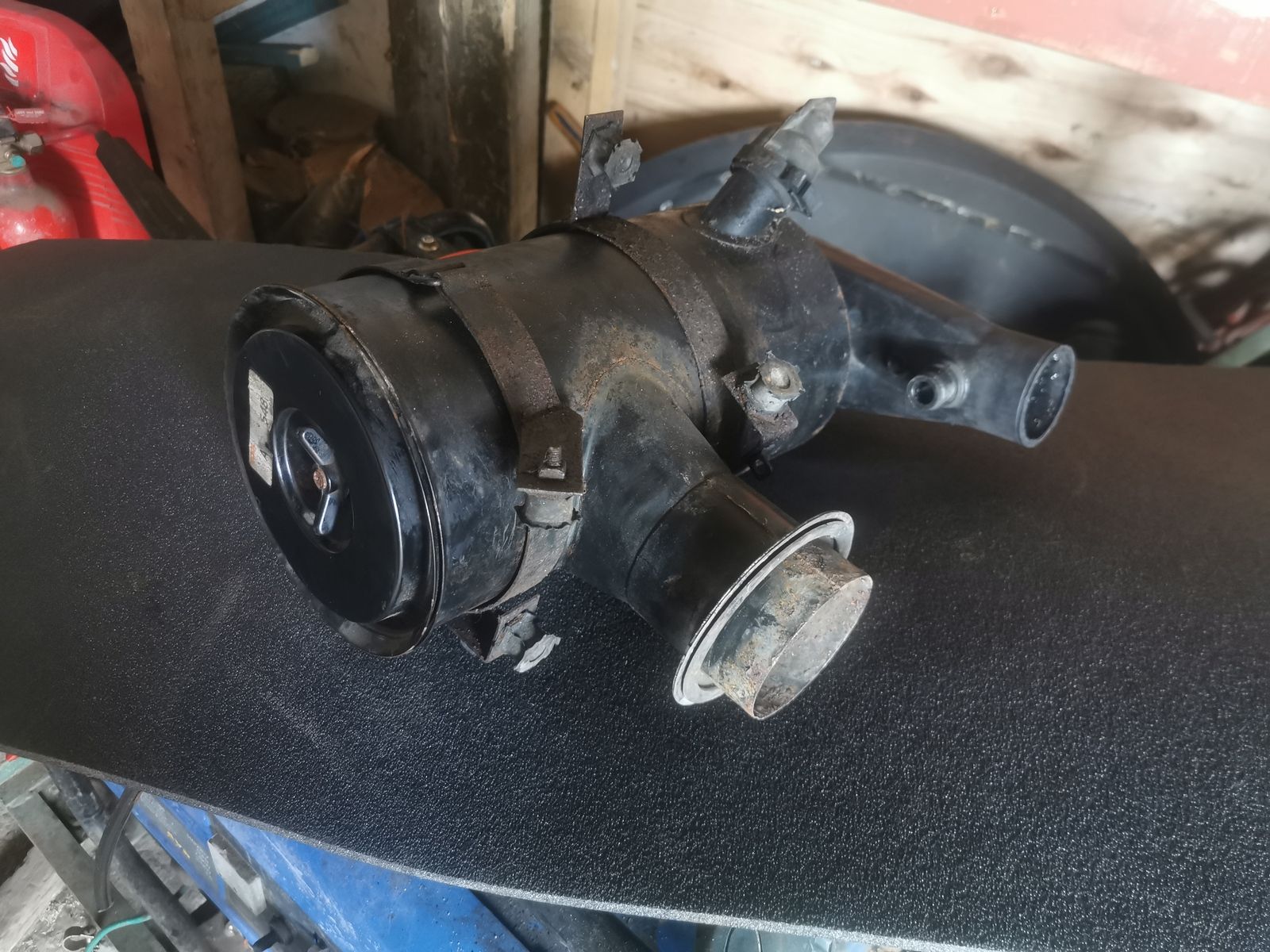

My rebuild is Disco 300tdi in to Defender 110. Just about got everything in engine now, apart from Air filter housing. I have just fitted washer bottle today and there just aint enough room on that side to fit one in, I have both the round one from Defender and Square one from Disco. Think I might have to look at the other side as there is plenty room but not got a clue where to fit it. Need to go back and look at pics I've saved and study it again.

Yeah,

on mine it is over the other side on a cradle.

Cheers

Mine is on the other side. It's held in cradle which is bolted to the cylinder head. I post you some photos tomorrow.

This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box

have you got the air filter that goes onto the air con bolts(off side of engine

Lief Zpring said:

Mine is on the other side. It's held in cradle which is bolted to the cylinder head. I post you some photos tomorrow.

Click to expand...

Thanks .

Hicap phill said:

This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box

have you got the air filter that goes onto the air con bolts(off side of engine

Click to expand...

No Mate its RHD, Ive seen pics of a few with it there.

neilly said:

View attachment 205254

Click to expand...

Thanks Mate did you make the Cradle,or is it a Part ?

border said:

Thanks .

No Mate its RHD, Ive seen pics of a few with it there.

Thanks Mate did you make the Cradle,or is it a Part ?

Click to expand...

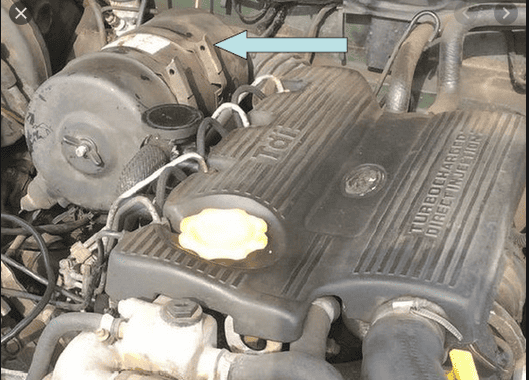

That is a photo off the interweb, but mine is similar. Normal 300tdi air filter fitting.

Cheers

"This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box"

Not on a 300TDi, on that it sits on the N/S as in his photo.

First photo is standard Defender 300TDi layout however if the donor was a Disco then yes, some adaptation will be required.
To mount the Defender airbox you will also need the mounting bracket which you can make out in the second photo.

Litch said:

"This is not a left hand drive is it???
Just asking as the power steering reservoir is normally over the steering box"

Not on a 300TDi, on that it sits on the N/S as in his photo.

First photo is standard Defender 300TDi layout however if the donor was a Disco then yes, some adaptation will be required.
To mount the Defender airbox you will also need the mounting bracket which you can make out in the second photo.

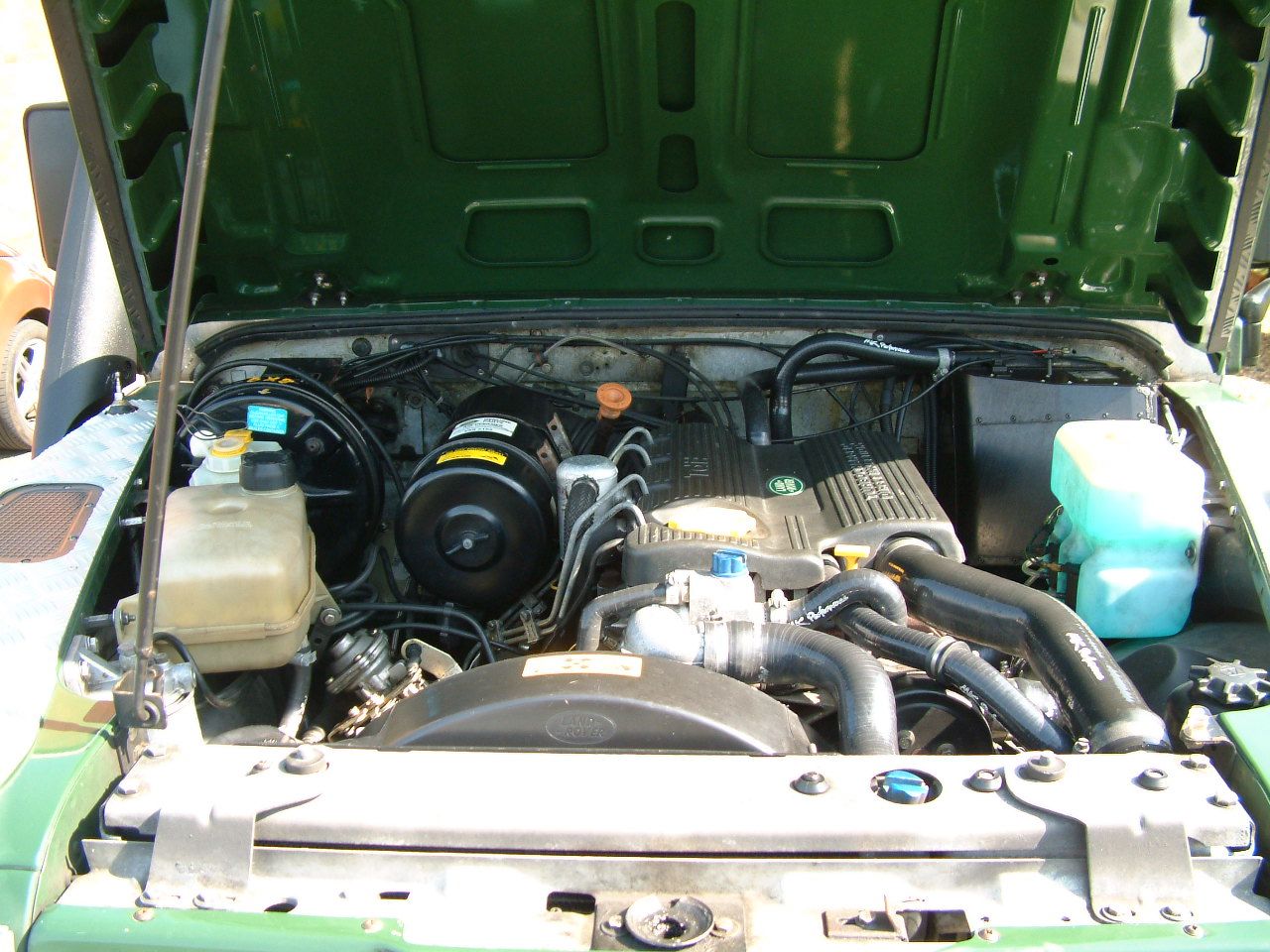

View attachment 205262

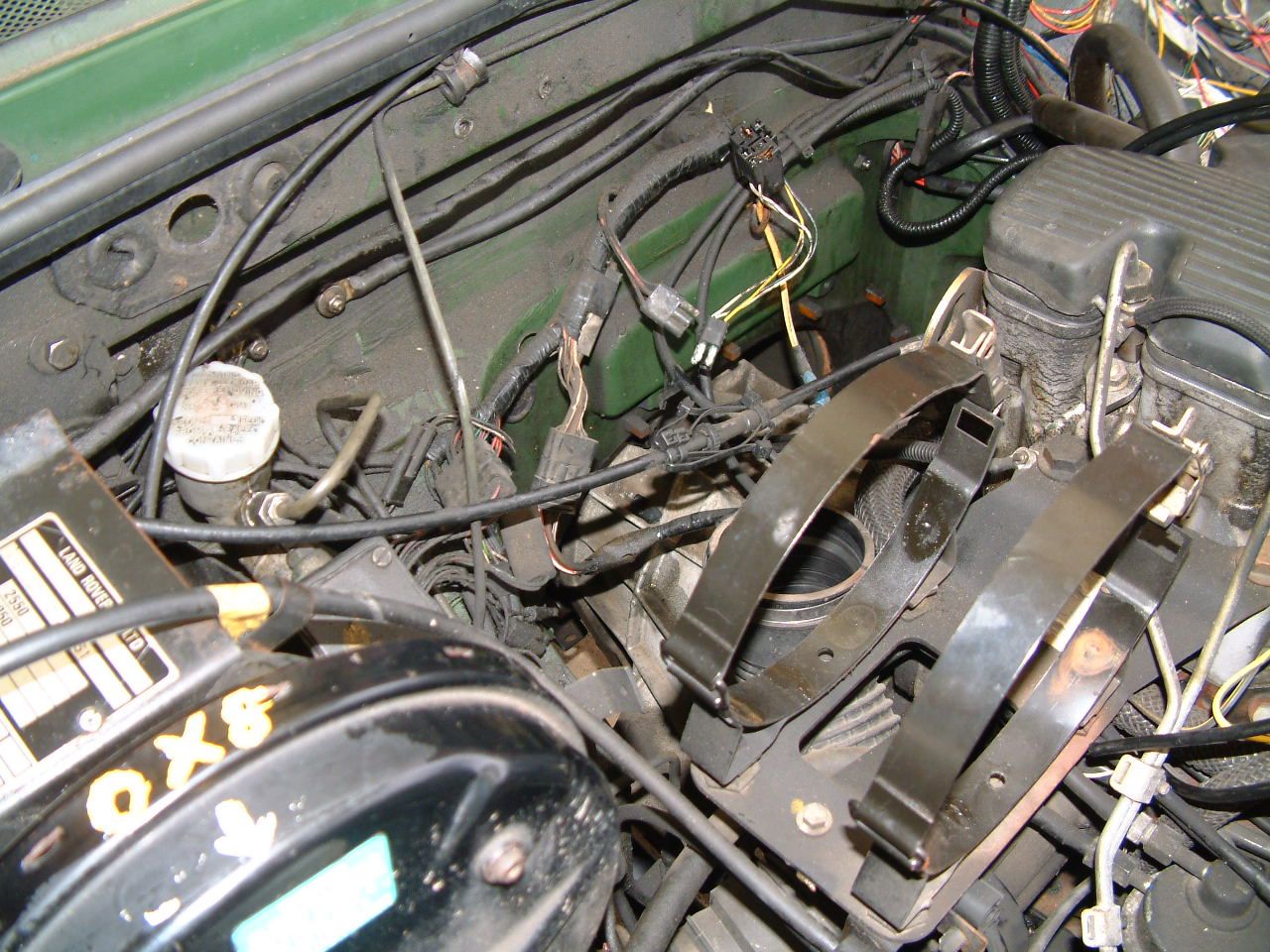

View attachment 205263

Click to expand...

Thanks Is there a Part Number for Mounting Bracket or is it a D I Y job ??

I am sure there is a part number but when I bought mine it had a few other bits attached...………...

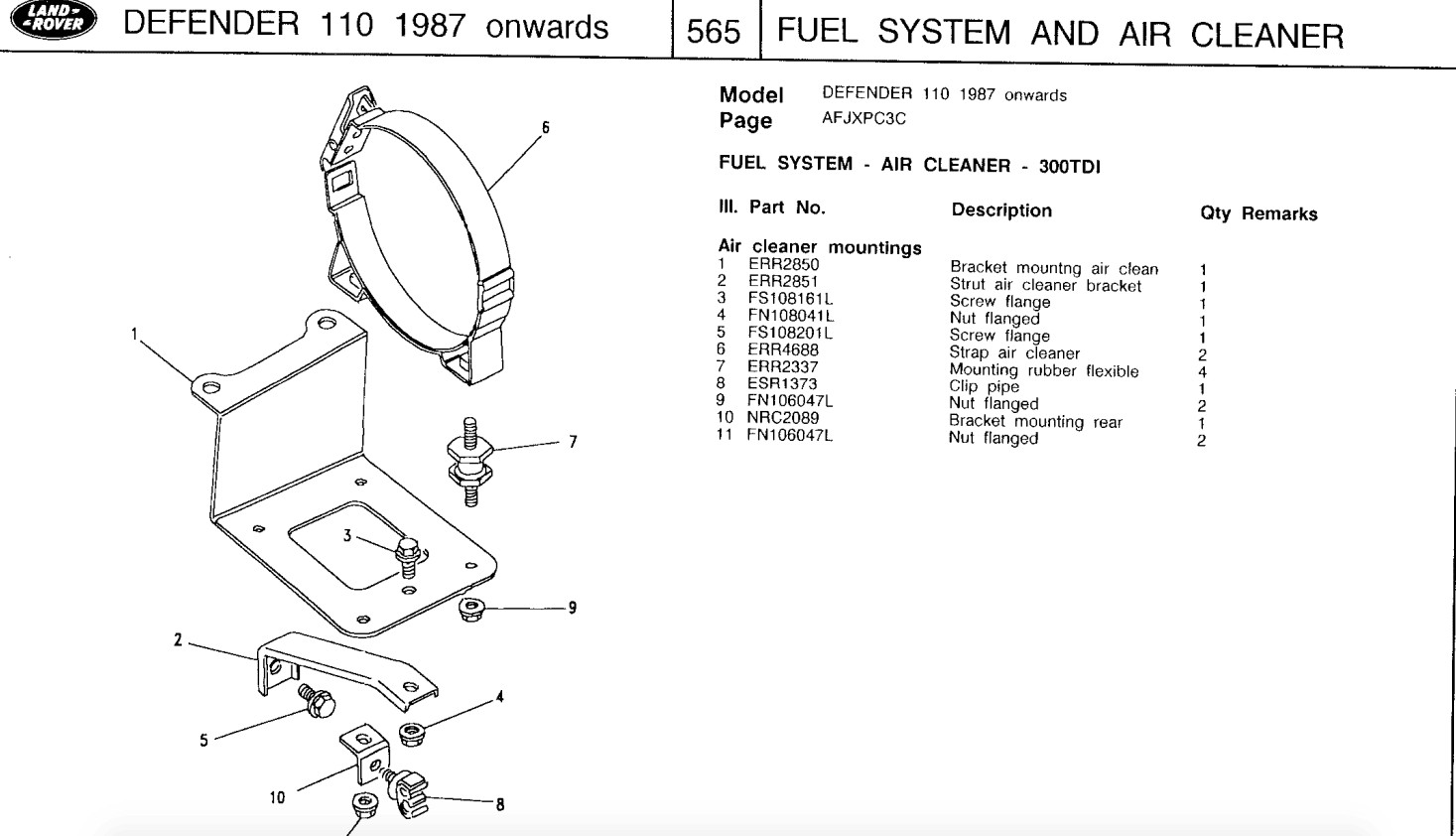

Just did a quick search and came up with ERR2850, would need to check if that is the only part required.

border said:

Thanks Is there a Part Number for Mounting Bracket or is it a D I Y job ??

Click to expand...

comes as several parts your engine maybe to close to the bulk head worth checking before purchasing

Litch said:

I am sure there is a part number but when I bought mine it had a few other bits attached...………...

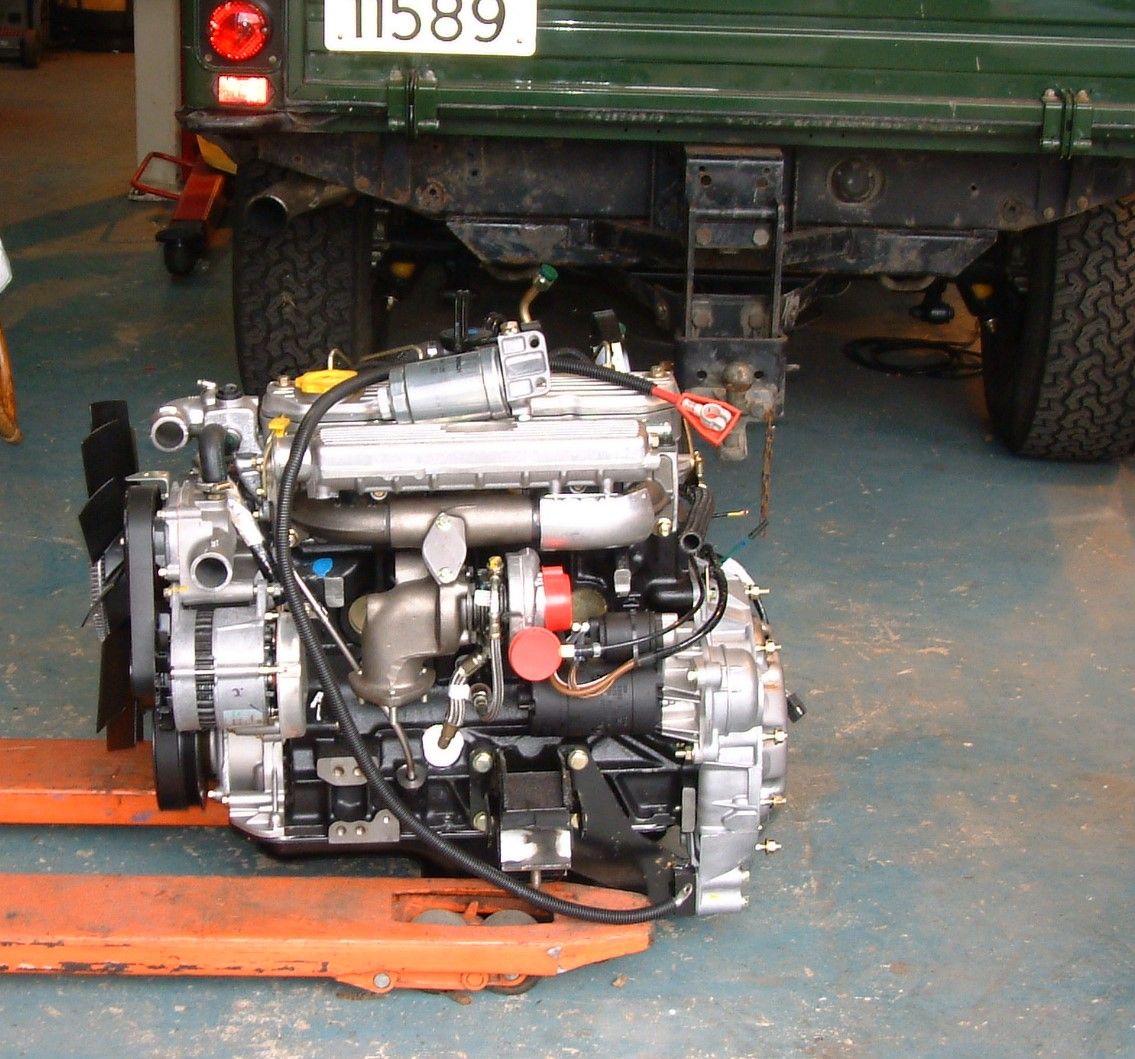

View attachment 205264

Just did a quick search and came up with ERR2850, would need to check if that is the only part required.

Click to expand...

Cheers Did the pipes reach round from other side ?

jamesmartin said:

comes as several parts your engine maybe to close to the bulk head worth checking before purchasing

Click to expand...

Think My engine is around 7 inches further back towards Bulkhead

You won't have the space behind the engine to route the air tube, (I'm assuming it goes behind on a standard 300tdi?)

Mine is just bungee corded next to the windscreen washer bottle

owas said:

You won't have the space behind the engine to route the air tube, (I'm assuming it goes behind on a standard 300tdi?)

Mine is just bungee corded next to the windscreen washer bottle

Click to expand...

Got Any pics Mate.

border said:

Got Any pics Mate.

Click to expand...

You can see it in this one,
It's a bodge tbh, I was supposed to come up with better solution but it's worked fine

I do not like that bracket, if you need to remove it to work below you have to remove two head bolts. Not sure if that is a problem but does not seam right.

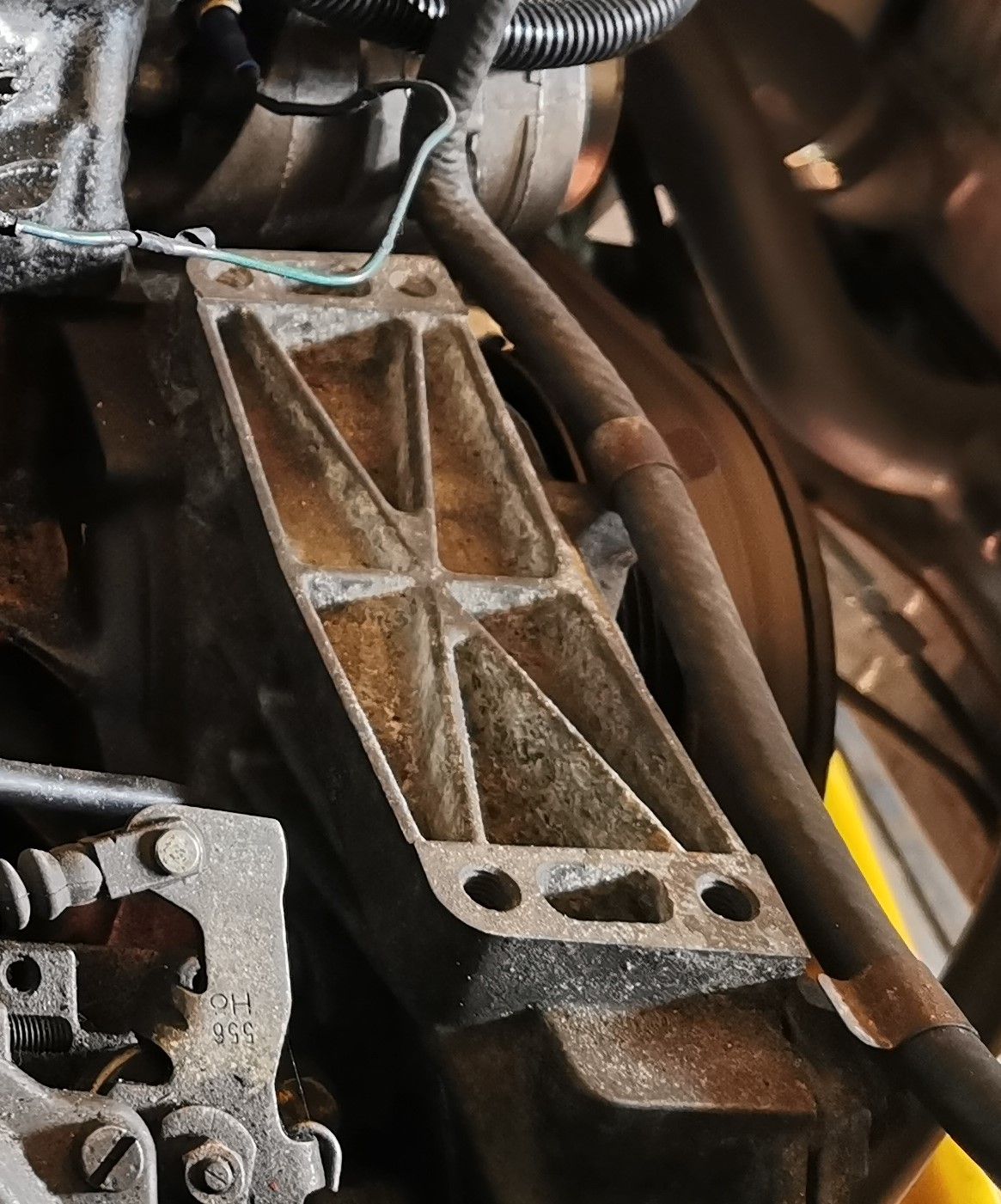

This Bracket wont fit mine as Engine is to far Back. Wondering if I could get it to fit on the bit where Air Con goes with some kind of bracket, as mine has none.

That looks like a good spot, the problem then is getting the pipe to the turbo, possible perhaps to go over the top of engine like series landys ?

border said:

This Bracket wont fit mine as Engine is to far Back. Wondering if I could get it to fit on the bit where Air Con goes with some kind of bracket, as mine has none.

Click to expand...

Mate did that, it kept cracking, so will need adequate support.
