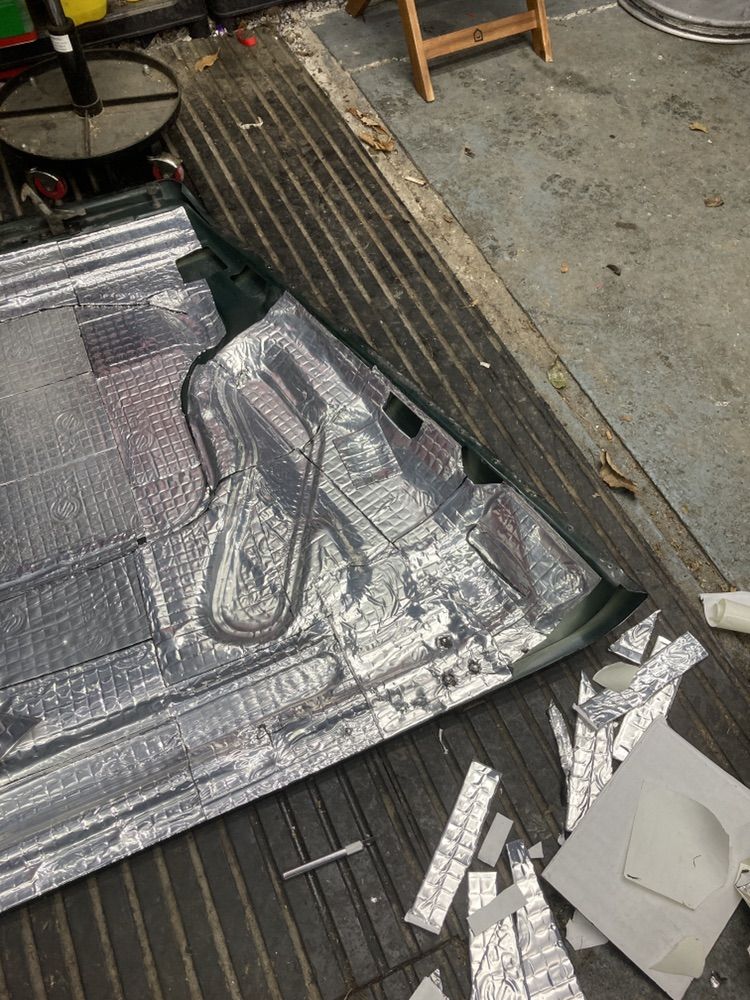

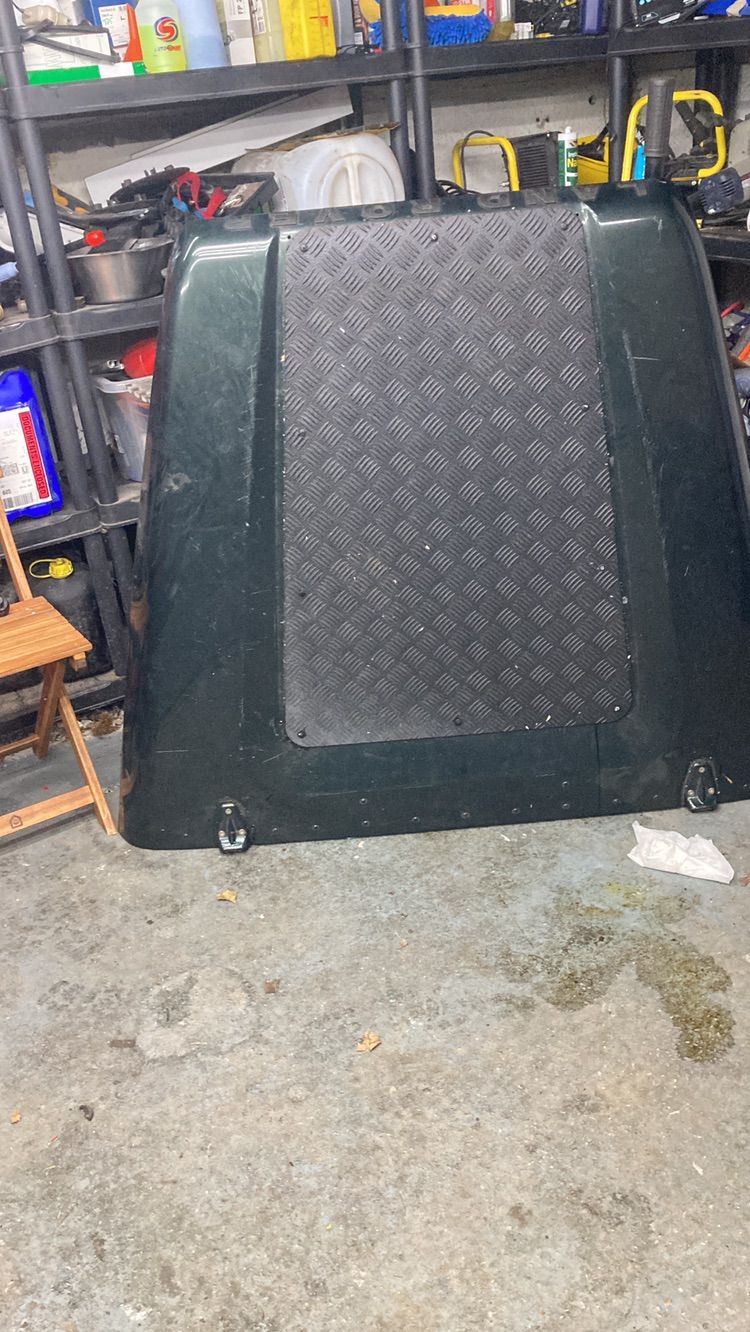

Bonnet Sound Deadening and prep for Raptor....
TD5 90 Project
- Thread starter KISSMYAURA
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

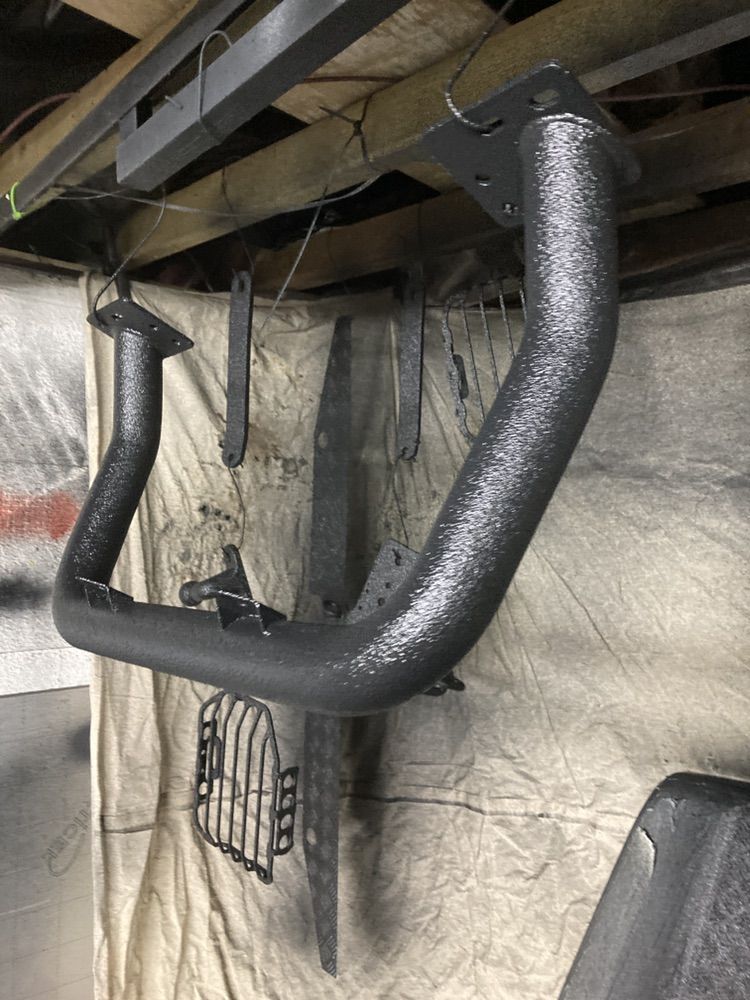

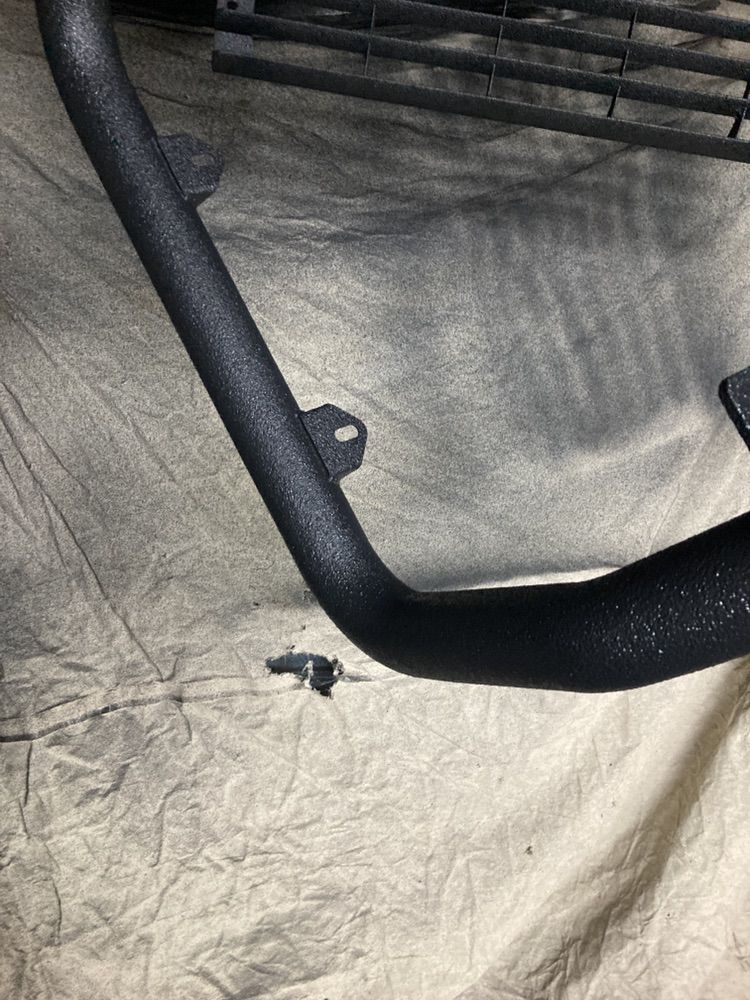

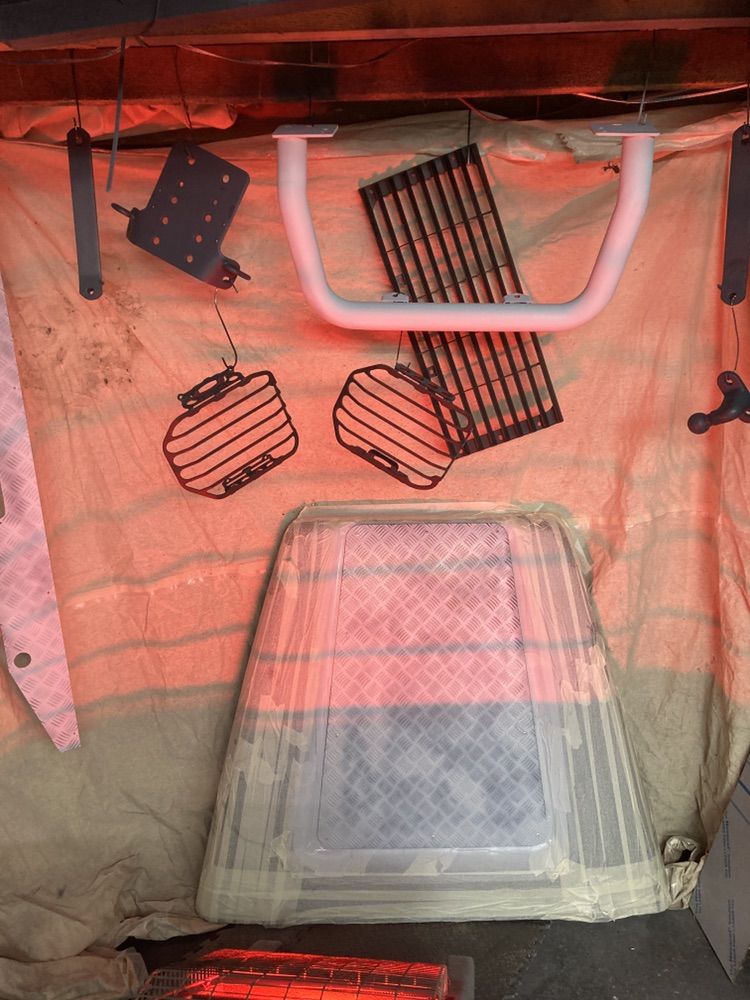

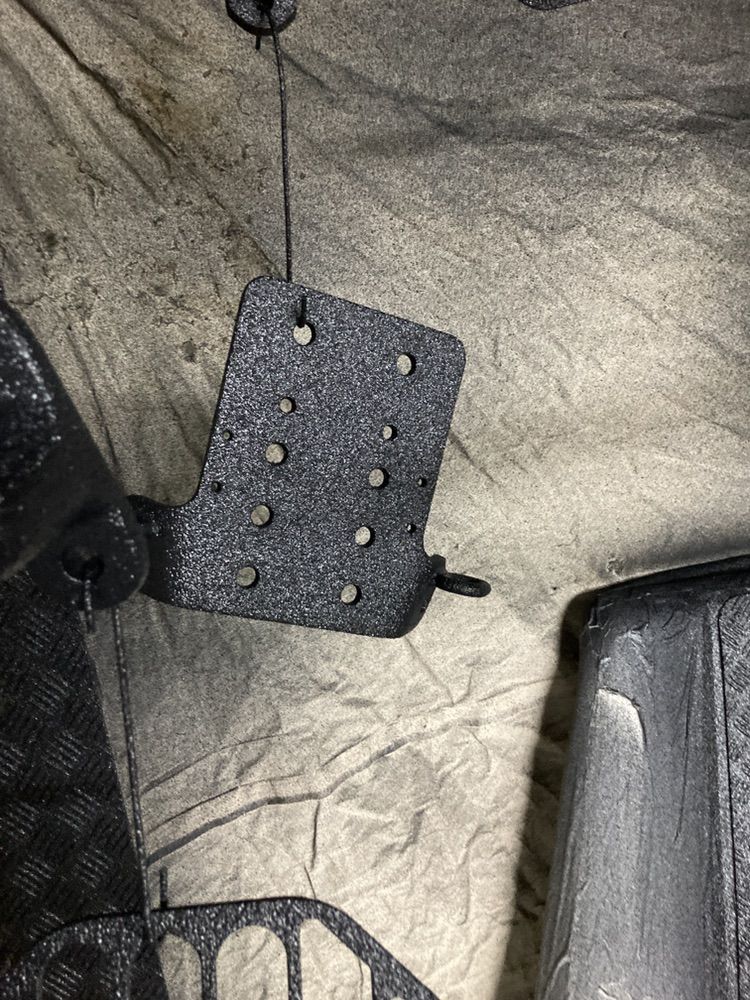

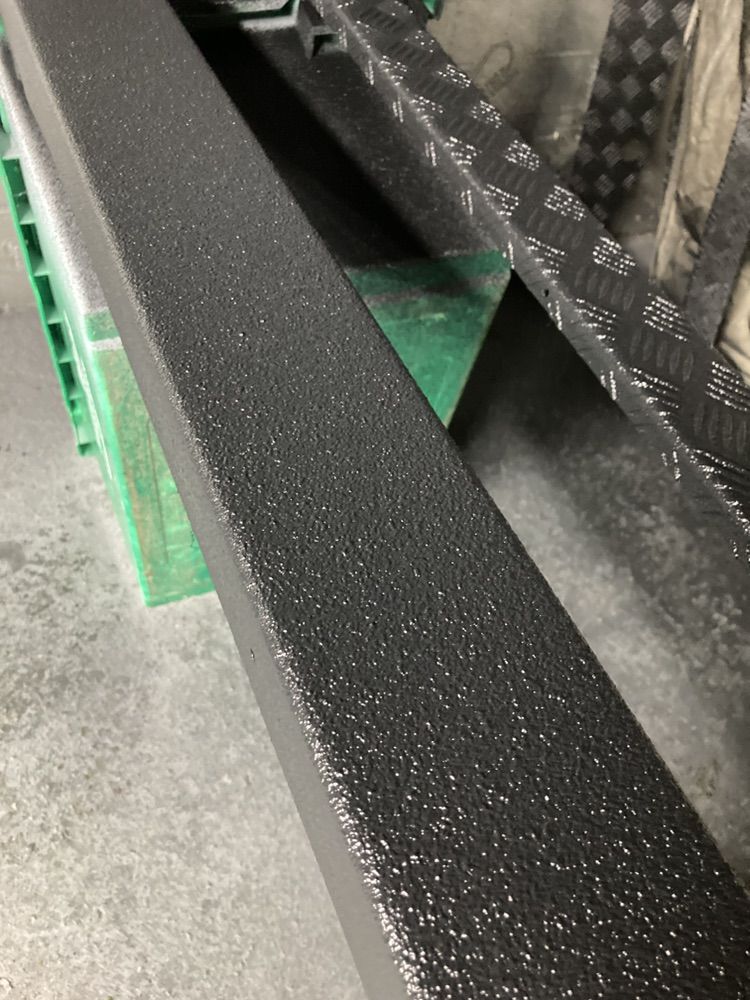

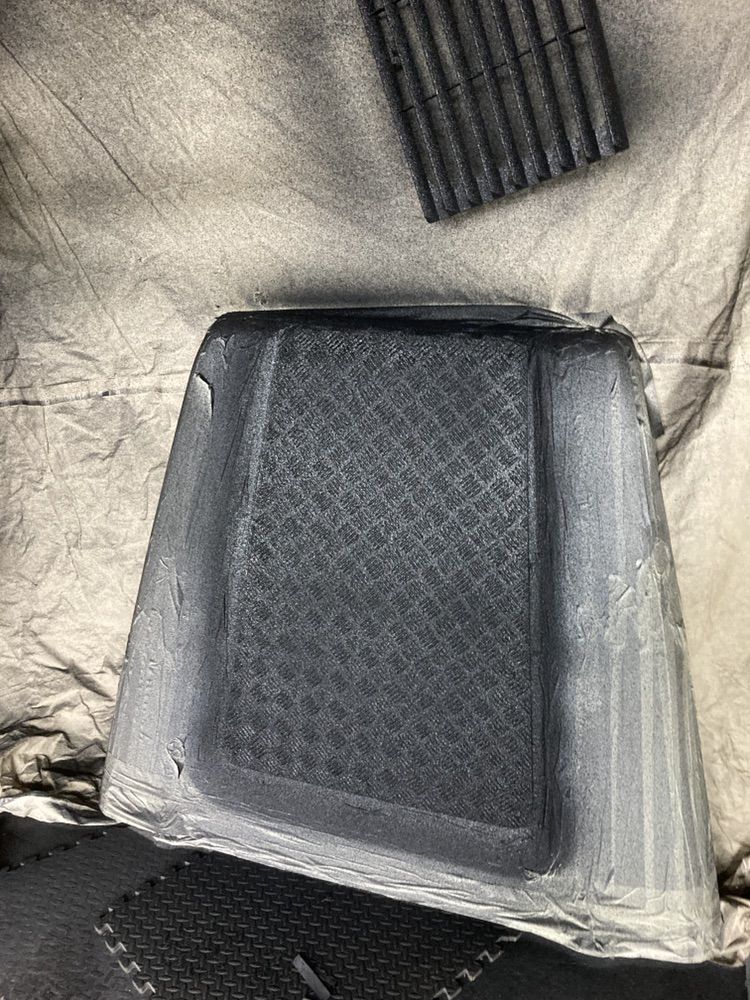

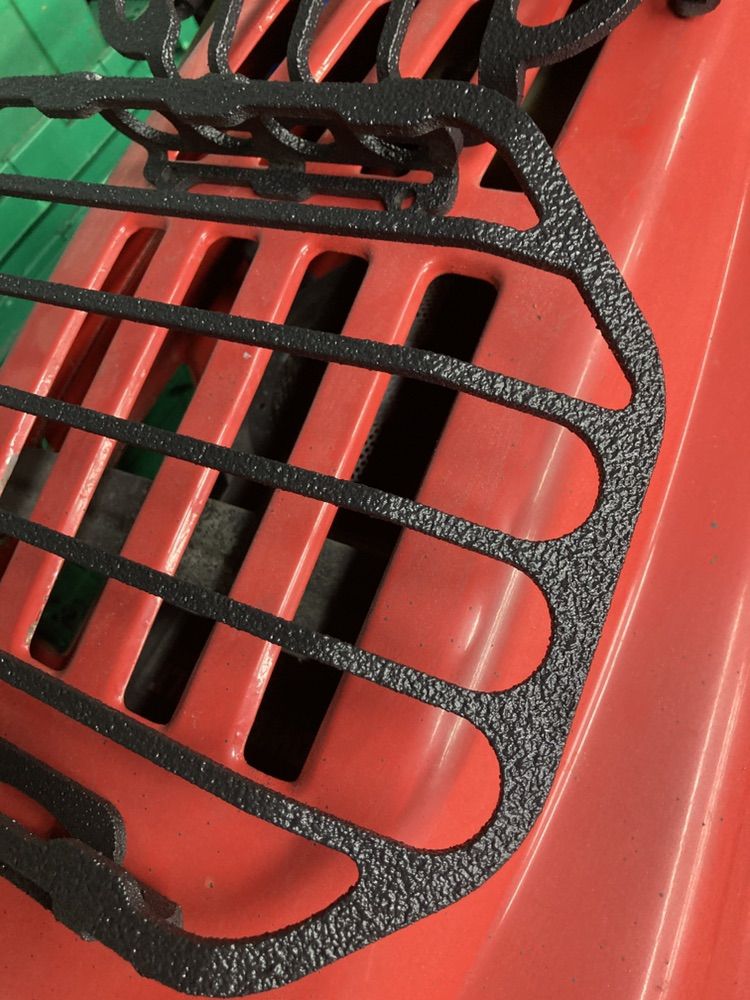

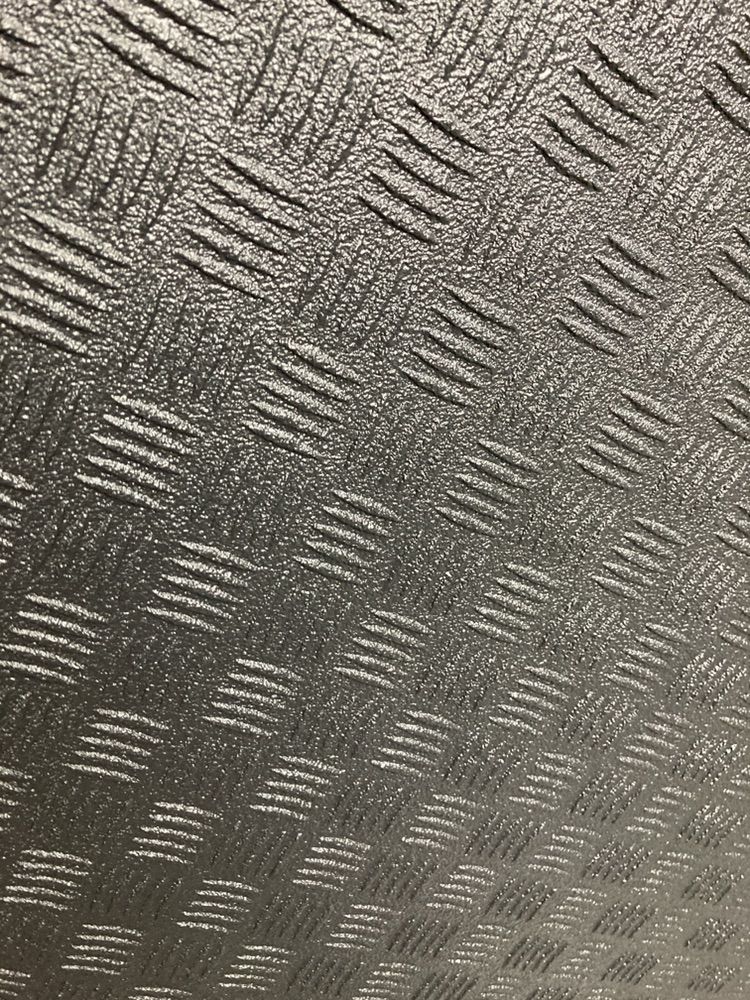

UniPol Etch and Raptor 50psi at shoots gun. Pics are straught after first coat application, so glossy, will dry matt / satin. I almost forgot how stinky it its until i took my mask off lol!
love working with Raptor, easy to apply and like the finish, i specifically want rough texture, soo i will be doing the truck, gun metal tintable raptor with the black checquer plate, this is just a tart up, bonnet is gonna get it soon anyway so for now it all gooda ! and decided to just buy a new bumper and raptor that, much less hassle than trying to rub down my rusty one.
love working with Raptor, easy to apply and like the finish, i specifically want rough texture, soo i will be doing the truck, gun metal tintable raptor with the black checquer plate, this is just a tart up, bonnet is gonna get it soon anyway so for now it all gooda ! and decided to just buy a new bumper and raptor that, much less hassle than trying to rub down my rusty one.
Last edited:
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

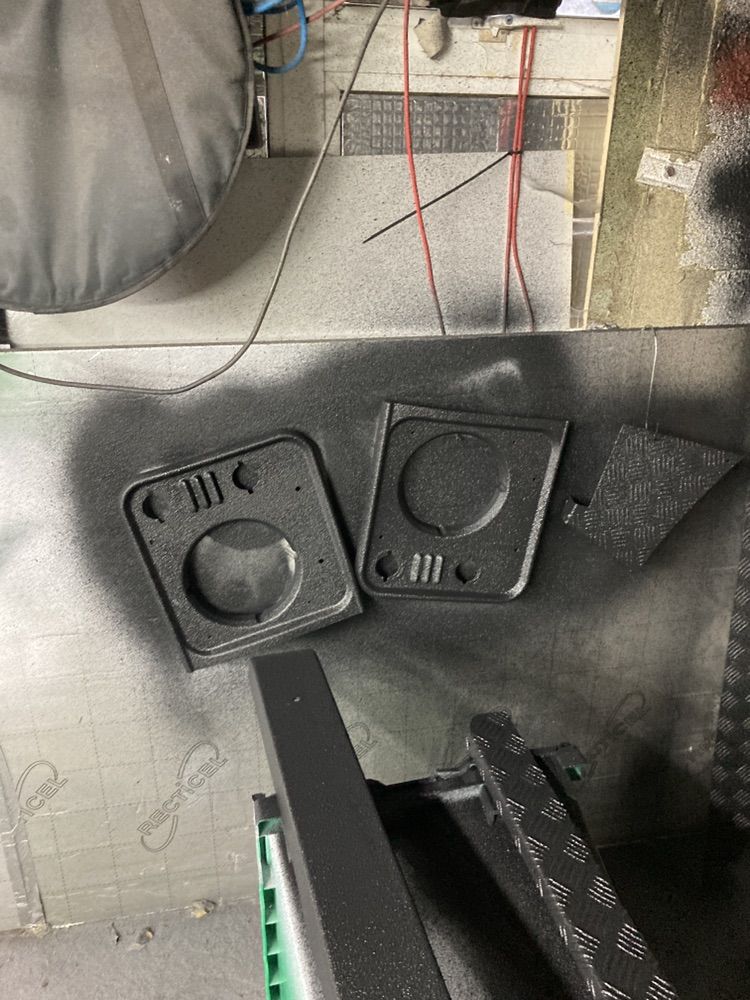

LAST OF THE BLACK BOGEYS!!
Final Dust off and done, just got to wait a few days for full cure, got the wood burner going in the workshop to take the damp out the air etc.
Final Dust off and done, just got to wait a few days for full cure, got the wood burner going in the workshop to take the damp out the air etc.
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

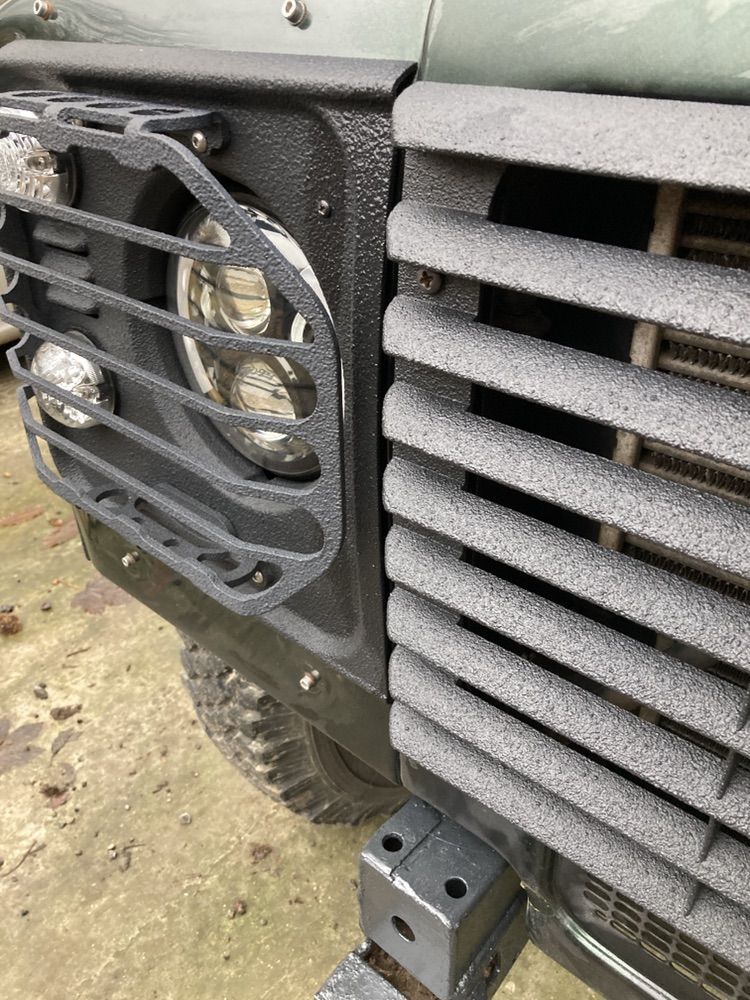

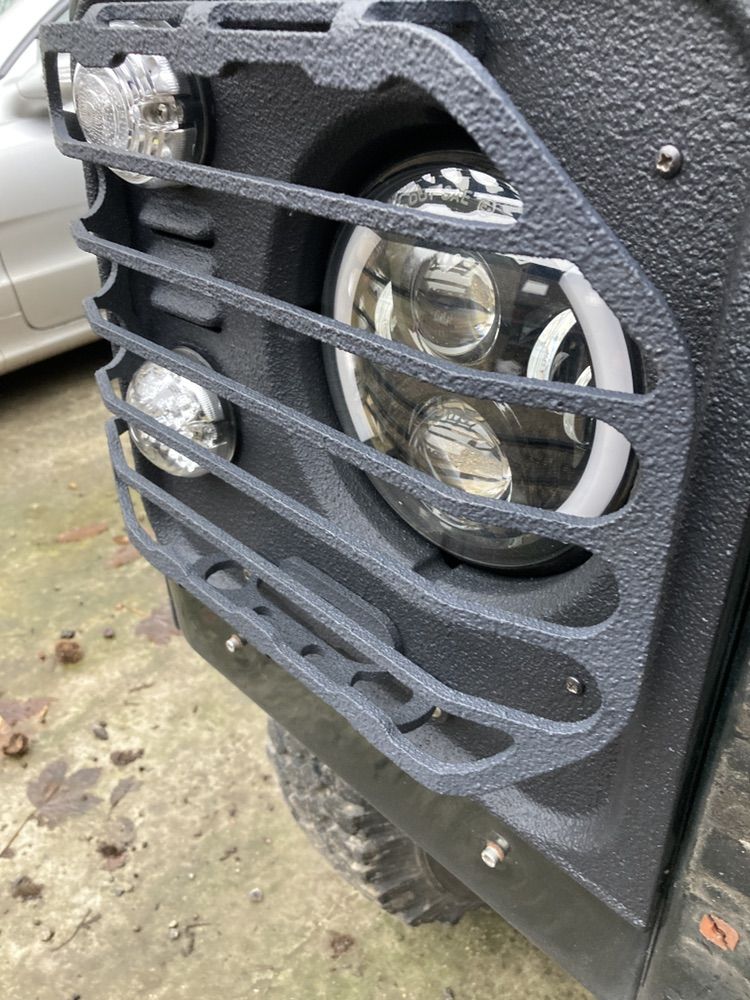

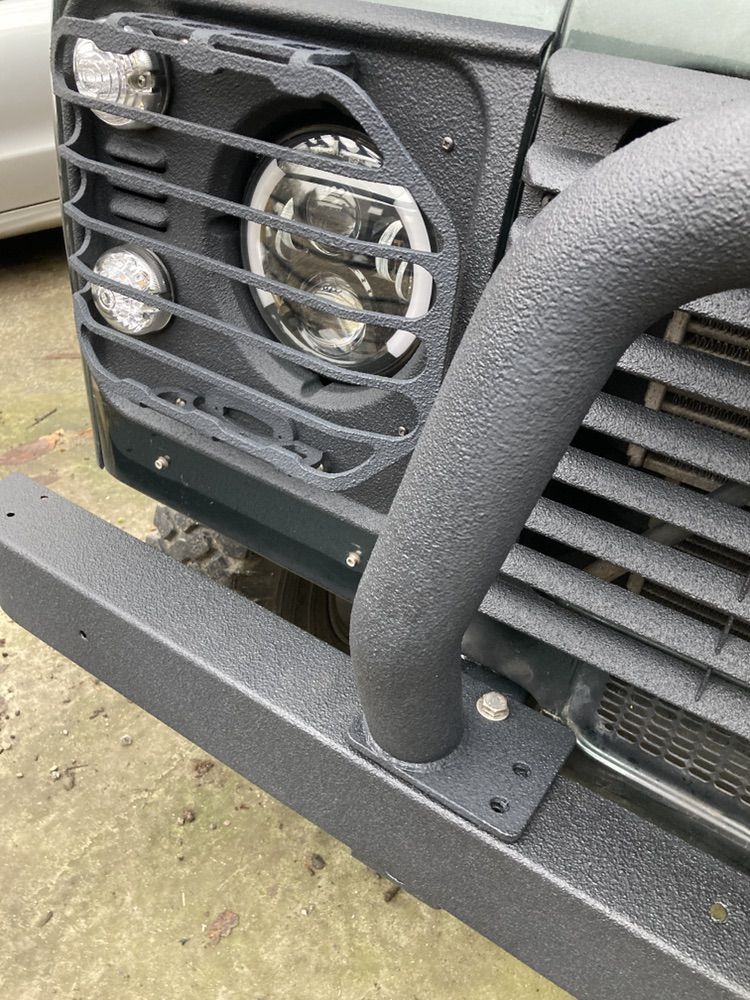

Refit.
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT
Have a few drying room type heaters (long white cylinders) and a fan going in workshop to try help fully cure, odd sutff changes colour goes a bit blue when drying then back to black again.
POXY EPOXY does not like cold, the applicaiton was withinthe temp tolerances for the product, just means S L O W.....
POXY EPOXY does not like cold, the applicaiton was withinthe temp tolerances for the product, just means S L O W.....
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

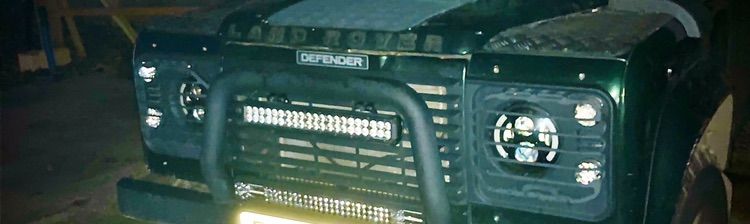

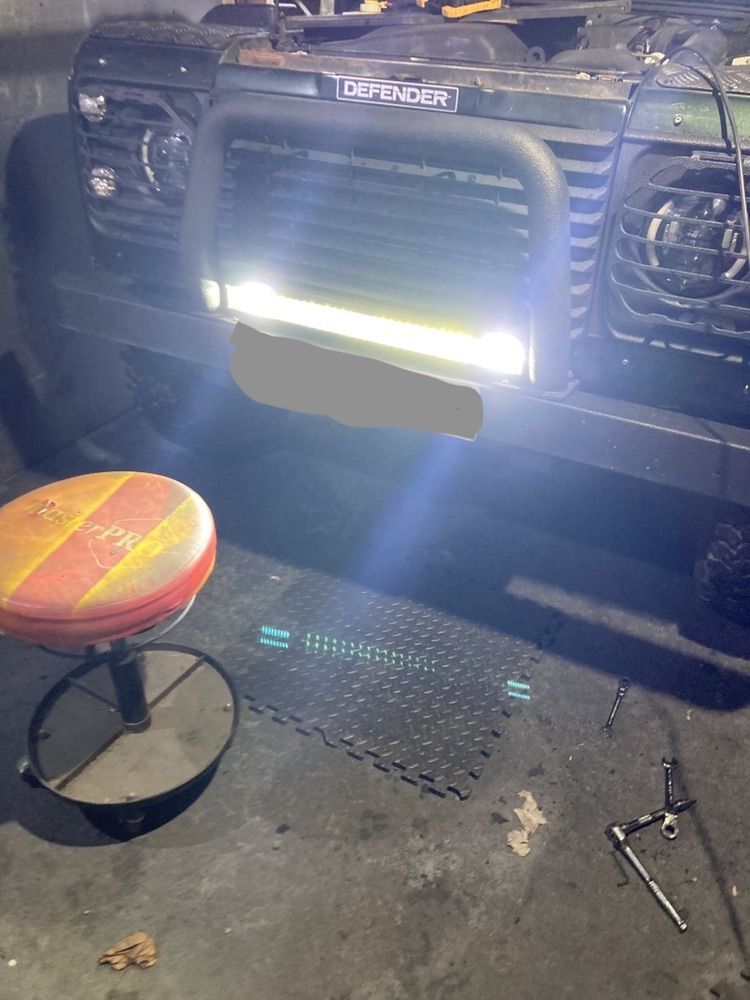

First new light bar installed........
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT
bankz5152
Well-Known Member
- Posts
- 9,329
- Location
- South London/North Kent
Hmmm looks familiar
Excellent work, looks really good.
I need to blast and repaint most of my bits now. 5 years daily on the road has started to show!
Excellent work, looks really good.
I need to blast and repaint most of my bits now. 5 years daily on the road has started to show!
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

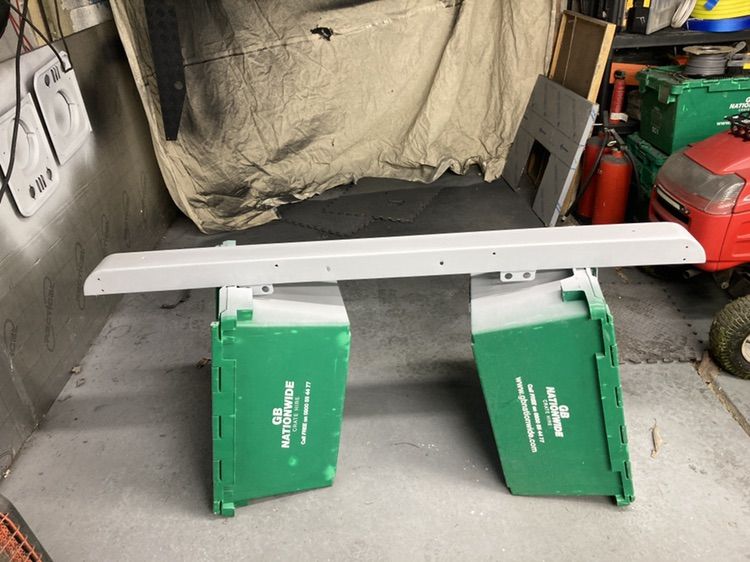

Yep just a repaint, same as before but with raptor instead of sheite stone chip!
Only a temp thing, and chance to play with new compressor, new bumper soon and steering guard, wider arches, new shocks n springs, then the clutch......
New portable daylight, light bars are fine but the casing just corrodes, but they cheap and they bwight as fook!
Only a temp thing, and chance to play with new compressor, new bumper soon and steering guard, wider arches, new shocks n springs, then the clutch......
New portable daylight, light bars are fine but the casing just corrodes, but they cheap and they bwight as fook!
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

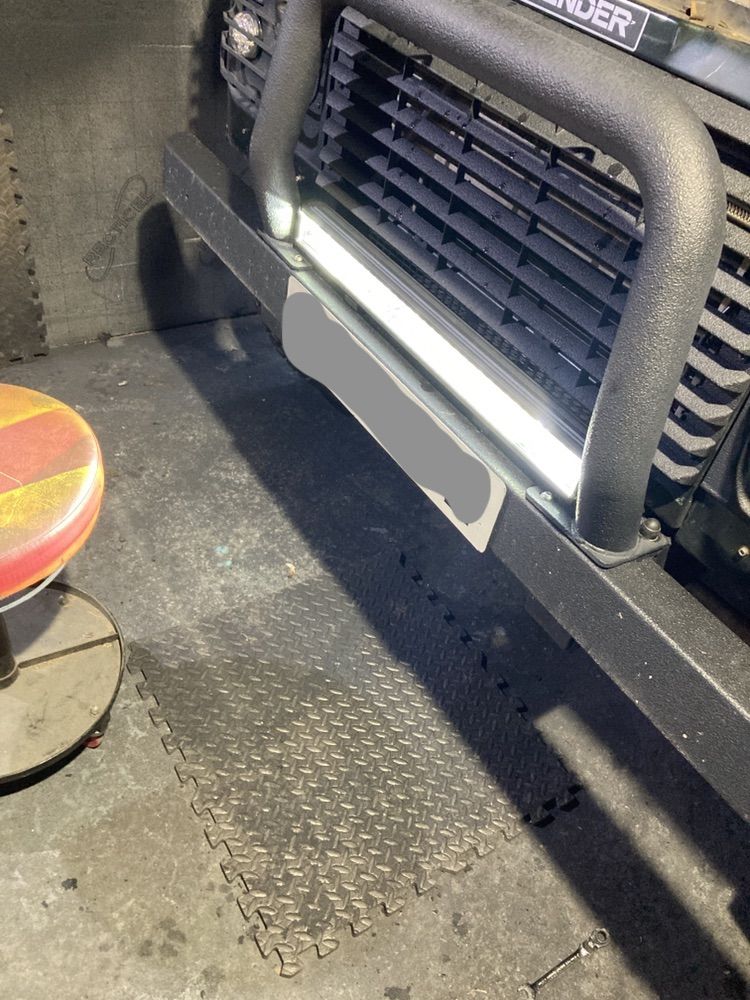

Lightbar #2
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

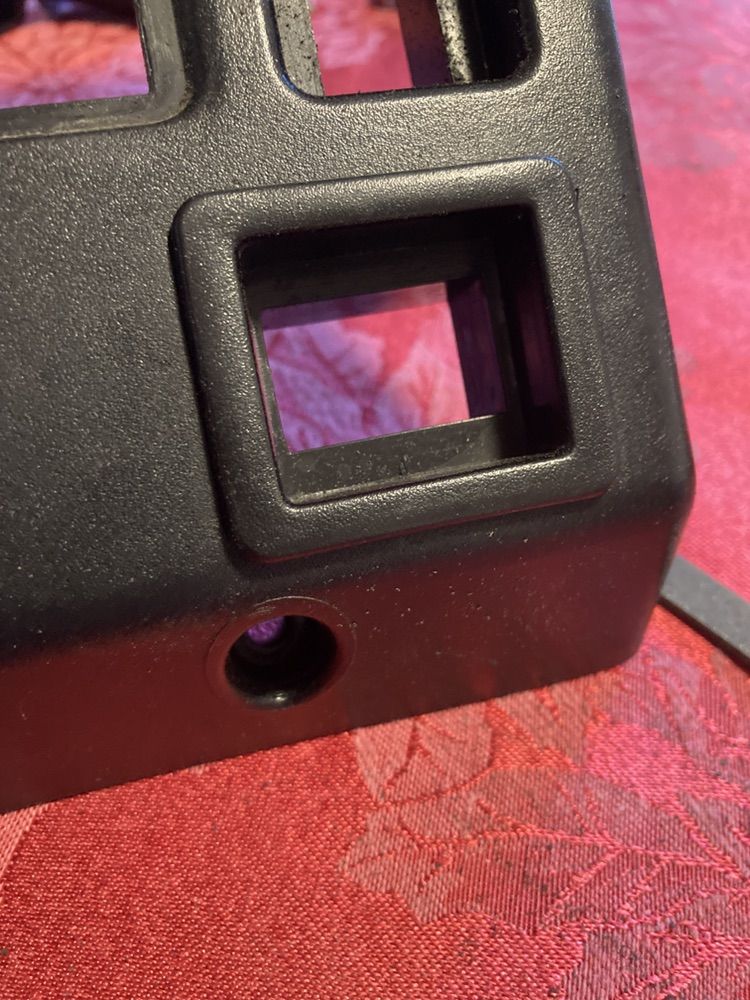

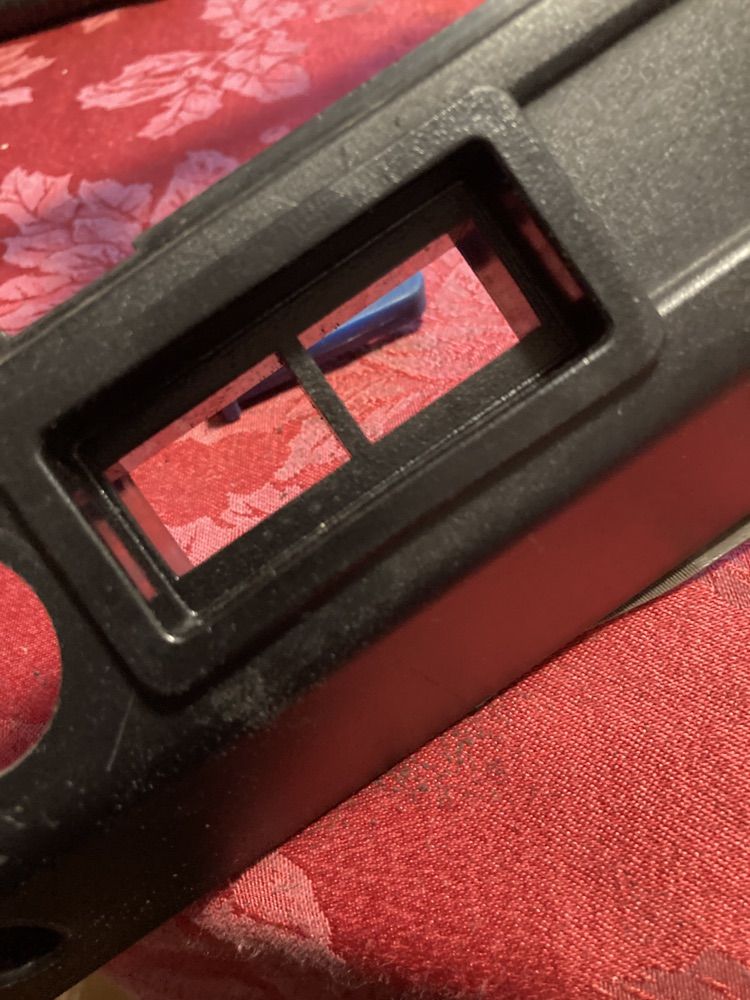

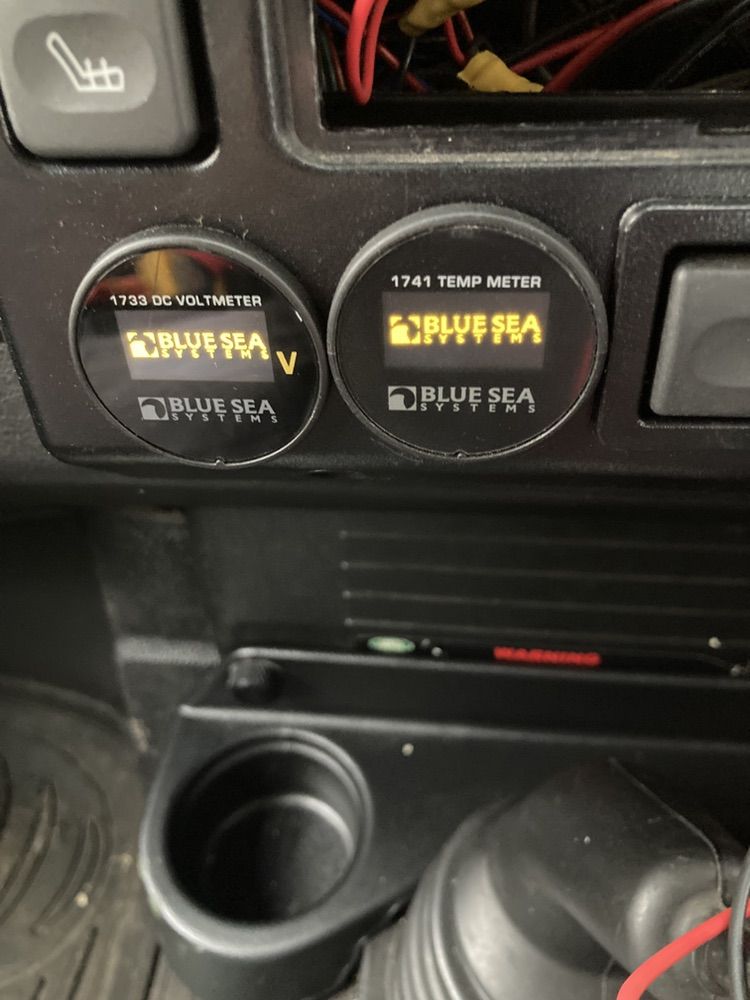

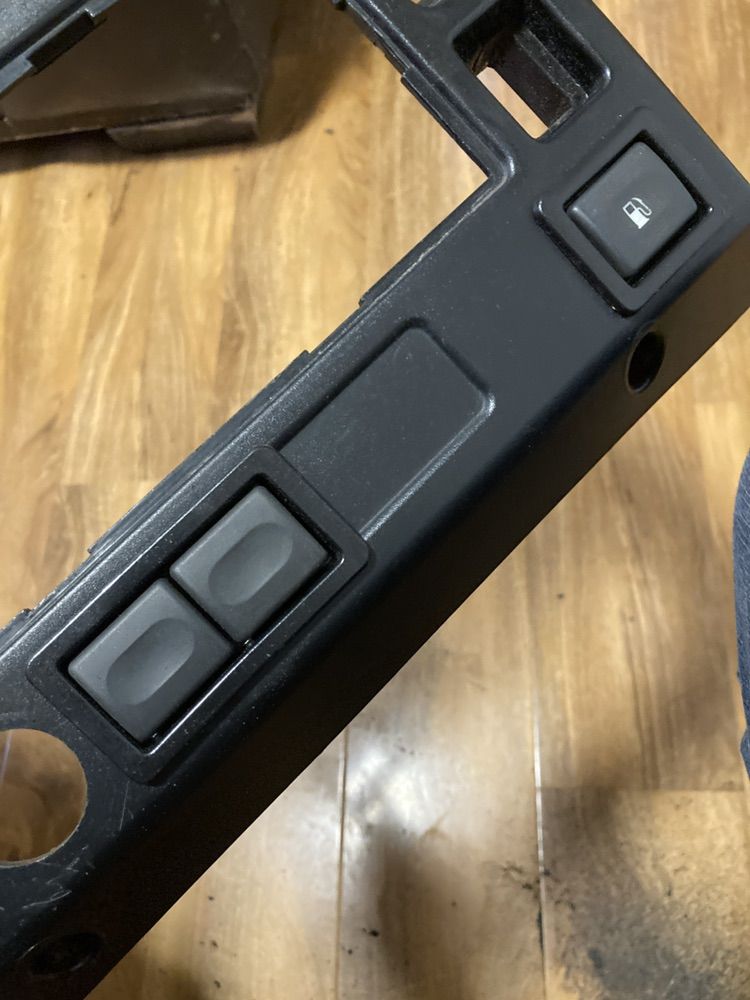

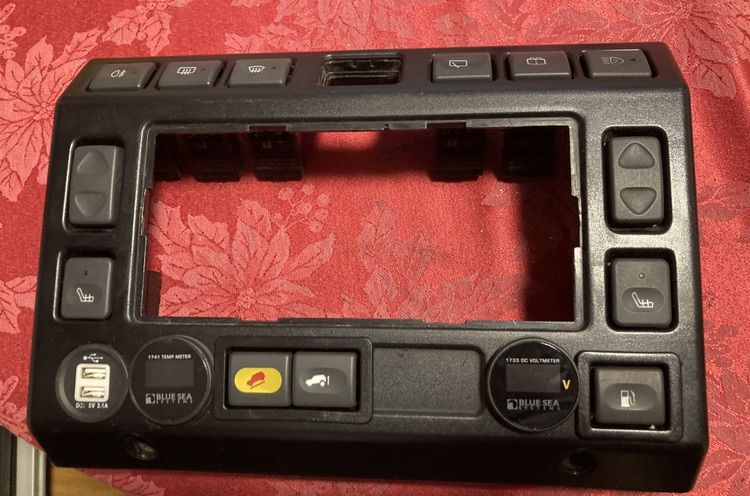

Centre console Additional Switches & Blue Sea Temp( Hill descent and traction control fitted )
View attachment 256495
)
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

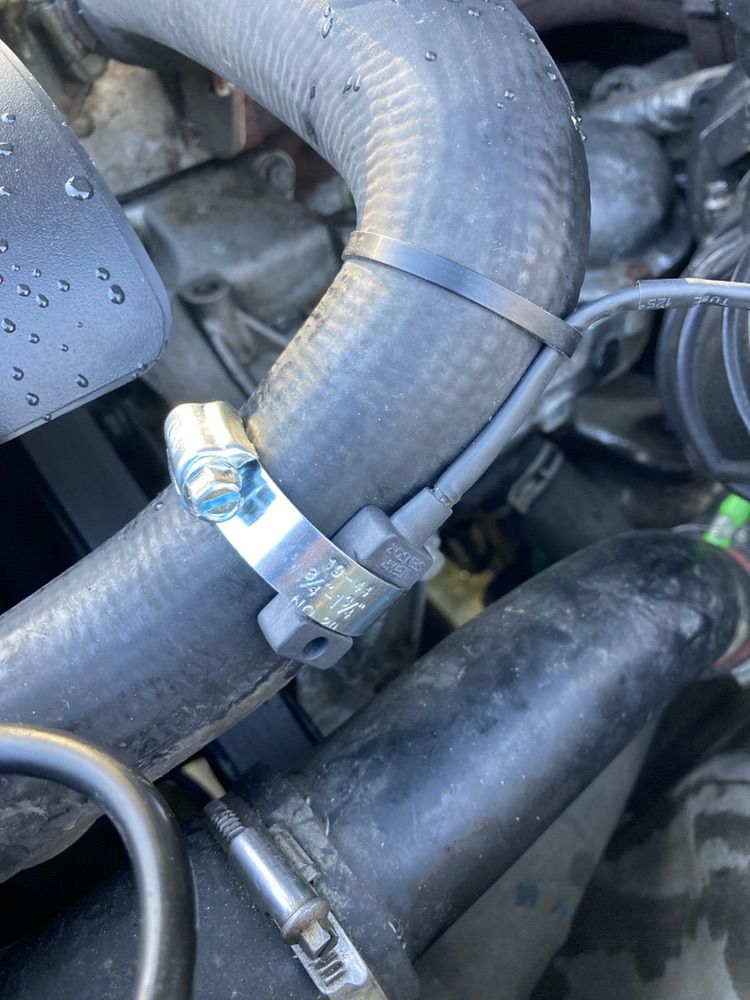

Done, Sensor is designed to be fitted as below, to a coolant exhaust / waterhose on a marine engine) Range is -20C to 150C, popped a bit of shrink wrap along length of the sensor wire, actual sensor is metal.
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

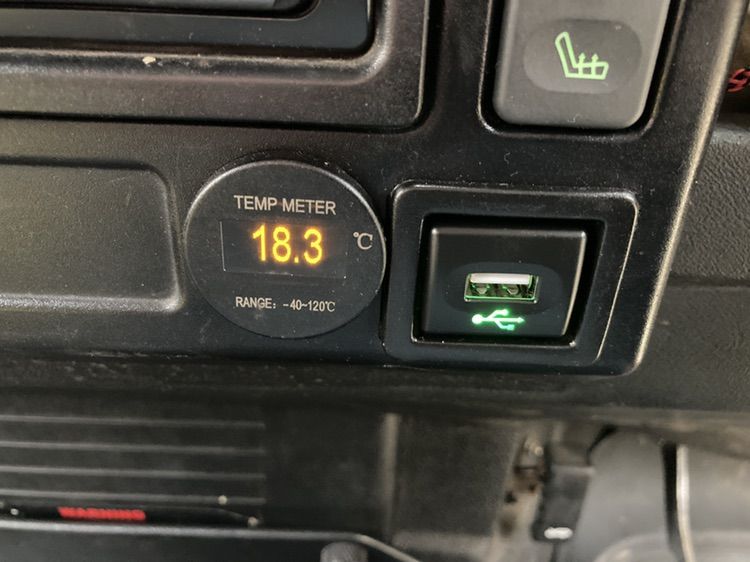

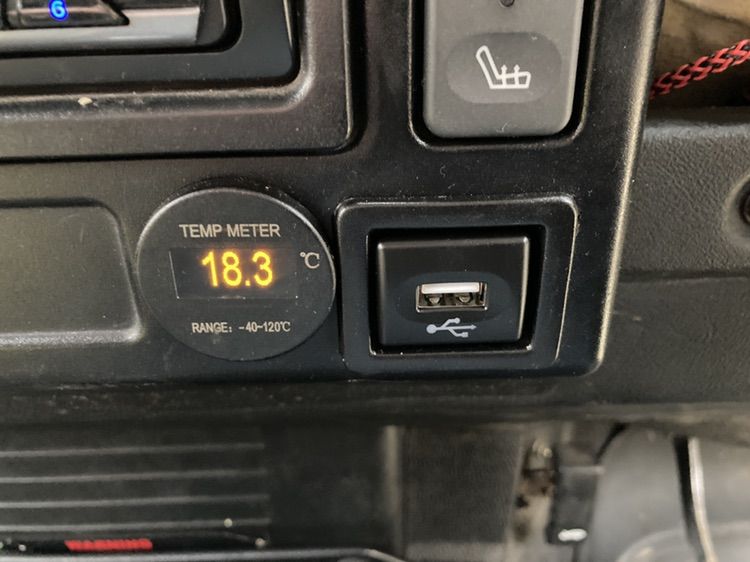

- USB Socket Install (Outside air temp to the left)

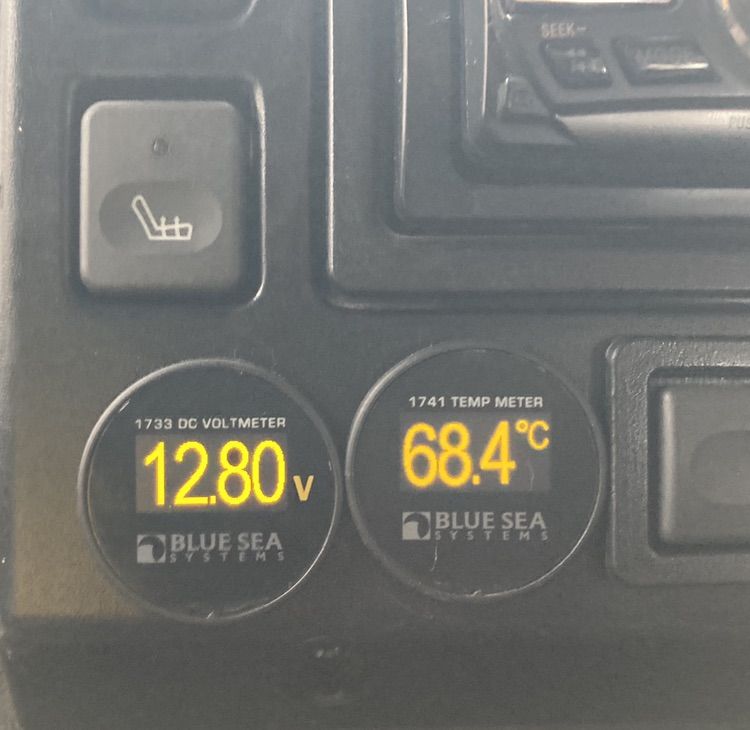

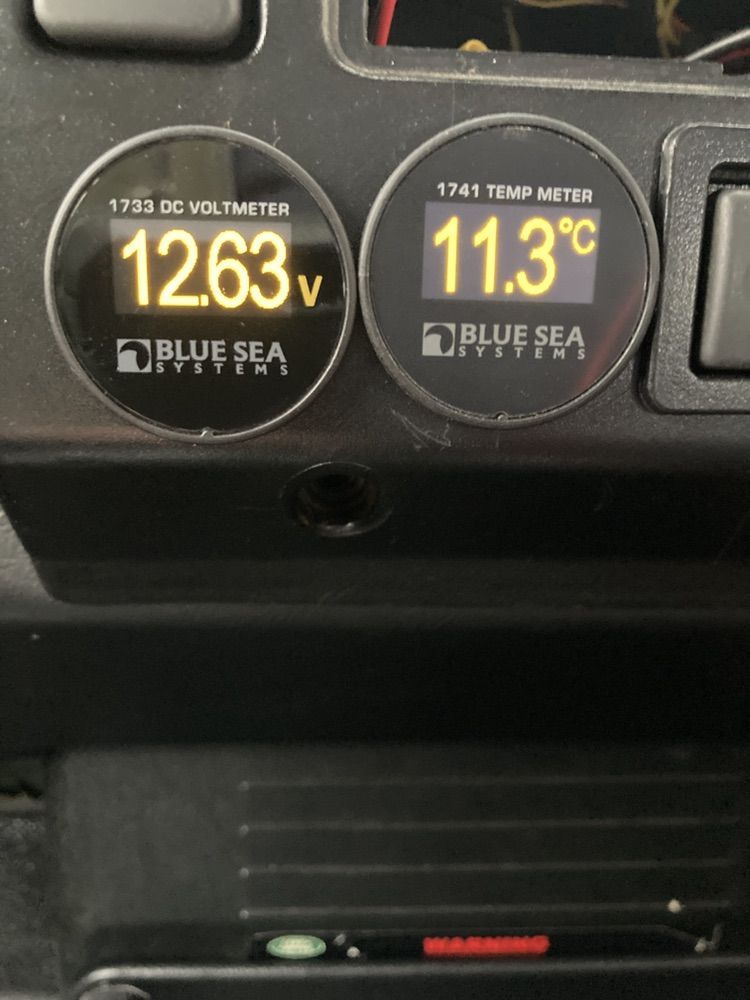

- Battery Voltage and Coolant Temp
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

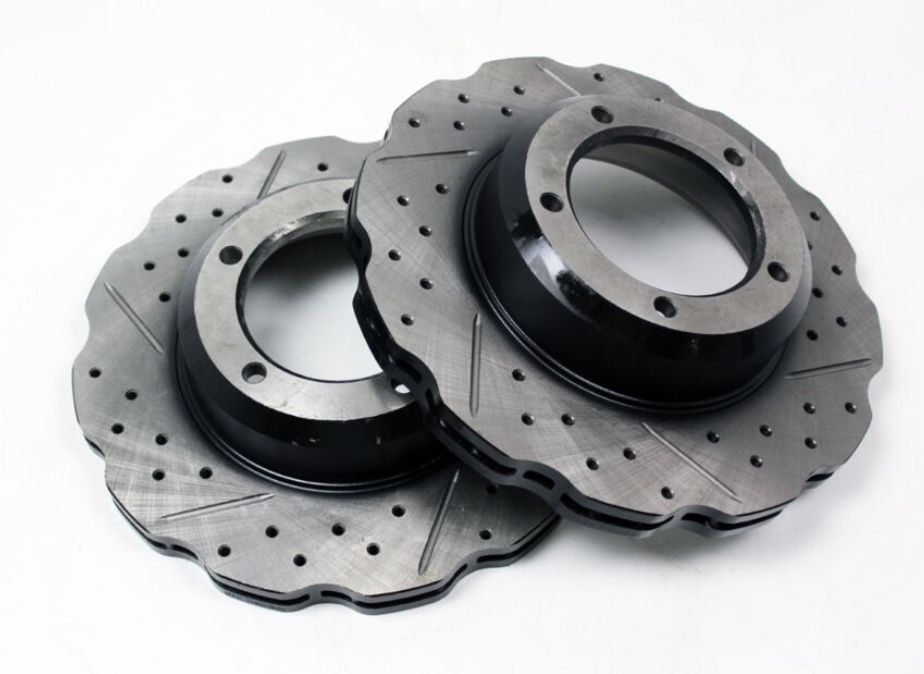

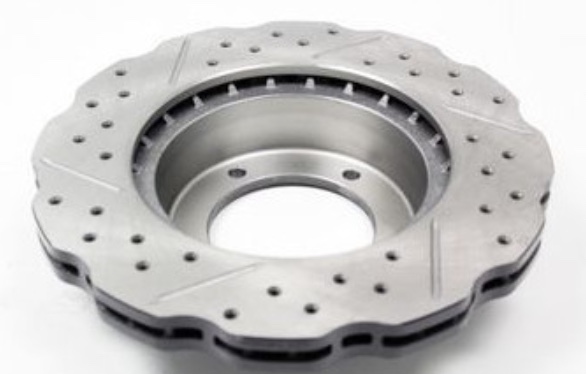

New brake discs......
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT
Last edited:
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

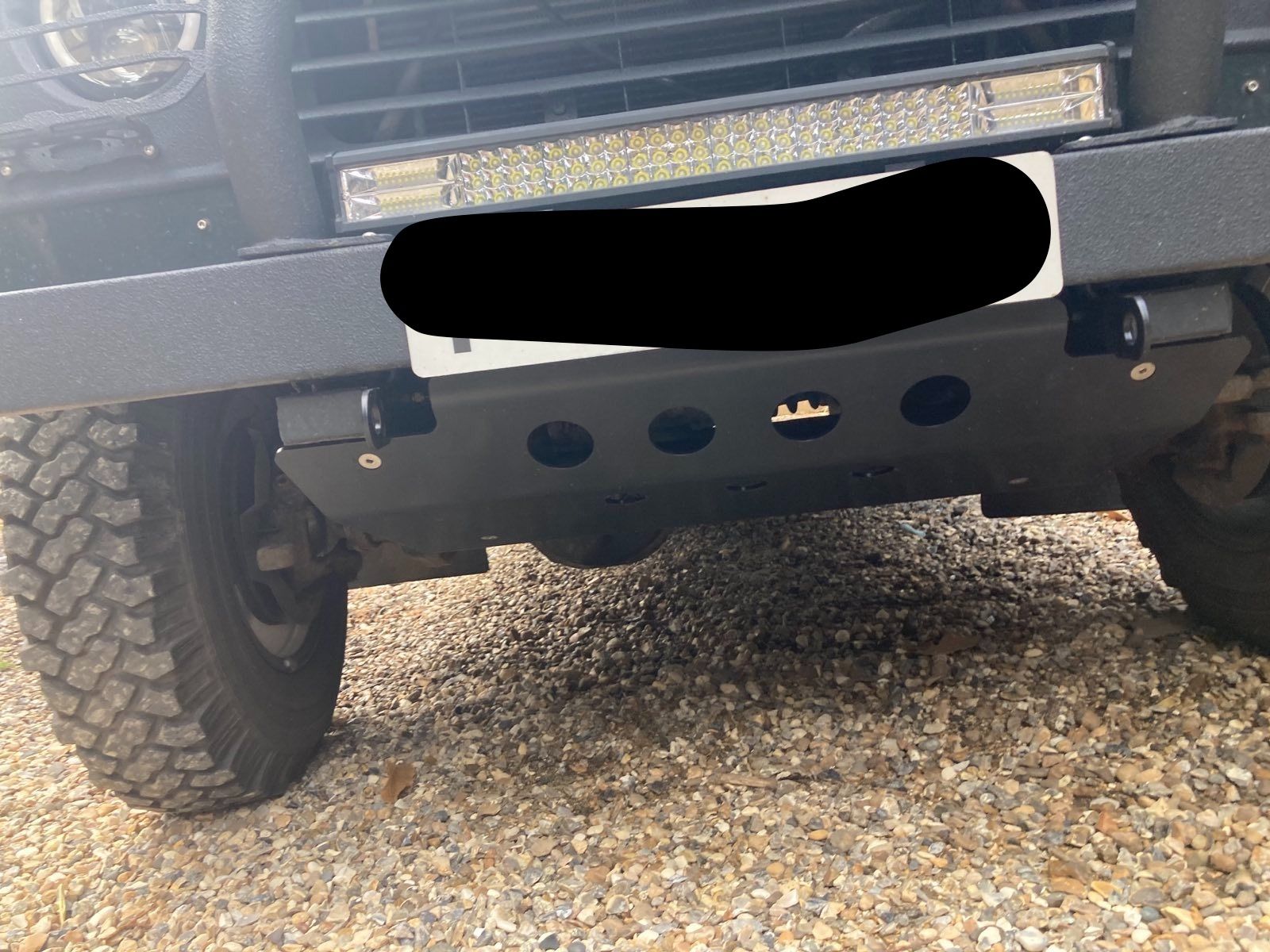

finally got round to fitting it, bought this 18 months ago (guard)
months ago (guard)
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT
MOT PASS just shows what regular maintainence can do!
MOT history checker is a sea of green lol.
MOT history checker is a sea of green lol.
Last edited:
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

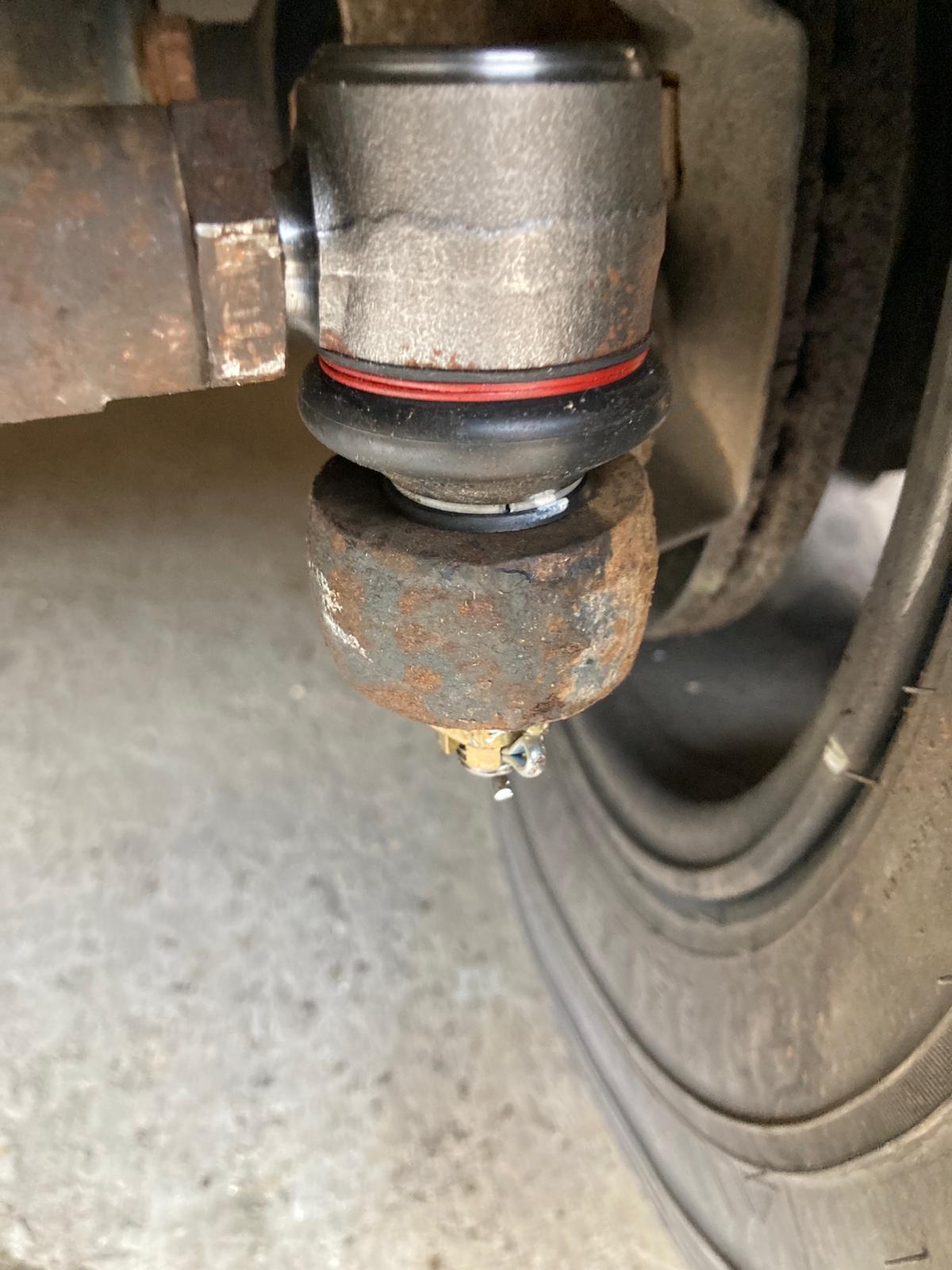

Another sunday, another ball joint......Replaced with Lemforder. think the old was was made by Happy Shopper....
Thought i had one lying around, so after a rummage ( which looked like a dog digging a hole in sand) found it in the garage stored with door interior parts WTF ? dont ask.
Thought i had one lying around, so after a rummage ( which looked like a dog digging a hole in sand) found it in the garage stored with door interior parts WTF ? dont ask.
KISSMYAURA
Well-Known Member
- Posts
- 2,818
- Location
- KENT

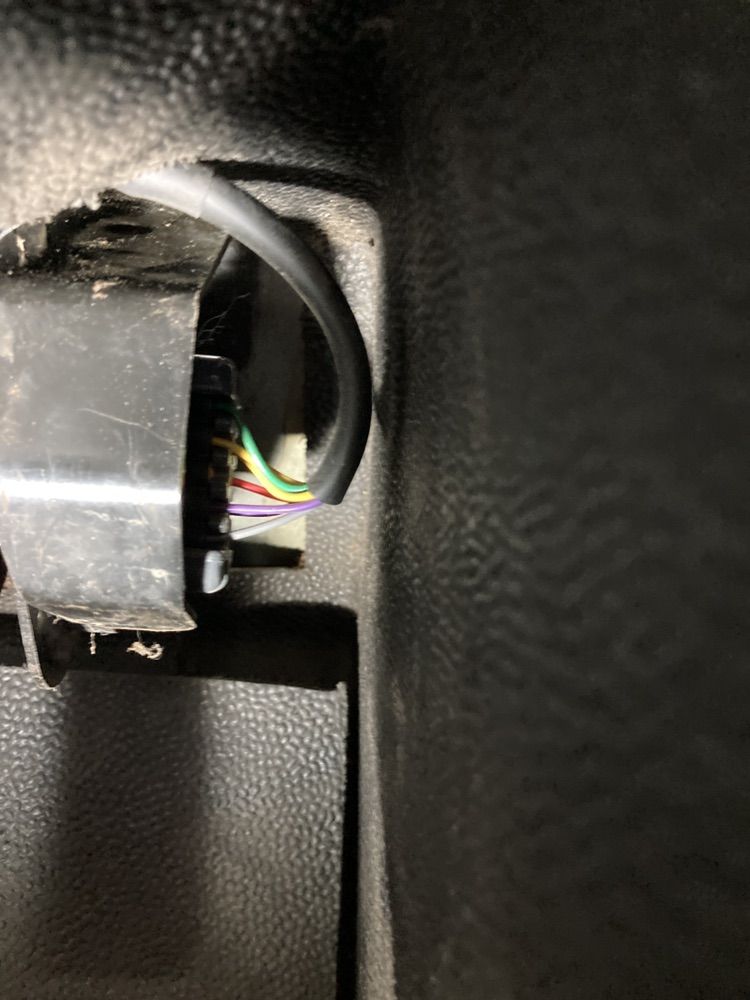

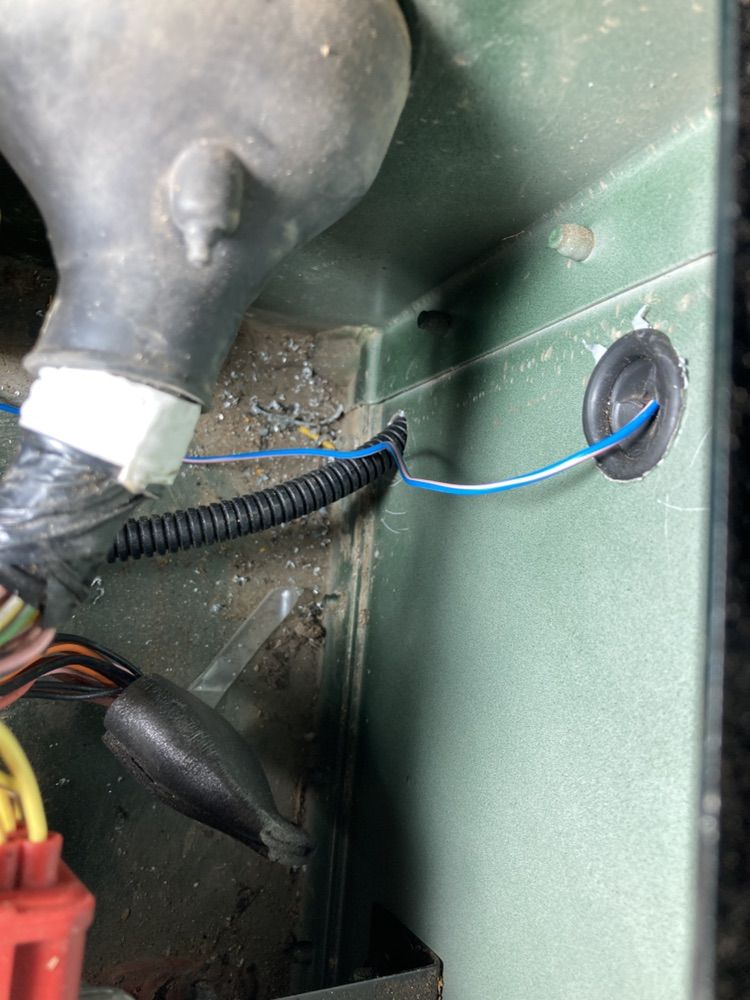

FFS Throttle Potentiometer fix.
Did not knwo this was a TD5 common 'thing', anyway flats spots on throttle then lost throttle, MIL light on but engine running.
All points to wire chaffing somewhere, so considering i have the attention span of a kitten on cocaine, so dont play nicely with broken wire tracing,

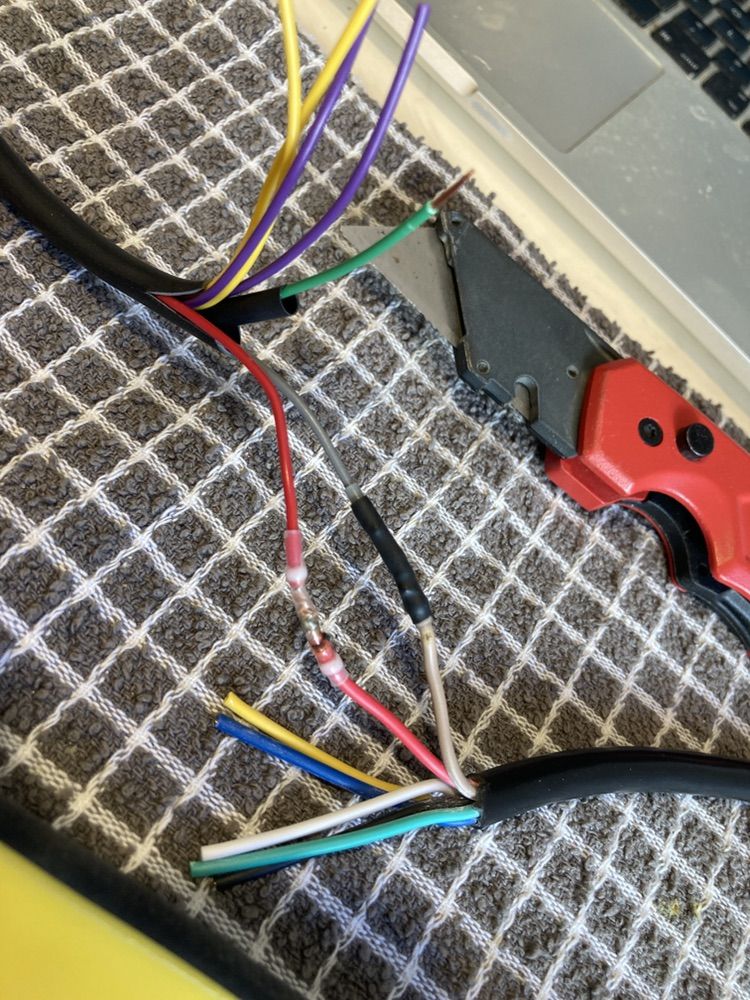

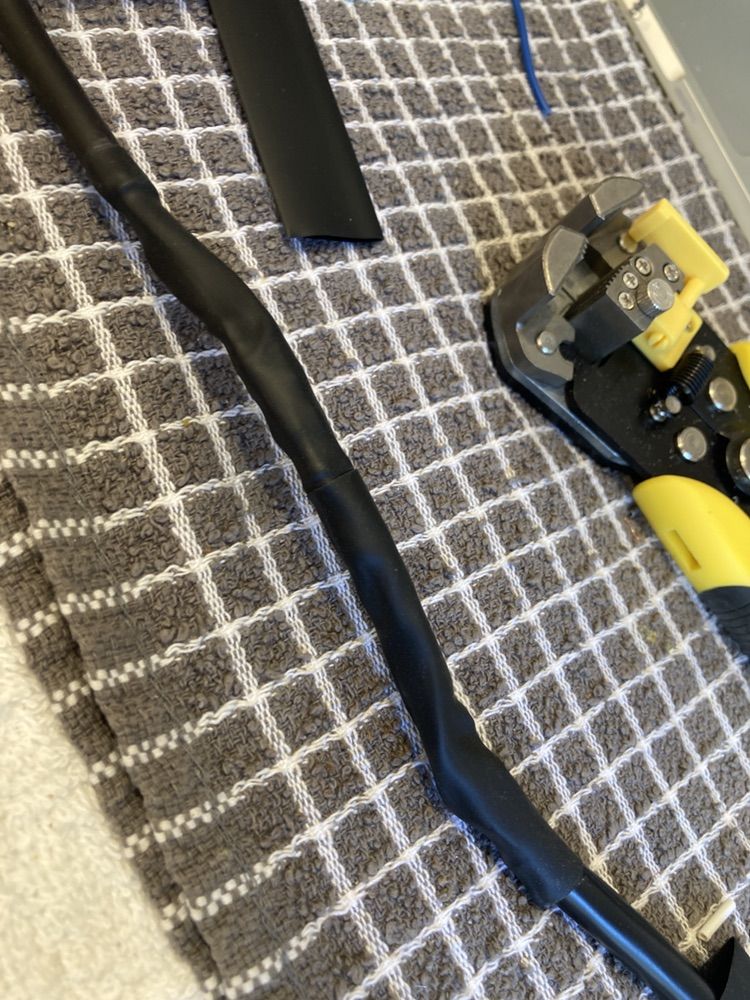

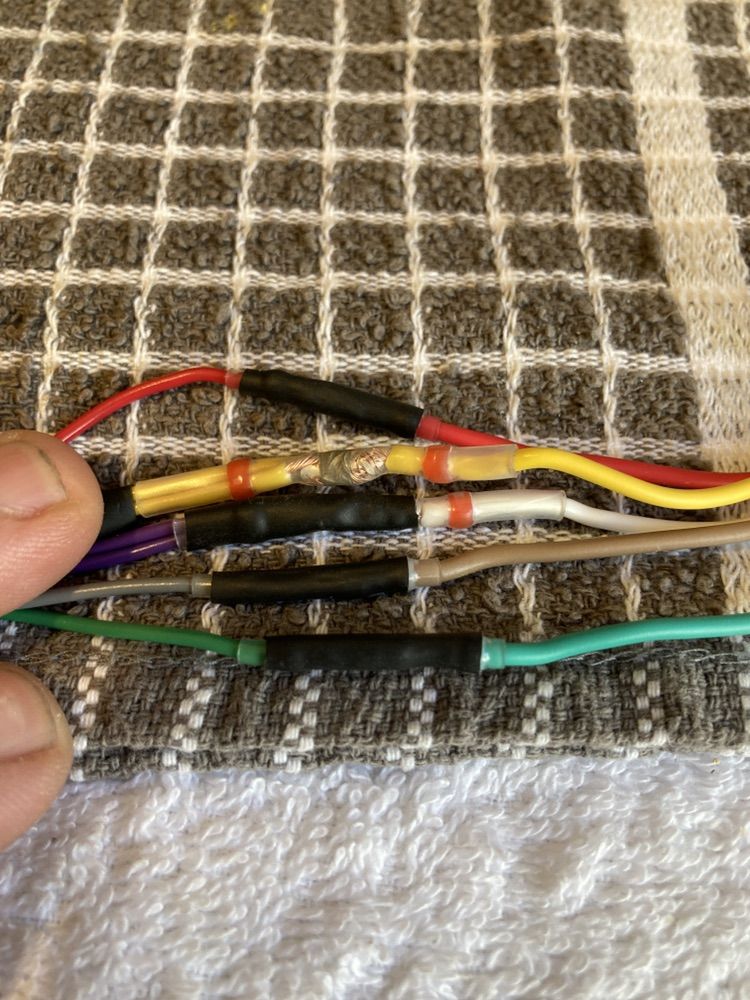

I decided to just knock up my own jump loom, after mucheos researcheos seems the thing to do. not keen on chomping the ecu wires, so decided to make it a full clean install and orginal wiring left intact just disconnected, so reversable if one day i decide to trace the brake.
So crimped on ecu females to the jump wire and switched them out ont he Black ECU plug.
Cue A team music, roll ups, john smiths, and my best 'leave me alone' look to the dogs and mrs I set to it.
Test drive all good, much betterer no more flat spots and having to drive home on tick over.
Did not knwo this was a TD5 common 'thing', anyway flats spots on throttle then lost throttle, MIL light on but engine running.
All points to wire chaffing somewhere, so considering i have the attention span of a kitten on cocaine, so dont play nicely with broken wire tracing,
I decided to just knock up my own jump loom, after mucheos researcheos seems the thing to do. not keen on chomping the ecu wires, so decided to make it a full clean install and orginal wiring left intact just disconnected, so reversable if one day i decide to trace the brake.

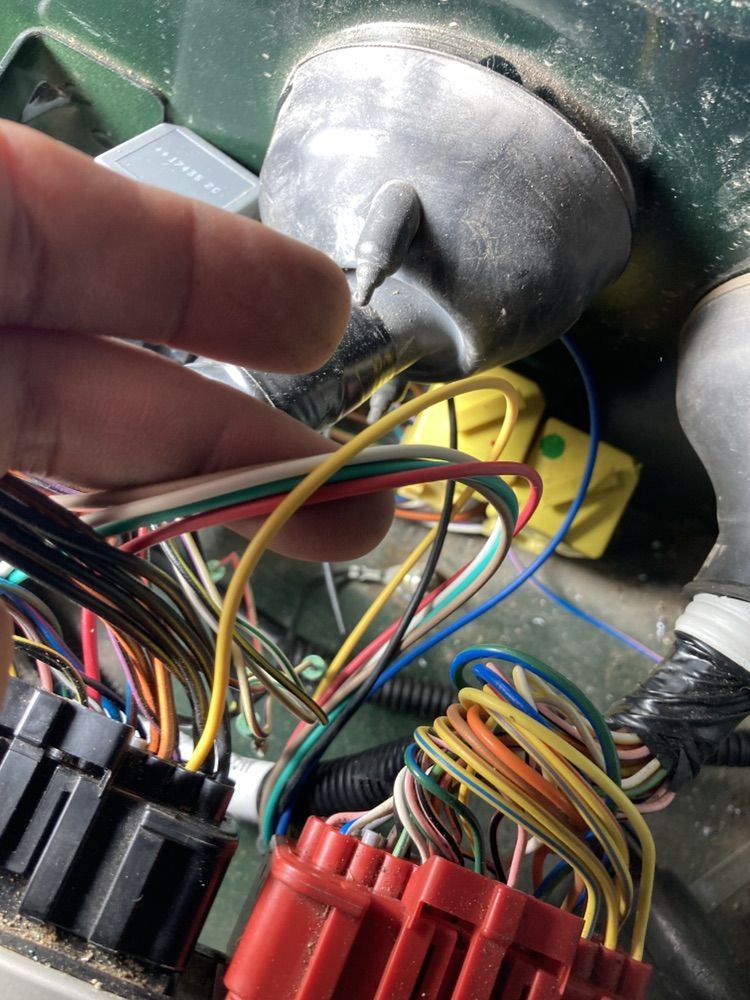

So crimped on ecu females to the jump wire and switched them out ont he Black ECU plug.
Cue A team music, roll ups, john smiths, and my best 'leave me alone' look to the dogs and mrs I set to it.
Test drive all good, much betterer no more flat spots and having to drive home on tick over.
