My 110 1995 300tdi

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
With new guards fitted, went for a drive along a green lane at the bottom of the South Downs. Mostly gravel with a few sections with overhanging trees and 1 section with ruts and trees to demand low range to get through.
A very enjoyable few hours


Attachments

  • IMG_1027.jpg
    188.8 KB · Views: 251
  • IMG_1026.jpg
    178 KB · Views: 228
  • IMG_1025.jpg
    228.9 KB · Views: 260
Before Landrover Festival trip, I thought it was time to change the cam belt as the previous owner wasn't sure when it was last changed.
Standard strip and rebuild, no dramas.
Glad I did check it, nice and furry inside the cover and signs of splitting on the edges
IMG_0913.jpg IMG_0914.jpg IMG_0915.jpg
Full upgrade kit with new flanged pulleys, seals and tensioner. Paddock Spares once again. Good for another 60k miles now...

With new guards fitted, went for a drive along a green lane at the bottom of the South Downs. Mostly gravel with a few sections with overhanging trees and 1 section with ruts and trees to demand low range to get through.
A very enjoyable few hours
Went along same lane on the weekend and found a fallen tree across the lane which is now too low for the roof rack to go under. Had to remove the roof rack mid-lane and carry it past the tree and refit. Joys of laning right...
IMG_1104.JPG IMG_1105.JPG IMG_1106.JPG IMG_1107.JPG

I took the family along to True Grip 4x4 experience in Kent today and had a great time.
We had a bespoke package with my son, my wife and myself having an hour each in one of their vehicles (we forgive them for having a Toyota hilux) and then I had an hour with the instructor taking the Defender round.
I read how awesome the Defender is but was blown away by how it handled up and down the 45deg + slopes. 1st gear low range and just over tick over throttle and it climbed everything. The pictures don't do it justice but have to share some.
If you want some 1:1 training / experience on 4x4s, I can highly recommend True Grip 4x4. Our instructor, Dave, was awesome.
1Nov01.jpg 1Nov02.jpg 1Nov07.jpg 1Nov14.jpg

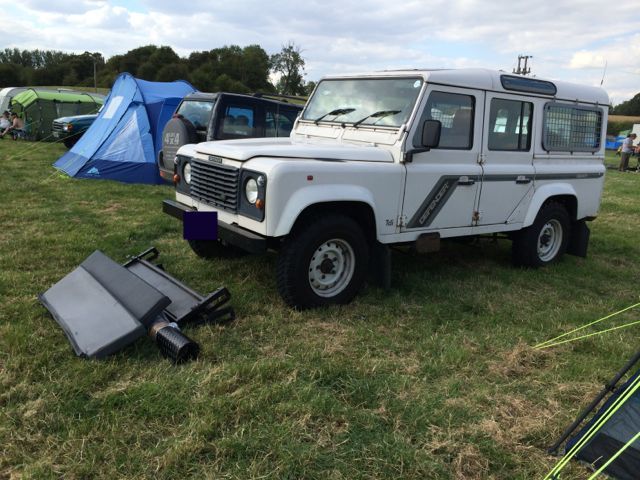

View attachment 89193

Having bought the 110 from a great guy in Sussex, he builds steam cars for a hobby so the engine and underbody were in good condition and it runs great at 70mph.
The body and inside are the first small projects.
  • Thorough clean inside which brought up the white internals a treat
  • New radio and alarm, so nice to work on a vehicle with standard wiring and no laptop needed
  • Found cheap central locking solenoids in Maplins so had to install them in the Landy. Used S/S flexible tap connector braid (£1.50 from Screwfix) to protect the wires which works well and looks good too. Works with the alarm so one click action to lock/unlock
  • Went to LandRover Fest and bought new rubber flooring for the rear and bench seats which are too long but will be a project to shorten them (they were a bargain that had to be had)
  • All door bottoms are rusted through, bought repair sections and will repair each door instead of replacing with new one
I've changed the order to put newest jobs at the top to simplify seeing the progress.
Please share thoughts, comments and advice.

Remove roof lining and stick vinyl back in place
The roof lining vinyl is in good condition but had suffered the common delimitation from the backing material.
The lining sections were removed relatively easily using trim extractor tools.
Roof is in very good condition.

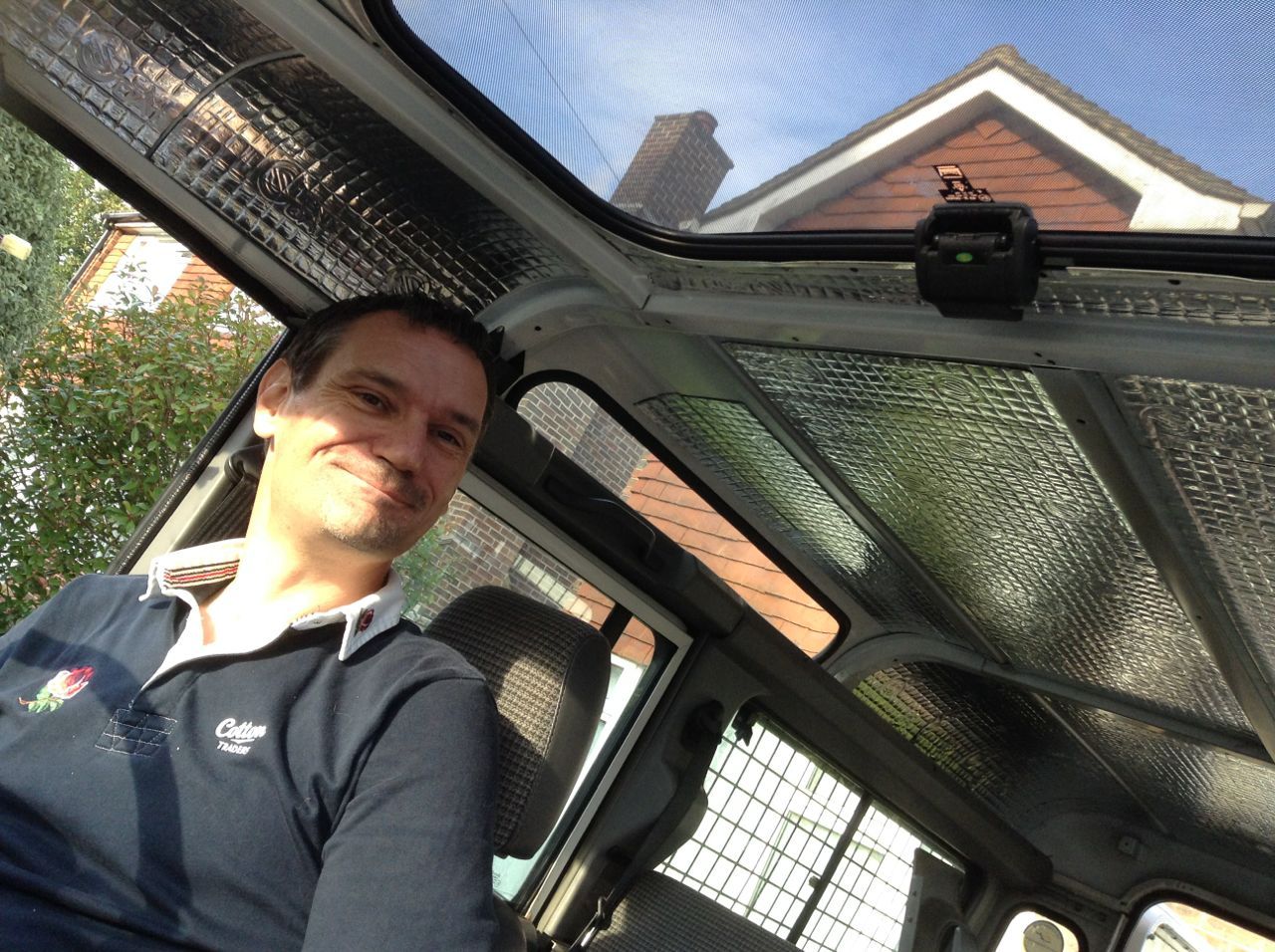

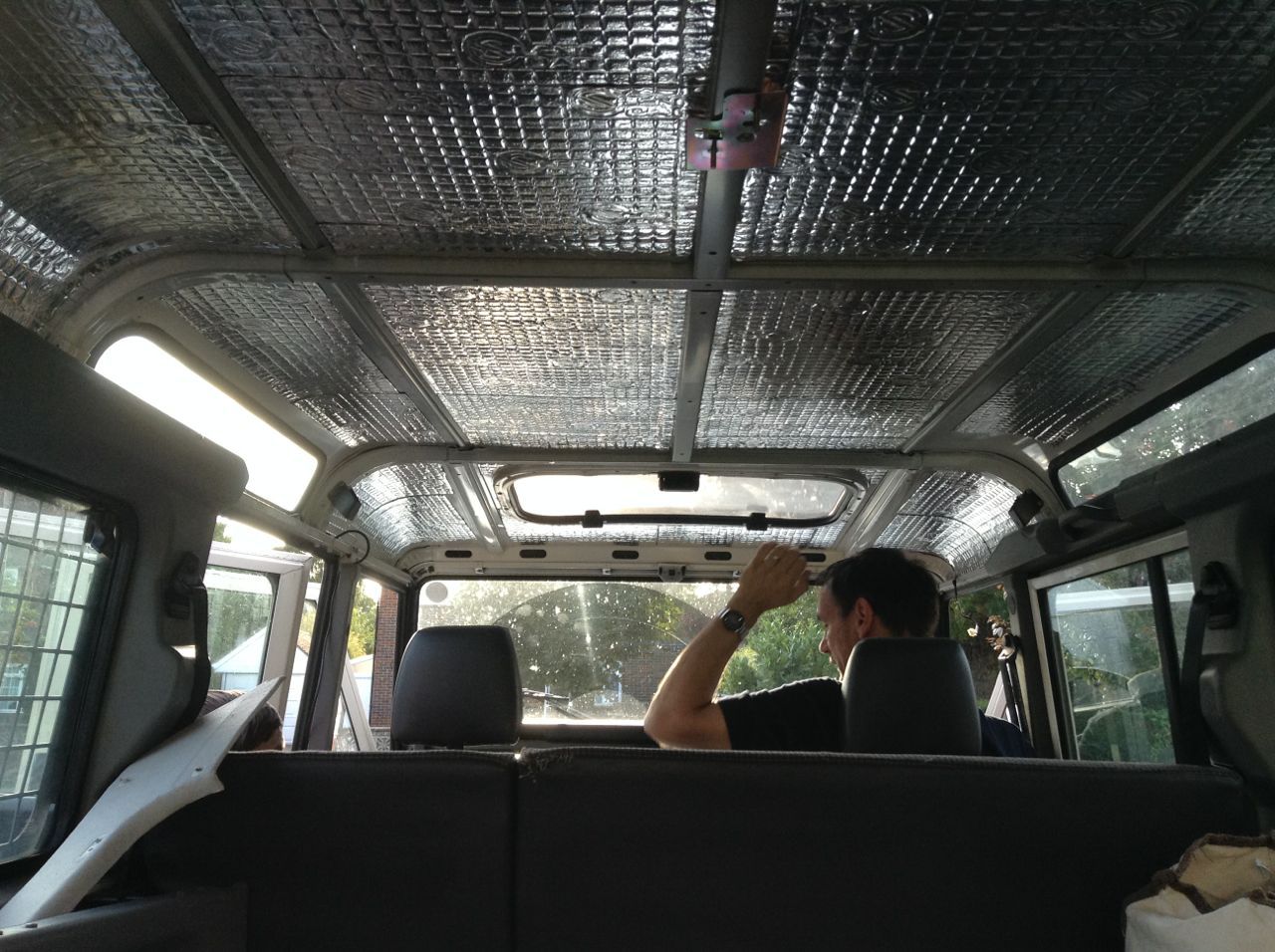

I took the opportunity to add soundproofing to the roof panels to reduce the running noise.
View attachment 90002 View attachment 90003

I stripped and re-stuck the vinyl from the linings which lasted nearly a year, then started to delaminate again.
So, finally had to buy new complete linings - see below for updates.

Refurbish the front plastics which have bleached to a dull grey

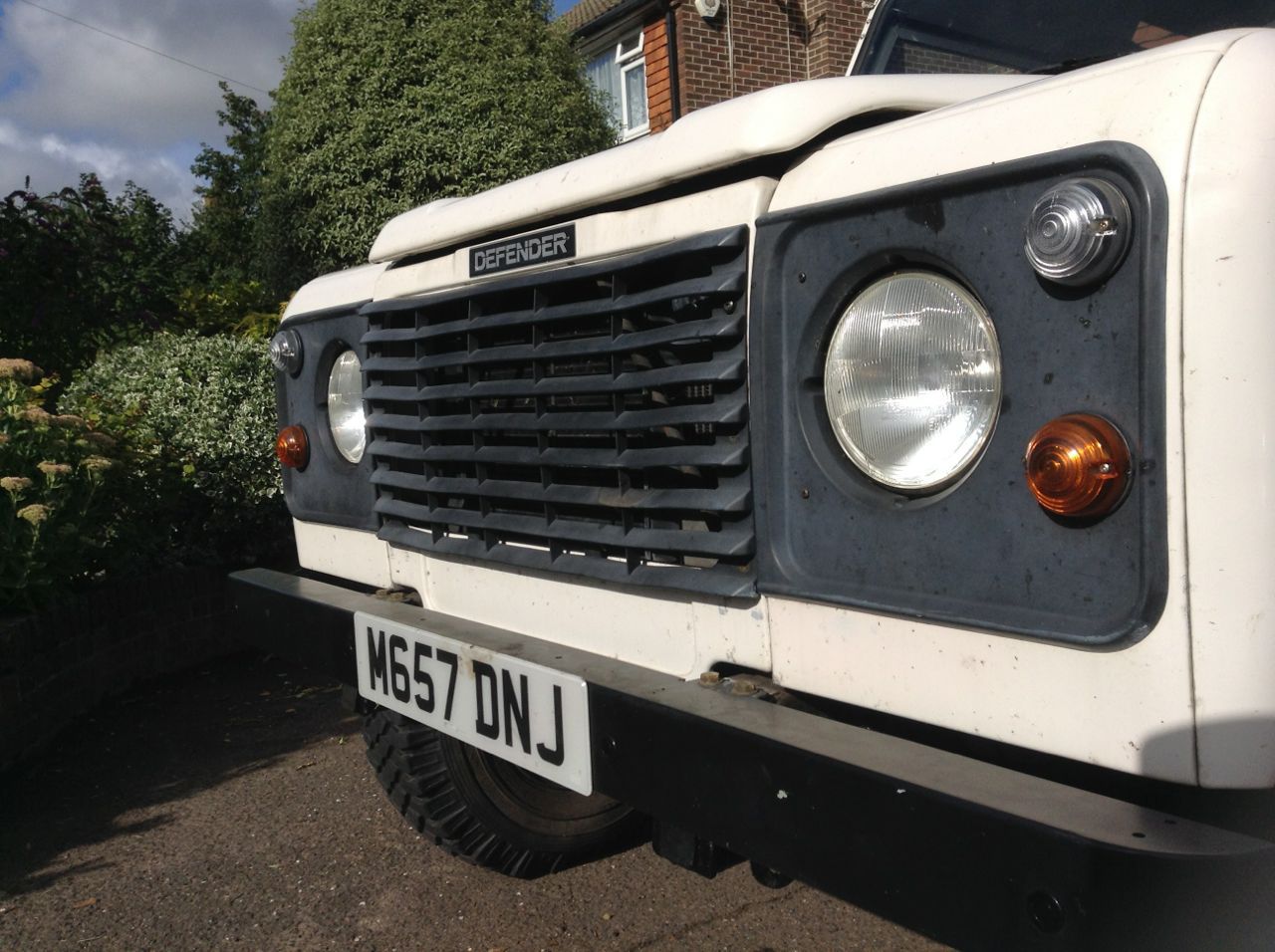

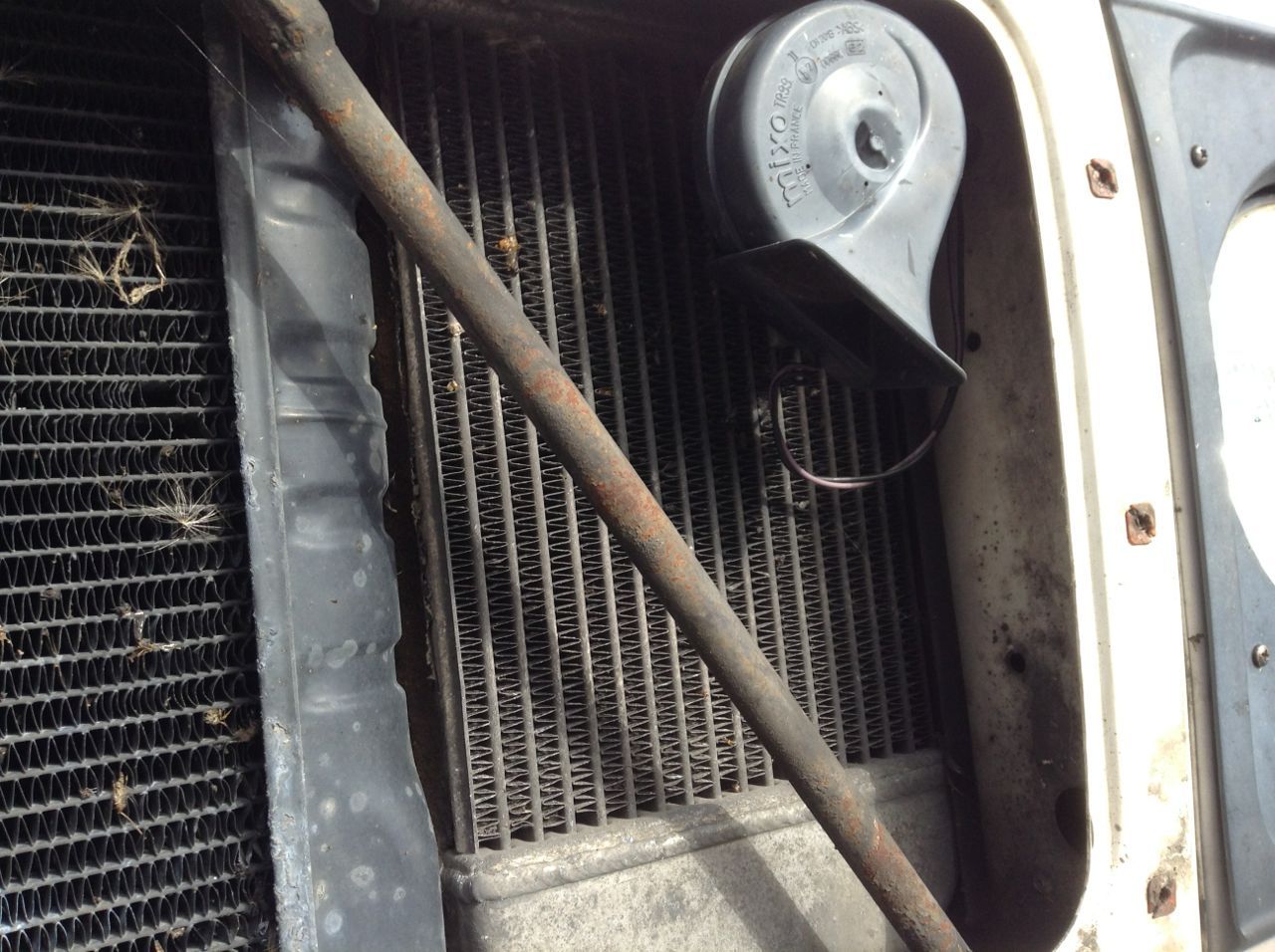

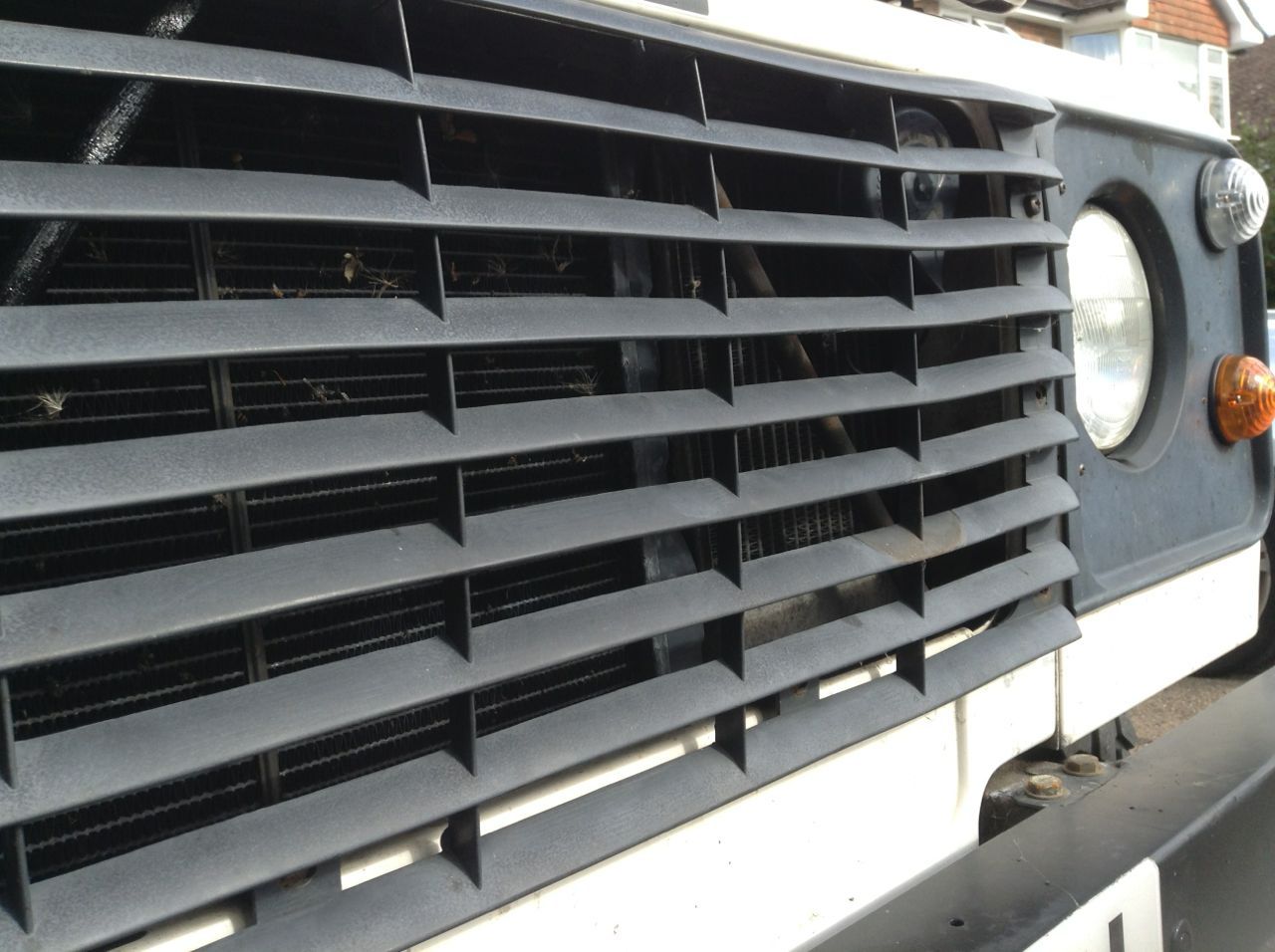

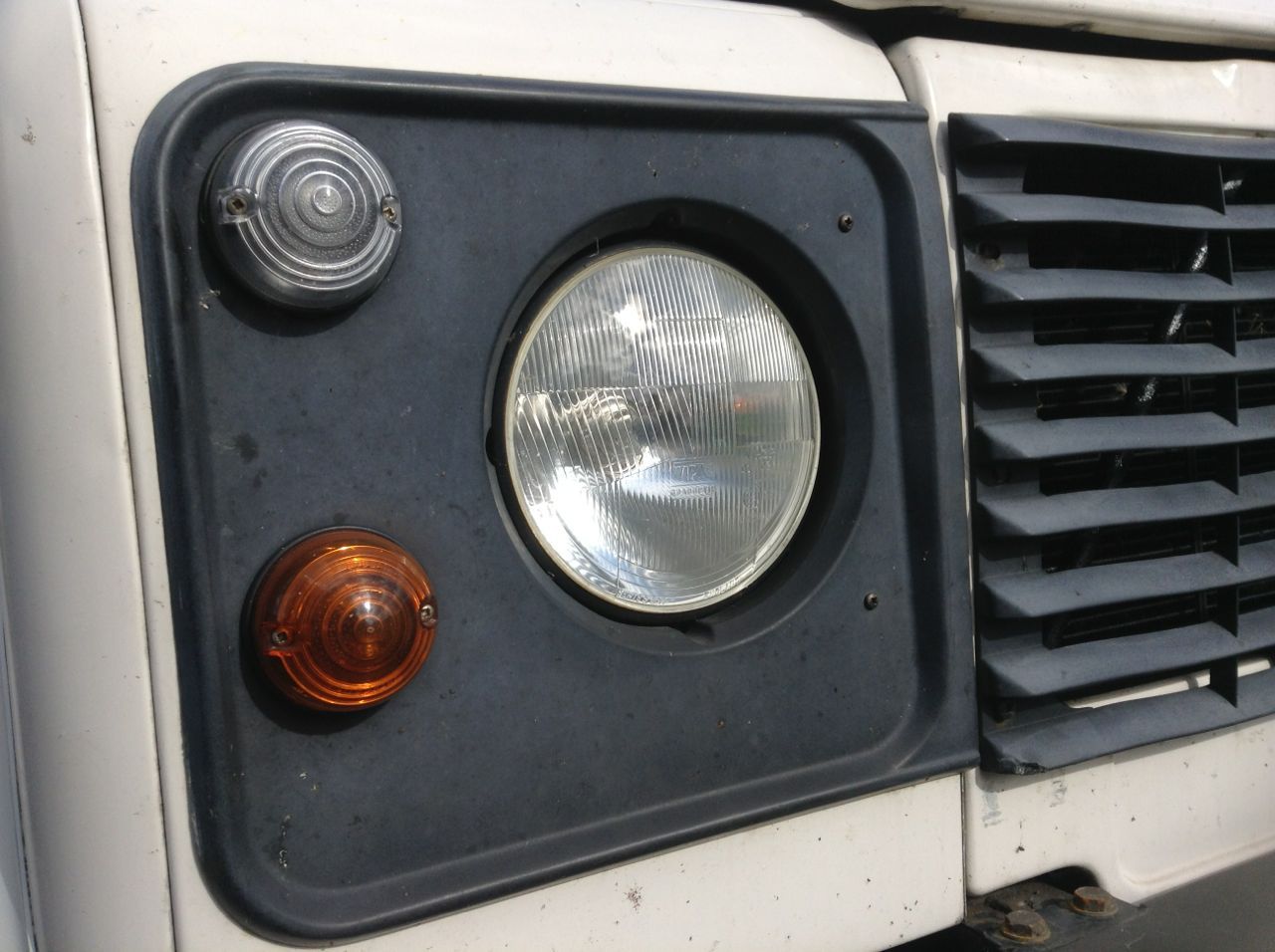

The front plastics have bleached so next job is to refresh them and clean up the metal work in the radiator bay.
View attachment 89787 View attachment 89788 View attachment 89789 View attachment 89790
Searched the internet and forums and chose
Forever Black Bumper & Trim Cleaner & Reconditioner Dye Kit
purchased from Amazon, delivered next day.
First step is to clean the plastic thoroughly using the supplied detergent and let it dry.
I'll post the photos in a few days once the refurb is complete.

Cut down and install the rear seats

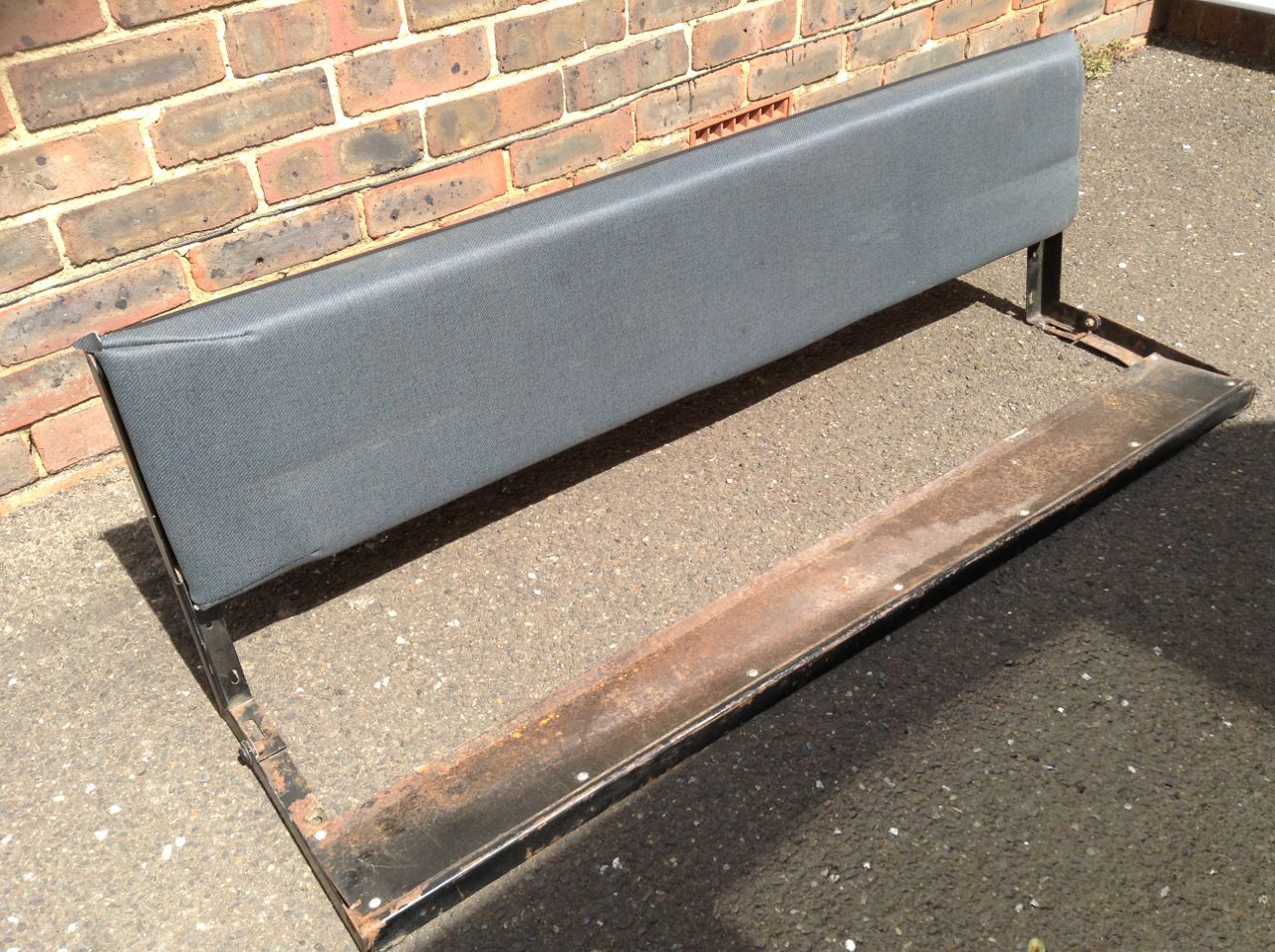

The bargain (£10) rear seats from LandRover Fest are too long for the 110 so instead of selling them on and buying new seats at much higher cost, we decided to modify these ones instead.

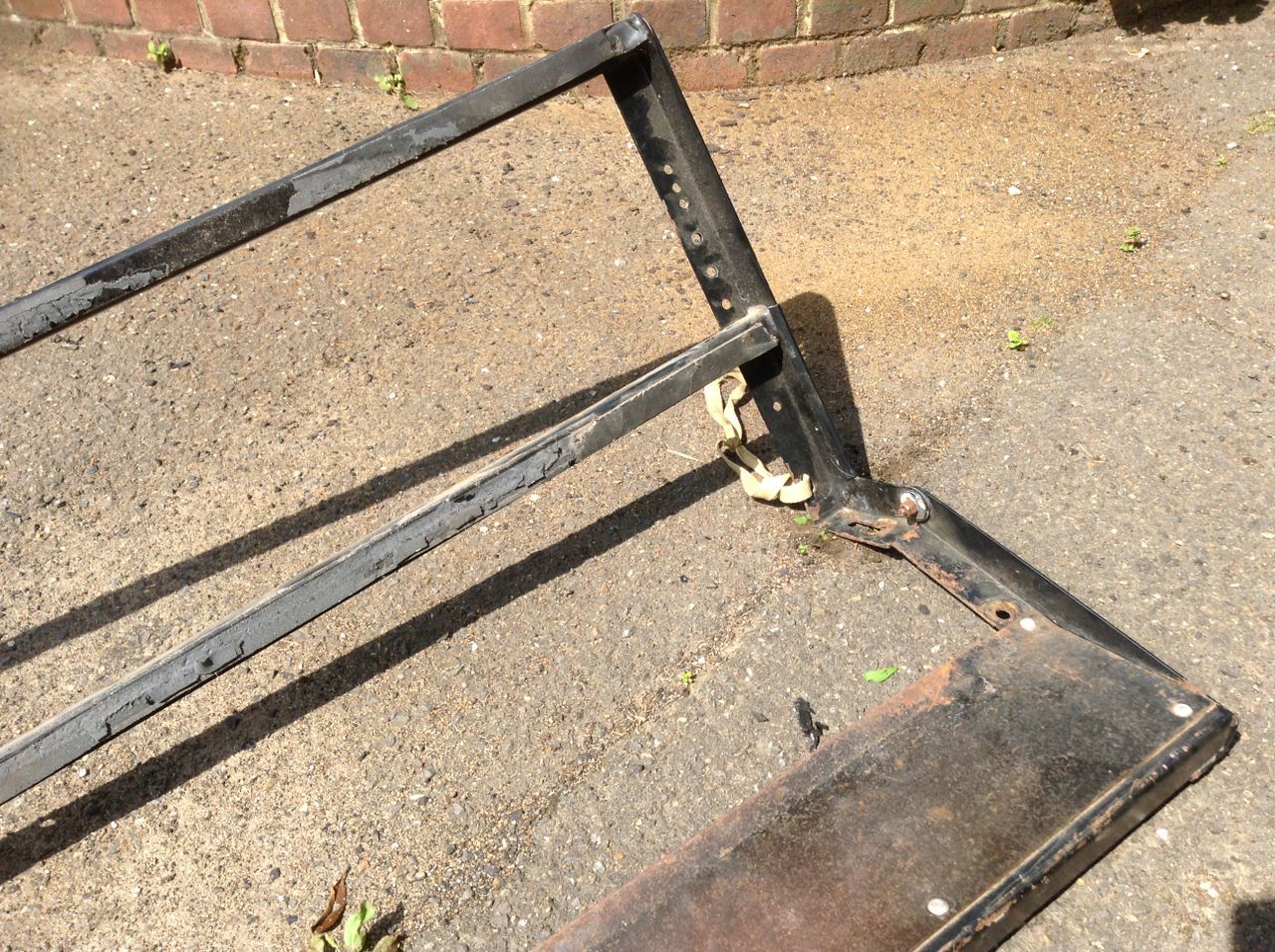

The seats were in OK mechanical condition apart from surface rust and the vinyl was in good condition except the retaining plastic clip had failed in a few places so the vinyl didn't look great.
View attachment 89737 View attachment 89738

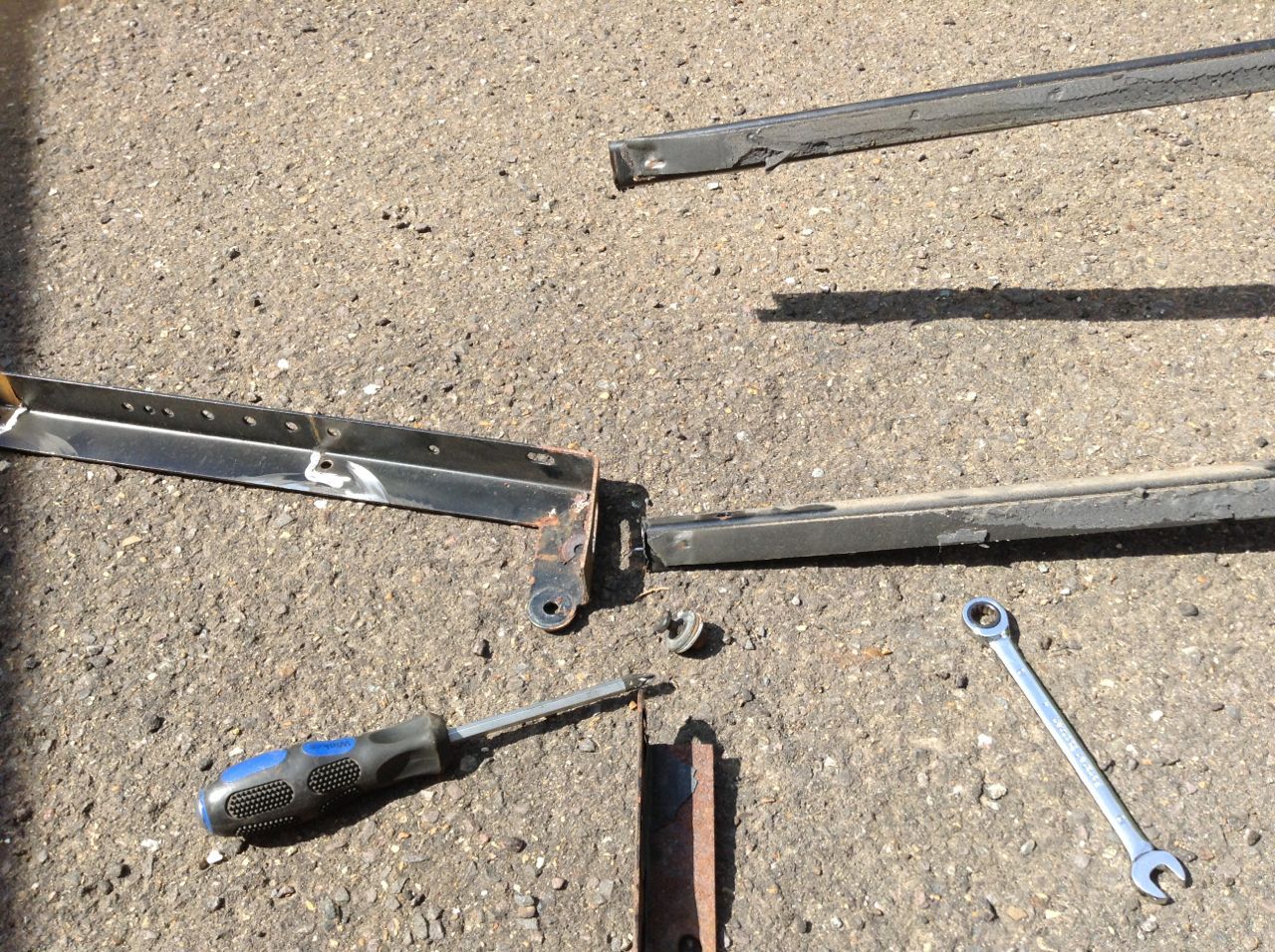

The seat was 165mm too long so first job was to cut 165mm off one end. All welds ground off and then metalwork cut down to size.
View attachment 89739

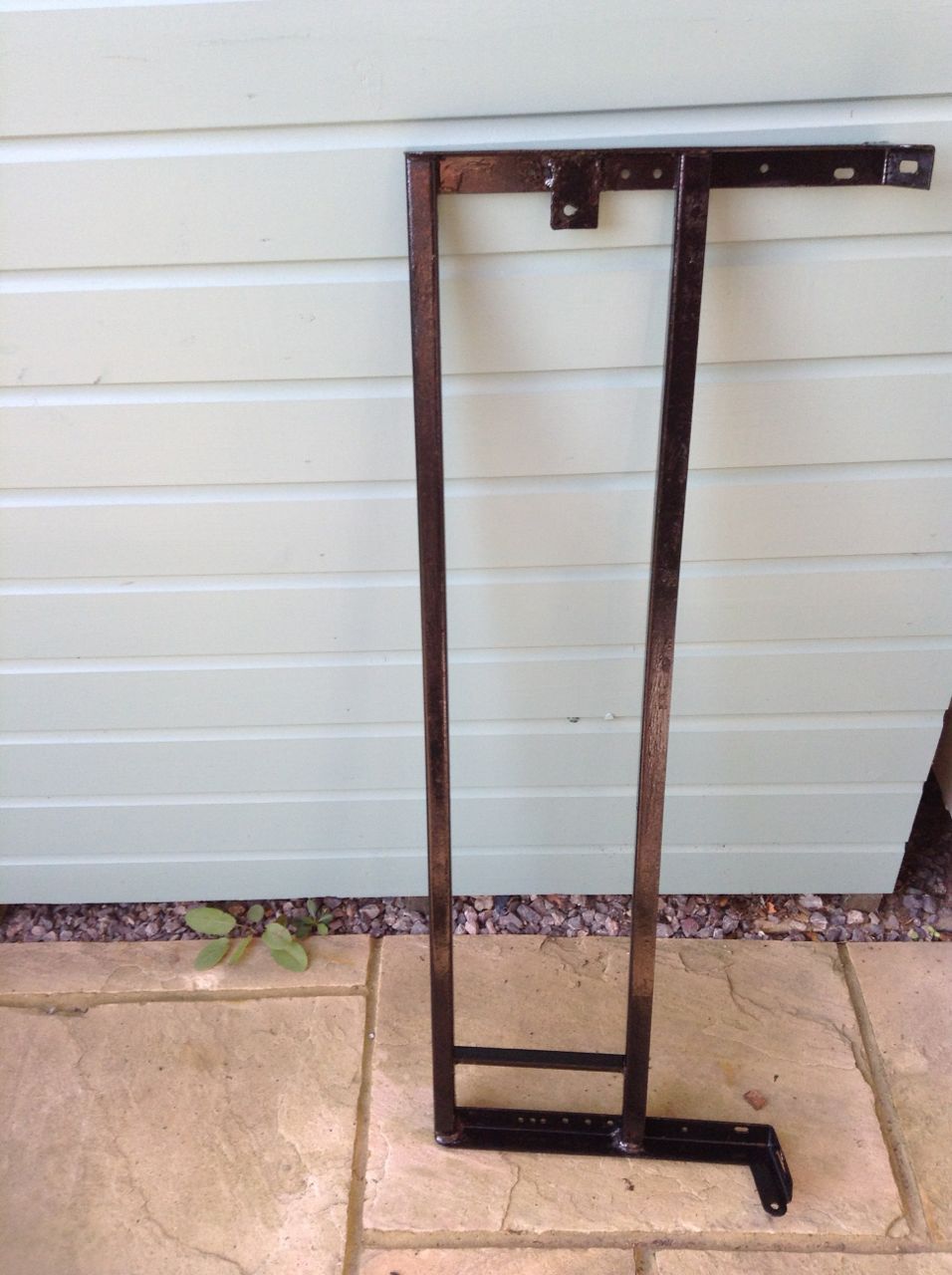

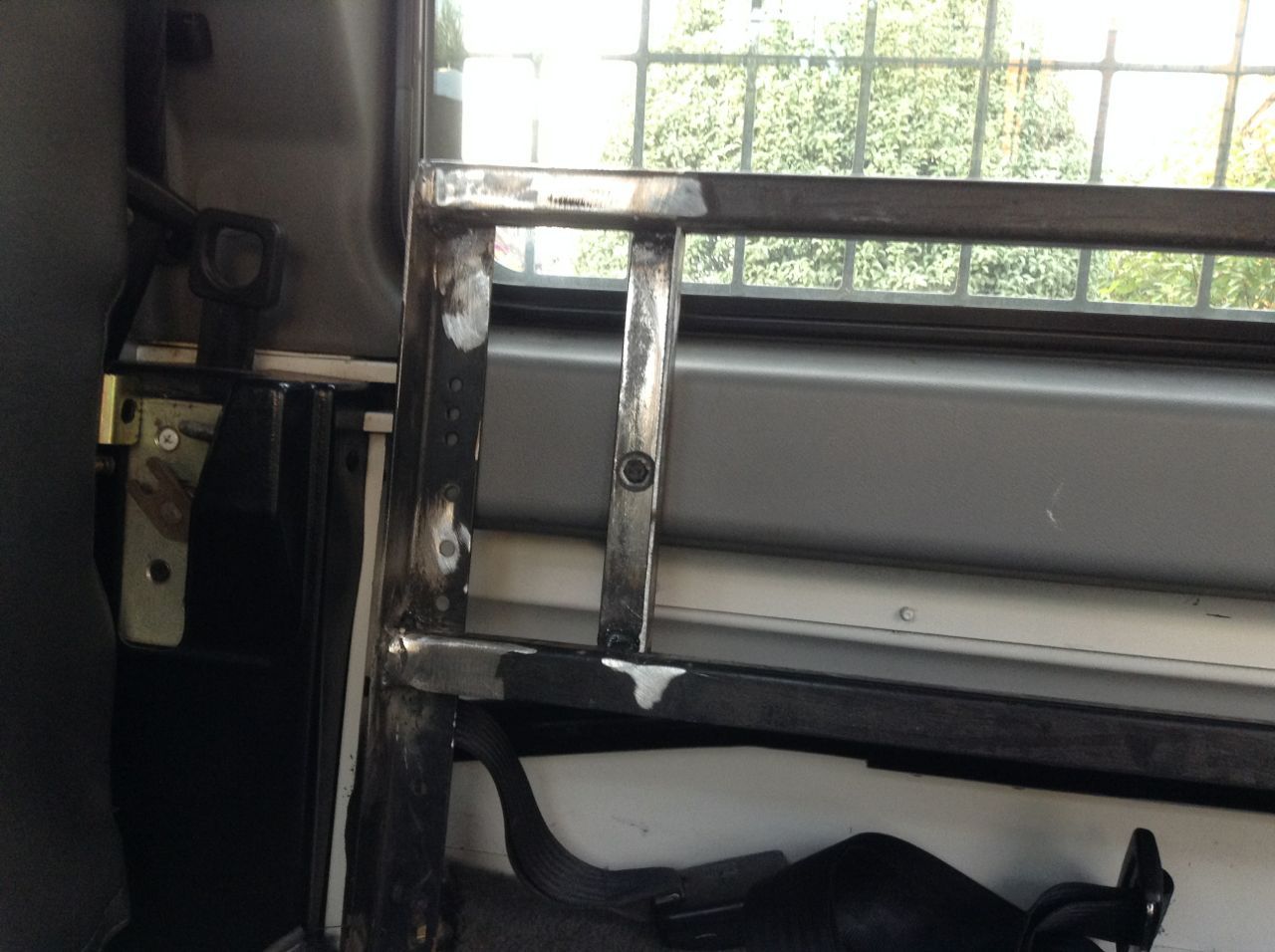

New mounting brackets were also welded into the new framework to pick up existing fixing points.

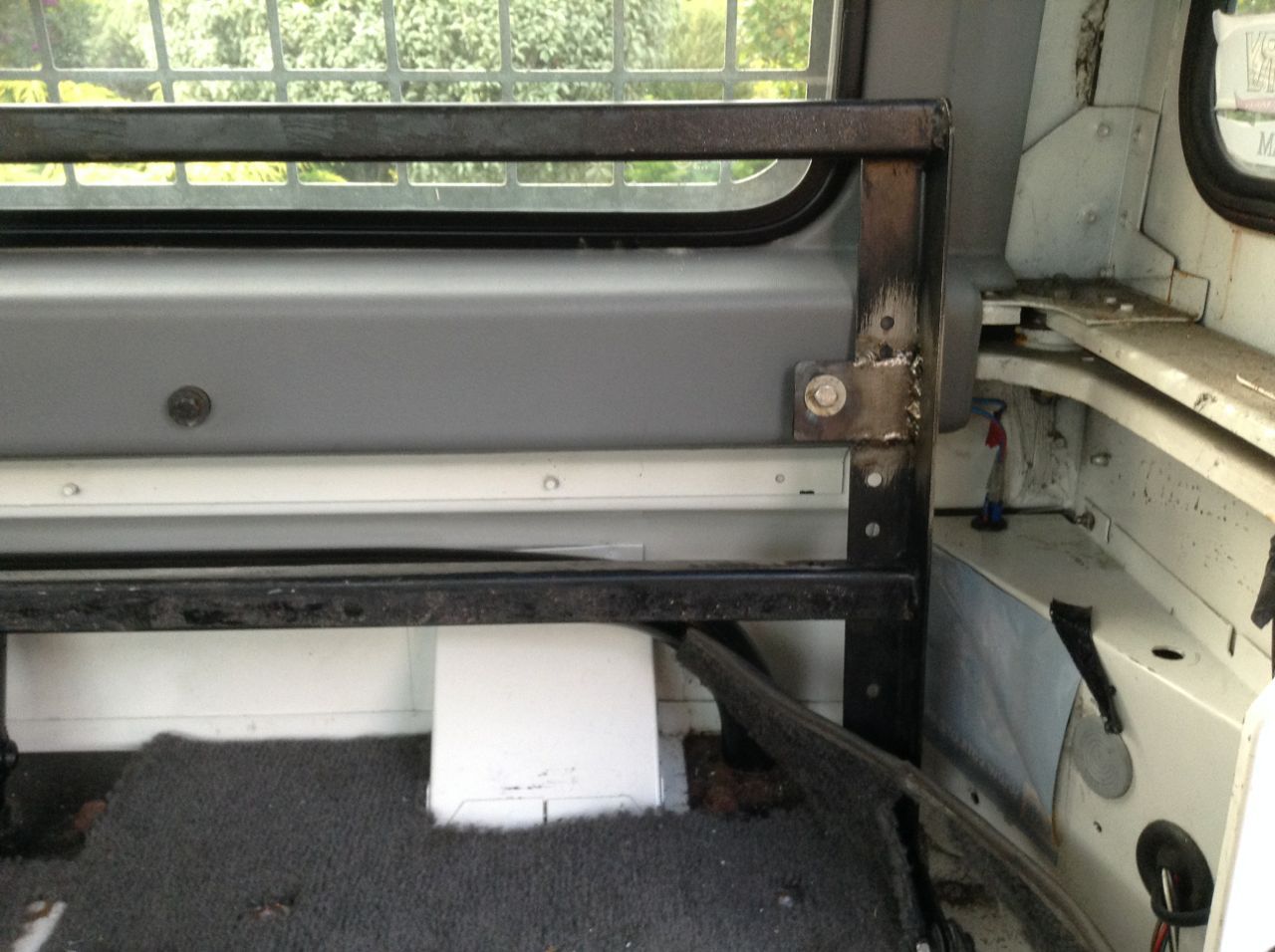

View attachment 89740 View attachment 89741 View attachment 89742
The re-welded frame was given 2 good coats of Hammerite and the support brackets in the wheel arch removed, de-rusted, and coated in Hammerite and Waxoyl underseal when installed.

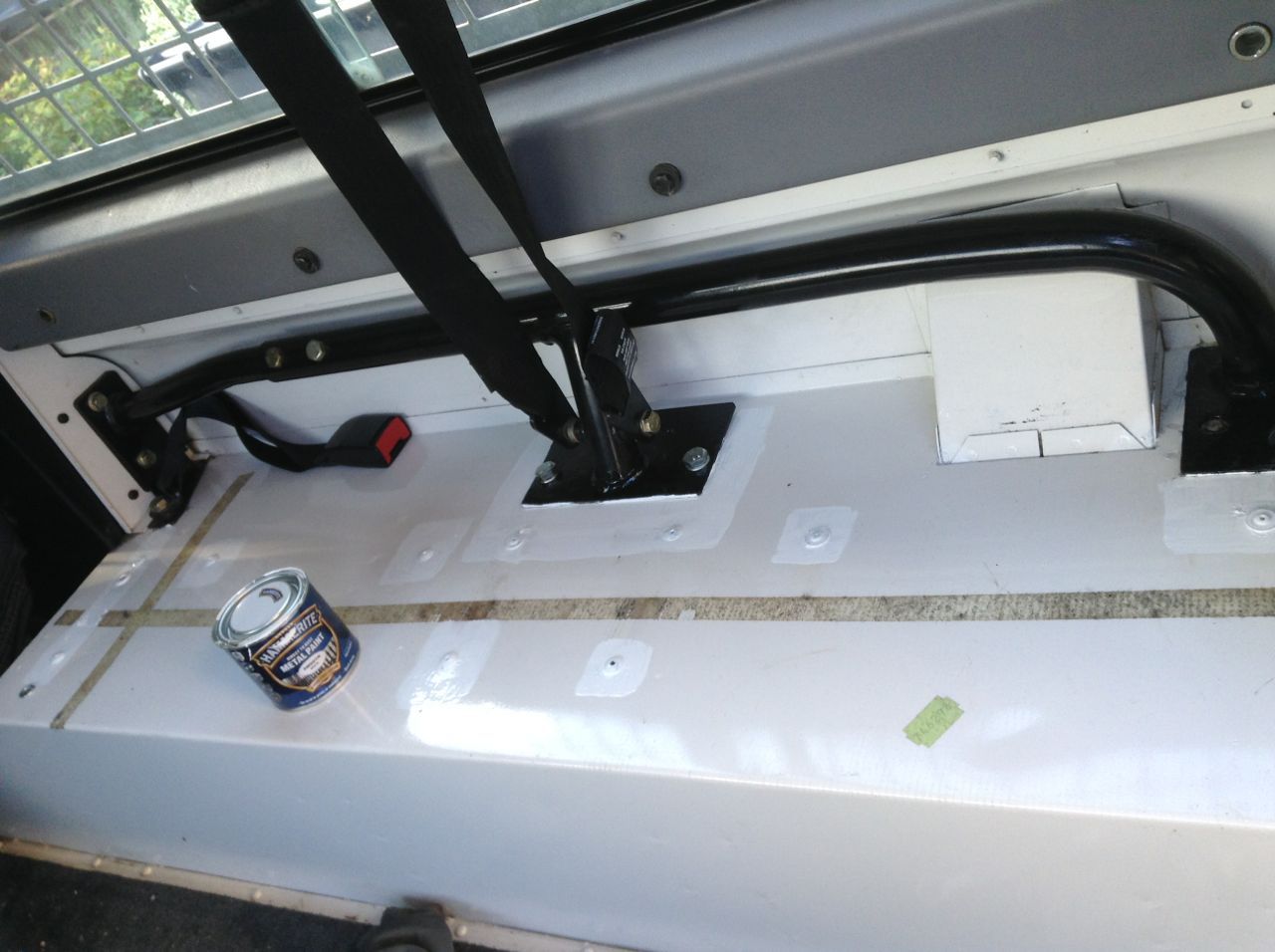

New riv-nuts were installed for the lower seat mounting.
Most of the existing rivets had rusted badly so were drilled out and replaced with new XL head rivets. Underside covered in Waxoyl underseal and top painted with white Hammerite to tidy up the surfaces.
View attachment 89743
The top seat back vinyl was removed from the metal backing to replace with 9mm ply which was easier to make to the new length and also to resolve the vinyl fixing problems.

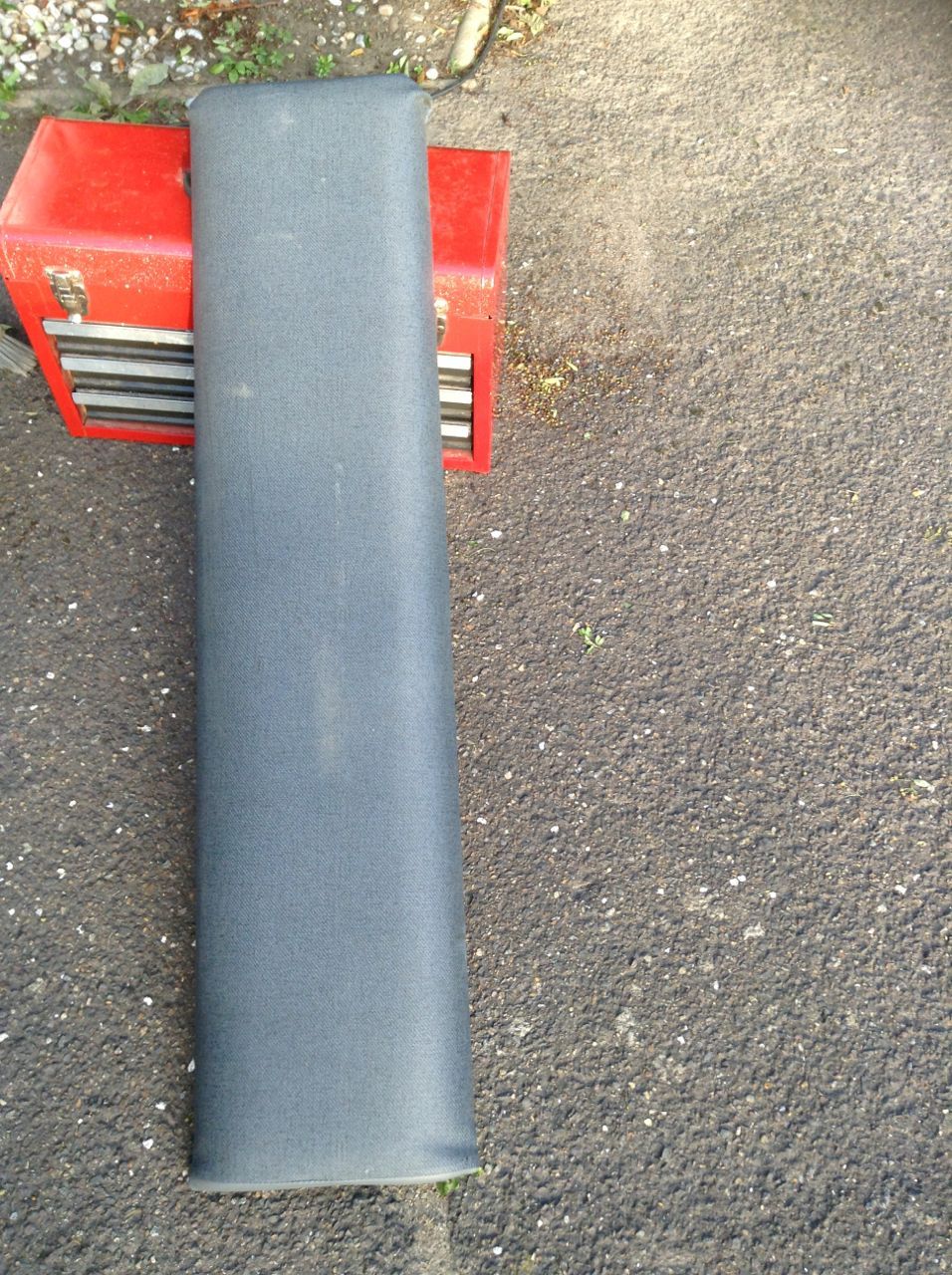

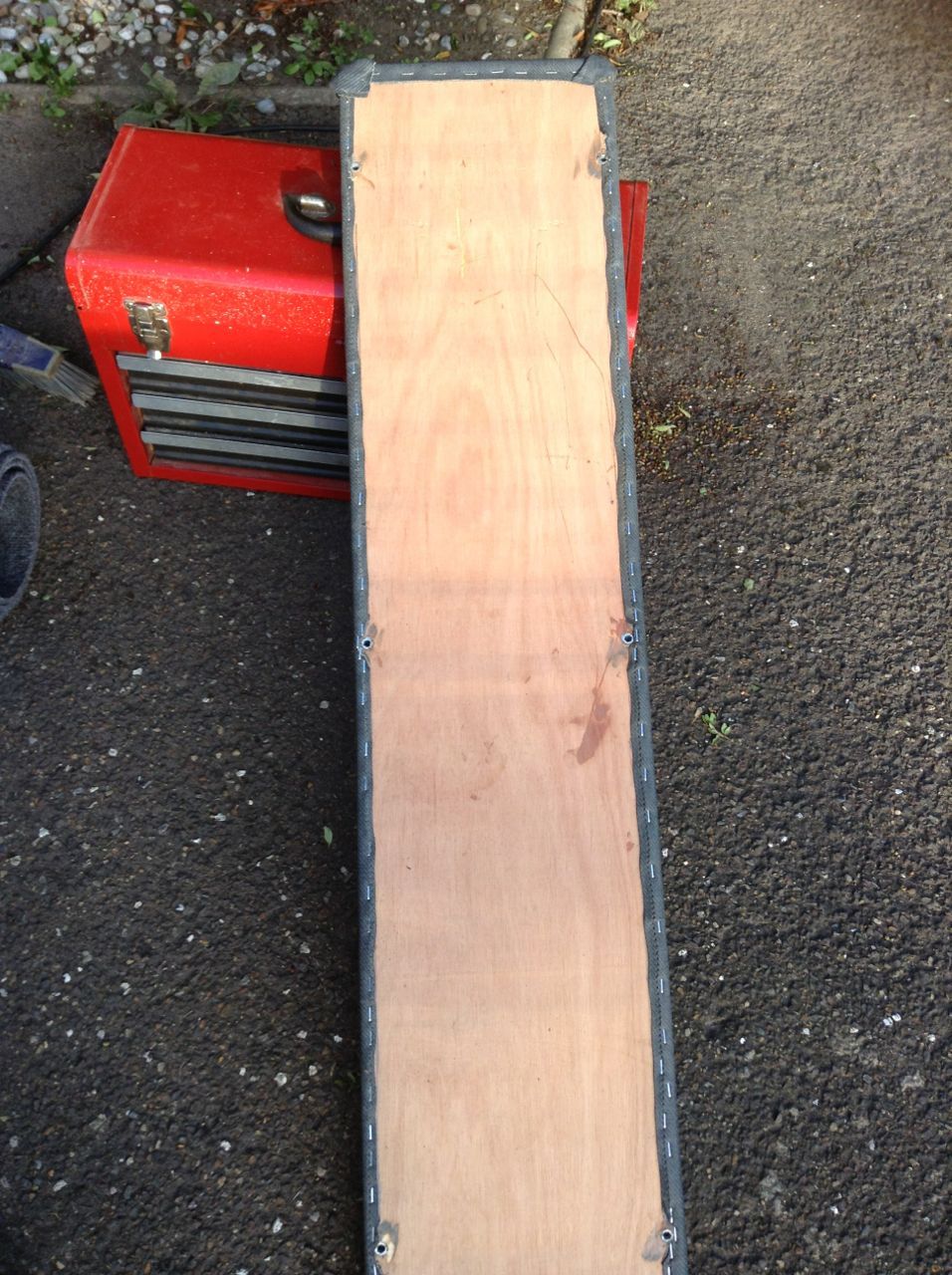

View attachment 89744 9mm ply replaced metal backing. View attachment 89745 Vinyl stretched and stapled to ply, tidy fixing

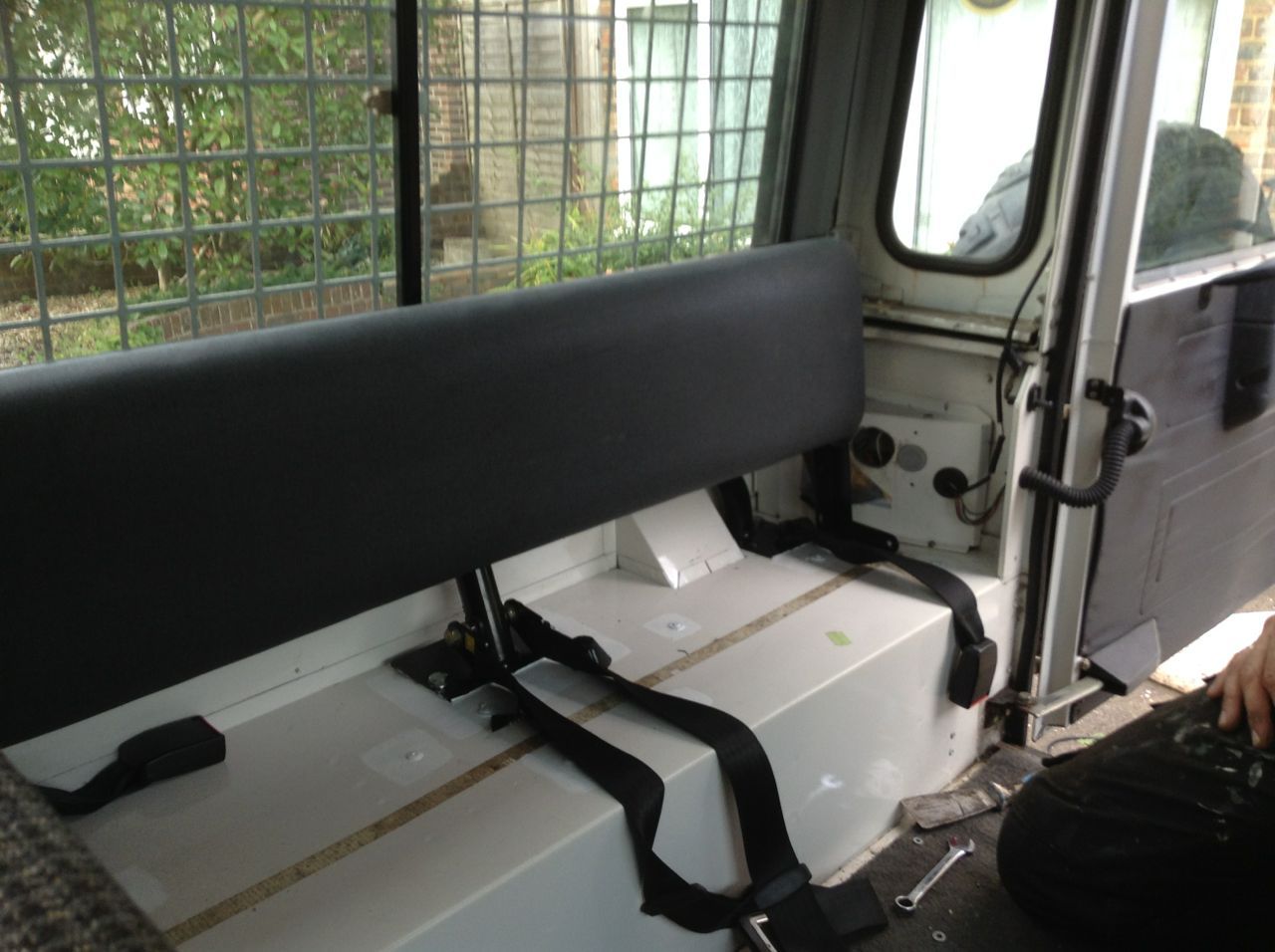

Seat frame re-installed and new carpet is planned to be installed as the old carpet had too many un-used holes in it. Whilst fitting new carpet, took the opportunity to install additional underlay soundproofing.

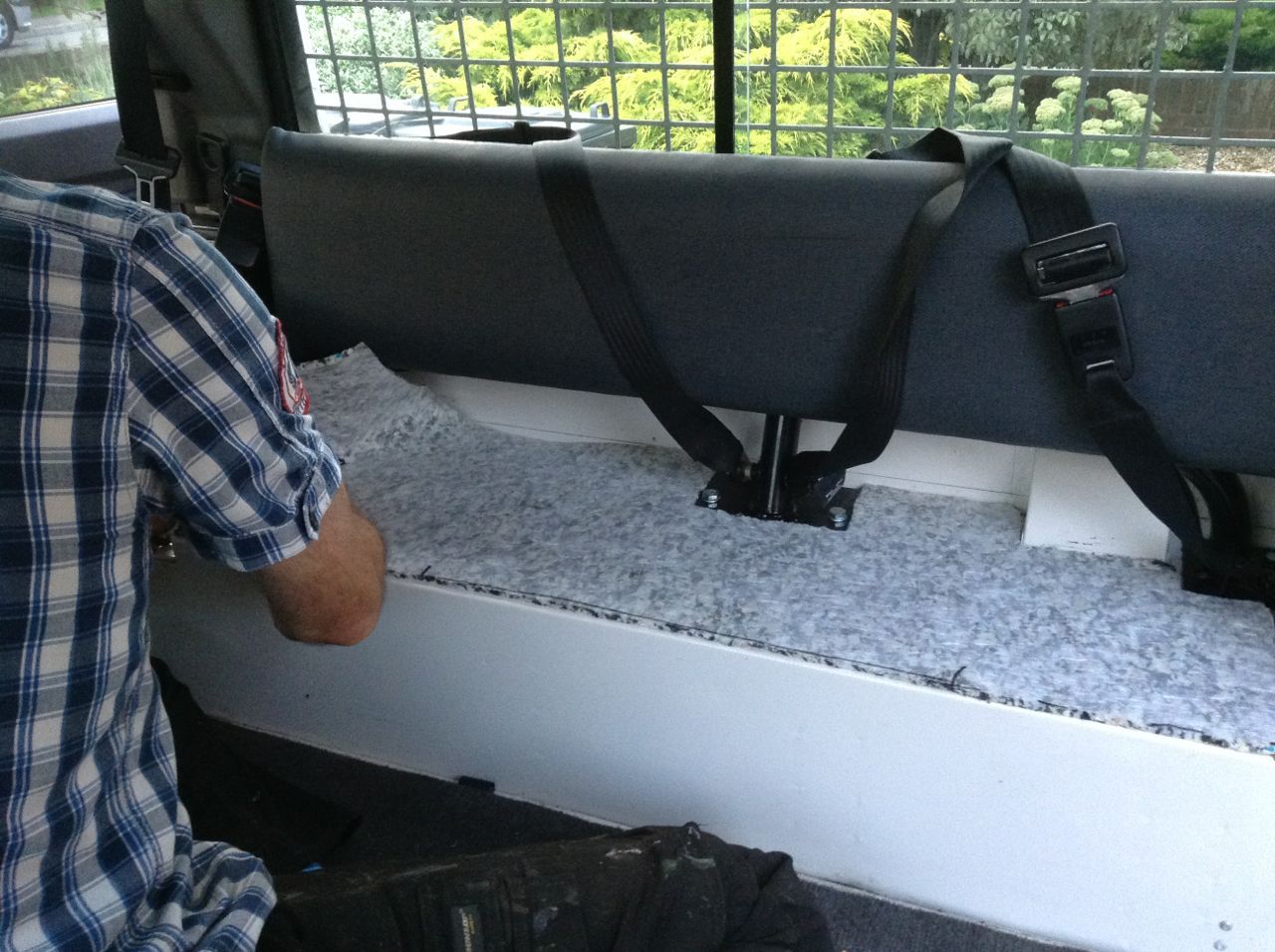

View attachment 89746 View attachment 89747

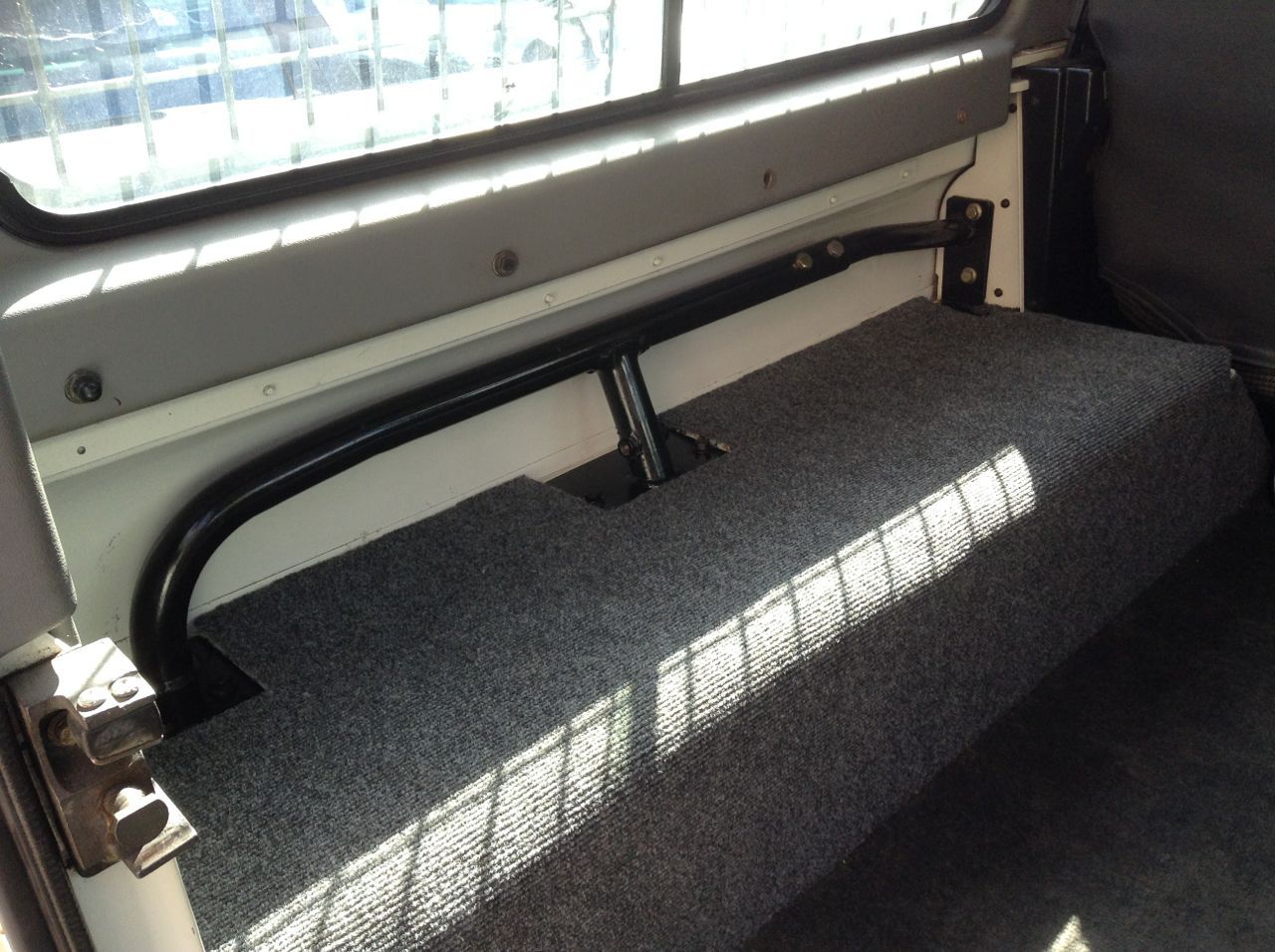

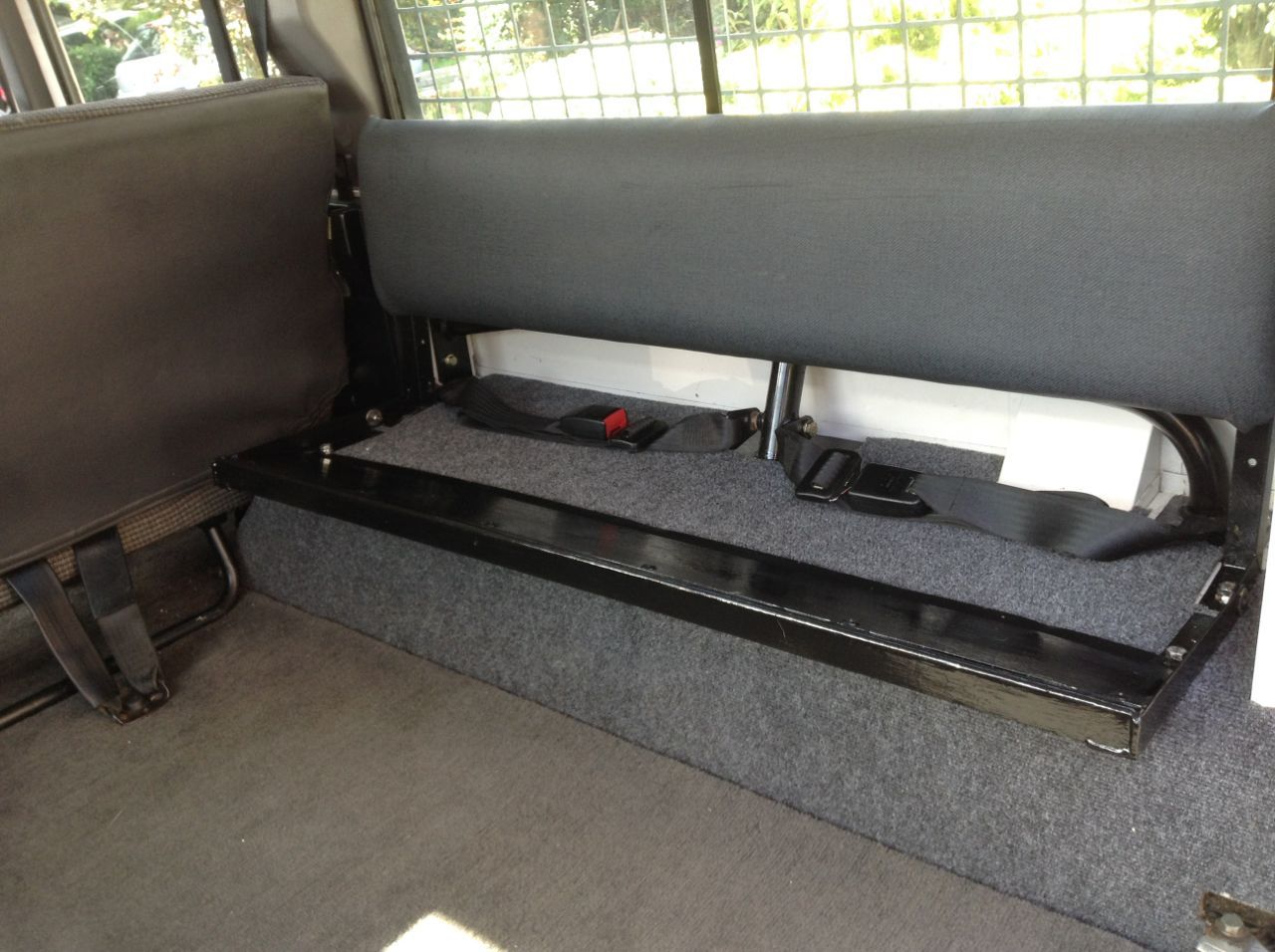

New carpet installed on both sides, looks much better.
View attachment 89785
View attachment 89786

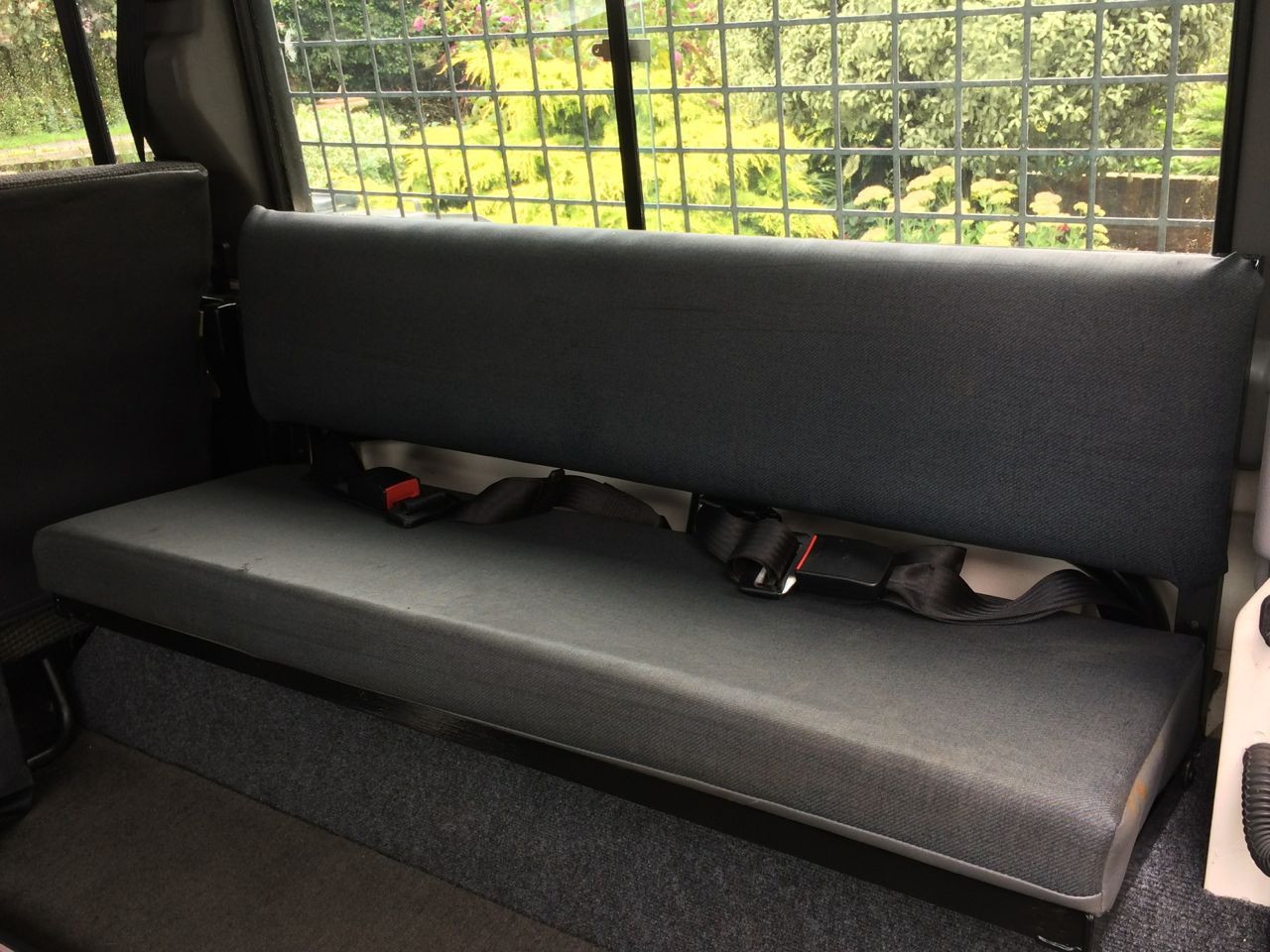

Last task was to modify and install the lower seat cushion. A few well spent hours with the sewing machine
and it looks good and fits perfectly.
View attachment 89853

Repair and refurbish side steps
All 4 of the steps had seized up due to lack of use and rust.

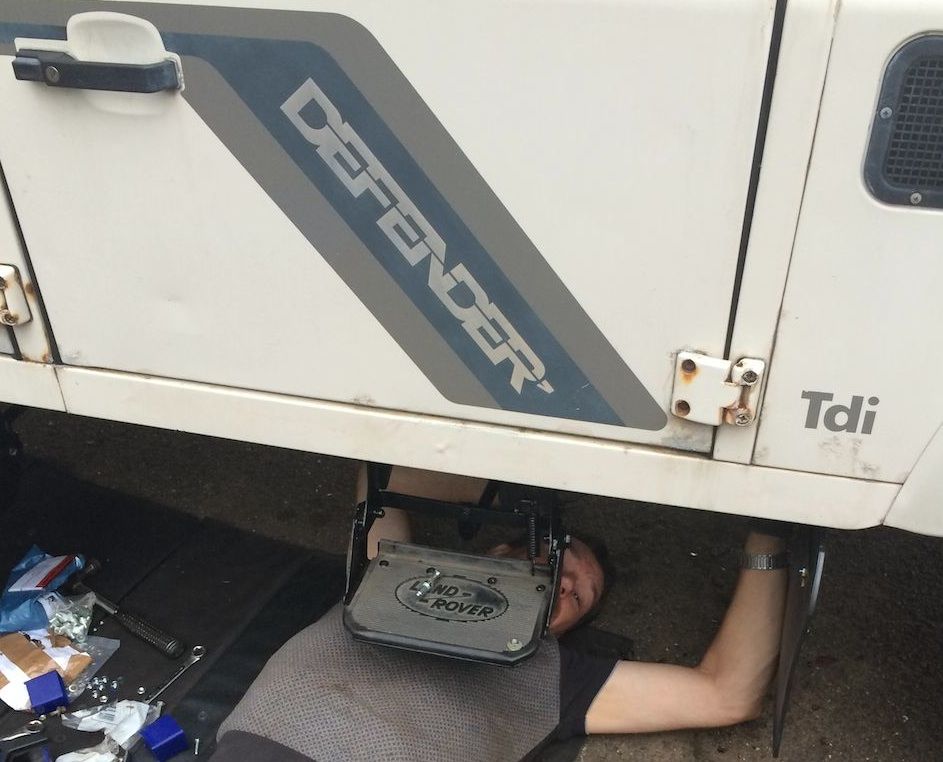

The steps were removed after a fair amount of "coaxing" on the fixings, some of which needed grinding off to release the brackets.

New riv-nuts were installed where the old ones had rusted solid. Made a riv-nut install bar from YouTube videos, works great and much cheaper than buying an install tool.
The steps were stripped to individual piece parts, sanded down to remove all rust using flap wheel and wire brushing wheel in a 4" grinder.
2 good coats of Hammerite and plenty of copper grease on the bolts and the steps look a whole lot better.
Step rubber were rivets replaced with XL black head rivets, look good

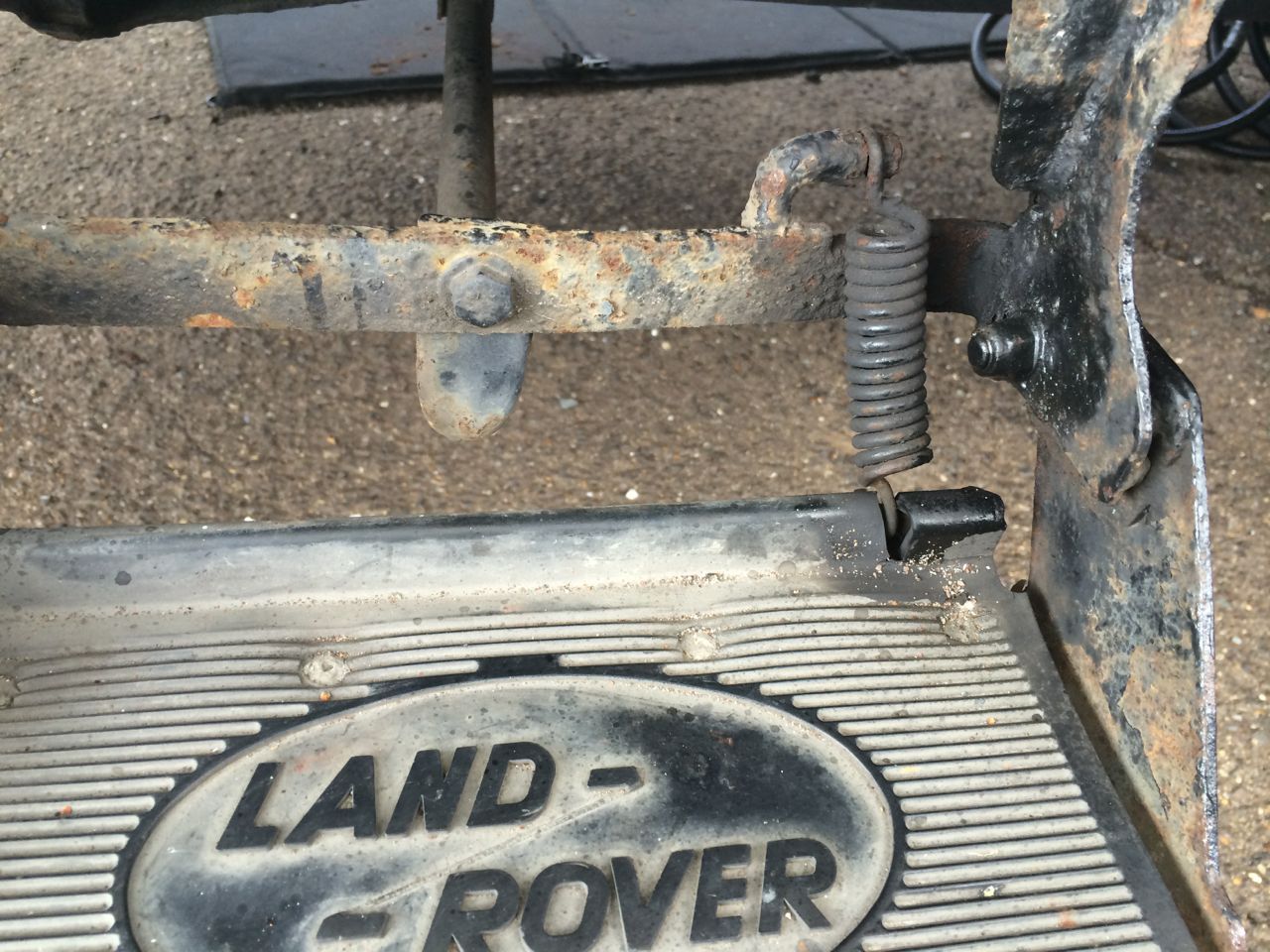

View attachment 89733
Before - rusted solid
View attachment 89736

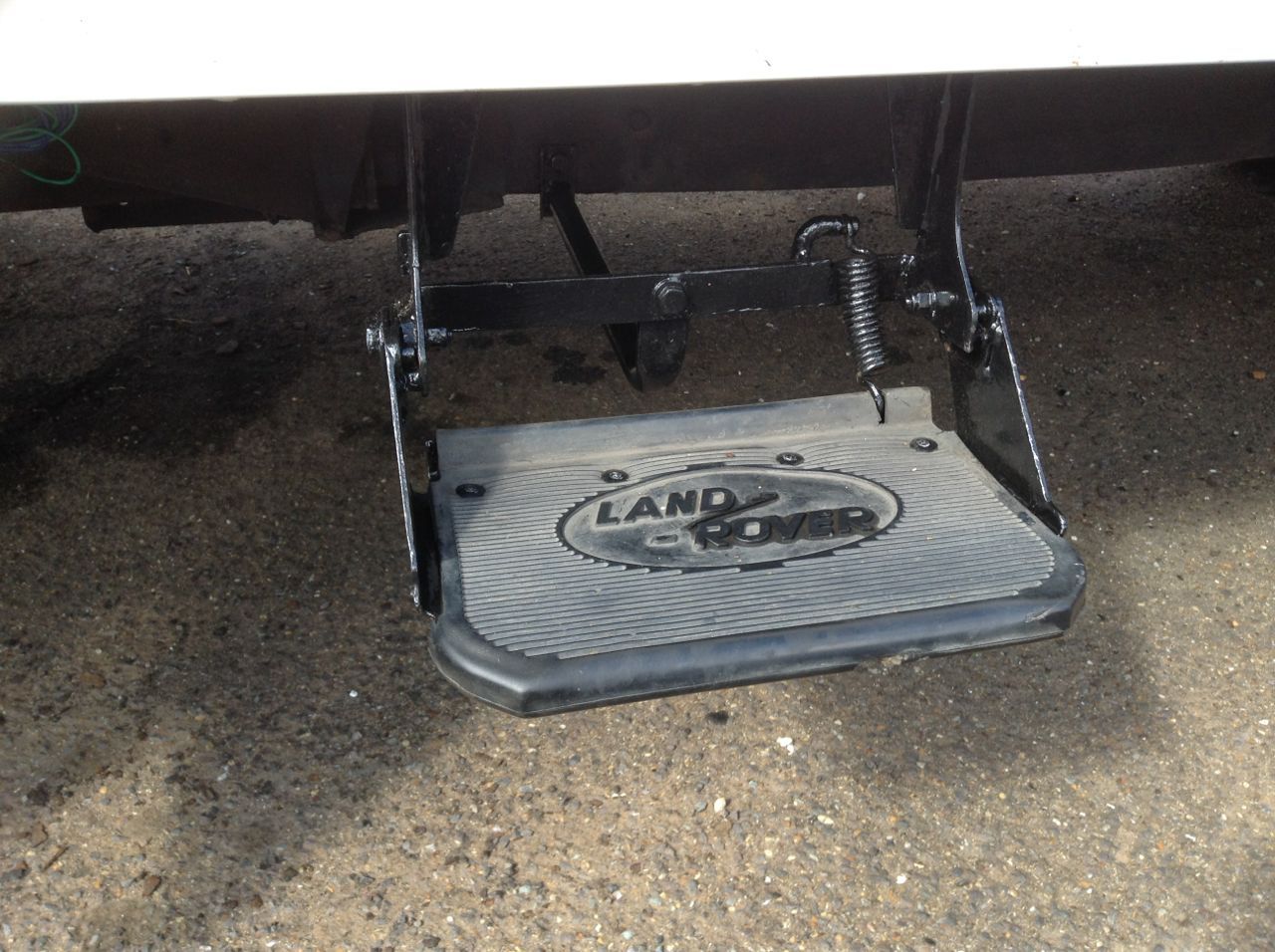

View attachment 89783 View attachment 89784

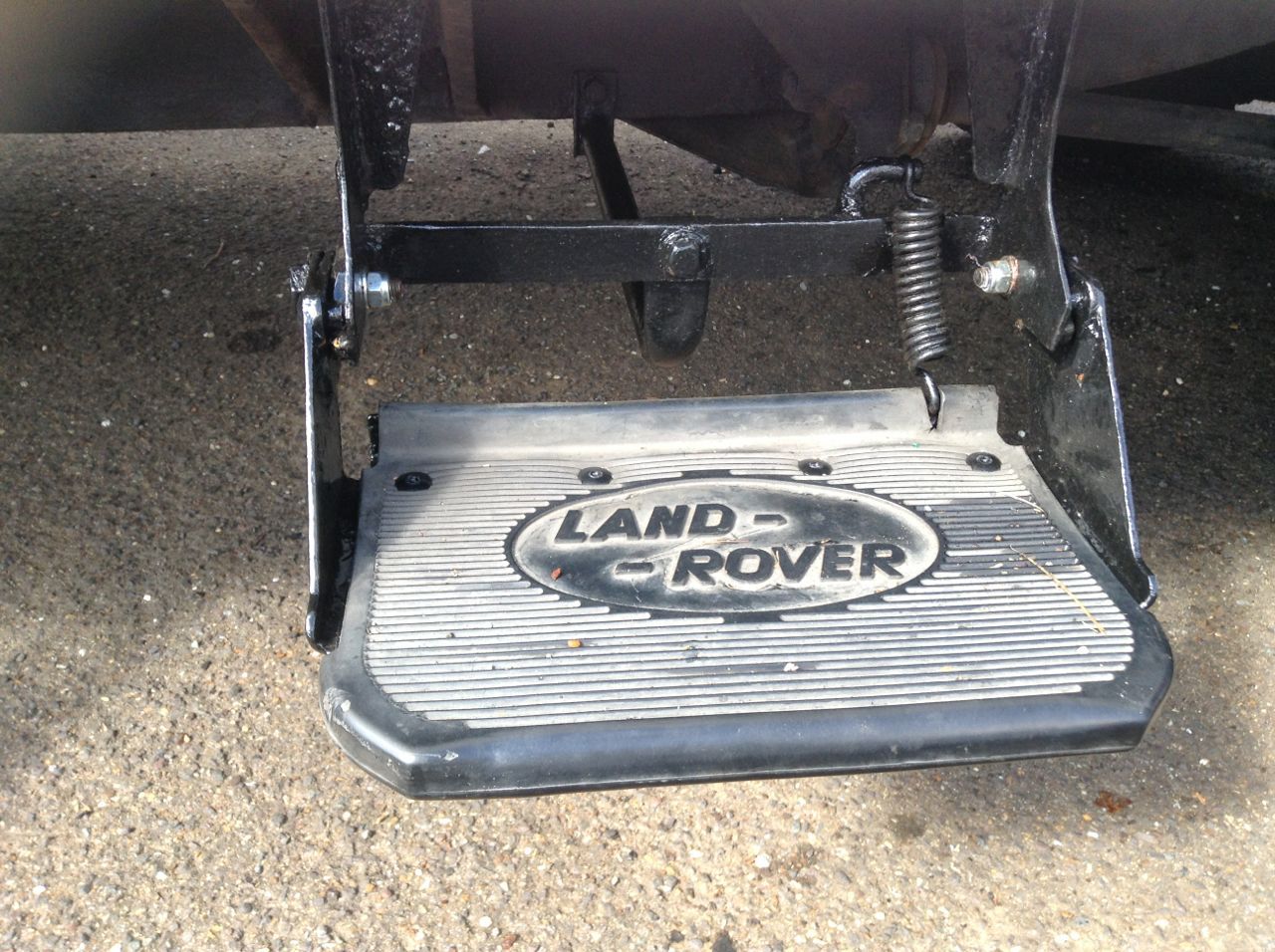

After - refurbished, fully operational, and wife happy....

First jobs - replace radio and install alarm and central locking to front doors

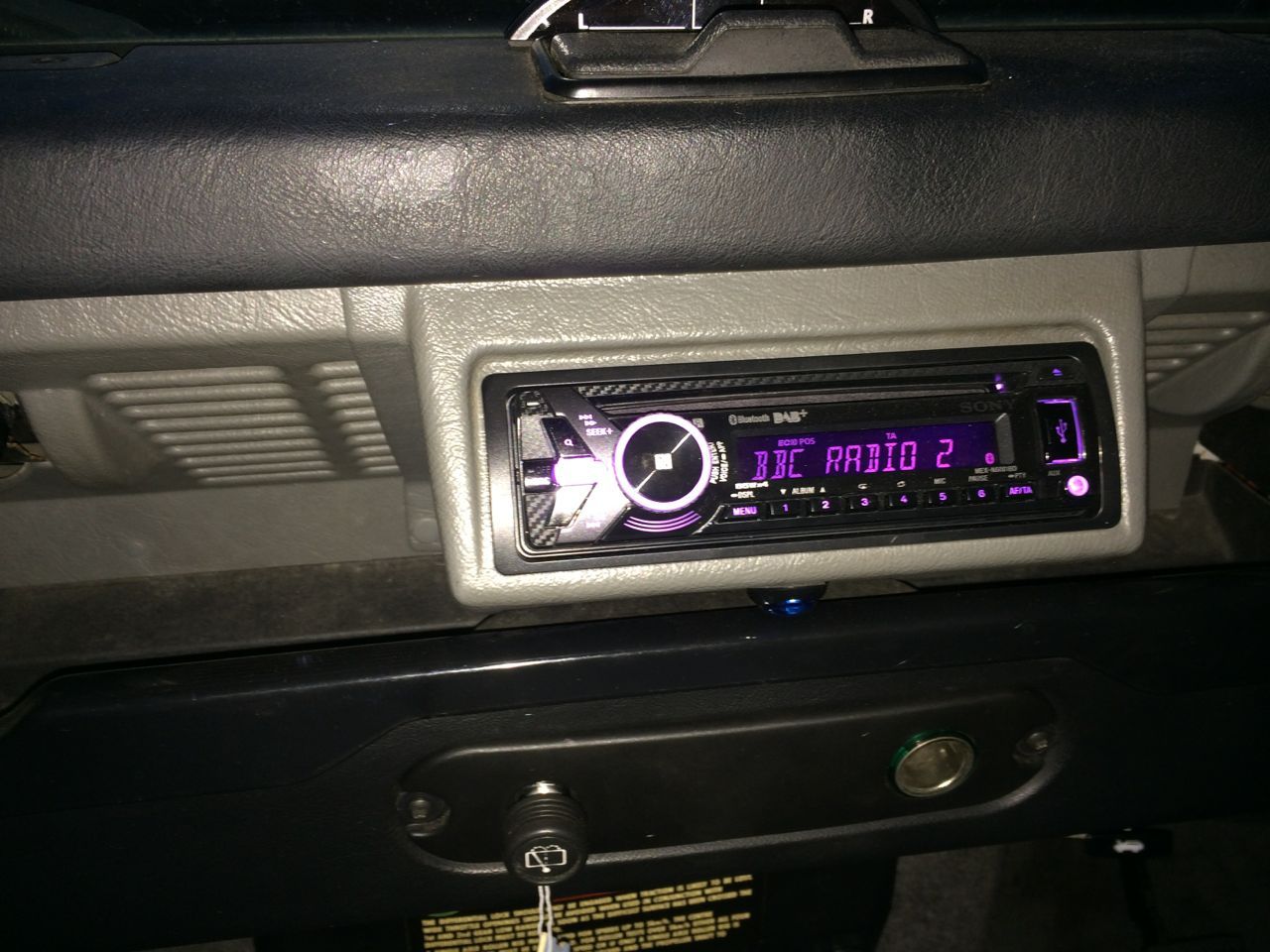

Replacing the radio was relatively straight forward, the speaker cable connectors were compatible but a little bulky for the installation space, a bit of tugging and poking put everything in the right place.
View attachment 89795

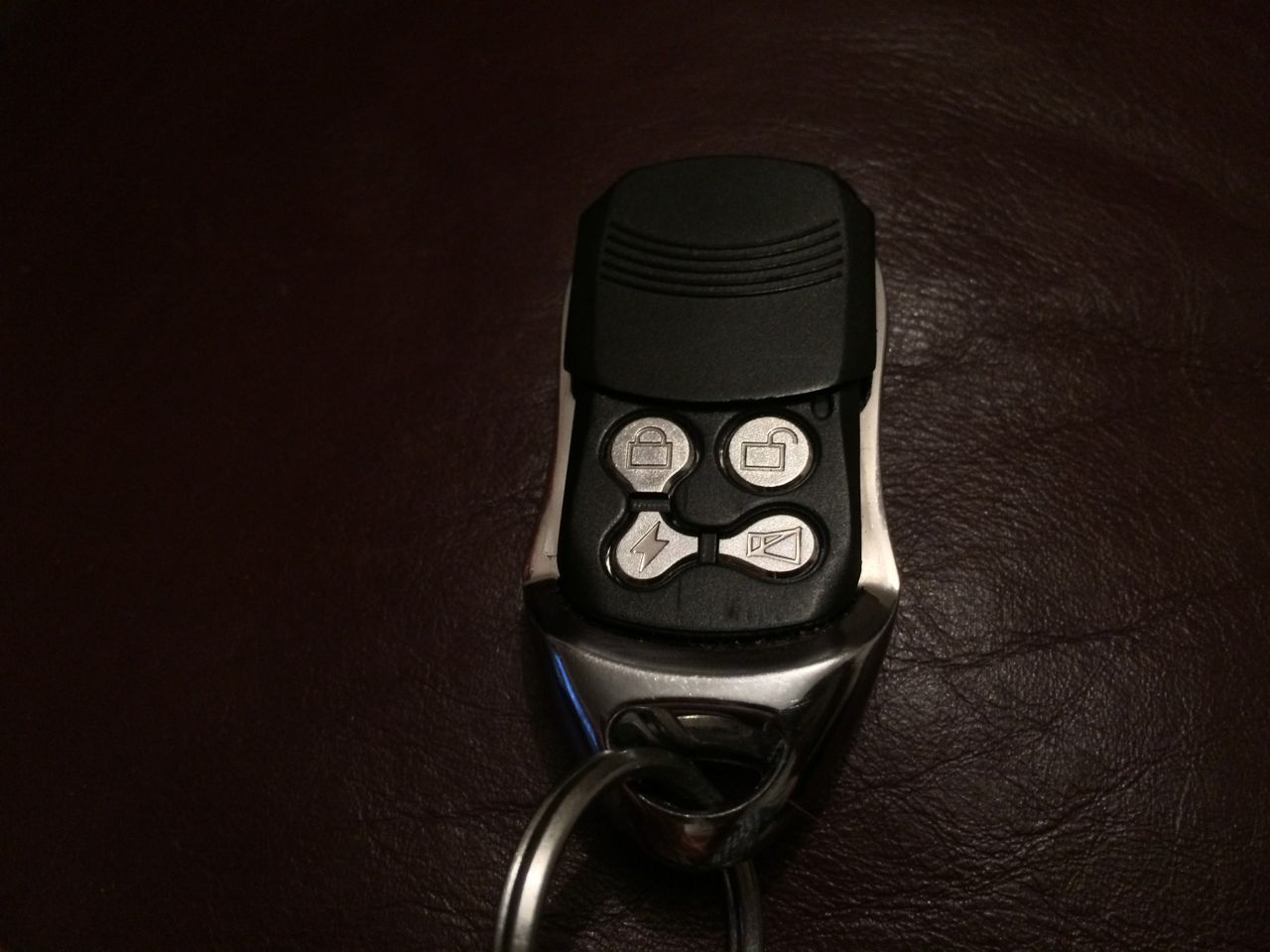

The alarm was a good rated unit from ebay with the reseller local to me in case of any issues. Installation easy enough, good instructions supplied and key fobs are solid. The alarm is capable of triggering central locking solenoids which was one reason for its choice.
View attachment 89796

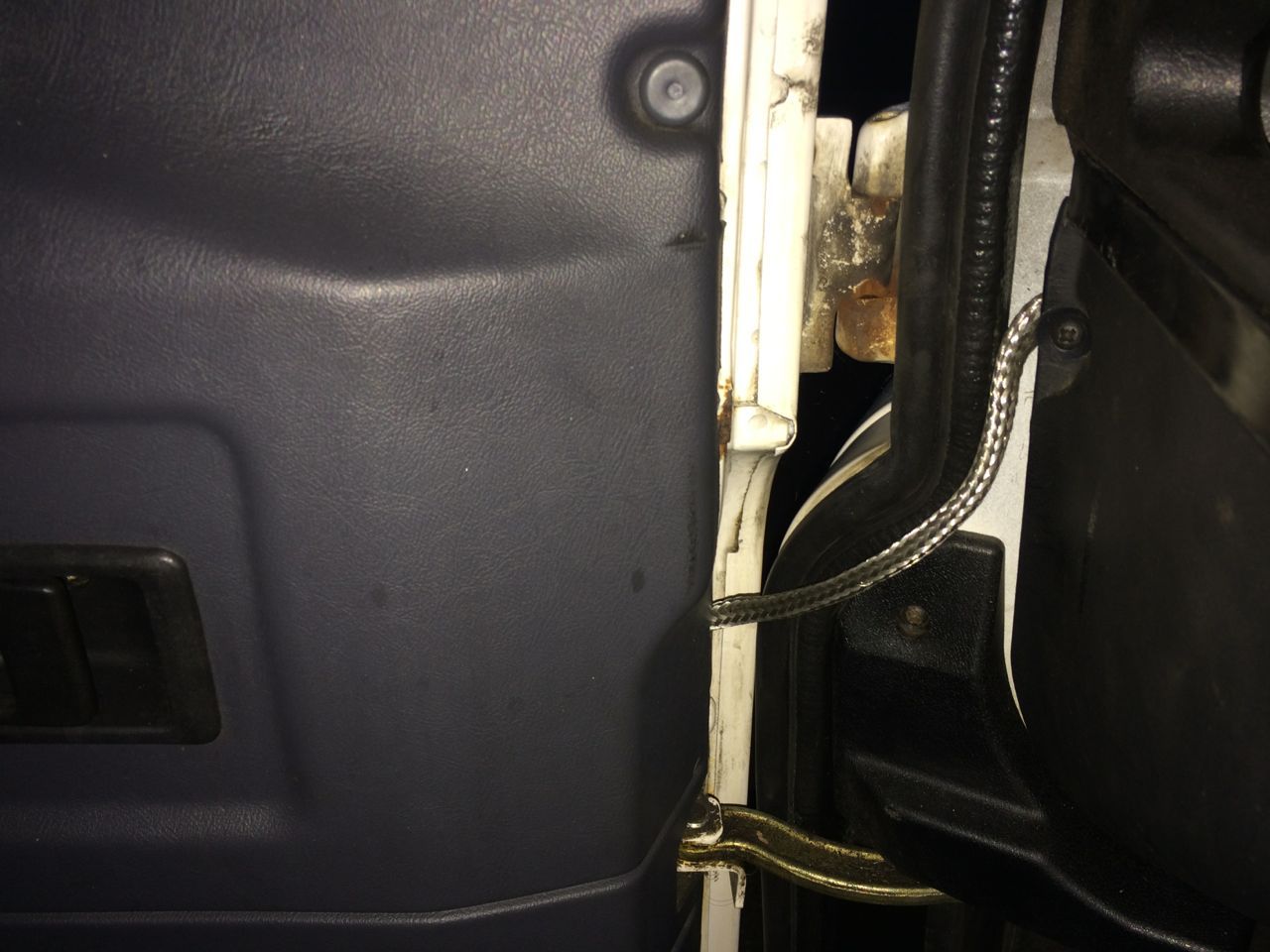

The central locking install to the front doors was straight forward for the mechanical installation, the electrics took a little time to plan how to get the wires into the doors as they weren't designed for cable entry. The stainless steel braiding from 15mm tap connectors turned out to be effective solution and only cost £2 each. The braid provides flexible movement and good protection for the cables, looks good too when door is opened.
View attachment 89794
2nd row of doors will be done when their bottoms are refurbished.

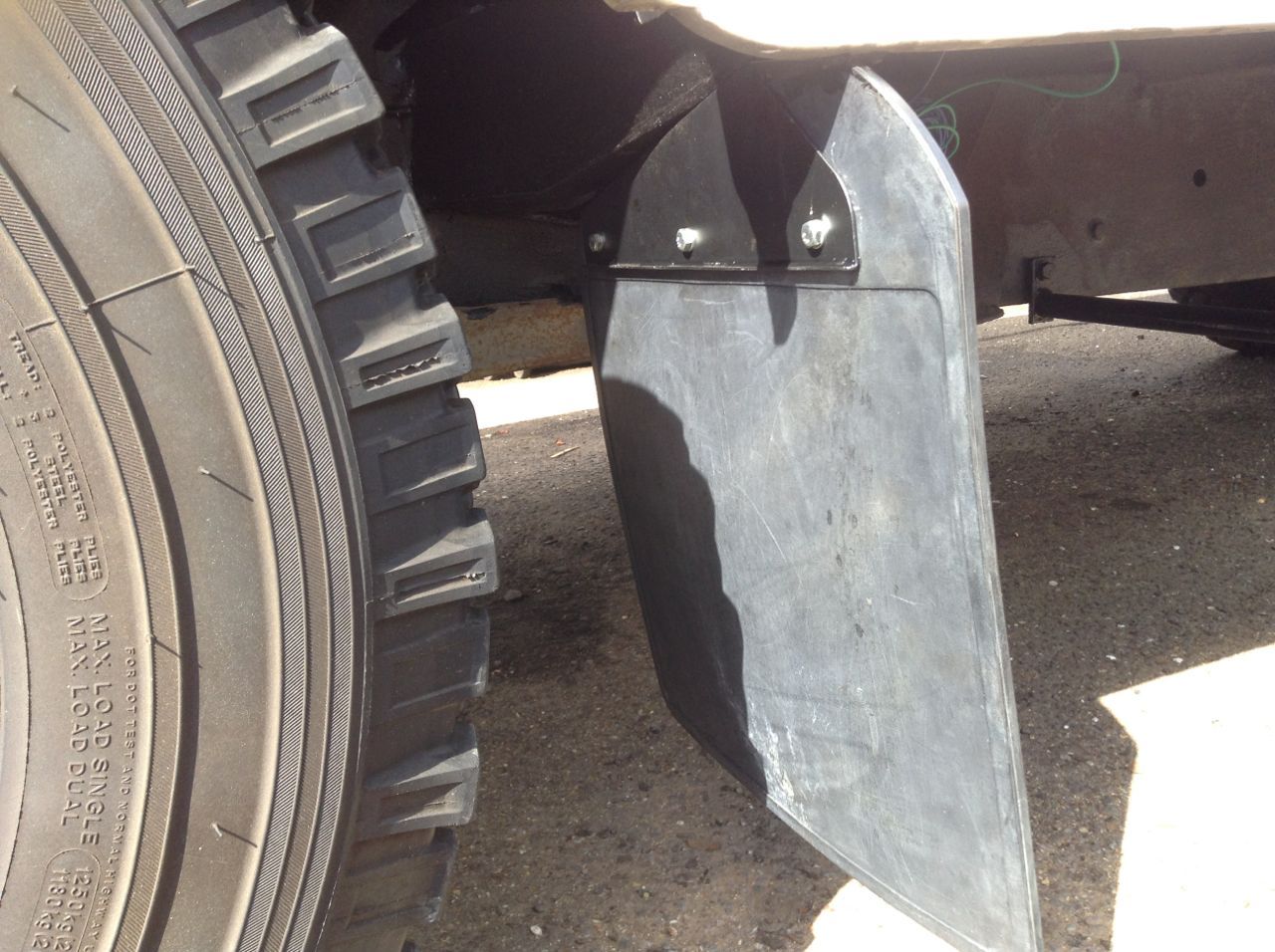

New front mudguards were installed to replace the old ones as the brackets had rusted badly and weren't worth repairing. Quick delivery from Paddock Spares and a few hours removing the old brackets, drilling out seized riv-nuts, installing new rib-nuts and vigorous wire-brushing of the chassis ready for copious waxoyl undersell. Job done.
View attachment 89792
View attachment 89193

Having bought the 110 from a great guy in Sussex, he builds steam cars for a hobby so the engine and underbody were in good condition and it runs great at 70mph.
The body and inside are the first small projects.
  • Thorough clean inside which brought up the white internals a treat
  • New radio and alarm, so nice to work on a vehicle with standard wiring and no laptop needed
  • Found cheap central locking solenoids in Maplins so had to install them in the Landy. Used S/S flexible tap connector braid (£1.50 from Screwfix) to protect the wires which works well and looks good too. Works with the alarm so one click action to lock/unlock
  • Went to LandRover Fest and bought new rubber flooring for the rear and bench seats which are too long but will be a project to shorten them (they were a bargain that had to be had)
  • All door bottoms are rusted through, bought repair sections and will repair each door instead of replacing with new one
I've changed the order to put newest jobs at the top to simplify seeing the progress.
Please share thoughts, comments and advice.

Remove roof lining and stick vinyl back in place
The roof lining vinyl is in good condition but had suffered the common delimitation from the backing material.
The lining sections were removed relatively easily using trim extractor tools.
Roof is in very good condition.
I took the opportunity to add soundproofing to the roof panels to reduce the running noise.
View attachment 90002 View attachment 90003

I stripped and re-stuck the vinyl from the linings which lasted nearly a year, then started to delaminate again.
So, finally had to buy new complete linings - see below for updates.

Refurbish the front plastics which have bleached to a dull grey
The front plastics have bleached so next job is to refresh them and clean up the metal work in the radiator bay.
View attachment 89787 View attachment 89788 View attachment 89789 View attachment 89790
Searched the internet and forums and chose
Forever Black Bumper & Trim Cleaner & Reconditioner Dye Kit
purchased from Amazon, delivered next day.
First step is to clean the plastic thoroughly using the supplied detergent and let it dry.
I'll post the photos in a few days once the refurb is complete.

Cut down and install the rear seats
The bargain (£10) rear seats from LandRover Fest are too long for the 110 so instead of selling them on and buying new seats at much higher cost, we decided to modify these ones instead.
The seats were in OK mechanical condition apart from surface rust and the vinyl was in good condition except the retaining plastic clip had failed in a few places so the vinyl didn't look great.
View attachment 89737 View attachment 89738
The seat was 165mm too long so first job was to cut 165mm off one end. All welds ground off and then metalwork cut down to size.
View attachment 89739
New mounting brackets were also welded into the new framework to pick up existing fixing points.
View attachment 89740 View attachment 89741 View attachment 89742
The re-welded frame was given 2 good coats of Hammerite and the support brackets in the wheel arch removed, de-rusted, and coated in Hammerite and Waxoyl underseal when installed.
New riv-nuts were installed for the lower seat mounting.
Most of the existing rivets had rusted badly so were drilled out and replaced with new XL head rivets. Underside covered in Waxoyl underseal and top painted with white Hammerite to tidy up the surfaces.
View attachment 89743
The top seat back vinyl was removed from the metal backing to replace with 9mm ply which was easier to make to the new length and also to resolve the vinyl fixing problems.
View attachment 89744 9mm ply replaced metal backing. View attachment 89745 Vinyl stretched and stapled to ply, tidy fixing

Seat frame re-installed and new carpet is planned to be installed as the old carpet had too many un-used holes in it. Whilst fitting new carpet, took the opportunity to install additional underlay soundproofing.
View attachment 89746 View attachment 89747
New carpet installed on both sides, looks much better.
View attachment 89785
View attachment 89786
Last task was to modify and install the lower seat cushion. A few well spent hours with the sewing machine
and it looks good and fits perfectly.
View attachment 89853

Repair and refurbish side steps
All 4 of the steps had seized up due to lack of use and rust.
The steps were removed after a fair amount of "coaxing" on the fixings, some of which needed grinding off to release the brackets.

New riv-nuts were installed where the old ones had rusted solid. Made a riv-nut install bar from YouTube videos, works great and much cheaper than buying an install tool.
The steps were stripped to individual piece parts, sanded down to remove all rust using flap wheel and wire brushing wheel in a 4" grinder.
2 good coats of Hammerite and plenty of copper grease on the bolts and the steps look a whole lot better.
Step rubber were rivets replaced with XL black head rivets, look good
View attachment 89733
Before - rusted solid
View attachment 89736
View attachment 89783 View attachment 89784
After - refurbished, fully operational, and wife happy....

First jobs - replace radio and install alarm and central locking to front doors
Replacing the radio was relatively straight forward, the speaker cable connectors were compatible but a little bulky for the installation space, a bit of tugging and poking put everything in the right place.
View attachment 89795
The alarm was a good rated unit from ebay with the reseller local to me in case of any issues. Installation easy enough, good instructions supplied and key fobs are solid. The alarm is capable of triggering central locking solenoids which was one reason for its choice.
View attachment 89796
The central locking install to the front doors was straight forward for the mechanical installation, the electrics took a little time to plan how to get the wires into the doors as they weren't designed for cable entry. The stainless steel braiding from 15mm tap connectors turned out to be effective solution and only cost £2 each. The braid provides flexible movement and good protection for the cables, looks good too when door is opened.
View attachment 89794
2nd row of doors will be done when their bottoms are refurbished.

New front mudguards were installed to replace the old ones as the brackets had rusted badly and weren't worth repairing. Quick delivery from Paddock Spares and a few hours removing the old brackets, drilling out seized riv-nuts, installing new rib-nuts and vigorous wire-brushing of the chassis ready for copious waxoyl undersell. Job done.
View attachment 89792
What a great post and great looking landy, loving your work.congratulations on what you've achieved so far
