Strip down and rebuild into the ultimate Overlander.
- Thread starter landy-lee
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
doriz
Well-Known Member
- Posts
- 17,312
They looks good to me, keep it going.
- Posts
- 11,024
- Location
- North of the Wall
I see you have LR tool number one handy on the drive there.
- Posts
- 11,024
- Location
- North of the Wall
No, full size is better.
- Posts
- 4,630
No, as they are is better IMO
frog hopper
Well-Known Member
- Posts
- 4,782
- Location
- france
Yeah, full size every time.

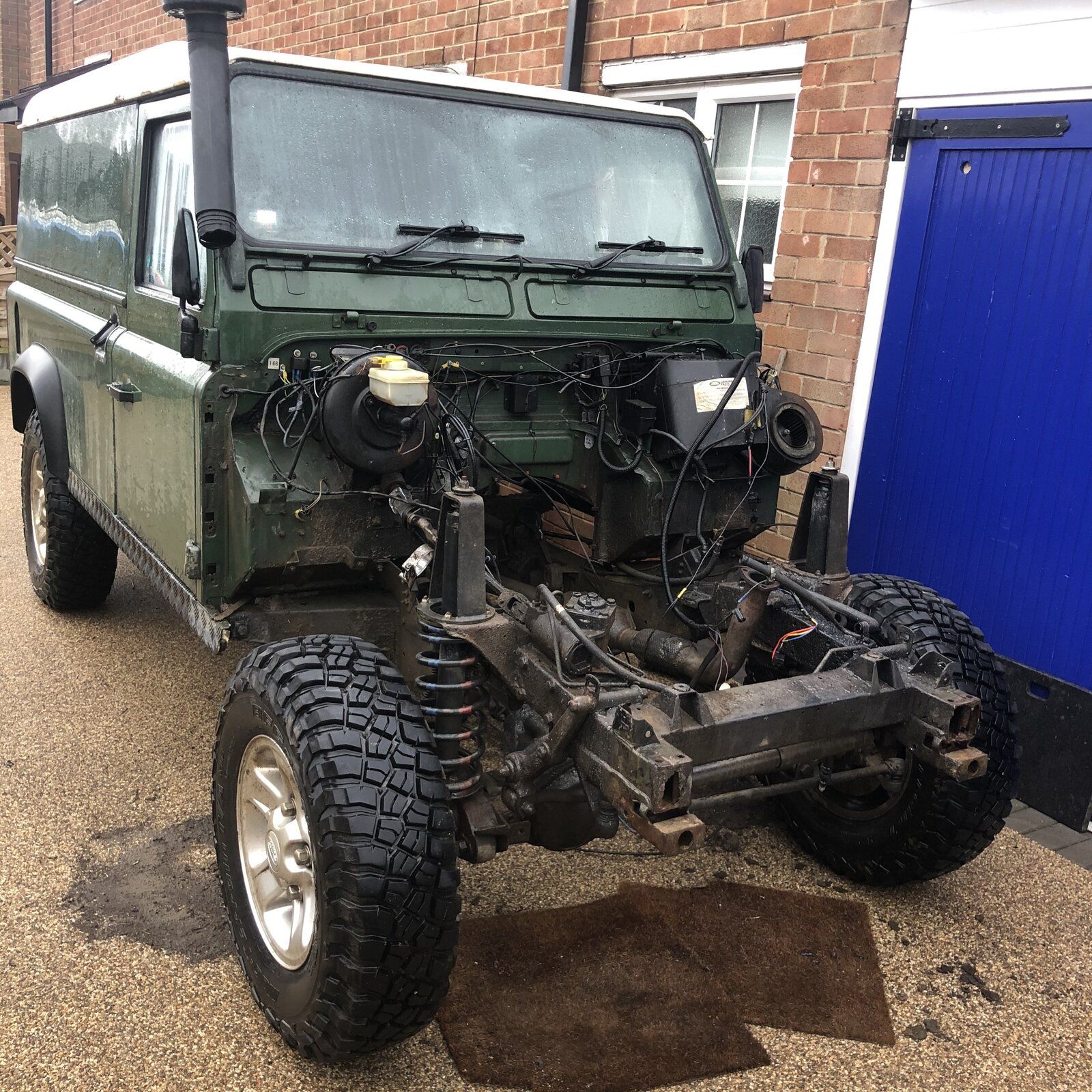

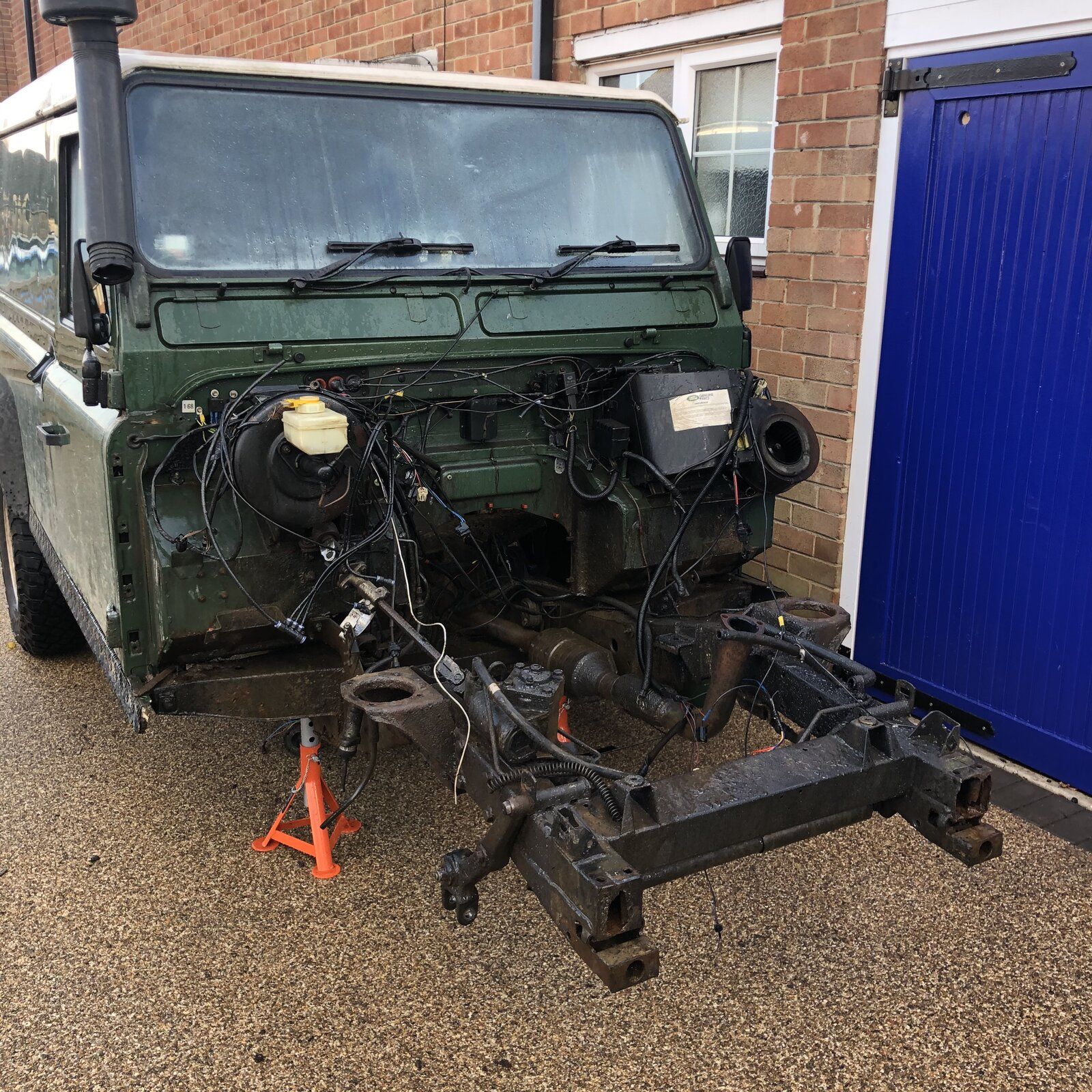

The wings are off!
Not to much trouble at all. The only bolts i had to cut was the M10 ones at the bottom of the wing where it bolts to the sill.
Im now ready to pull the axle off tomorrow. The drop arm is off and the puller was well worth its money.

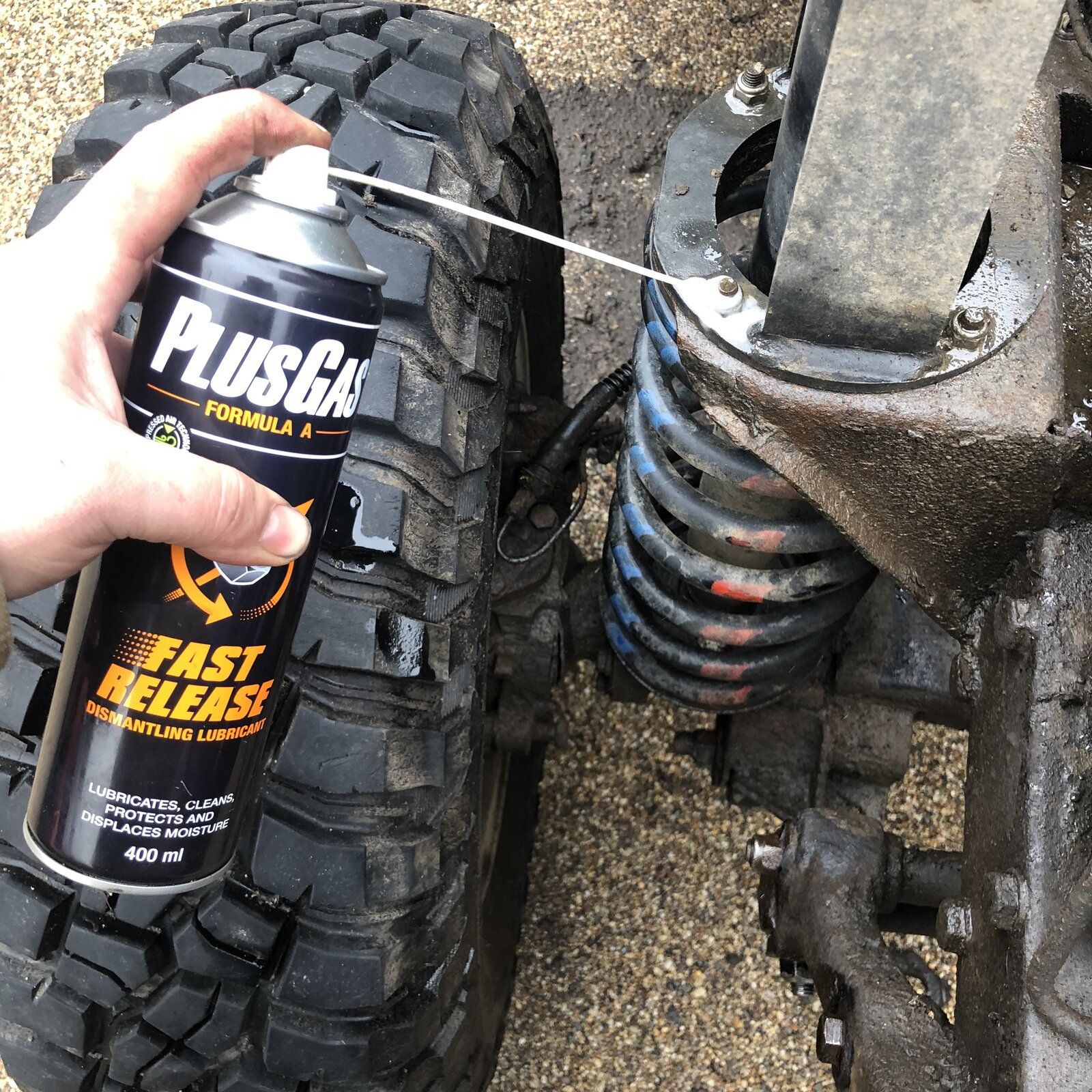

Ive given all the bolts a going over with a wire wheel and a good soaking in plus-gas.
Not to much trouble at all. The only bolts i had to cut was the M10 ones at the bottom of the wing where it bolts to the sill.
Im now ready to pull the axle off tomorrow. The drop arm is off and the puller was well worth its money.
Ive given all the bolts a going over with a wire wheel and a good soaking in plus-gas.
Landyfox
Well-Known Member
- Posts
- 4,489
I’ve not enjoyed a rebuild thread since Aaron Morris’s old builds - This is going to be fun!!
I wouldn’t pull the axle off until I was down to a rolling chassis. It’s far easier to move if the need arises.
We all do things differently.
My aim this week is to get as many mechanical components in the garage as possible as i am back at work on Monday so i will not have any daylight to work in so striping the parts off in the way i am will give me plenty to do in the evenings.
As from Monday i will be stripping the Engine, cleaning parts and inspecting as i go.
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
Going well so far
decent pace as well
Now he was a landyzone legend, excellent builds and man he could strip a landy fast, seem to remember he stripped a 90 to bits over a weekend with minimal facillities.
Always good to watch a rebuild thread
Good to have a plan and something to do every eve keeps its moving and you motivated.
Good luck
decent pace as well
Now he was a landyzone legend, excellent builds and man he could strip a landy fast, seem to remember he stripped a 90 to bits over a weekend with minimal facillities.
Always good to watch a rebuild thread
Good to have a plan and something to do every eve keeps its moving and you motivated.
Good luck
doriz
Well-Known Member
- Posts
- 17,312
Looking good, stay motivated.
Cheers mate.
Im working on it 9-3 ish each day. not taking over my life just yet but i do like to research jobs to do and parts in the afternoon.
Do you have a link to his build?
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
which one he did several
the man got a 5.7 cummins in a 90 and it looked smart and very professional
think is about on facebook exploring urban enviroments, most on here would aspire to his standard of rebuild with such limited facilities
the man got a 5.7 cummins in a 90 and it looked smart and very professional
think is about on facebook exploring urban enviroments, most on here would aspire to his standard of rebuild with such limited facilities
Landyfox
Well-Known Member
- Posts
- 4,489
@landy-lee I swear by that Plus Gas
He was a lovely lad, I visited him a few times. He achieved everything whilst enduring hideous issues with his neighbours. He was completely self taught. Each Landy he done, he learnt a bit more. He’s definitely a miss on here.
He was a lovely lad, I visited him a few times. He achieved everything whilst enduring hideous issues with his neighbours. He was completely self taught. Each Landy he done, he learnt a bit more. He’s definitely a miss on here.

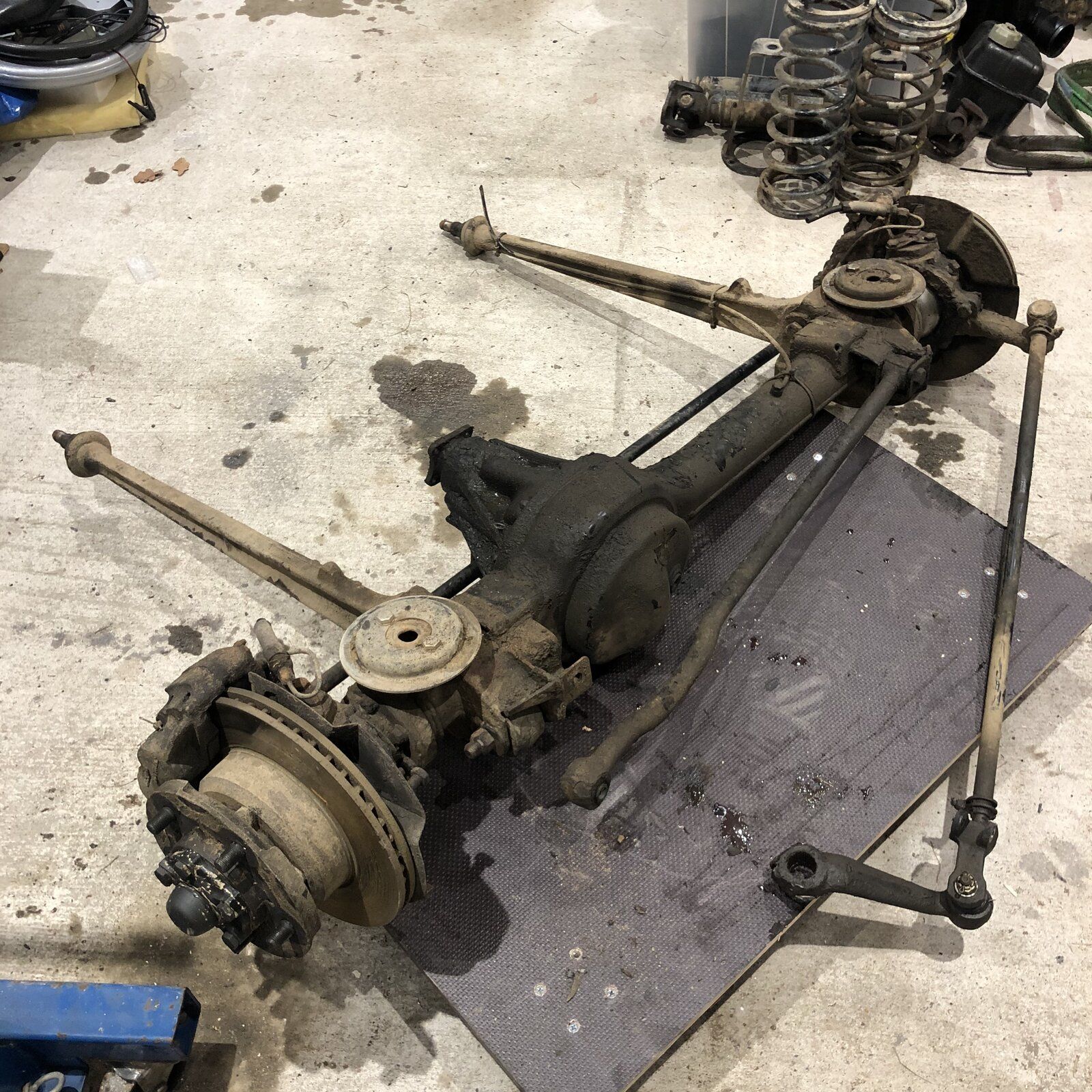

Axle is off!
The radius arms were a bugger to get out of the chassis bushings.

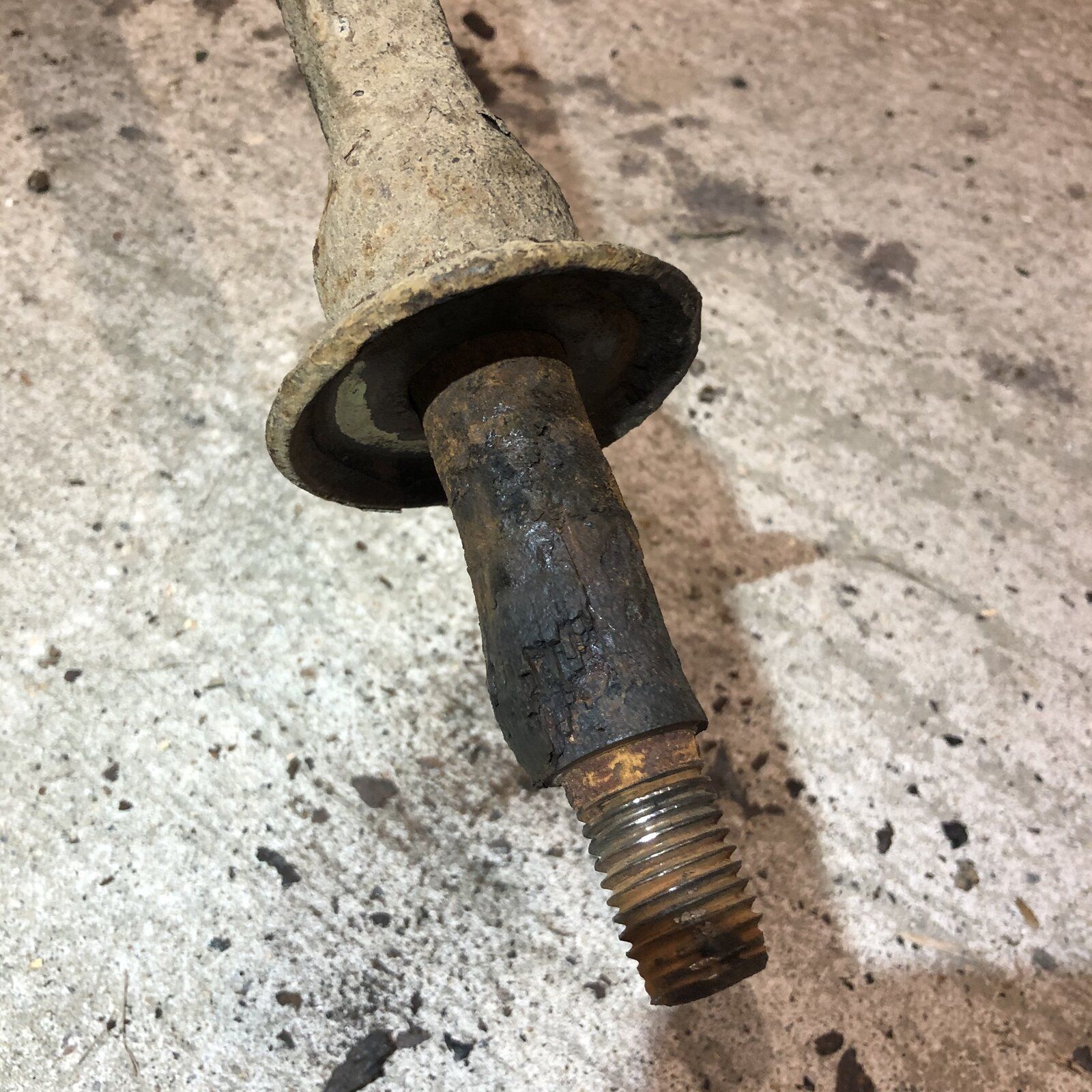

As you can see in the bottom photo the part of the radius that sits in the bush is really rusted. Do you think they are no good as i don't think they will sit in the new bushings very well and will be sloppy?
The radius arms were a bugger to get out of the chassis bushings.
As you can see in the bottom photo the part of the radius that sits in the bush is really rusted. Do you think they are no good as i don't think they will sit in the new bushings very well and will be sloppy?
Landyfox
Well-Known Member
- Posts
- 4,489
Possibly, though I would be tempted to grind it down and weld a new sleeve on to guarantee a tight snug fit.
