I'd be really interested to hear what you think of the needle de-scaling air tool when you get to try it. I've also found that cheap brick acid is very good at soaking/dissolving off rust (if you can get the component into a tank) - but don't do this inside, or anything steel near it will start to corrode!
Series 3 109 Station Wagon, full ground up resto and 88 redo careless resto driving project
- Thread starter Wagon Loon
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Hi Rob,

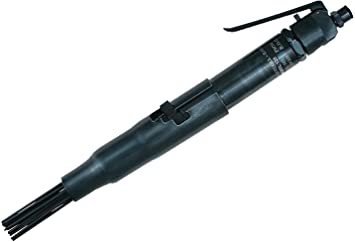

The needle descaler is a great bit of kit. Any loose flaky layered or built up rust just falls away with no fuss and not to much airborne dust. It will not leave a clean shiny surface but I would think one good enough to rust convert and paint.

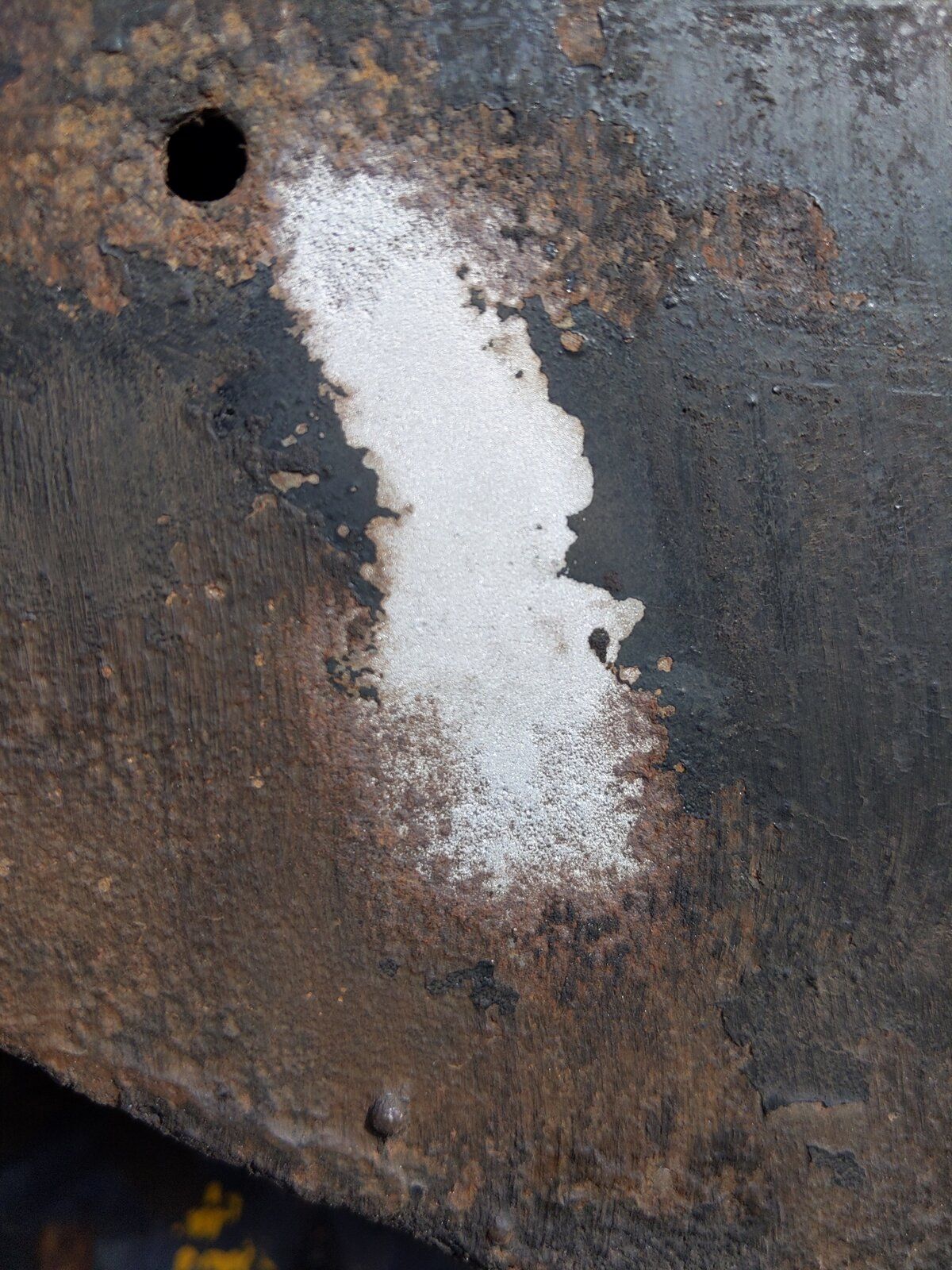

I finished making a sand blaster today, and it works very nicely. I bought children's play sand - 10 bags cheap from Tesco weeks ago, and have been finding ways to dry it for using since. Today I fitted a barrel tip with brass pipe and flexible hose to a cheap aluminium ceramic tipped gun. A full face mask or respirator bad face shield plus head and body coverings is needed. But it works great and leaves a lovely clean dull printable surface.
I plan to clean the worst of the gearbox and transfer cases then polish them up a little plus all the bits such as airbox and metal retaining casings for fresh paint so they will be like new.

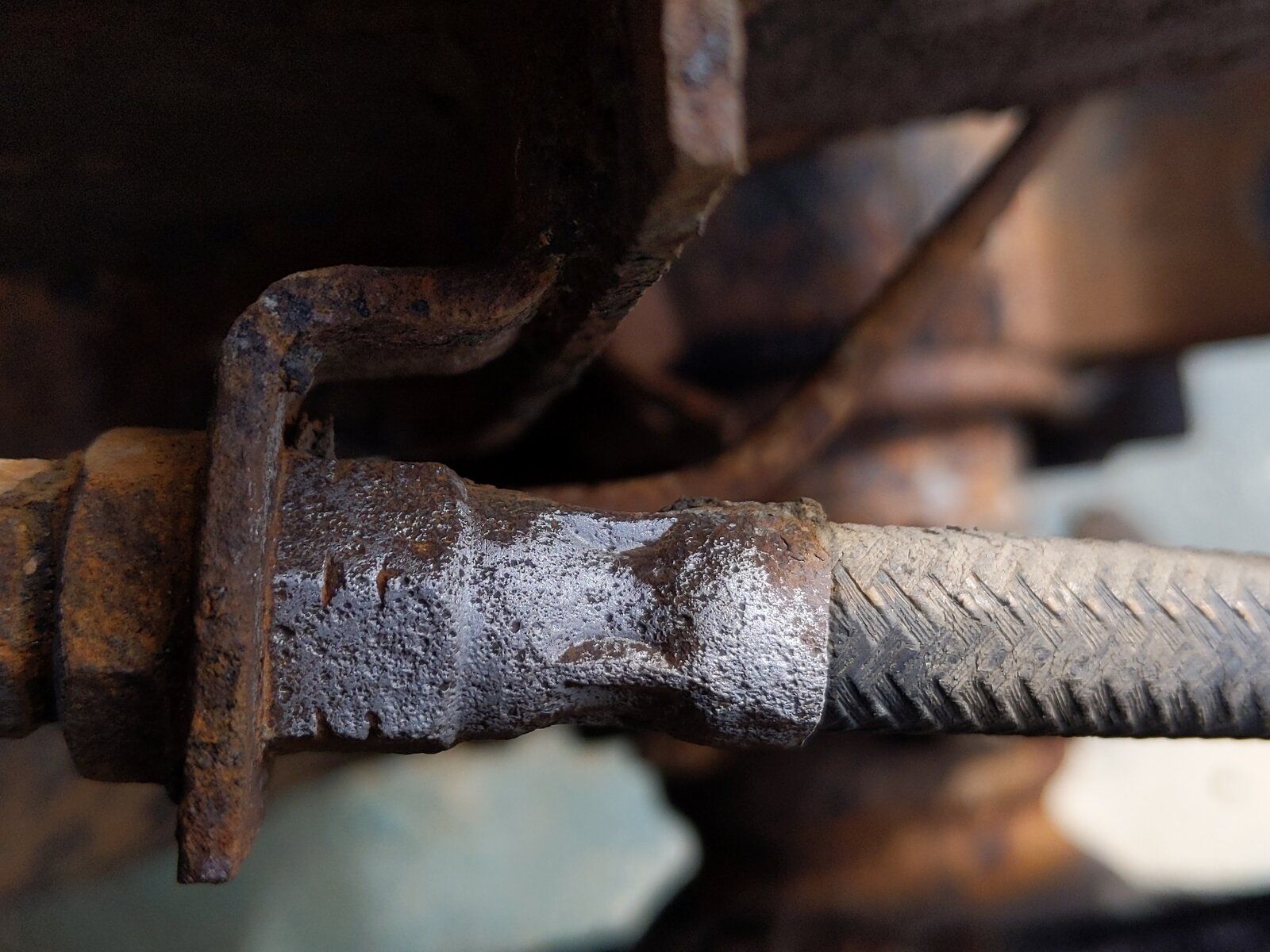

The needle de-scaling air tool may be a bit strong for very thin steel, but ideal for the likes of cleaning up the axles
I sweep the sand up and sieve it back into the blue barrel of which I have two with sealable lids. That's a bit Scottish I know, the rest sits in the cracks between my lockblock drive
The needle descaler is a great bit of kit. Any loose flaky layered or built up rust just falls away with no fuss and not to much airborne dust. It will not leave a clean shiny surface but I would think one good enough to rust convert and paint.
I finished making a sand blaster today, and it works very nicely. I bought children's play sand - 10 bags cheap from Tesco weeks ago, and have been finding ways to dry it for using since. Today I fitted a barrel tip with brass pipe and flexible hose to a cheap aluminium ceramic tipped gun. A full face mask or respirator bad face shield plus head and body coverings is needed. But it works great and leaves a lovely clean dull printable surface.
I plan to clean the worst of the gearbox and transfer cases then polish them up a little plus all the bits such as airbox and metal retaining casings for fresh paint so they will be like new.
The needle de-scaling air tool may be a bit strong for very thin steel, but ideal for the likes of cleaning up the axles
I sweep the sand up and sieve it back into the blue barrel of which I have two with sealable lids. That's a bit Scottish I know, the rest sits in the cracks between my lockblock drive
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

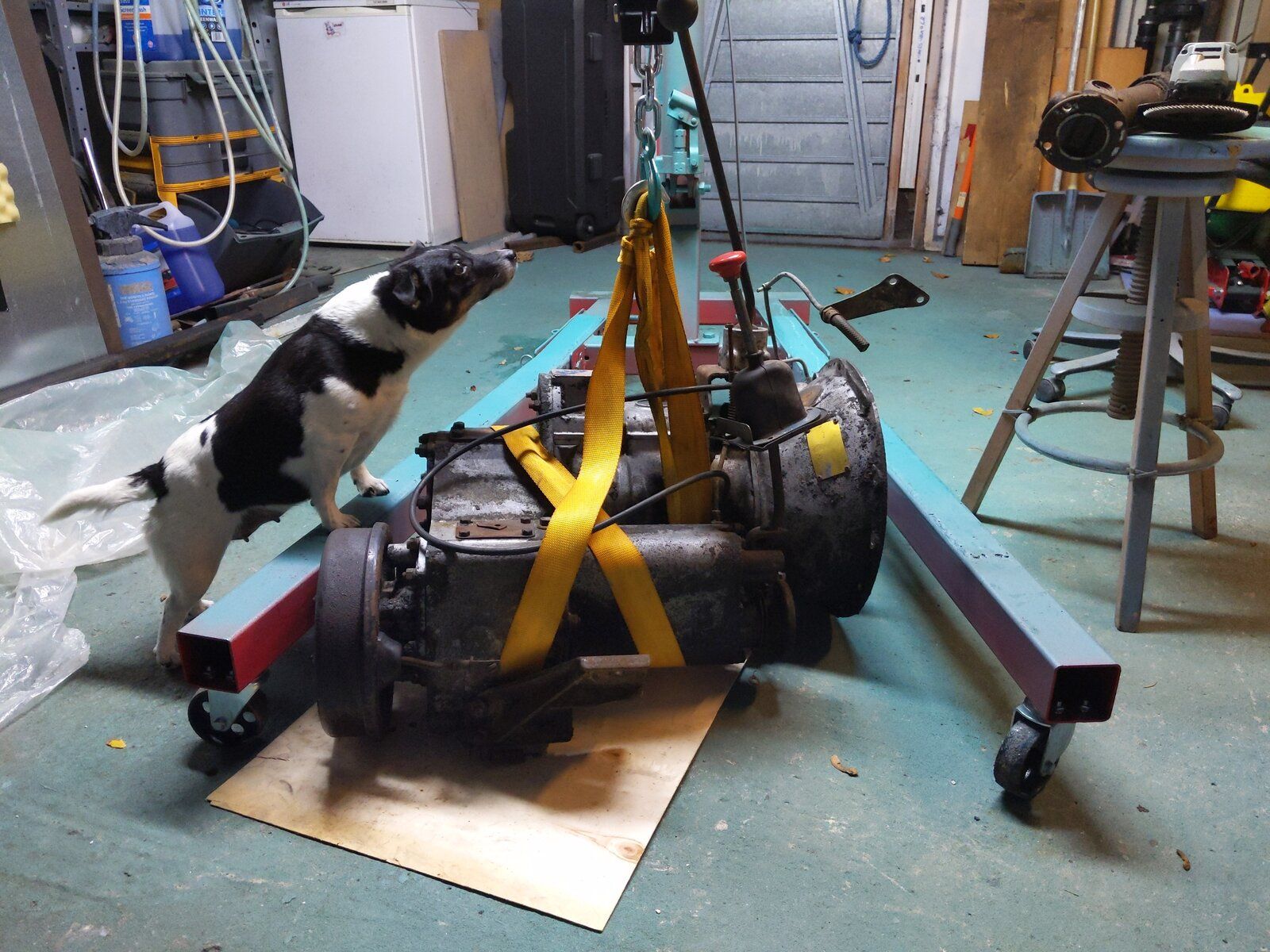

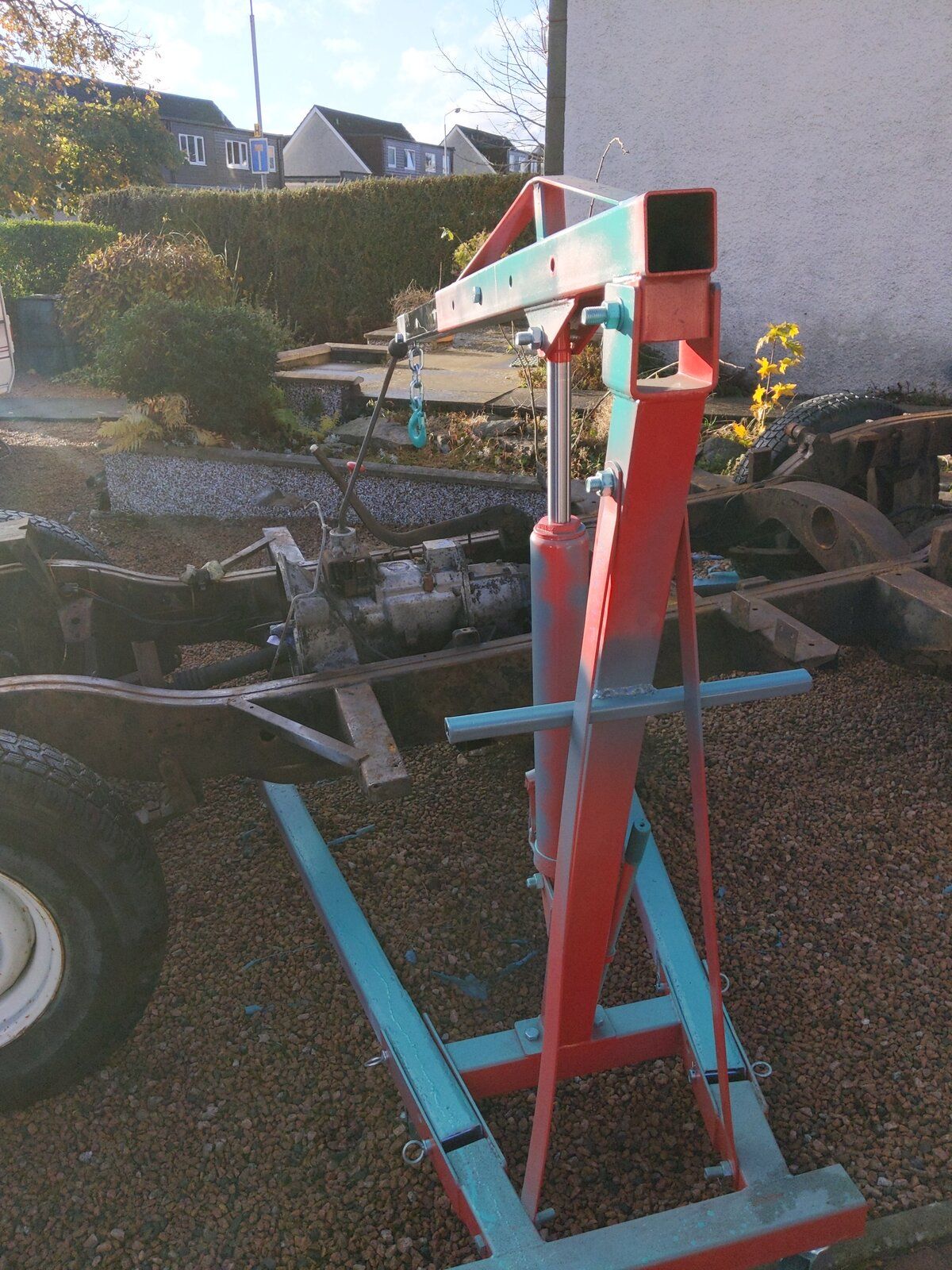

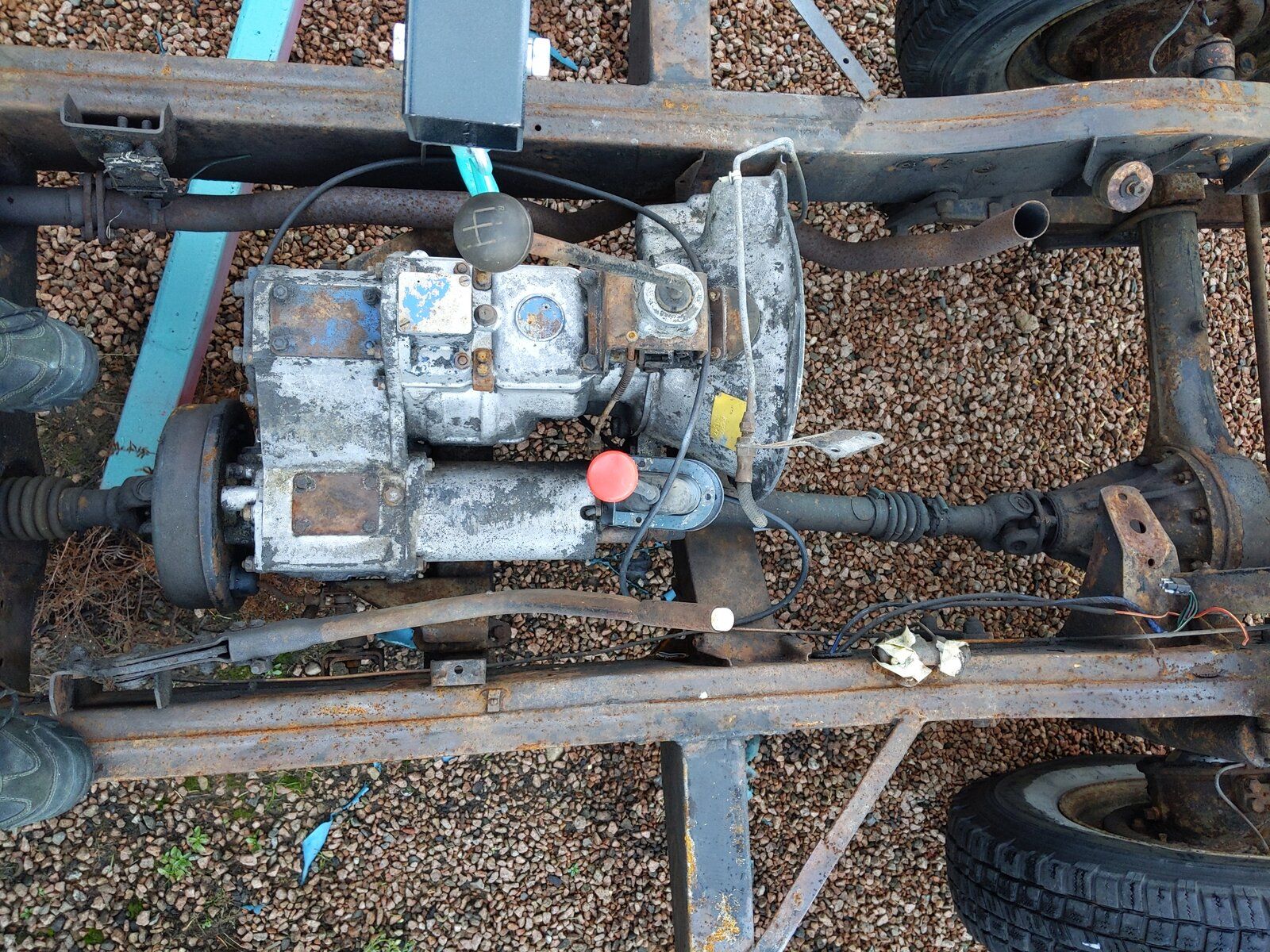

It's out, and a bit heavier than I thought
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

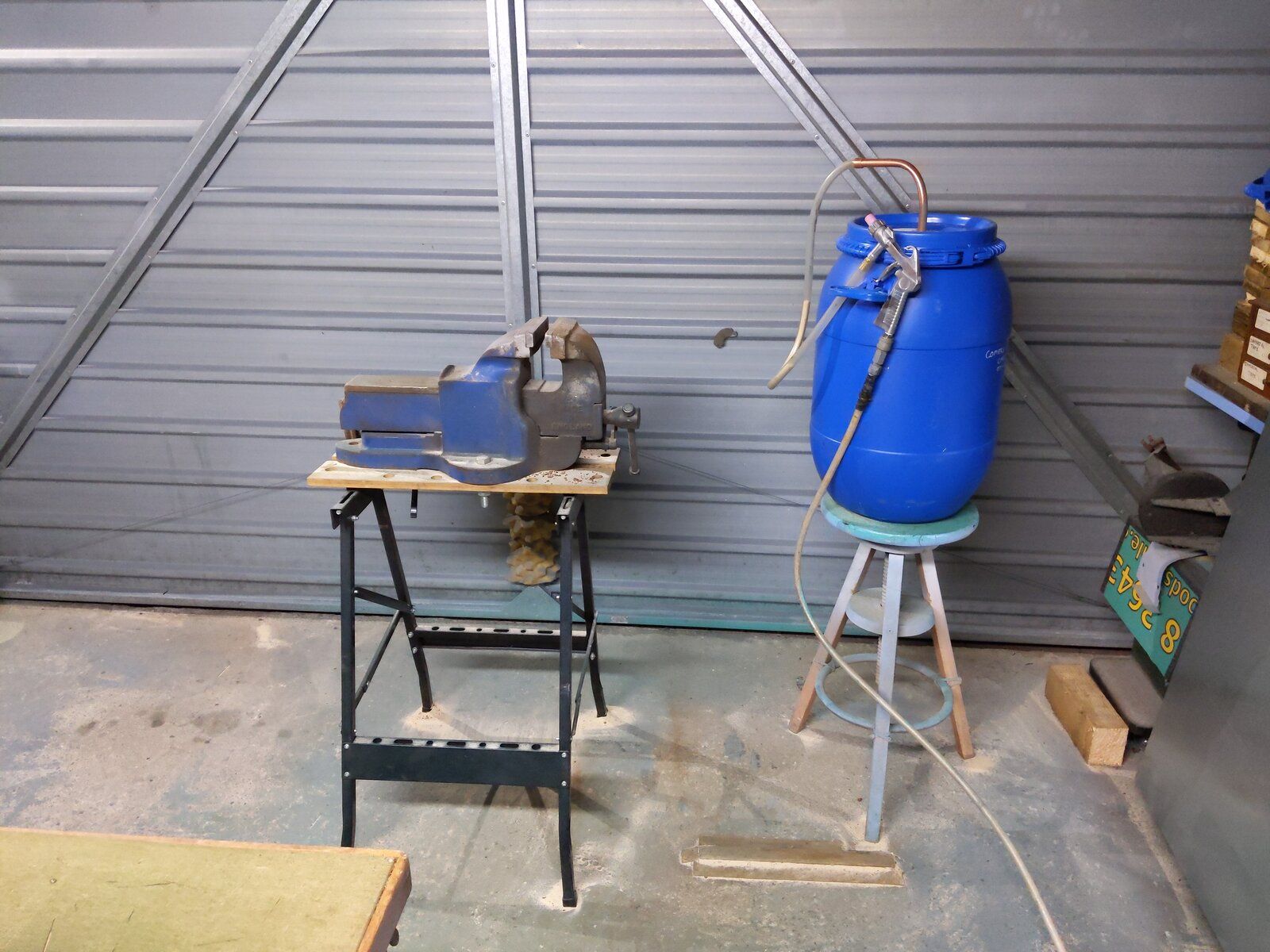

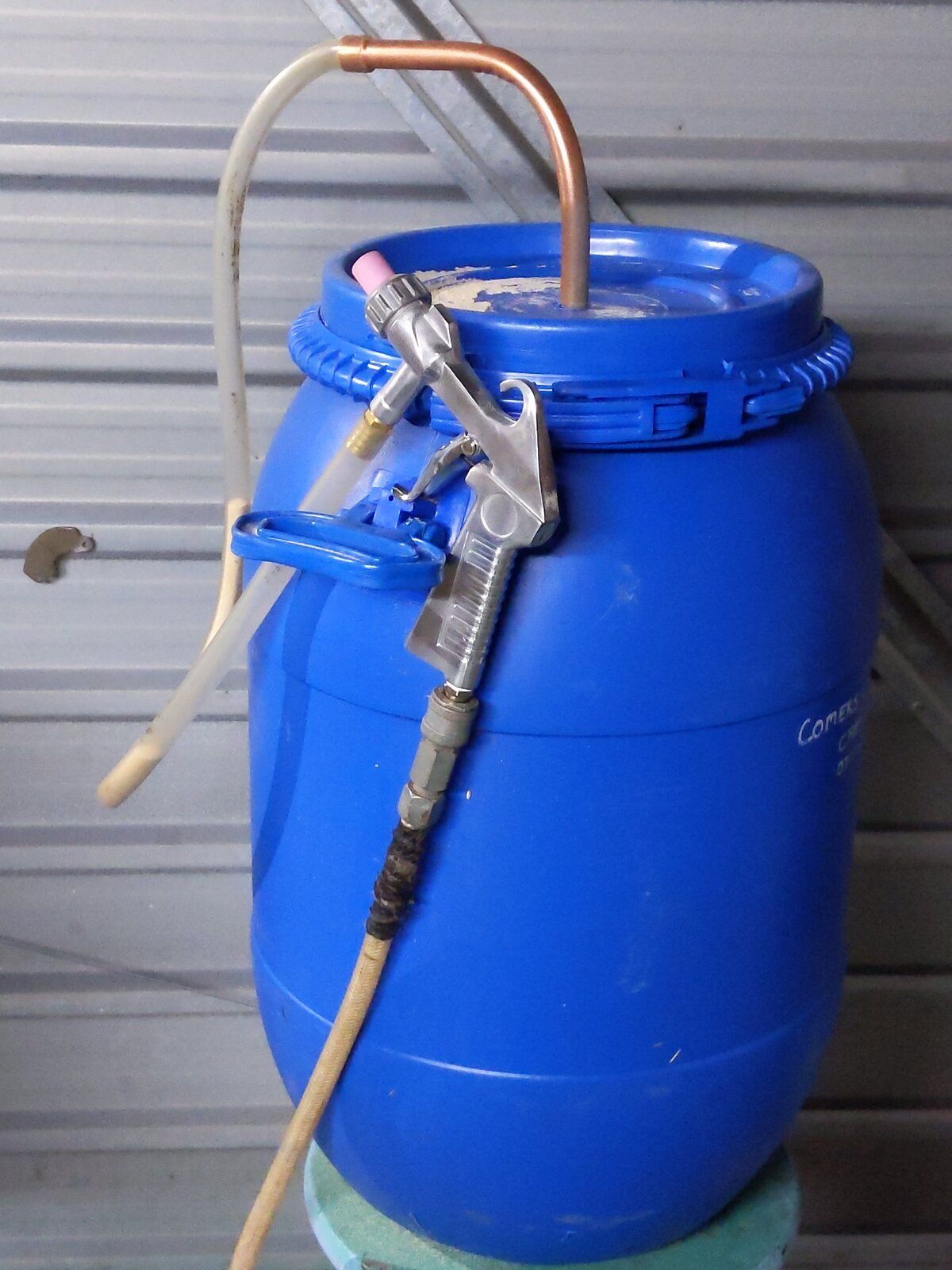

My 3HP belt driven compressor is rated for 14CFM, ( cubic foot per min). But the sand blaster does not need this much. So probably about 8 or 9 CFM actual in use. The copper pipe goes to the bottom of the barrel and is connected to the £14 gun via a flexible hose. The sand is dry and sieved, and is play sand which took forever to dry. But the sand is swept up and sieved back into the barrel and re-used, and I always wear a full face mask and respirator for the dust which is very dangerous to breathe.
I don't know how I made all those sand castles when young without getting silicosis.
Once you've figured how to not get blasted yourself it's a great piece of kit and a pleasure to use
I don't know how I made all those sand castles when young without getting silicosis.
Once you've figured how to not get blasted yourself it's a great piece of kit and a pleasure to use
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

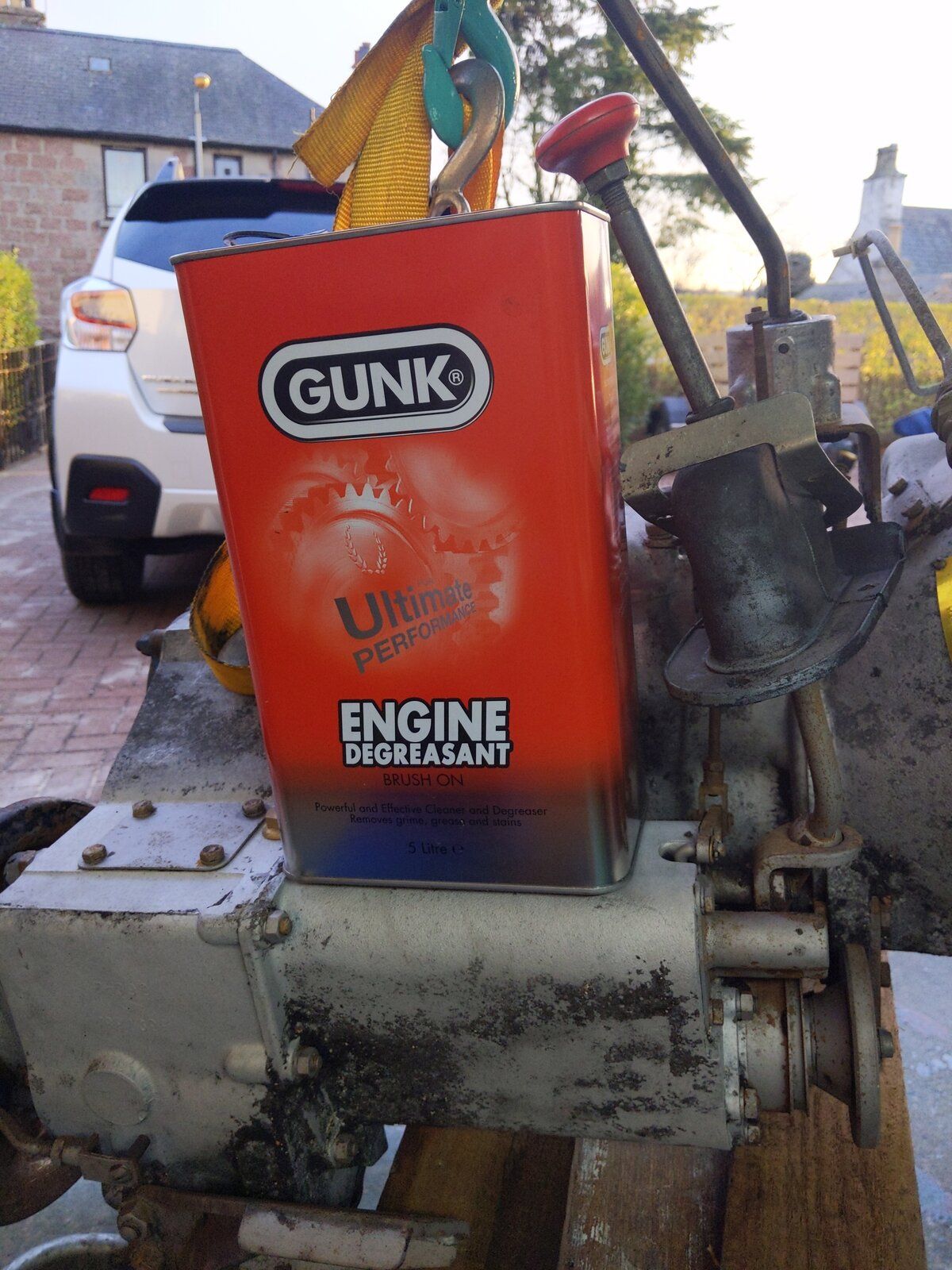

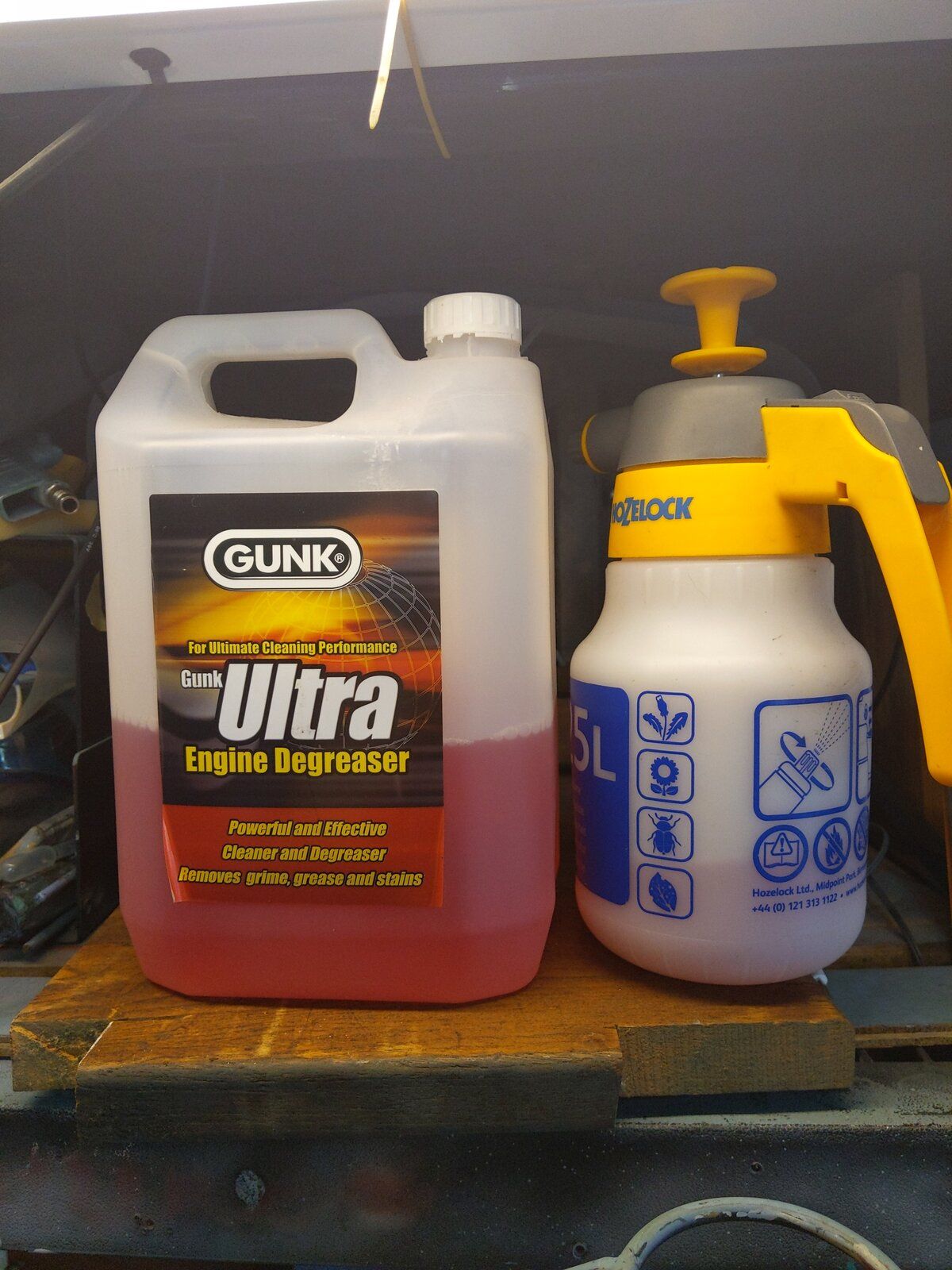

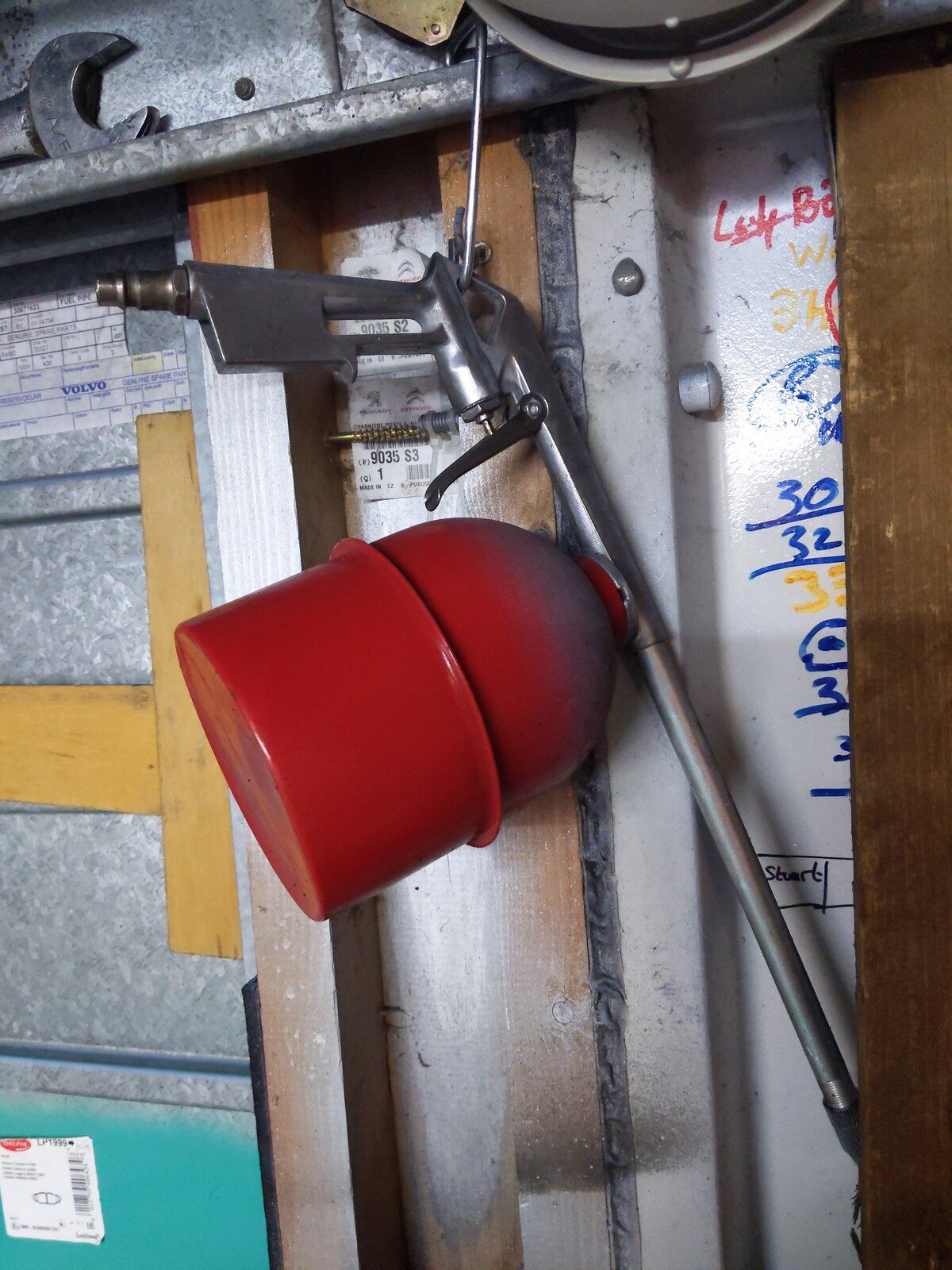

So much crud on the box, been cleaning with Gunk gun
The jet wash, scrubbing brushes, other type of Gunk Ultra in a spray
Which is almost as good as the Gunk in a tin.
I think this one is kinder to plastics in the engine bay.
As opposed to this one
Which has more powerful thinners in.

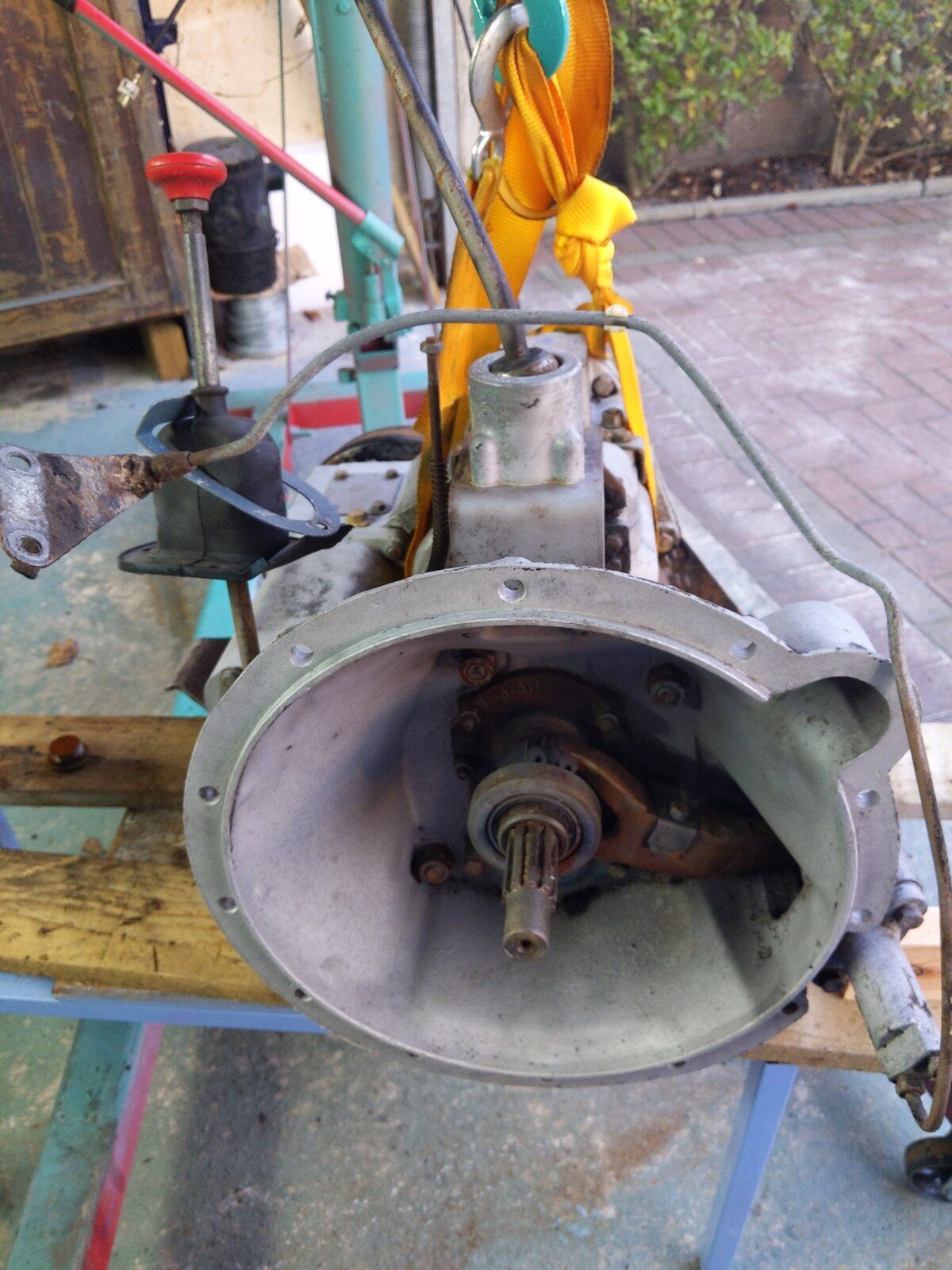

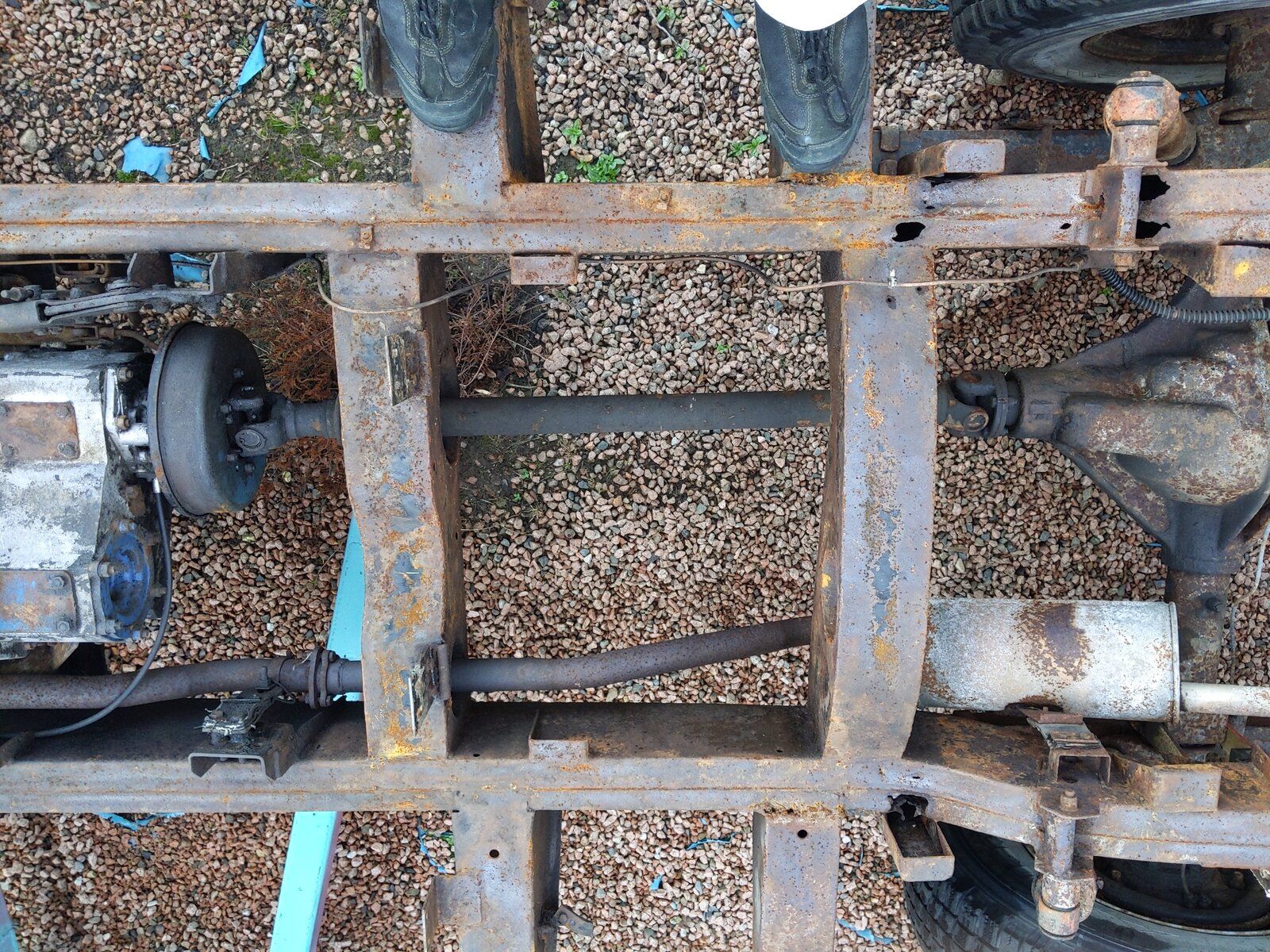

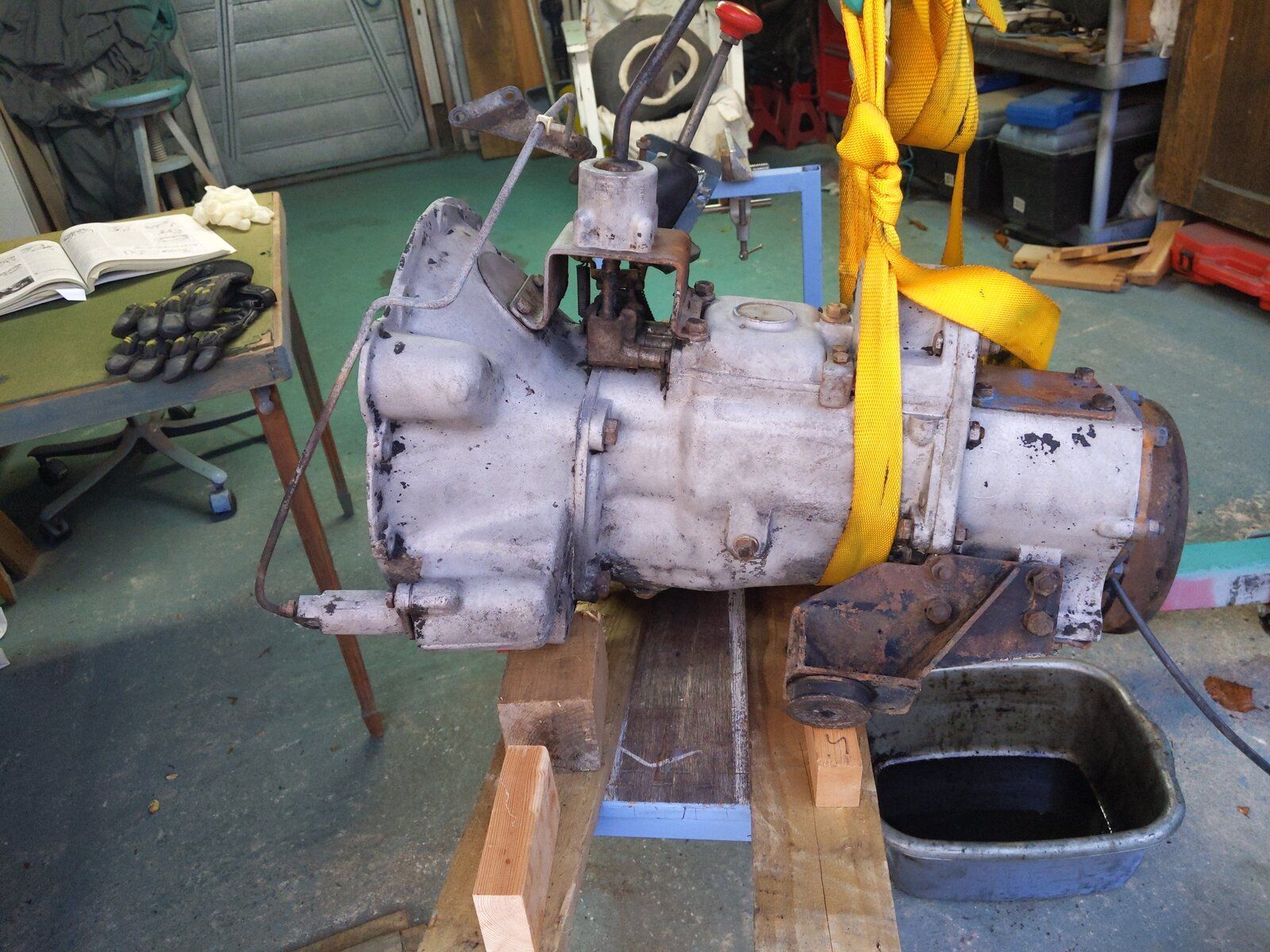

So following on with some sandblasting here is where we're at.

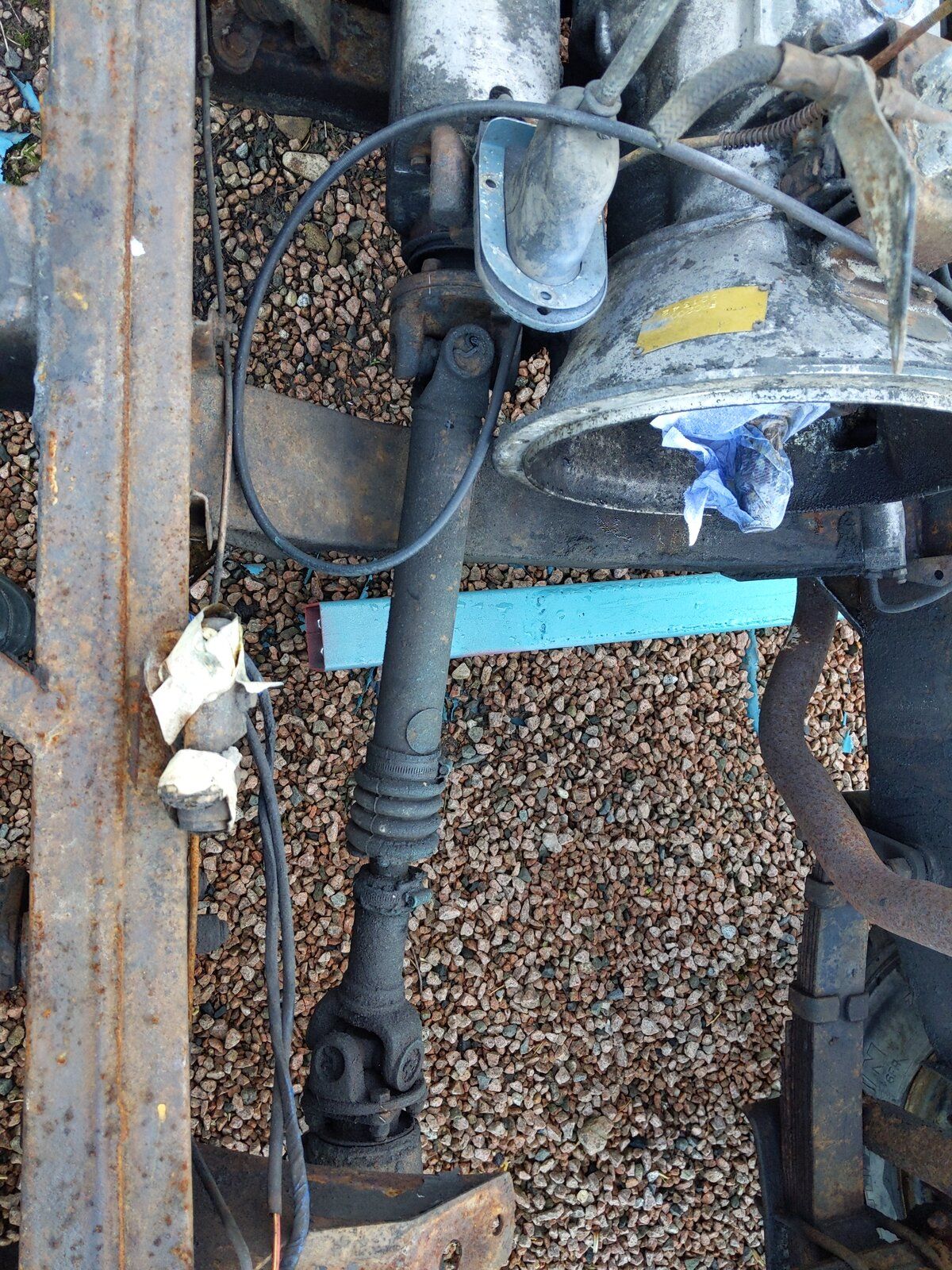

Draining oils and going to split into its parts to take into my shed for a rebuild.
The jet wash, scrubbing brushes, other type of Gunk Ultra in a spray
I think this one is kinder to plastics in the engine bay.
As opposed to this one
Which has more powerful thinners in.
So following on with some sandblasting here is where we're at.
Draining oils and going to split into its parts to take into my shed for a rebuild.
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Guess we'll just have to wait till it's on the bench and separate.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs

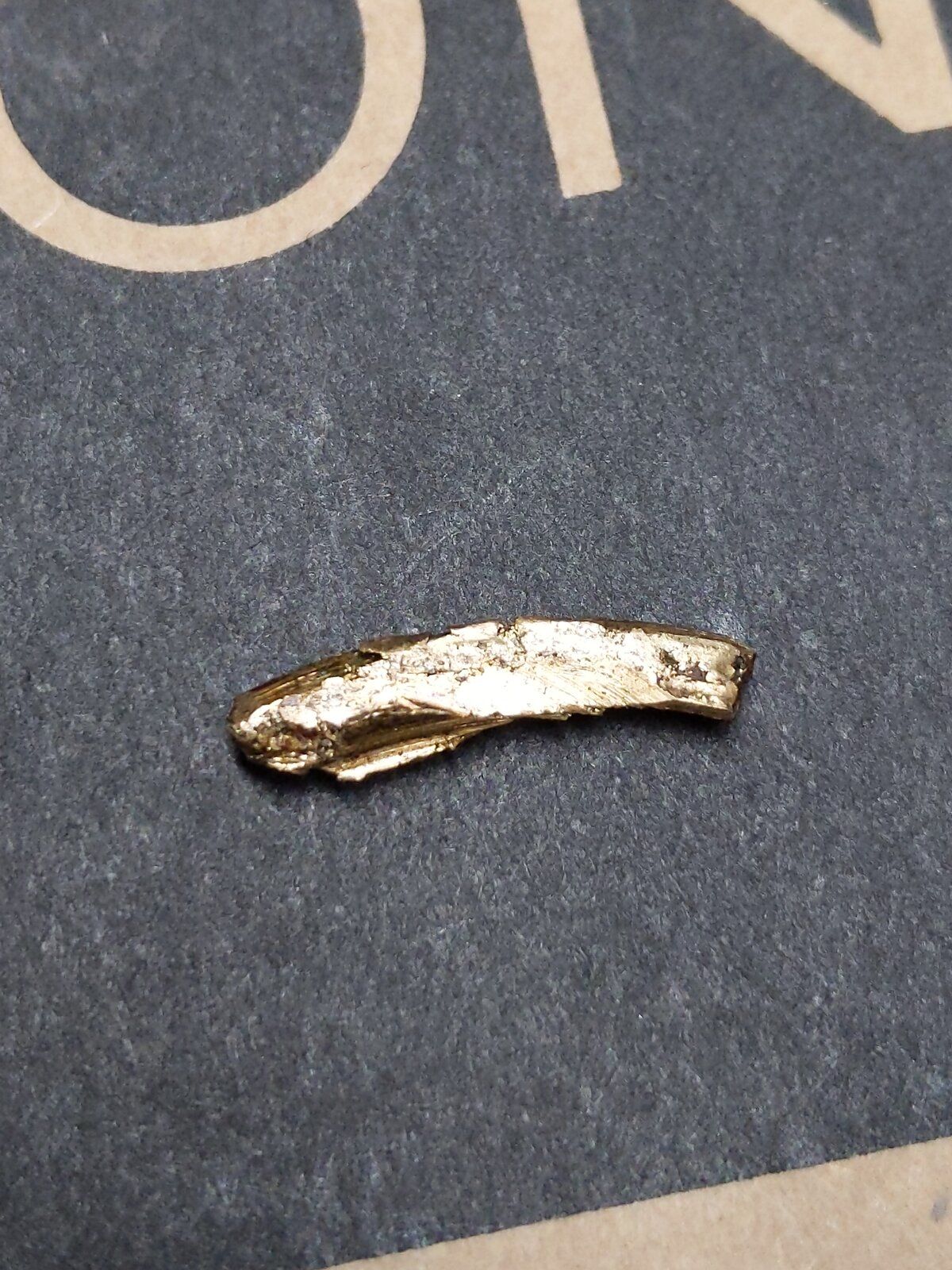

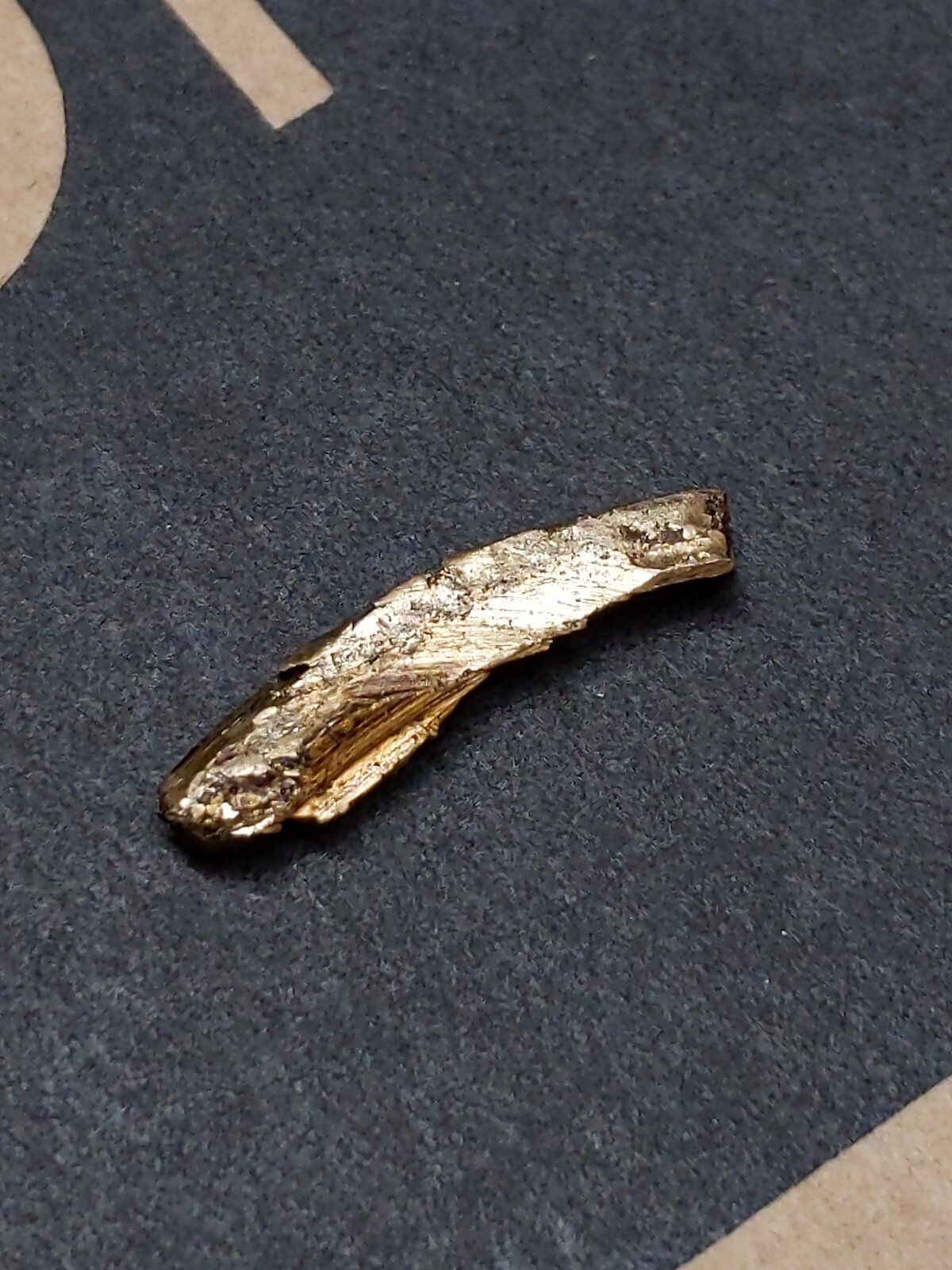

if thats off 3rd 4th synchro or 1st 2nd bush the box must be a mess inside
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
There had to be a reason they stopped driving her. So this may be it.
I believe I can replace all the parts, so just hope it's not a total tragedy inside. . ·´¯`(>▂<)´¯`·.
I believe I can replace all the parts, so just hope it's not a total tragedy inside. . ·´¯`(>▂<)´¯`·.
GSF 109
Well-Known Member
- Posts
- 790
- Location
- Scotlandshire
Looks well mangled! Would be good to see the internals now. Have a look for sparkly oil too....
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
There was no oil in the box, just in the transfer case ⊙﹏⊙
But we have separation
and lots of things in bags
Well it is time to fire up the stove, because it's well below freezing on my shop
But we have separation
Well it is time to fire up the stove, because it's well below freezing on my shop
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

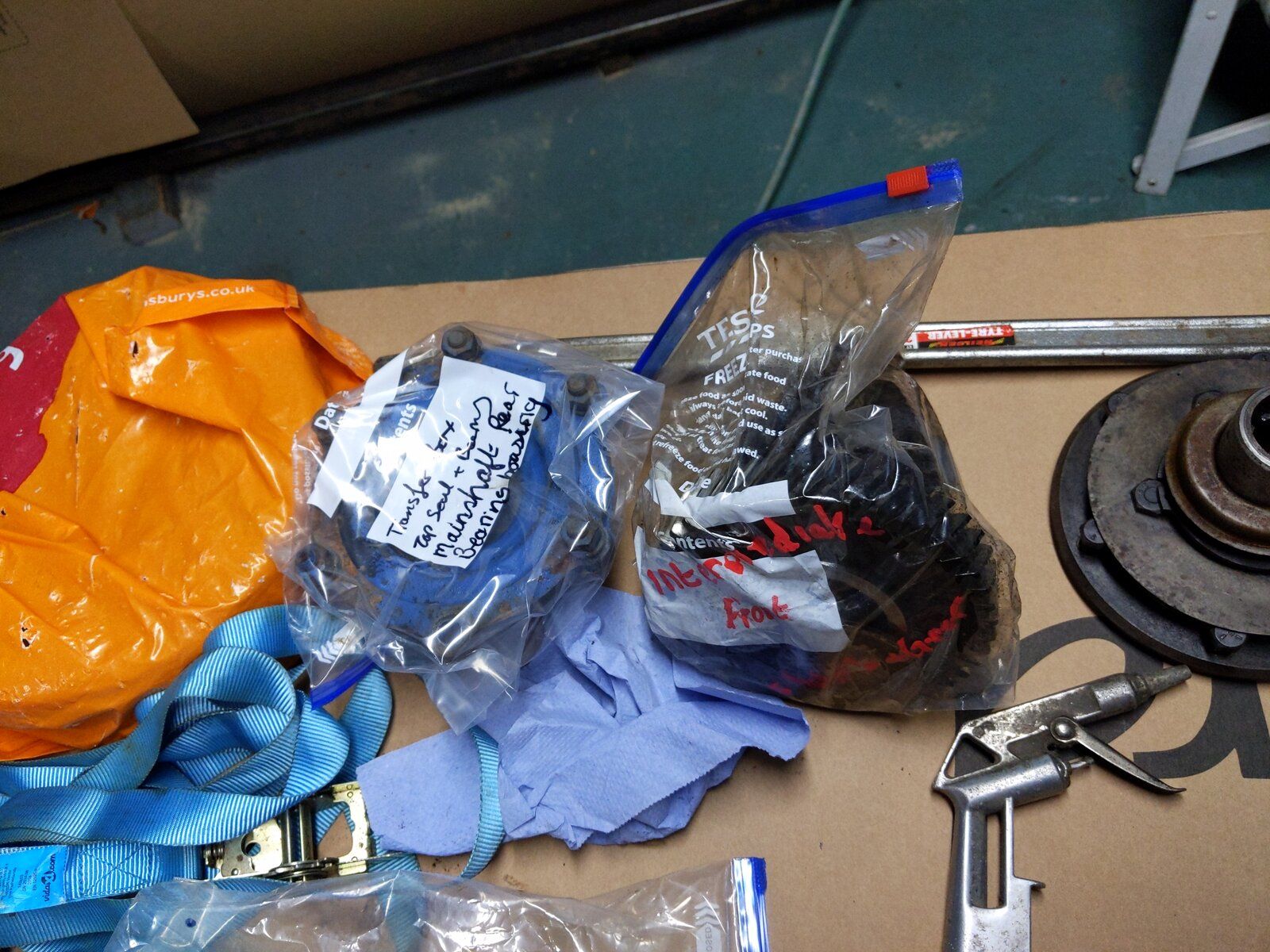

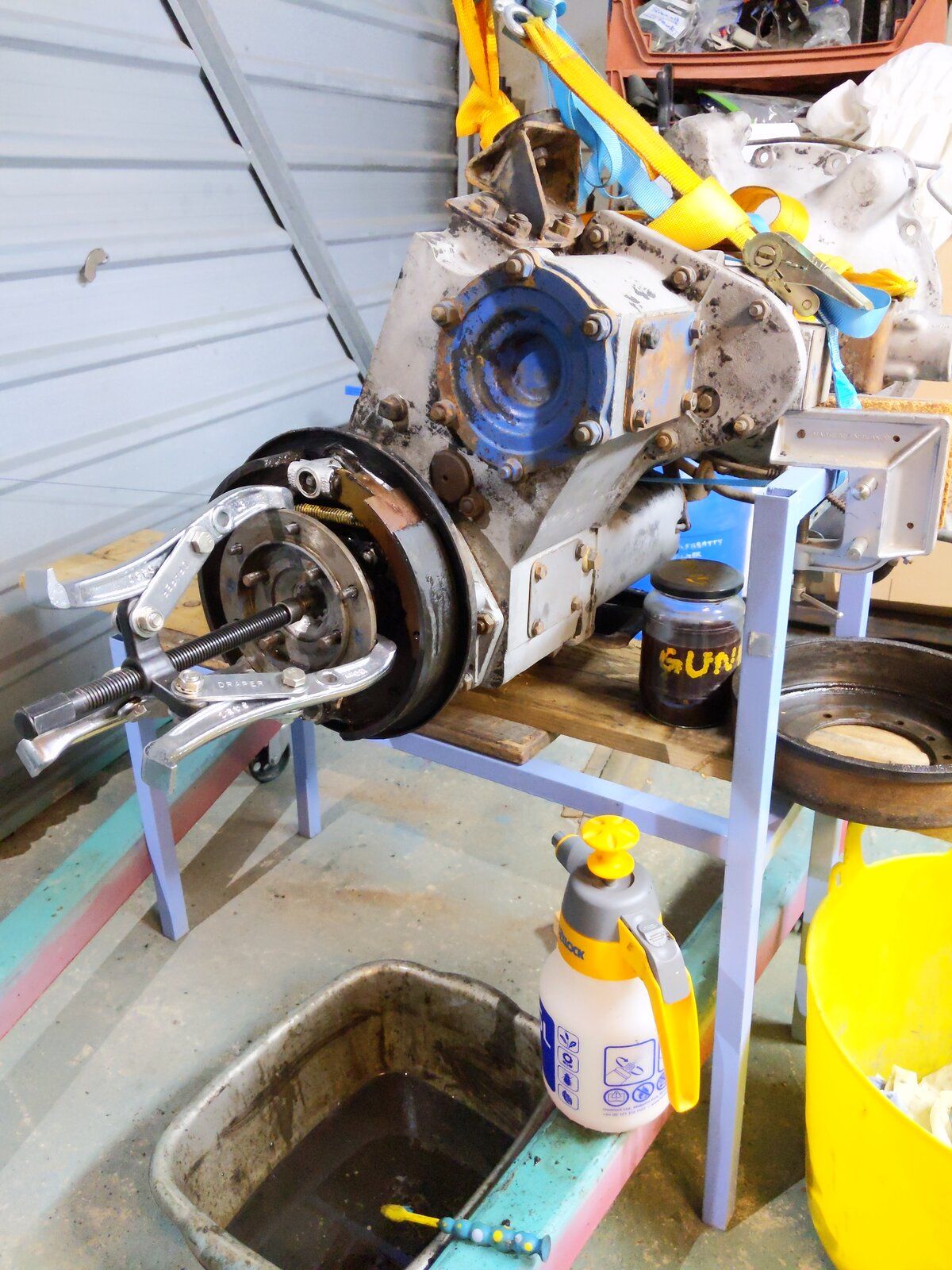

Living in a world of many plastic zip bags all labelled, and going to need to make a tool to remove this nut
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester

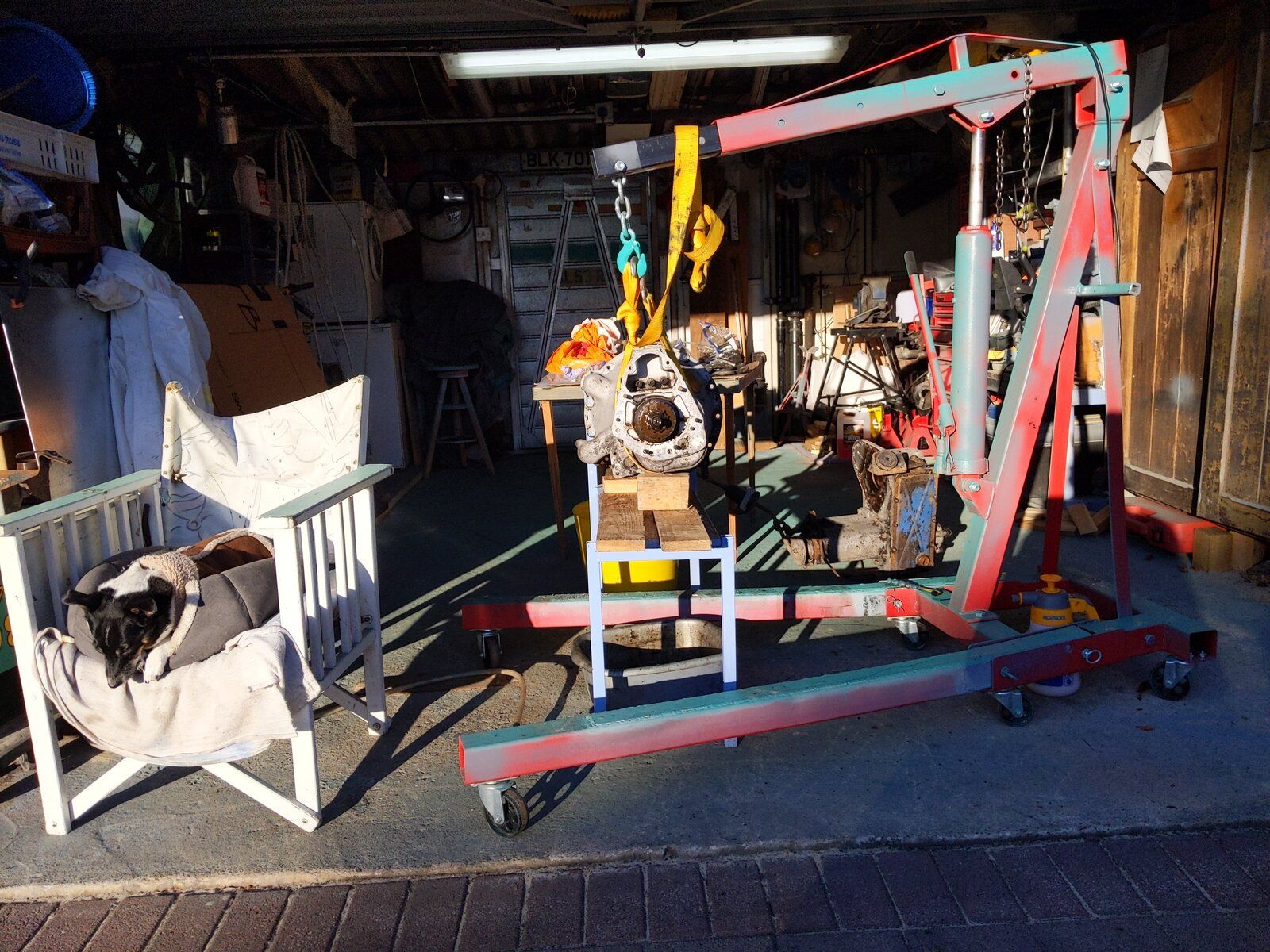

For one moment I thought that was a cot to cradle your precious gearbox in but it’s a dog chair
I’d love to have a go at a gearbox but I doubt my nerves could take it.
I’d love to have a go at a gearbox but I doubt my nerves could take it.
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

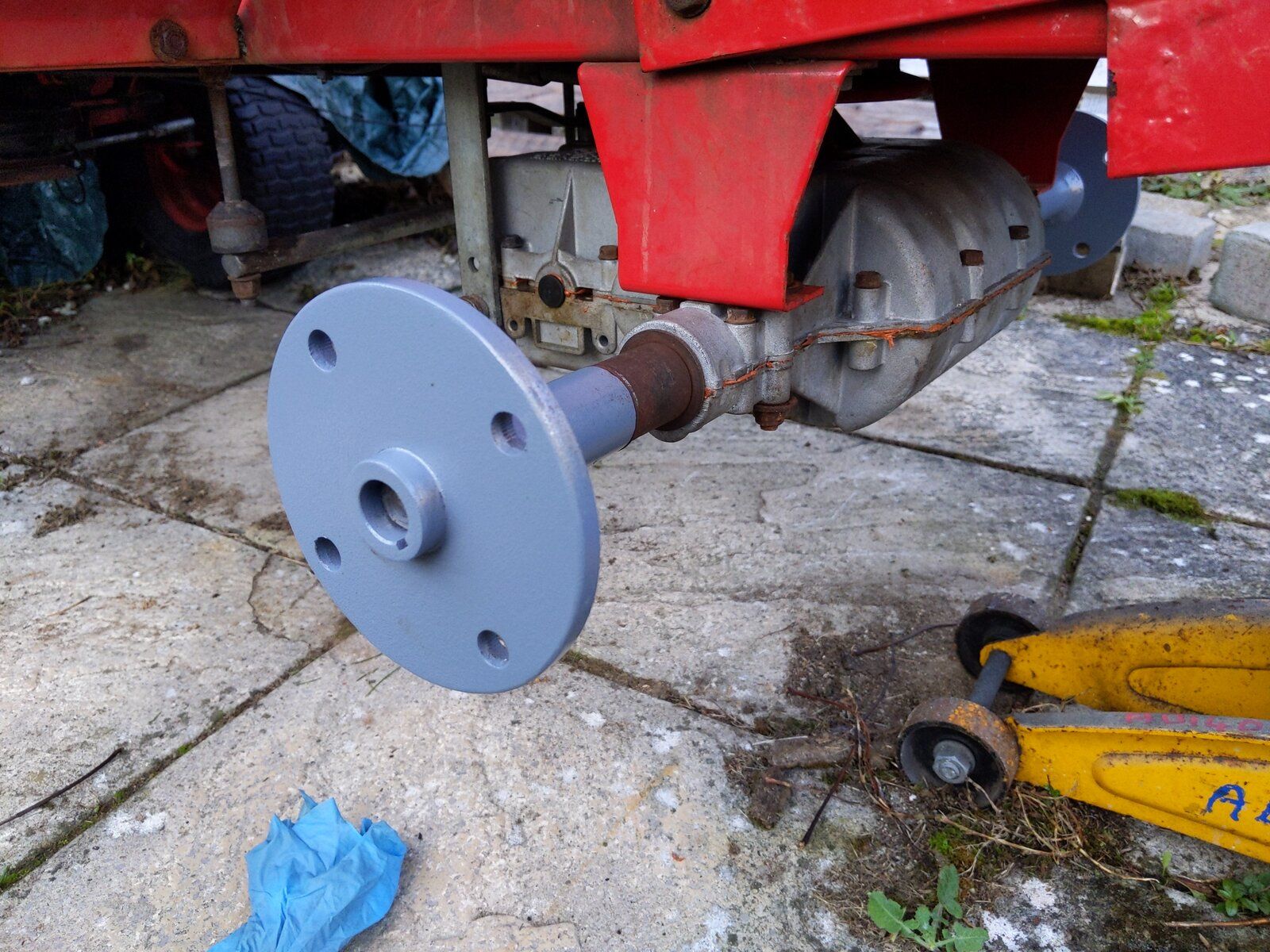

Before I can rebuild it, I've had to re fit the 30+ year old transaxle I just recently finished rebuilding. A Peerless 801 which had a destroyed crown gear (ʘ言ʘ╬)
Getting parts for a box which has not been made for nearly 40 years years proved a challenge
Now the shed's free for the Landy box, and I can get my car in the garage again ♪┌|∵|┘♪
Getting parts for a box which has not been made for nearly 40 years years proved a challenge
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
I know what you mean Bobsticle,
But armed with the Haynes Manual and countless you tube vids also all the amazing info on the web, why not.
A replacement box seems to be over a grand, yet all the bearings and syncro parts are just a few hundred and I just don't trust other garages enough. They seem to be so slap dash.
If you do it yourself you know what kind of a job is done; it's just not about the money or the time. It's about the pleasure of having made something broken and worth saving for us all - like new again, so it can go on doing the best of British for another forty years or more. Also the personal achievement of having restored another big component of the puzzle.
I hope you do Bobsticle, because it's a worthy challenge to make a good job.
But armed with the Haynes Manual and countless you tube vids also all the amazing info on the web, why not.
A replacement box seems to be over a grand, yet all the bearings and syncro parts are just a few hundred and I just don't trust other garages enough. They seem to be so slap dash.
If you do it yourself you know what kind of a job is done; it's just not about the money or the time. It's about the pleasure of having made something broken and worth saving for us all - like new again, so it can go on doing the best of British for another forty years or more. Also the personal achievement of having restored another big component of the puzzle.
I hope you do Bobsticle, because it's a worthy challenge to make a good job.
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester
Maybe one day when all my other projects are done.
LincolnSteve
Well-Known Member
- Posts
- 1,205
- Location
- Lincoln
Have you got a genuine workshop manual. Haynes can be a bit lacking. Genuine ones are available to download free. I can't remember the website address but I bet someone on here will know it. Much more detailed.
