Series 3 109 Station Wagon, full ground up resto and 88 redo careless resto driving project
- Thread starter Wagon Loon
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
GSF 109
Well-Known Member
- Posts
- 790
- Location
- Scotlandshire
Tidy job!
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Thank you
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

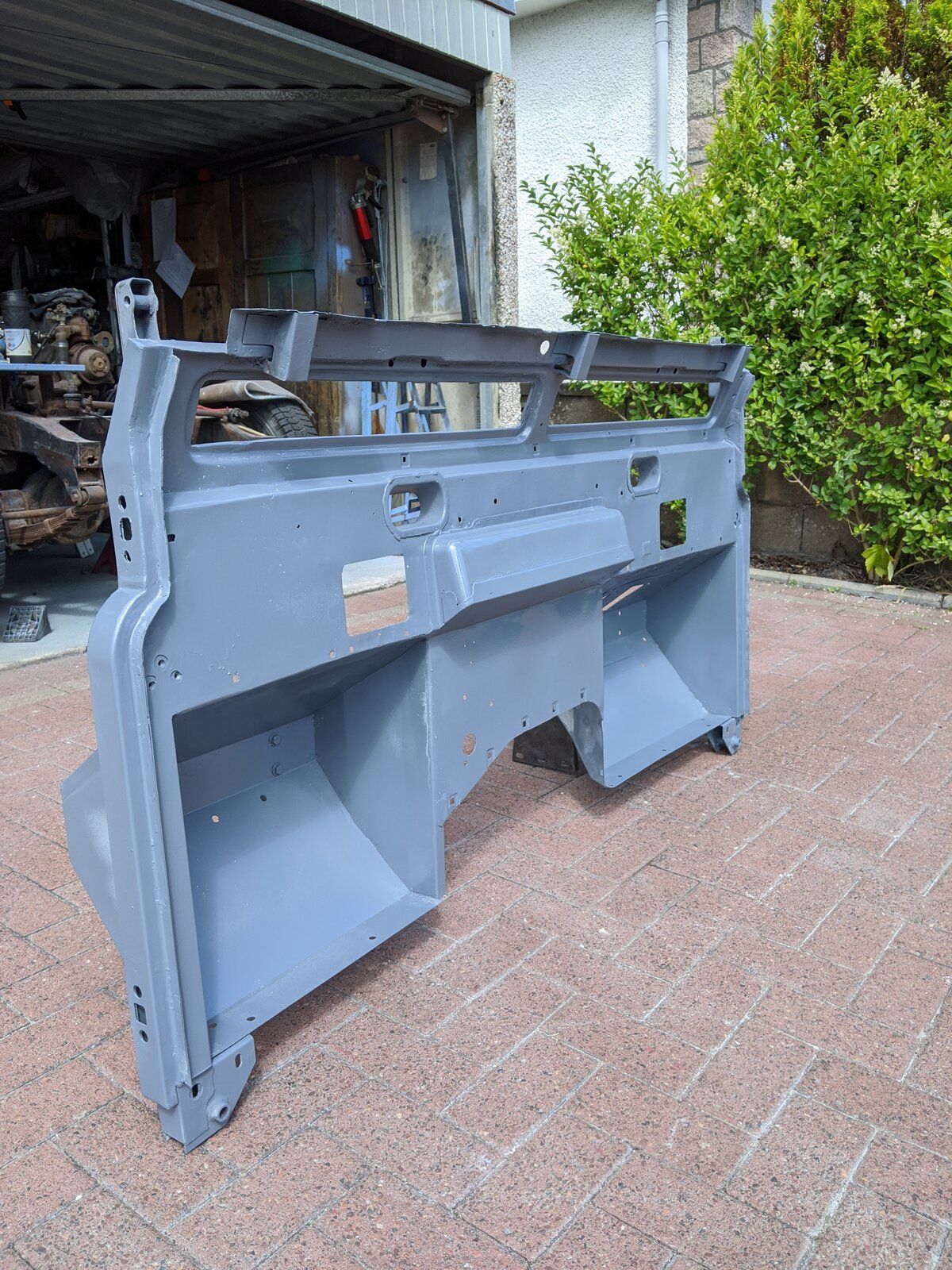

Just needing to try and get the bulkhead as good as I can, and because the Raptor Epoxy paint works so well with Epoxy filler; have the opportunity to work over it several times and build up a nice finish
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

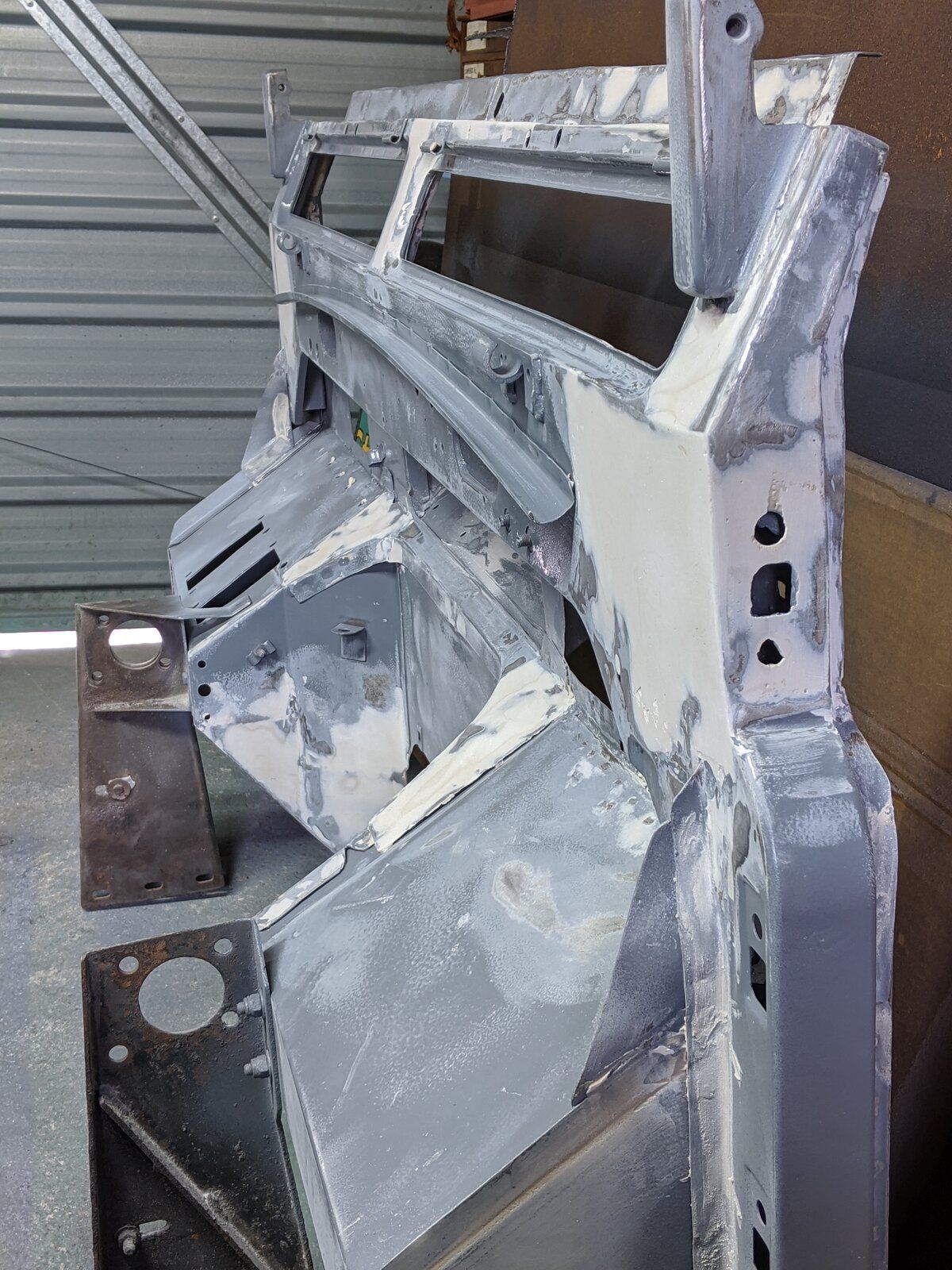

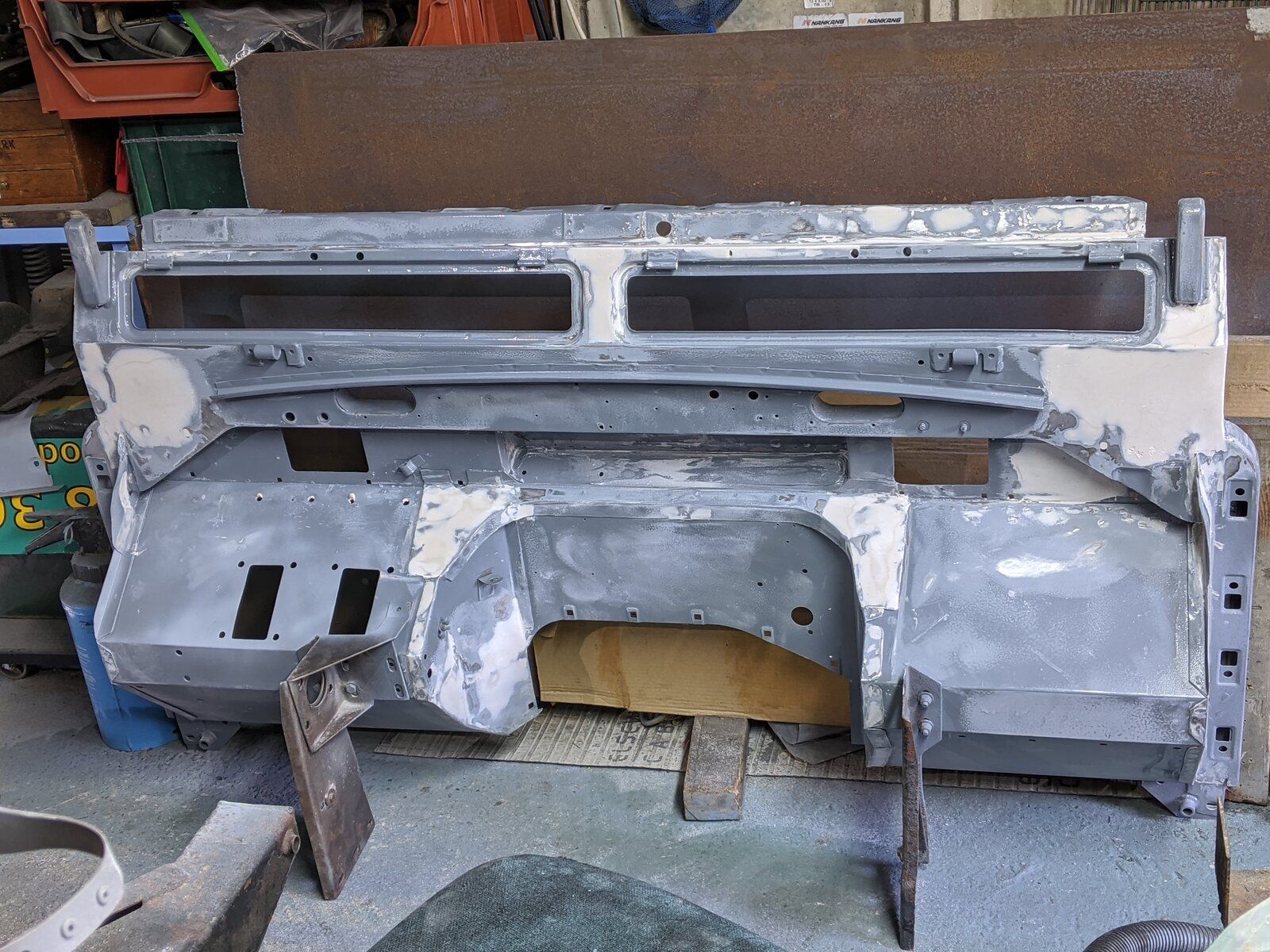

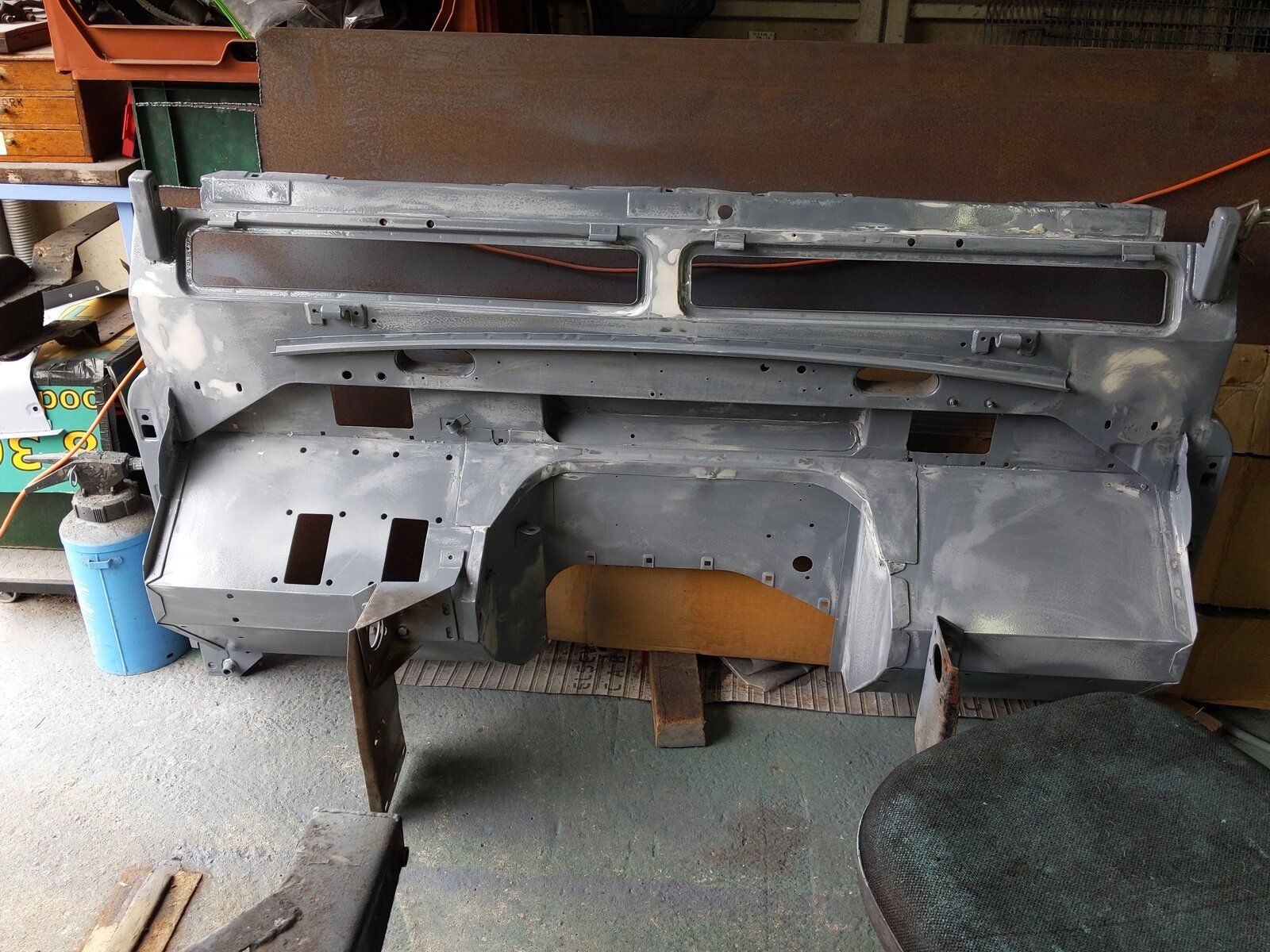

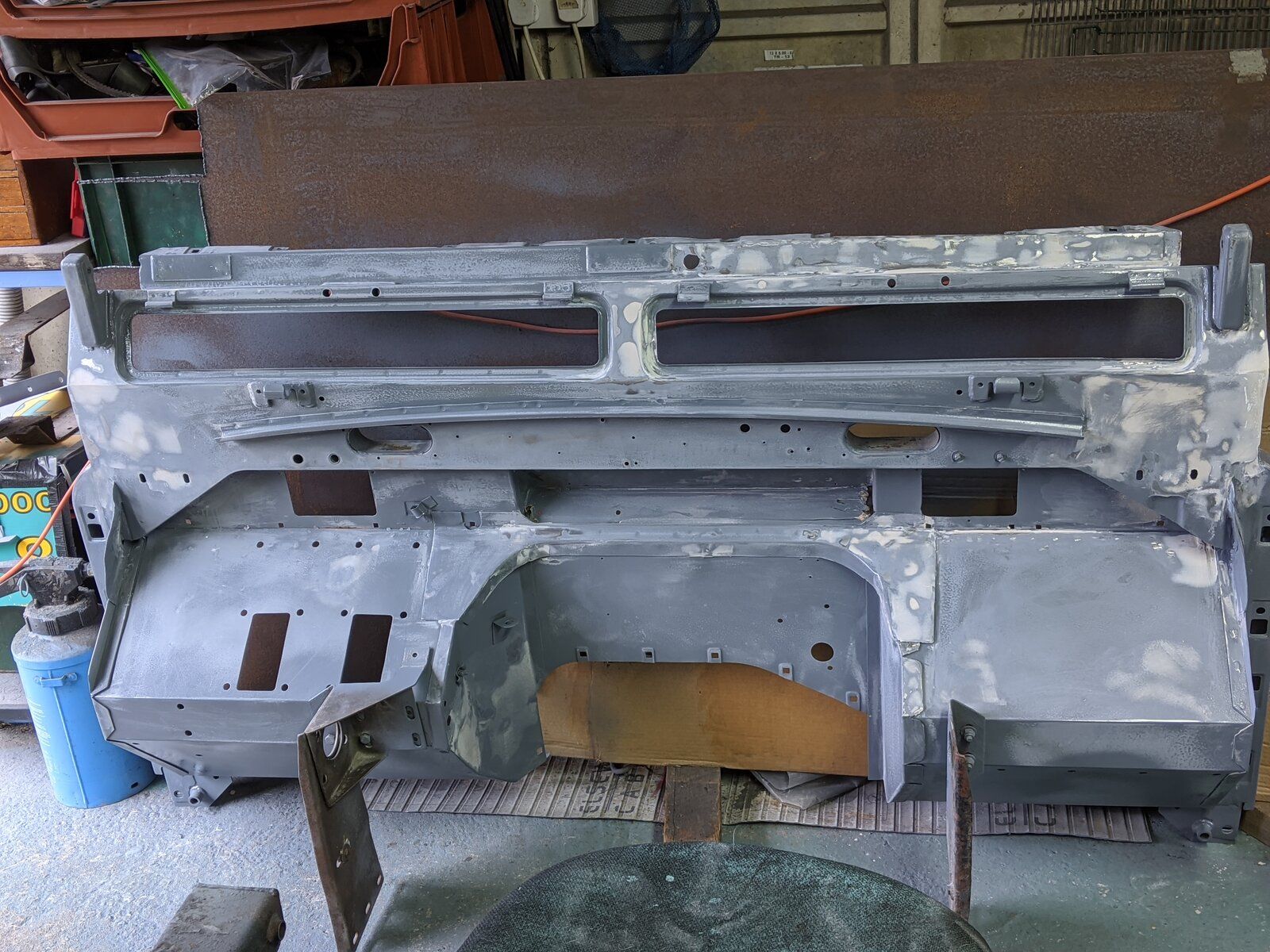

More fill and sand

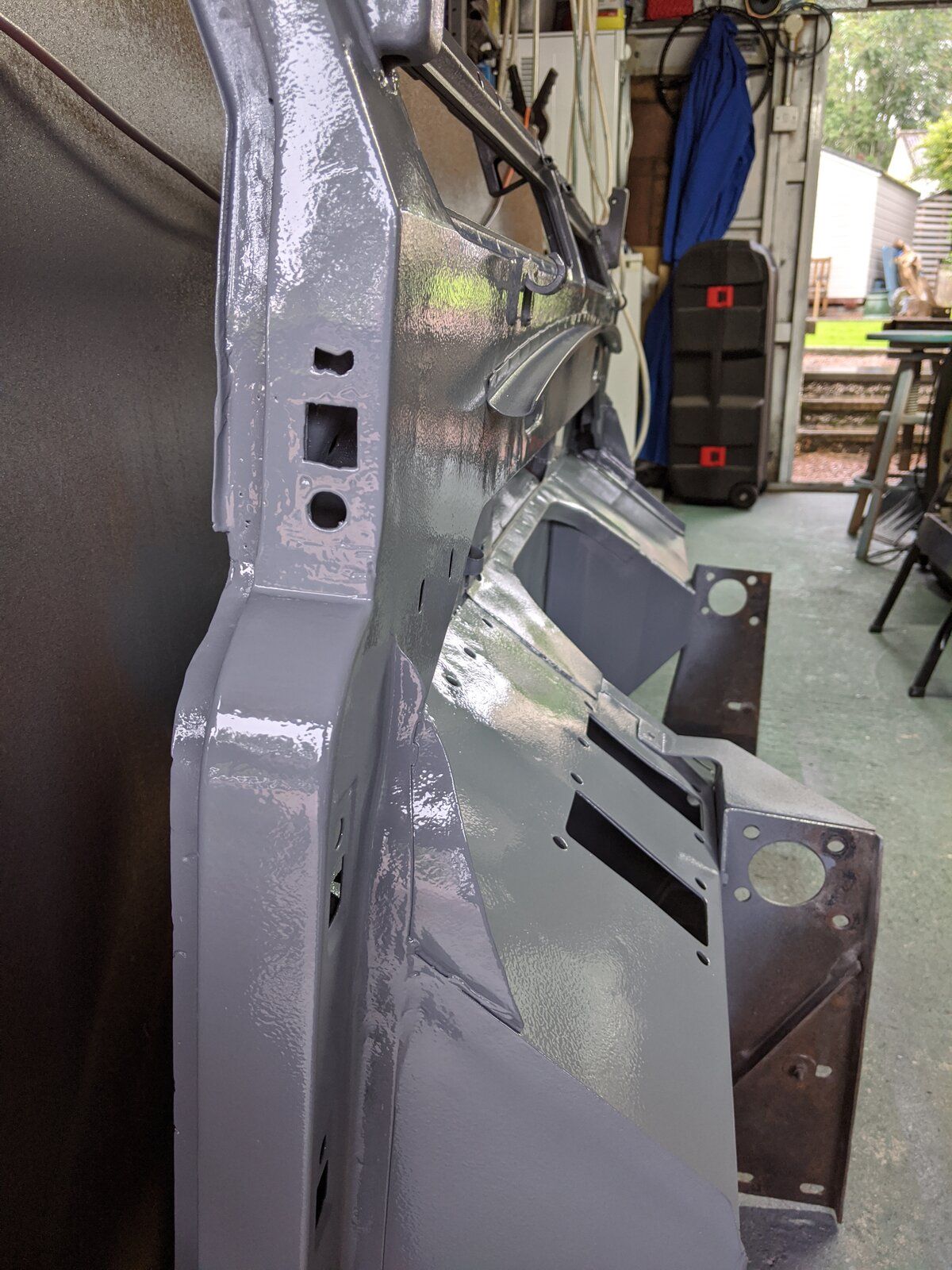

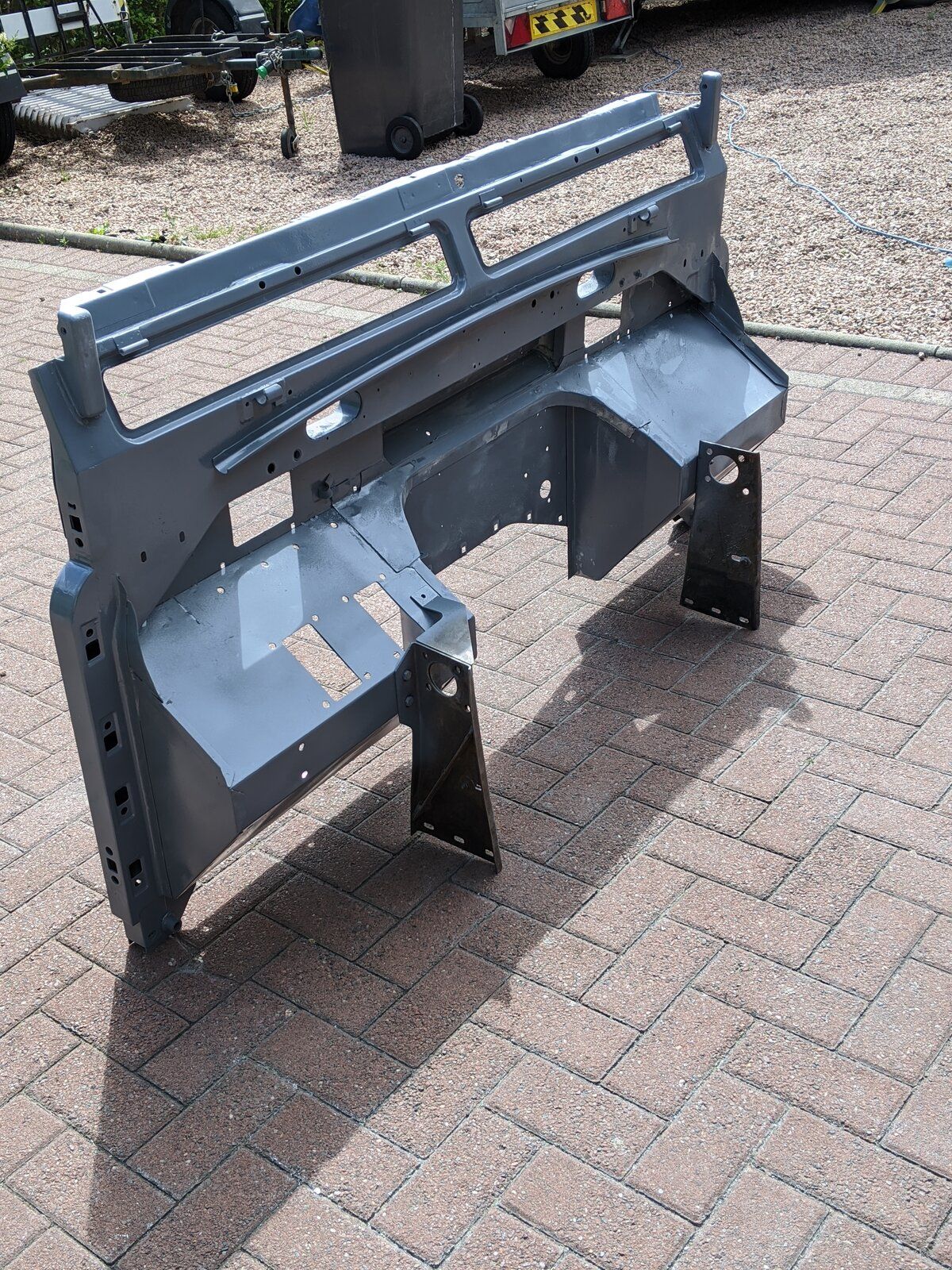

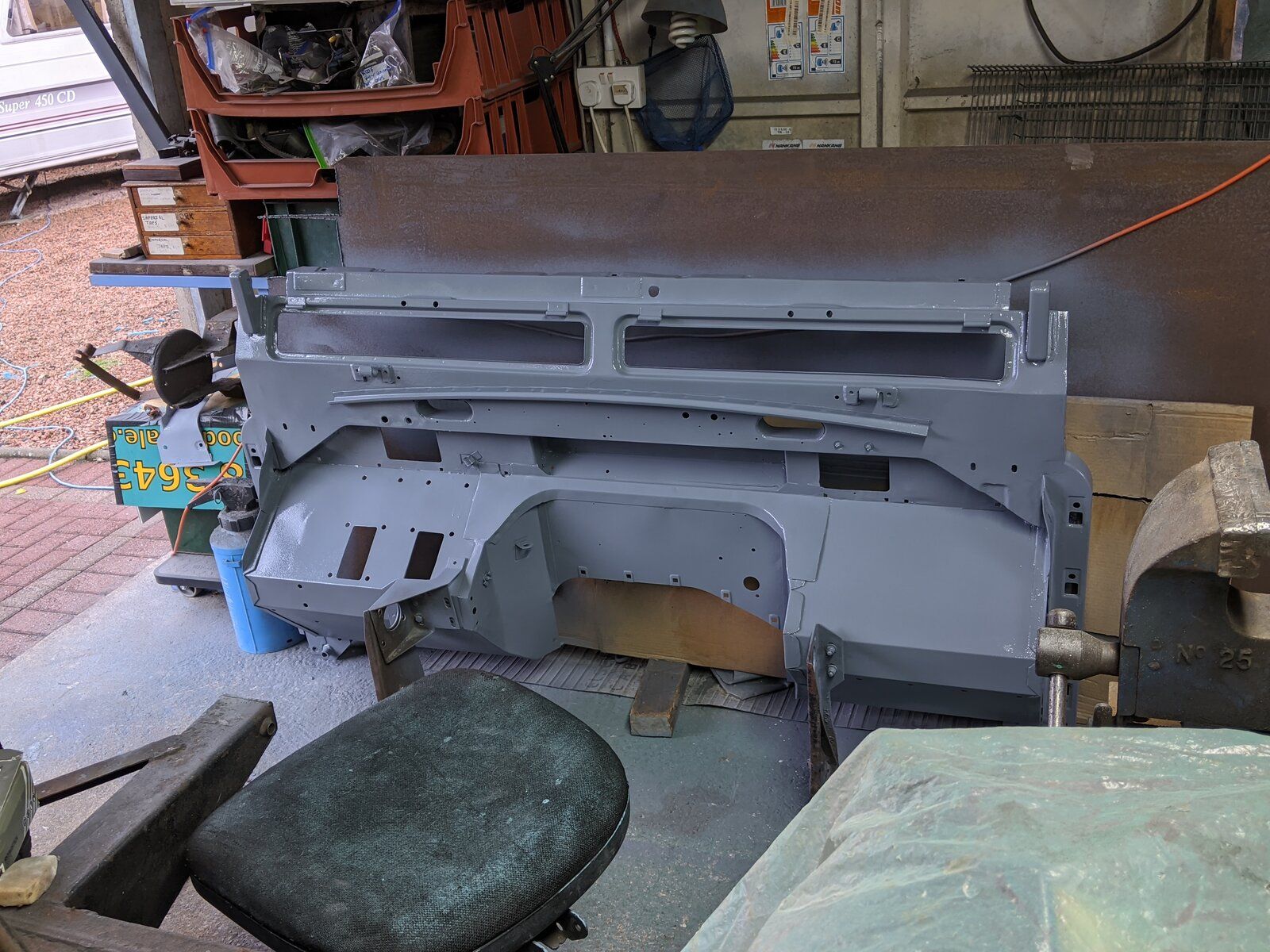

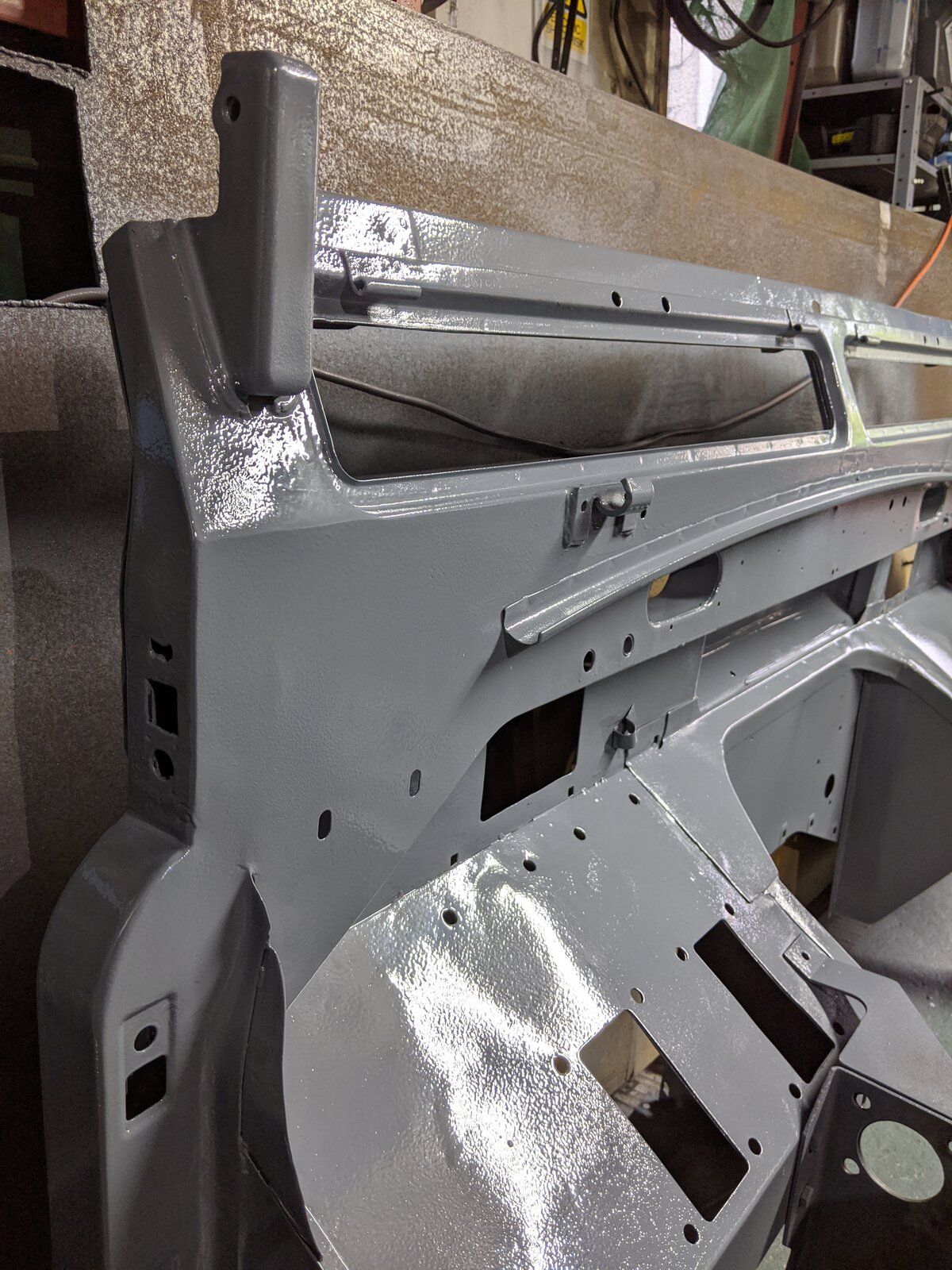

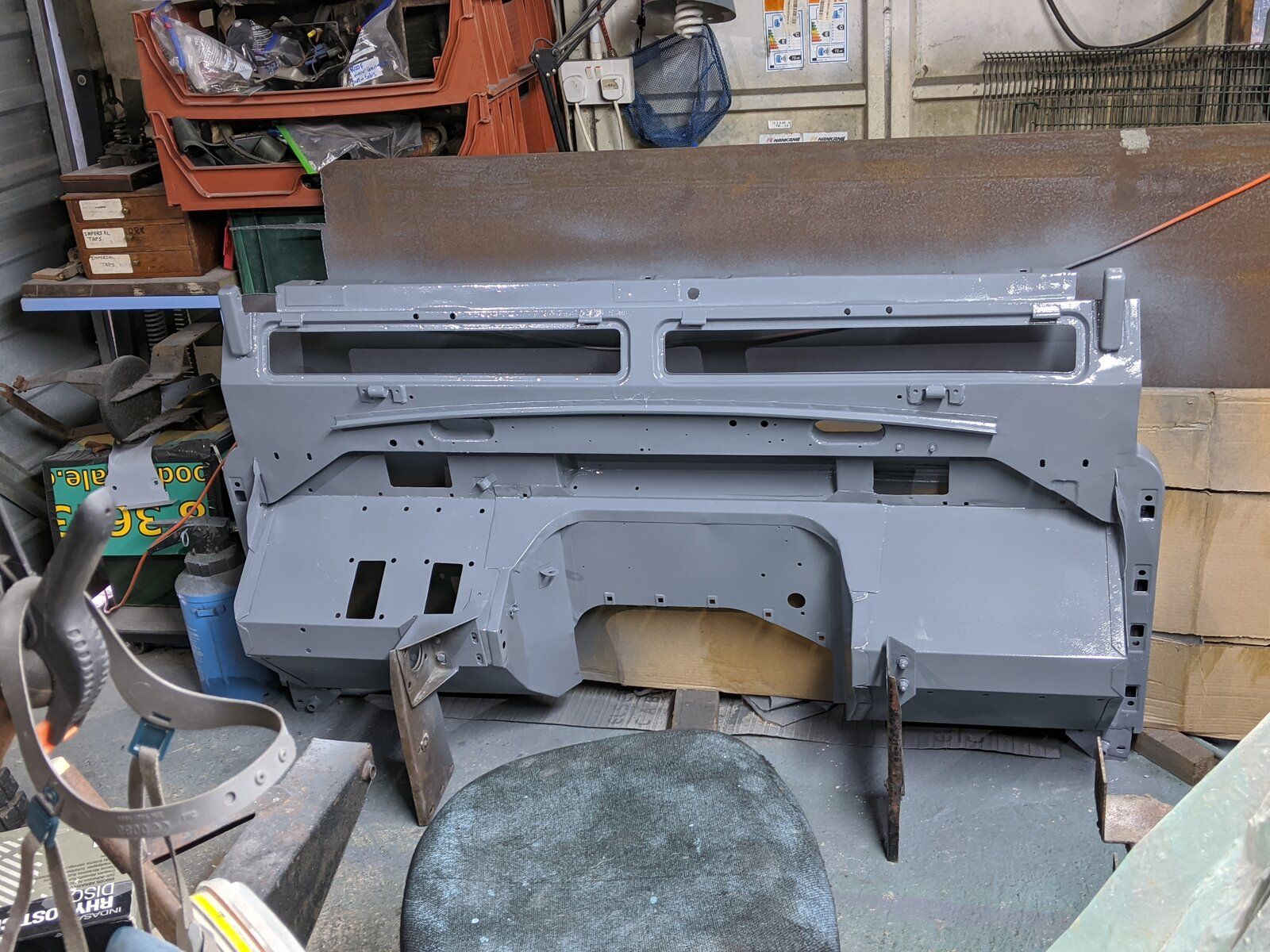

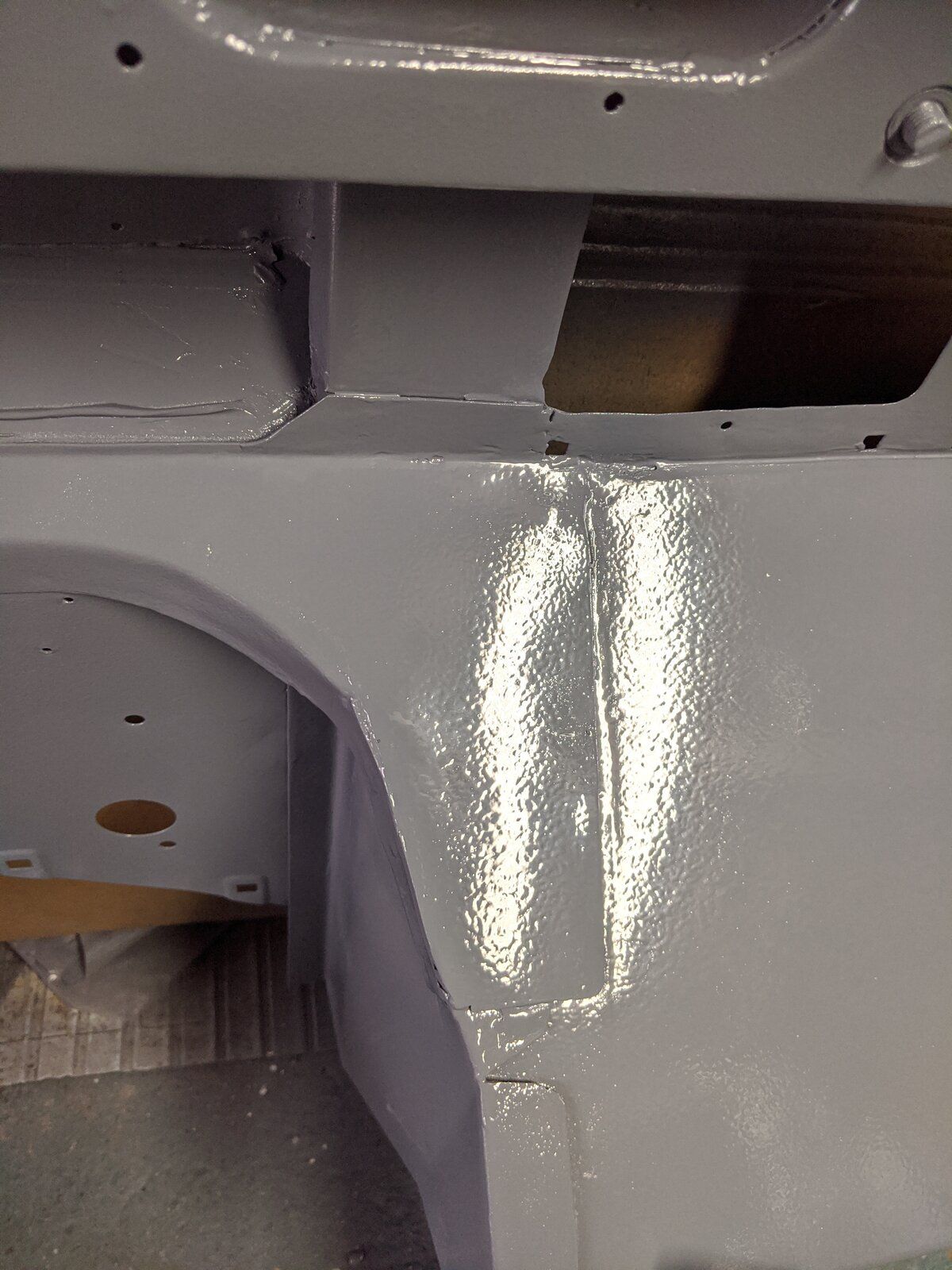

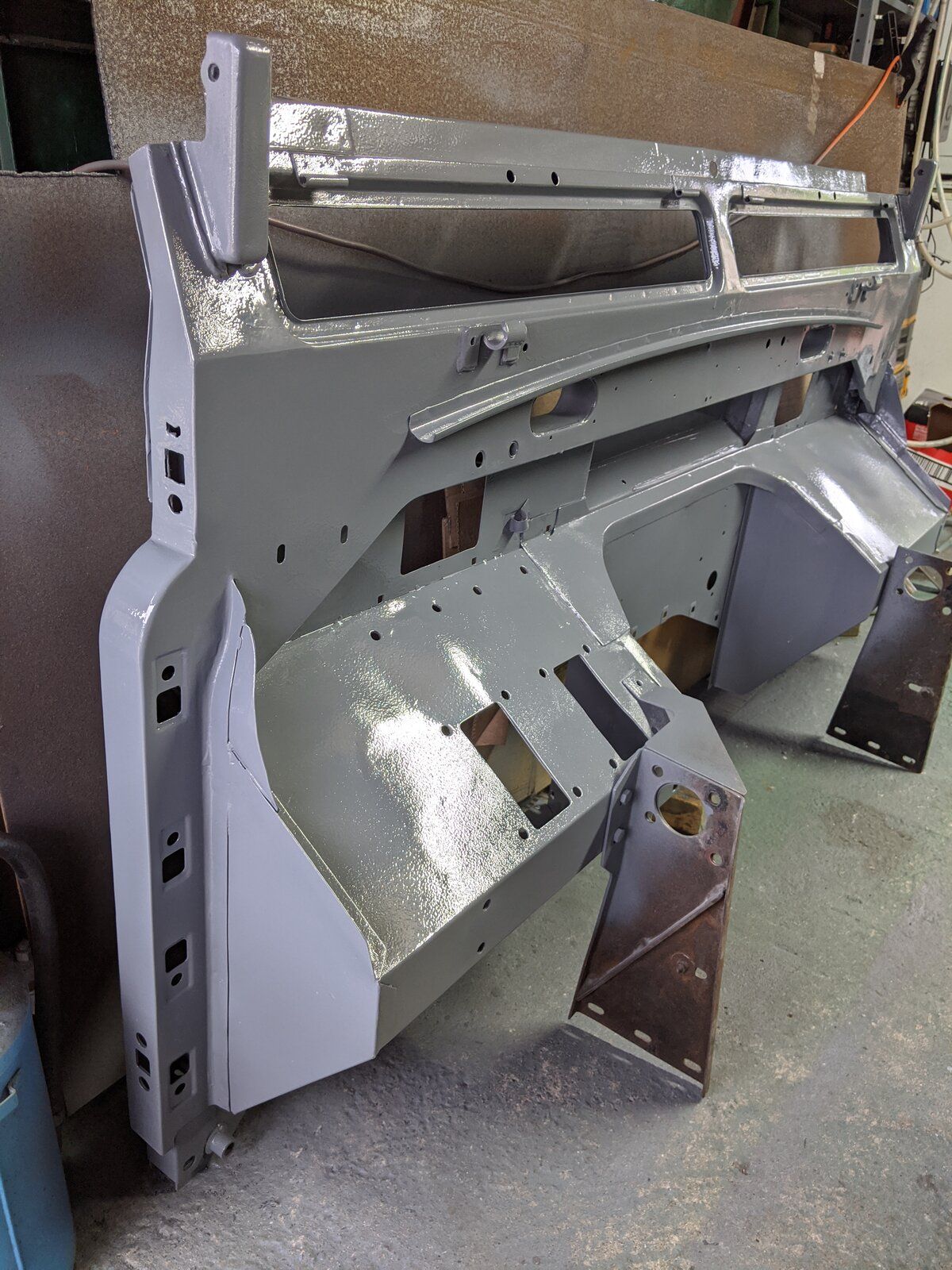

Followed by a good coat of the Raptor anti corrosive Epoxy Primer.

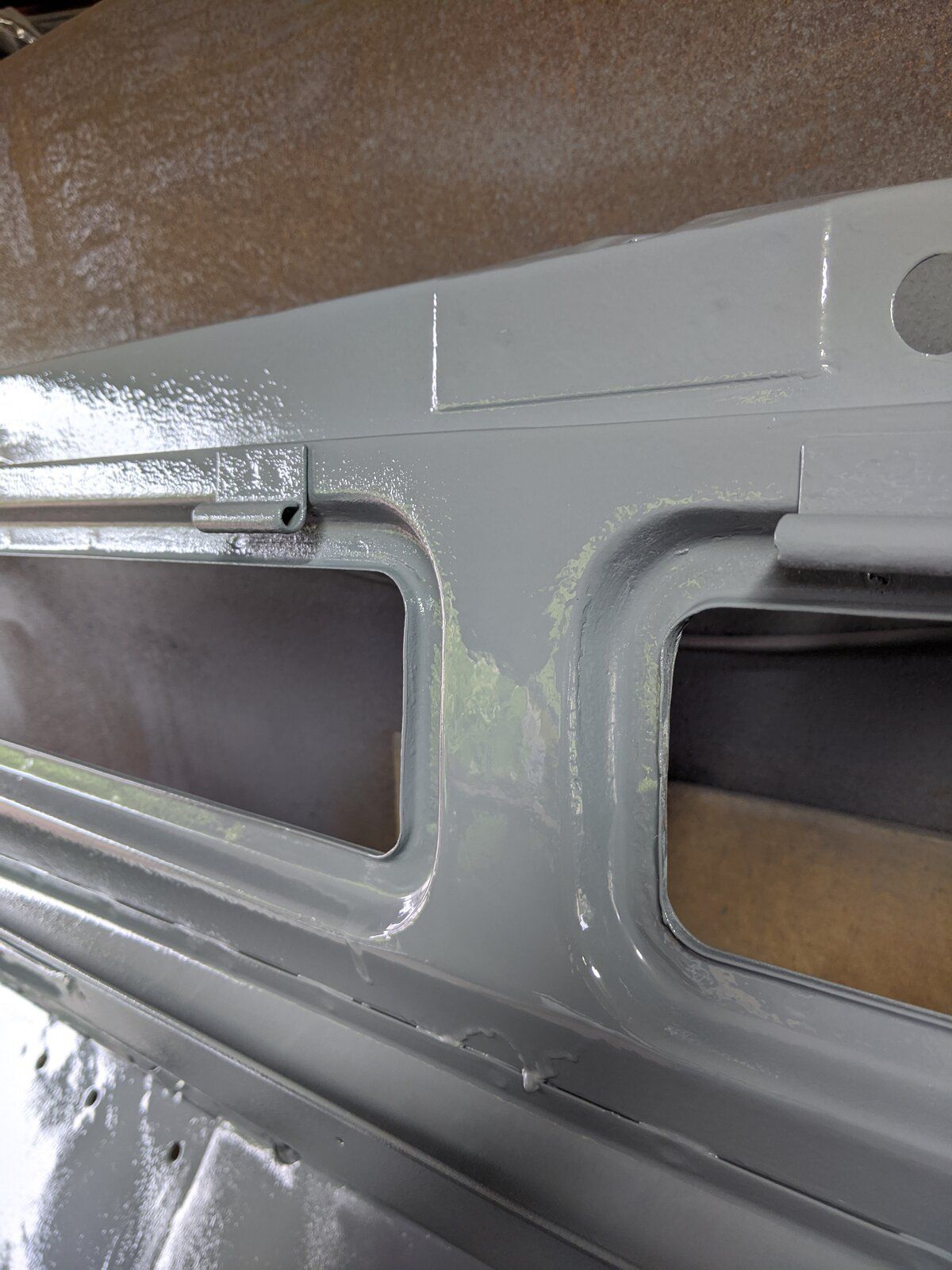

Got a some runs in the centre, but they will flat out later, the butt weld join is undetectable and it's like magic winding back the years.
The recommendation is for three coats of the Raptor to get maximum corrosive protection.
Yes Marjon, it is time for the next big bit . Maybe I'll get the engine and gearbox out and make a start on the chassis
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

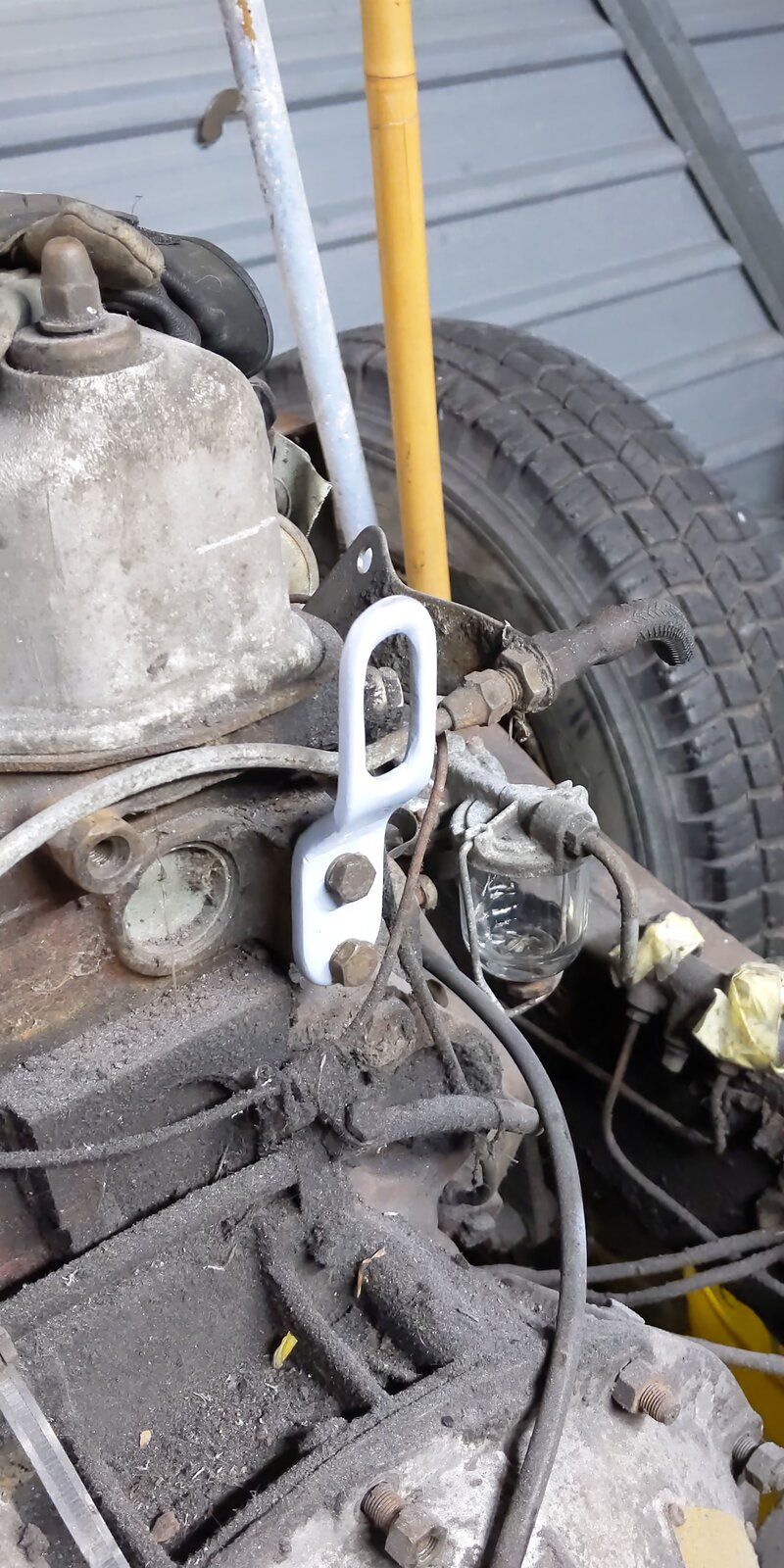

There was no engine lifting bracket at the back, so I made one.

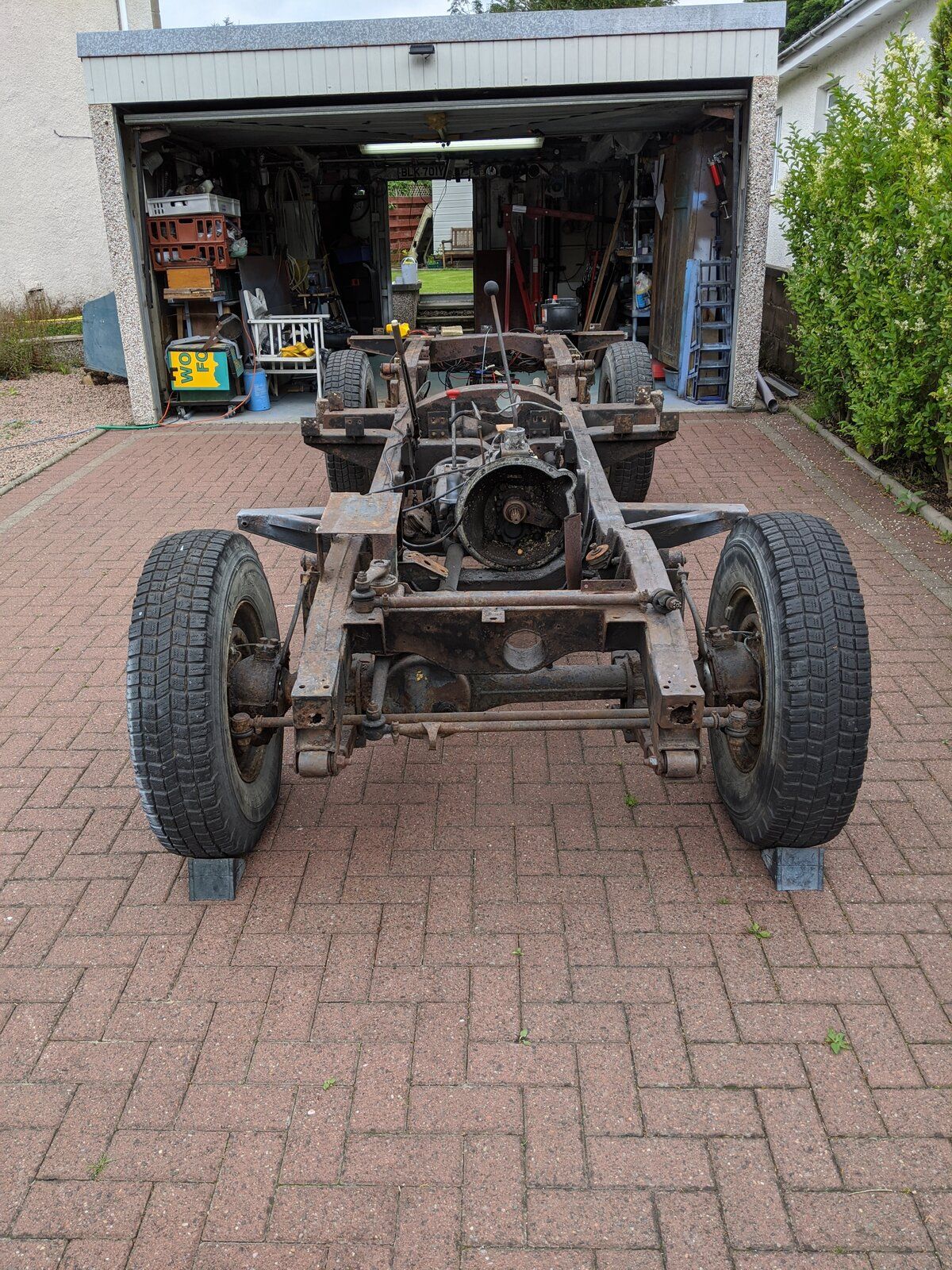

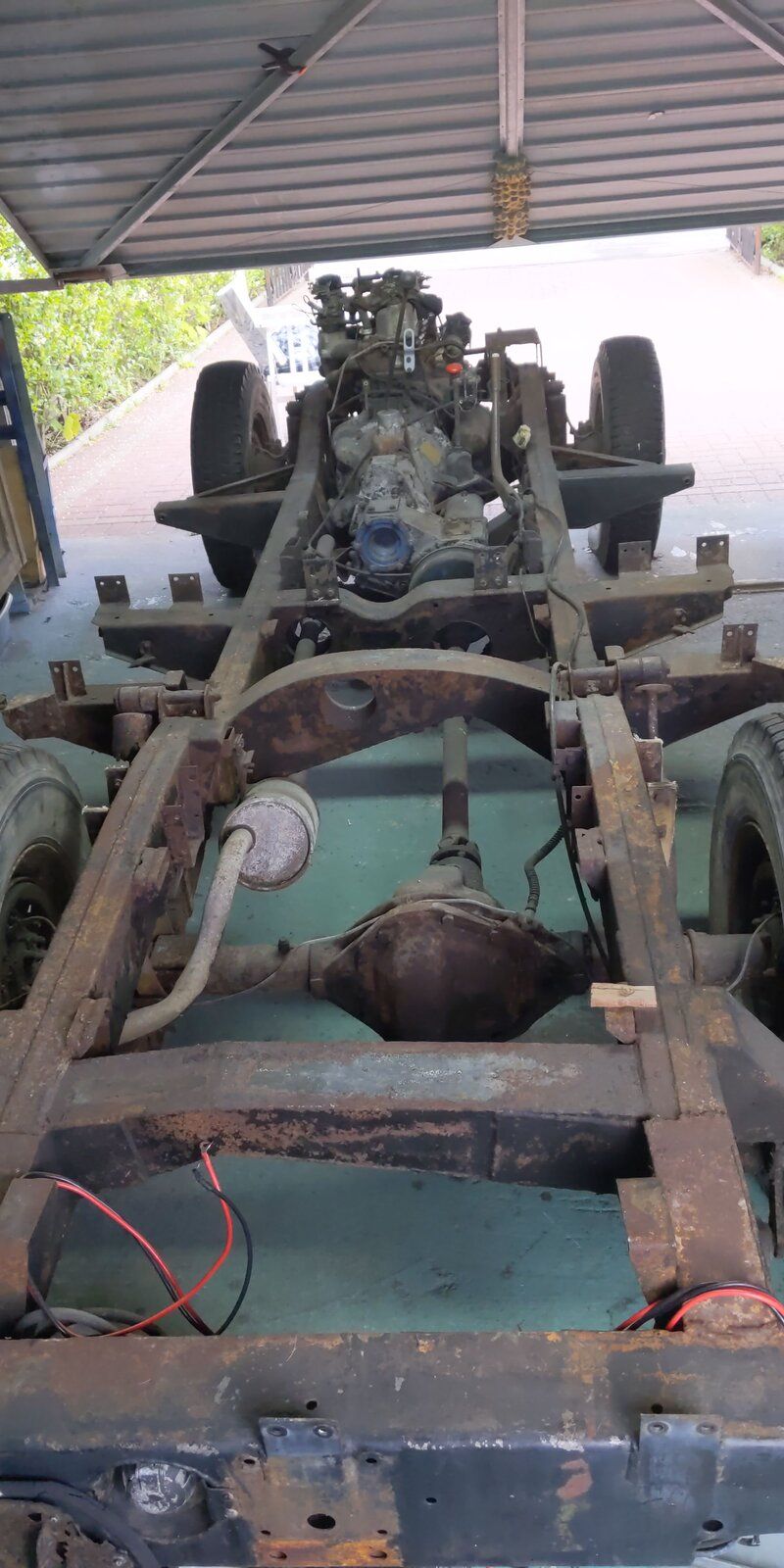

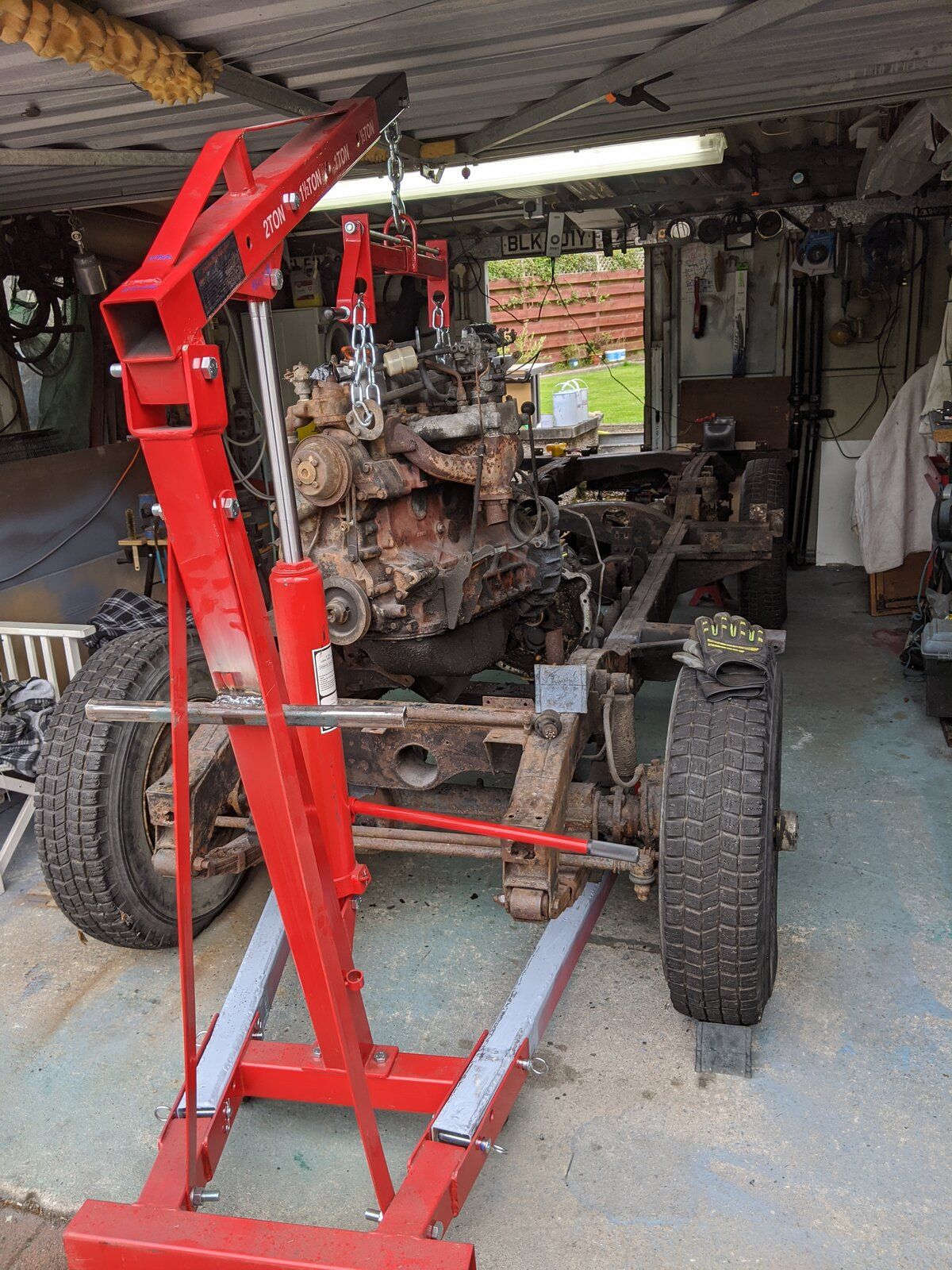

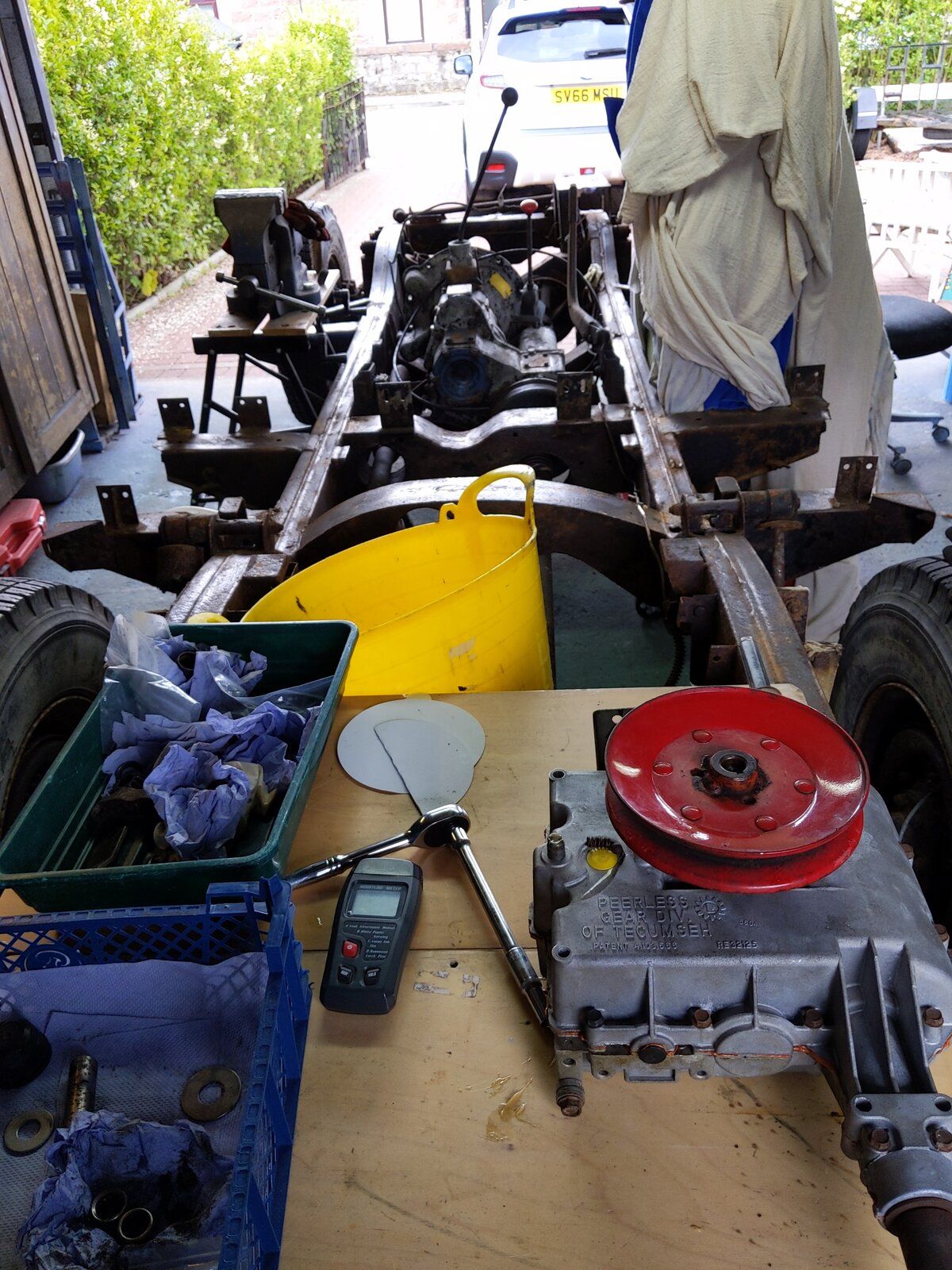

So time to get the engine out and have a good look at the chassis.

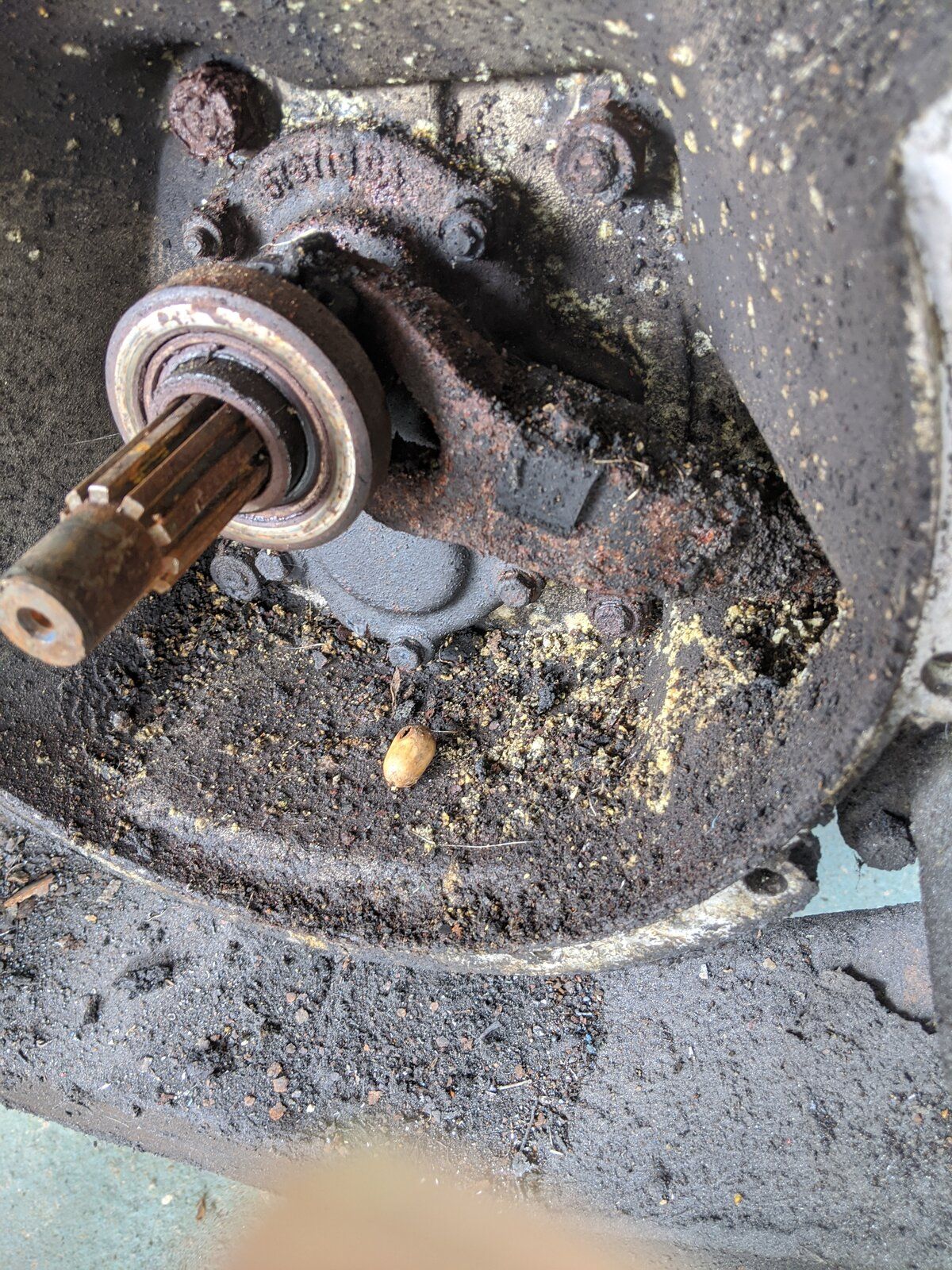

Which came out no problem in the limited height space, and revealed a mouse motel in the bell housing

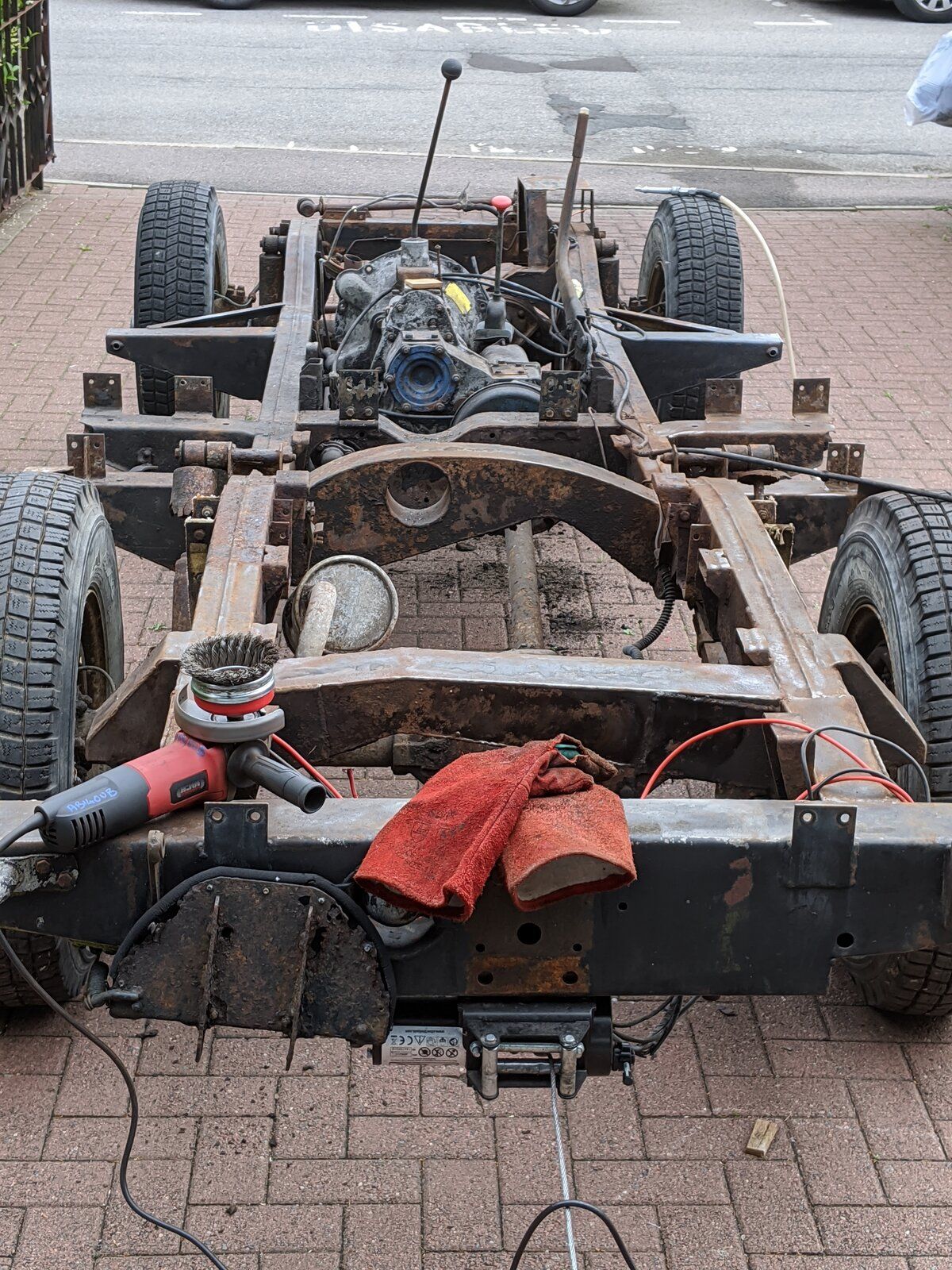

I used a very scary but powerful twisted wire brush to clean as much as I could
Sorry I lost the page so all the pics got lumped together at the end.

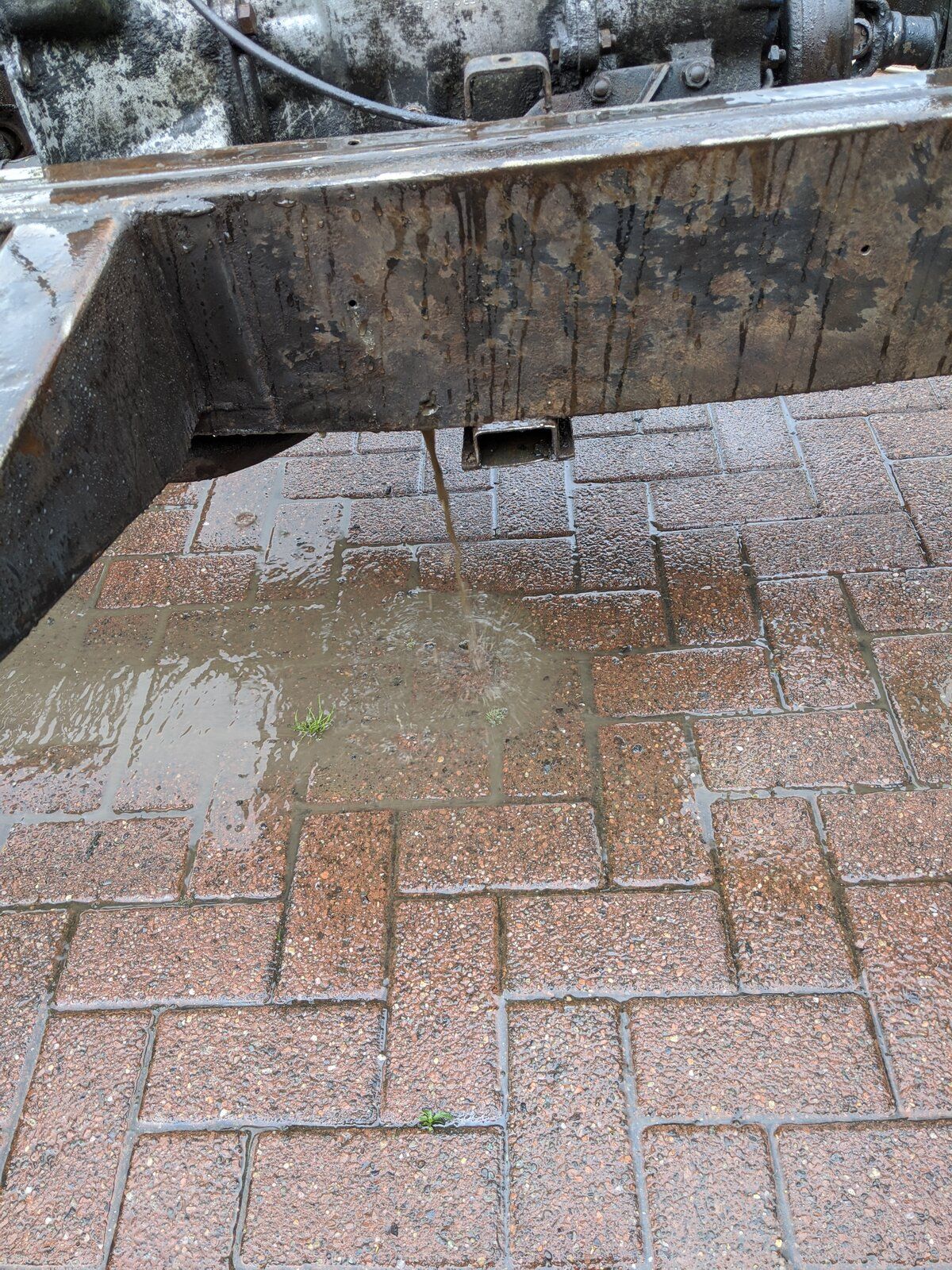

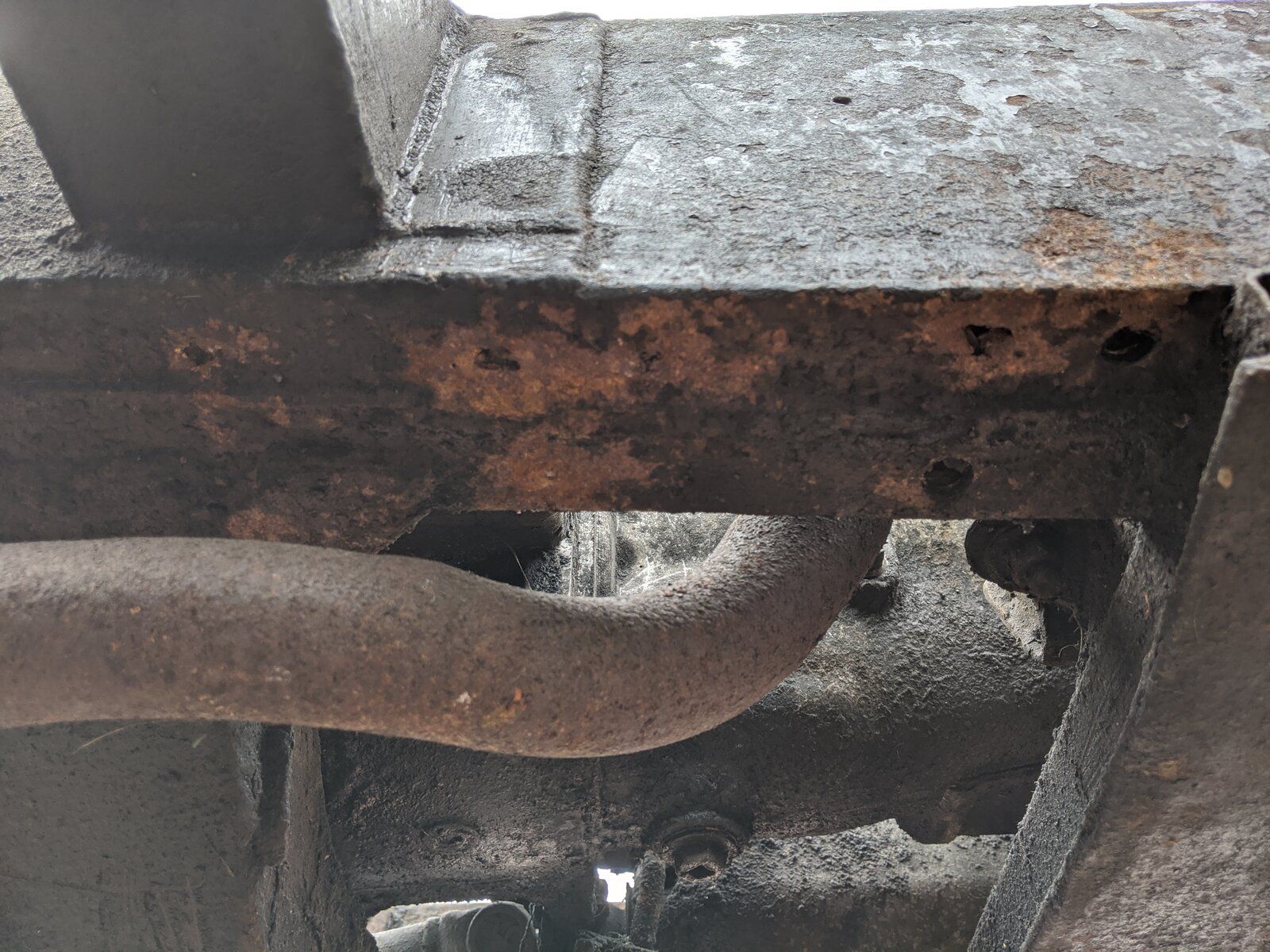

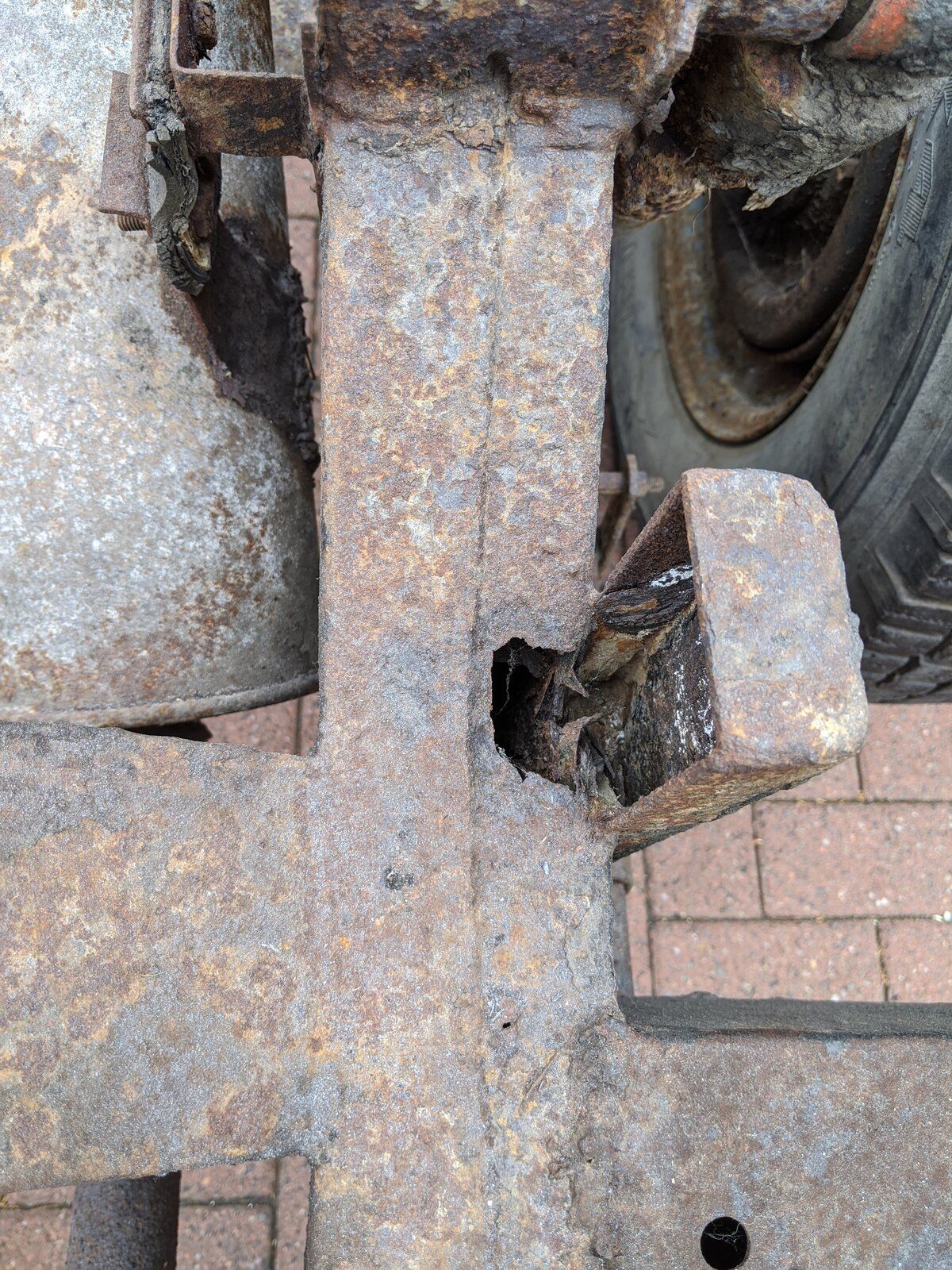

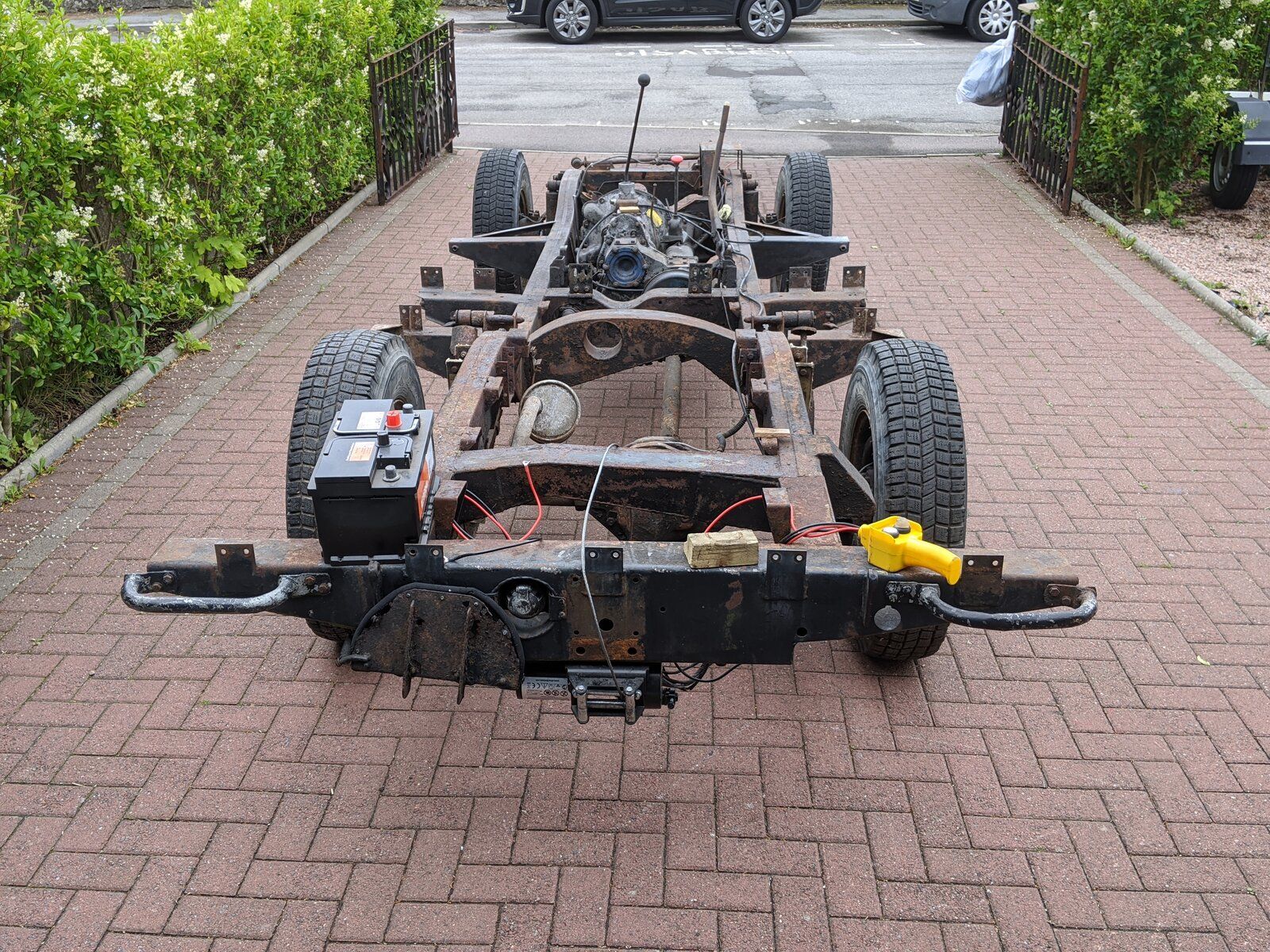

Tomorrow I must decide how bad all this chassis rust is and If my repairs would last for long enough to compare with getting a shiny new chassis. I will put pics of the damage up and ask for your opinions as to repair or replace. I don't want to repair the chassis to have it go somewhere else in a few years time.
GSF 109
Well-Known Member
- Posts
- 790
- Location
- Scotlandshire
I’ve seen much worse than that........mine
Depends on what you want at the end of the day and how much you have to spend. You can get pretty much every repair section that you would need and the rest can be made.
It’s only original once I guess, but there is an argument that a new chassis would be a quicker build, a bit easier to put together and most likely a bit stronger than a repaired one.
Depends on what you want at the end of the day and how much you have to spend. You can get pretty much every repair section that you would need and the rest can be made.
It’s only original once I guess, but there is an argument that a new chassis would be a quicker build, a bit easier to put together and most likely a bit stronger than a repaired one.
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Morning GSF 109,
That's the thing! If a replacement chassis is stronger. The replacement ones are made of four sides welded together with no internal extra bracing as the original has, but apparently from slightly thicker metal. So they should be as strong, and if properly internally sprayed with Waxol, also painted externally with Raptor which is good to go directly to galvanized metal, and finally painted with a top coat of 2k black for that factory fresh finish. Hmmm that would work, be worth doing and should outlast me !
But I have a huge sheet of 3mm steel a 1964 restores Oxford stick welder, plasma cutter and all I need to cut and replace any rotten parts.
The question is, if I really took my time and replaced all the corroded bits. How long with full preventive treatments and careful maintenance, could the repaired chassis last ?

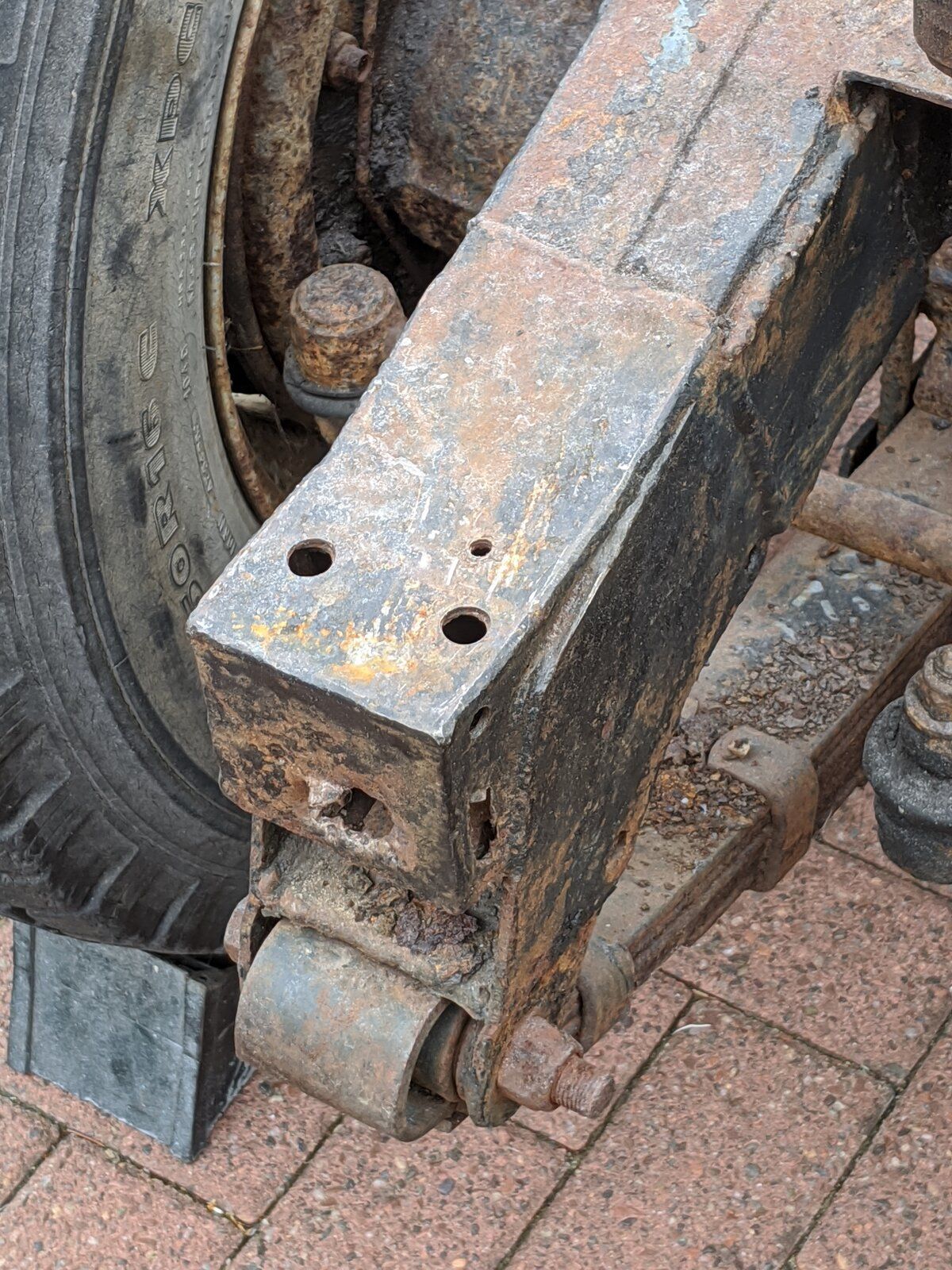

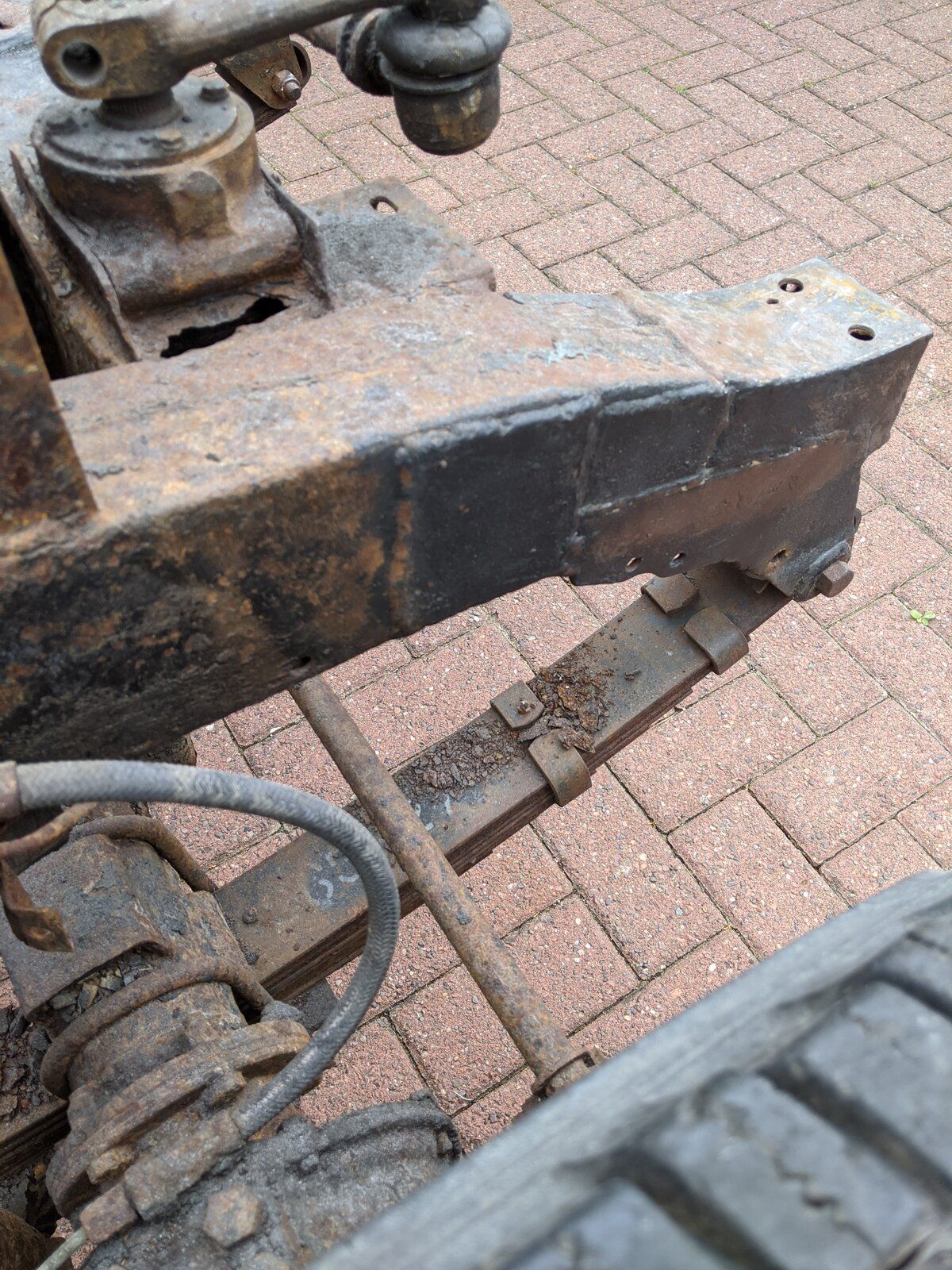

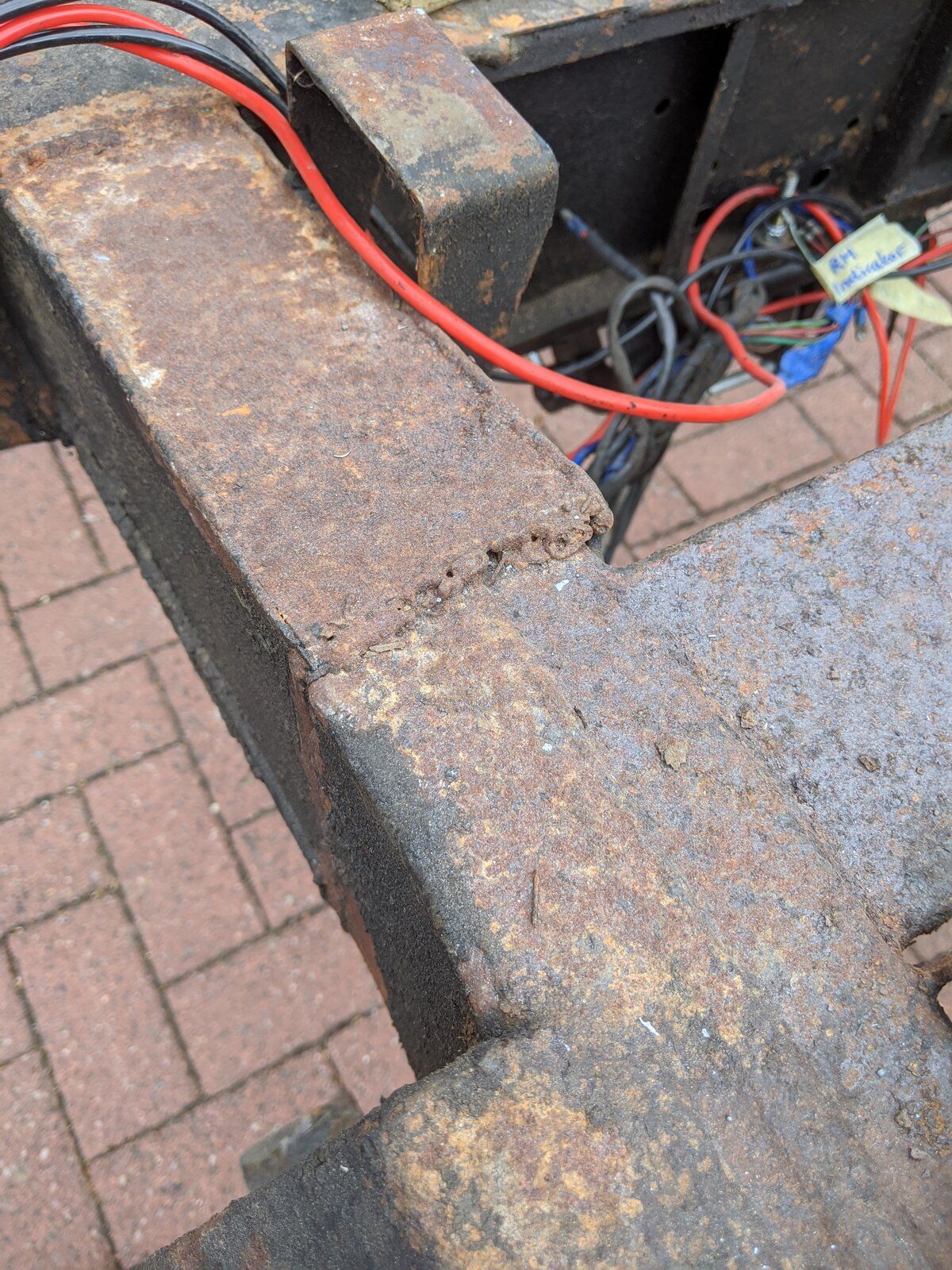

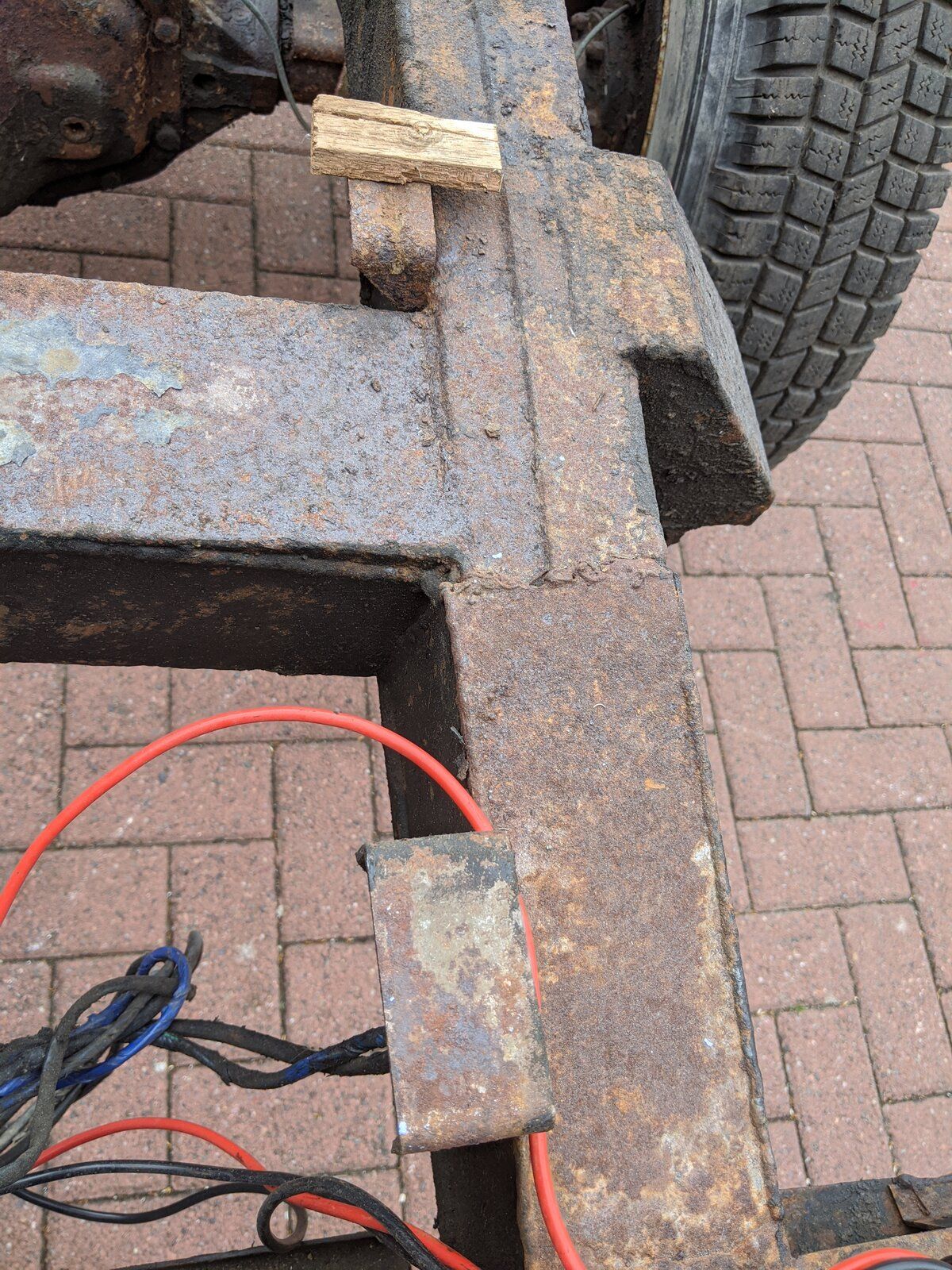

and a new rear end needs to be made more tidy, I guess they fitted it with the body still on

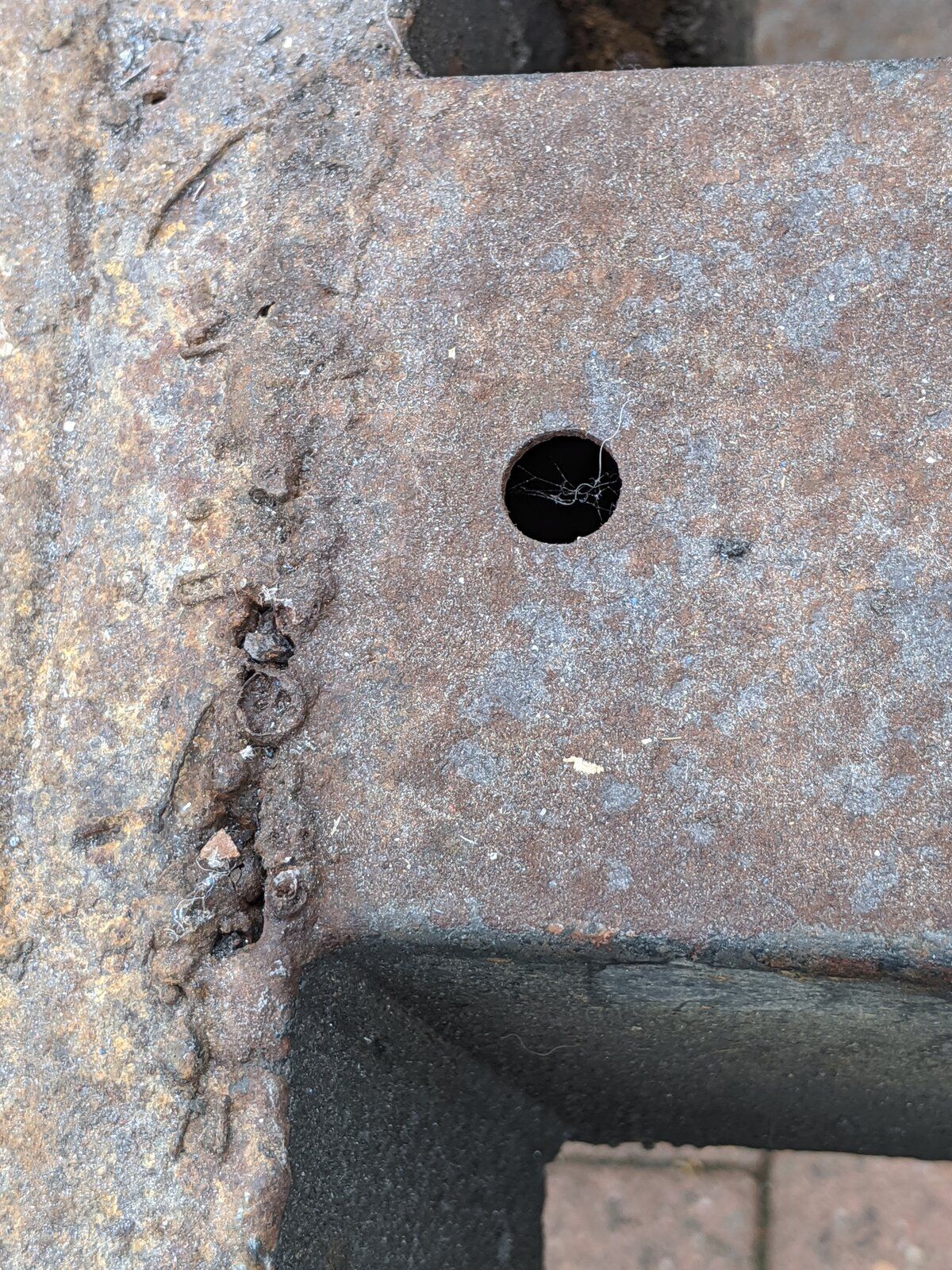

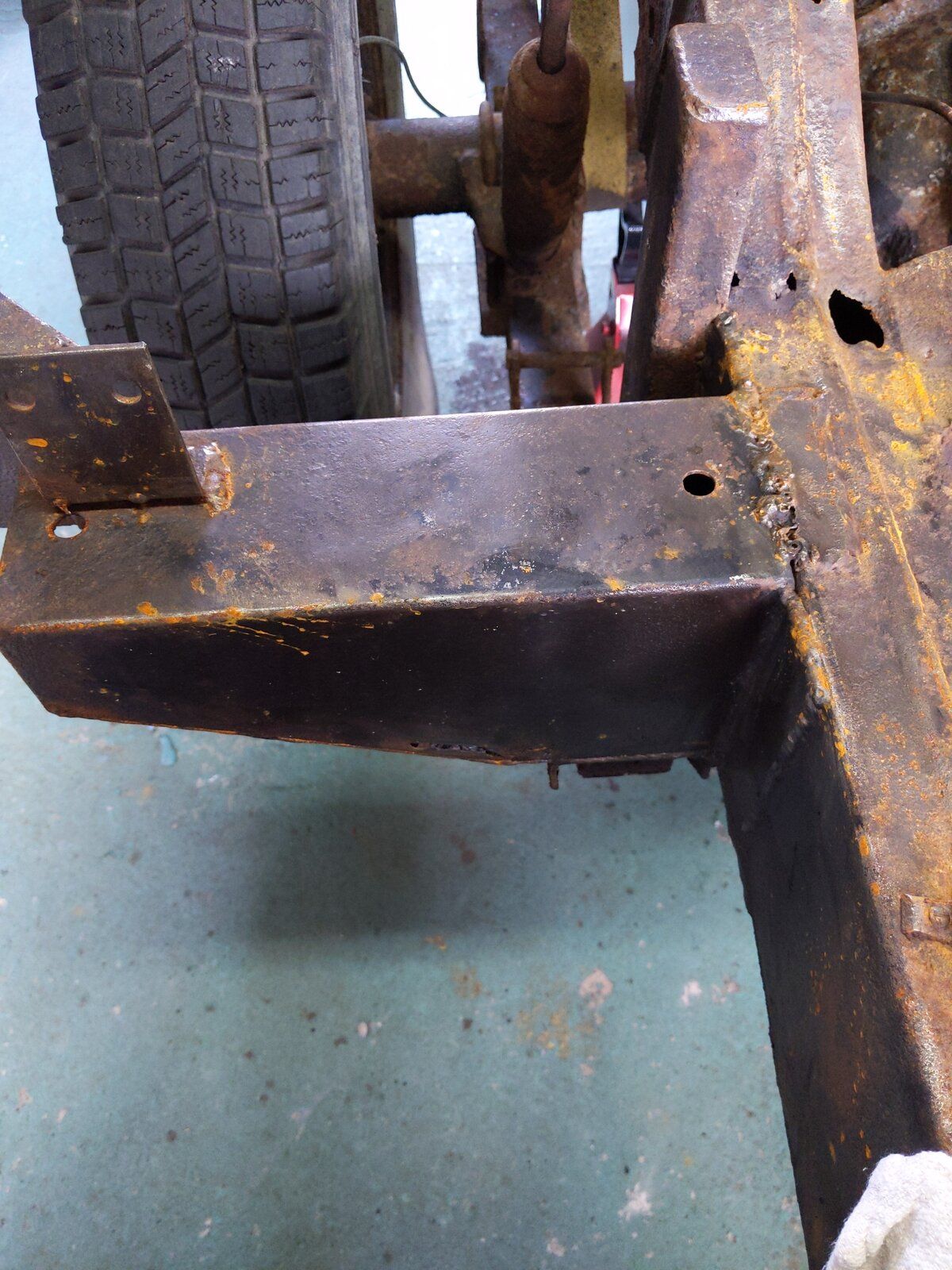

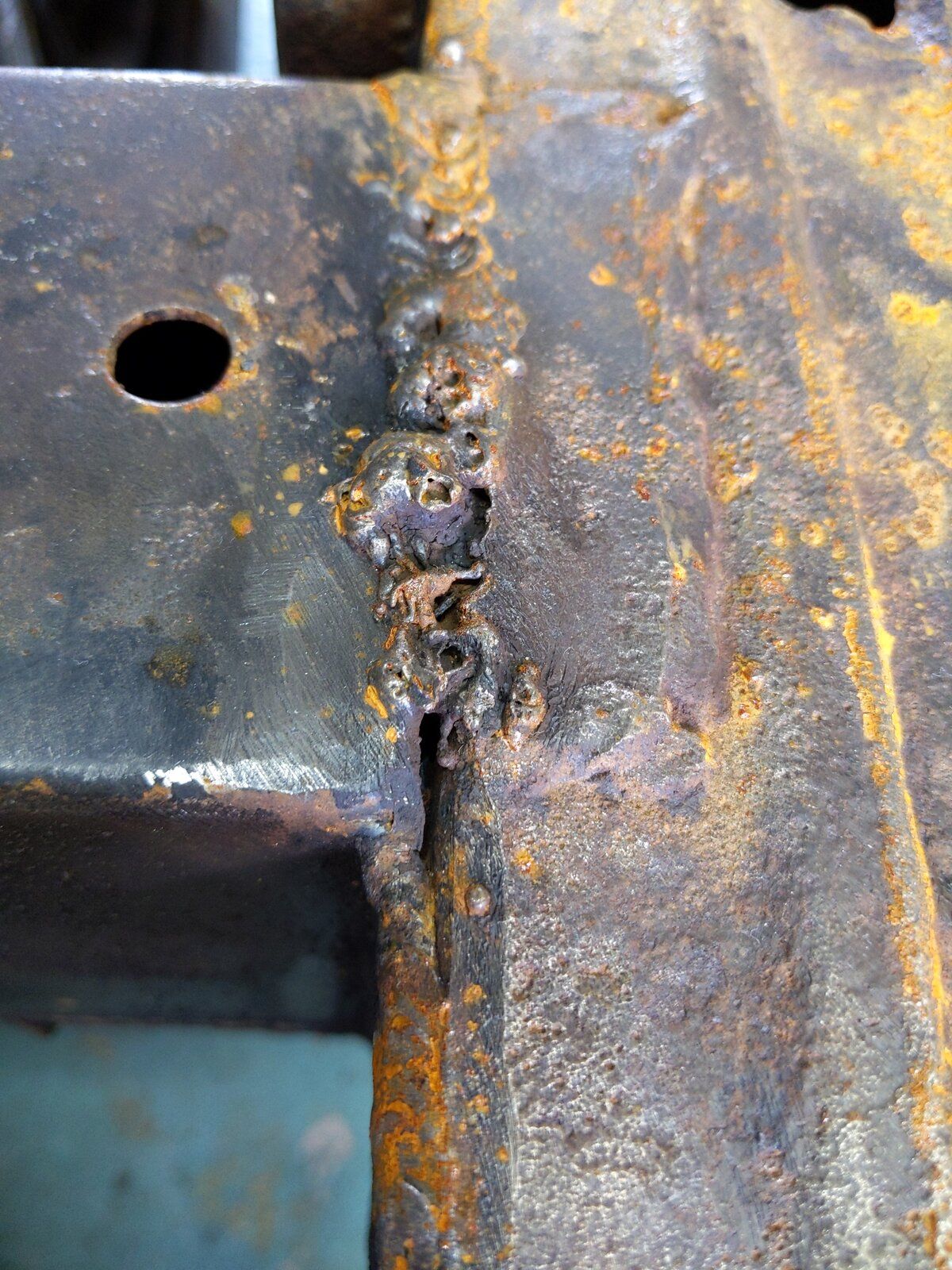

A nasty replacement outrigger weld

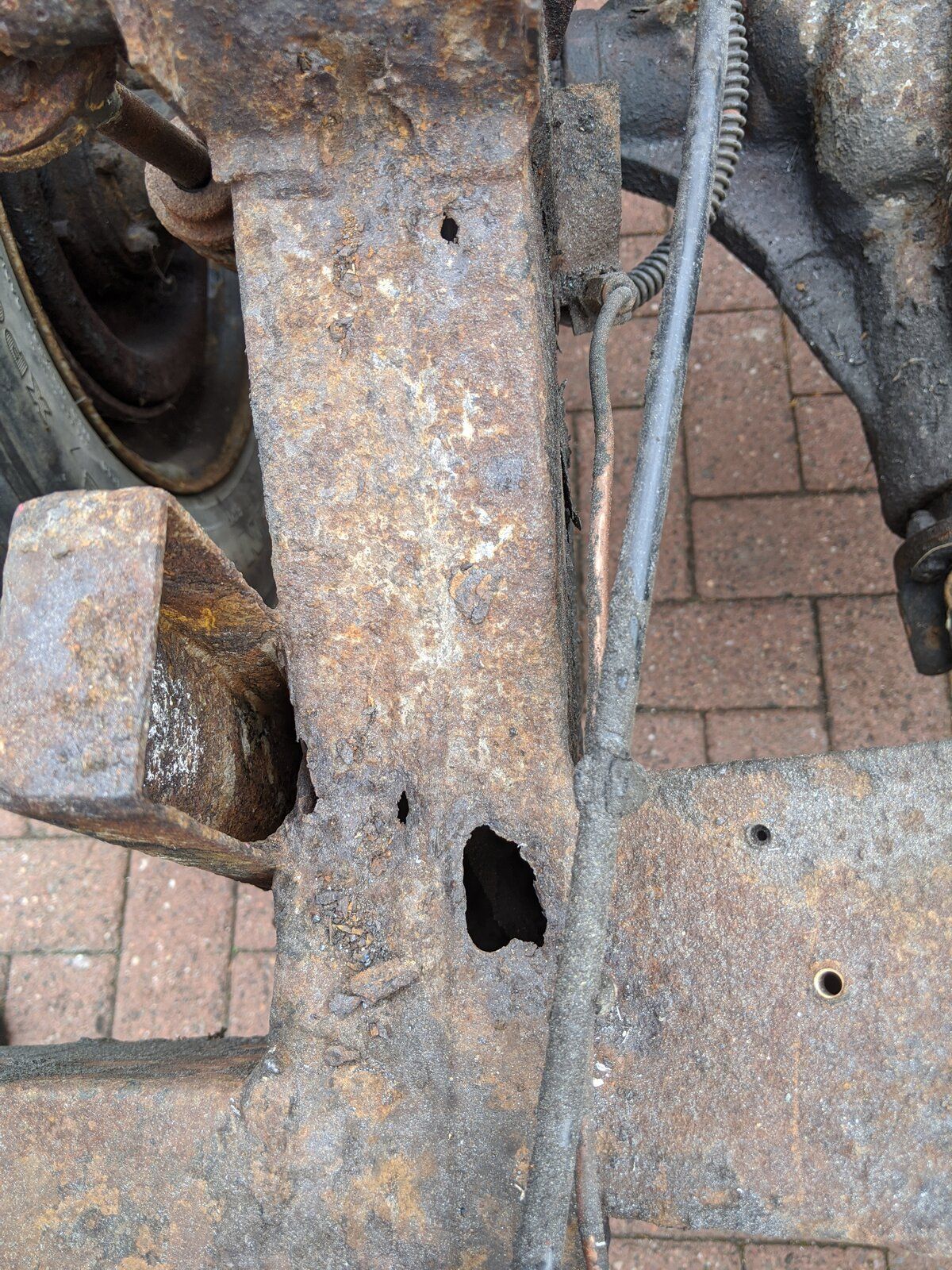

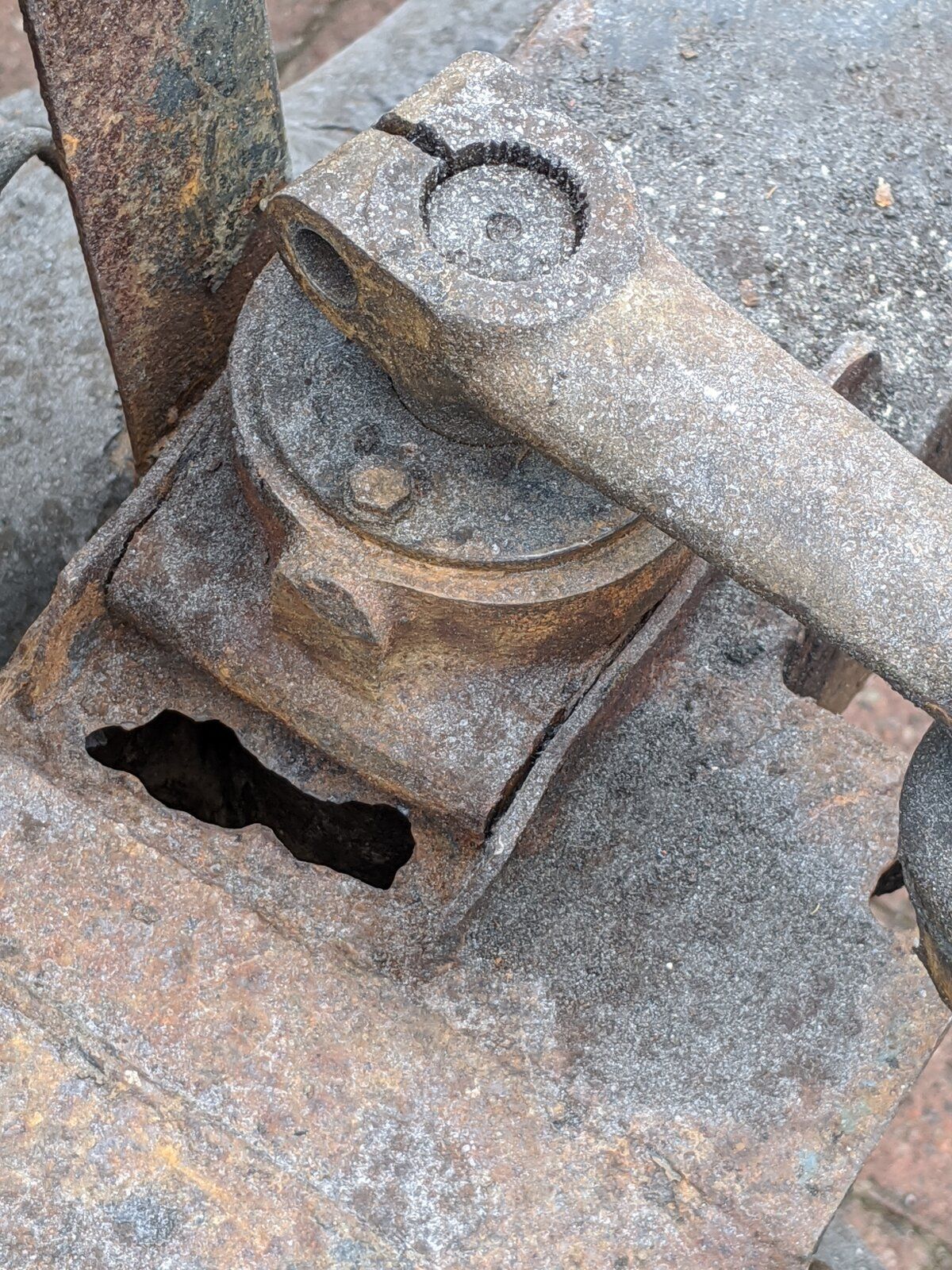

would need to replace the cross member that has the steering box in, which refuses to come out and I could carefully release by cutting it out lol,
Some areas of the top rails are a bit pitted so I assume the metal must be thinner and need replacement too.
When a bad section is cut out, I suppose you get a good view inside to see how bad or good the rest is. Just don't want to put in a hundred day's work on the chassis if I cannot make it as strong and last as long as a new one.
Also who does a good quality replacement chassis, several maker's and there must be variation in quality...
That's the thing! If a replacement chassis is stronger. The replacement ones are made of four sides welded together with no internal extra bracing as the original has, but apparently from slightly thicker metal. So they should be as strong, and if properly internally sprayed with Waxol, also painted externally with Raptor which is good to go directly to galvanized metal, and finally painted with a top coat of 2k black for that factory fresh finish. Hmmm that would work, be worth doing and should outlast me !
But I have a huge sheet of 3mm steel a 1964 restores Oxford stick welder, plasma cutter and all I need to cut and replace any rotten parts.
The question is, if I really took my time and replaced all the corroded bits. How long with full preventive treatments and careful maintenance, could the repaired chassis last ?
Some areas of the top rails are a bit pitted so I assume the metal must be thinner and need replacement too.
When a bad section is cut out, I suppose you get a good view inside to see how bad or good the rest is. Just don't want to put in a hundred day's work on the chassis if I cannot make it as strong and last as long as a new one.
Also who does a good quality replacement chassis, several maker's and there must be variation in quality...
Attachments
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester
Bet ya sorry you looked now
I’m leaving mine until it falls in half, then I know it needs looking at
I’m leaving mine until it falls in half, then I know it needs looking at
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Lol,

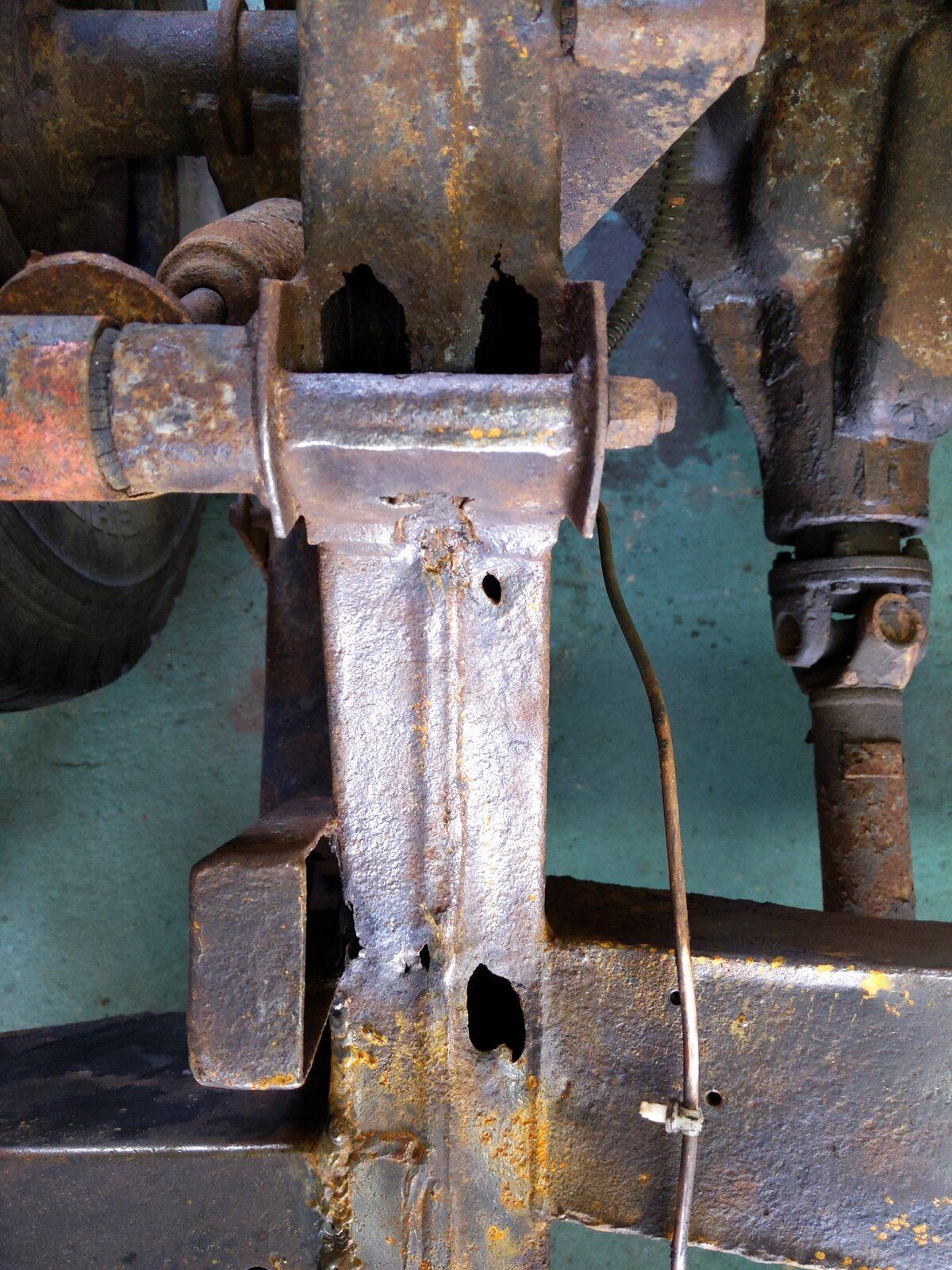

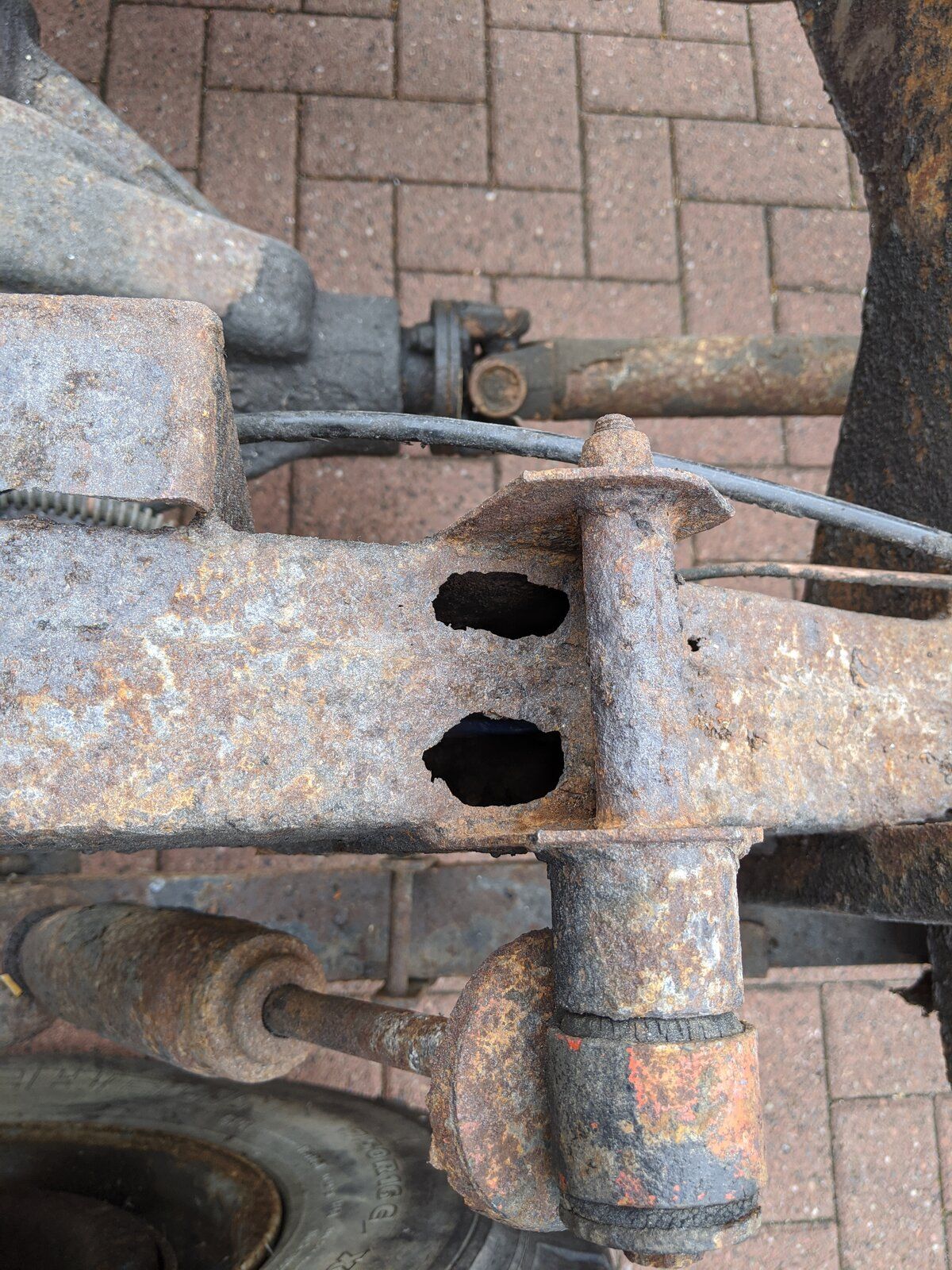

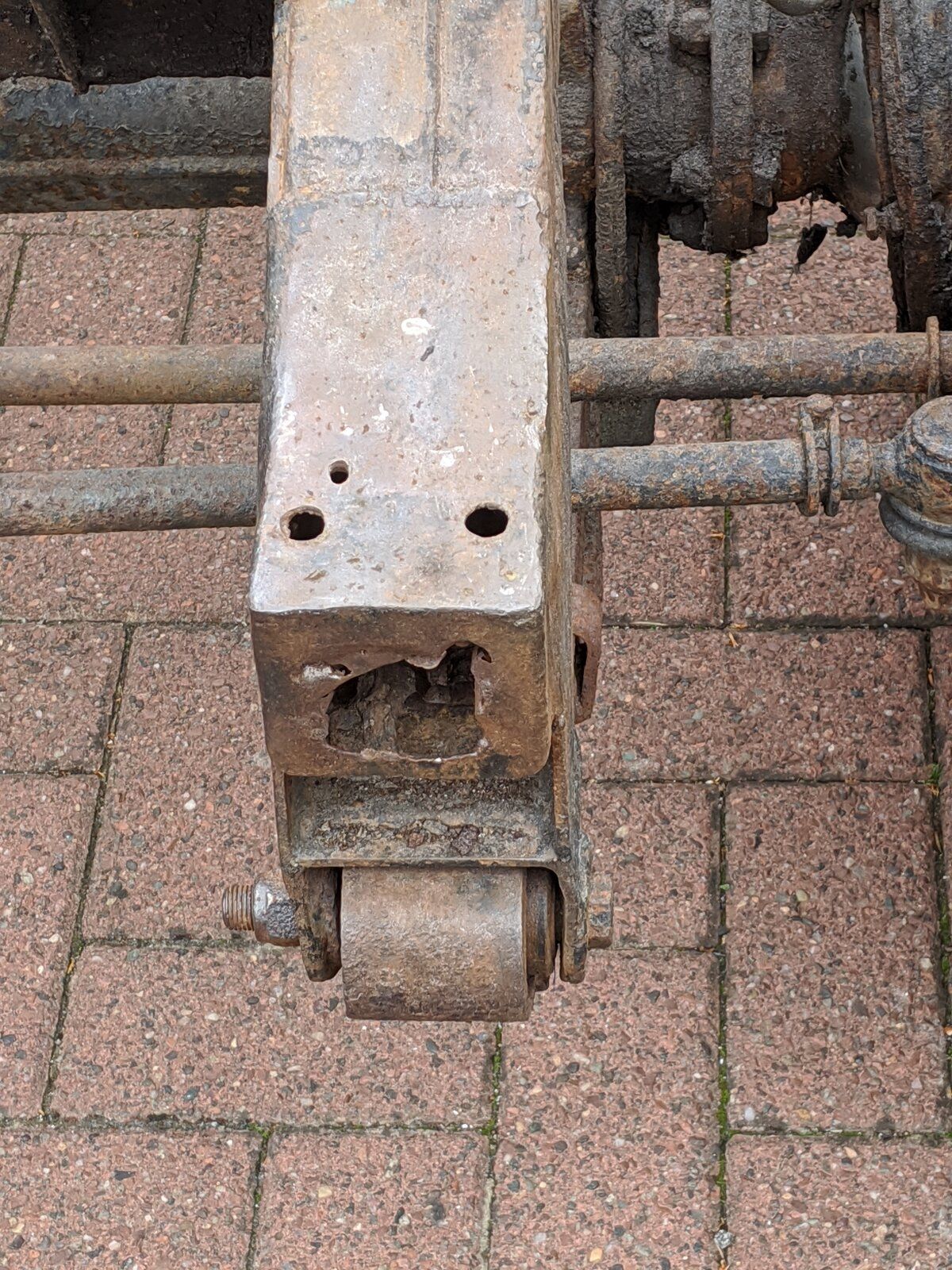

With the damage about the forward parts of the rear spring hangers, mine may well have fallen in half lol
With the damage about the forward parts of the rear spring hangers, mine may well have fallen in half lol
GSF 109
Well-Known Member
- Posts
- 790
- Location
- Scotlandshire
I was lucky in that my main rails front to rear were largely okay apart from the front of rear spring outriggers, and the rear crossmember so it was worth saving. If you need repairs everywhere, then maybe better to go for a new chassis. A friend of mine has a galvanised chassis for sale which has never been used. It is van spec so needs a couple of brackets changed to suit a station wagon. There are a few manufacturers of oem quality chassis out there such as Marsland and Richards. I haven’t used either company, but maybe some other forum users will have and can pass comment.
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

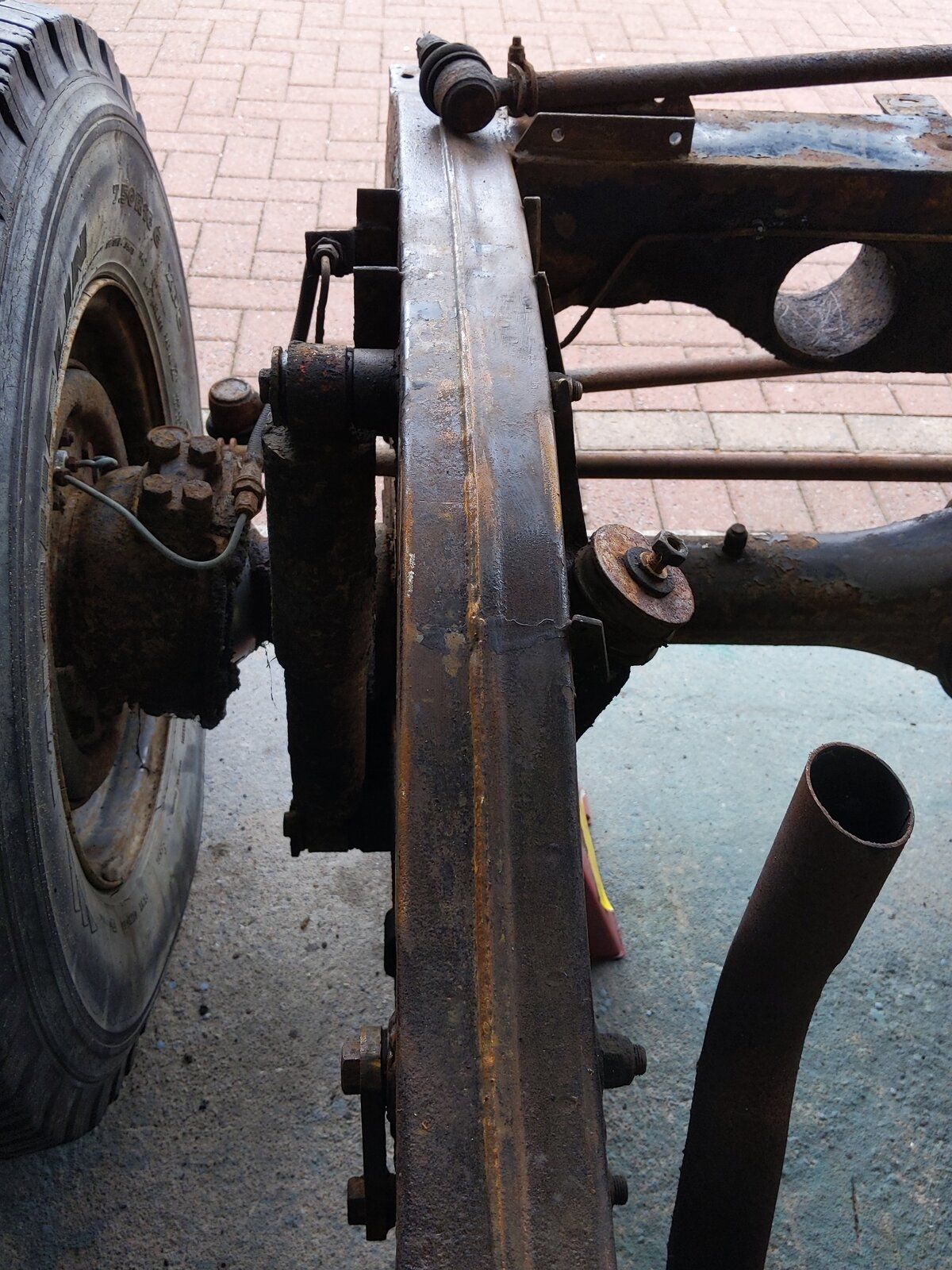

It's interesting that apart from damage about the rear shock mounting areas and just before the spring outriggers all caused at the top from permeant mud build up
Most of the corrosion is to new parts fitted such as outriggers
It's quite new looking otherwise

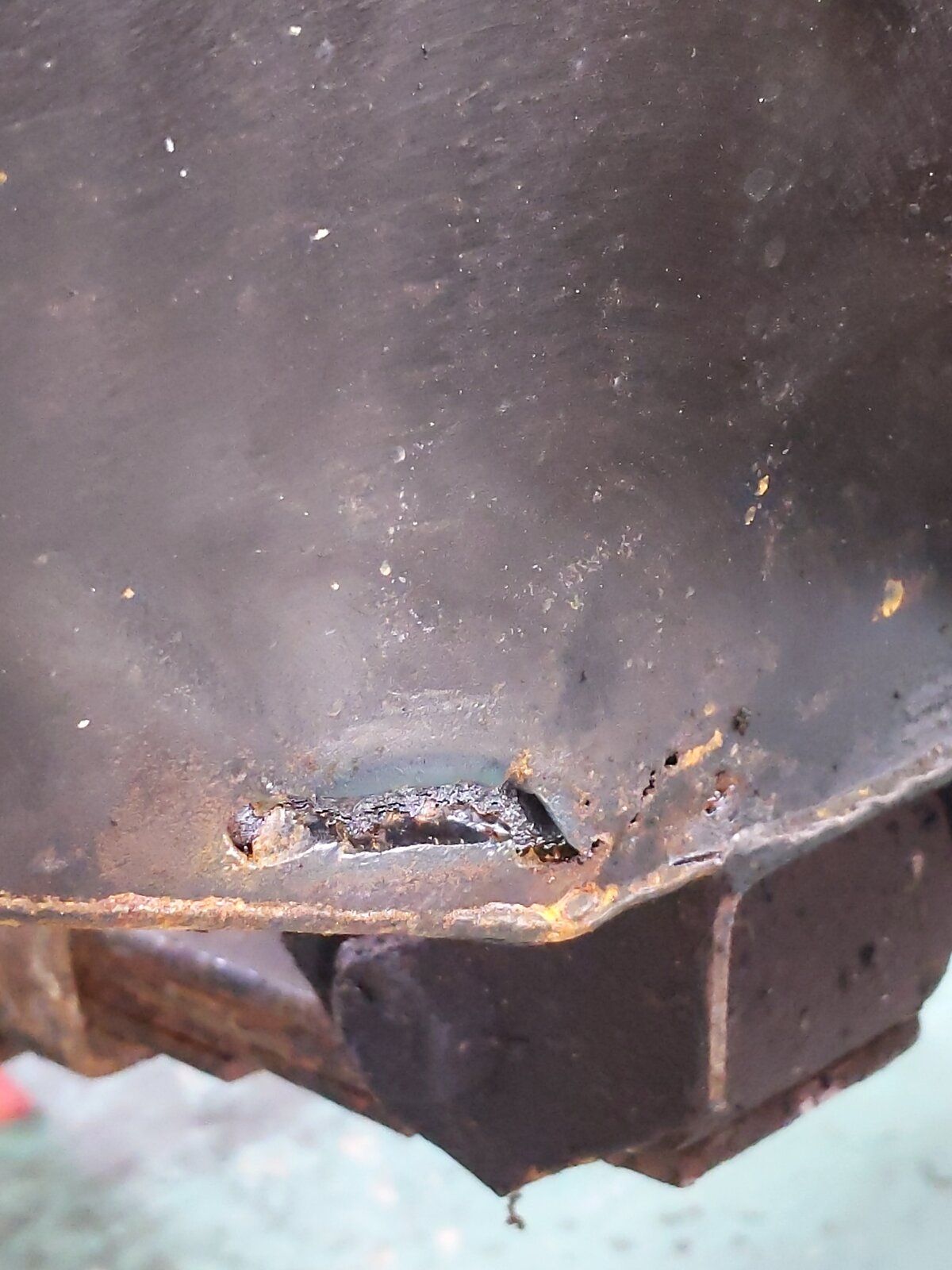

But has some nasty welding

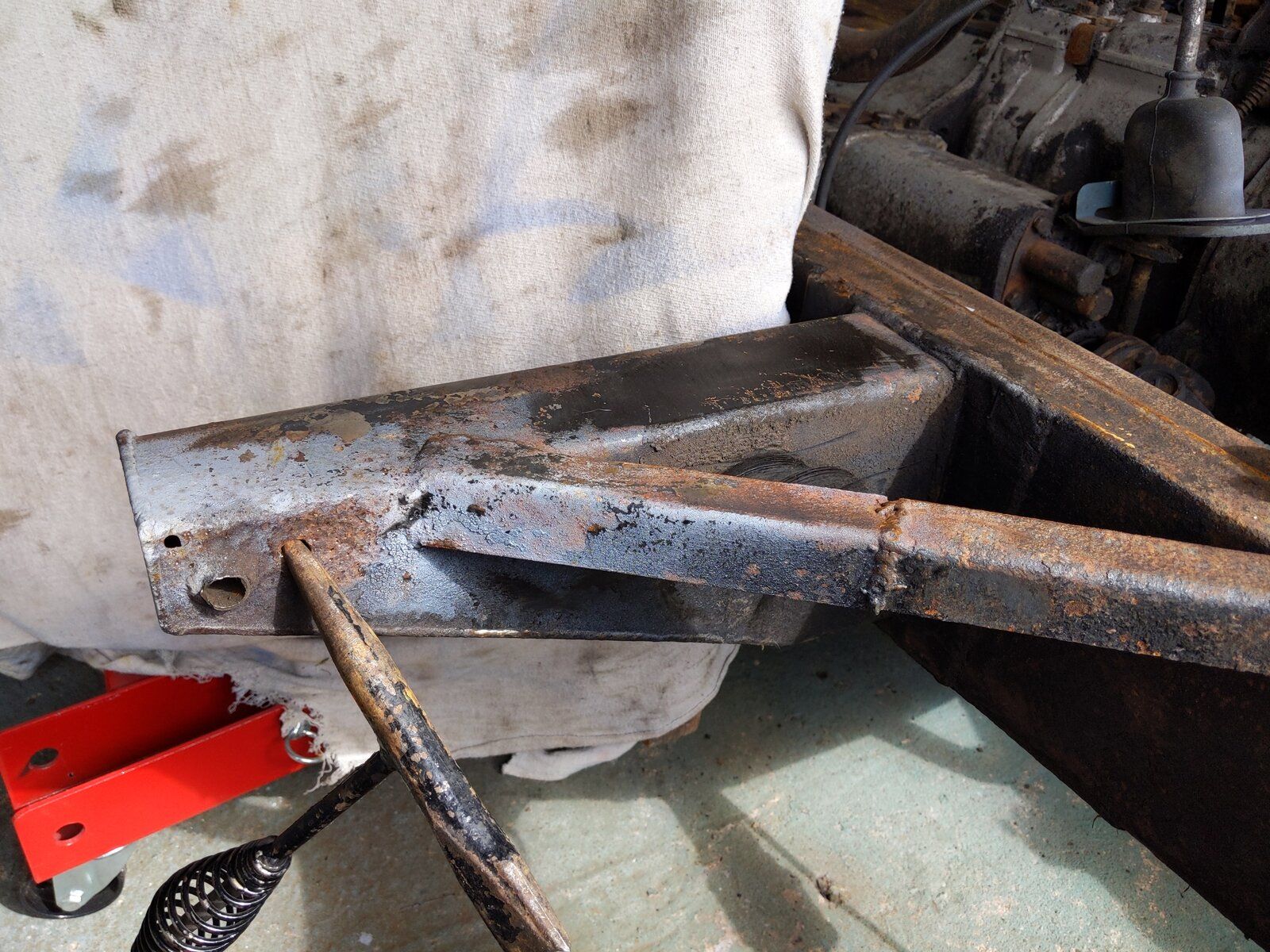

It's the same at the front, again a replacement outrigger. In this case with a bit of angle iron which is too thin butt welded in

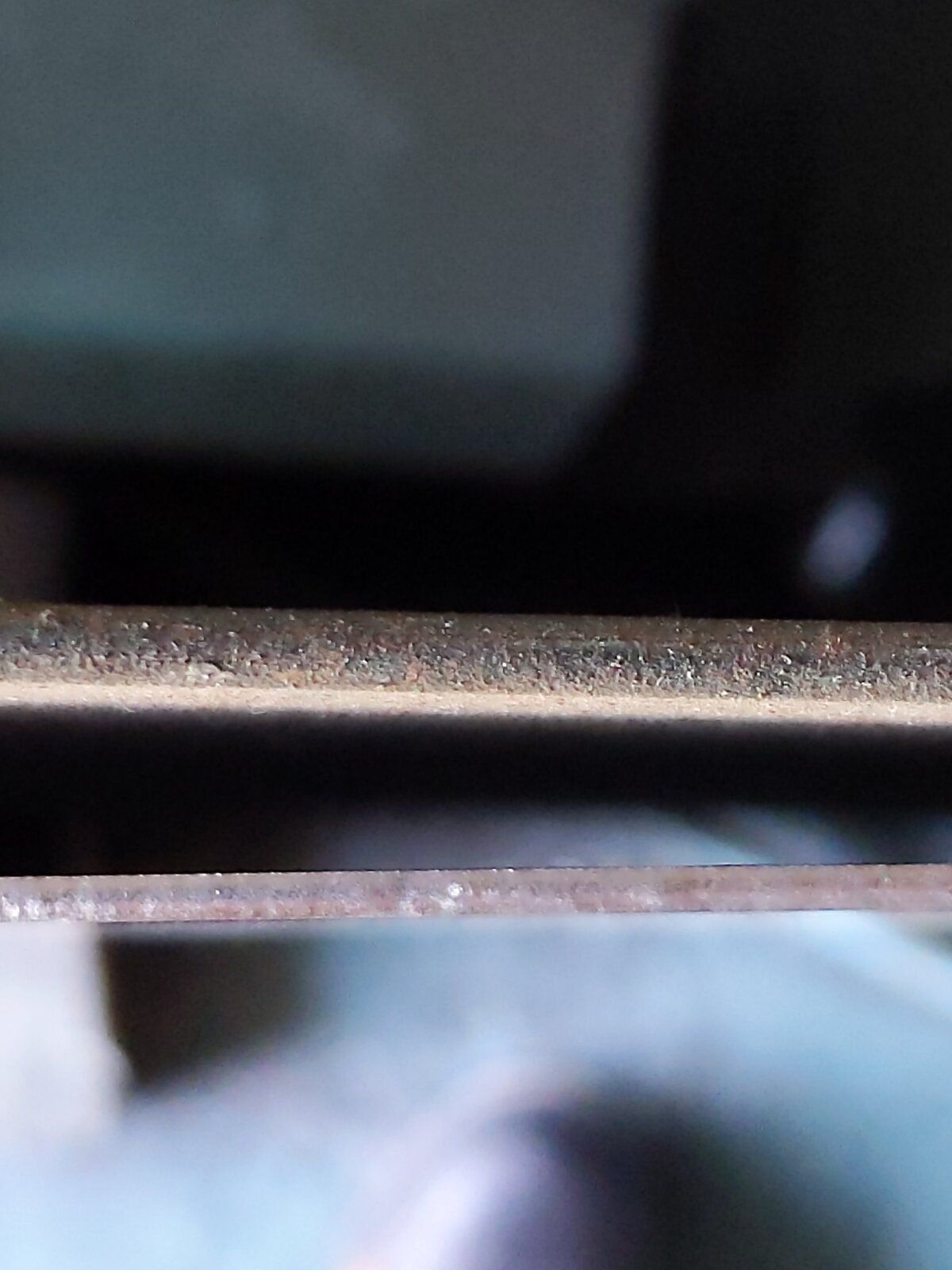

It's hard to show but the micrometer has 3.4mm
original and 2.2mm for the replaced bit.
It will be replaced both sides with some more substantial angle iron
But has some nasty welding
It's the same at the front, again a replacement outrigger. In this case with a bit of angle iron which is too thin butt welded in
original and 2.2mm for the replaced bit.
It will be replaced both sides with some more substantial angle iron
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

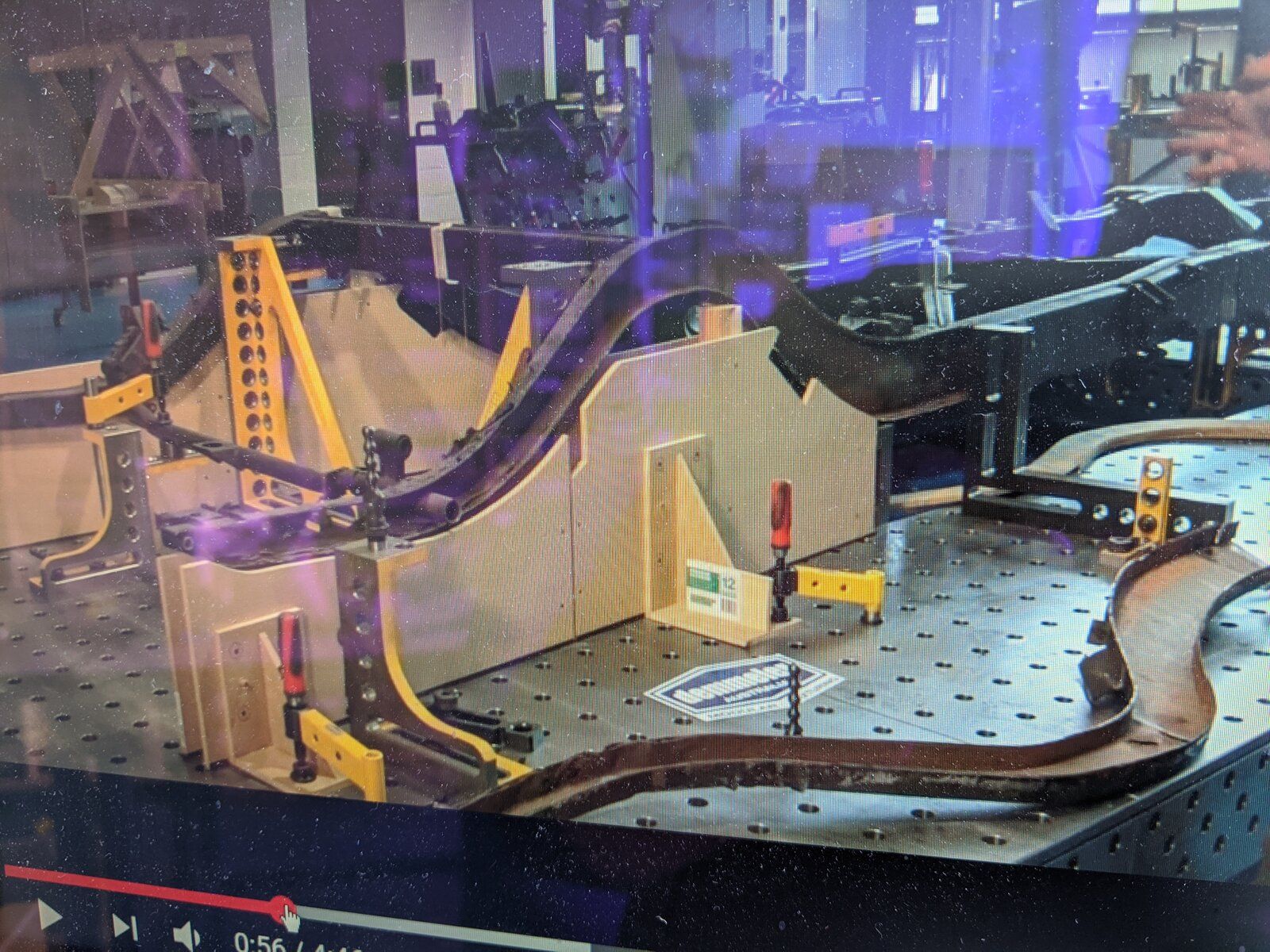

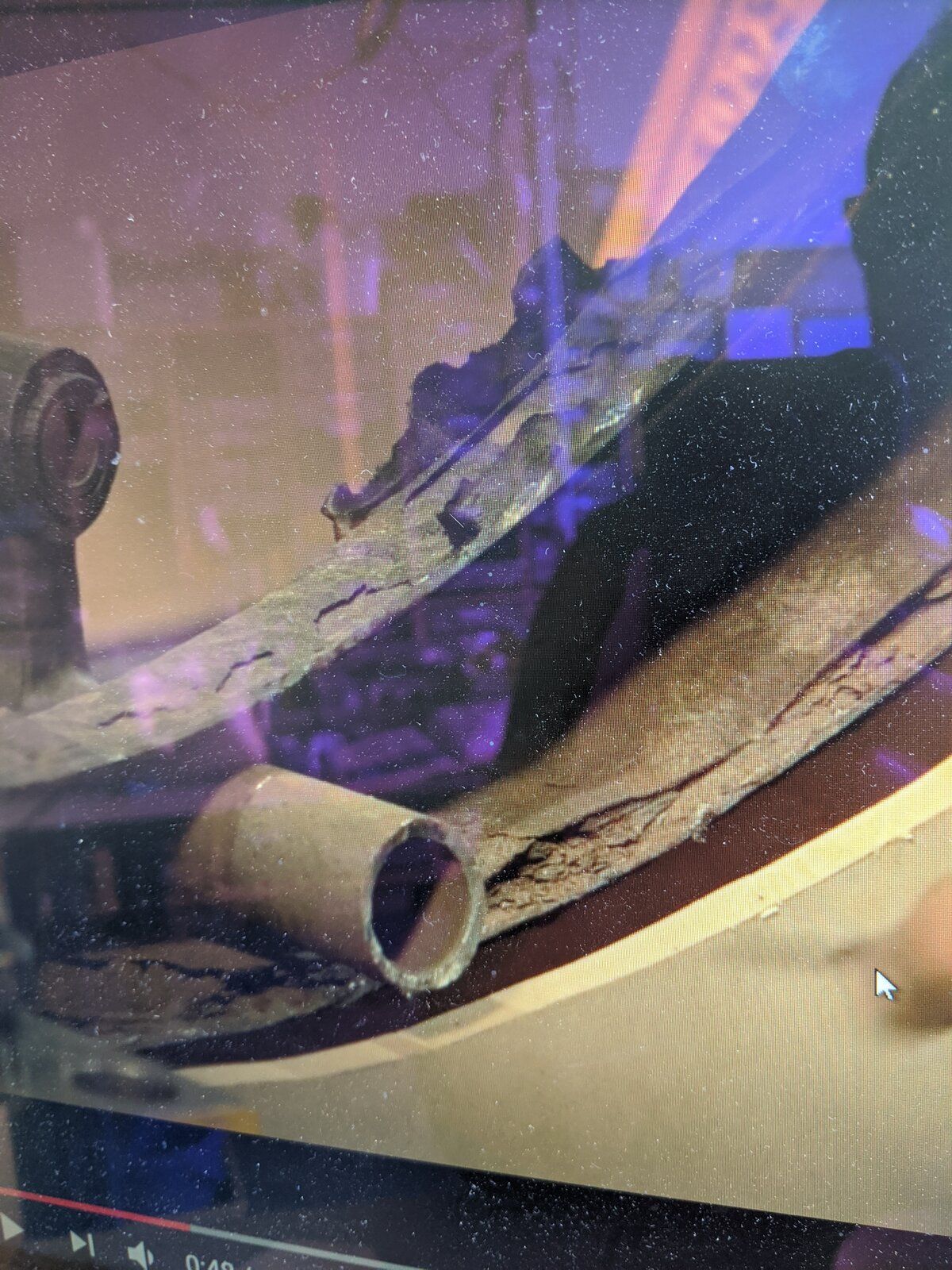

So I've been researching chassis restoration, and there's not very much out there. There's lots on chassis repair, but very little restoration. Came across this
looking like a serious restoration process, but there is no part three or four.... But the idea of repairing a c section by cutting just before the weld and having access to all the inside appeals
Being able to see any other internal corrosion and re fabricating the section and butt welding and lap welding the top and bottom. This would have the end result of a clean strong invisible restoration, while having a museum like maintenance of the original, and allowing deep access for Waxol internal application for e long lasting chassis.
I did look and the only company who did the original C section chassis only has one with four flat bits welded together. This would be strong but absolutely not original, so no good for me.
I want this car to be as was made and the wrong chassis replacement would not be right.

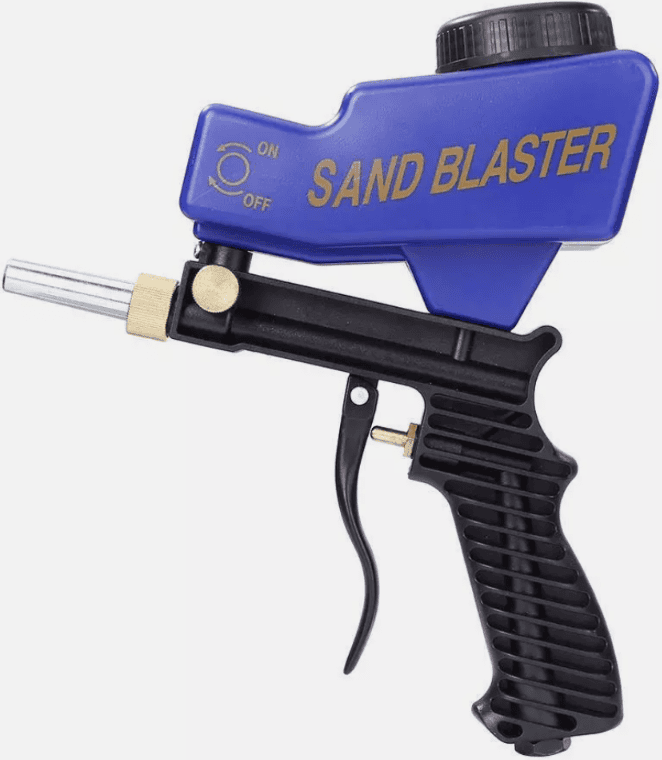

I was in Tesco and they were selling child's play sand 2 big bags for £4. Also I've ordered a cheap sand blaster.
My drive needs about three bags of sand sweeping into the lockblock.
Blasting sand which can cause silicosis and requires a full face mask and respirator.
Blasting sand or any small quantity is expensive, and I will sweep the excess into the drive.
This is very cheap, but I have a big compressor to power it and lots of sand
So we shall see
Being able to see any other internal corrosion and re fabricating the section and butt welding and lap welding the top and bottom. This would have the end result of a clean strong invisible restoration, while having a museum like maintenance of the original, and allowing deep access for Waxol internal application for e long lasting chassis.
I did look and the only company who did the original C section chassis only has one with four flat bits welded together. This would be strong but absolutely not original, so no good for me.
I want this car to be as was made and the wrong chassis replacement would not be right.
I was in Tesco and they were selling child's play sand 2 big bags for £4. Also I've ordered a cheap sand blaster.
My drive needs about three bags of sand sweeping into the lockblock.
Blasting sand which can cause silicosis and requires a full face mask and respirator.
Blasting sand or any small quantity is expensive, and I will sweep the excess into the drive.
This is very cheap, but I have a big compressor to power it and lots of sand
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen

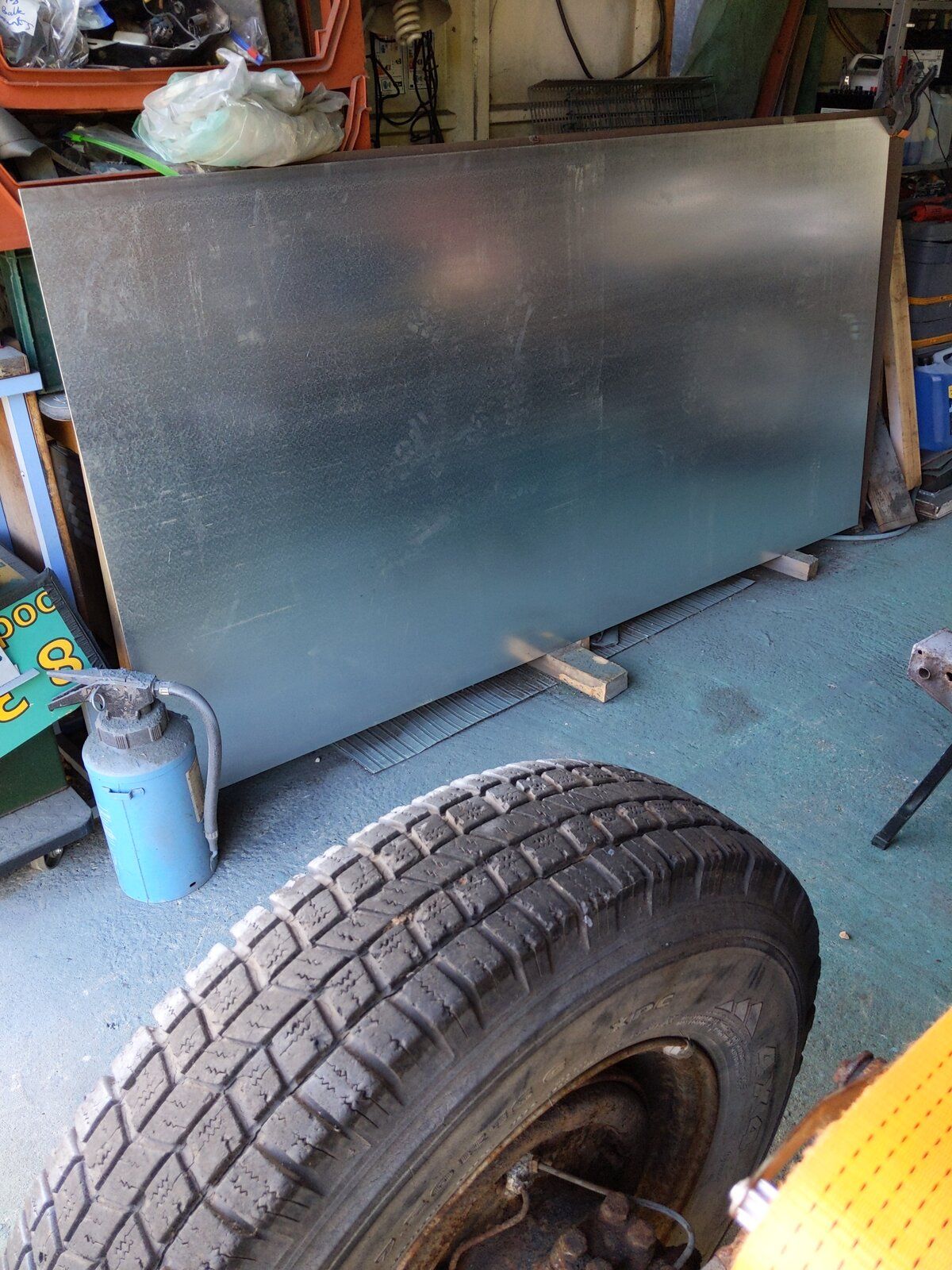

So thanks to my flatbed trailor and B + M Steel, was able to get a 2x1M sheet of hot dip galvanized steel sheet of 2mm thickness.
After much searching It is clear the original rails on my Series3 chassis are 2 mm and the cross sections and outriggers 3mm.
To have remanufactured half U sections out of 3mm steel may put stress on other parts, and wanting to restore as opposed to repair, 2mm galvanised feels the clear choice for me.
All shiny, and the galvanisation I hope will give some protection to the welds too as it protects for a couple of inches beyond.
The 2 and 3mm sheets.
I rather think my car may not see inside the garage for a while. As restoration of the chassis may take like forever, or at least feel like it.
But if I can get as good as new, and better than replacement's alternative design and construction. Then all the more genuine the auld girl will be.
Some people fit an electric motor beyond the transfer box though and building a hybrid is rather tempting and I can't think of a more ideal car to add an extra 100 hp to!
Would this be sacrilege ?
That is the question !
After much searching It is clear the original rails on my Series3 chassis are 2 mm and the cross sections and outriggers 3mm.
To have remanufactured half U sections out of 3mm steel may put stress on other parts, and wanting to restore as opposed to repair, 2mm galvanised feels the clear choice for me.
All shiny, and the galvanisation I hope will give some protection to the welds too as it protects for a couple of inches beyond.
The 2 and 3mm sheets.
I rather think my car may not see inside the garage for a while. As restoration of the chassis may take like forever, or at least feel like it.
But if I can get as good as new, and better than replacement's alternative design and construction. Then all the more genuine the auld girl will be.
Some people fit an electric motor beyond the transfer box though and building a hybrid is rather tempting and I can't think of a more ideal car to add an extra 100 hp to!
Would this be sacrilege ?
That is the question !
towsey956
Well-Known Member
- Posts
- 1,104
- Location
- Northyorkshire
I absolutely love watching these projects come along, it just makes me want to go and take mine apart...more than the usual that is
Keep up the good work
Keep up the good work
Wagon Loon
Well-Known Member
- Posts
- 565
- Location
- Aberdeen
We'll work has been getting in the way too much the last few weeks.
Working as a technician in a school is quite challenging with Covid.

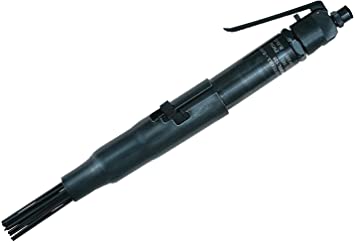

But I've ordered a needle de-scaling air powered tool off eBay

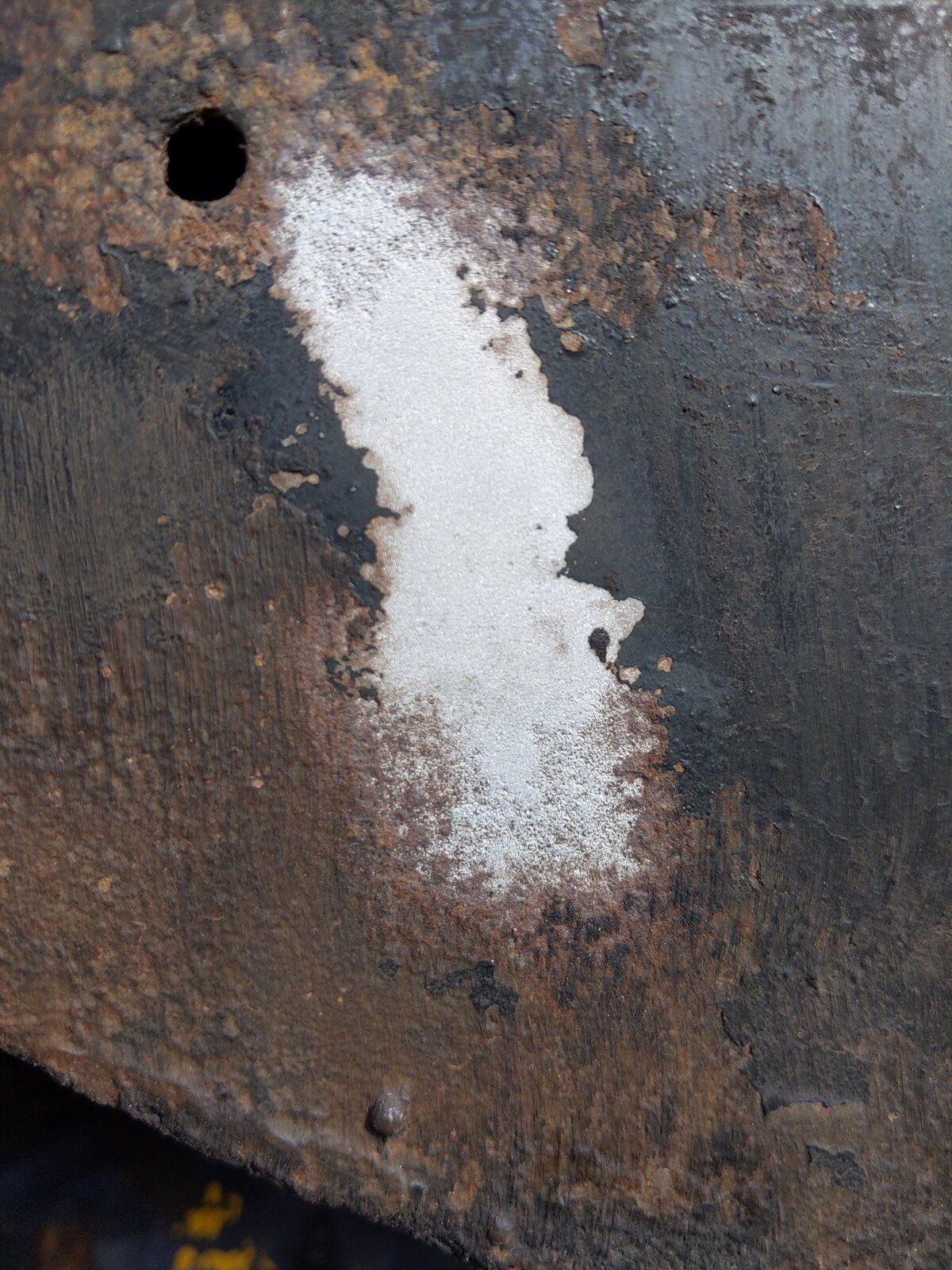

The idea is to clean most of the rust and paint off with this tool first, the use the small sandblaster which is good on very small areas, oh and great at laying sand down on my lockblock drive too.
Blasting sand isn't cheap, but the child's play sand is, it's just a bit too damp and I now have it in a big tub drying slowly

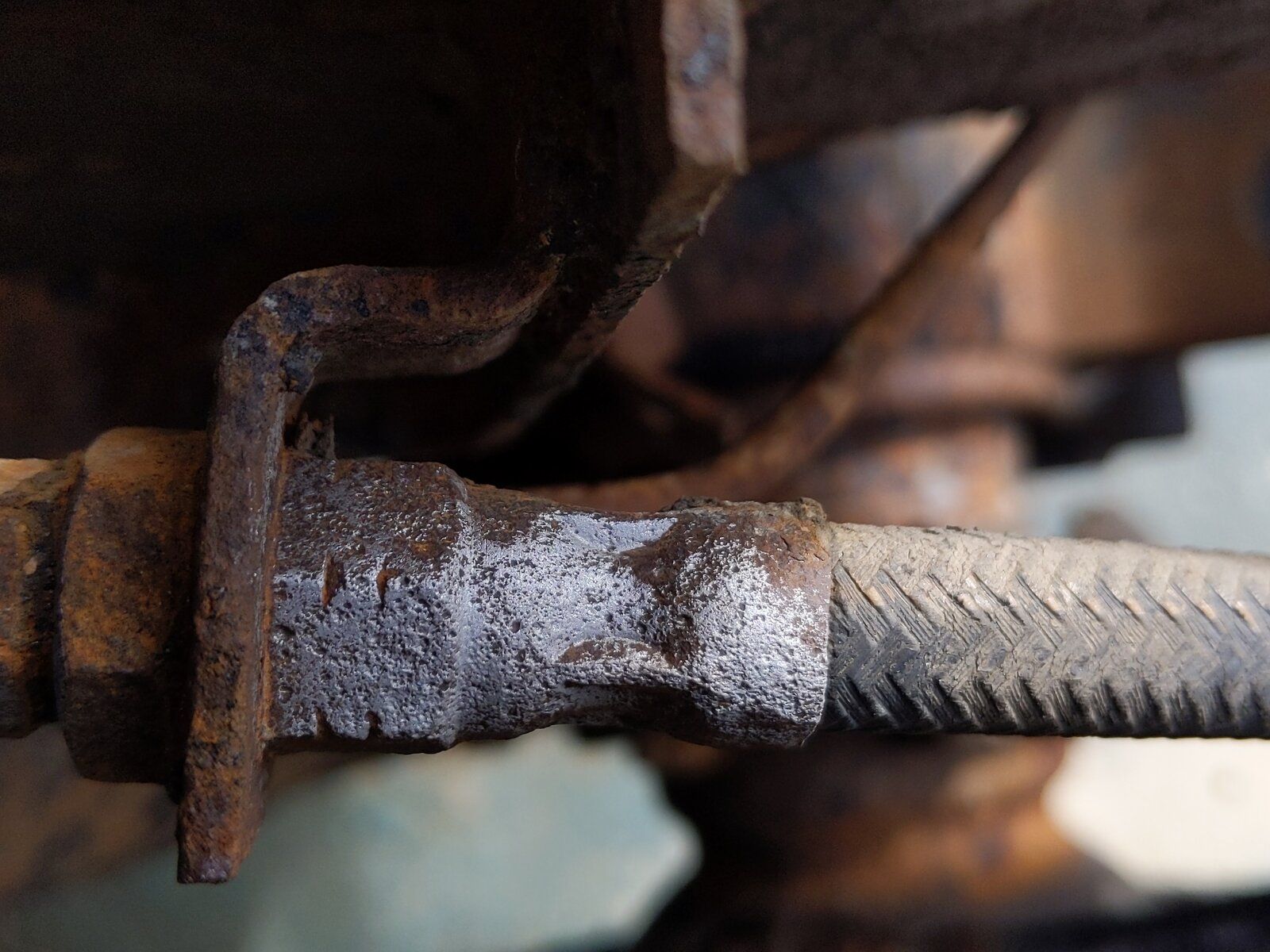

Just like new
But quite slow
Working as a technician in a school is quite challenging with Covid.
But I've ordered a needle de-scaling air powered tool off eBay
Blasting sand isn't cheap, but the child's play sand is, it's just a bit too damp and I now have it in a big tub drying slowly
auld duffer
Well-Known Member
- Posts
- 577
- Location
- scotland
Just read through this entire thread. absolutely brilliant. Great skills and determination. I can see where you are coming from re the replace or restore method . Its easy enough to buy what you need but if you have time and skills you can restore what you have and save a small fortune in cash but invest more time, Being a hobby time isnt an issue the hourly rate is sheer satisfaction..
Ive been picking a lot of brains and there are conflicting thoughts on the Galv Chassis . When I realised they were fully fabricated from flat profiles I was kinda surprised . Ive been told that they can crack . That probably depends on the use to which the finished vehicle was being put, and probably one in a hundred might have a problem , or perhaps a less than fully penetrated weld seam being ground down excessively or maybe even embrittlement due to the heat in the galvanizing process .. either way, if mine is to far gone I might decide to take the path of least resistance ..
Watching this thread and looking forward to updates .
Ive been picking a lot of brains and there are conflicting thoughts on the Galv Chassis . When I realised they were fully fabricated from flat profiles I was kinda surprised . Ive been told that they can crack . That probably depends on the use to which the finished vehicle was being put, and probably one in a hundred might have a problem , or perhaps a less than fully penetrated weld seam being ground down excessively or maybe even embrittlement due to the heat in the galvanizing process .. either way, if mine is to far gone I might decide to take the path of least resistance ..
Watching this thread and looking forward to updates .
