Series 2a Wiring

border · Jul 19, 2022

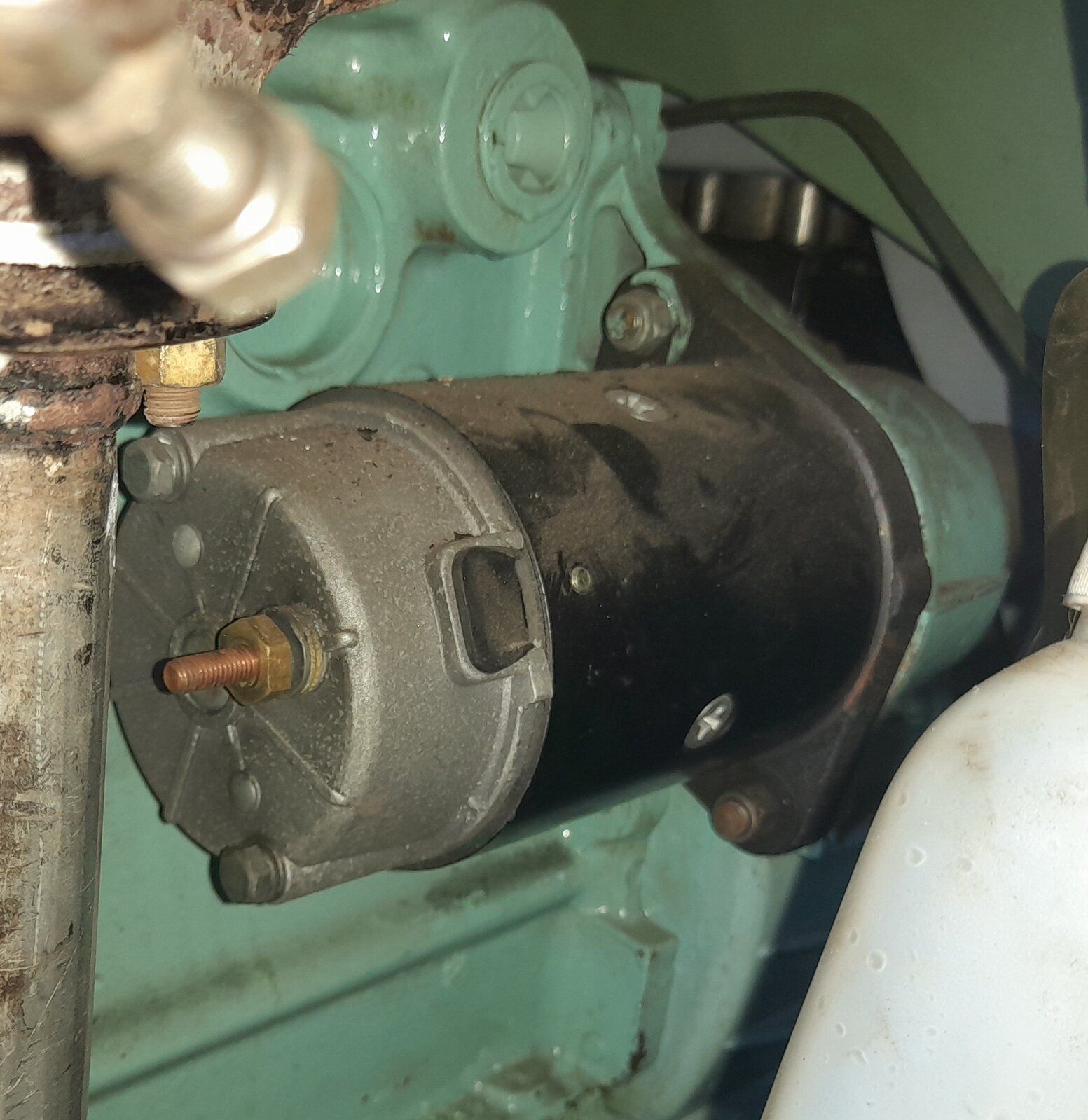

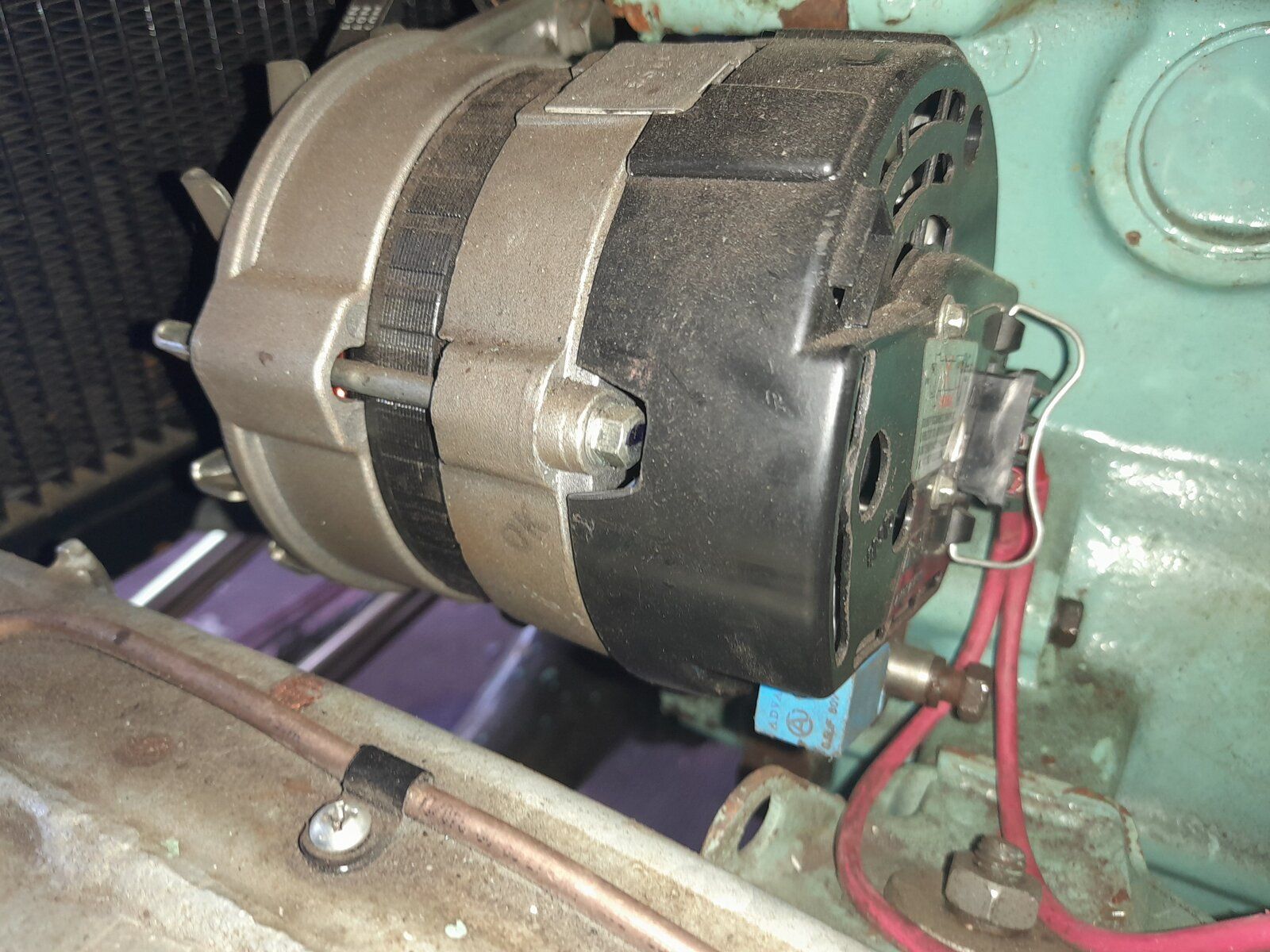

OK This is what I am working with ,Coil, Solenoid, Fusebox, I can move these if need be . Starter and Alternator. 12 volt.
As said the wiring is from mod ambulance so there will be a few stray wires that I will not need.

mystery · Jul 20, 2022

picture of wires showing the identification colours and there location, engine bay dash ,heater ,wiper motor etc would help.I see that the loom in question has been marked with some effort, what ambulance did it originate from series 2 forward control or just series 2

border · Jul 20, 2022

mystery said:

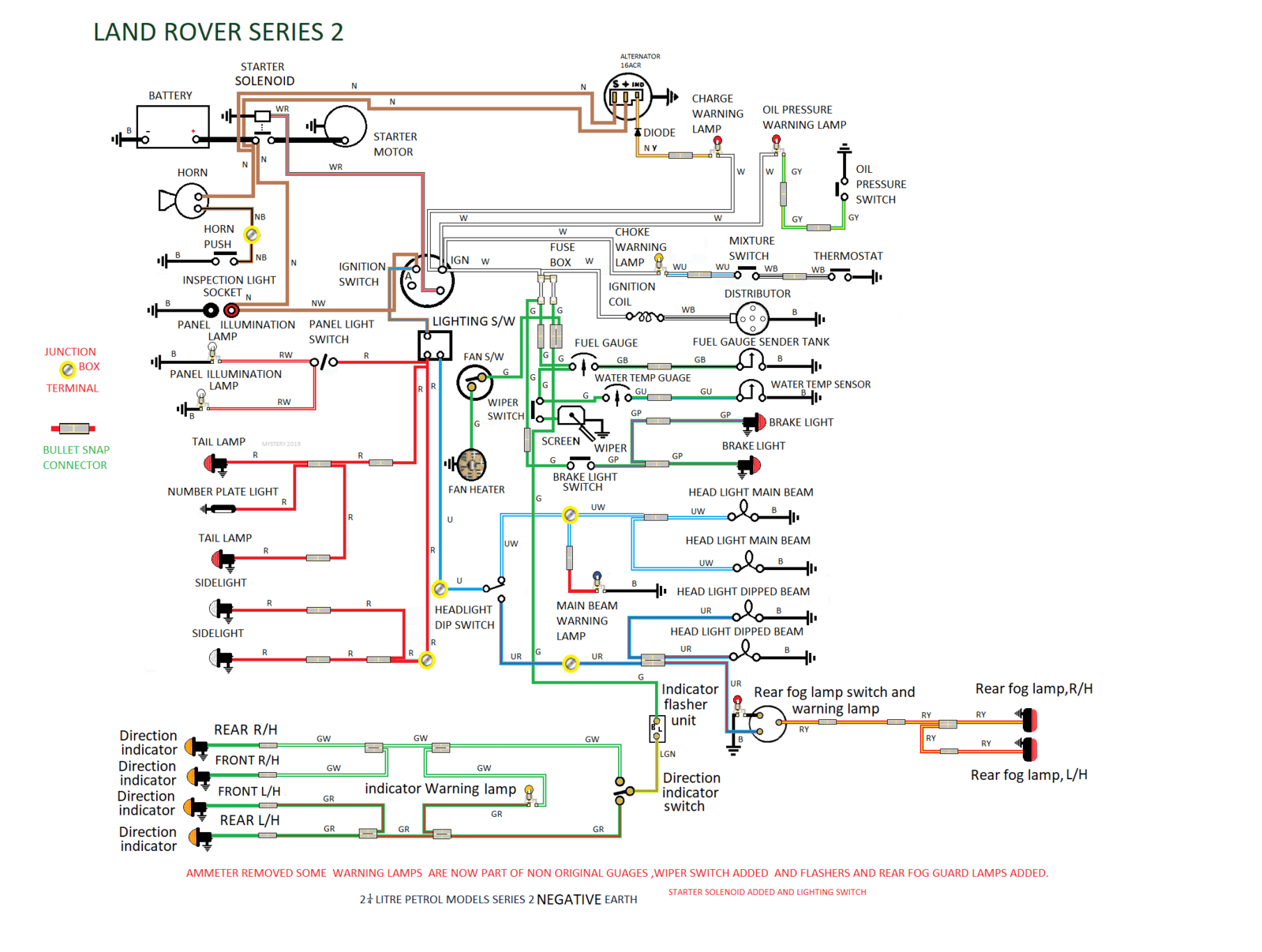

picture of wires showing the identification colours and there location, engine bay dash ,heater ,wiper motor etc would help.I see that the loom in question has been marked with some effort, what ambulance did it originate from series 2 forward control or just series 2 View attachment 269737

It was just series 2a on log book, not forward control.will get more detailed pics of colored wires

border · Jul 20, 2022

mystery said:
picture of wires showing the identification colours and there location, engine bay dash ,heater ,wiper motor etc would help.I see that the loom in question has been marked with some effort, what ambulance did it originate from series 2 forward control or just series 2 View attachment 269737

Thanks You taking the time to help me on this it is Really Appreciated as this is holding me up on rebuild.
Probably missed one or two out but can check again.

Wiper Motor, 4 wires
black earthed, green. brown/green and red/green.

Heater 3 wires,
black. brown, green, hard to tell as covered in paint.

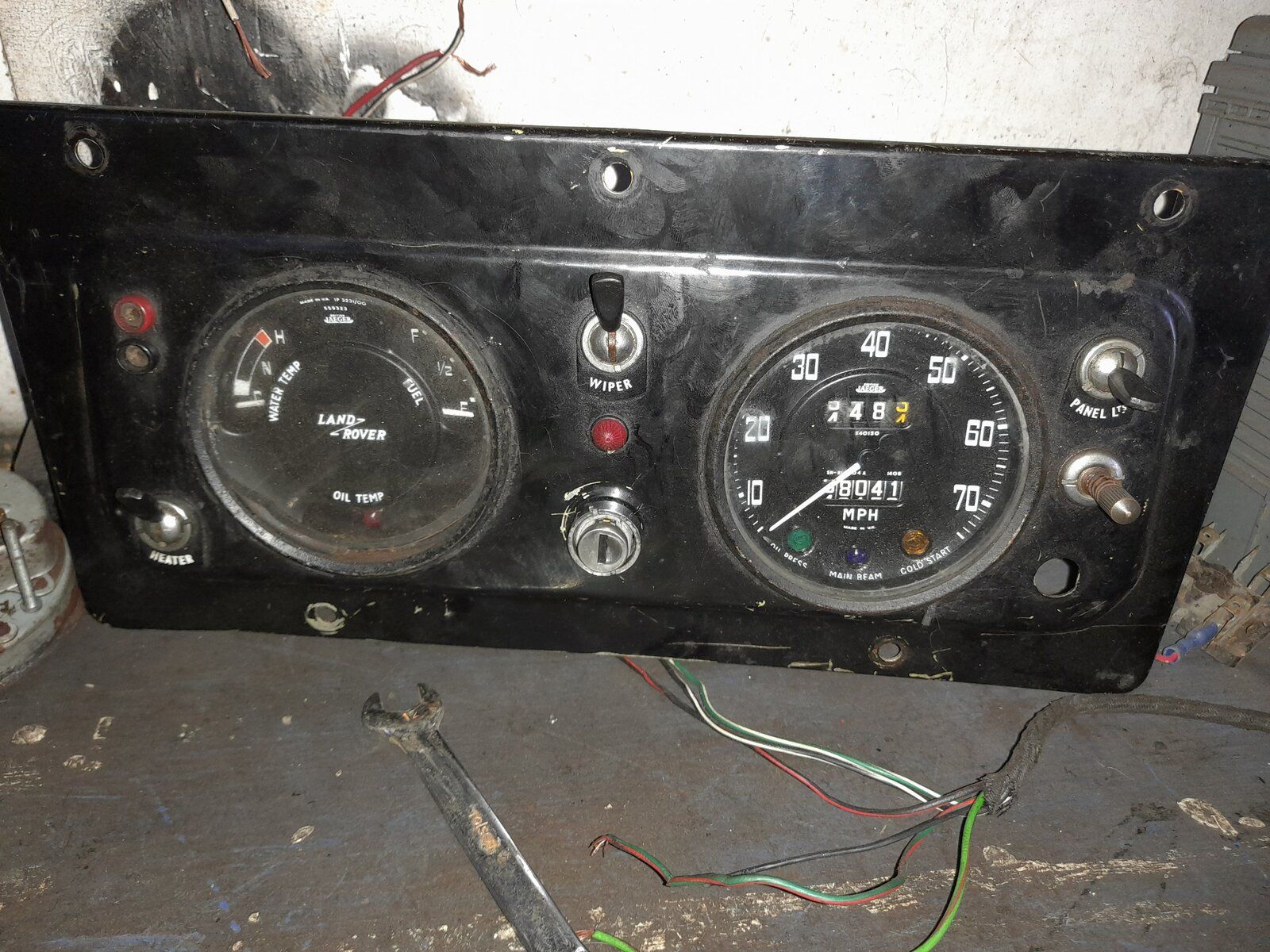

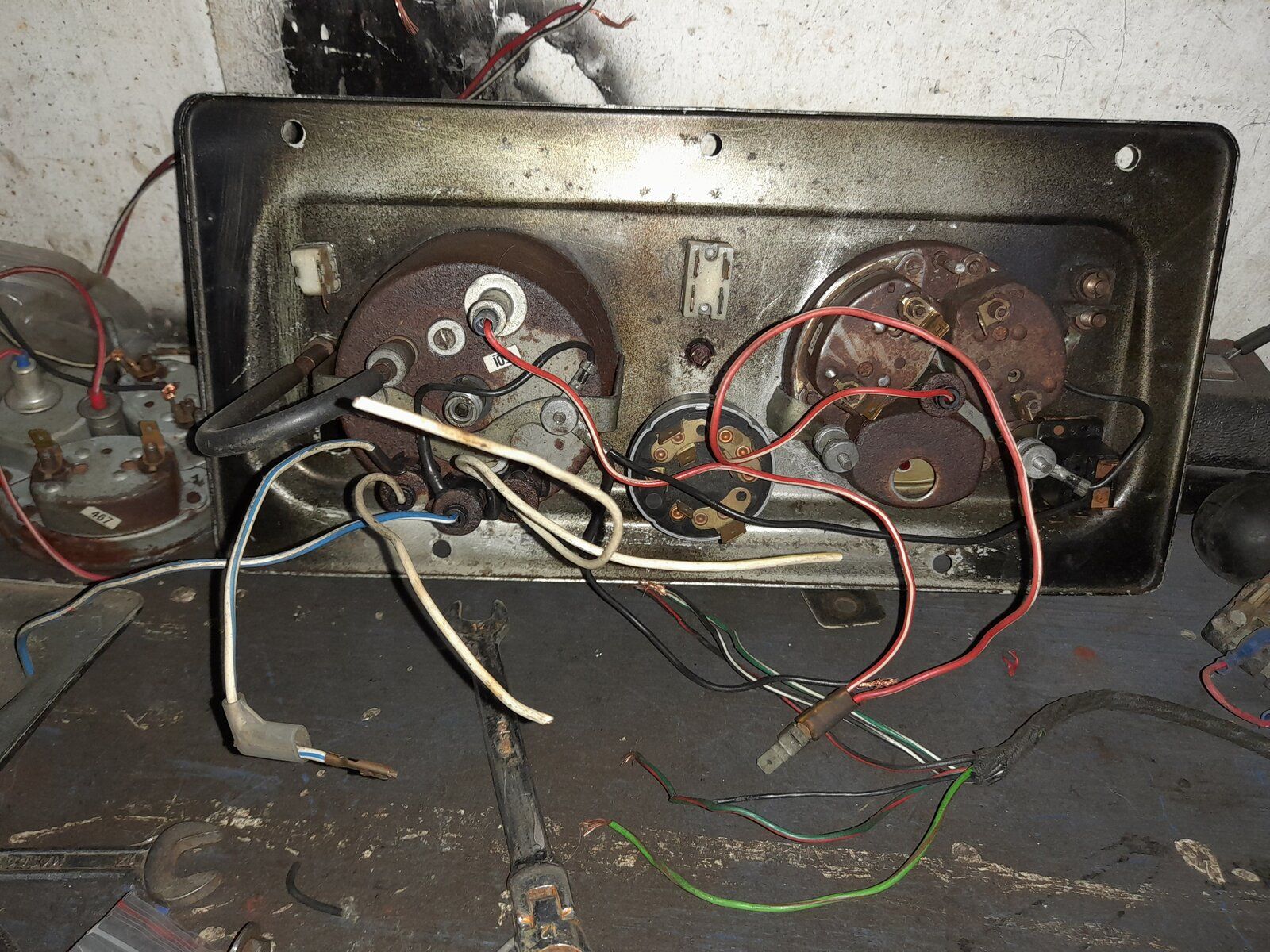

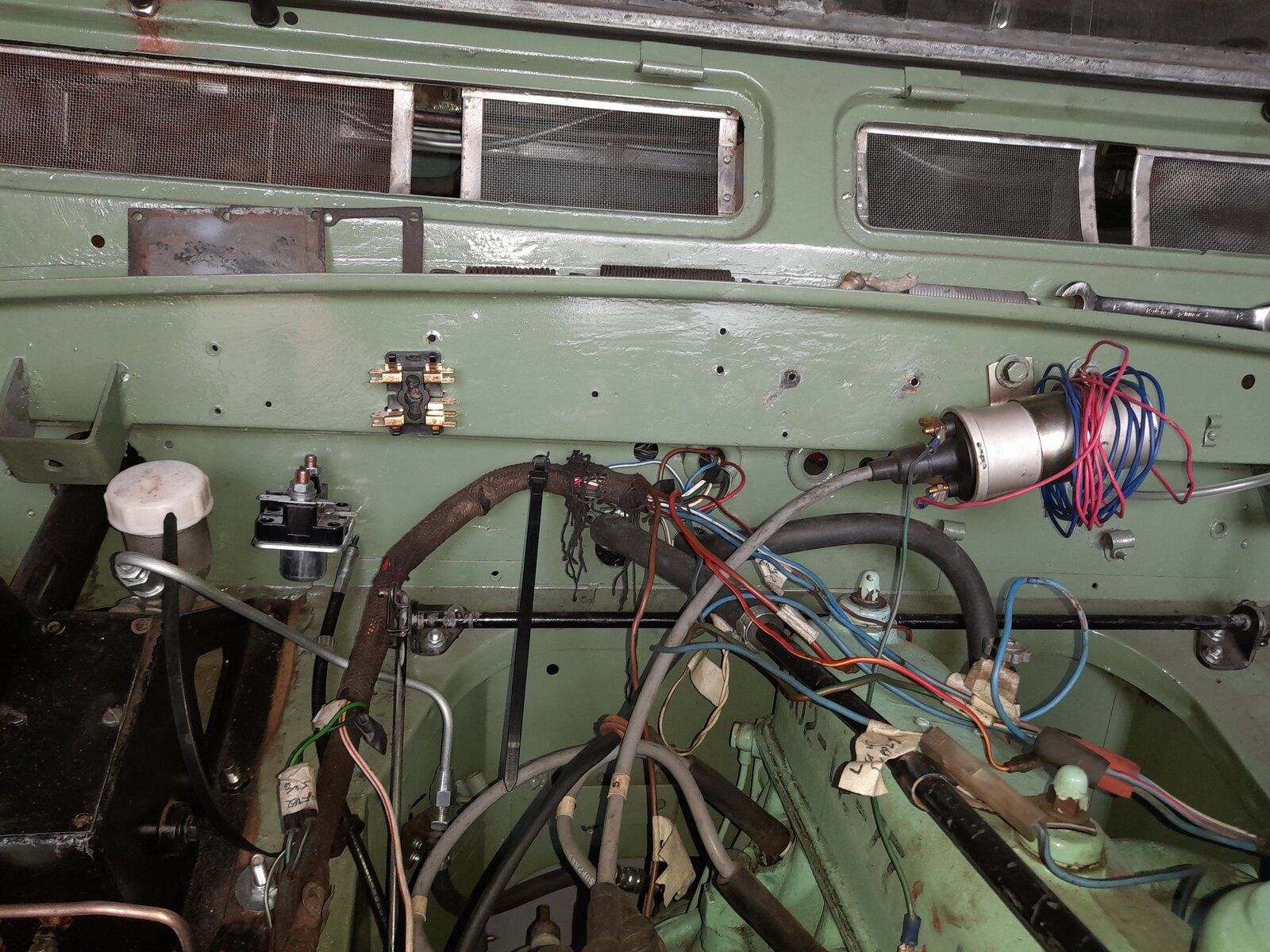

Wires coming through dash at the moment' 6 single and 2 double. first pic
green/black.
white yellow.
white/red.
brown/red.
blue/white.
red.
Doubles are green/white and green/red. think these are indicators.

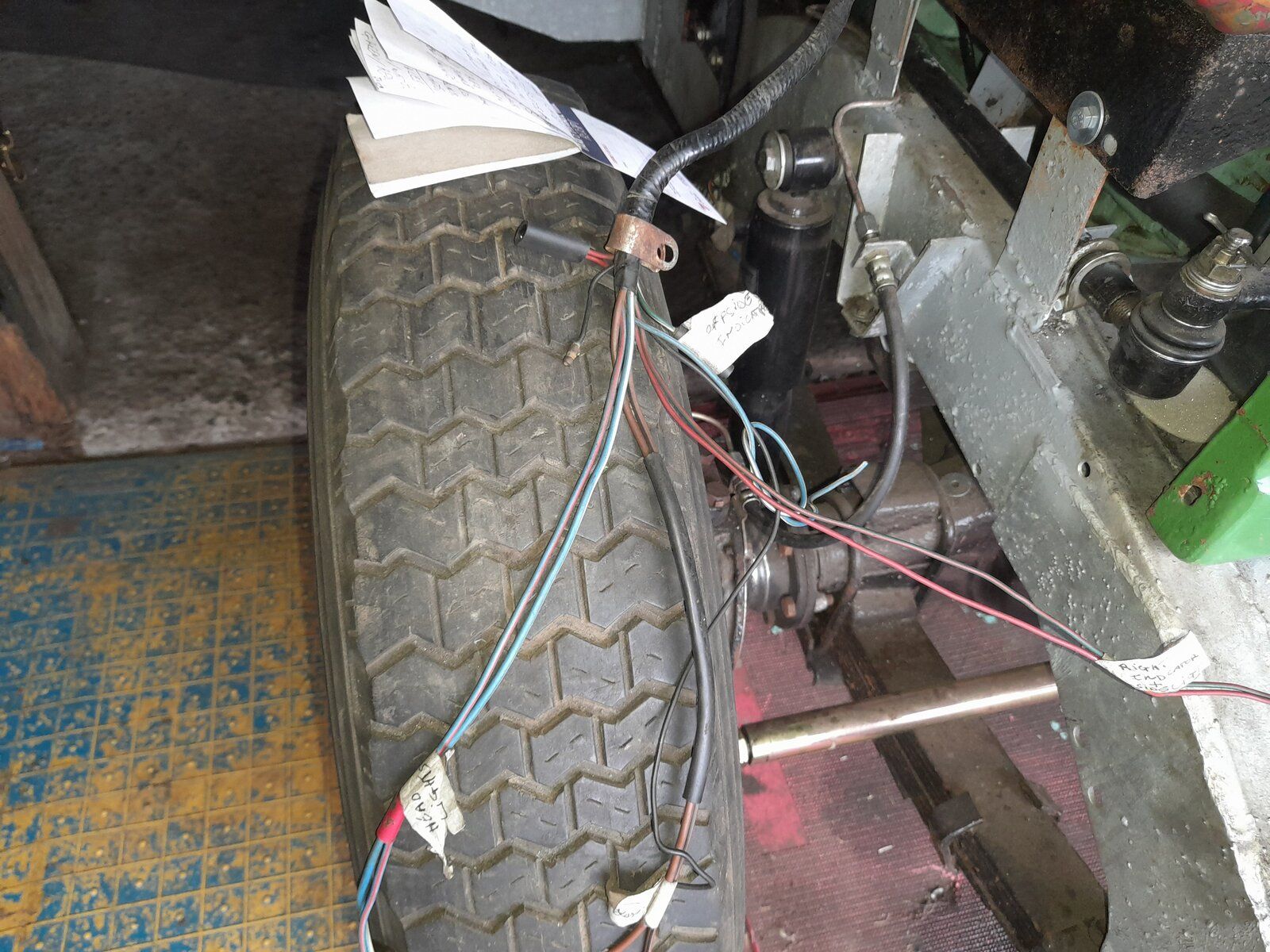

Wires running through chassis to rear. 5
red/black
red/yellow.
green/red.
green/purple.
green/white.

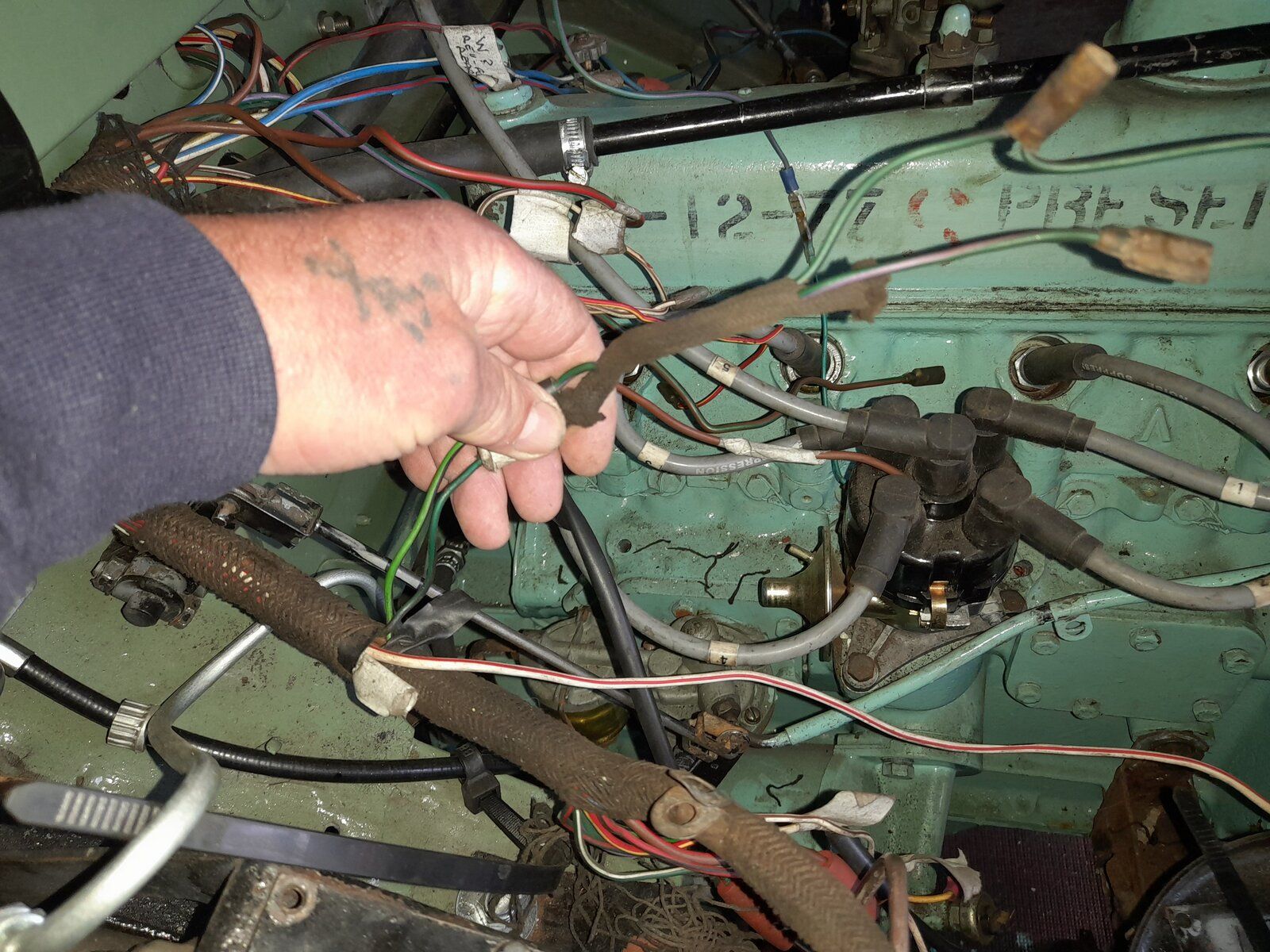

Spare loose wires . engine bay, some may need putting through dash.
white/slate
red/yellow.
red/black.
thick brown/red.

Front, think these will be lights/ indicators ect

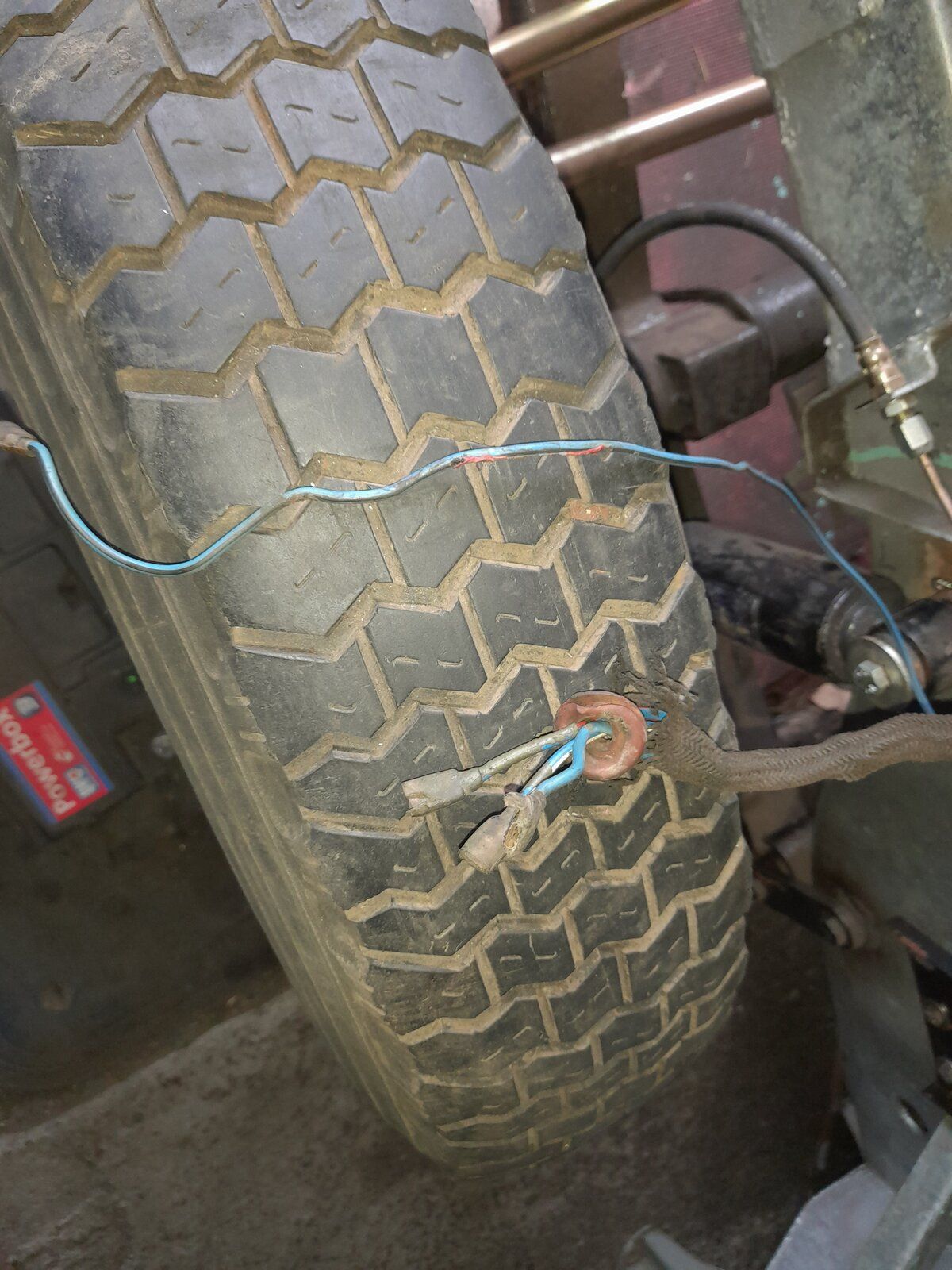

Drivers Side, second pic.
red.
black
blue/red
blue/white, 2
brown/black
brown
green/red

Passenger side third pic
blue/black
blue/red
blue/white/
blue

Just about everything, can check again if I have missed anything.
Thanks Again

mystery · Jul 21, 2022

through chassis R/B number plate , tail lights right and left
R/Y rear fog lamp
G/R indicator lamp l/h
G/P brake lights l/h and r/h
G/W indicator lamp r/h
the R/B in engine bay to go into dash to light switch. Also R/Y to fog light switch
you mention colour but they have no exit point on the loom ,example no G/W passengers side and GB fuel gauge at dash but does not appear at say tank .
It would be helpful if passenger side and drivers side length i.e. do they reach the head light or just long enough to reach junction box .
wiper motor colours are they RLG red/light green and NLG brown/light green

border · Jul 21, 2022

[QU

mystery said:
through chassis R/B number plate , tail lights right and left
R/Y rear fog lamp
G/R indicator lamp l/h
G/P brake lights l/h and r/h
G/W indicator lamp r/h
the R/B in engine bay to go into dash to light switch
you mention colour but they have no exit point on the loom ,example no G/W passengers side and GB fuel gauge at dash but does not appear at say tank .
It would be helpful if passenger side and drivers side length i.e. do they reach the head light or just long enough to reach junction box .
wiper motor colours are they RLG red/light green and NLG brown/light green

OTE="mystery, post: 5395820, member: 40112"]through chassis R/B number plate , tail lights right and left
R/Y rear fog lamp
G/R indicator lamp l/h
G/P brake lights l/h and r/h
G/W indicator lamp r/h
the R/B in engine bay to go into dash to light switch
you mention colour but they have no exit point on the loom ,example no G/W passengers side and GB fuel gauge at dash but does not appear at say tank .
It would be helpful if passenger side and drivers side length i.e. do they reach the head light or just long enough to reach junction box .
wiper motor colours are they RLG red/light green and NLG brown/light green[/QUOTE]
Yes they do reach headlights think 2 from drivers side travel through rad to passenger side. Certain wiper is RLG and NLG, Can check later though.

border · Jul 21, 2022

border said:
[QU

OTE="mystery, post: 5395820, member: 40112"]through chassis R/B number plate , tail lights right and left
R/Y rear fog lamp
G/R indicator lamp l/h
G/P brake lights l/h and r/h
G/W indicator lamp r/h
the R/B in engine bay to go into dash to light switch
you mention colour but they have no exit point on the loom ,example no G/W passengers side and GB fuel gauge at dash but does not appear at say tank .
It would be helpful if passenger side and drivers side length i.e. do they reach the head light or just long enough to reach junction box .
wiper motor colours are they RLG red/light green and NLG brown/light green

Yes they do reach headlights think 2 from drivers side travel through rad to passenger side. Certain wiper is RLG and NLG, Can check later though.[/QUOTE]

mystery · Jul 21, 2022

What is the position of the brake switch ,on pedal inside or pressure switch on brake lines .the loom seem to have been label what are the label descriptions saying .and finally
still need to know where certain cable exit the loom G/B ,U/B , U , W/Y,W/R ,W/S, G/P,N/B

border · Jul 21, 2022

mystery said:
What is the position of the brake switch ,on pedal inside or pressure switch on brake lines .the loom seem to have been label what are the label descriptions saying .and finally
still need to know where certain cable exit the loom G/B ,U/B , U , W/Y,W/R ,W/S, G/P,N/B

Thanks Again.
The brake switch will be fitted on pedal, most of the labels are just letters to identify that they are the same wire in and out. some have labels on that match your advice.
Found these to tonight coming from middle of loom in to engine bay, they have spade connectors on them G/B, and G/P, am I right in thinking these are brake switch and fuel sender ?
Going to pop up and check where those wires exit the loom.

border · Jul 21, 2022

OK These wires exit loom at
U/B passenger wing.
U passenger wing.
W/S middle engine bay drivers side.
W/Y middle engine bay drivers side.
N/B drivers side wing.
U drivers side wing
Thanks

mystery · Jul 22, 2022

yes G/B to fuel tank sender and G/P to brake switch ,the N/B to horn usually mounted on passenger of bonnet but you have no N/B elsewhere ?.W/Y i would say is the charge warning lamp from the dynamo voltage/regulator position so you would replace this with a N/Y running from dash to alternator .The N/R that passes through the dash and the N/R in the engine bay are they the same diameter would suggest you check with meter to confirm this and would be the feed from battery side of starter solenoid to ignition switch .

border · Jul 22, 2022

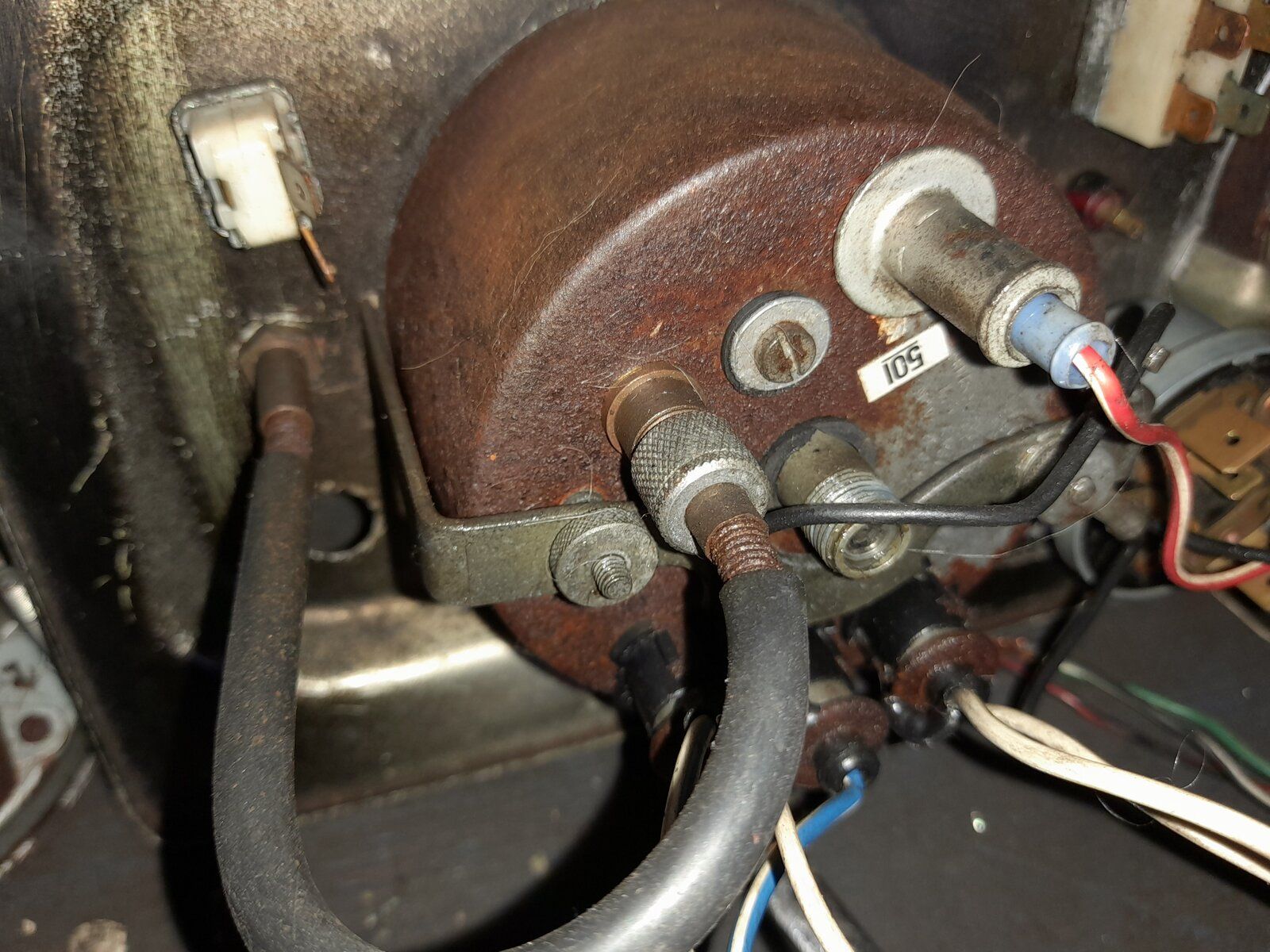

There is a W/Y on back of gauges can just make it out as it is faded. Going to order choke cable and new light switch. Not sure what this button thing is in pic it has spring on it. Should the light switch be there ?

mystery · Jul 22, 2022

mileage trip reset ,the w/y in the engine bay but no w/y elsewhere on the loom

border · Jul 22, 2022

mystery said:
mileage trip reset ,the w/y in the engine bay but no w/y elsewhere on the loom

W/Y Comes from top wires going in to dash then down to engine bay nothing on the end of it.
Is this the right switch for lights ? LAND ROVER SERIES 2A 3 MASTER LIGHTING 3-WAY TOGGLE LIGHT SWITCH - 1H9077L | eBay

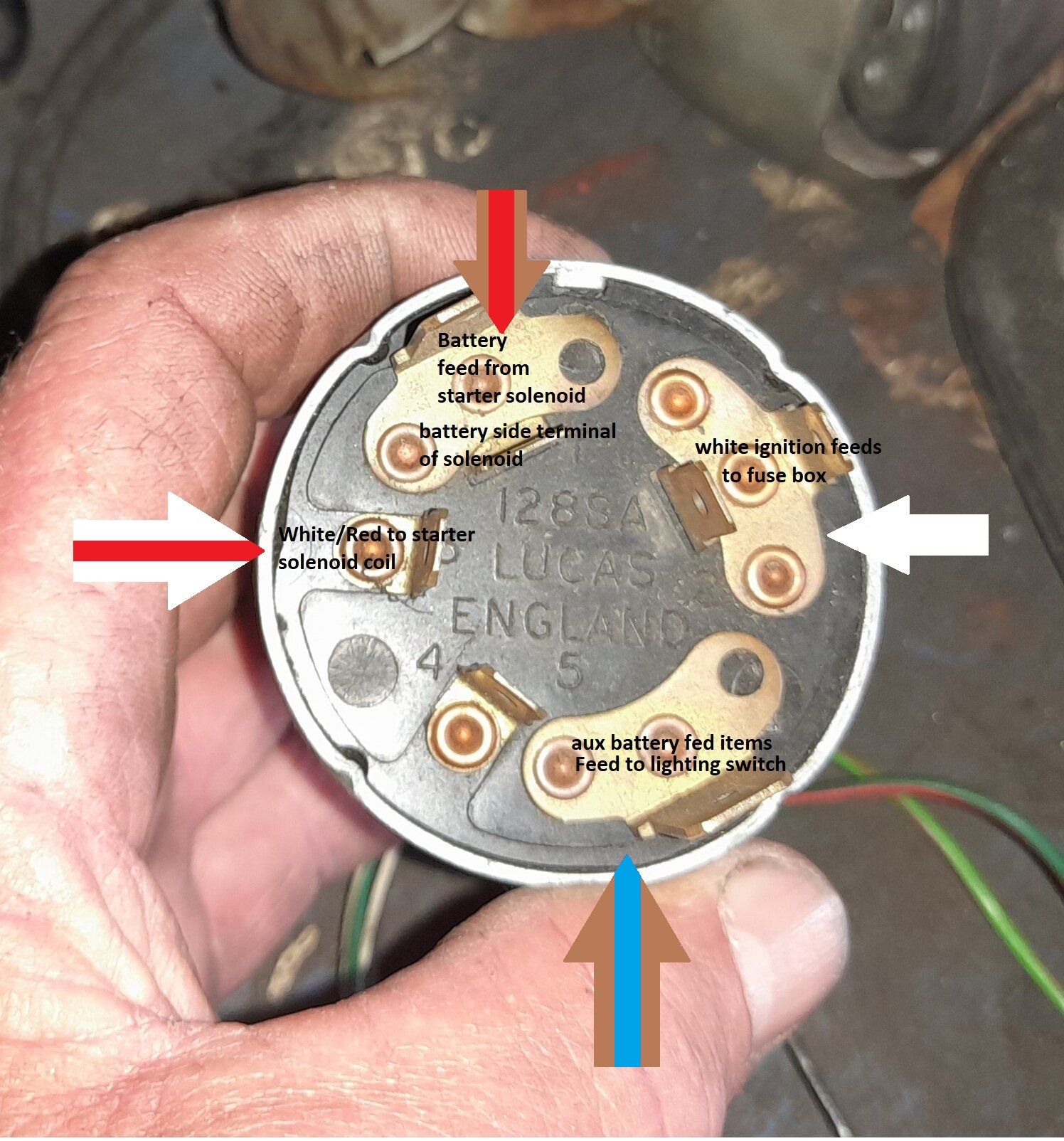

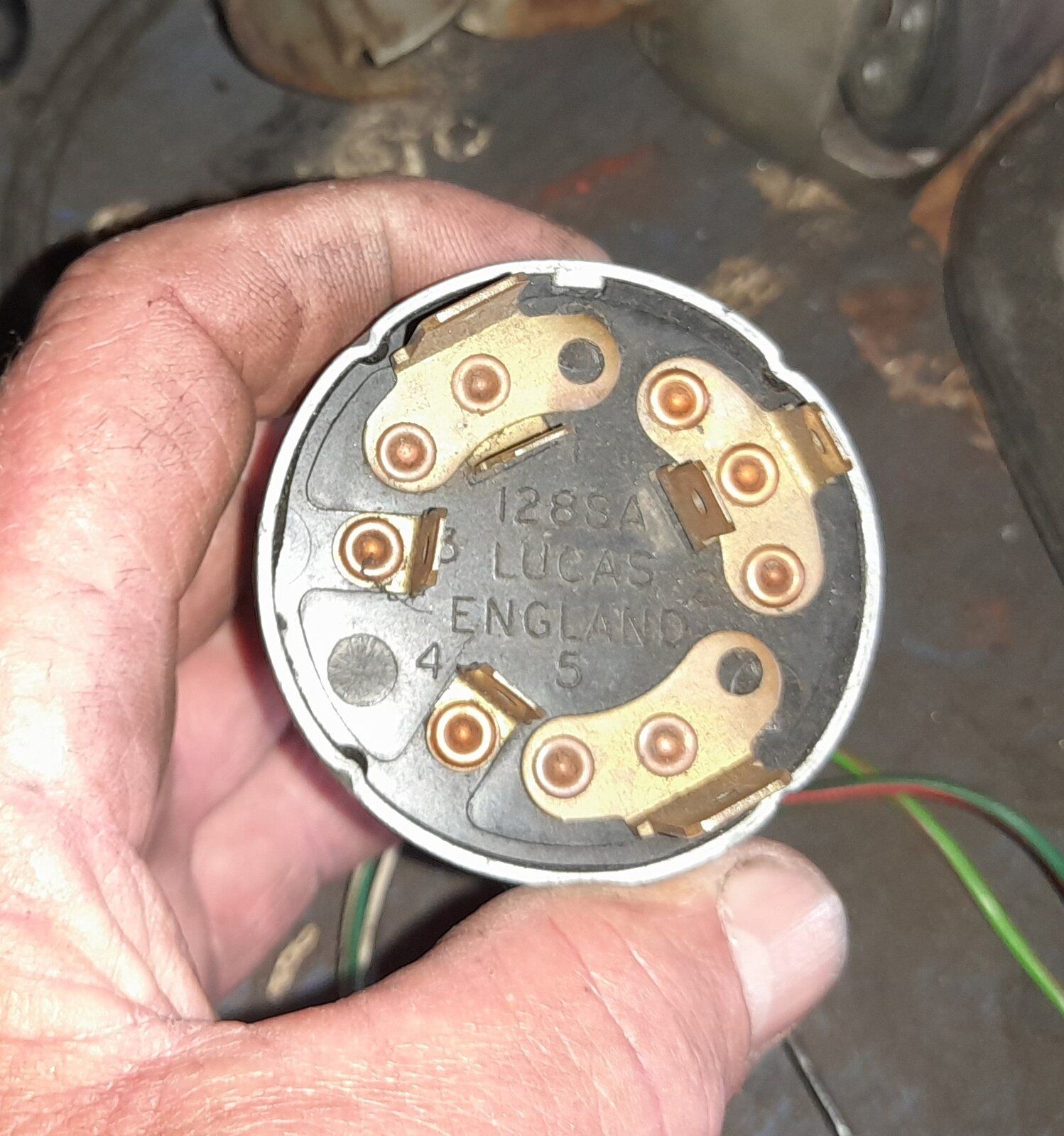

This is Ignition switch, numbered 1 to 5, which wires go where ?

mystery · Jul 23, 2022

Yes that the lighting switch same as series III

border · Jul 23, 2022

mystery said:
View attachment 269905
Yes that the lighting switch same as series III

Spot on Mate Thanks, getting there now.

mystery · Jul 23, 2022

any colour you choose as it only goes to the lighting switch N/U is the circuit diagram colour, then goes to dim/dip switch ,are you using the floor mounted switch or using a column type switch for the dim/dip and indicator of a series III
the N/R in engine bay and N/R through dash could be used as the ignition switch feed from battery side of starter solenoid but would confirm it one continuous cable with a meter

border · Jul 23, 2022

mystery said:
any colour you choose as it only goes to the lighting switch N/U is the circuit diagram colour, then goes to dim/dip switch ,are you using the floor mounted switch or using a column type switch for the dim/dip and indicator of a series III
the N/R in engine bay and N/R through dash could be used as the ignition switch feed from battery side of starter solenoid but would confirm it one continuous cable with a meter View attachment 269949

border · Jul 23, 2022

mystery said:
any colour you choose as it only goes to the lighting switch N/U is the circuit diagram colour, then goes to dim/dip switch ,are you using the floor mounted switch or using a column type switch for the dim/dip and indicator of a series III
the N/R in engine bay and N/R through dash could be used as the ignition switch feed from battery side of starter solenoid but would confirm it one continuous cable with a meter View attachment 269949

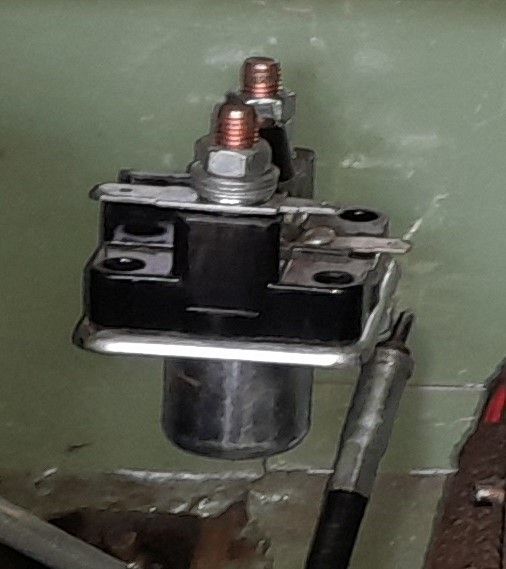

Gonna have a try today at Ignition. Using this solenoid in pic, really sorry but which points do the wires go TO Solenoid ?
The N/R I have comes from dash down in to engine bay but stops there nothing on end of it, it is much thicker then rest of wires.
I will be using an aftermarket stalk for Indicators ect, will get pic later.

mystery · Jul 23, 2022

View attachment 269967 View attachment 269962
