P38 dhse no power but only in reverse?

Datatek · Feb 20, 2020

Stig1 said:
Well it's not the map line or sensor as they have been replaced . So I need to look at my pipes intercooler and waste gate

Could be a wiring fault or corrosion in the EDC connector.

Stig1 · Feb 20, 2020

The more I'm looking at the car the more I suspect someone has been here looking for the issue already as I'm finding stuffs already been messed with

Stig1 · Feb 20, 2020

Datatek said:
Could be a wiring fault or corrosion in the EDC connector.

I'm thinking the same any pointers on where to start or what power ect I should be getting to the related wiring please

Datatek · Feb 20, 2020

Stig1 said:
I'm thinking the same any pointers on where to start or what power ect I should be getting to the related wiring please

Well, you could look for corrosion in the connector to the MAP sensor, then you could do the same with the EDC connector, disconnect the battery first. Using RAVE, you could check for continuity between the MAP sensor connector and the EDC connector.

Stig1 · Feb 20, 2020

Datatek said:
Well, you could look for corrosion in the connector to the MAP sensor, then you could do the same with the EDC connector, disconnect the battery first. Using RAVE, you could check for continuity between the MAP sensor connector and the EDC connector.

I dont have access to rave unfortunately

brianp38dse · Feb 20, 2020

Rave is a free download have a look in the Technical archive top left of range rover home page look for a post by Wazzar jnr and then download from his dropbox.

RangeRoller dt · Feb 20, 2020

I can’t get ^^^ to work.

Stig1 said:
The more I'm looking at the car the more I suspect someone has been here looking for the issue already as I'm finding stuffs already been messed with

This is usual. Putting right previous persons alterations usually sorts a lot

Stig1 · Feb 20, 2020

brianp38dse said:
Rave is a free download have a look in the Technical archive top left of range rover home page look for a post by Wazzar jnr and then download from his dropbox.

downloaded it but not sure what I'm looking for

tomcat59alan · Feb 20, 2020

RangeRoller dt said:
I can’t get ^^^ to work.
Glad I'm not the only one.

This is usual. Putting right previous persons alterations usually sorts a lot

RangeRoller dt · Feb 20, 2020

tomcat59alan said:
Glad I’m not the only one

I’ve always used this
https://workshop-manuals.com/landrover/p38/range_rover_workshop_manual_eng/
(Scroll to bottom for list menu)

The old version worked okay

brianp38dse · Feb 20, 2020

Stig1 said:
downloaded it but not sure what I'm looking for

Have a look in the ETM elecrical trouble manual .

Stig1 · Feb 22, 2020

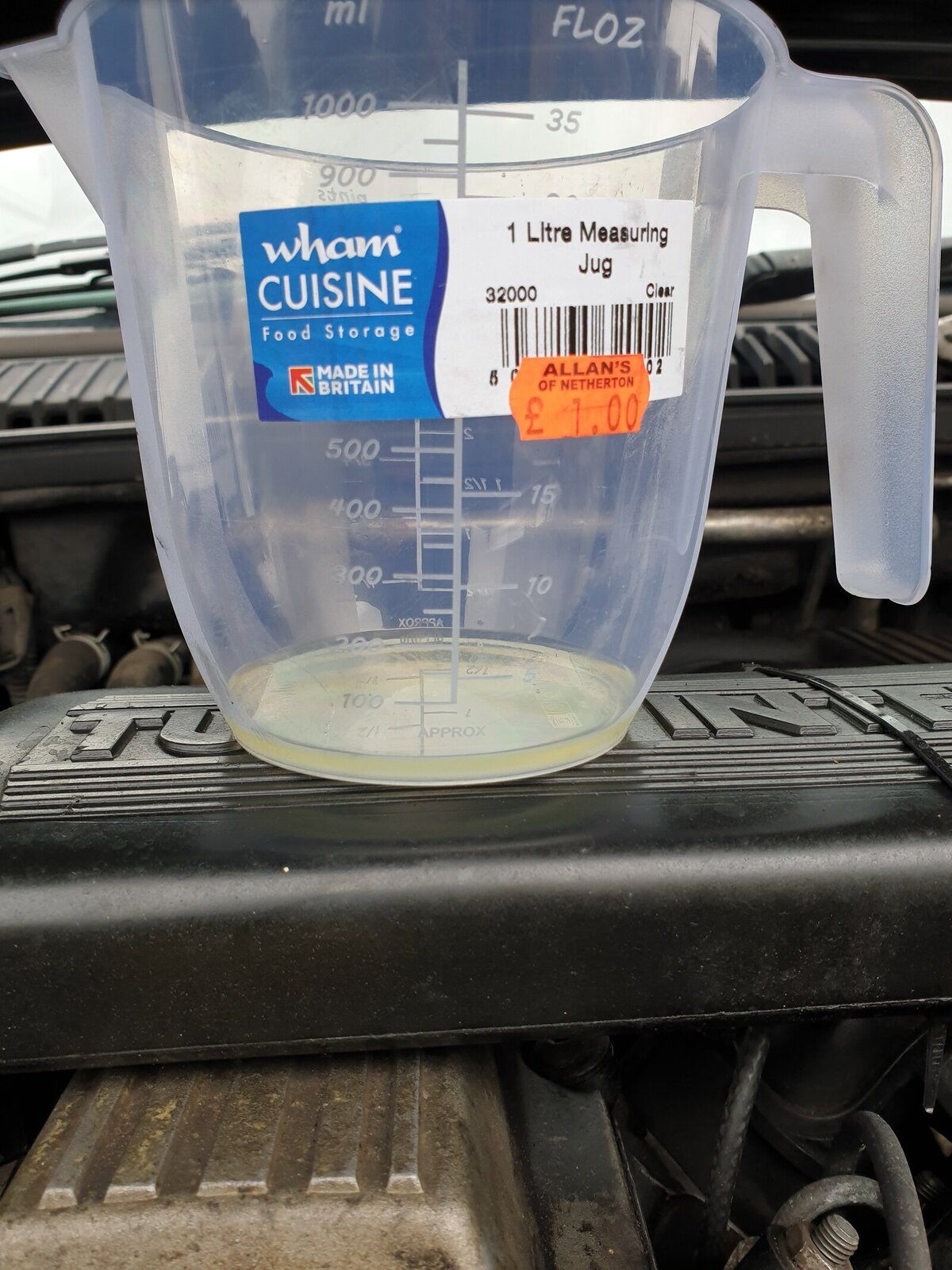

Think I may of found the problem . But I dont have any starting issues it starts very well but I've changed the fuel filter and did the test data said ignition on for 10 seconds and should have 180 ml of fuel I got about 45 ml

Stig1 · Feb 22, 2020

Have I tested it correct I took the pipe out of the rear of the fuel filter housing and placed my jug under the pipe and turned ignition on and counted to 10

Datatek · Feb 22, 2020

Stig1 said:
Have I tested it correct I took the pipe out of the rear of the fuel filter housing and placed my jug under the pipe and turned ignition on and counted to 10

I can never remember, some run with the glow plugs on, some only run when cranking, Wammers how to in the tech archive should have the details.
It does sound like the in tank pump is shot, a common failure. However, with a full tank the car should run OK without the pump at least on the flat. If the tank is less than half full then lift pump failure can cause problems.

Stig1 · Feb 22, 2020

Hopefully some one can tell me how to check it

Datatek · Feb 22, 2020

Stig1 said:
Hopefully some one can tell me how to check it

Here is Wammers guide:-
Remove fuel feed pipe from filter or remove the filter, place pipe in or position a suitable measuring vessel suitable measuring vessel under filter head. With ignition OFF remove fuel pump relay (relay12). Take wire from positive side of battery and power number 5 contact on relay socket for ten seconds, in this time a minimum of 180Ml of fuel should be pumped. Number 5 is the connection which is contrary to the other three.

Stig1 · Feb 23, 2020

I can confirm the in tank pump is dead I've done all the test mentioned on here and I'm getting nothing even with a live from the battery so im now thinking how to change it under rear seats or tank off and pattern part or genuine VDO . Thank you all for your help

Grrrrrr · Feb 23, 2020

Stig1 said:
I can confirm the in tank pump is dead I've done all the test mentioned on here and I'm getting nothing even with a live from the battery so im now thinking how to change it under rear seats or tank off and pattern part or genuine VDO . Thank you all for your help

If you have the twin exhaust then drop the tank and check rear brake lines for corrosion where they go behind the tank. VDO pump. I bought the rubber that connects the tank to the filler and just cut the old one so I didn't have to take so much off.

Datatek · Feb 24, 2020

Stig1 said:
I can confirm the in tank pump is dead I've done all the test mentioned on here and I'm getting nothing even with a live from the battery so im now thinking how to change it under rear seats or tank off and pattern part or genuine VDO . Thank you all for your help

Tank off is best, you can change the rubber connecting piece on the filler pipe which will almost certainly be perished, good time to check the brake pipes too.

tomcat59alan · Feb 24, 2020

Datatek said:
Tank off is best, you can change the rubber connecting piece on the filler pipe which will almost certainly be perished, good time to check the brake pipes too.

+1
