My VCU help please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
It's all on here
You just have to :search:

Any more q's ask but be clear with what you post and you'll get the answers you need.

That is why, with any drive train problem - ALWAYS test the VCU first :eek:.

now go to the FAQ section and search for "freelander" and start learning about yo motor

This ere front wheel drive fail problem. Can it be tested by jacking up 1 rear and 1 front wheel, then turn the rear wheel. If both props turn and the front wheel don't, then the ird is feked. Then put 4 wheels on ground and jack up other side and do the same.

Quick un easy to do wiv snow on the ground.

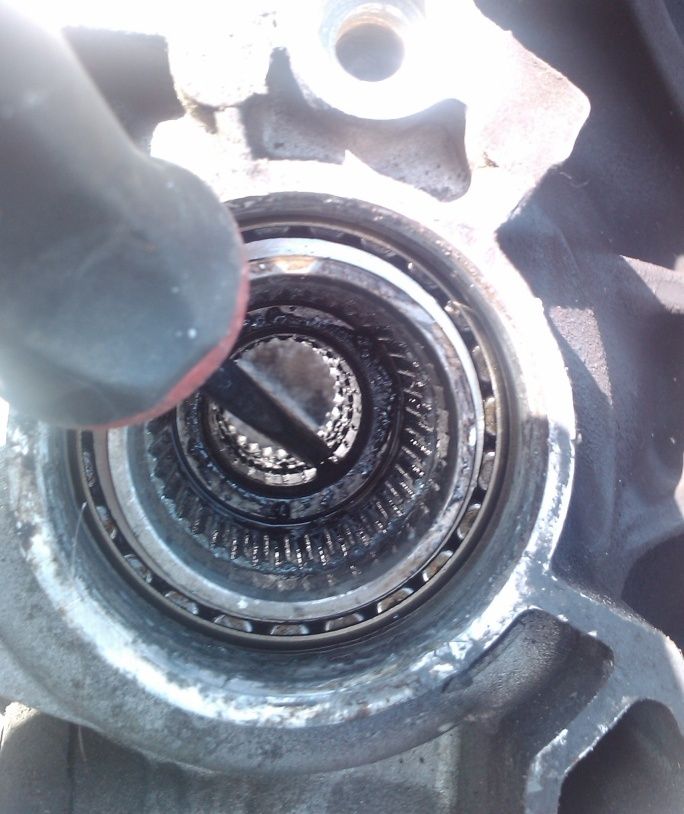

I'll try again since nobody seemed to grasp my previous post. If we're still talking about the PG1 box the fault is not the VC or the IRD but the spline in the final dive carrier in the gearbox. If you remove the IRD unit and look into the gearbox you will see the smaller of the 2 splines in the final drive hub has stripped.


Attachments

  • PG1 sripped spline to ns driveshaft.jpg
    PG1 sripped spline to ns driveshaft.jpg
    81 KB · Views: 350
Last edited:
I was listening Chaser, me not being an expert, I'm glad you posted as i'd never heard of this before.
You think LR would've made the smaller spline go to the rear by default.

I'll have a look at getting one of those, just in case :)


Edit: is this the partnumber XKB500120

Last edited:
