border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Is this onehttps://www.johncraddockltd.co.uk/asu710050-bonnet-prop-bracket.html, don't think I have this bit, cant recall seeing it anyway, but it might be there somewhere
Lowering Radiator
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks Mate gonna empty all my boxes tomorrow bound to be one there somewhere.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
i cut the rad support part of that off and use the 300 brackets to support the rad
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Don't suppose brackets off 300 tdi Disco would do ?, I know a bloke breaking one.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yes
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Good another job for me tomorrow. wouldn't care bought a 300 Disco couple of months back use it for getting around in, spent the first month Fixing it even stole parts off my defender to put on
it never looked at the Rad parts.Thanks Mate
Attachments
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
my mistake disco bracket wont fit as it uses a bonnet propGood another job for me tomorrow. wouldn't care bought a 300 Disco couple of months back use it for getting around in, spent the first month Fixing it even stole parts off my defender to put on
Thanks Mate
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
No Bother Mate will try my hardest to get the ones on second pic that you mentioned.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
the bonnet prop bracket you should have already
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North
I used modified versions of the 2.5N/A brackets on the top of my radiator, I welded the pins onto the top of the radiator frame to suit.
Thee modifications consisted of cut-outs to miss various mounts on the top pannel.
Thee modifications consisted of cut-outs to miss various mounts on the top pannel.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
I have those brackets Mate. So did you just bolt to side of wings then weld pins to suit hole. ? more pics of where brackets fit would be great.
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North

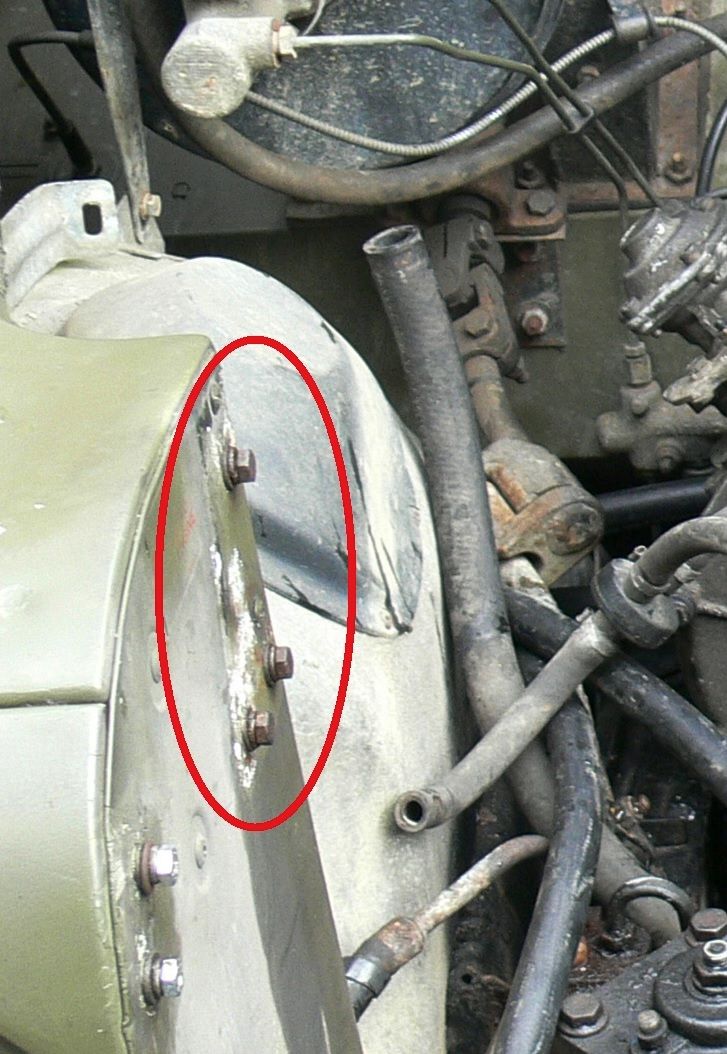

Yes, they bolt to the inner wing, although it is very difficult to get to the bolts. There should be captive nuts on the inner wigs.
Your radiator looks to be a little higher than mine, so I don't know how that will affect the fit.
The pins on the top were welded in place to match the brackets.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks will have a look on inner wings . So should the holes in Brackets line up to holes on wings ?
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Perfect Mate Thanks, I now think looking at yours that my rad may be Little to high aswell, will have a good look at it tomorrow.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yes
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

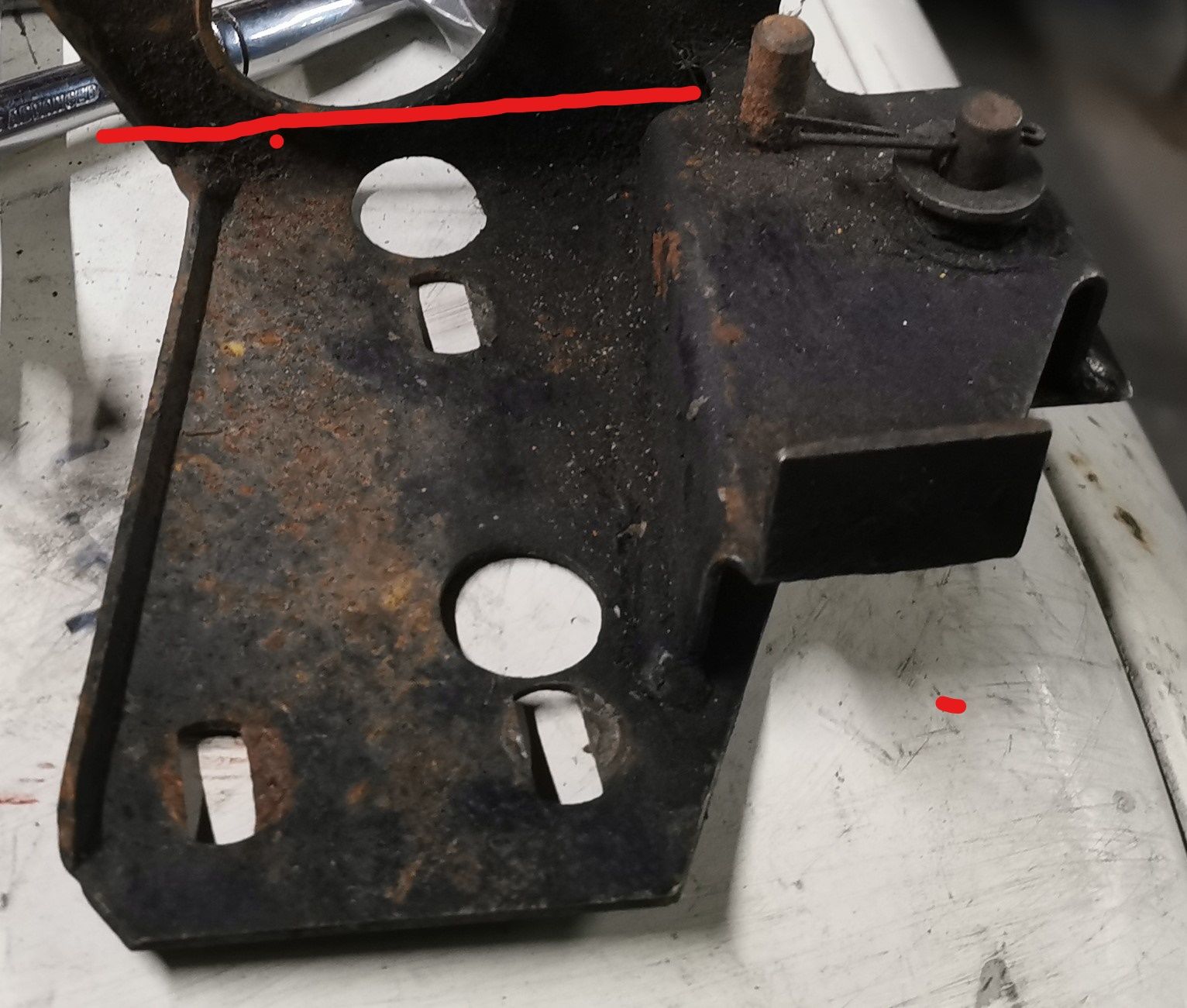

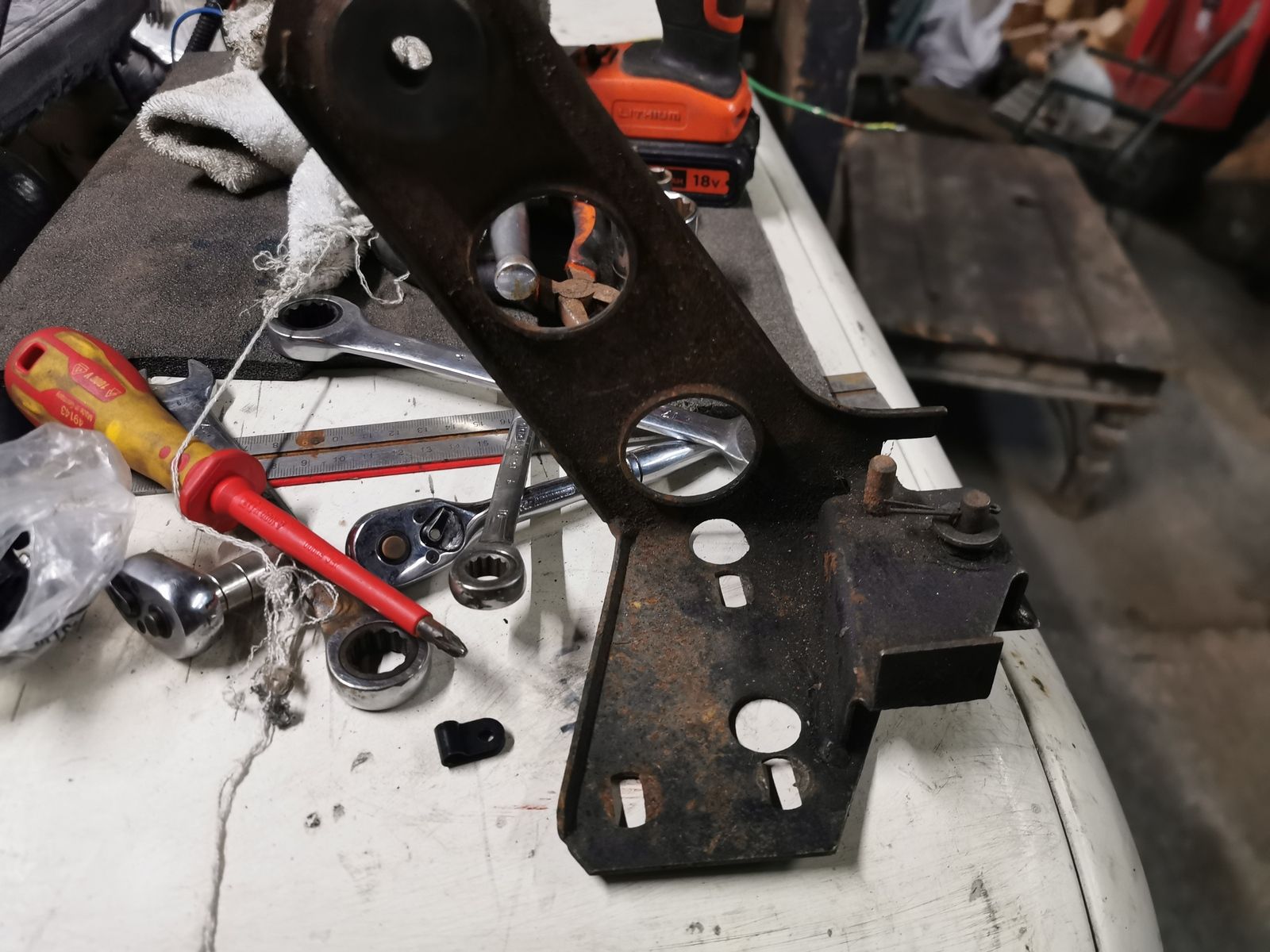

Thanks James, so cut along red line and bolt bottom bit in place ?
