only thing is... cheaper sensor adapter - www.mcgillmotorsports.co.uk (Powered by CubeCart)
another problem on the way to being solved- I need to sort lexus temp sender to landy as gauge it is all to cock currentlygot the floor back in temp, removed clutch pedal as now auto.
Found an error in wiring diagram v my vehicle and switched a permanent live for an ign live.
Having some issues with efi relay behaviour main feed
wiring diagram indicates permanent live ecu switched, this causes fuel pump prime at start and fuel pump post shutdown briefly.and efi relay stays on and will flatten battery
Give the efi relay ignition live ecu switched and no prime, pump on crank.
Make things more difficult some ls400 had fuel computer/later didn't and none of the wiring diagrams match my ecu
Found an error in wiring diagram v my vehicle and switched a permanent live for an ign live.
Having some issues with efi relay behaviour main feed
wiring diagram indicates permanent live ecu switched, this causes fuel pump prime at start and fuel pump post shutdown briefly.and efi relay stays on and will flatten battery
Give the efi relay ignition live ecu switched and no prime, pump on crank.
Make things more difficult some ls400 had fuel computer/later didn't and none of the wiring diagrams match my ecu
ratty
I'm not special I'm limited edition
- Posts
- 34,277
Could you not run a second feed to the fuel pump through a timer relay to give say a 2 or 3 sec burst of fuel before turning the key to the crank position?
yes I could with a 555 timer circuit, I'm not convinced that it should prime prior to cranking, the wiring indicates ign feed at relay-but diagrams says other.
I don't have fuel pump resistor in current setup as I have a 400 hp rated fuel pump, but I think it will go back in as the pump is really noisy and the ls400 used a resistance switching setup to keep noise down at idle.
I have no service brakes currently, but hand brake proves the there is drive.
I have no lights working on landy currently-but I think it is coming along
found a body ecu wire that needs dropping to earth.
Have ordered capacitors for engine ecu as known issue-some from America.
think the IACV is playing up and later one you can't rebuild, have given it a dose of cleaner and some more run time
started fitting cheap lights I got- stand offs pre cracked ffs- still if they work can replace at later date. couldn't get right spire clips and some hole corrosion- self tapped on for time being.
Most of electrical problems stem from crappy glass fuse box
Need master cylinder res as plastic cracked
need side repeater (s)
need to lag downpipes so they don't burn everything in sight
need to fit transmission cross member
need to tidy mass of wiring and build centre console
need to find new home for washer bottle
various other bits and bobs
Have ordered capacitors for engine ecu as known issue-some from America.
think the IACV is playing up and later one you can't rebuild, have given it a dose of cleaner and some more run time
started fitting cheap lights I got- stand offs pre cracked ffs- still if they work can replace at later date. couldn't get right spire clips and some hole corrosion- self tapped on for time being.
Most of electrical problems stem from crappy glass fuse box
Need master cylinder res as plastic cracked
need side repeater (s)
need to lag downpipes so they don't burn everything in sight
need to fit transmission cross member
need to tidy mass of wiring and build centre console
need to find new home for washer bottle
various other bits and bobs

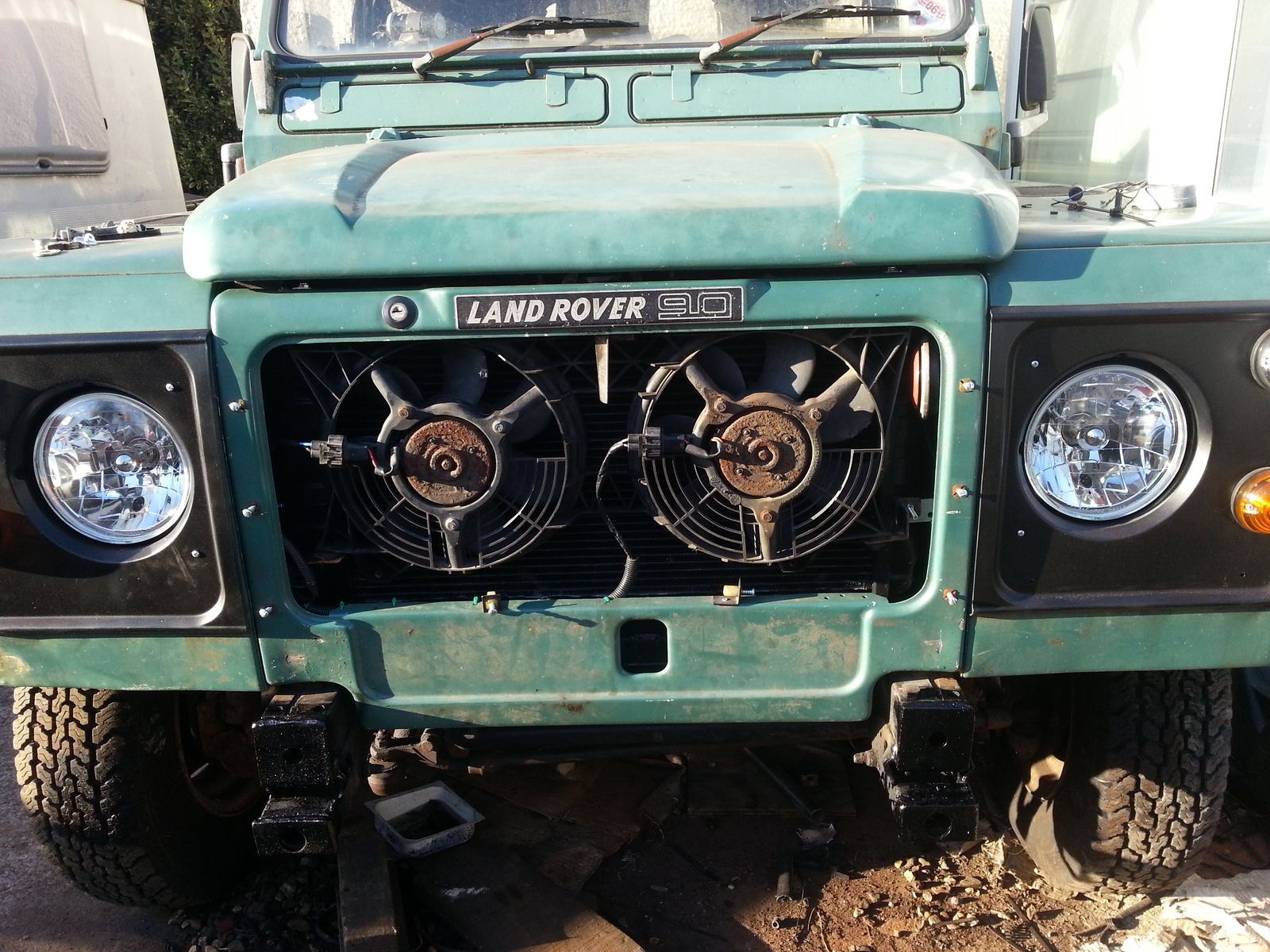

fitted rover turbo diesel cooling fans- dogged in for now and lagged exhaust so it doesn't melt everything in sight.
ordered Lexus fuel washers - arrive next Friday FFS
planning bank holiday Monday all day to crack on and hopefully be near MOT time by week Monday
ordered Lexus fuel washers - arrive next Friday FFS
planning bank holiday Monday all day to crack on and hopefully be near MOT time by week Monday
Last edited:

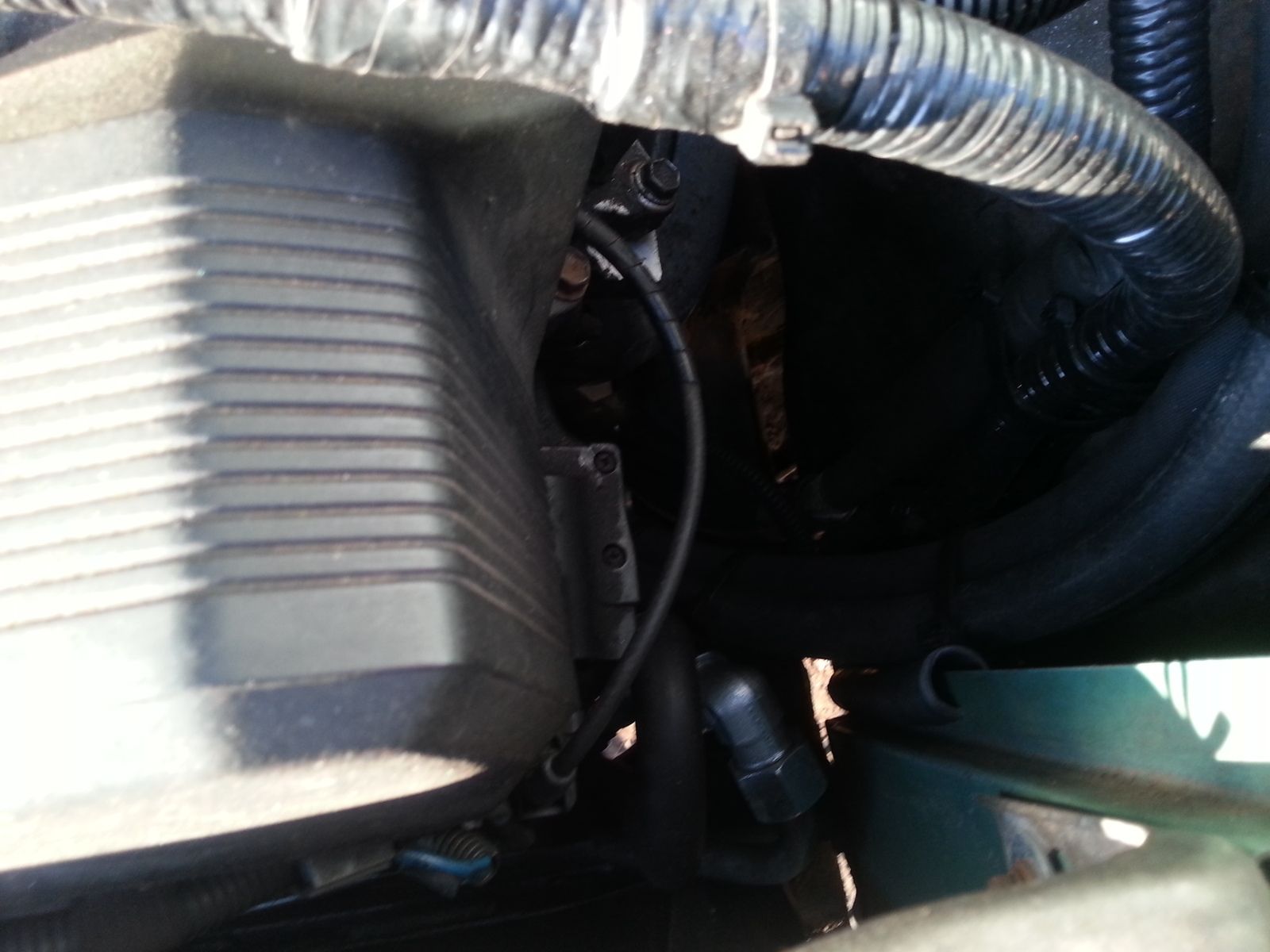

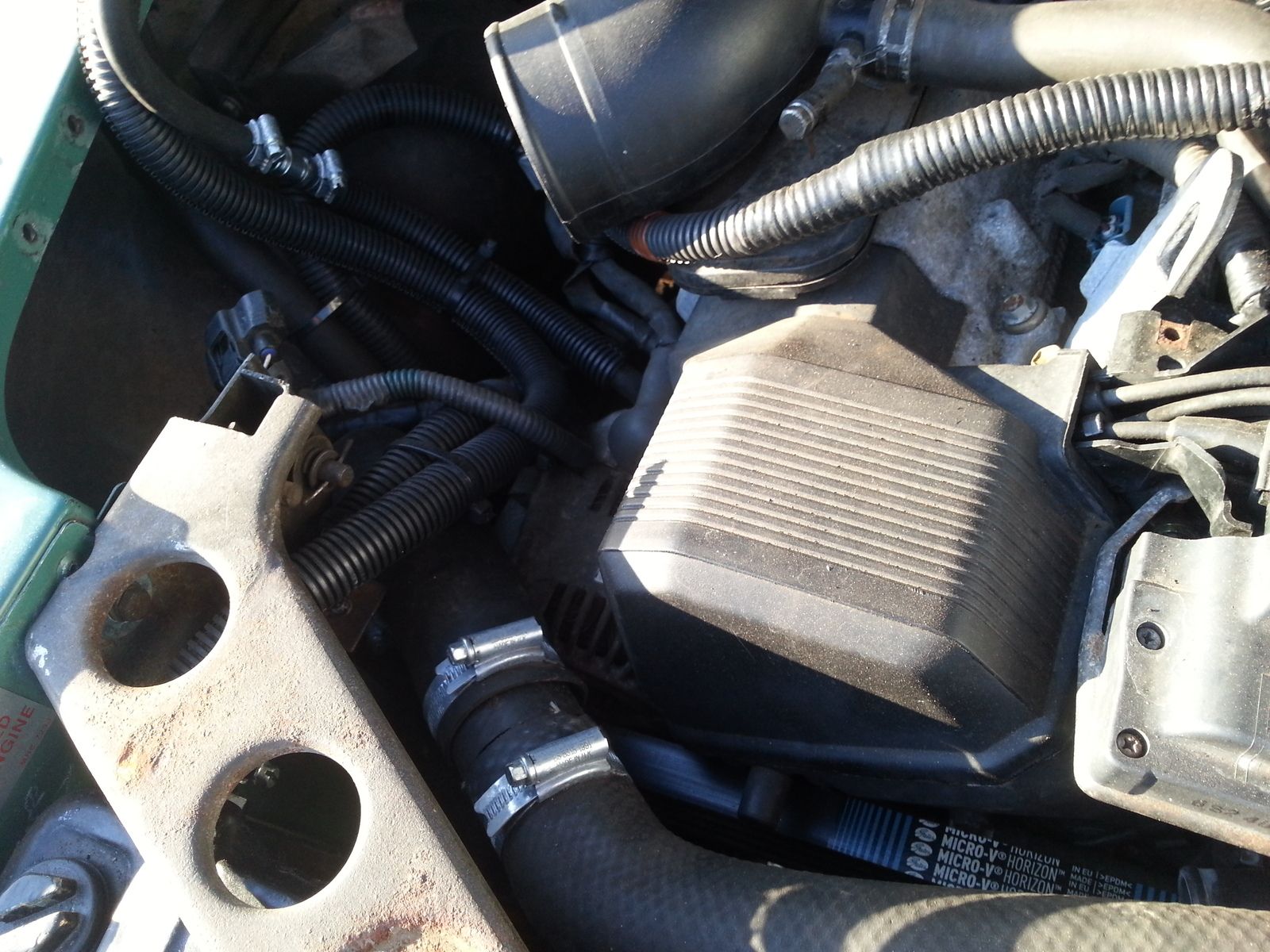

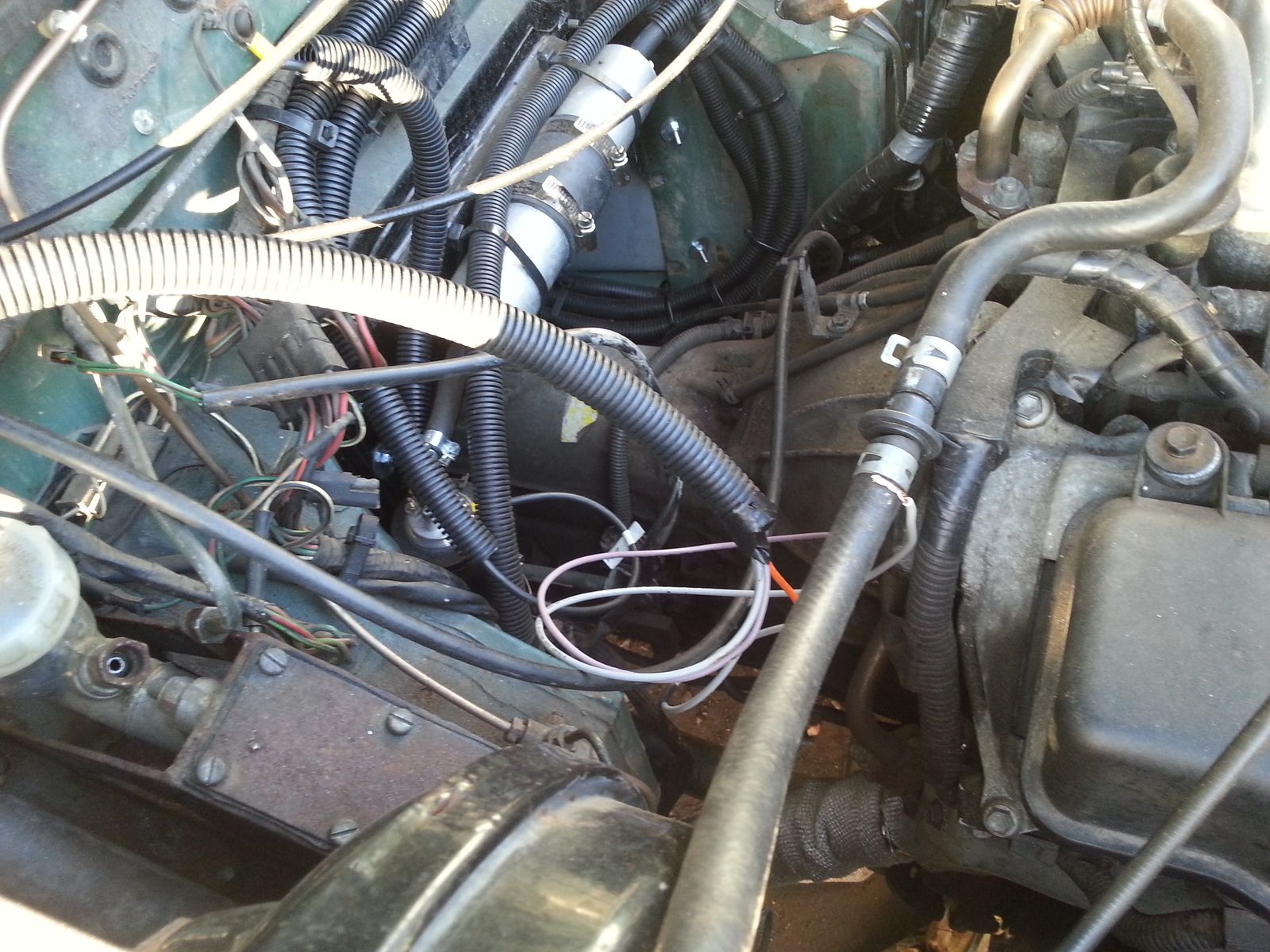

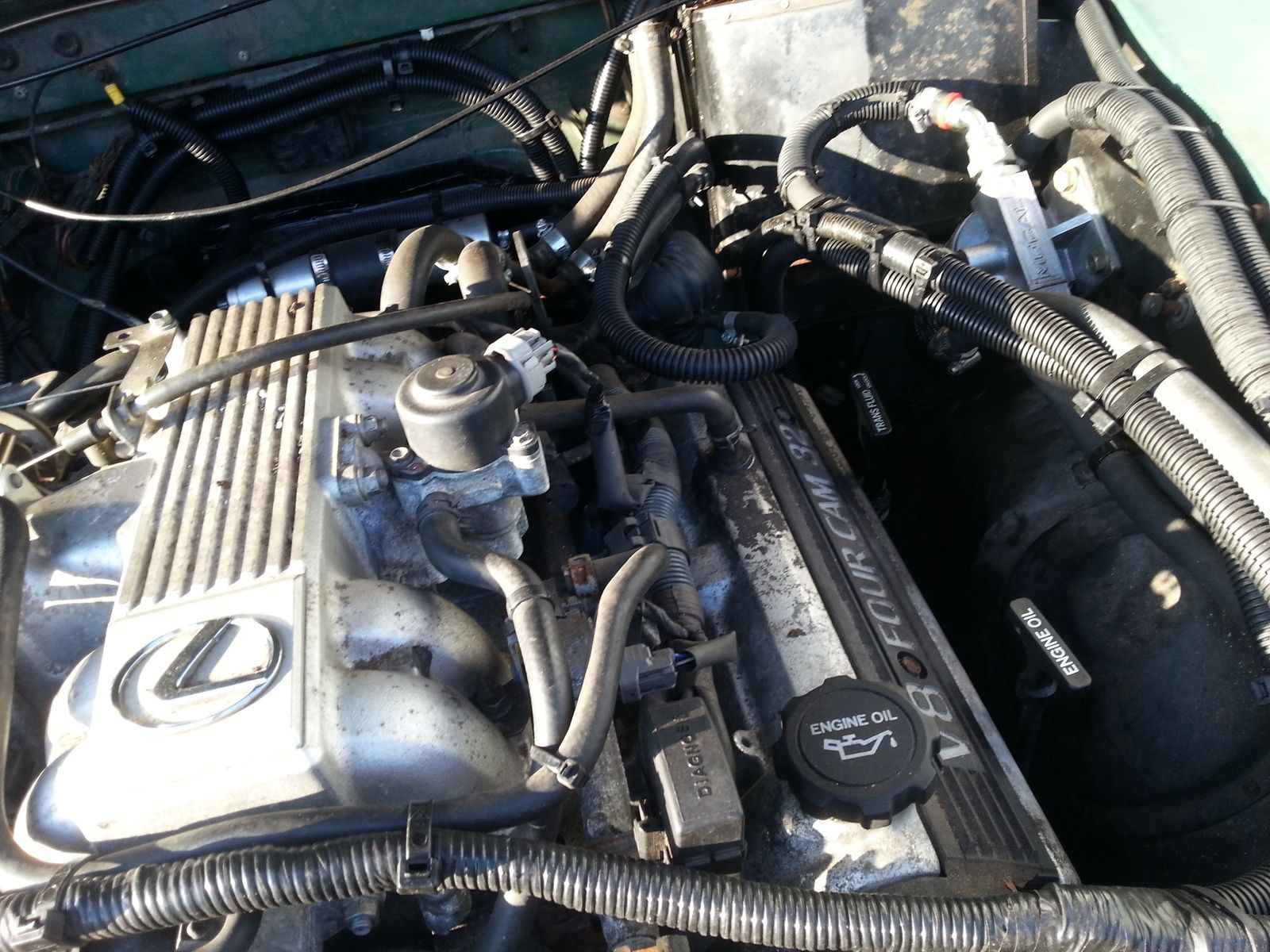

Hi mate I'll see what pics I can snap for you tomorrow. It is in there tight.
I had a couple of issues with ratty on his 110 yesterday and today partner whinging on, hope to get more done monday afternoon if mornings appointment gets finished on time.
SnowmanV8
Well-Known Member
- Posts
- 3,938
- Location
- Portishead, Near Bristol
Looking bloody nice mines back down the garage tomorrow with any luck! Might buy a lexus and you can do this with my disco. Then we can do that wheel idea
ratty
I'm not special I'm limited edition
- Posts
- 34,277
Mines in for MOT next Tuesday (couldn't get it in any earlier
) give me a shout if you want me to pop down Monday and then weds on.Mines in for MOT next Tuesday (couldn't get it in any earlier
If I can arrange other commitments then a yes please.
Last edited:
SnowmanV8
Well-Known Member
- Posts
- 3,938
- Location
- Portishead, Near Bristol
Once it's MoT'd I'll come down and offer a pair of unskilled hand.
Sure there is will be tidying up to do-things bit mental with jobs and also the mission with ratty's other day.
As soon as I get ticket on it it will be tidying
ratty
I'm not special I'm limited edition
- Posts
- 34,277
SnowmanV8
Well-Known Member
- Posts
- 3,938
- Location
- Portishead, Near Bristol
Bad post by me. I meant once I'm legal I'll come down yours. Need it to get there lol.
Chilli
New Member
- Posts
- 30
- Location
- Nr Newton-Le-Willows
so its just a toyota
