Everything JLR SDD related (feel free to add experiences/help).

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Hi so SDD 164 has been deadlocked by age (2 years) so will no longer work even after fresh install.
I created a page to run it in a Virtual Machine, url: https://dl.ltsdiag.com/sdd
Documentation on how to run is there as well.

Hi people spread this on forums etc, drawing attention to the site.
Password changed, therefore please PM for one time pass.

Last edited:
V8s said:
Hi, anyone had issues with campaigns being grayed out? uploaded sdd 164 win 7 however can’t click on campaigns to update car software. Has anyone had this or have a solution? Thanks
Click to expand...
You will have to manually reconfigure modules or program as new to update.

Jamalboy said:
Hi guys,

Just got the v164 with Mongoose, installed as written in the readme. Started to use but when I tried to turn off scandinavian lights(always on) said that sw downloads are missing and stopped the process without the ability to set the light option. After a few tries it connected to the server, downloaded what was missing and was able to set the lights and other things.

Is it a problem that SW connected to the server?

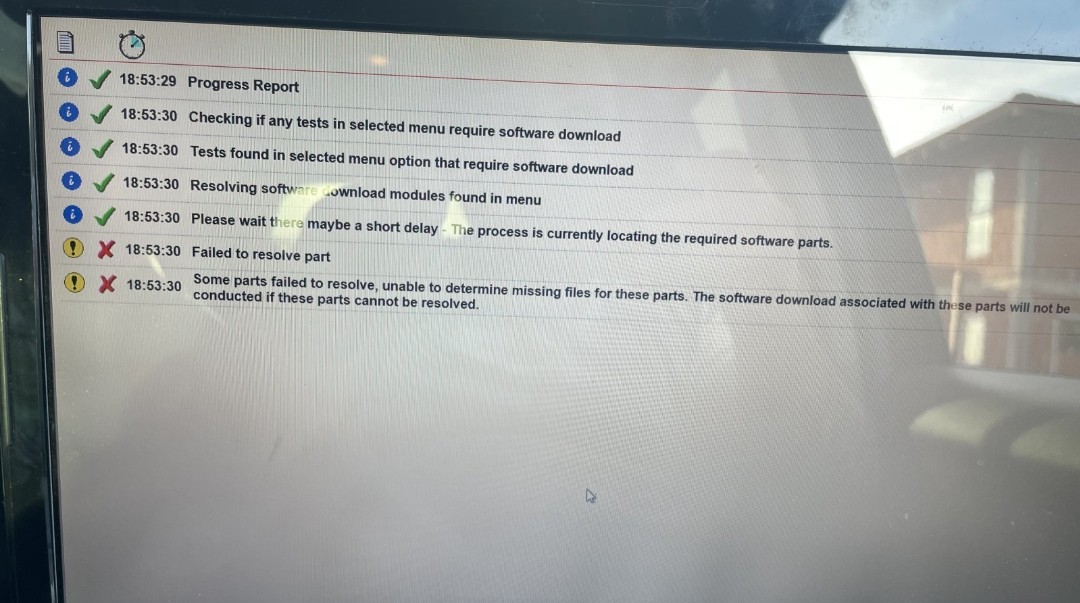

Message was sg like that:
View attachment 316131


Thanks!
Click to expand...
as build files and calibration files are missing, needs connection to internet to download. Or get the vm version I posted earlier.

After replacing the engine on my FL2 I had a whole raft of DTCs. I have worked through most of them but there are two that remain and won't go away:

U2101 - Control Module Configuration Incompatible
P1603 - Electrically Erasable Programmable Read Only Memory Malfunction (EEPROM)


The strange thing is that they don't have the engine warning light symbol next to them yet the warning light is still lit. Do I need to download the as-built files to sort these issues? If so, do I need to download them all or can I just download the one relevant one, my laptop is running out of storage? How do I download them, do I do it through the SDD software?

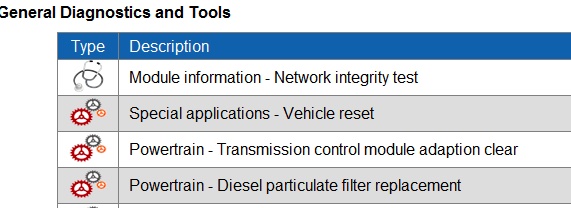

I noticed in the recommendations (in SDD) there was an option for "Vehicle Reset":

Screenshot 2024-04-26 at 13.43.59.jpg



Is that something I should try? It sounds a bit scary TBH!

Try flashing pcm as new, have it connected so it will download the required files.
But have a spare ecu because if there is a fault indeed in there might brick upon flashing

PRO said:
Try flashing pcm as new, have it connected so it will download the required files.
But have a spare ecu because if there is a fault indeed in there might brick upon flashing
Click to expand...
Thanks @PRO

Now that sounds like a job to do while wearing an incontinence pad! 😱

Any idea if the engine ECU is the same for autos and manuals or are they specific? Mine's an auto.

Do you know where I'd find the "Flash PCM" button?

CaptainB said:
Thanks @PRO

Now that sounds like a job to do while wearing an incontinence pad! 😱

Any idea if the engine ECU is the same for autos and manuals or are they specific? Mine's an auto.

Do you know where I'd find the "Flash PCM" button?
Click to expand...
Hi it's in service functions, ecu should be the same, I do not have time for this sort of support sorry youtube is your friend.

PRO said:
Hi so SDD 164 has been deadlocked by age (2 years) so will no longer work even after fresh install.
I created a page to run it in a Virtual Machine, url: https://dl.prolts.uk/sdd/ username landy password zone.
Documentation on how to run is there as well.
Click to expand...

Does a change of system date fix the issue or is something extra needed?
Won't have time to try my system yet until the weekend

Ok so I have bitten the bullet and updated my laptop to Windows 10 Pro and am following the steps needed to run the VM.
Now I am just waiting on the 80 odd GB downlod for the full VM file, hopefully it all works as it should :)

Andych55 said:
Ok so I have bitten the bullet and updated my laptop to Windows 10 Pro and am following the steps needed to run the VM.
Now I am just waiting on the 80 odd GB downlod for the full VM file, hopefully it all works as it should :)
Click to expand...
It will installed on a few laptops already. This has been tested before.

Well I managed to get hte 75gb download.. but unfotunately when I go to open the VM it comes up as a fatal error.. so I have uninstalled VMWare and later this week I will re-install it and see how it goes....

Please, find this thread, if it helps - at the end are steps for VMWare installation https://www.landyzone.co.uk/land-ro...stic-tool-for-evoque-td4.391137/#post-5678913
Also you can have files needed for installation from me, if you don’t have those

Virtual machine works well for other things but for some updates need use of USB stick and those are not working. When you have installation direct to Win7 professional 32 bit, they are working at least for me
