Hicap phill
Well-Known Member
- Posts
- 16,242
- Location
- Wiltshire
Earth should go battery,
gearbox,enginemount,engine
gearbox,enginemount,engine
Engine removal advice
- Thread starter payydg
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
- Posts
- 11,023
- Location
- North of the Wall
Looks like it's a good job Steve is there to do all of the hard work. Poor bugger.
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
It's been a long time since I last removed an engine, it's always easier if you have an assistant. I would always label every plug and wire I disconnect cos there was always at least one that I couldn't remember what it was for. Get some of those Chinese takeaway tubs to put all the various nuts and bolts in and label them them too.
Col
Col
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire

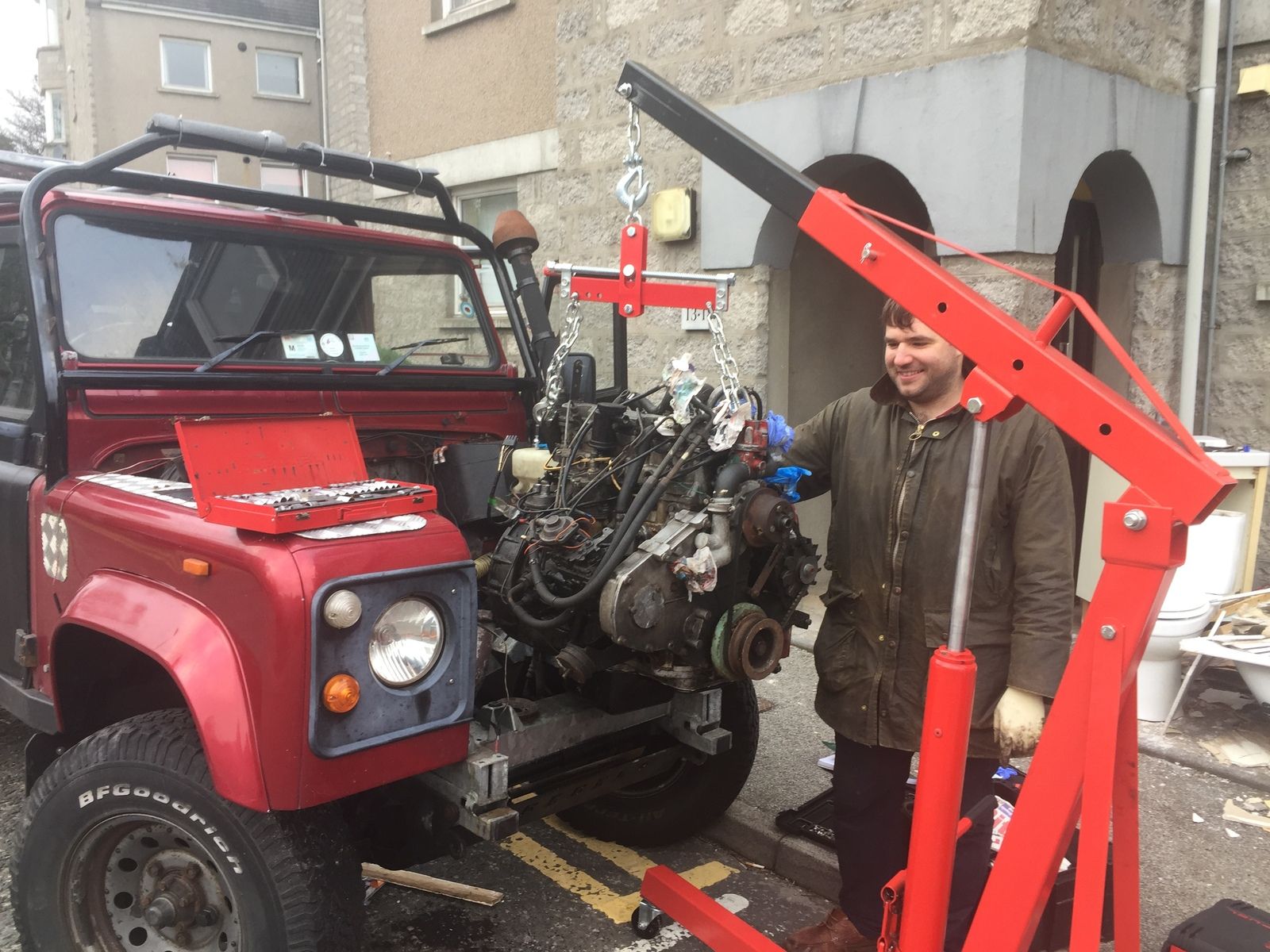

Turns out a 16 stone rower is the best tool in the box
dstainton
Well-Known Member
- Posts
- 301
- Location
- Fort Saint James Canada
As well, give serious consideration to replacing clutch, throw-out bearing and upgrade or weld the lever that actuates the throw-out bearing. It is easy and cheap to do at this point in your rebuild. Check flywheel surface as well.
- Posts
- 7,877
- Location
- East Midlands
Ah, somebody else who does their Land Rover maintenance at the side of the road. I see you're an even more advanced practitioner than me as you do it on double yellow lines too!
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
Haha yeh. Every time I do something big I think my neighbours are going to complain but each time a new person comes out, wants to help out, brings out tea etc etc. Good sign.
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
In terms of alignment of all timing parts etc. When I strip (everyThings getting stripped down) do I need to mark where each part is to keep it aligned or is it the case that everything (crank, pistons etc) only go back one way and then just set everything back to top dead centre to reset timing?
freelance
Well-Known Member
- Posts
- 8,685
- Location
- essex and beyond
Even got an outside loo............. impressive !
Flossie
Well-Known Member
- Posts
- 11,001
- Location
- Shropshire
Keep pistons, rods , rod caps, crank caps, valves,followers, rollers, rockers to go back where they came from.
Make notes of the bolt lengths and location in the front timing case.
Pistons, rods and rod caps and crank main caps are the important ones.
Flossie
Well-Known Member
- Posts
- 11,001
- Location
- Shropshire
If no body has mentioned it yet, piston size and crank/main bearing shells have the size marked on them. You'll need that info once it's stripped down.
Replace all block core plugs.
Replace all block core plugs.
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
Great advice thanks. So don’t need to mark positions of crank pulley, timing gear, fly wheel etc?
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
no they are either located by dowel or key way,things like cam followers if been reused are best kept in order same with vlaves, con rods are numbered not that which goes in which matters if your using new pistons and bearings but caps and rods must be kept together and cap only fits one way round
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
Thanks James
