Drive shaft cv joint ?? ( SOLVED )

Stanleysteamer · Nov 15, 2023

Forgive my ignorance, but if the OP's shaft is bust, isn't he going to have to fish the broken inner end out somehow?
I know nothing of the D3, I don't have one at all but just asking from the point of view of an interested reader.

This post crossed with another showing pictures, now realising my question may well not make sense, unless the shaft broke on the inner end. in the diff.!

1988smithy · Nov 15, 2023

Stanleysteamer said:
Forgive my ignorance, but if the OP's shaft is bust, isn't he going to have to fish the broken inner end out somehow?
I know nothing of the D3, I don't have one at all but just asking from the point of view of an interested reader.

Sounds like its gone at the hub end mate

Stanleysteamer · Nov 15, 2023

1988smithy said:
Sounds like its gone at the hub end mate

Our posts crossed in that I edited mine to reflect what has been said and the images put up.
I now realise it isn't a one piece straight shaft.
Doubt I'll ever get a D3 or D4 but a mate has one so I may end up working on it!

marjon · Nov 15, 2023

I will just Chuck this in.
As the OP has been at both hubs, has it just popped out of the curclip , didn’t we have that recently?

J

Thommo805 · Nov 15, 2023

So I can’t just buy the £92 rh drive shaft aftermarket part now , the bearing are shot at the hub obviously can’t tell if other end is shot , so to be sure the £92 part won’t just replace what’s there ?

Thommo805 · Nov 15, 2023

Thommo805 said:
So I can’t just buy the £92 rh drive shaft aftermarket part now , the bearing are shot at the hub obviously can’t tell if other end is shot , so to be sure the £92 part won’t just replace what’s there ?

I thought the right hand side was longer so it just slots in etc , I need to up my game here

1988smithy · Nov 15, 2023

Thommo805 said:
I thought the right hand side was longer so it just slots in etc , I need to up my game here

It is mate, it passes thru that extension before slots into the diff

Thommo805 · Nov 15, 2023

1988smithy said:
It is mate, it passes thru that extension before slots into the diff

So If ok il just leave the extension that’s already there buy the £92 longer shaft and hope it goes in ok?

Thommo805 · Nov 15, 2023

Thommo805 said:
So If ok il just leave the extension that’s already there buy the £92 longer shaft and hope it goes in ok?

Sorry if missing anything mate I think too many hours looking at this stuff

1988smithy · Nov 15, 2023

Thommo805 said:
So I can’t just buy the £92 rh drive shaft aftermarket part now , the bearing are shot at the hub obviously can’t tell if other end is shot , so to be sure the £92 part won’t just replace what’s there ?

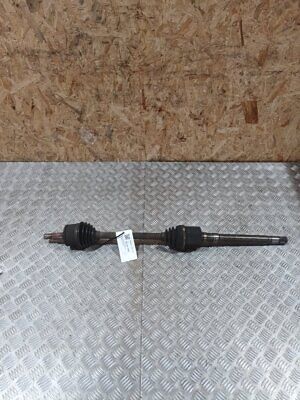

Grab this, boots look ok. You can see where it picks up that bearing on the shaft , just before the inner joint

Land Rover Discovery 3 Mk3 Front Driver Drive Shaft TDB500100 | eBay

Part Number TDB500100. Model DISCOVERY MK3 TDV6 XS A. Make LAND ROVER. We are an authorised vehicle depollution centre & dismantler of end of life vehicles. Vehicle Colour STORNOWAY GREY (907). Body Style ESTATE 5 Door.

www.ebay.co.uk

Take the old shaft out, stick your finger in the diff nose extension and feel the bearing for roughness, if its OK bang that new shaft in

1988smithy · Nov 15, 2023

marjon said:
I will just Chuck this in.
As the OP has been at both hubs, has it just popped out of the curclip , didn’t we have that recently?

J

Fùckin hell good shout

1988smithy · Nov 15, 2023

Thommo805 said:
So If ok il just leave the extension that’s already there buy the £92 longer shaft and hope it goes in ok?

£110 inc vat and there'll be delivery

Thommo805 · Nov 15, 2023

1988smithy said:
Grab this, boots look ok. You can see where it picks up that bearing on the shaft , just before the inner joint

Land Rover Discovery 3 Mk3 Front Driver Drive Shaft TDB500100 | eBay

Part Number TDB500100. Model DISCOVERY MK3 TDV6 XS A. Make LAND ROVER. We are an authorised vehicle depollution centre & dismantler of end of life vehicles. Vehicle Colour STORNOWAY GREY (907). Body Style ESTATE 5 Door.

www.ebay.co.uk

1988smithy said:
£110 inc vat and there'll be delivery

Understood , and I appreciate your patience mate thanks for all your help today and to everyone else

Thommo805 · Nov 15, 2023

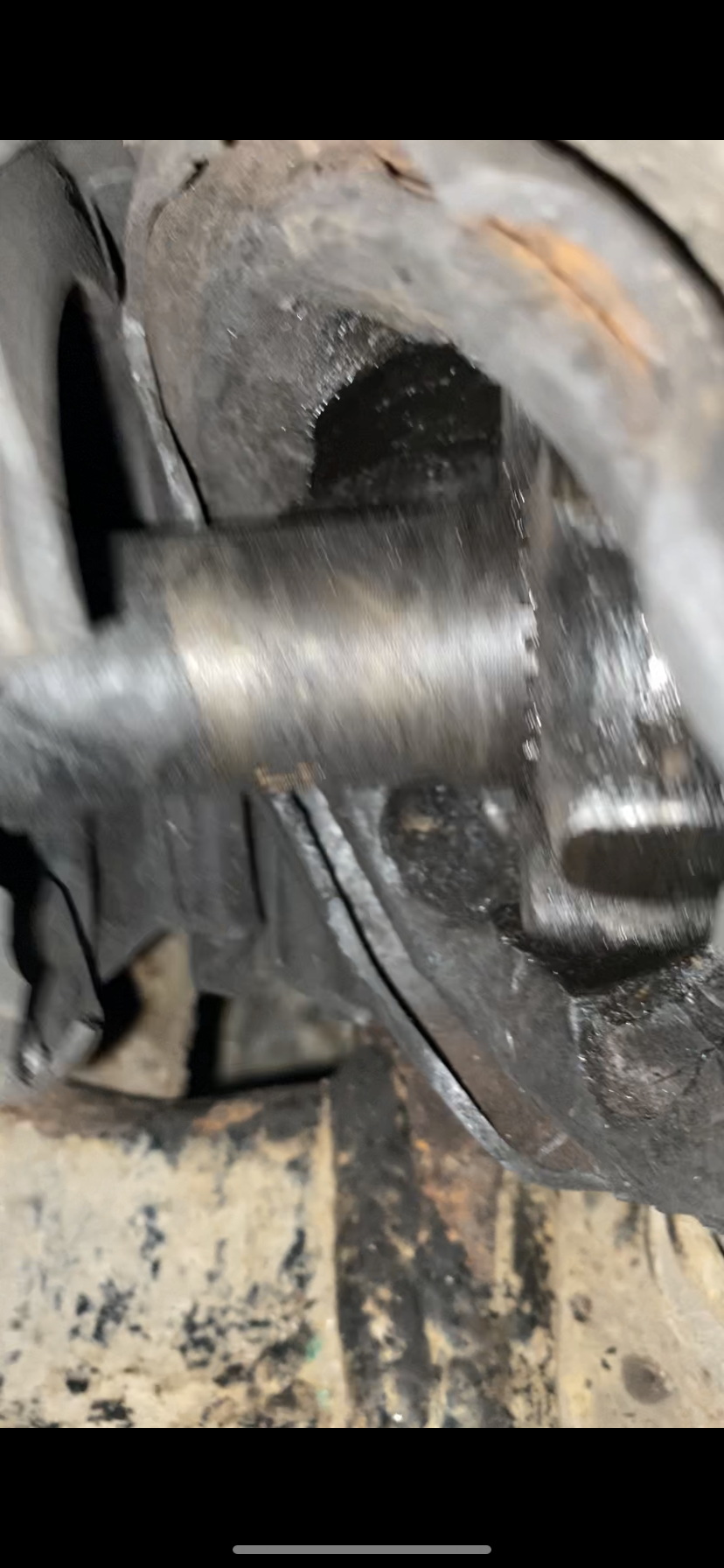

That’s next to the hub

1988smithy · Nov 15, 2023

Yeah its goosed

make sure circlips engage and you do the stake nut you'll be reet

beer20574 · Nov 16, 2023

then as I try pull away sounds like bucket of nails have to really throttle down so revs high and it clunks in and moved with all the metal sounds I pulled up in safe place and left it for recovery later on , anyone know of potential prob or is it game over for this motor , sitting at 185000 but no other issues

Thommo805 · Nov 16, 2023

beer20574 said:
then as I try pull away sounds like bucket of nails have to really throttle down so revs high and it clunks in and moved with all the metal sounds I pulled up in safe place and left it for recovery later on , anyone know of potential prob or is it game over for this motor , sitting at 185000 but no other issues

Sounds like my issue

Thommo805 · Nov 22, 2023

Finally all repaired and back on the road could not have attempted this without the help from this forum , some great people and experience certainly came to my rescue many thanks all !!
