border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Will get one tomorrow. Thanks Again Everyone
Diff Filler Plug
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

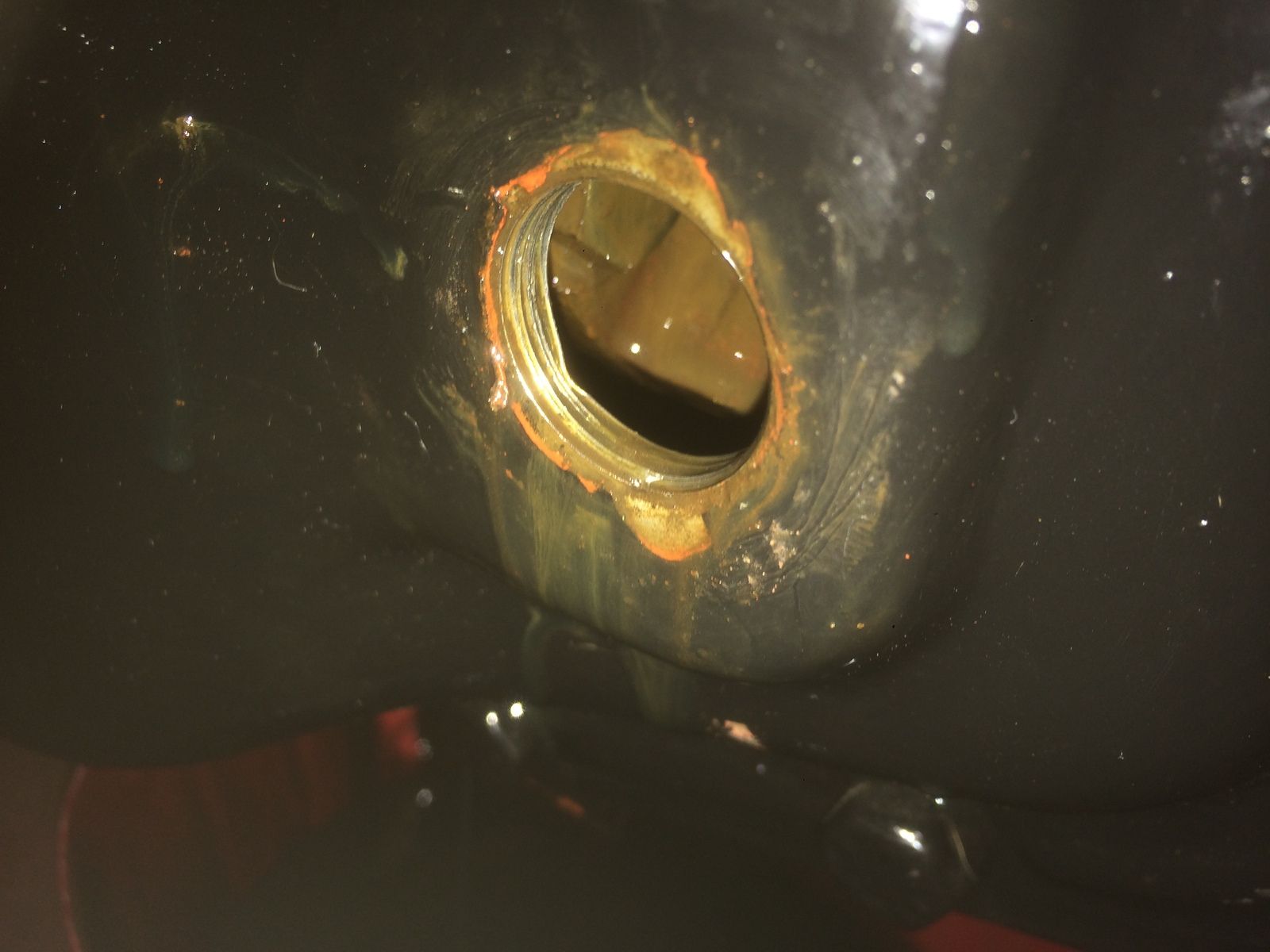

Well Looks like its a new Pan, went to unscrew back out and the bloody plug has gone and fell right through to the inside. I must try and take things slowly from now on and study things before I go ahead and work on them.
Anyway has anyone changed one before ? gonna try and find guide somewhere, Ill probably get new bolts as well and I'm sure there will be a seal / gasket too.
Anyway has anyone changed one before ? gonna try and find guide somewhere, Ill probably get new bolts as well and I'm sure there will be a seal / gasket too.
Attachments
Flossie
Well-Known Member
- Posts
- 11,053
- Location
- Shropshire
Just a gasket, simple job, reuse the bolts.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks frightened incase I strip them with them been old.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
it needs an oil change in any case thats emulsified
doriz
Well-Known Member
- Posts
- 17,312
Gives you an idea
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Id just put brand new oil in yesterday before threads stripped, but it had been standing empty or very little in for a good few months before that as it had a leak at the front but changed the flange and seal.
Spot on Mate looks easy even for me.
Flossie
Well-Known Member
- Posts
- 11,053
- Location
- Shropshire
The bolts are not an odd size if you need some, standard metric M10 iirc, any engineering supply place will have them just take an old one with you.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
There's a Great place local to me, they have just about every bolt you need for full rebuild.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Think this is all I will need, https://www.paddockspares.com/checkout/cart/ but might get bolts from my local place they will be a lot cheaper, also washers as Paddocks don't have the part number and those that do are very dear just for washers.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
an empty shopping cart,washers are just m10 spring wahers
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Will take bolt and washer to my local place they usually match them perfect but sometimes they don't have the correct length so will have to make sure with these.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
607173 is the bolt its m10 x 15mm
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks James
Bescol in consent stock more than most places. If you get stuck, pop over there.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
That's where I go , they can usually match them up.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Ordered bits will try and get it done Sunday, in the mean time will read some more up on it and Take my time and try and do it properly without breaking anything else.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

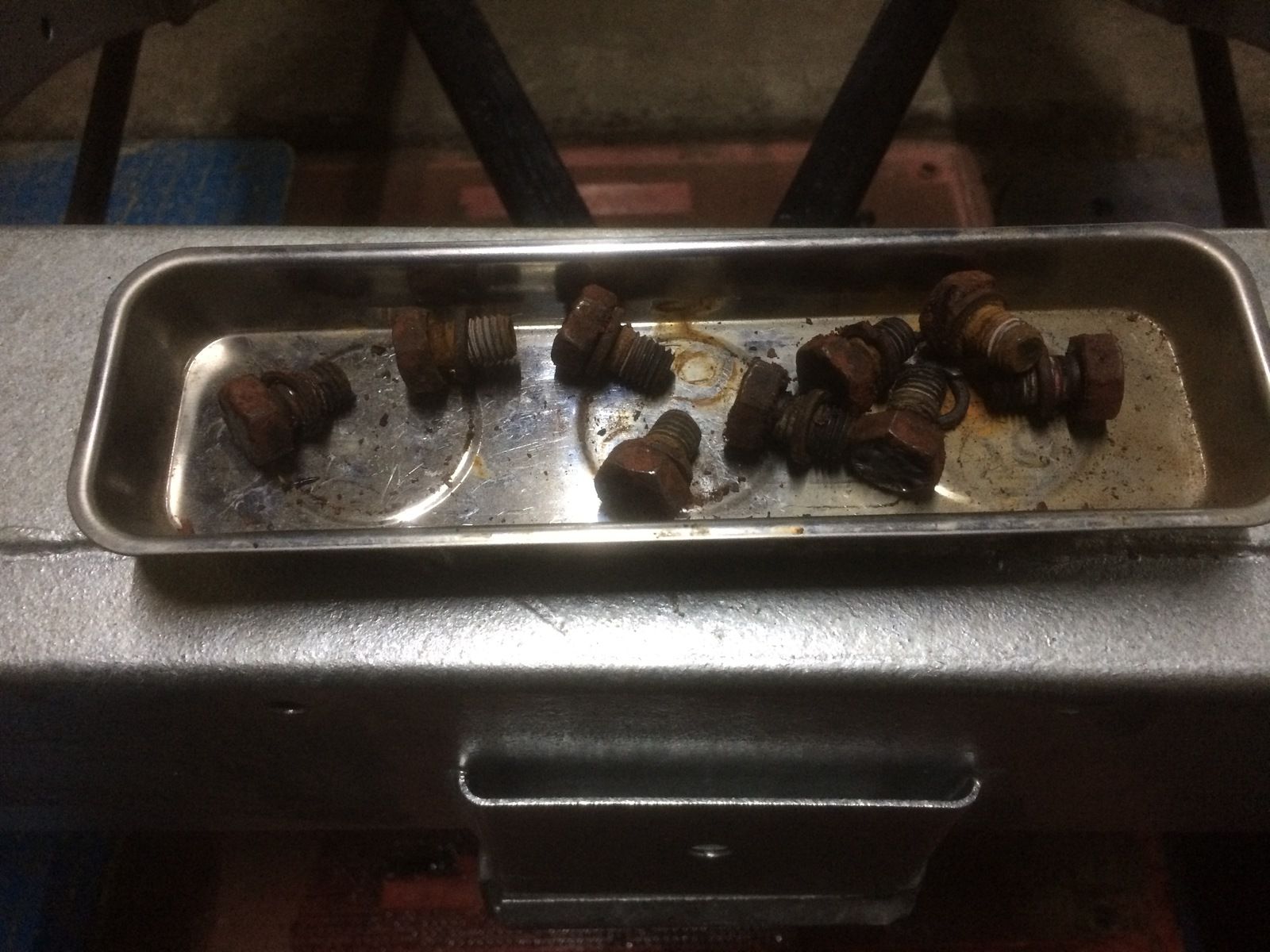

Only went up to get one bolt out but ended up taking the hole lot off. Will take one to shop tomorrow, if they have not got any same size will just clean up old ones as they are not to bad, very surprised I didn't snap one or get one stuck knowing me.
Does anyone know the correct Torque for when they go back on? will also give the inside a good clean too.

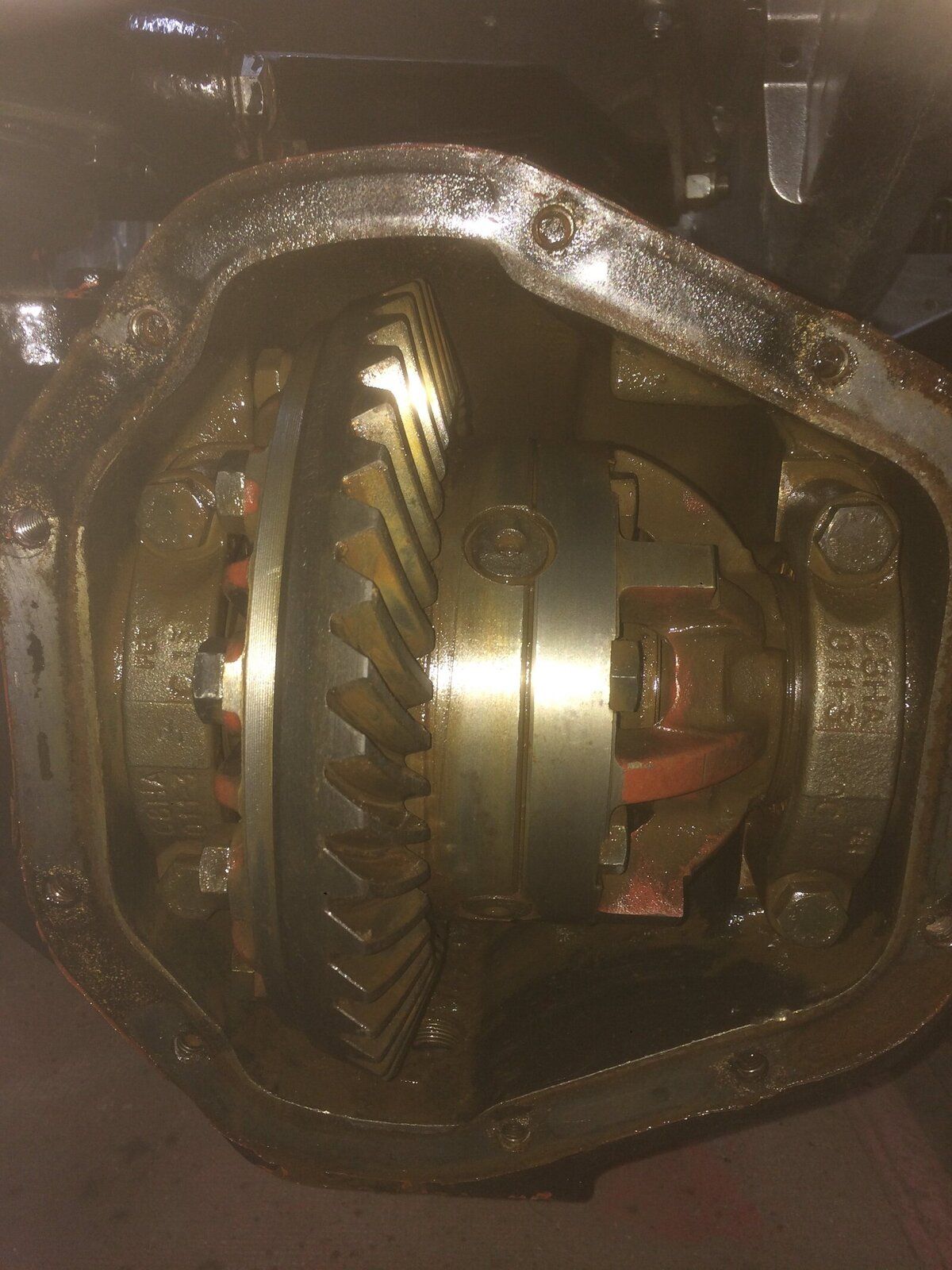

Please don't say theres something else damaged in there as there might be a Rolling Chassis up for sale, don't think I can handle another mistake for a while yet. It looks OK to me anyway.
Does anyone know the correct Torque for when they go back on? will also give the inside a good clean too.
Please don't say theres something else damaged in there as there might be a Rolling Chassis up for sale,
don't think I can handle another mistake for a while yet. It looks OK to me anyway.Attachments
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Gonna fit Pan over weekend. Just need some thread lock then I've got everything ready, couple of quick questions first so I get it right. Anyone know the correct Torque for bolts ? and I've got the Gasket but should I use sealant too??
Ans is there anything else I've forgotten ??
Thanks
Ans is there anything else I've forgotten ??
Thanks
