Where one of my mates hails from
Diesel check engine light
- Thread starter kapilamuni
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 58,170
- Location
- Preston Lancs.
Can't remember, maybe 13 mm twelve point with a 10 mm thread. Make sure your socket is good and on square they can be tight. Two should come out no problem the third that goes through the flange and protrudes beyond it can be tight due to the protruding threads being rusty. Use some Plugas on it and work gradually back and forth until it frees off if it has rusted. Do NOT just try and screw it out if it's tight you may shear it off.
https://www.youtube.com/watch?v=PSZtP949JHU
https://www.youtube.com/watch?v=wqXe0ln7-WQ
Maybe not your turbo but generally same procedure.
- Posts
- 16,479
Getting the Seals and the turbine shaft to seat correctly is a big pain....would defo advocate a refurbed or S/H unit.
Diesel runaway from ineffective turbo seals dumping oil into the intake is a scary and dangerous occurance....do not underestimate the amount of oil the oil pump can pump into the intake in short order causing a runaway event!
Diesel runaway from ineffective turbo seals dumping oil into the intake is a scary and dangerous occurance....do not underestimate the amount of oil the oil pump can pump into the intake in short order causing a runaway event!
Datatek
Well-Known Member
- Posts
- 44,890
- Location
- Near Poitiers SW France
+1, shipping would not be that much
- Posts
- 16,479
Just done a quick Quote on Fed Ex....
a 7kg box value of £250 to ship to Colombo (zones 1-15) on Fed Ex economy delivery is £147 - sod that!
Datatek
Well-Known Member
- Posts
- 44,890
- Location
- Near Poitiers SW France
I'm sure there must be cheaper options than FedEx
- Posts
- 16,479
I'm sure there must be cheaper options than FedEx
No doubt, but it was the only one I could check without having a full delivery address
kapilamuni
Active Member
- Posts
- 550
Yes. Colombo, srilanka.
brianp38dse
Well-Known Member
- Posts
- 20,067
- Location
- heathrow
You can get the turbo center section to put into your housing ,lots of then seam to come from japan & china, worth a google the turbo no is td04-11g-4
kapilamuni
Active Member
- Posts
- 550
You guys are great.
Let me see the options n also I'm going to remove it from engine, today.
Appreciate yr advise n views.
Let me see the options n also I'm going to remove it from engine, today.
Appreciate yr advise n views.
kapilamuni
Active Member
- Posts
- 550
To take out the turbo, do I really need to remove the exhaust manifold too?
Removed exahst, oil lines, and 3 bolts to ex-manifold expecting I can wriggle it out. Seems no luck.
regds
Removed exahst, oil lines, and 3 bolts to ex-manifold expecting I can wriggle it out. Seems no luck.
regds
kapilamuni
Active Member
- Posts
- 550
Removed the turbo from the engine. Had to remove the exhaust manfold too, which took most of my time.
Anyway the turbo compressor side was wet with oil ,when rotated by hand it was smooth and no noise without any play in anyway.
Will it solve my issue if i put a new repair kit.
Guess i can do it , thnks to Wammers for the videos.
Regds
Anyway the turbo compressor side was wet with oil ,when rotated by hand it was smooth and no noise without any play in anyway.
Will it solve my issue if i put a new repair kit.
Guess i can do it , thnks to Wammers for the videos.
Regds
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
What have you got to loose? the cost of a repair kit, some time and your engine if you get it all wrong and it runs away fed by the engine oil.
- Posts
- 58,170
- Location
- Preston Lancs.
What have you got to loose? the cost of a repair kit, some time and your engine if you get it all wrong and it runs away fed by the engine oil.
If yours is pre EGR it should have an oil separator on the pipe from the cam cover to the inlet pipe. Remove the cam cover and clean out the mesh separator under the plate in there and fit a new separator to the pipe from cam cover to inlet pipe, problem maybe oil mist from the cam cover or you may have a ring blow making to much pressure in the crank case. Something to try if you can find nothing wrong with the turbo. Life gets complex.
kapilamuni
Active Member
- Posts
- 550
Mine is pre EGR. The PCV valve is located outside the camcover & I've a catch can fittef, so oil coming from that side can be minimal if any.
I've no idea on the turbo charger oil seal. is it a rubber o-ring type as shown in the kit with other items(ebay photo)? When the oil seal go, what are the symptoms other than leaking oil? I mean, should there be any noise, or roughness in the turbine shaft etc.
regds
I've no idea on the turbo charger oil seal. is it a rubber o-ring type as shown in the kit with other items(ebay photo)? When the oil seal go, what are the symptoms other than leaking oil? I mean, should there be any noise, or roughness in the turbine shaft etc.
regds
kapilamuni
Active Member
- Posts
- 550
New observation.

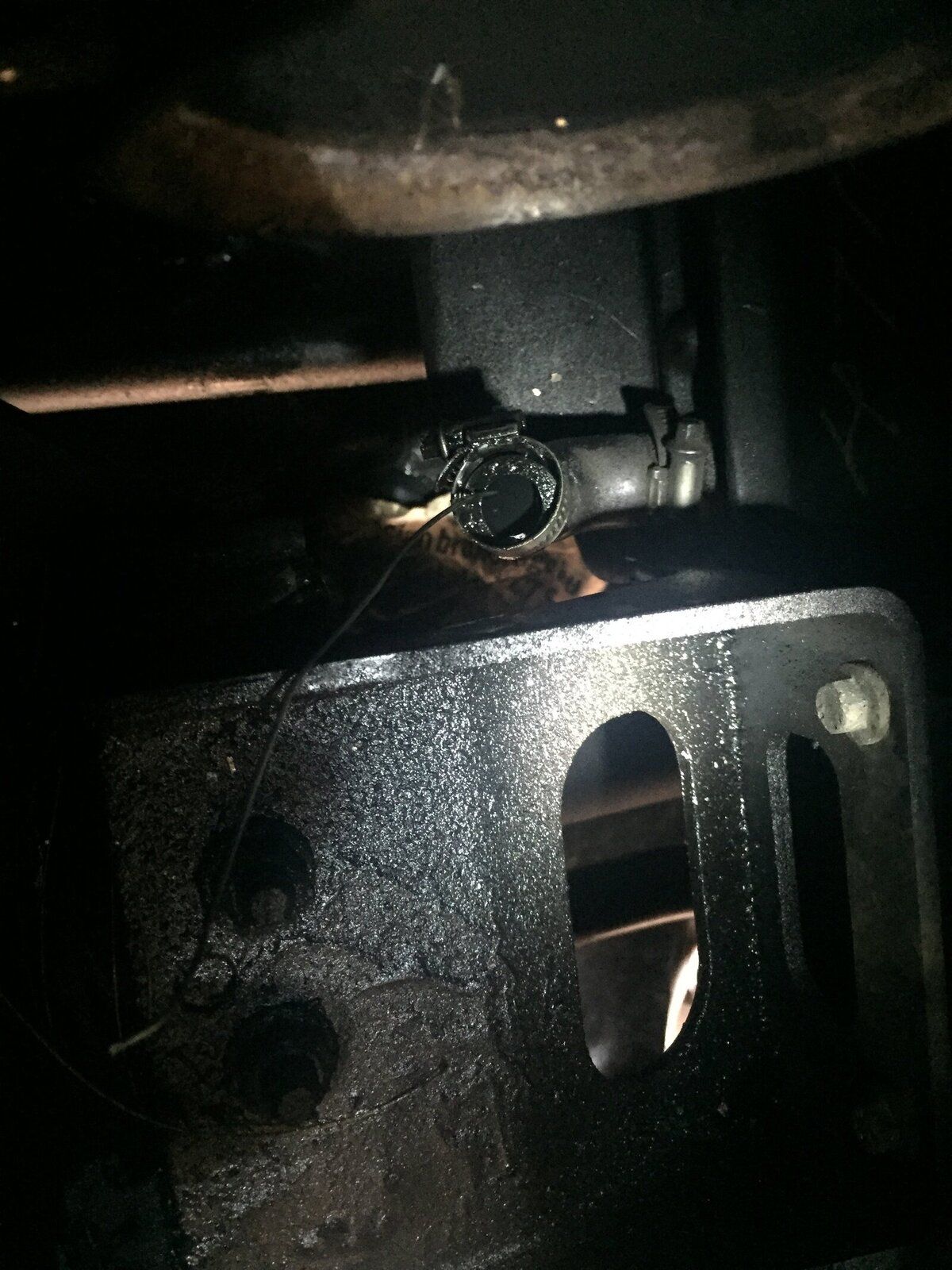

The drain line from turbo is blocked. see photo, the oil level is at the upper end of drain tube. Tried to clear it with a piece of wire. Though the wire goes in, the oil level remains unchanged. Dipstick level is in the middle.
Is it normal for the turbo drain to have such an oil level( roughly the drain tube upper level is about 3 inches above the sump gaske level)?
Any views appreciated.
The drain line from turbo is blocked. see photo, the oil level is at the upper end of drain tube. Tried to clear it with a piece of wire. Though the wire goes in, the oil level remains unchanged. Dipstick level is in the middle.
Is it normal for the turbo drain to have such an oil level( roughly the drain tube upper level is about 3 inches above the sump gaske level)?
Any views appreciated.
Attachments
Datatek
Well-Known Member
- Posts
- 44,890
- Location
- Near Poitiers SW France
As far as I'm aware, the drain tube should allow free draining of the oil from the turbo into the sump.
- Posts
- 58,170
- Location
- Preston Lancs.
I am not 100% sure but i think there maybe a depression valve on the turbo drain. This is activated by the depression that is supposed to be in the crank case whilst the engine is running. There is supposed to be a partial vacuum in the crank case for emission purposes. Air being sucked out by the turbo. This is controlled by the PCV. If you have played with the PCV and fitted a catch tank as you say you may have compromised the crankcase venting function. If the turbo drain is not opening oil will be being fed to the turbo under pressure but has nowhere to go if the vent is not working causing the oil to be pushed past the turbo seals.
kapilamuni
Active Member
- Posts
- 550
The car has PCV with the catch tank. Checked both lrcat & realoem sites for the 'depression valve' on the turbo drain. There is no such thing. Basically PCV handles that function, I guess. Will remove the turbo drain line & see.
regds
- Posts
- 58,170
- Location
- Preston Lancs.
There maybe some sort of valve on drain to keep oil in the turbo when engine is stopped and turbo is still winding down. If that is blocked you would get same outcome. If PVC is working properly and clean and oil separator in cam cover is clean you should not need a catch tank. Some oil vapour ingress from cam cover into turbo pipes is normal. If you probe drain do it very carefully there maybe something in there you could damage.
