cold start issues

brucher said:

theres a priming lever on the injector pump ?

Click to expand...

Yes, the lift pump has a manaul prime lever, but I am talking about the idle speed lever on your injection pump, which sits against the fuel return union, if this is too low, it can make it difficult to start the engine, so jam this open slightly before you try to start it next if it helps then this could point to a cold start mechanism fault in the injection pump because these are linked.

iannotts said:

hmmm i am watching this one, didn't know about the cold start setting on the pump cheers for that one pos

Click to expand...

No problem, not a lot of people do! They just fire it up and then slam their foot down which actually throws the whole advance fuel injection timing totally out of play. I have noticed this effects the way that the engine drives until its been turned off and re-started again. Something to do with the governors I guess. Just make sure that you have a relatively good engine idle speed (set by the adjuster) so that when it does start cranking, it soon picks up.

brucher said:

right ok kool, do u know if there is a non return in the injector pump ?

Click to expand...

No not on the IP, the lift pump does though.

guess how i have been starting my 2.5td and wondering why it takes a fornight to start

It will seem to struggle at first but it'll soon pick up if you have the idle speed set high enough to pick the engine up, and not too high to sound silly!

pos said:

They just fire it up and then slam their foot down which actually throws the whole advance fuel injection timing totally out of play.

Click to expand...

It is OK to give it some revs once its going, the cold start mech ONLY works below several 100 rpm.

I often give it a few extra on a cold morning as its lumpy as hell, and that knocks lumps out of the bearings because its almost working against itself, once its going on really cold morning I then give it more glow plugs to help vaporise the diesel, the TD5 ecu does this, I just think of it as a DIY ECU.

it needs a bloody good service to be honest as well, not been run propelry for six months and smokes like a I dont know what. What do you want for not a lot of money

Might be worth adjusting your maximum fueling on the IP or the timing a touch, you can undo the bolts which hold the pump onto the timing chest and turn the pump a TINY amount, (mark the pump and the chest where they are before you start so you can go back to square 1 if you need to), do the bolts back up go for a run and see if the smoke reduces, if yes give it a little more until its not smoking (this is if its smoke due to overfueling - i.e. black). This should be done on a warm engine as you want it to be at the most efficient for running temps.

ah dunno if this pic helps to show where things are on the IP but it might give an idea....



The circled bit is the fuel cut off swith BTW

i am going to do all the filters, breather and change the oil before i start messing to much.

has anyone got a manual for a 2.5td 110csw 1987?????

bustersbus said:

ah dunno if this pic helps to show where things are on the IP but it might give an idea....



The circled bit is the fuel cut off swith BTW

Click to expand...

What engine is that buster?

I have the rave manauls here.

iannotts said:

What engine is that buster?

Click to expand...

it's the 200tdi Ian. Dunno if there's a difference or not

ooo do they cover it?, I had them







Ok who moved em

bustersbus said:

it's the 200tdi Ian. Dunno if there's a difference or not

Click to expand...

It the lucas thing that dont like veg oil on the 2.5td

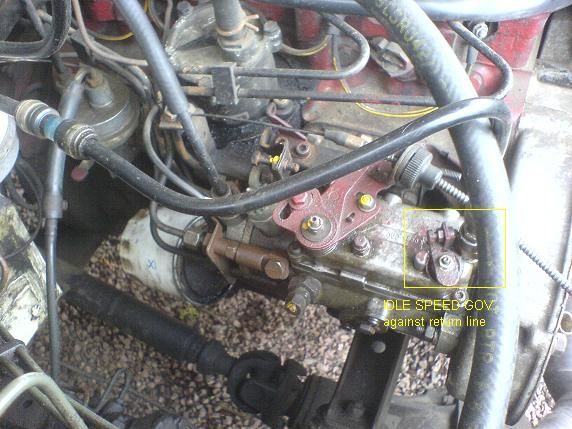

Here is the Lucas CAV as fitted to a 2.5N/A (this picture if of the sherpa version so its a little different looking but the IP is the EXACT same) the turbo version obviously is slightly different in that is has the vaccum advance unit on it - the 200tdi has the bosch unit.

iannotts said:

ooo do they cover it?, I had them







Ok who moved em

Click to expand...

Aye the old 2.5's are in it.

discomania said:

Aye the old 2.5's are in it.

Click to expand...

Nice stuff, Just downloading it AGAIN now

You could also have lazy/dribbly injectors, try some Wurth Diesel additive, halfords dont sell it but you can get it from other places quitre easily, its like redex but a lot better.

A big cheers to POS went out to start my deepender didn't touch throttle started ALOT easyer

still smoked mnd you
