Ah Ford

with a POS engine.

Mine was Chrysler, with a well designed British pushrod lump of good reliabilty and well capable of revving.
and the other was an A series British Leyland lump. which are normally very reliable. as are B series.

Yeah but those advisories mean there's welding needed in 2 places sooner rather than later.
The rear arch is easy access for welding, around the brake servo probably less so.

It's not a £3500 car, especially with those advisories.
Hi James,
Or it could be! Just clean up! Primer and patch paint??
Had to do some of that on mine! When it was being welding at the front!

As said on post! Look and try before buy

Kev 😁

Hi James,
Or it could be! Just clean up! Primer and patch paint??
Had to do some of that on mine! When it was being welding at the front!

As said on post! Look and try before buy

Kev 😁
Absolutely. I'm not saying he shouldn't go and look, or even that he shouldn't buy it, just that he shouldn't pay £3500 for it.

not only a fantastic post Stanley, but it taught me a new word - bravo sir!


You mentioned looking at mundane hatchbacks and considered the alternative to be a classic land rover...

Hear me out before you hit autotrader for a people carrier, but please do bare in mind that a disco 300tdi is a 30 to 25 year old vehicle, a td5 is 25-20 years old at youngest, a bit of TLC will be required. But generally speaking, if you get through an expensive phase of its live, or better yet, get one where the previous owner has aten all those lemons for you, it's still going to be the disco you remember of yore. [EDIT: Best still is to do some preventative maintenance on a disco TD5 to prevent it becoming expensive. ]

I had been without a disco for about 5 years, after selling our 300tdi that I had done all the welding on, stupid I know, but reasons at the time., I had a hankering for another disco, and couldn't find a nice 300tdi that wasn't going to be a welding project, or had been done, but wanted silly money for it. So I bit on the brave pill and bought a late* TD5.

Not gonna lie, I was reticent about taking on a TD5, but the more I looked into the TD5, the more I RESPECT it as an engine. Long story short, with it's integrated injector units, a TD5 will always get you home even if one fails, whereas in the equally unlikely event that a a 300dti kills its fuel injection pump, its immobilized. In many respects the TD5 is more like a marine engine than a road vehicle engine, it has a centrifugal oil filter in addition to the usual oil filter, these "injector units" are an individual HP pump built into each injector, operated by a camshaft. Reminds me of Wartsilla engines I dealt with offshore.

They do have a few weaknesses, and remember I asterisked the word LATE in the previous paragraph? There are really two TD5 engines, 10P & 15P The 10P was the earlier original TD5, and had a few weaknesses later resolved in the 15P, such as having poorer design of head with minimal meat between a fuel pipe (IIRC) and the bore, which lead to cracked heads. ?the heads were also located by PLASTIC (like WTF land rover) dowels, which failed eating a head gasket in the process, whereas the 15P has steel dowels locating the head.

Both engines suffer a bad rep for oil in the ECU, I kid you not, the injector units are located INSIDE the engine, but controlled by an ECU on the inner wing, connected by a wiring loom that goes to a socket on the side of the head, and an internal harness from this bulkhead fitting to the injectors. Oil started to get capillaried up the wires into the ECU. But it's like £25 for the replacement part, and takes less time to fit with a £20 1/4" drive socket set than I've spent typing up this post so far.

Comparing the D2 to the D1, there are enough mechanical similarities you'll feel at home driving it, and I personally found it almost emotional revisiting disco ownership, where the 300tdi XS was our family transport when the kids were little and cute, now they are teenagers, it seems fitting that the disco has also moved on. But those mechanical similarities are not direct like for likenesses. For example it always pained me as an engineer why oh deities be damned why did LR put the bushes for the front and rear arms/hockey sticks coaxial to the arm, rather than perpendicular, as in the D1/RRC/Def the bush has to deform every single time the arm moves, eating the bush. But on a D2 the bush is perpendicular to the arm, coplanar to the bushes that secure it to the axle, making more of a clevis, where the arm can pivot on the metal sleeve against the bolt.

But I do think the 300tdi 3rd row side facing dickie seats were better than the forward facing ones in a td5, I also don't like the fact they went from chrome swivels to rubber bellows for the CV joints on the front axle, or the transition from solid calipers to floating ones (with slide pins - yuck!) on the TD5. However, the D2 TD5 has solved the usual body corrosion issues of the D1, but somehow eats the back chassis rails, so if you get a facelift one with the sexy headlights, which are phenomenal BTW, and thus will have the 15p engine, with a clean or plated but solid back chassis, and are willing to undertake a few preventative maintenance routines like that injector harness, its a sweet vehicle for the task you outlined above and will add more character to your life than any soccer-mom minivan or repmobile estate car.
Im new here had county station wagons old times and was driving around in an almost new Disco 5 but it was terrible for reliability. So I found a good 2003 ES Premium with a solid chassis but soe paint damage to the roof. Teh previous had fixed the sunroofs and new nice headliner. the only advisories were brake lines. So I have invested in new brake lines then found a siezed calliper so out with the Rimmers catalouge and several credit cards later I almost have all the parts to return the braking system to as new out of the showroom with terrafirma discs and pads. Im changing the pipes to black sillicone so no worries with them degrading after that. decided to take the plunge and get a new VGT turbo to improve low down pick up and then couldnty help myself and purchased a new upgraded intercooler, and I thought well if Im taking out the fan and playing with the water pipes I might as well put a new fan in and a new rad. Working on the brakes I noticed the shocks and front springs looked original so dipped into my pocket and new springs (original) at the front and new shocks as well ( genuine original shocks rear terrafirma front) all lights are LED including a cool bulb in the front that I need to get checked to see if road legal the suppliers said it was and I don't blind people. I haven't heard the injector issues before so thanks for that heads up as I think engine and gearbox next. As I explained to my bemused wife I can virtually build a new car with all the right parts and some upgraded for less than a new car. DID I SAY IM CERTIFIED MAD?

Im new here had county station wagons old times and was driving around in an almost new Disco 5 but it was terrible for reliability. So I found a good 2003 ES Premium with a solid chassis but soe paint damage to the roof. Teh previous had fixed the sunroofs and new nice headliner. the only advisories were brake lines. So I have invested in new brake lines then found a siezed calliper so out with the Rimmers catalouge and several credit cards later I almost have all the parts to return the braking system to as new out of the showroom with terrafirma discs and pads. Im changing the pipes to black sillicone so no worries with them degrading after that. decided to take the plunge and get a new VGT turbo to improve low down pick up and then couldnty help myself and purchased a new upgraded intercooler, and I thought well if Im taking out the fan and playing with the water pipes I might as well put a new fan in and a new rad. Working on the brakes I noticed the shocks and front springs looked original so dipped into my pocket and new springs (original) at the front and new shocks as well ( genuine original shocks rear terrafirma front) all lights are LED including a cool bulb in the front that I need to get checked to see if road legal the suppliers said it was and I don't blind people. I haven't heard the injector issues before so thanks for that heads up as I think engine and gearbox next. As I explained to my bemused wife I can virtually build a new car with all the right parts and some upgraded for less than a new car. DID I SAY IM CERTIFIED MAD?
I think she may be right.
That isn't a car it's a collection of parts flying in close formation.

Welcome to the Asylum forum by the way. And now you can pop over to the Introduce yourself section and do just that while posting some pix.

We like pics!!:):):):):):)

I think she may be right.
That isn't a car it's a collection of parts flying in close formation.

Welcome to the Asylum forum by the way. And now you can pop over to the Introduce yourself section and do just that while posting some pix.

We like pics!!:):):):):):)

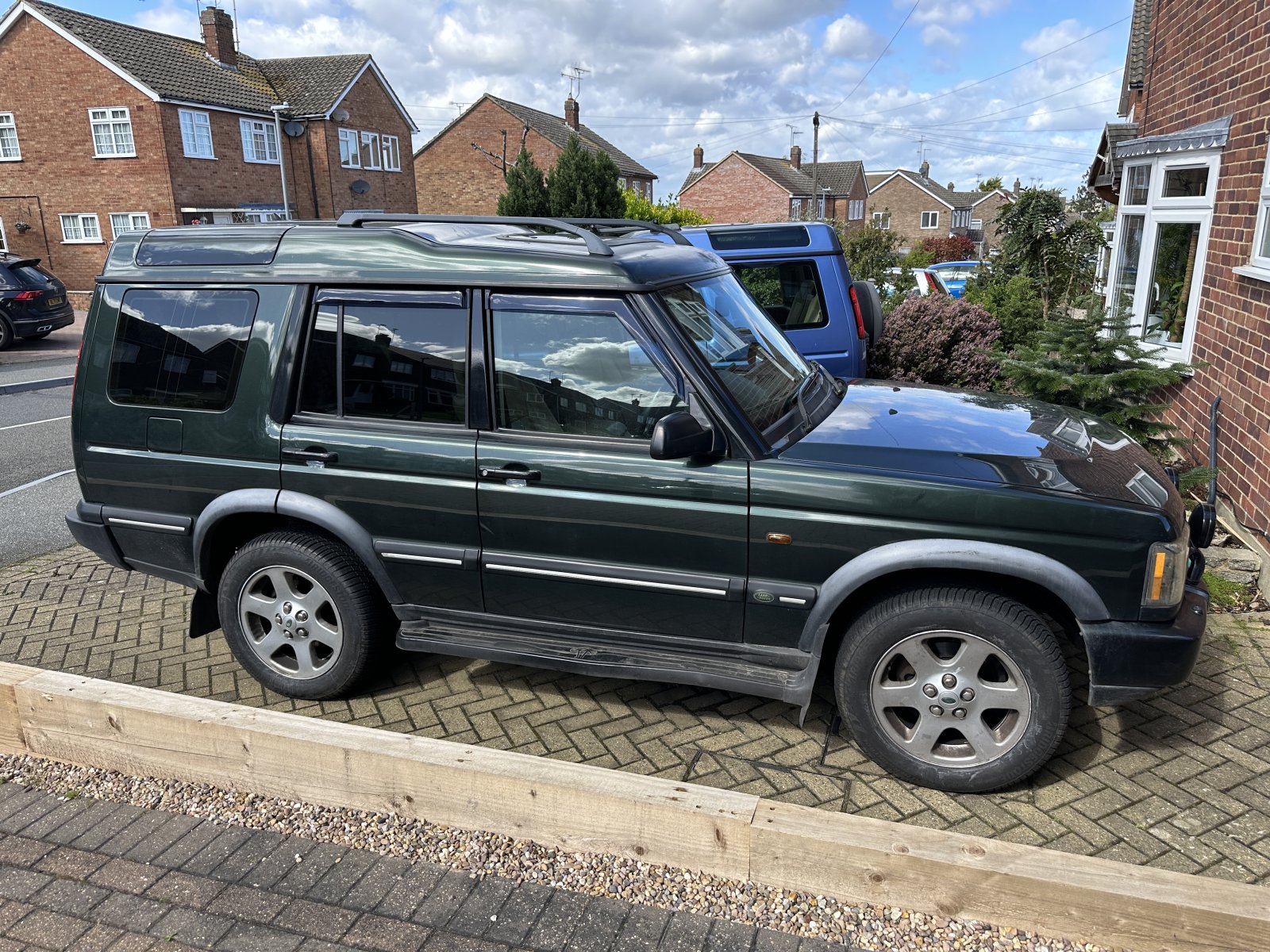

Its a big pile of parts flying under the dining room table at the moment. The delivery driver thinks Im building a car indoors! updated pictures on my profile and have said hi in the introduce yourself section.


Attachments

  • IMG_1596.jpeg
    559.6 KB · Views: 38
Im new here had county station wagons old times and was driving around in an almost new Disco 5 but it was terrible for reliability. So I found a good 2003 ES Premium with a solid chassis but soe paint damage to the roof. Teh previous had fixed the sunroofs and new nice headliner. the only advisories were brake lines. So I have invested in new brake lines then found a siezed calliper so out with the Rimmers catalouge and several credit cards later I almost have all the parts to return the braking system to as new out of the showroom with terrafirma discs and pads. Im changing the pipes to black sillicone so no worries with them degrading after that. decided to take the plunge and get a new VGT turbo to improve low down pick up and then couldnty help myself and purchased a new upgraded intercooler, and I thought well if Im taking out the fan and playing with the water pipes I might as well put a new fan in and a new rad. Working on the brakes I noticed the shocks and front springs looked original so dipped into my pocket and new springs (original) at the front and new shocks as well ( genuine original shocks rear terrafirma front) all lights are LED including a cool bulb in the front that I need to get checked to see if road legal the suppliers said it was and I don't blind people. I haven't heard the injector issues before so thanks for that heads up as I think engine and gearbox next. As I explained to my bemused wife I can virtually build a new car with all the right parts and some upgraded for less than a new car. DID I SAY IM CERTIFIED MAD?

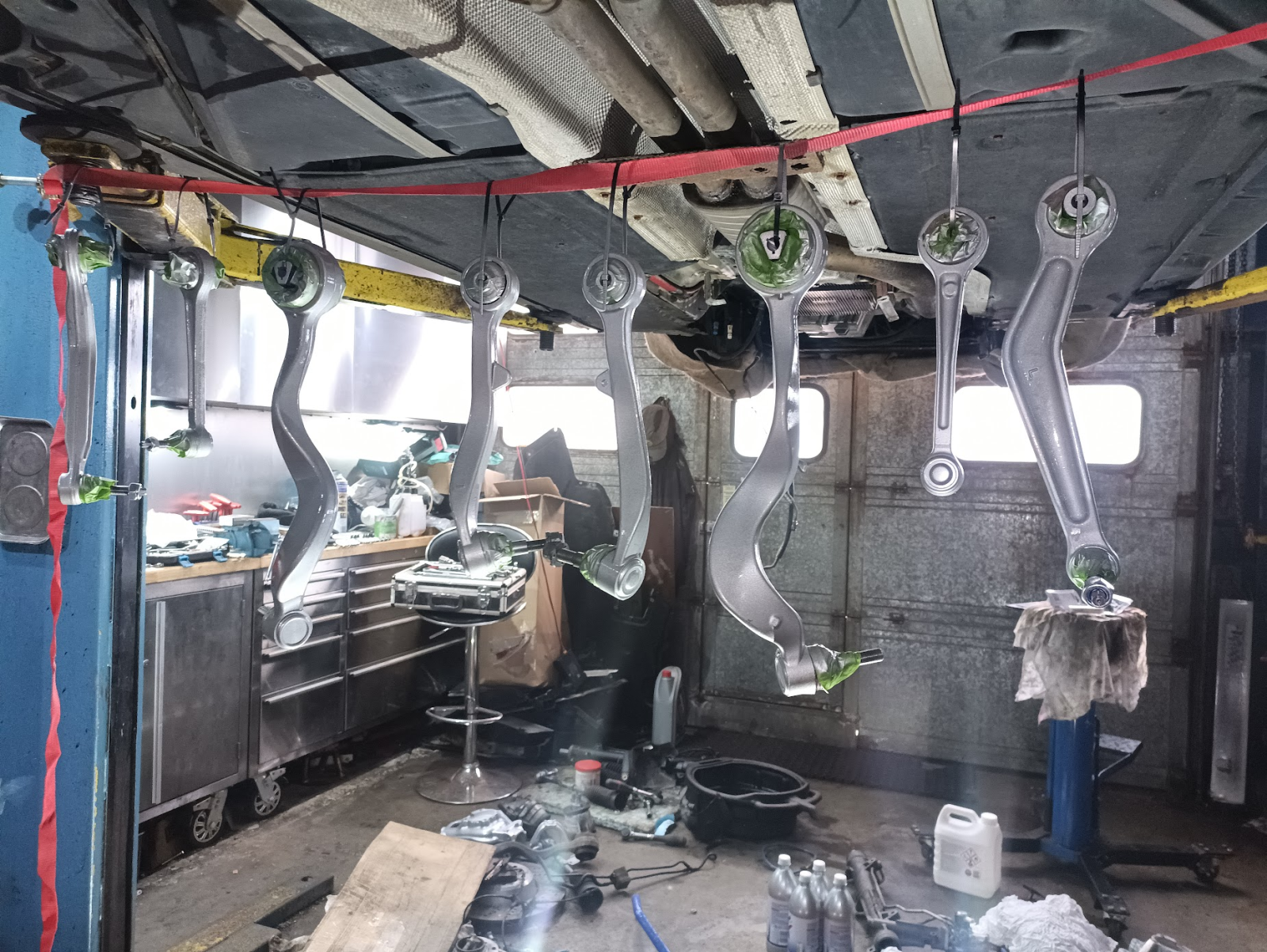

I love the attention to detail you're showing with your disco, and glad you're enjoying the process of going through it all. I'm currently quite deep in to a similarly thorough rebuild of my BMW's suspension, but like you I'm being thorough. I've had some of the suspension components powder coated, but a lot of the arms have bushes and balljoints on them so can't be baked, but they can be painted. So today I've spraypainted all the brand new arms to match the powder coated components.


Currently the discovery is my main vehicle, with the discovery's maintenance being deferred, but when I'm finished the BMW, there's an ever-growing shelf of treats waiting for the discovery, including a hybrid turbo cartridge and sun roof seals...

I love the attention to detail you're showing with your disco, and glad you're enjoying the process of going through it all. I'm currently quite deep in to a similarly thorough rebuild of my BMW's suspension, but like you I'm being thorough. I've had some of the suspension components powder coated, but a lot of the arms have bushes and balljoints on them so can't be baked, but they can be painted. So today I've spraypainted all the brand new arms to match the powder coated components.
View attachment 315220

Currently the discovery is my main vehicle, with the discovery's maintenance being deferred, but when I'm finished the BMW, there's an ever-growing shelf of treats waiting for the discovery, including a hybrid turbo cartridge and sun roof seals...
Im having to wait for some dry weather as its all driveway work for me cant get the car to the garage!
