Another defender LED indicator problem!

v8250 said:

@MJE , but that's not a fix, that's a fudge. These LED indicators with correctly sized ballast resistor should work first time.
@Bazvw205 , follow the following to fix

1. wire in new/clean earth wires locally to each indicator - do not rely on long return earths + make sure your main engine+gearbox back to battery are in tiptop condition
2. wire in correctly sized ballast [both ohms and load capacity] [not eBay Chinky jobbies]

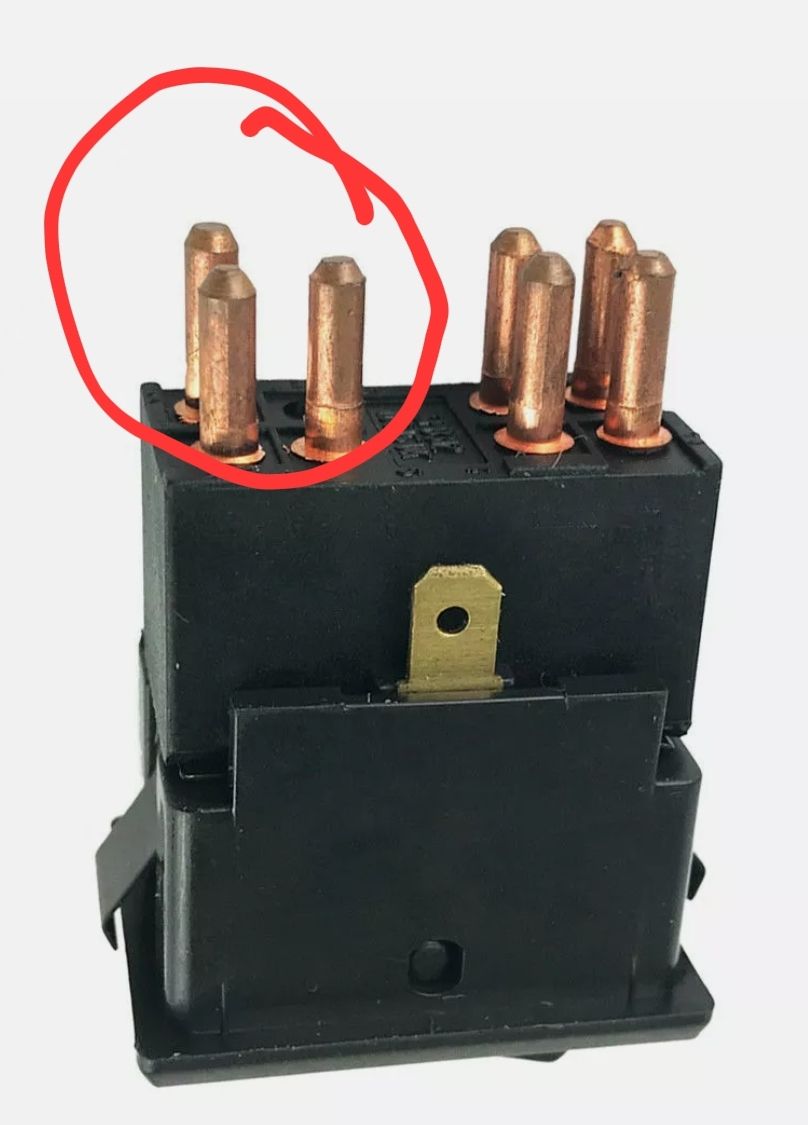

3. ensure hazard switch is not causing issues - if so, temporarily by pass
4. your new set up should also work with original BPFs - if you've thrown these away you should buy another set as LED back up
5. if new LEDs still not working return to RDX for cash back
6. then call Gil Keen at BetterCarLighting for some proper quality work first time LED bulbs https://www.bettercarlighting.co.uk/index.php

or, just return the RDX LEDs and call Gil Keen

Click to expand...

mystery said:

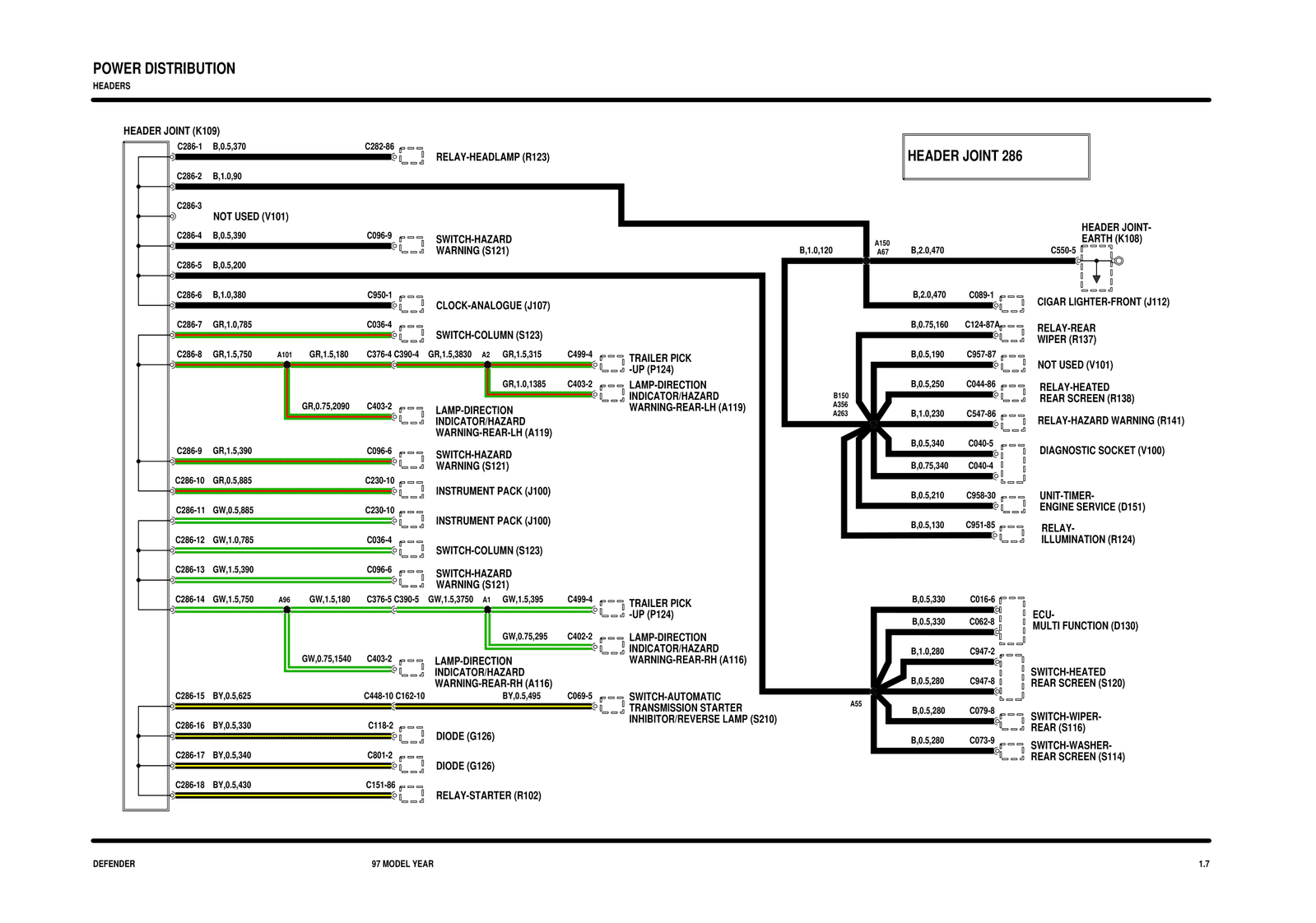

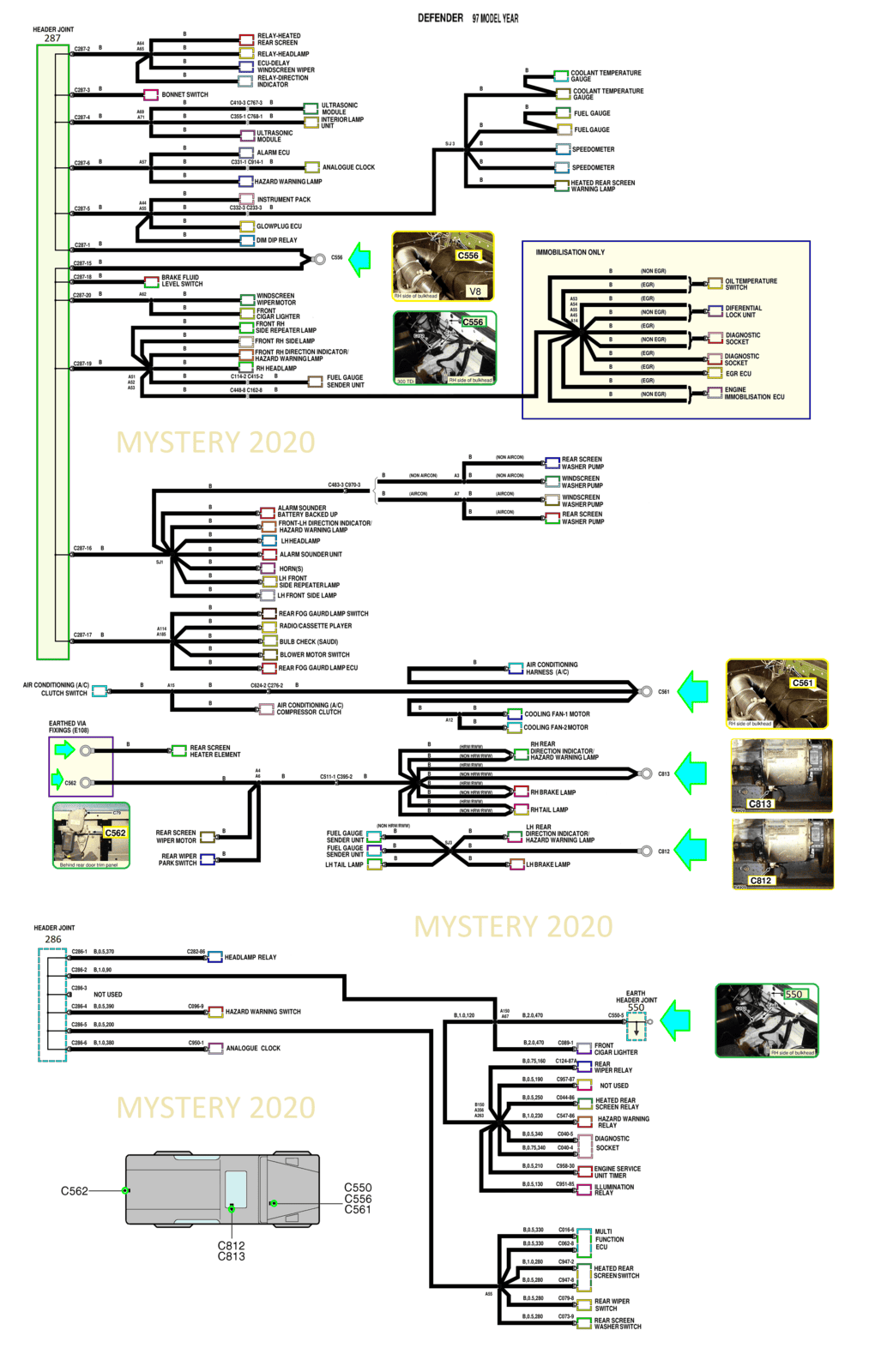

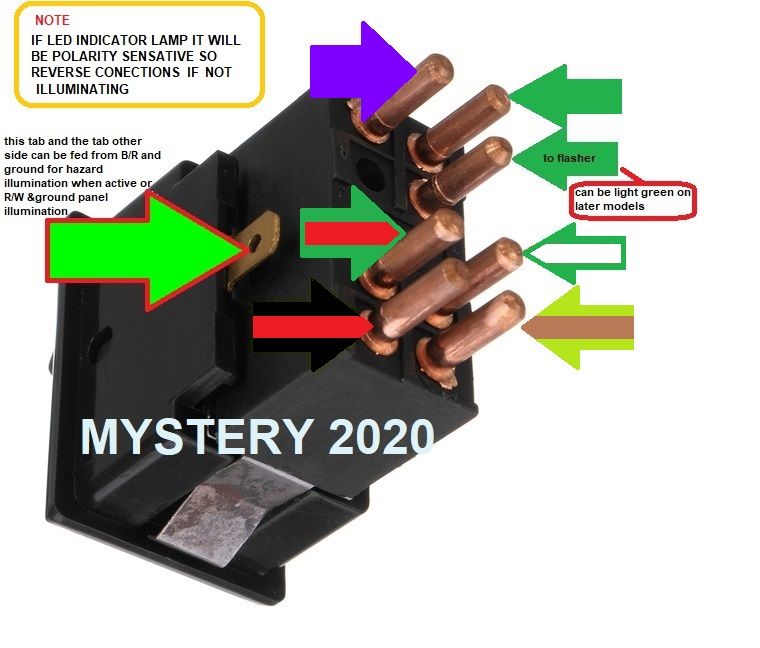

View attachment 256141 View attachment 256140 View attachment 256135 View attachment 256139 View attachment 256137 View attachment 256135 IF YOU CHANGE FLASHER UNIT TO ELECTRONIC TYPE NO NEED FOR BALLAST RESISTORS THEY ARE ONLY FITTED TO TO COMP FOR LOW WATTAGE DRAWN BY THE LED'S

Click to expand...
