P38A ABS & TC lights

Scotiawhiskers · Jul 23, 2022

I don't know - GEMS / THOR is just the engine, other systems shouldn't be affected as far as I can see. But if it is locked to one type by engine then it may lock al the subsystems out too.

kermit_rr · Jul 23, 2022

Sorry missed this one.
Gems or Thor doesn't matter just whether it's 2 or 4wd TC as far as i understand.
I've still got my nanocom but I'm a bit stuck without wheels until i get fixed myself

alanlucas · Jul 23, 2022

kermit_rr said:
Sorry missed this one.
Gems or Thor doesn't matter just whether it's 2 or 4wd TC as far as i understand.
I've still got my nanocom but I'm a bit stuck without wheels until i get fixed myself

mines a 2000 w reg Thor with 4WD TC - i suspect that gems engine models were all rear wheel traction control only

Scotiawhiskers · Jul 23, 2022

alanlucas said:
mines a 2000 w reg Thor with 4WD TC - i suspect that gems engine models were all rear wheel traction control only

Yes, Otto is a 96/97 GEMS so definitely 2w TC. Sorry, doubt it would help then.

Datatek · Jul 24, 2022

Scotiawhiskers said:
Yes, Otto is a 96/97 GEMS so definitely 2w TC. Sorry, doubt it would help then.

Check the Blackbox web site, I think Nanocom covers both versions of ABS ECU, it's only the engine modules that are locked to one type. Diesels come with either type of ABS ECU for example depending on year.

pwood999 · Jul 24, 2022

+1 on only difference in Nanocom versions are the engine license codes. All other modules are generic & not locked to license. Use mine on Dopey's diesel a couple of years ago for EAS & SRS resets.

To select between Wabco C or D, simply select the correct engine type in menu. E.g. after selecting GEMS, it shows Wabco-C. If you select EDC engine, and both C & D appear.

Grrrrrr · Jul 25, 2022

alanlucas said:
Thanks for the offer - unfortunately mine's the Thor engine.
Will a Gems Nanocom diagnose the ABS system on a Thor engined P38 ?

Don't think so as GEMS is wabco C and yours will be D.

Grrrrrr · Jul 25, 2022

pwood999 said:
+1 on only difference in Nanocom versions are the engine license codes. All other modules are generic & not locked to license. Use mine on Dopey's diesel a couple of years ago for EAS & SRS resets.

To select between Wabco C or D, simply select the correct engine type in menu. E.g. after selecting GEMS, it shows Wabco-C. If you select EDC engine, and both C & D appear.

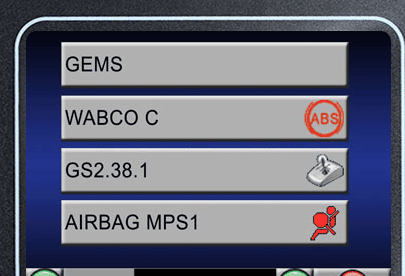

View attachment 270012

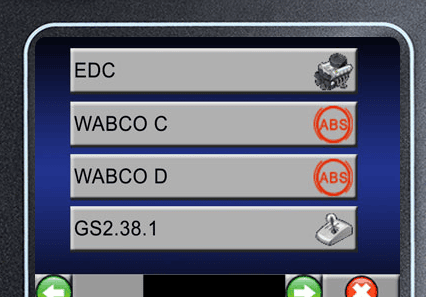

View attachment 270013

I think only EDC versions unlock both as that covers all diesel years.

GEMS only has wabco C so only that module will be unlocked. Thor only has wabco D so suspect only D will be unlocked for that.

Datatek · Jul 25, 2022

Grrrrrr said:
Don't think so as GEMS is wabco C and yours will be D.

I cannot be sure, but I think you may be wrong on that.

pwood999 · Jul 25, 2022

If anyone with Thor or EDC with Wabco D is passing by or through Langley, you're welcome to try my GEMS Nanocom.

Pete

brianp38dse · Jul 25, 2022

Wabco b = no traction control
Wabco c = 2 wheel traction control
Wabco D = 4 wheel traction control
so it goes on as to what brake system you have on your car.

alanlucas · Jul 25, 2022

brianp38dse said:
Wabco b = no traction control
Wabco c = 2 wheel traction control
Wabco D = 4 wheel traction control
so it goes on as to what brake system you have on your car.

Only way to find out is to hook mine up to Scotiawhiskers' nanocom and find out

Grrrrrr · Jul 25, 2022

alanlucas said:
Only way to find out is to hook mine up to Scotiawhiskers' nanocom and find out

Nothing like trying the experiment.

Grrrrrr · Jul 25, 2022

brianp38dse said:
Wabco b = no traction control
Wabco c = 2 wheel traction control
Wabco D = 4 wheel traction control
so it goes on as to what brake system you have on your car.

No wabco B on my Nanocom! Same module (C) works for both 0 and 2W TC.

pwood999 · Jul 26, 2022

Just had confirmation from Alex on Nanocom Forum that the P38 unlock codes are specific to engine ECU only. All other modules should work on any P38.

For those of you with the Nanocom forum login: http://forum.nanocom-diagnostics.com/thread-3942.html

Datatek · Jul 26, 2022

pwood999 said:
Just had confirmation from Alex on Nanocom Forum that the P38 unlock codes are specific to engine ECU only. All other modules should work on any P38.

For those of you with the Nanocom forum login: http://forum.nanocom-diagnostics.com/thread-3942.html

Thanks for confirming that, I thought it wsa the case.

alanlucas · Aug 24, 2022

Beamends 4x4 in Dilhorne confirmed today its the 3rd replacement osf abs sensor - shows on Hawkeye as short to another sensor - unplugged it and tested it and it is open circuit, no resistance, as was the nsf one i swapped the other week when I did the cv joint thinking it was another broken reluctor ring on the nearside. So since last December that's 3 pairs of aftermarket sensors. Think the first pair were £22 ebay special from China that LRX 4x4 told me were junk when they diagnosed my ABS fault, 2nd OE set were from LRX in Leekbrook £95 the pair but the fault turned out to be a broken reluctor ring and then the osf LRX OE new sensor turned out to be duff, 3rd pair were from Kerr Nelson £22 each. On reflection, now I have gone through all the **** with aftermarket, I should have bought 2nd hand genuine Wabco, being as the originals were working fine after 21 years use until I chopped them out to remove the hub carriers when I did the front balljoints.

Datatek · Aug 24, 2022

alanlucas said:
Beamends 4x4 in Dilhorne confirmed today its the 3rd replacement osf abs sensor - shows on Hawkeye as short to another sensor - unplugged it and tested it and it is open circuit, no resistance, as was the nsf one i swapped the other week when I did the cv joint thinking it was another broken reluctor ring on the nearside. So since last December that's 3 pairs of aftermarket sensors. Think the first pair were £22 ebay special from China that LRX 4x4 told me were junk when they diagnosed my ABS fault, 2nd OE set were from LRX in Leekbrook £95 the pair but the fault turned out to be a broken reluctor ring and then the osf LRX OE new sensor turned out to be duff, 3rd pair were from Kerr Nelson £22 each. On reflection, now I have gone through all the **** with aftermarket, I should have bought 2nd hand genuine Wabco, being as the originals were working fine after 21 years use until I chopped them out to remove the hub carriers when I did the front balljoints.

I doubt WABCO made sensors, they would just be branded. I have cheap after market front sensors in both my P38's and have had no trouble with them. I guess you have just been unlucky.

kermit_rr · Aug 24, 2022

My symptoms of a broken/cracked reluctor ring, car thought that wheel was locking up briefly and energised the abs. Only happened at low speed

alanlucas · Aug 24, 2022

kermit_rr said:
My symptoms of a broken/cracked reluctor ring, car thought that wheel was locking up briefly and energised the abs. Only happened at low speed

yes thats what mine was doing last december so it was fighting me and not braking when I was trying to brake - very unnerving to drive like that
