would one of these do it ??? or would a nano com do this anyway ?

Your engine turns over, but won't start up!

The BeCM Sync-Mate solves an increasingly common problem of P38 Range Rovers being left stranded because the BeCM, in effect, forgets the immobiliser code it needs send to the (EMS) engine management system for it to start the engine.

Previously when this happened, there used to be only two ways to get moving again: The first was to call out a garage with a diagnostic tool to reset the system and then pay the mechanic a "call out" fee for approximately 2 minutes work. This will fix the problem – until the next time.

The second way is to fit a new or used BeCM which will cost anything from £600 upwards plus the cost of programming and fitting.

There is now a third way! The BeCM Sync-Mate. Within a minute your BeCM will be automatically resynchronised with the engine management system and you will be on your way.

To re-synchronise your BeCM, you simply plug the BeCM Sync-Mate in and it resets the BeCM for you. No fuss, no palaver and more importantly, no costly call out fee just for two minutes work.

When it has finished working, it lets you know what it has done. With intelligent use of a high intensity flashing LED, the BeCM Sync-Mate will inform the user that the BeCM: Is already synchronised, or it is has been re-synchronised. Finally it could also inform you that there has been a communication error - in which case it will then also tell you the cause of that error.

Only if all you wanted to do was sync the EMS code. Nanocom will do that anyway.

Last edited:
i believe thats all i need to do right ? it doesn't need any codes entered etc etc just alarm sync


EMS code has nothing to do with the alarm. It is a security code stored in the ECM and written into the BECM. When ignition is turned on the BECM compares the code in the ECM with the code written in itself. If both are the same it activates the ECM and the engine will start, if they are not the same the ECM is not active and the engine won't start. The Syncmate reads the code stored in the ECM and writes it to the BECM. Syncing the security code. When you get a message on your message centre "Engine disabled" THAT is an alarm system function and needs either the fob pressing or the EKA code entering to correct it. The Thor is somewhat different to the diesel and the Gems in EMS respect though. So make sure you get the correct Syncmate if that is what you are going for. Personally if you are keeping the car get a Nanocom it will do everything you will need to do diagnostic wise.

Thanks i am alway weary of after market test Equipment, i will be purchasing a nanocom, as far as the syncing went you summed up what i have read but i just needed conformation

Many thanks Much appreciated

Well back again square 1 ….. after swapping the ECU from the other vehicle…. no difference still the same code,

I can however with the use of nanocom tell you the code also states it is a fault with the sensor/ wiring / and the ECU doesn't recognise the signal

So looks like it the front end off then happy dayz

Wammers

you gave me the wires to check for the ecu and cam and crank etc

Can you please have a look at the diagram or pass it on to me as i may have made a discovery

the blue grey wire from the cam sensor out puts with the ignition on and obviously with the cam i the right position 12v for arguments sake

as i have the ecu out i probed it right next to the ecu connector block same wire only 6.5v

So i connected a wire from the point were i get the full 12v near the alternator to the point at the ecu measure one end of the wire 12v other end ecu end 6.5 v this is as this is all connected up ?!?!?! baffled i started the car up, it ran like a bag of **** with the wire connected but the second i disconnected the jumper wire if was fine

should the ecu receive the full 12v ??? or does this wire go via another component before entering the ECU to reduce the voltage ?? or have i got a slight short in the circuit ???

Wammers

you gave me the wires to check for the ecu and cam and crank etc

Can you please have a look at the diagram or pass it on to me as i may have made a discovery

the blue grey wire from the cam sensor out puts with the ignition on and obviously with the cam i the right position 12v for arguments sake

as i have the ecu out i probed it right next to the ecu connector block same wire only 6.5v

So i connected a wire from the point were i get the full 12v near the alternator to the point at the ecu measure one end of the wire 12v other end ecu end 6.5 v this is as this is all connected up ?!?!?! baffled i started the car up, it ran like a bag of **** with the wire connected but the second i disconnected the jumper wire if was fine

should the ecu receive the full 12v ??? or does this wire go via another component before entering the ECU to reduce the voltage ?? or have i got a slight short in the circuit ???

As i said in post 21. PO340 is camshaft position sensor circuit malfunction. Open/short circuit to supply or bad earth. Sensor maybe fine problem is in loom.
Taken from 1999 on diagrams. Brown/pink 12 volt from fuse 28, 20 AMP to pin 3 sensor. Pin 2 on sensor to pin 20 ECU Grey/blue. That will not be 12 volts it will vary subject to signal pulse. Pin 1 on sensor to ground point E1398 via splice S528. Sensor plugs into connector CO176. So if sensor wiring is sound you have a problem beyond that connector. If you have 12 volts to pin three and 6.5 volts to pin 20 ECU i would suggest the problem is the earth to pin 1 from connector CO176. E1398 is located on O/S front wing below front of fuse box.

well i took the liberty to cut the harness out at the ecu end and use a jumper wire from a known good source from the cam sensor

it runs fine with no camshaft error code but won't tick over

after much hook har and many readings

i think i am getting closer it would seem this wire is connected to the idle control valve some how (maybe this is the short) and if the blue grey wire is left removed from the ecu block again it won't tick over and the rev counter doesn't work

i shall swap the idle control valve from my other vehicle

Oh and by the way i tested the power at the ecu end on the other vehicle it showed no drop in power, i am getting excited now i feel like i am getting near to the fault or going round the bend

As i said in post 21. PO340 is camshaft position sensor circuit malfunction. Open/short circuit to supply or bad earth. Sensor maybe fine problem is in loom.
Taken from 1999 on diagrams. Brown/pink 12 volt from fuse 28, 20 AMP to pin 3 sensor. Pin 2 on sensor to pin 20 ECU Grey/blue. That will not be 12 volts it will vary subject to signal pulse. Pin 1 on sensor to ground point E1398 via splice S528. Sensor plugs into connector CO176. So if sensor wiring is sound you have a problem beyond that connector. If you have 12 volts to pin three and 6.5 volts to pin 20 ECU i would suggest the problem is the earth to pin 1 from connector CO176. E1398 is located on O/S front wing below front of fuse box.


your awesome with the quotes i am keeping up but its hard without diagrams i will post picks 2 mins, in the mean time i will check the earth

Now if i have this right,

in order the first shows the earth i have cleaned up ( this is the one you meant right ?)

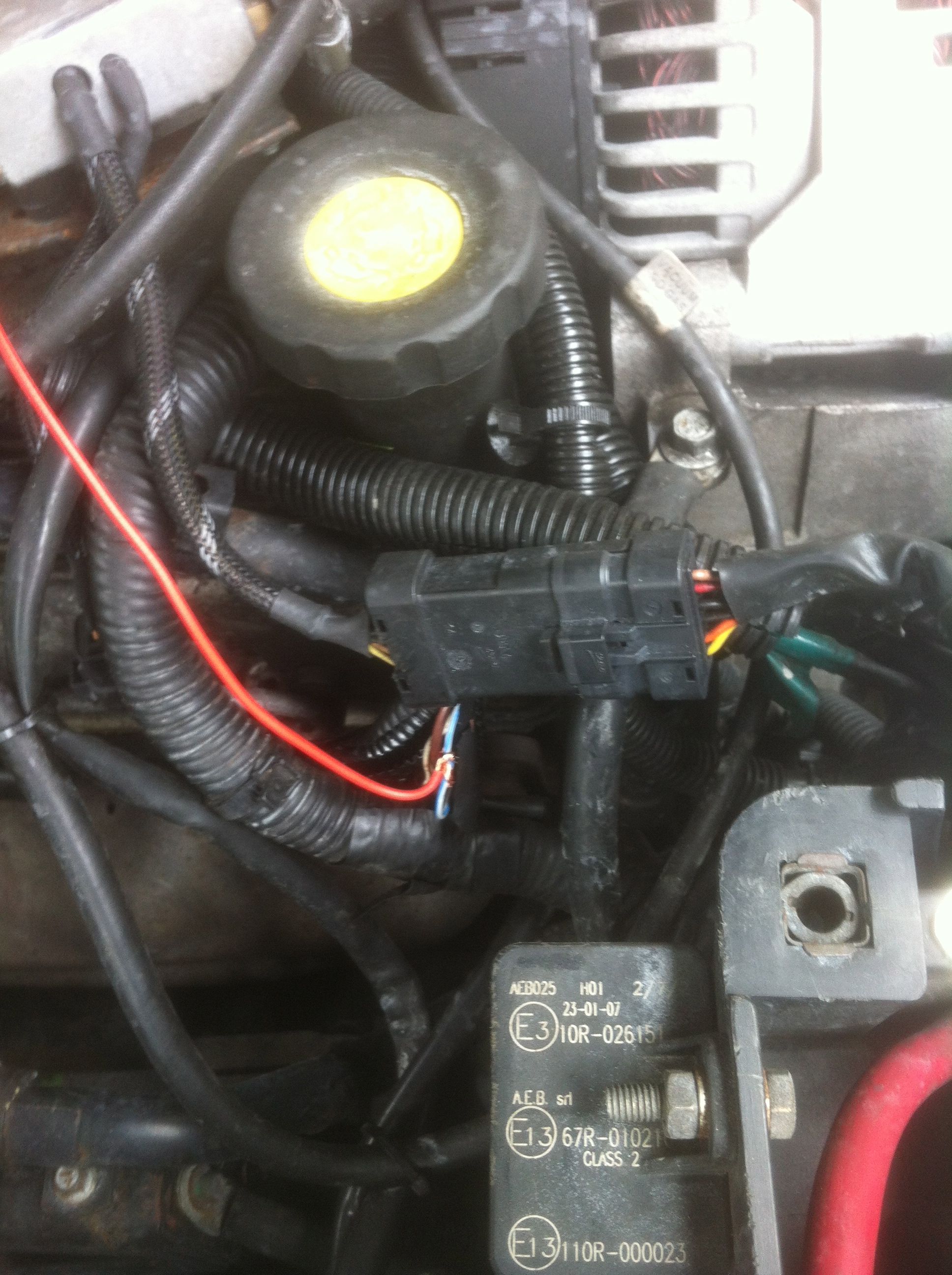

the second show the first tap at the cam sensor wire 12v

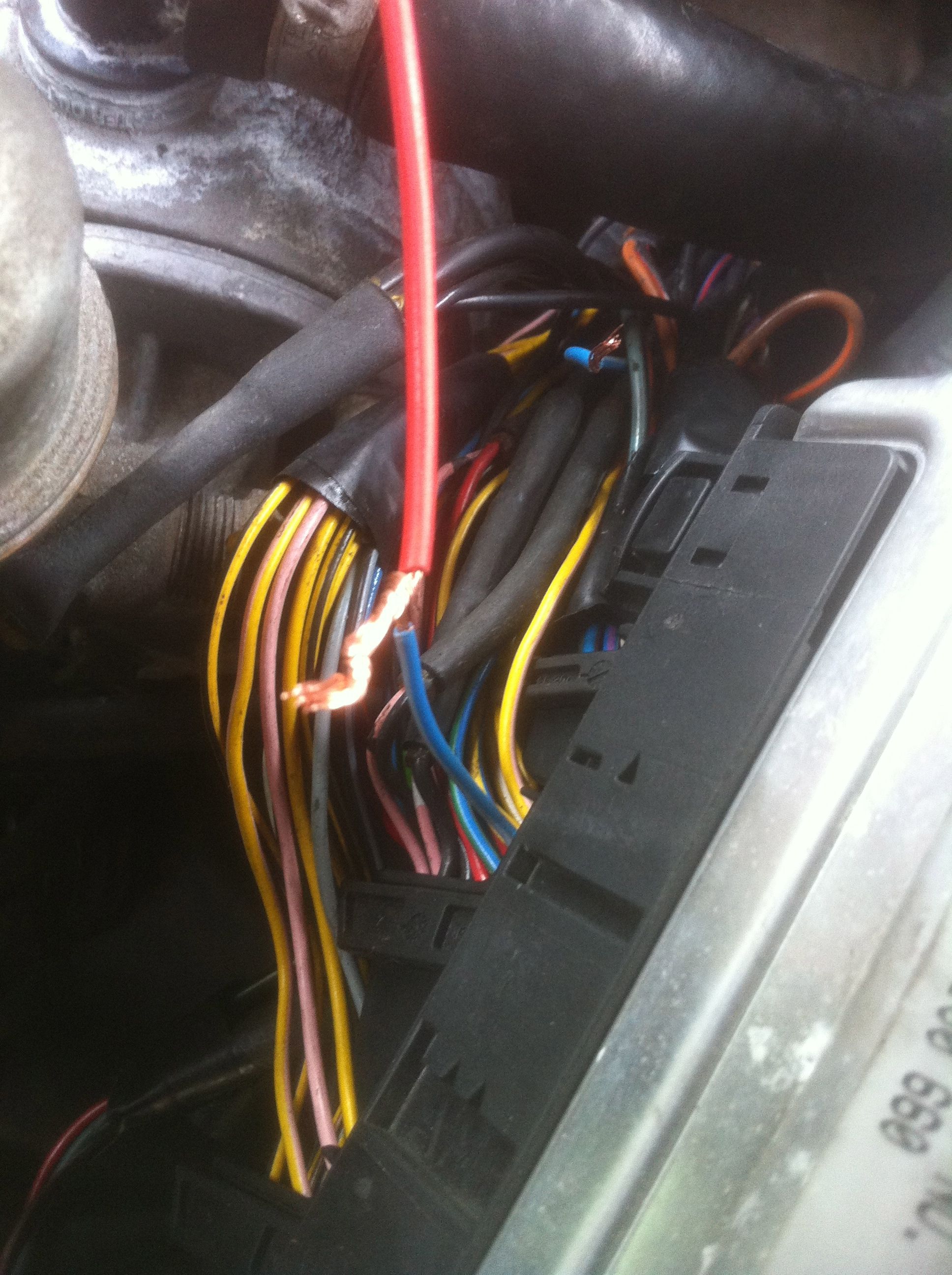

the third shows the second tap at the cam wire 6.5v with the idle control valve plugged in 2.4v with the idle control valve unplugged


I don't know what i done as i was mucking around but when the wires were connected up correctly i has 12v both ends i cleared the codes and started it up she ran like a dream for 20 seconds or so then there was a sudden change and the p0340 code re-appeared so i am on the right track

I have checked the donor vehicle and 12v is achieved at both tap in points

and other things to check ??


Attachments

  • IMG_1465.jpg
    834.4 KB · Views: 123
  • IMG_1466.jpg
    595 KB · Views: 159
  • IMG_1467.jpg
    647.6 KB · Views: 156
I have a copy of rave yes but it doesn't show wire diagrams unless i am looking in the wrong sections?

Any other copy of rave doesn't work on my computer (apple)

Do you have continuity in the wire to E1398 from pin 1 on CO176.

i cannot access rave electrical trouble shooting manuals i am screwed but the looks of it if i could find a online link ?

Do you have continuity in the wire to E1398 from pin 1 on CO176.

i cannot access rave electrical trouble shooting manuals i am screwed but the looks of it if i could find a online link ?

You know where E1398 is CO176 connector is behind crank pulley near oil filter or at least that is where it is shown on location data photos.
