Started this morning fitting the timing case seal.

Then I set the tappets.

When I finished I went though them again. I kept a pencil tick record next to the sequence in my LR manual, so I didn't get lost off. Second time around 4 of them needed a slight adjustment.
Put the new rocker cover seal in and fitted it followed by the breather pipes
Cleaned the shaft up on the crank pulley and fitted the newly painted flinger. Tapped in on with a block of wood. It's nice and tight.

Put more copperslip on the crankshaft as per @Saint.V8 's recommendation in his sticky how to. I didn't put quite as much as as you though, mate.
Put some threadlock on the crank pulley bolt and set up @aaronmorris 's pulley tool. Cheers mate. It'll be on it's way home soon.


Torqued it to 80N.m EASY!

Got the Mrs to watch the angle gauge.

While I stood on the bumper and front chassis cross member with a three foot breaker bar
Took some pulling. Here's the 'after event' picture.

Connected all the pulleys with a little threadlock on the bolts.

Fitted the new belt.


Then I fitted the airbox/filter and pipes around to the turbo.


Fitted the radiator surround, radiator, intercooler and pipework.

New pipework with EGR removed.

Used the blank that came with the EGR kit on the controller. I need to go through back pictures though to check I have the pipes and blank in the right places. Meant to do that but got carried away with the thought of starting her up.
This is the arrangement at the moment.

Filled her up with oil and then with antifreeze and water.
The final slow and repetitive top up via the top of the thermostat housing.

Measured the coolant and got a good eleven and a half litres in.
Topped up the power steering with ATF and did another check on the clutch fluid.
Removed the turbo return oil pipe and stuck it in a milk carton.

I was feeling a bit tense at this stage and was actually developing a bad head!
Connected up the battery and, with the stop solenoid disconnected. Turned it over!
This amount of oil came out of the turbo.

It was then I realised I had no idea how much oil to expect
I thought at least there is oil coming through. I'll connect the stop solenoid and try starting it with the pipe disconnected and see what happens
It took a bit of turning over, but I had replaced the fuel filter and so this was to be expected.
It started catching and then fired up. The Mrs was videoing so I'll post that soon.
It sounded SUPERB It was so smooth and quiet! I stopped it after a few seconds.
This is how much oil had come through the turbo in a very short space of time.

Refitted the oil return pipe and took it for a 12 mile blast.
Quiet, smooth and pulled really well. Left the 30mph zone of the village and pulled quickly up to 60mph Feels great!
I'll upload some video to youtube.

Al2O3 said:

She's certainly worth looking after.

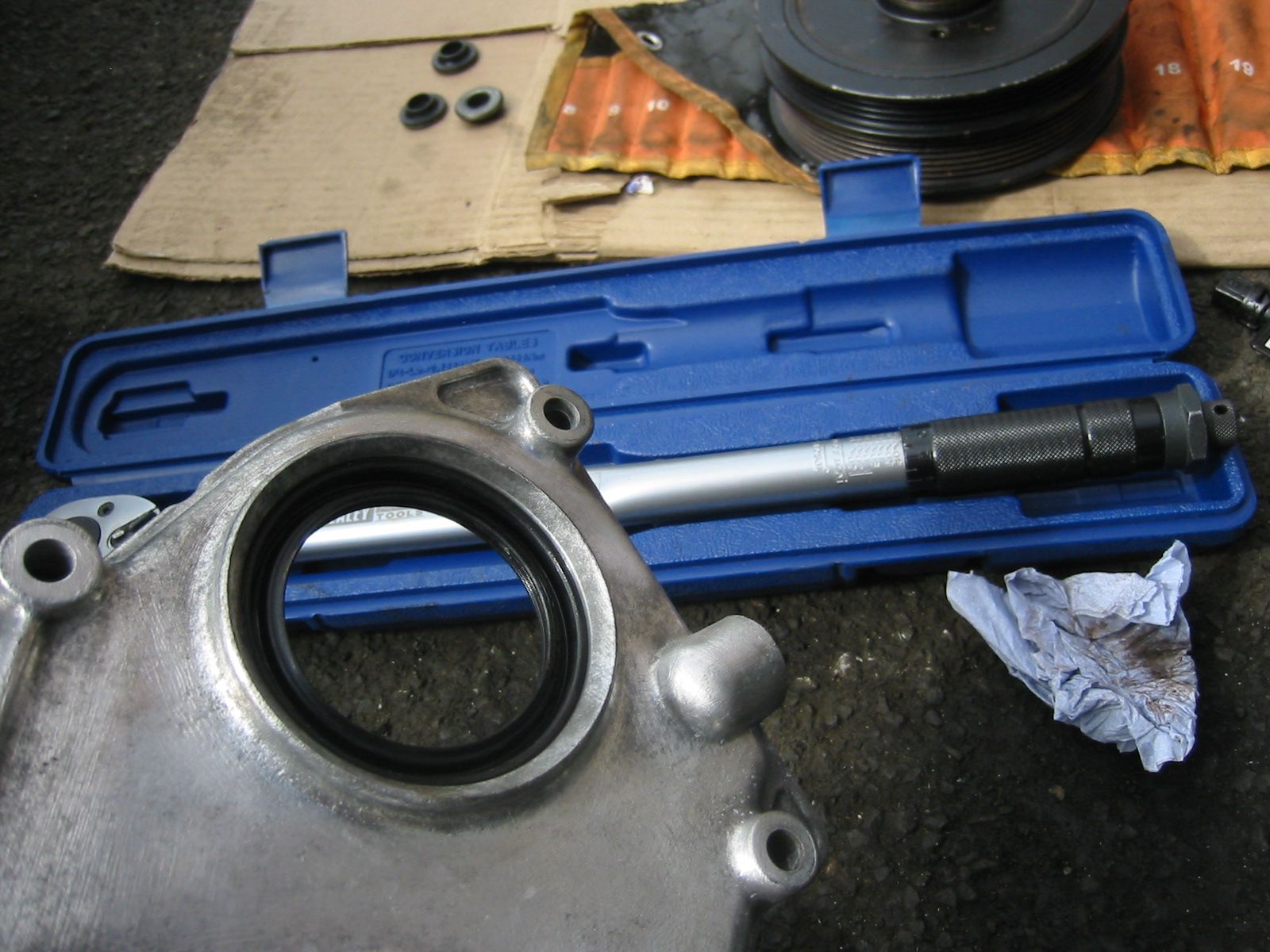

Started this morning fitting the timing case seal.
View attachment 124519

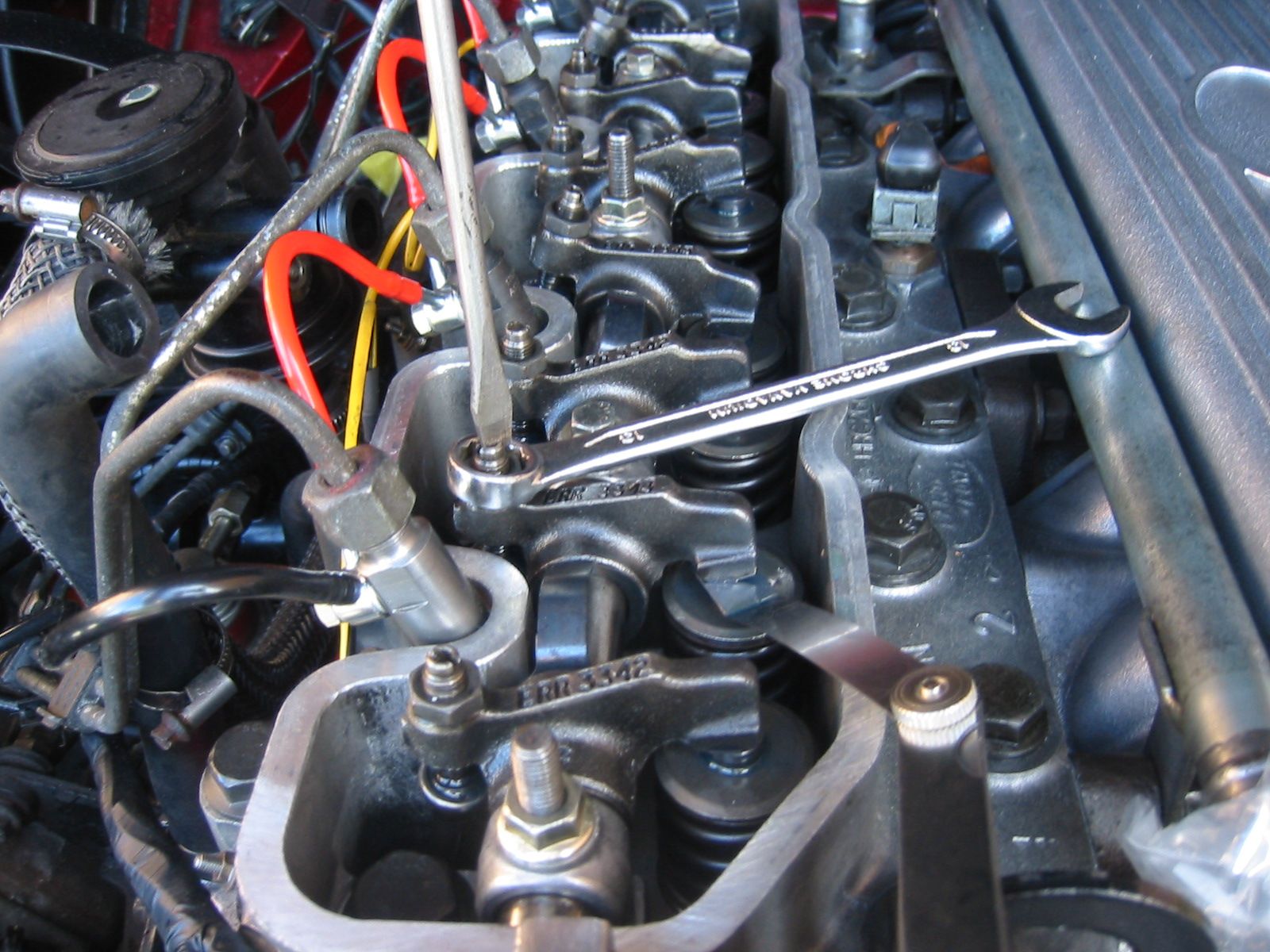

Then I set the tappets.
View attachment 124520
When I finished I went though them again. I kept a pencil tick record next to the sequence in my LR manual, so I didn't get lost off. Second time around 4 of them needed a slight adjustment.

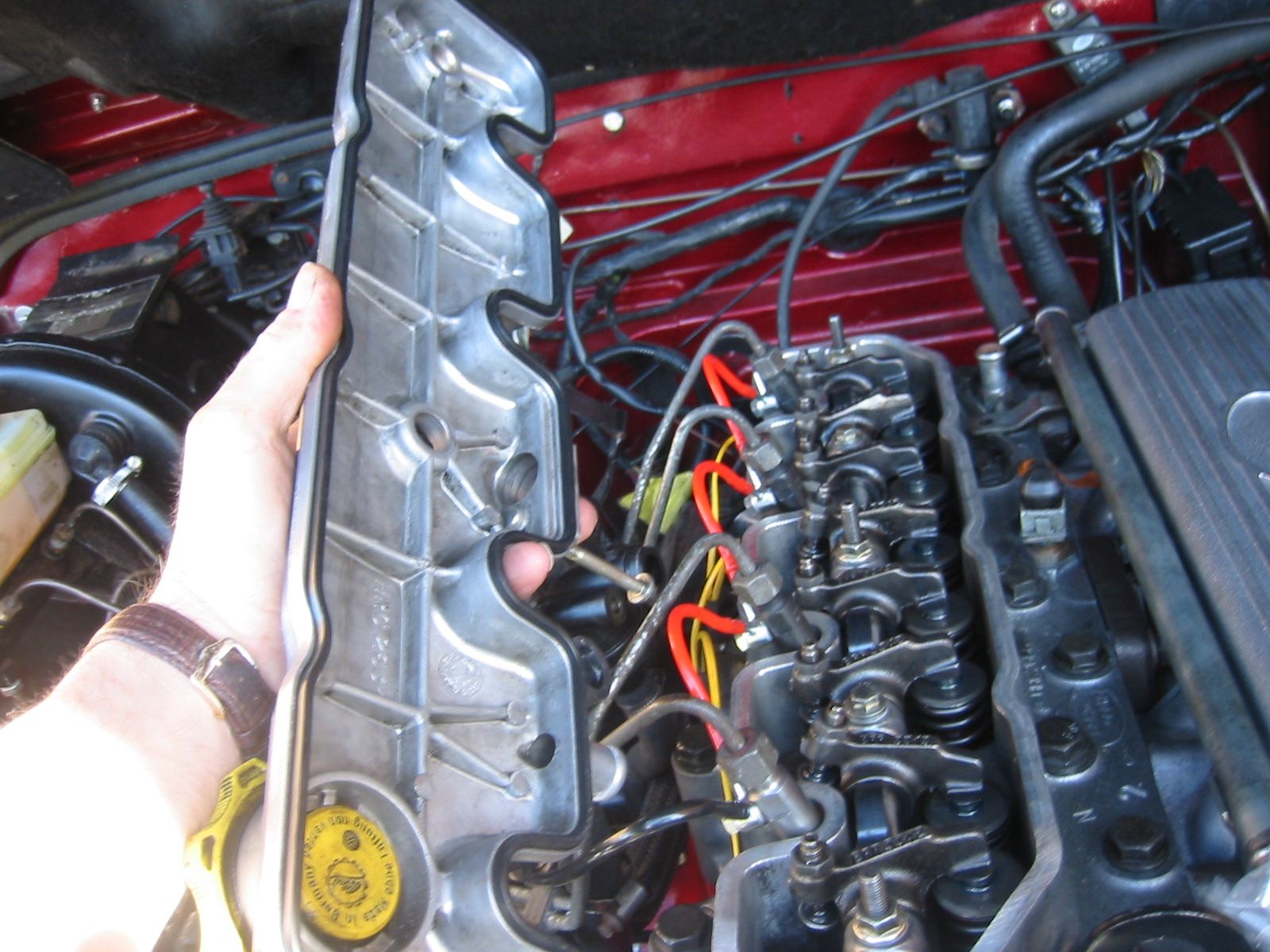

Put the new rocker cover seal in and fitted it followed by the breather pipesView attachment 124521

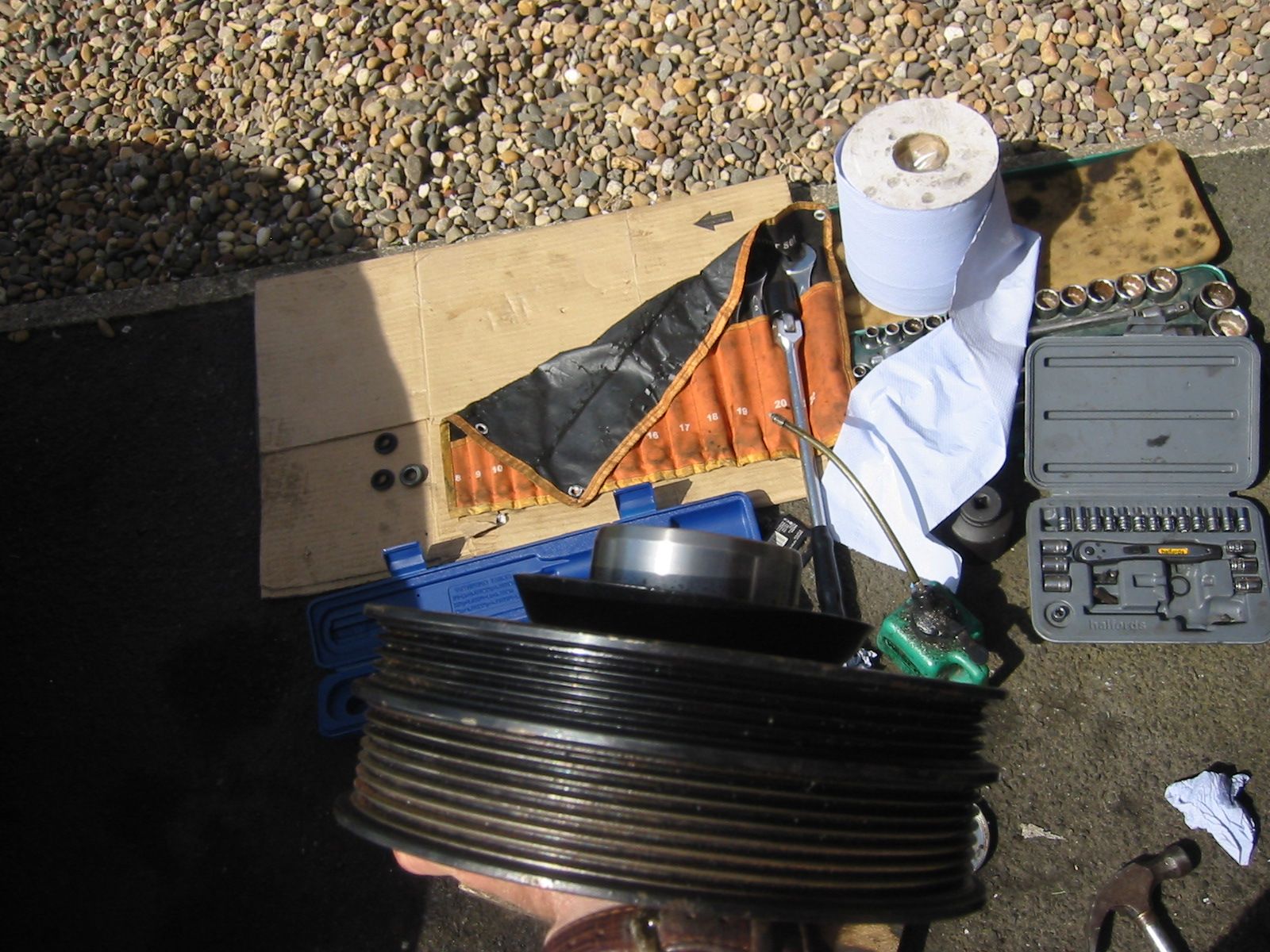

Cleaned the shaft up on the crank pulley and fitted the newly painted flinger. Tapped in on with a block of wood. It's nice and tight.
View attachment 124522

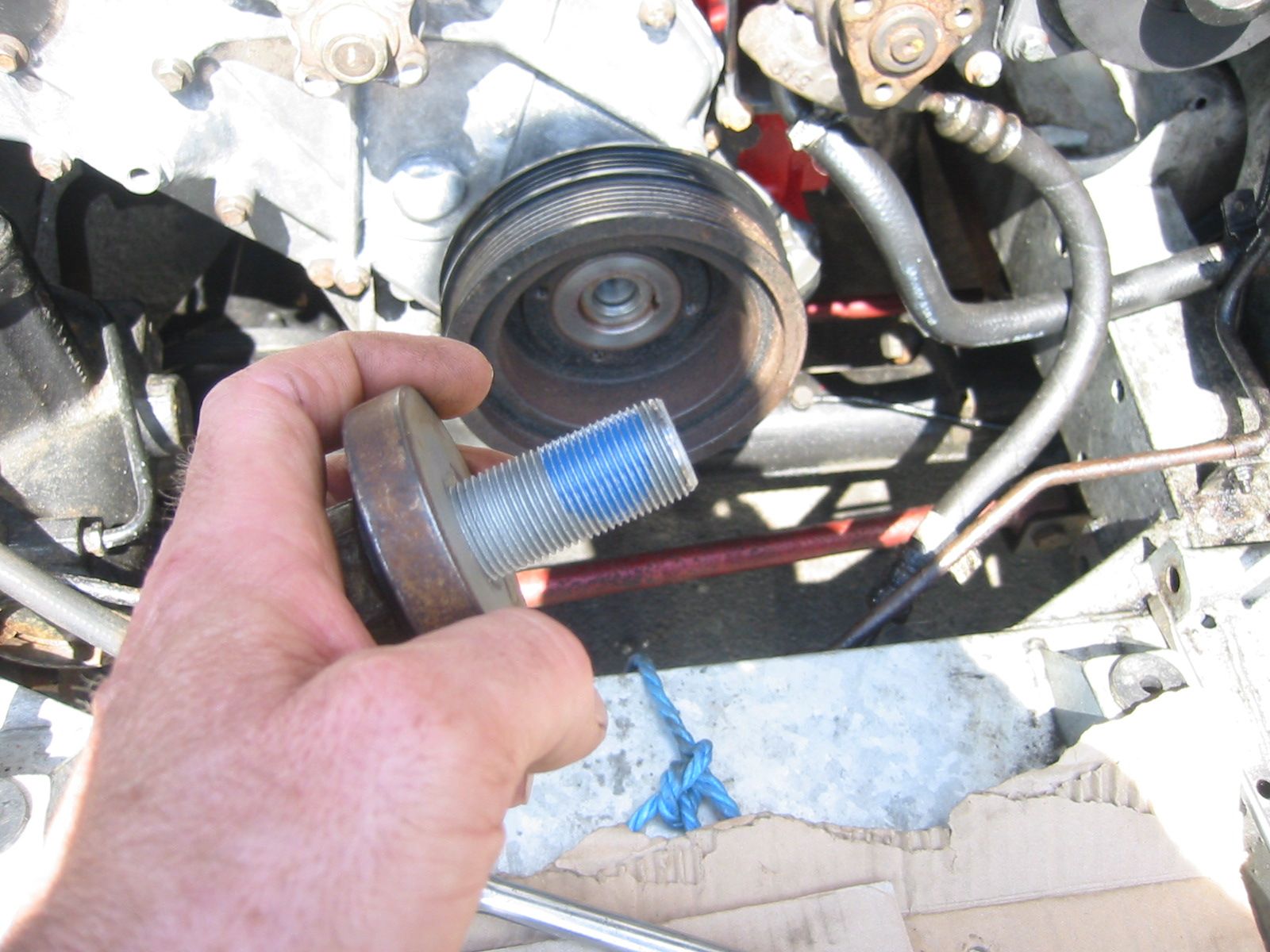

Put more copperslip on the crankshaft as per @Saint.V8 's recommendation in his sticky how to. I didn't put quite as much as as you though, mate.

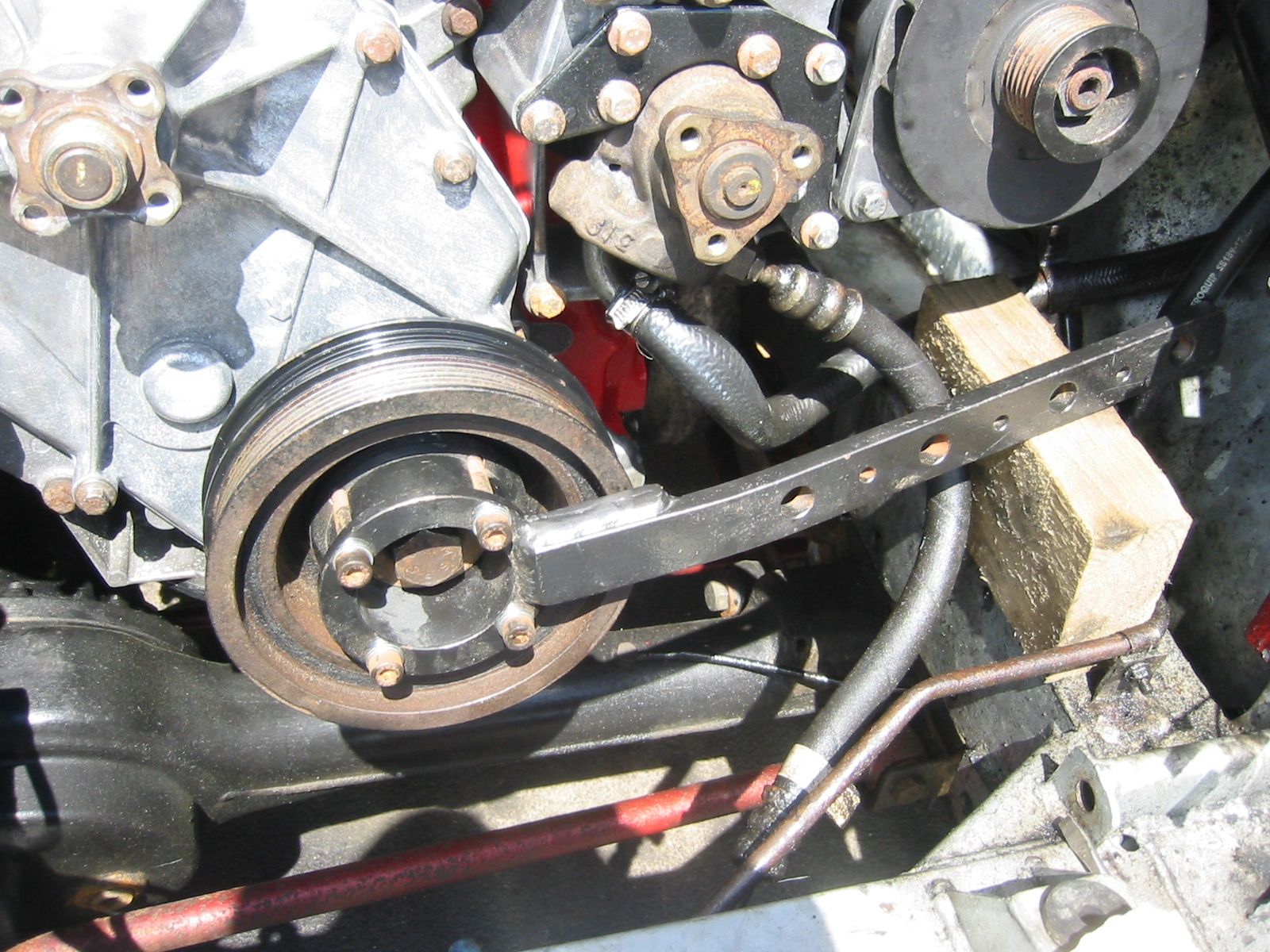

Put some threadlock on the crank pulley bolt and set up @aaronmorris 's pulley tool. Cheers mate. It'll be on it's way home soon.
View attachment 124523
View attachment 124524

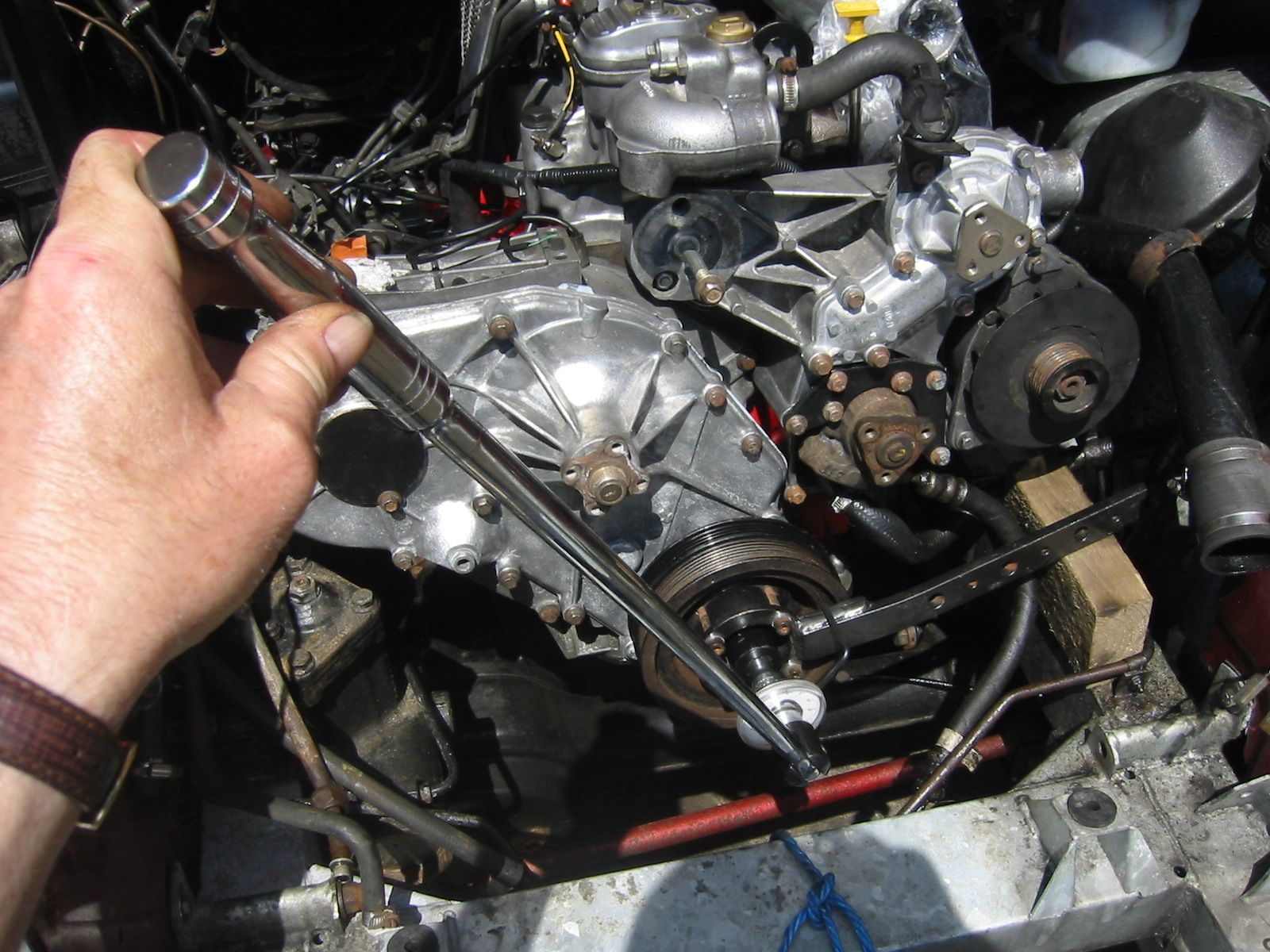

Torqued it to 80N.m EASY!

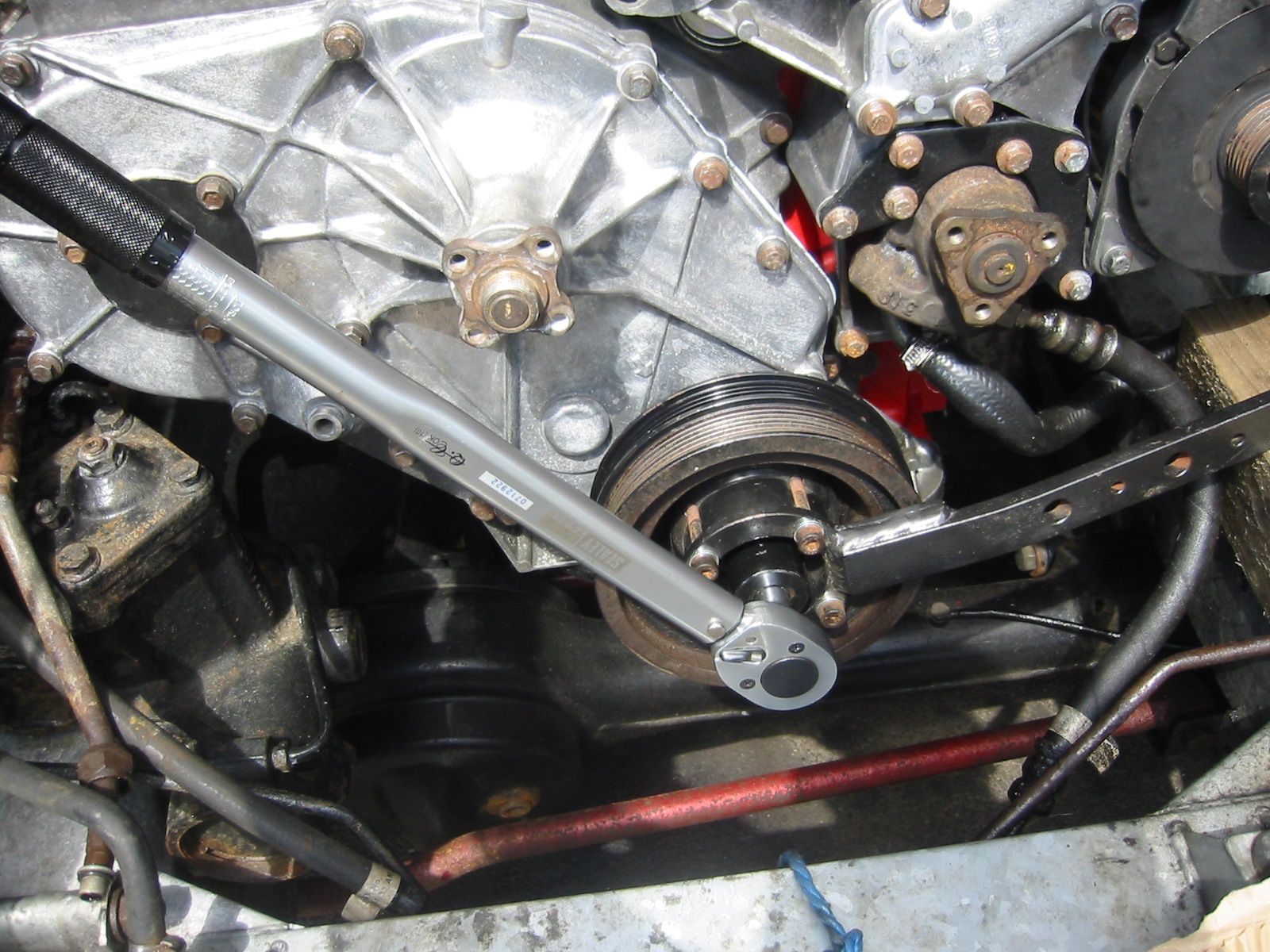

View attachment 124525

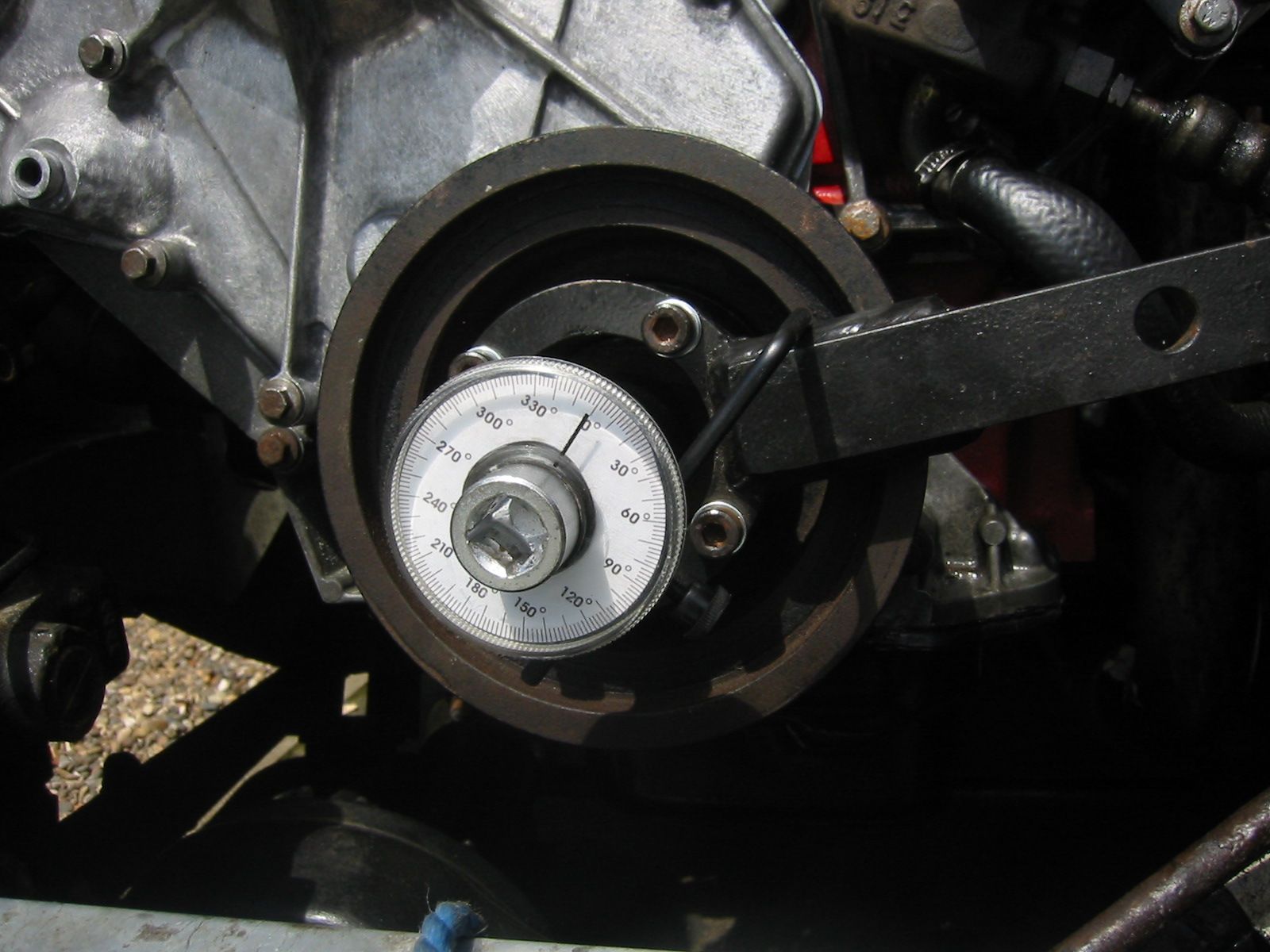

Got the Mrs to watch the angle gauge.
View attachment 124526
While I stood on the bumper and front chassis cross member with a three foot breaker bar
Took some pulling. Here's the 'after event' picture.
View attachment 124527

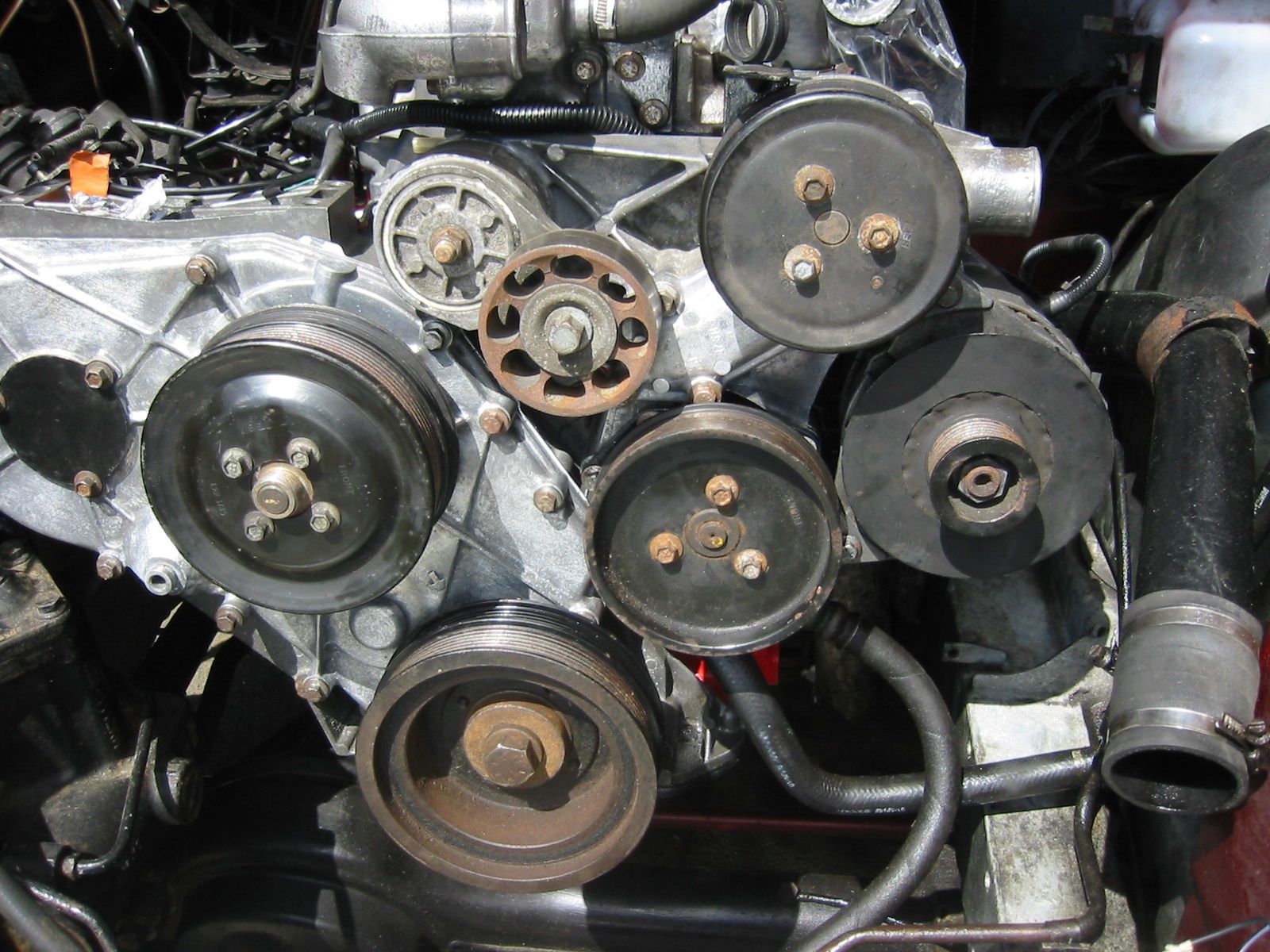

Connected all the pulleys with a little threadlock on the bolts.
View attachment 124528
Fitted the new belt.

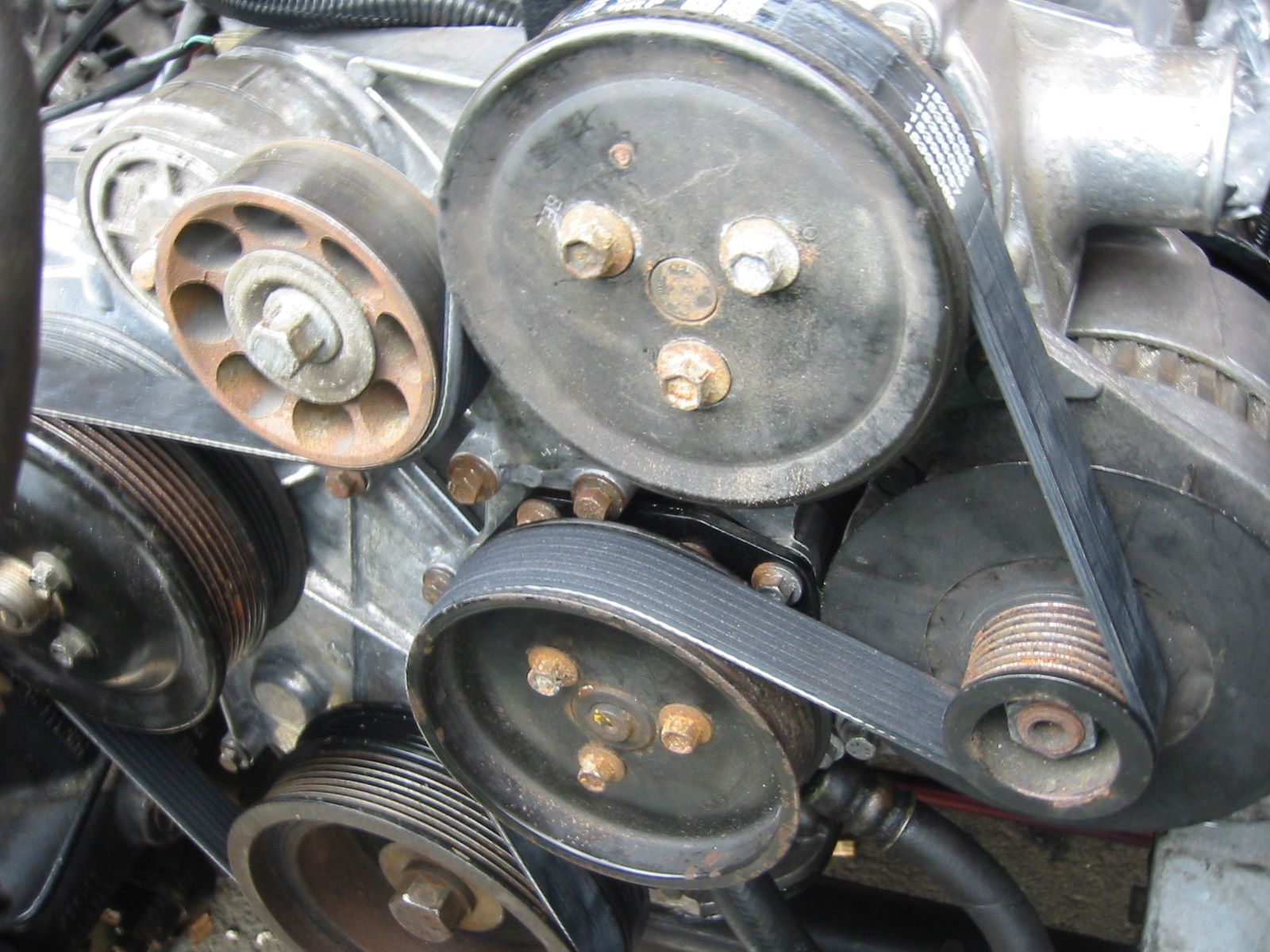

View attachment 124529

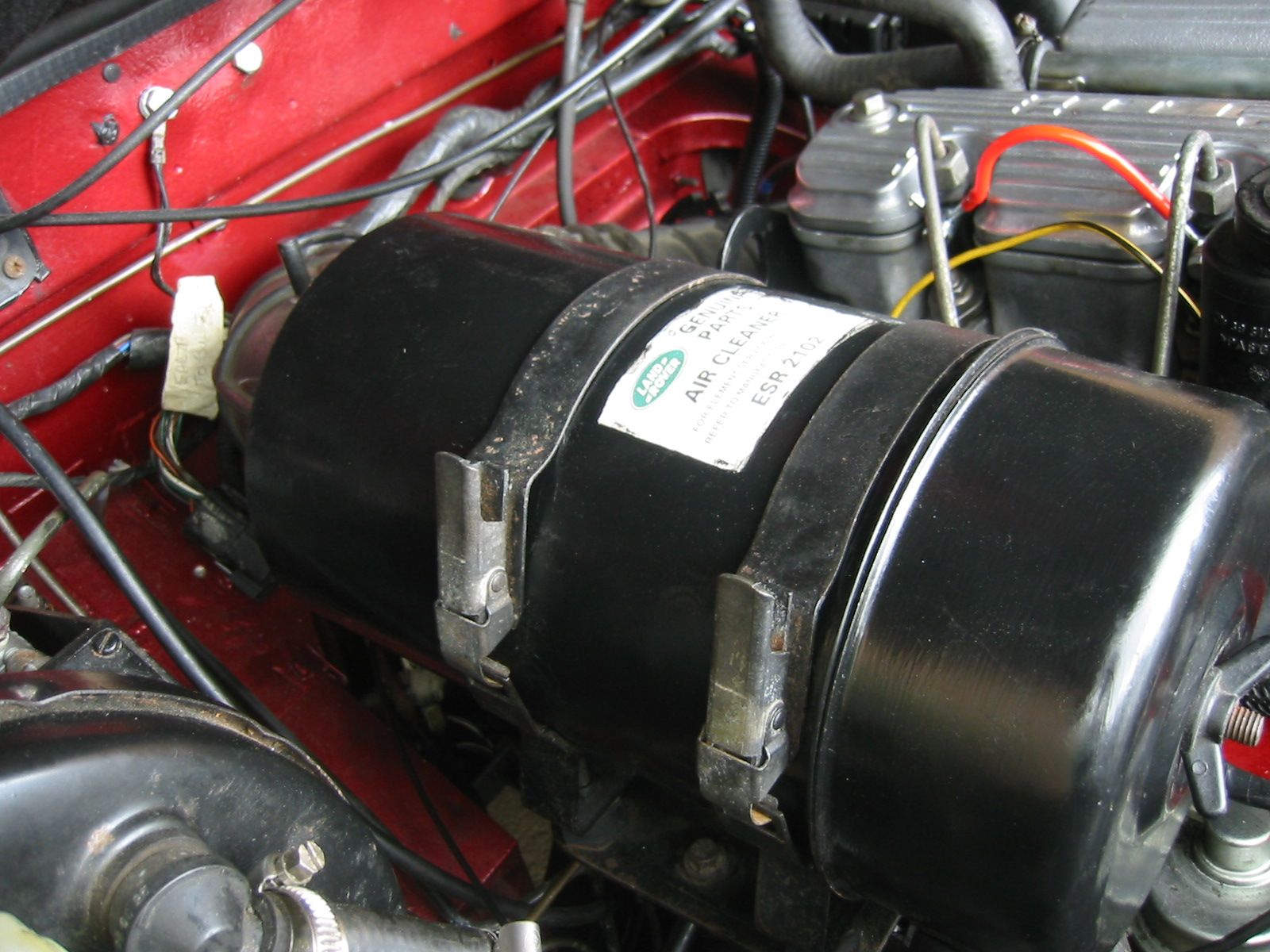

Then I fitted the airbox/filter and pipes around to the turbo.
View attachment 124530
View attachment 124531

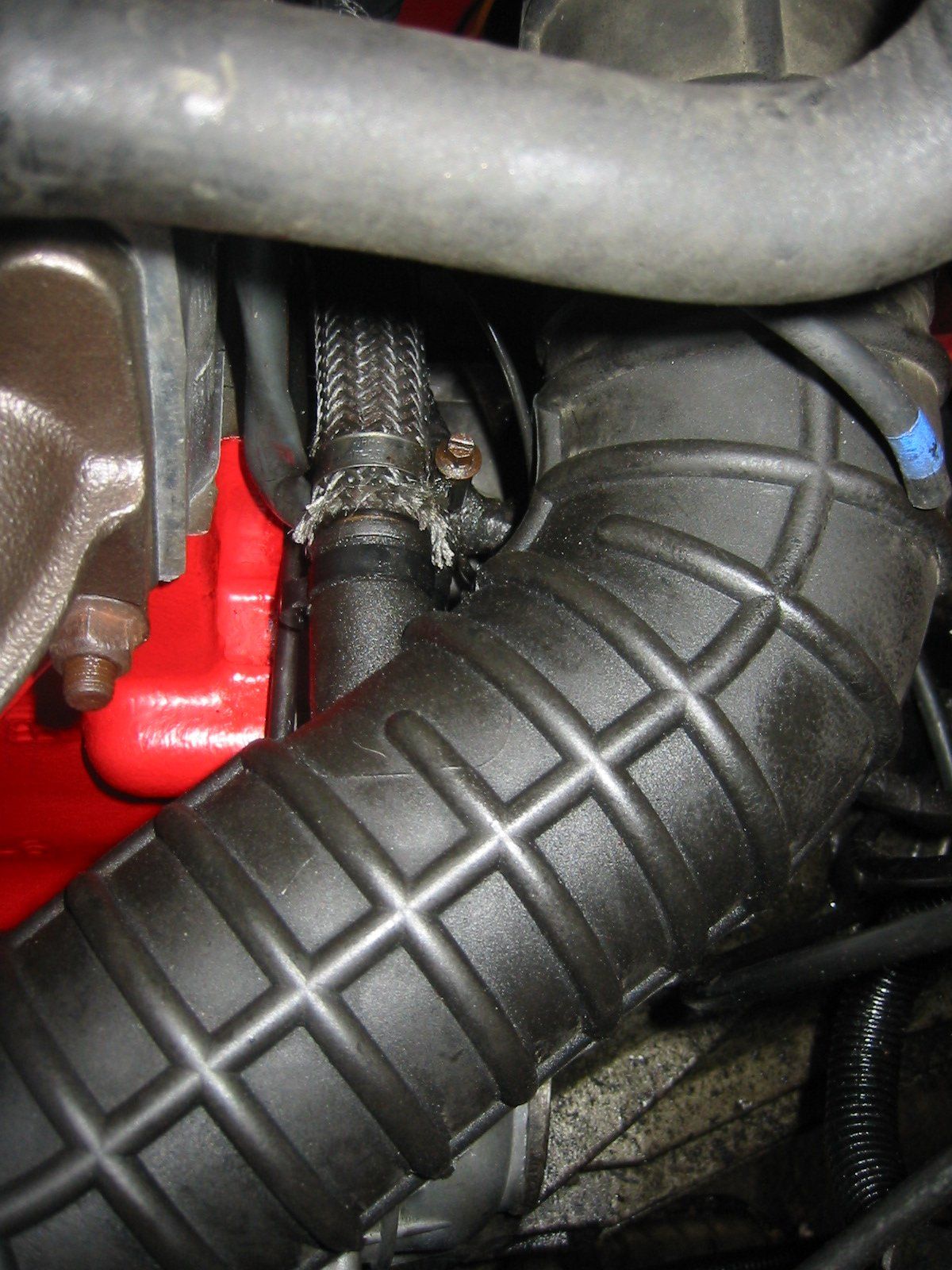

Fitted the radiator surround, radiator, intercooler and pipework.
View attachment 124532
New pipework with EGR removed.

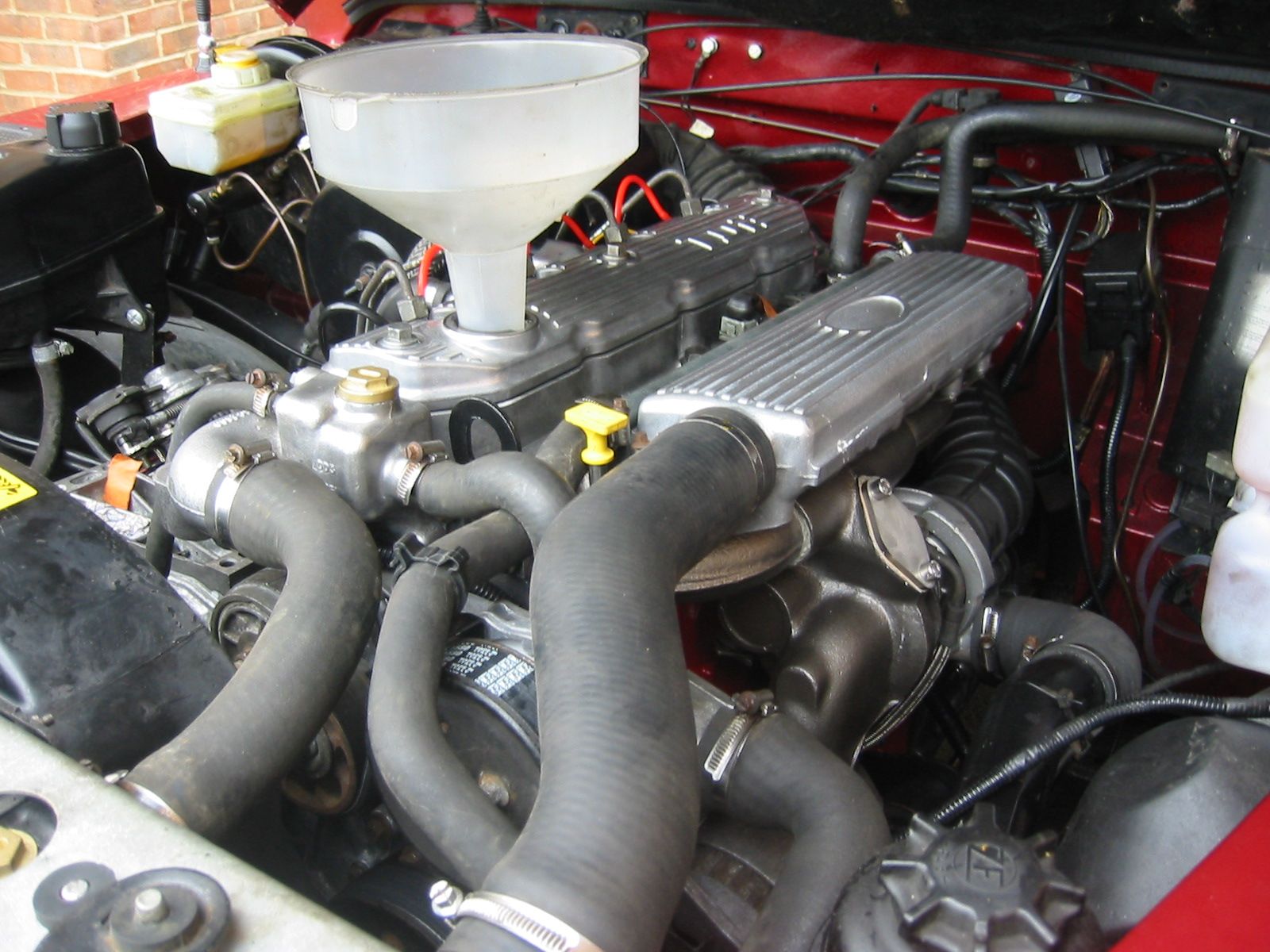

View attachment 124533

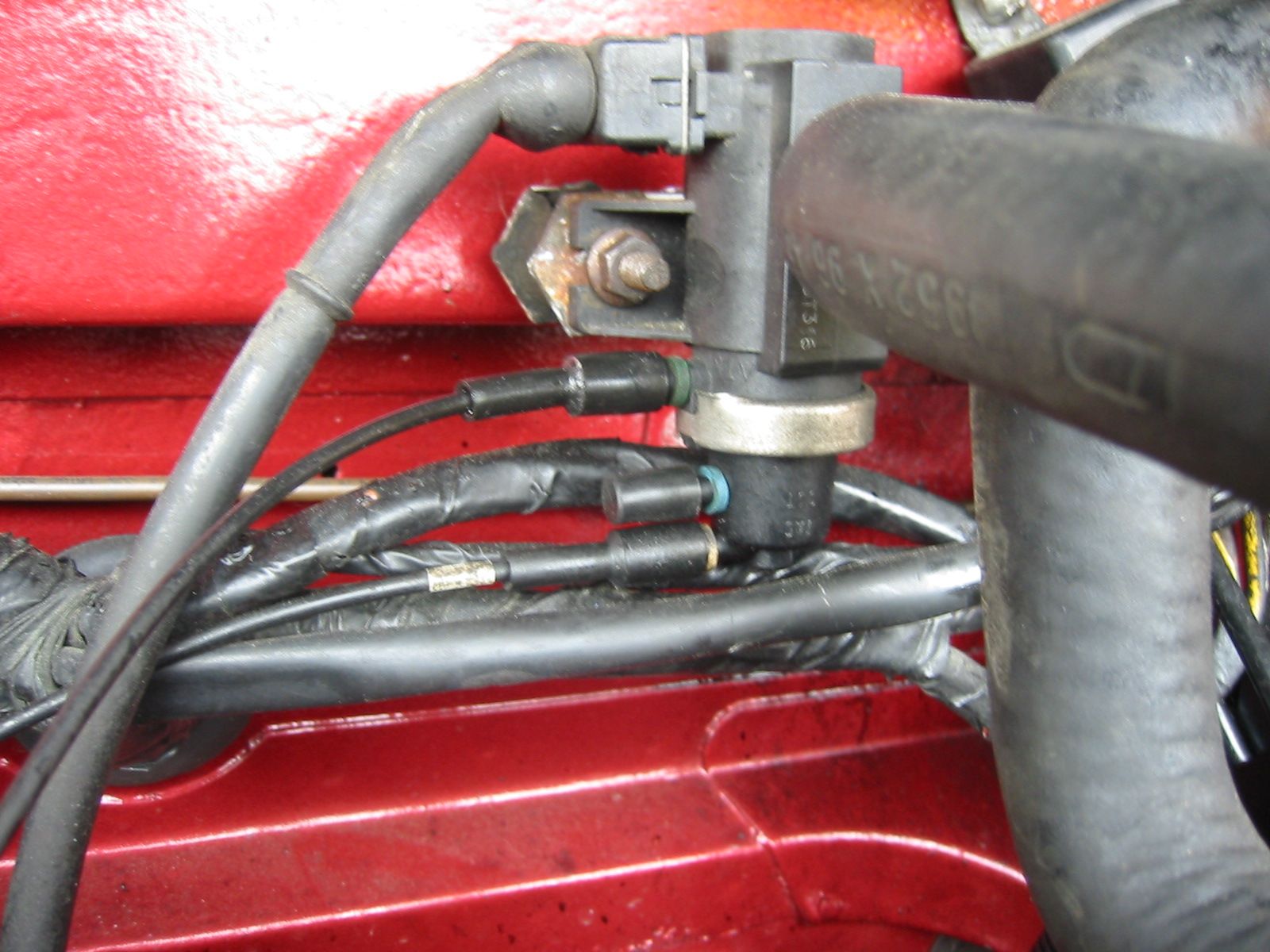

Used the blank that came with the EGR kit on the controller. I need to go through back pictures though to check I have the pipes and blank in the right places. Meant to do that but got carried away with the thought of starting her up.
This is the arrangement at the moment.
View attachment 124534
Filled her up with oil and then with antifreeze and water.

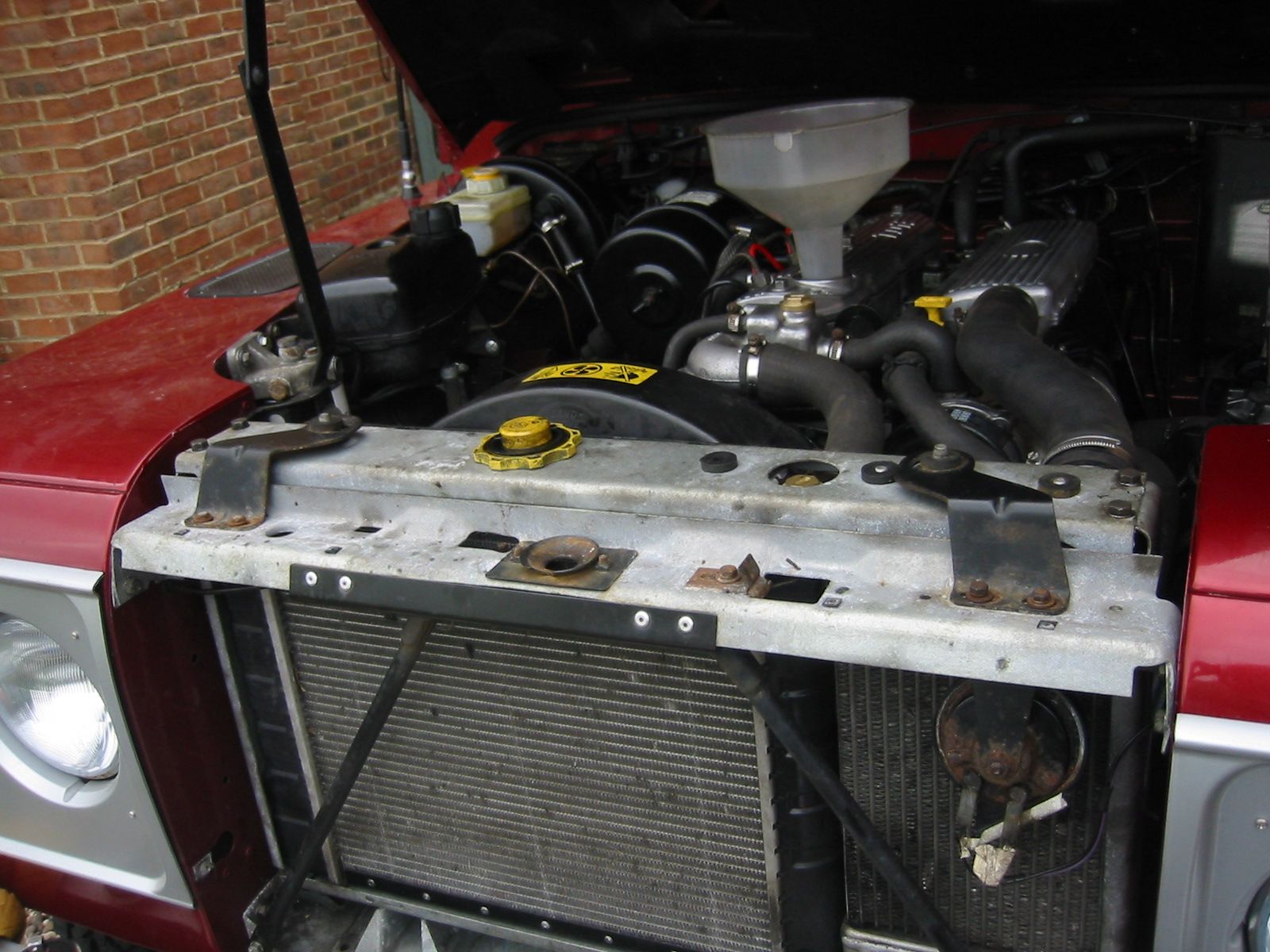

The final slow and repetitive top up via the top of the thermostat housing.

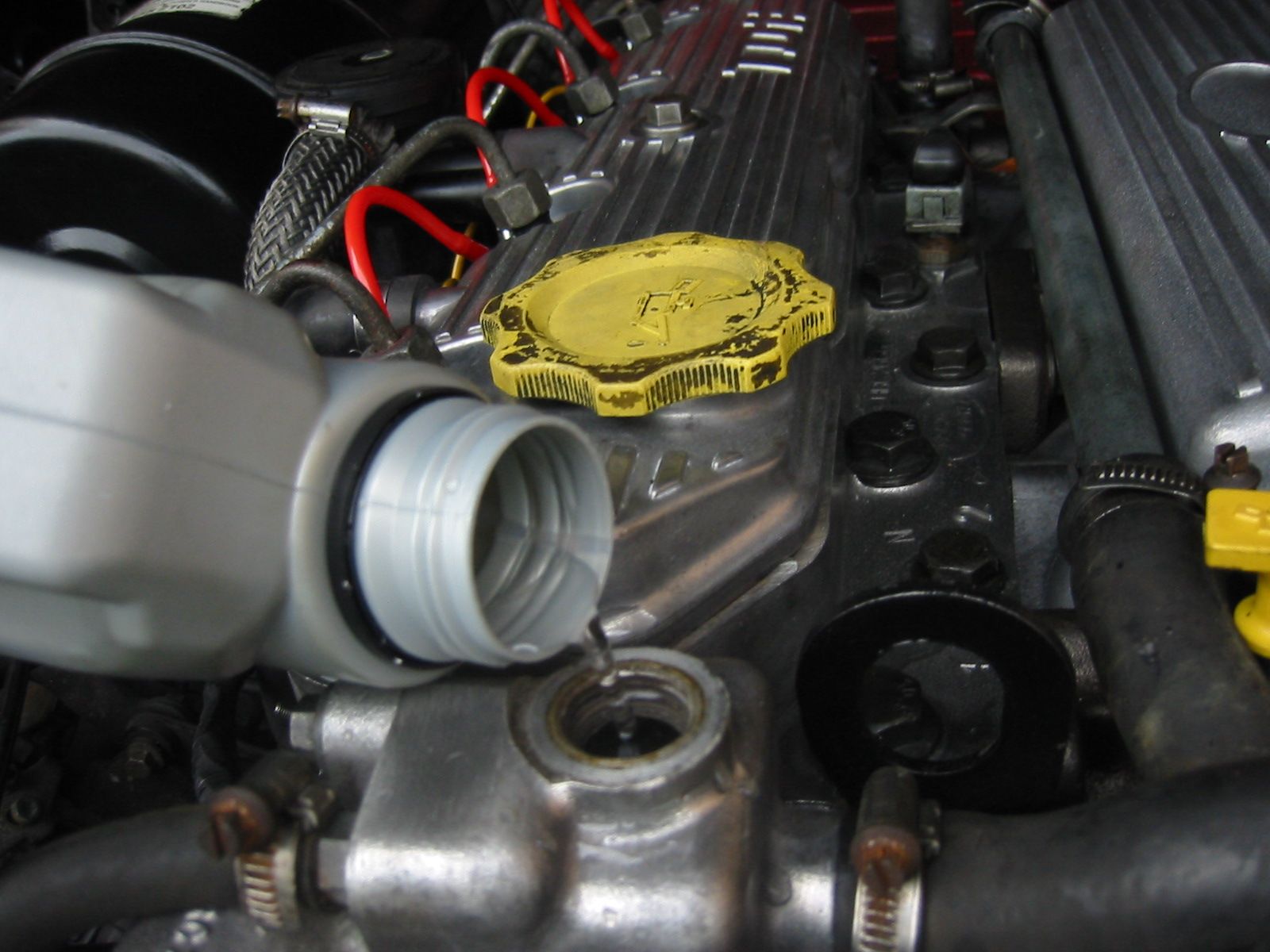

View attachment 124536
Measured the coolant and got a good eleven and a half litres in.
Topped up the power steering with ATF and did another check on the clutch fluid.

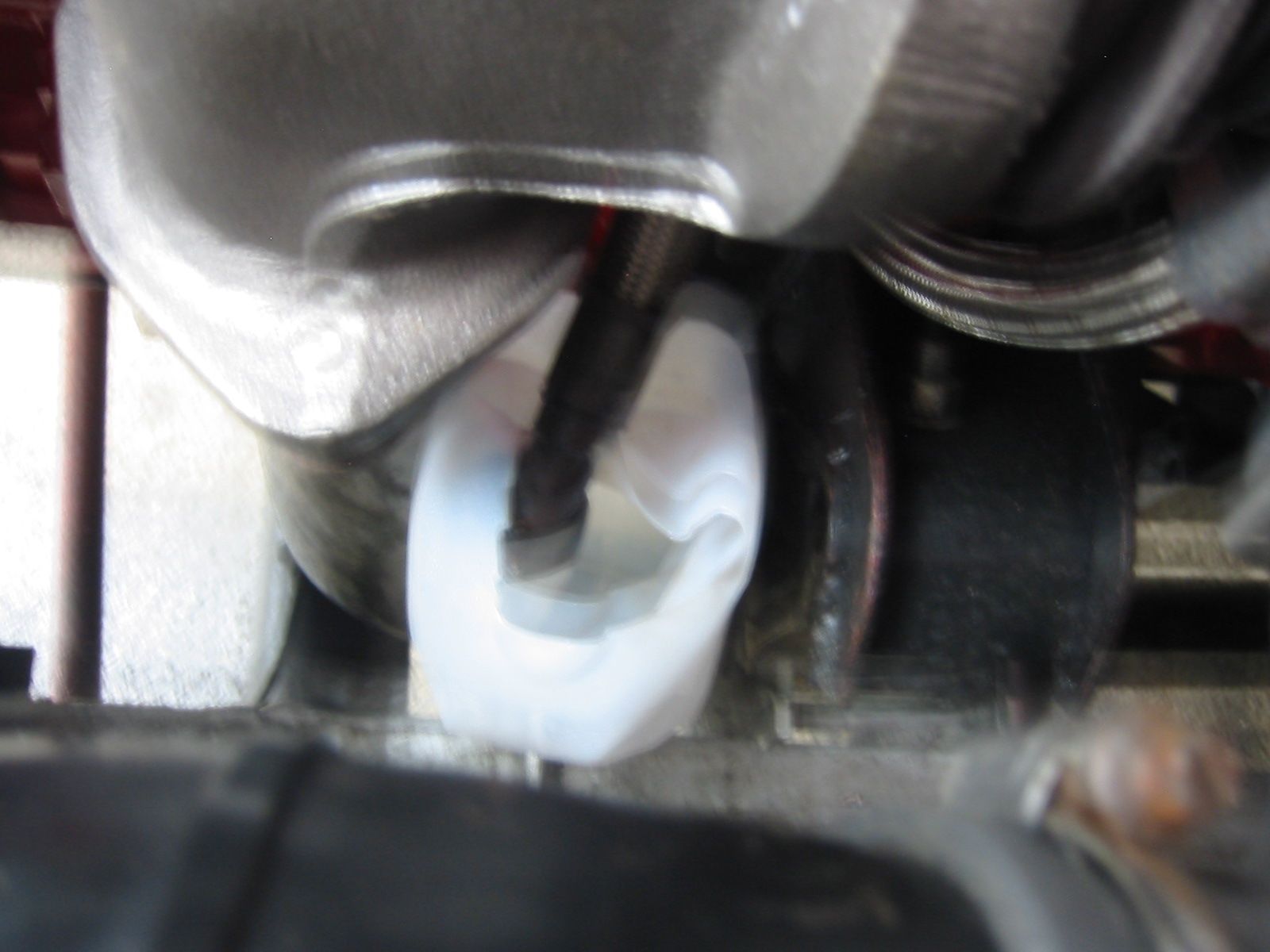

Removed the turbo return oil pipe and stuck it in a milk carton.
View attachment 124537
I was feeling a bit tense at this stage and was actually developing a bad head!
Connected up the battery and, with the stop solenoid disconnected. Turned it over!
This amount of oil came out of the turbo.
View attachment 124538
It was then I realised I had no idea how much oil to expect
I thought at least there is oil coming through. I'll connect the stop solenoid and try starting it with the pipe disconnected and see what happens
It took a bit of turning over, but I had replaced the fuel filter and so this was to be expected.
It started catching and then fired up. The Mrs was videoing so I'll post that soon.
It sounded SUPERB It was so smooth and quiet! I stopped it after a few seconds.

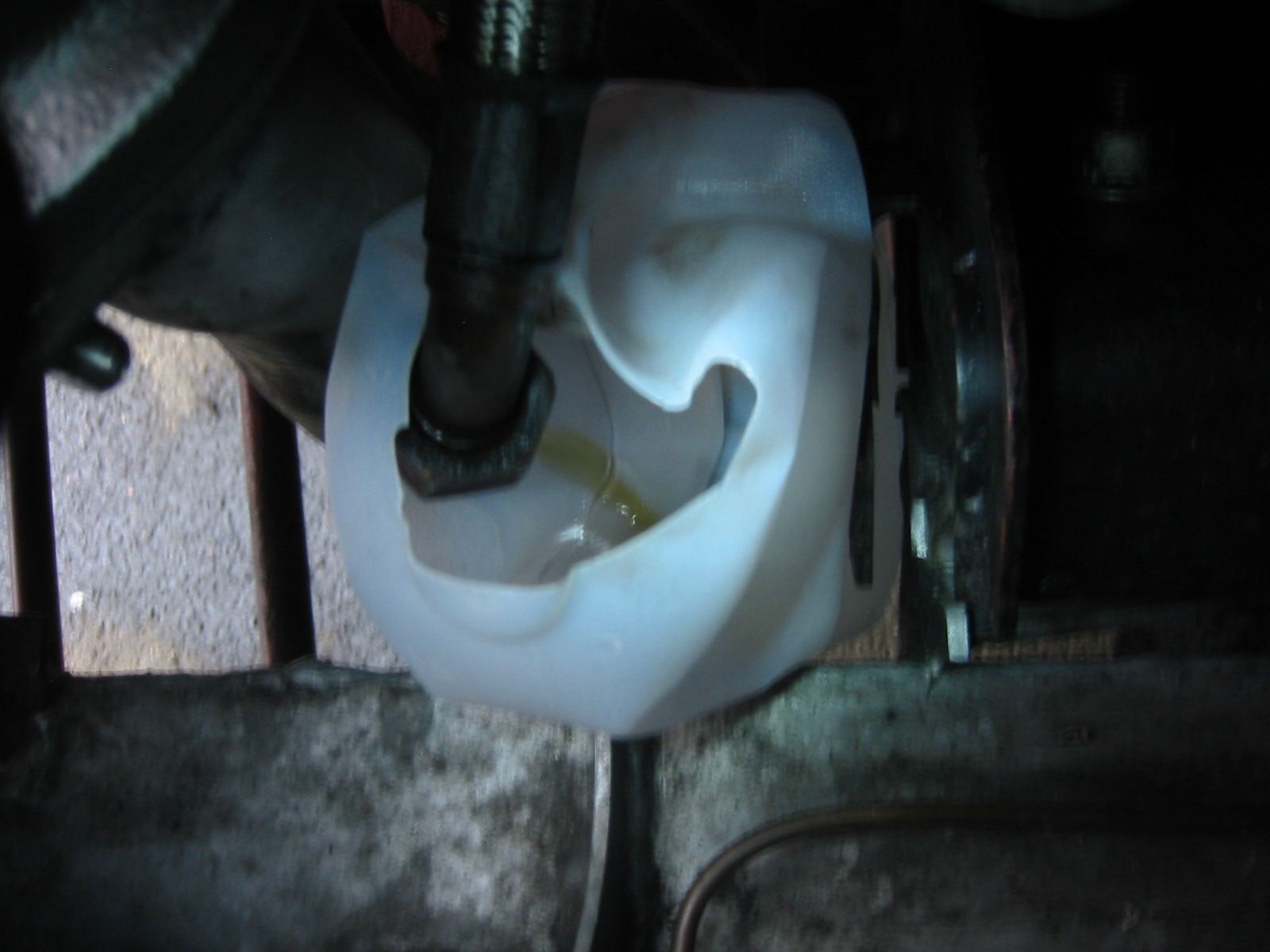

This is how much oil had come through the turbo in a very short space of time.
View attachment 124539
Refitted the oil return pipe and took it for a 12 mile blast.
Quiet, smooth and pulled really well. Left the 30mph zone of the village and pulled quickly up to 60mph Feels great!
I'll upload some video to youtube.
