spigot bush in the end of crank?
2.5 N/A to 3.9 V8 EFi Conversion
- Thread starter Tmo
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
bush just taps into the end of crank ,engines with auto box dont use one
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
alternator needs battery feed to b+ terminal (from main lead on starter is fine )then thin wire from ignition light to d+
Soo......removed the engine today AGAIN and have taken some snaps of the flywheel and clutch assembly
Can you advise where spigot bush goes as there appears to be what looks like a spigot in the middle of the flywheel however I never fitted one and it was auto before
Clutch looks pretty knackered too
Got some done on the flooring just need to get this bloody spigot bush fitted then it can go back in gonna do some painting and bits whilst it out.
Exhaust setup is simple enough just need some flexi pipe anyone know of best place to get some???
Can you advise where spigot bush goes as there appears to be what looks like a spigot in the middle of the flywheel however I never fitted one and it was auto before
Clutch looks pretty knackered too
Got some done on the flooring just need to get this bloody spigot bush fitted then it can go back in gonna do some painting and bits whilst it out.
Exhaust setup is simple enough just need some flexi pipe anyone know of best place to get some???
4x4madness
Active Member
- Posts
- 138
- Location
- Cornwall, UK
Yes you need to cut off old mounts and move them forward to where the engine mounts holders sit, quite easy even if your a novice a friend of mine did them for me with a mig only took half hour. Engine sits forward quite a bit gives good access to bell housing and rear of engine
4x4madness
Active Member
- Posts
- 138
- Location
- Cornwall, UK
So just cleaning up engine a bit whilst its out
Got some questions on the alternator
Big brown cable goes to starter motor where do the small brown and white cables go?
Need to sort this out as not getting it to charge the battery at the moment?..
I know top one is fuel rail temp what exactly is middle and bottom connections?
What does this blue plug do?
Got some questions on the alternator
Big brown cable goes to starter motor where do the small brown and white cables go?
Need to sort this out as not getting it to charge the battery at the moment?..
I know top one is fuel rail temp what exactly is middle and bottom connections?
What does this blue plug do?
griffman
Active Member
- Posts
- 474
- Location
- horley surrey
suggest you put your alternator query on the V8 section - loads of knowledge on there chap and most of the boys are very helpful........................
I think the smaller cable MAY go too the rev-counter.
I think the smaller cable MAY go too the rev-counter.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
the terminals are marked on the back of alt ,battery (brown)live thick wires go to b+ thin ignition (brown/yellow)light wire to d+ white/grey to w,switch on top hose elbow is for aircon fan,coil will have 2 wires one on - one on + from dizzy module ,one ignition live to + and a ecu input on - have you put some of theses on alt ,battery live wires are brown ignition live white
So did a little bit of rust removal today on the rear ground down alot of the big patches of rust off the chassis and treated with some rustproof black gunk.
Got new springs and some poly bushes coming to lot back on so will do other side this week.
I've got the dreaded dvla inspection on Saturday to get the v5 details changed not looking forward to that

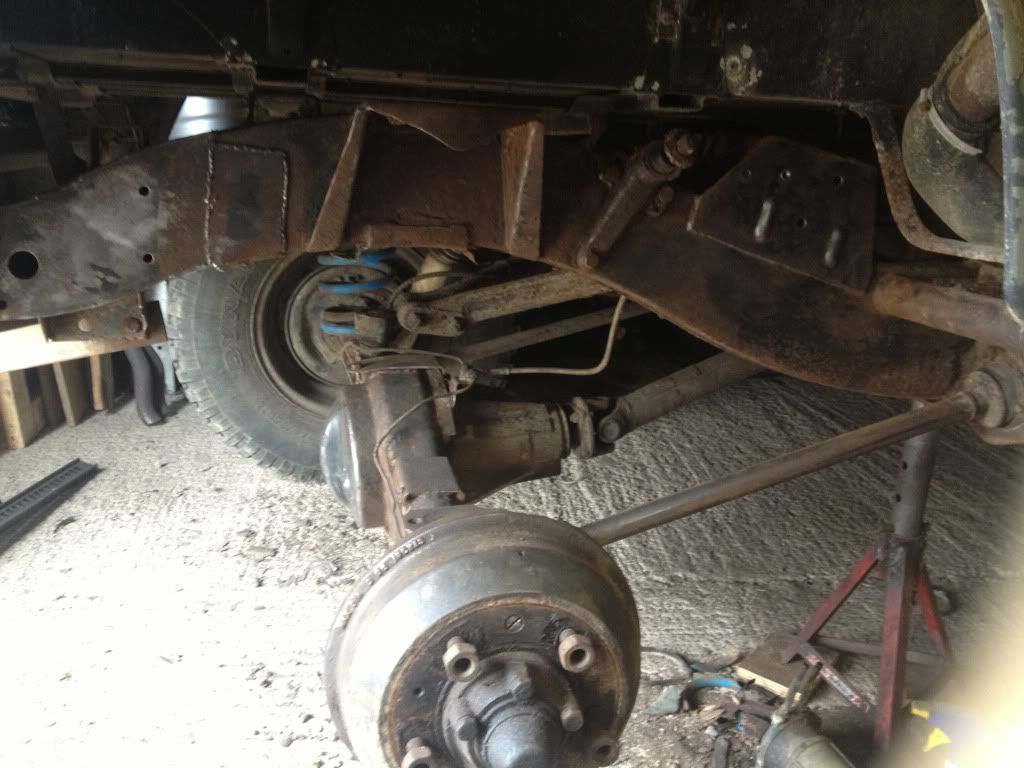

Before

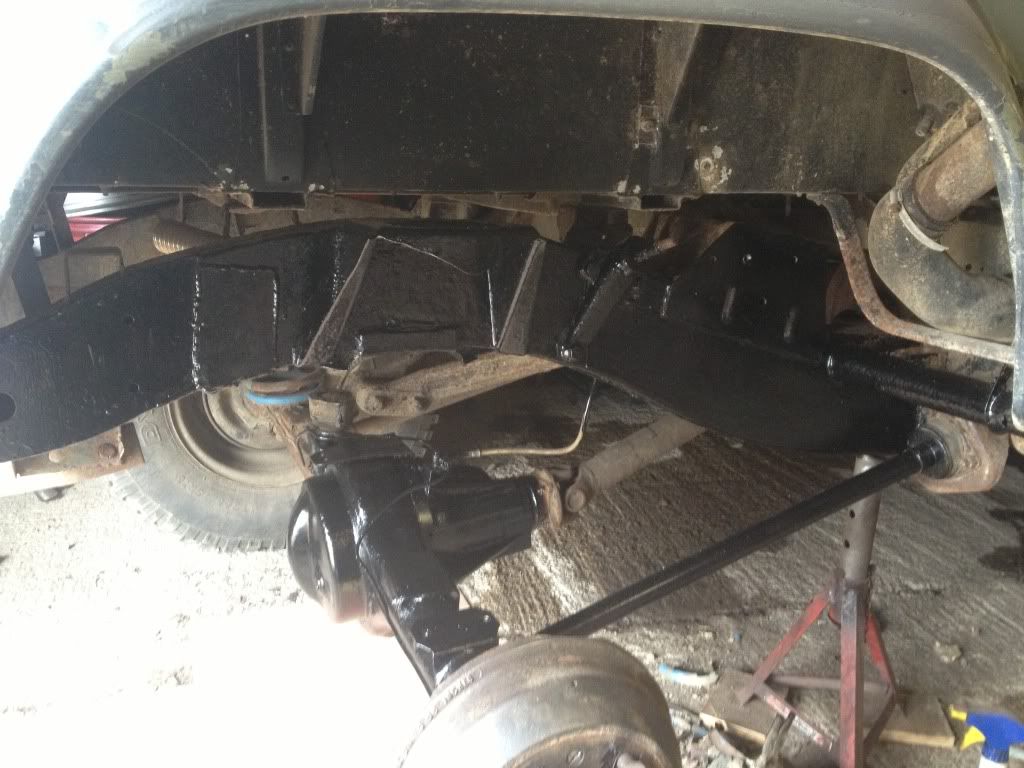

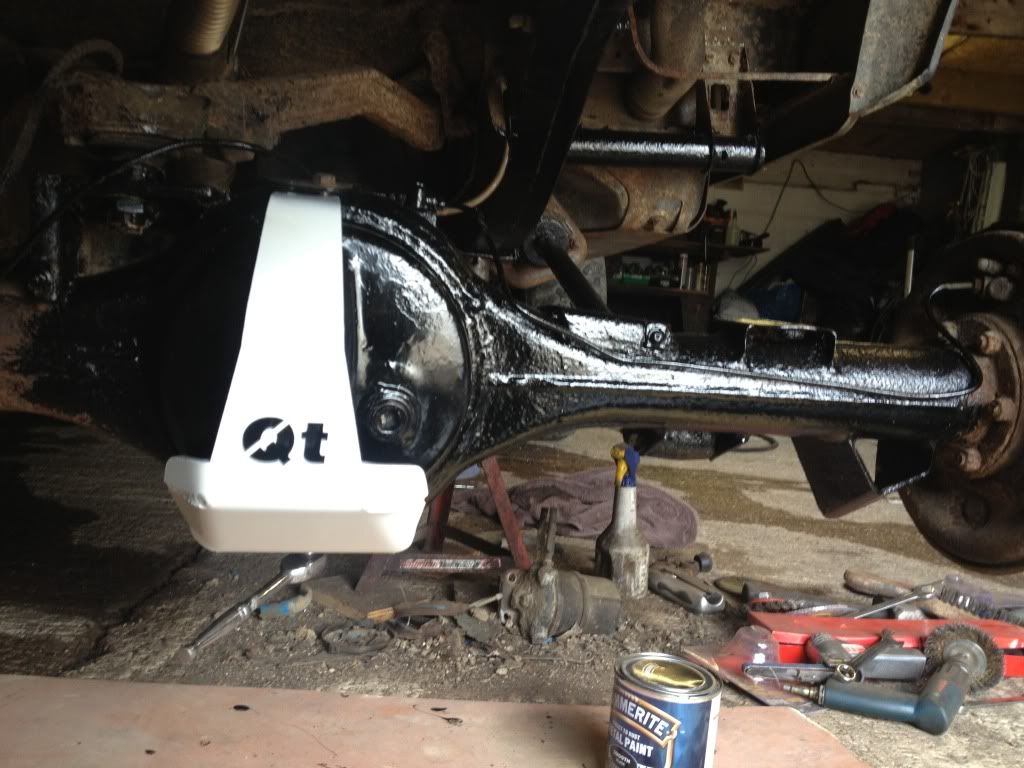

After
Got new springs and some poly bushes coming to lot back on so will do other side this week.
I've got the dreaded dvla inspection on Saturday to get the v5 details changed not looking forward to that
Before
After
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
Forgive me fer askin but do you fancy selling the 2.5 4 pot diesel engine if its complete ?
