I'll take a pic in the light tomorrow :)

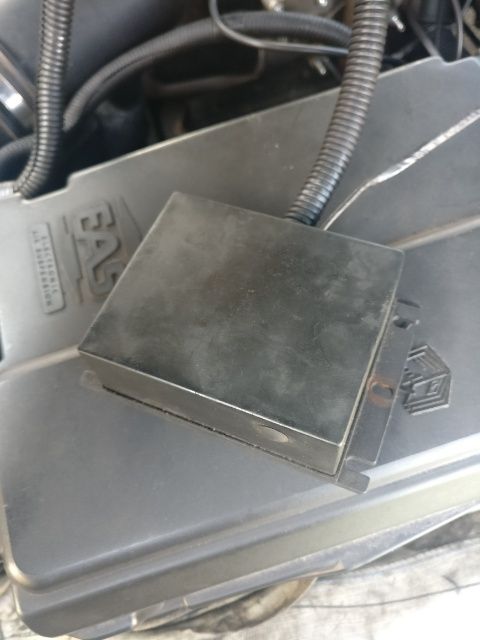

The Black Box!! I was mistaken, it connects to a purple wire and a grey wire. A purple/black and a grey/black are joined together and then disappear back into the loom but i can't see what colour that combined wire joins to

The Black Box!! I was mistaken, it connects to a purple wire and a grey wire. A purple/black and a grey/black are joined together and then disappear back into the loom but i can't see what colour that combined wire joins to
View attachment 246100
think i've figured it out! the wires are joined further into the loom to orange/brown. pretty sure this is a complicated box for turning the petrol injectors off!!
why does it need to be complicated, would a simple relay not suffice?
