Ok EAS fault.
Why won't this clear as it was working before

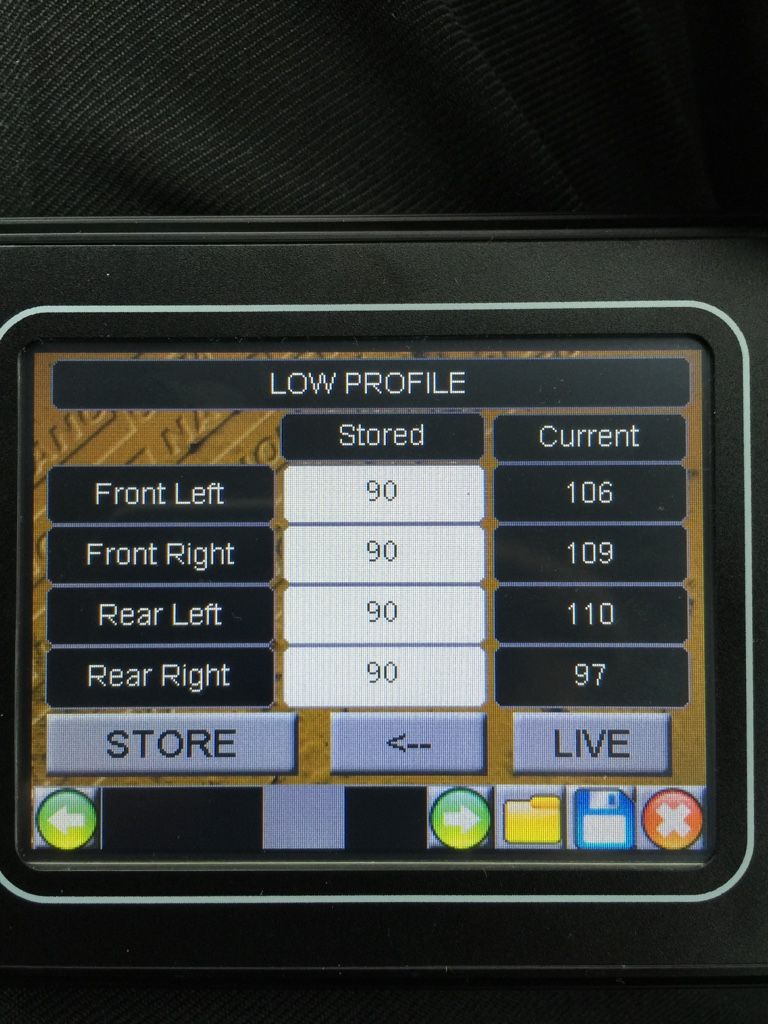

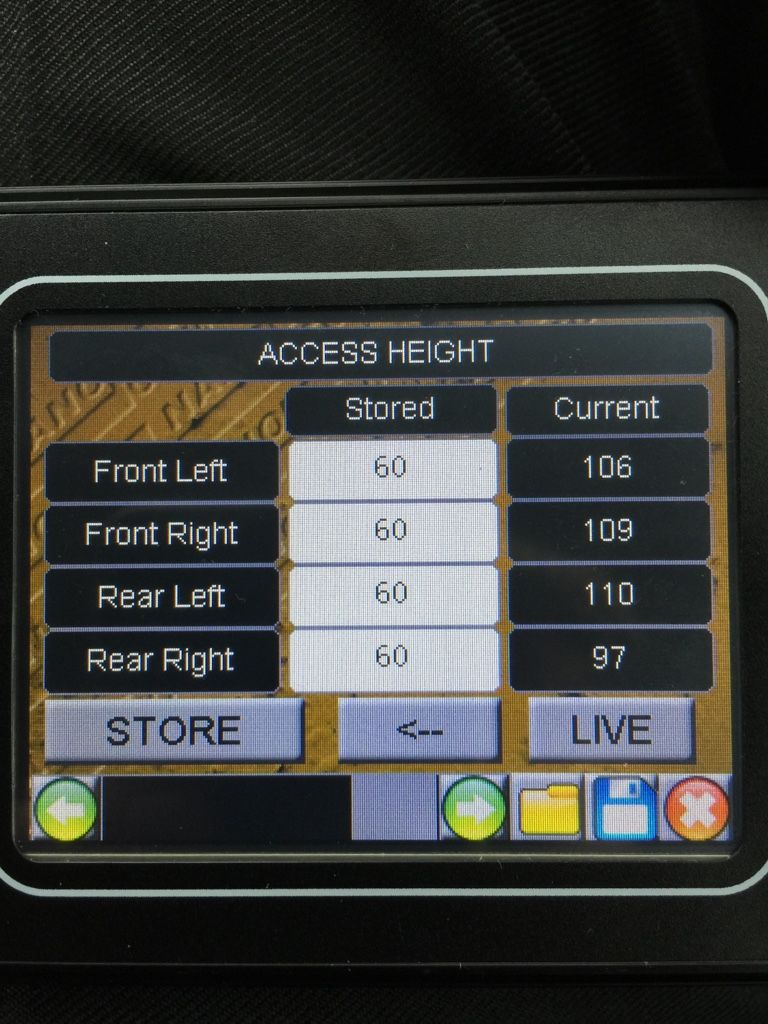

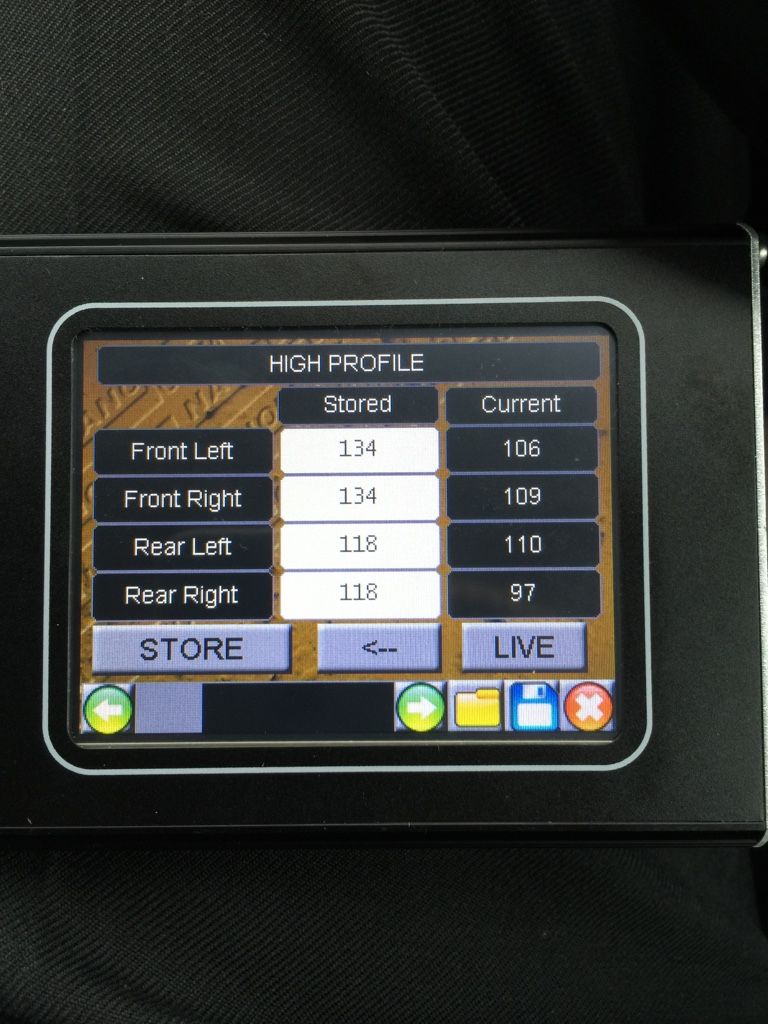

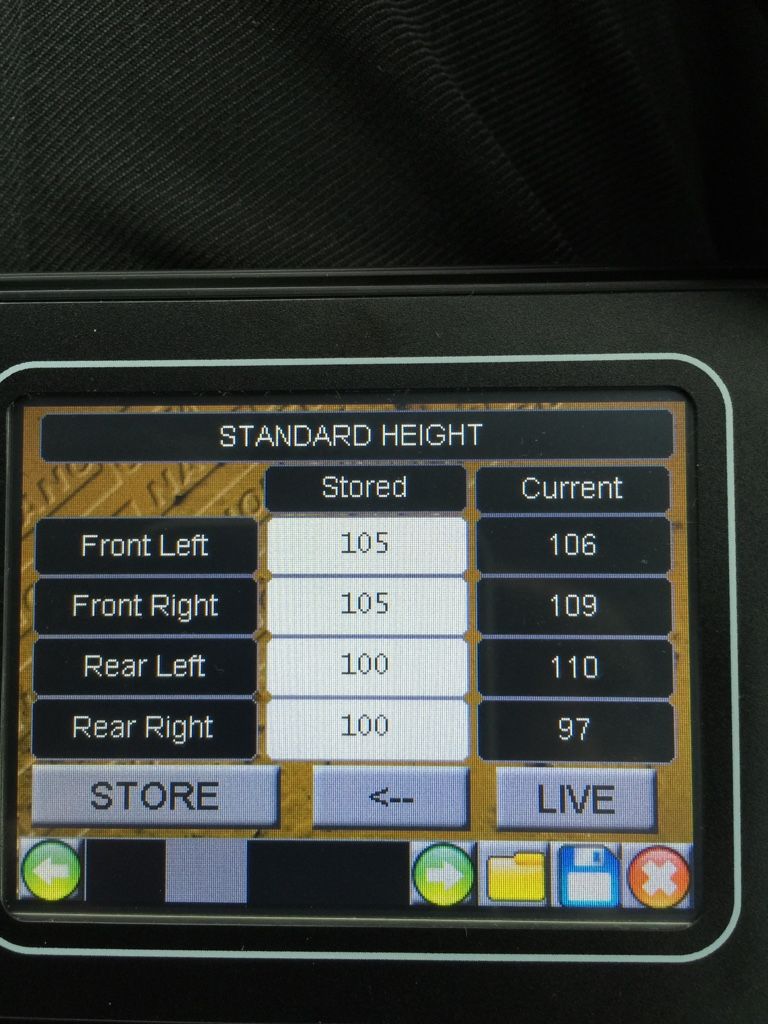

Here are the setting I have
View attachment 67925
View attachment 67926
View attachment 67927
View attachment 67928

Are these correct?
The readings appear to all be the same for all height settings, so it is not moving to the different heights. I do not know how you command the different heights from a Nanocom as I use the EAS software.
You should be able to command the car to go to the different heights from the Nanocom, you may need the engine running to do this, then the current readings should approximate to the stored values for each height.

Last edited:
I may have had a fiddle

Ok send to high setting on dash then go to high setting on Nano. Press live and readings should approximate stored. Do the same for all other settings. To go to motorway height press EAS lock button then you can select motorway. Check what is stored against each heights live figure.

Ok send to high setting on dash then go to high setting on Nano. Press live and readings should approximate stored. Do the same for all other settings. To go to motorway height press EAS lock button then you can select motorway. Check what is stored against each heights live figure.
Can you not send the EAS to the different heights from the Nanocom? You can from the RSW EAS software

The readings appear to all be the same for all height settings, so it is not moving to the different heights. I do not know how you command the different heights from a Nanocom as I use the EAS software.
You should be able to command the car to go to the different heights from the Nanocom, you may need the engine running to do this, then the current readings should approximate to the stored values for each height.

the car does move up and down
the way I understand this is that the values are the target values.

all I have done is the following for example

front right =105
front left = 110

so all I have done is set both front left and front right to the same value
as the way I see it the car would sit uneven?:monitor_punch:

the car does move up and down
the way I understand this is that the values are the target values.

all I have done is the following for example

front right =105
front left = 110

so all I have done is set both front left and front right to the same value
as the way I see it the car would sit uneven?:monitor_punch:

Not necessarily :)

the car does move up and down
the way I understand this is that the values are the target values.

all I have done is the following for example

front right =105
front left = 110

so all I have done is set both front left and front right to the same value
as the way I see it the car would sit uneven?:monitor_punch:
Wrong. The sensors are not very precise, within limits, the actual number does not matter, what matters is the measured height from the wheel centre to the wheel arch, the numbers are adjusted to achieve the correct height.
A difference of 5 side to side is not unusual when the measured height is correct.

the car does move up and down
the way I understand this is that the values are the target values.

all I have done is the following for example

front right =105
front left = 110

so all I have done is set both front left and front right to the same value
as the way I see it the car would sit uneven?:monitor_punch:

Does not work that way, make sure you write down ANYTHING you change BEFORE you change it or you are in for a world of pain.

Ow [emoji20]
Yet again I bow down to the masters
So do I just leave them now? Or try and find out the correct settings

Me thinks I should stick to making the tea

I think this is all I'm good for [emoji27]

I do think it was mentioned earlier that you should not play with it until you knew what it did. Checking for faults and listing what you could not clear, then asking about them is one thing. Changing settings when you do not know the consequence of the change is quite another.

I'm sorry I'm a bad friend [emoji27]
It was just there and the unit talked to me. (Change me) it said. I couldn't resist arrrrrr. [emoji16]

I'm sorry I'm a bad friend [emoji27]
It was just there and the unit talked to me. (Change me) it said. I couldn't resist arrrrrr. [emoji16]

And if it said don't go to the lap dance club tonight go to a gay bar, you would do that. Or of course the other way round as i do not know which direction you lean to. :D:D:D

I do think it was mentioned earlier that you should not play with it until you knew what it did. Checking for faults and listing what you could not clear, then asking about them is one thing. Changing settings when you do not know the consequence of the change is quite another.

But he's a proper man Tony, never read the manual.:D:D:D
