Option one light repeats the front light etc - just run feeds from the bulb connectors, same same, you can still use a TD5 lamp housing just the switch will be redundant as you will wire direct to pins, 2 wires only.

Option two (aka the 'johnny crimpset + the scotchclips" verison:p ) wire up via fuse straight to permanent live as a stand alone light.

The alarm ECU (BCU) detects a door is open and tells the ECU to grant an earth path for the light)

or to be more specific......

To determine when to provide an interior courtesy lamps enable output, the BCU checks the following input conditions:
A Ignition state.
B Driver’s door open.
C Passenger or rear door open.
The courtesy lamps operate at full brightness when they are first switched on. The BCU then gradually dims the lamps(fade-out) before completely switching them off.
Fade-out occurs over a period of two seconds following the logical control signal to turn off the lights.
When a door is opened, the BCU provides earth paths from the interior lamps.


The following table lists the courtesy lamps operation and duration for holding the lamps on that occurs after the BCU has detected a condition that signals the courtesy lamps should be switched on:

Control signal Additional conditions Duration
Door open - 10 minutes
Unlock signal from remote transmitter All doors closed and ignition switch not in position III - 1 minute
OR
Unlock signal from the driver’s door lock All doors closed and ignition switch not in position III - 1 minute

Ignition switch turned from position II or III to position 0 - All doors closed - 1 minute

Door changed from open to closed All other doors closed and ignition switch not in position III - 15 seconds them dim out.

Ignition switch in position III - Timer cancelled
OR
BCU receives a lock command - Timer cancelled


FFS its a truck not a space shutttle!! why make it so complicated?

Answer- mass produced electrics for posher vehicles in the range........ Discrubbery & Mange Rover


So in summery my friend, eat more carrots and don't drive at night...............:D

Bloody hell hahaha

Cheers! I rewire it today as a slave i think see how that goes! Mainly as itll be the quickest

Thank you :) some good insight but yeah way too over done lol

https://www.ebay.co.uk/itm/DC-0-200...089055?hash=item27dd18691f:g:fs4AAOxydlFSzUi1

https://www.ebay.co.uk/itm/Digital-Multimeter-Charge-Discharge-Tester-Battery-DC-0-90V-0-20A-Volt-Amp-Meter/232941749348?_trkparms=aid=555018&algo=PL.SIM&ao=1&asc=20140122125356&meid=35bbca56176c4e26baf395e2bb87db97&pid=100005&rk=3&rkt=12&sd=232941753068&itm=232941749348&_trksid=p2047675.c100005.m1851


'Banks-Bait' ;-):p:p:p

Thinking of fitting ( above) something similar soon, will keep you posted I know you like this sort of thing, hope you dont mid a few pics n links on yer thread!

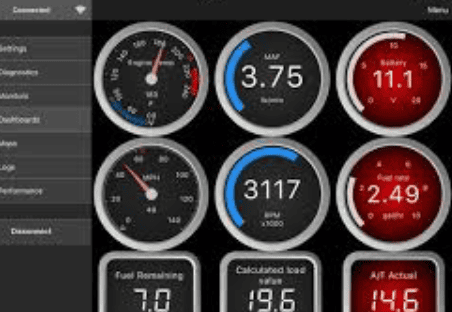

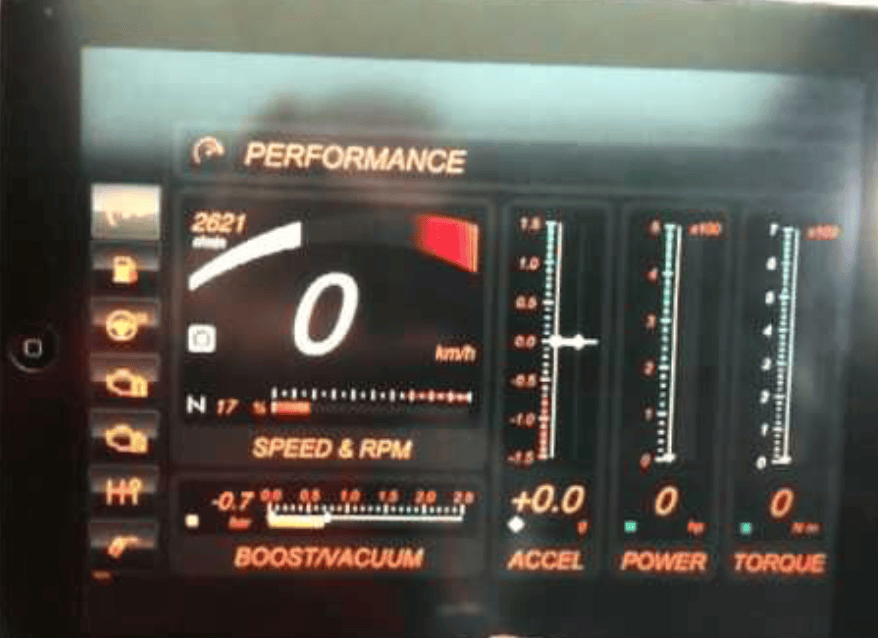

Also just researching an OBD live reader display for the dash, provides all the sensor blocks info live as you drive, you can get one that pops it all on yer phone / ipad which might be an option, but prefer a dedicated small display etc see pics you get the idea! (if you have display with reversing cam could be made to go straight into that.....

Screen Shot 2018-12-28 at 12.07.30.png
Screen Shot 2018-12-28 at 12.07.51.png
Screen Shot 2018-12-28 at 12.08.04.png

Quite cool! I went for a basic votlage output one

I doubt that OBD system will work as the TD5 isnt fully OBDII compatible! TD5inside do an "infodash" which does exactly that, roughly £200 though!

Quite cool! I went for a basic votlage output one

I doubt that OBD system will work as the TD5 isnt fully OBDII compatible! TD5inside do an "infodash" which does exactly that, roughly £200 though!
know wot you mean, but you do get some live data coolant temp, inlet temp etc. worth a go for a few yen!

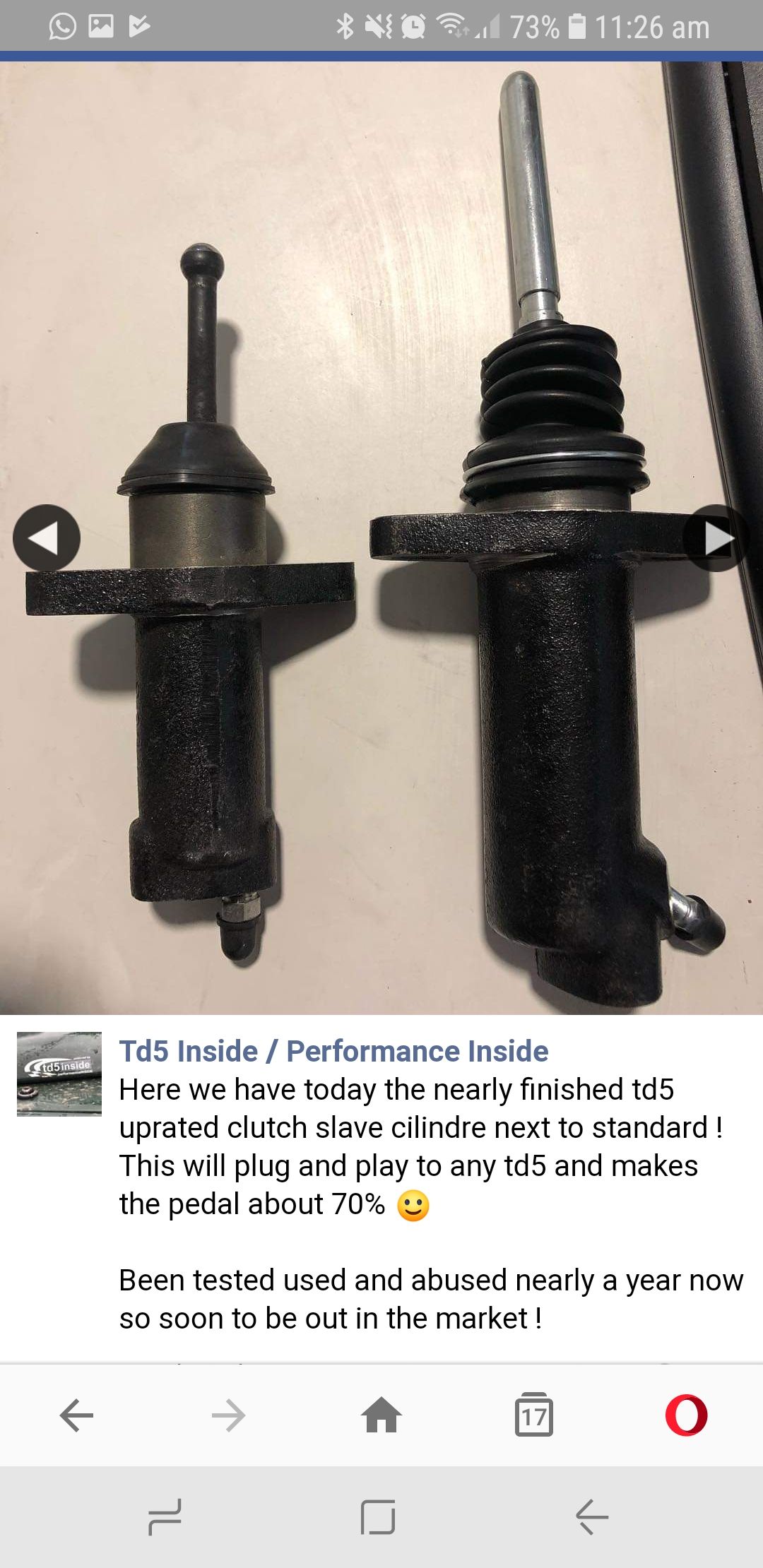

Colour me excited! 70% lighter pedal? Yes please!

View attachment 166949

With any luck its no where near the price of a red booster....
Or the total nightmare of fitting and setting up! sounds too good to be true but like yourself im in!
PS re the clutch thing on the other thread, are you fitting the LOF yourself?
I have got to do myne sooner or later so be good to chat...

Quite cool! I went for a basic votlage output one

I doubt that OBD system will work as the TD5 isnt fully OBDII compatible! TD5inside do an "infodash" which does exactly that, roughly £200 though!
Just thought, not sure if you remember me saying about the Delphi Diag I have? (think its on me thread) it really does do everything for the defender you have two options via OBD or via its own diag interrogation, of course the latter reads all the data banks and does the ECU stuff, but via the OBD i still get a large amount of live data, happy to give you a demo if we ever get the time!

Or the total nightmare of fitting and setting up! sounds too good to be true but like yourself im in!
PS re the clutch thing on the other thread, are you fitting the LOF yourself?
I have got to do myne sooner or later so be good to chat...

Yes. Got a LUK DMF, Extreme Spec kevlar clutch + extreme spec release bearing + a few other bits.

Apparently its going to be sub £200!

Hit and miss day today. Tried to get the Boomslang loom fitted which didnt go well... I'll come back to that another day.

I did run a new earth from the bulkhead earth point behind the expansion bottle direct back to the battery which should help things.

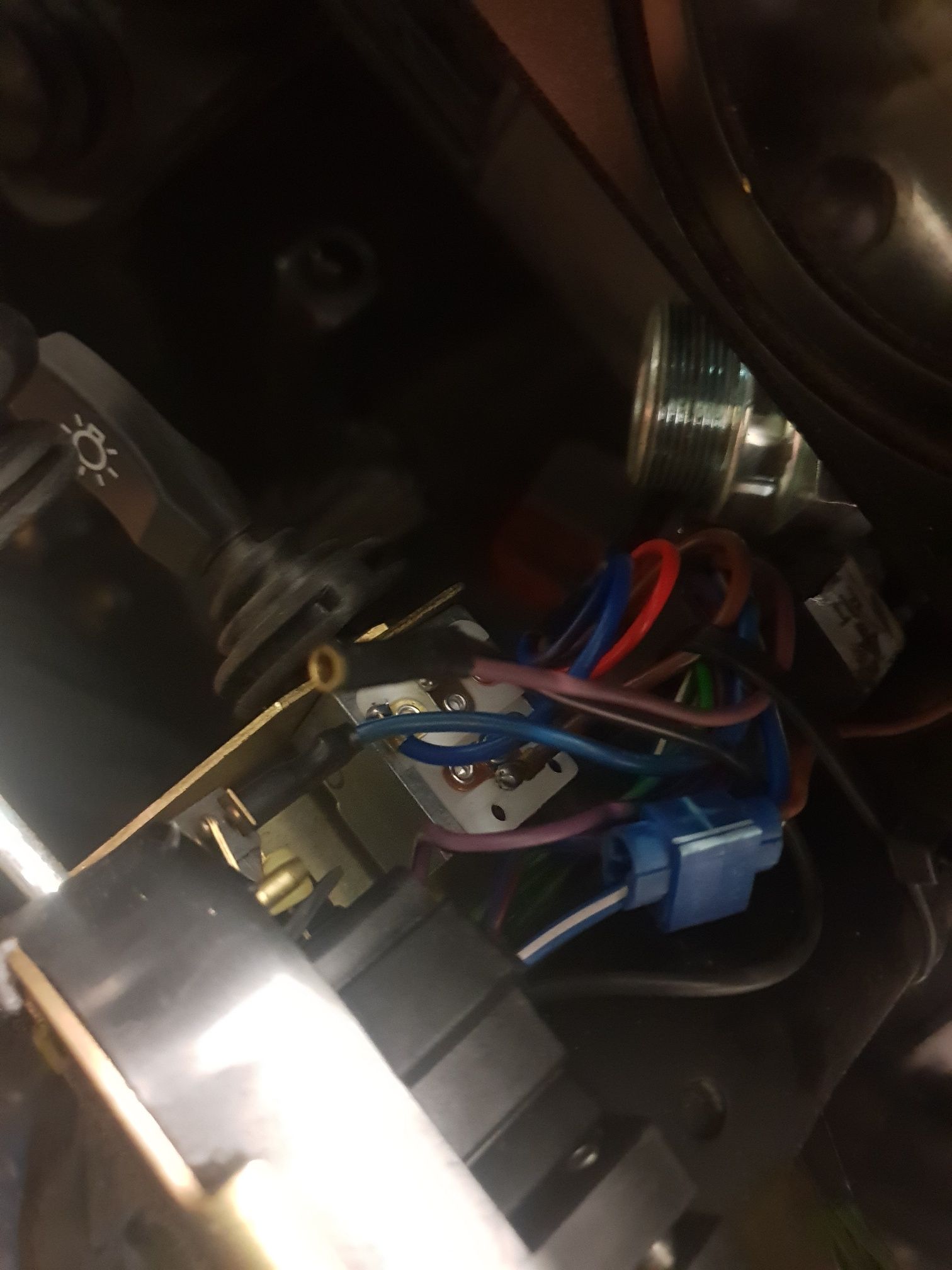

Finally found out why I lost headlights the other day! One of the connectors had come loose and was barely touching the high beam stalk. Refitted so shouldnt happen again!
