Wiring in Durite gauges

Firstly, let me say I am absolutely clueless about auto electrics. So, now we know where we stand going forward

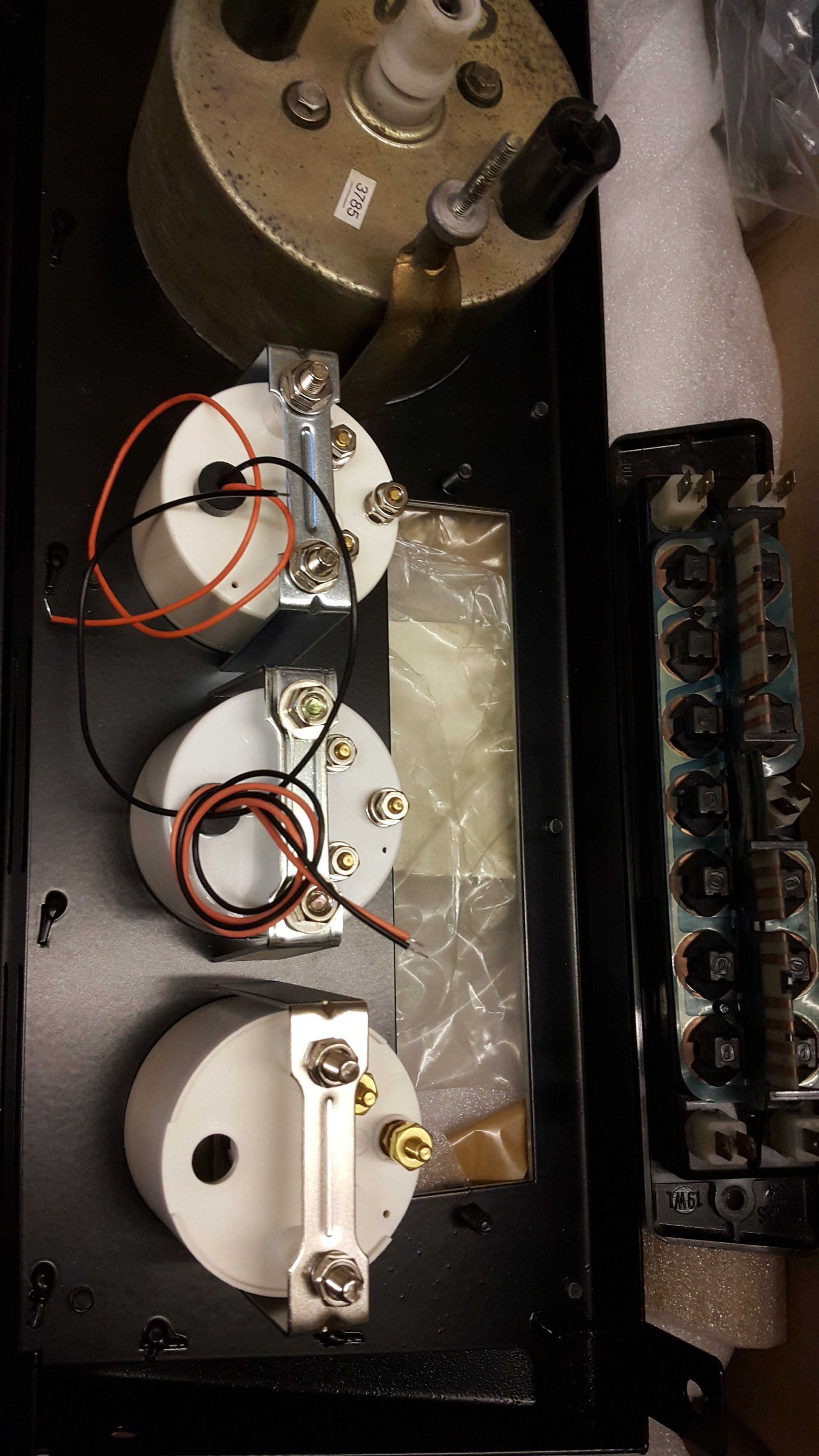

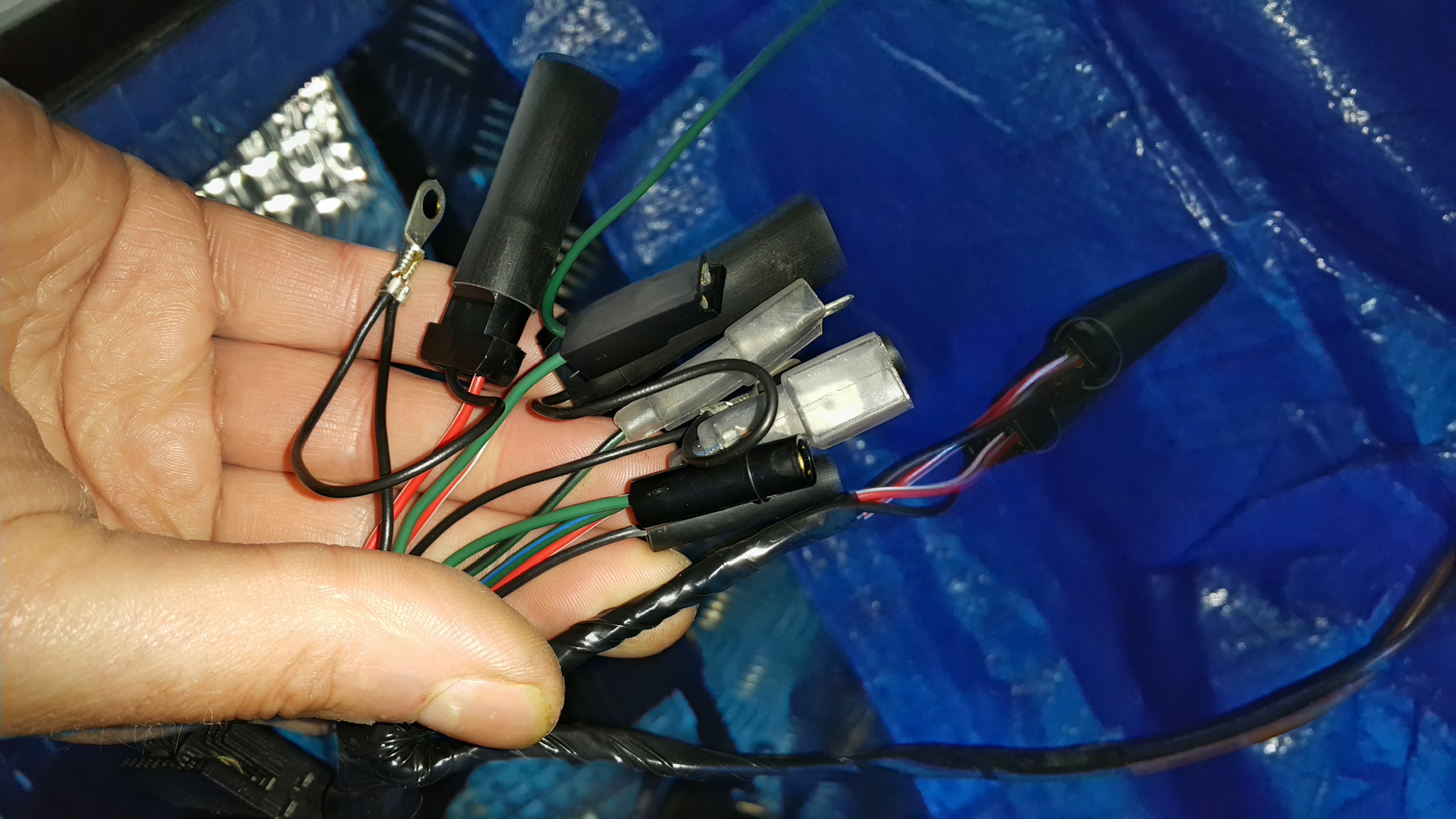

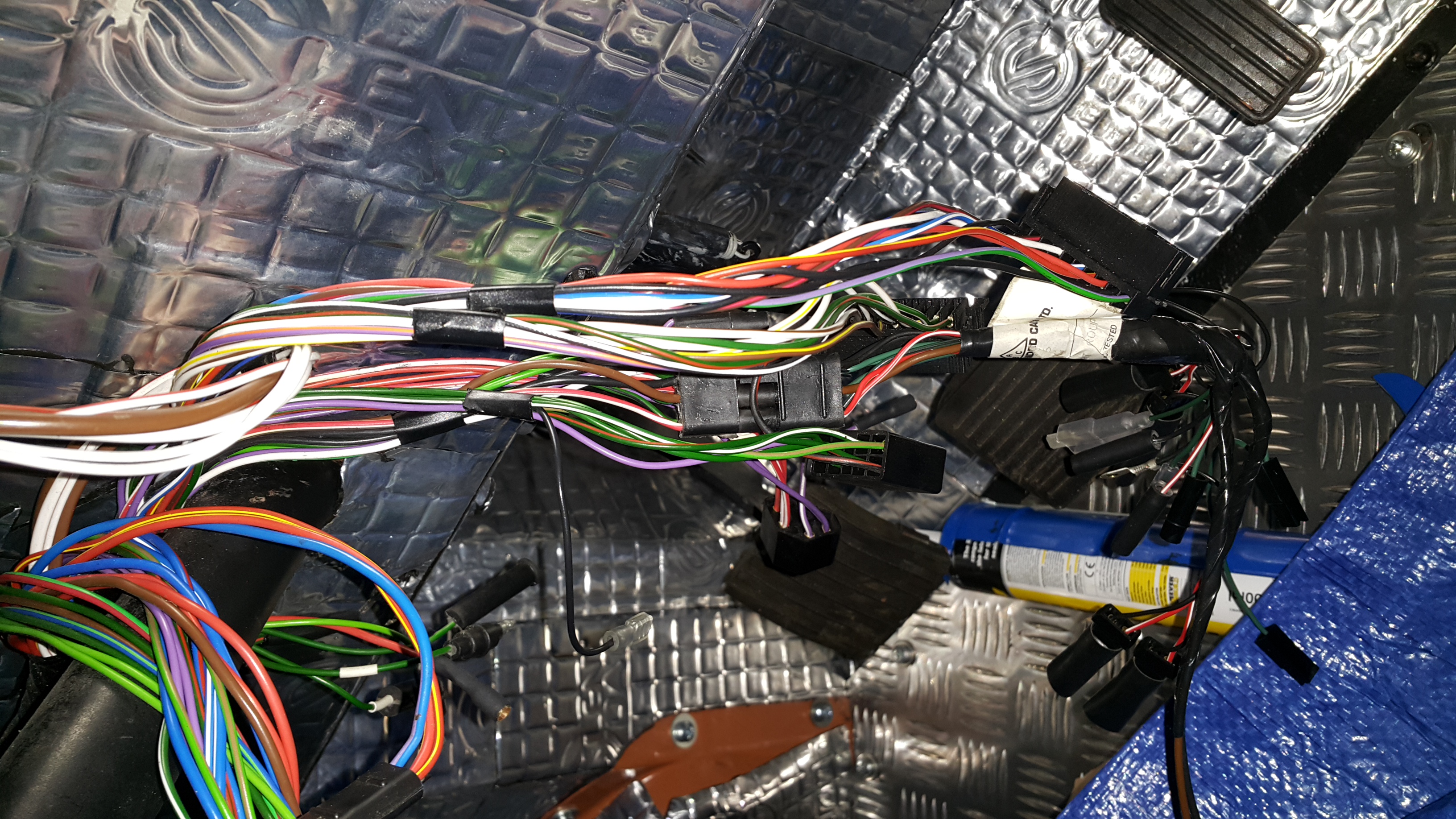

I have bought some Raptor Engineering stuff and have gone for new Durite gauges. Typically the back of the gauges are as the photo. Question is, what do I have to do to get the wiring loom pictured to match up with the wires on the gauges or vice versa?

pay an auto electrician.

label all the wires / connectors before you........ oh, oh dear, never mind.

Can I just ask why your going into the loom. Why not run a positive feed in series and link the earth the the body, then for the lights come back in from the positive to each gauge and run a wire to either the dash lights or light switch, in case you can always run a fuse on the positive feed to the gauges.

Of course this all depends what the gauges are for.

This is a link to my old thread about fitting a Raptor instrument cluster c/w Durite gauges, no wiring details sorry to say (didn't see the point as it was all a straight swop) but shows it is easily done.
https://www.landyzone.co.uk/land-rover/raptor-defender-binnacle.277404/page-3

Grezzer said:

Can I just ask why your going into the loom. Why not run a positive feed in series and link the earth the the body, then for the lights come back in from the positive to each gauge and run a wire to either the dash lights or light switch, in case you can always run a fuse on the positive feed to the gauges.

Click to expand...

Sorry, can you put that into English please? You did read my opening line to this thread didn't you?

Litch said:

This is a link to my old thread about fitting a Raptor instrument cluster c/w Durite gauges, no wiring details sorry to say (didn't see the point as it was all a straight swop) but shows it is easily done.
https://www.landyzone.co.uk/land-rover/raptor-defender-binnacle.277404/page-3

Click to expand...

Thanks Litch, had a good read through. So how did you get the feed to each gauge for their lights?

Have a look ere for the wiring colours: http://www.autoelectricsupplies.co.uk/cms/files/colour_code_for_vehicle_wiring_-_new_order_2.pdf
It should be "just" a matter of fitting connectors onto the new gauges and matching up the correct colours.

Karls said:

Thanks Litch, had a good read through. So how did you get the feed to each gauge for their lights?

Click to expand...

I just put a connector onto each of the fly-leads and then put them into multi-way bullet connectors, from there I ran a single +VE & -VE to the relevant connector that fed the old back-lights.
